LUTZE 750510 919930

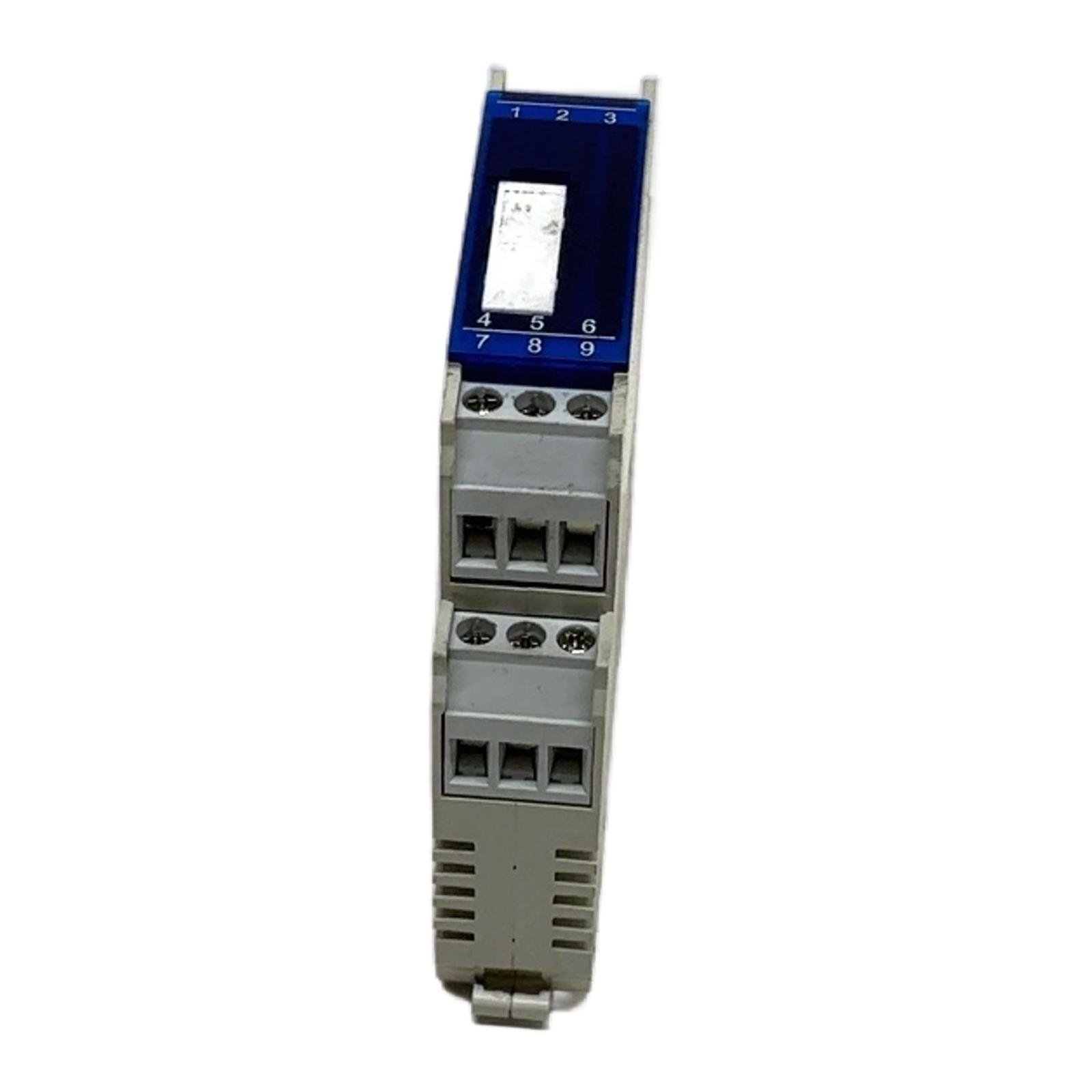

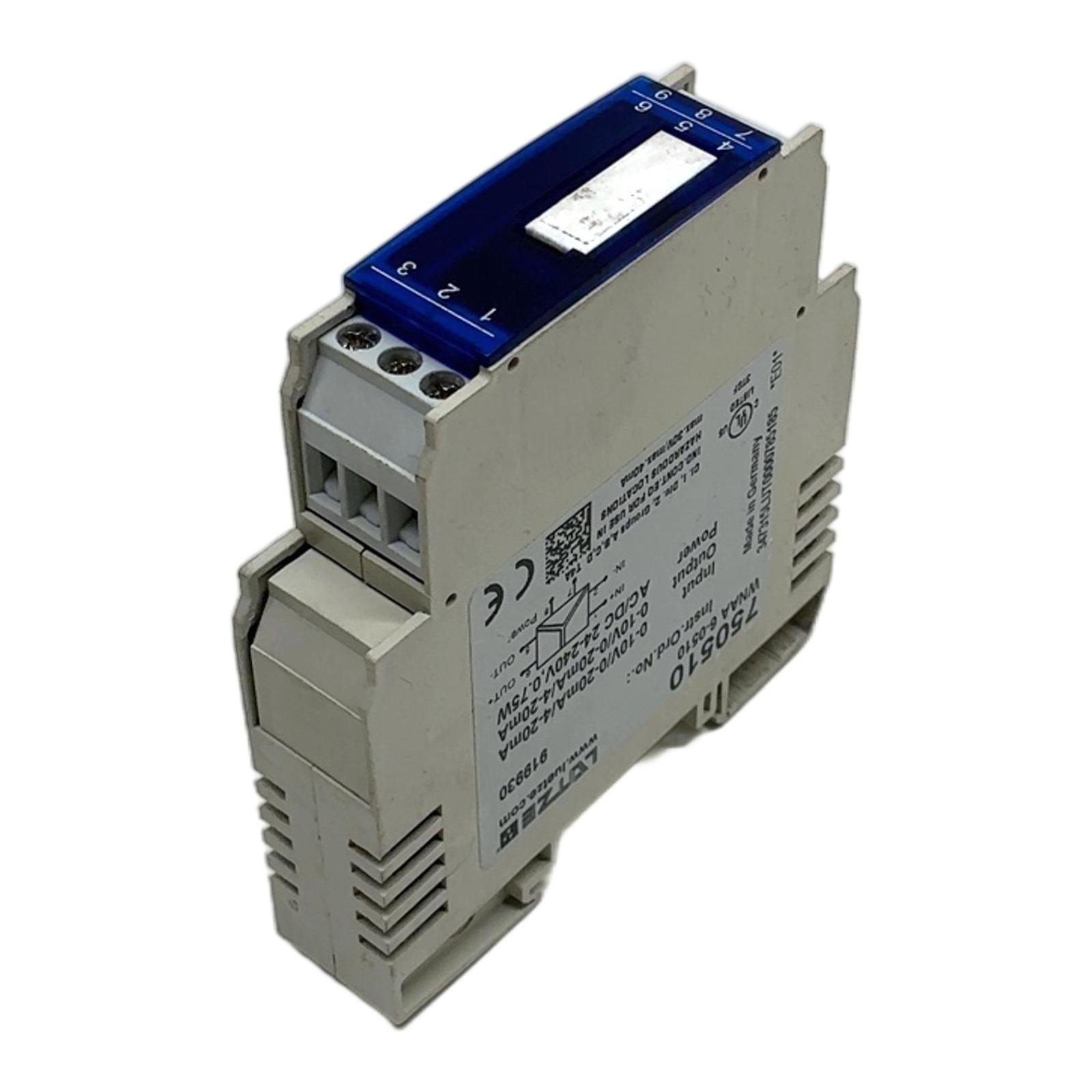

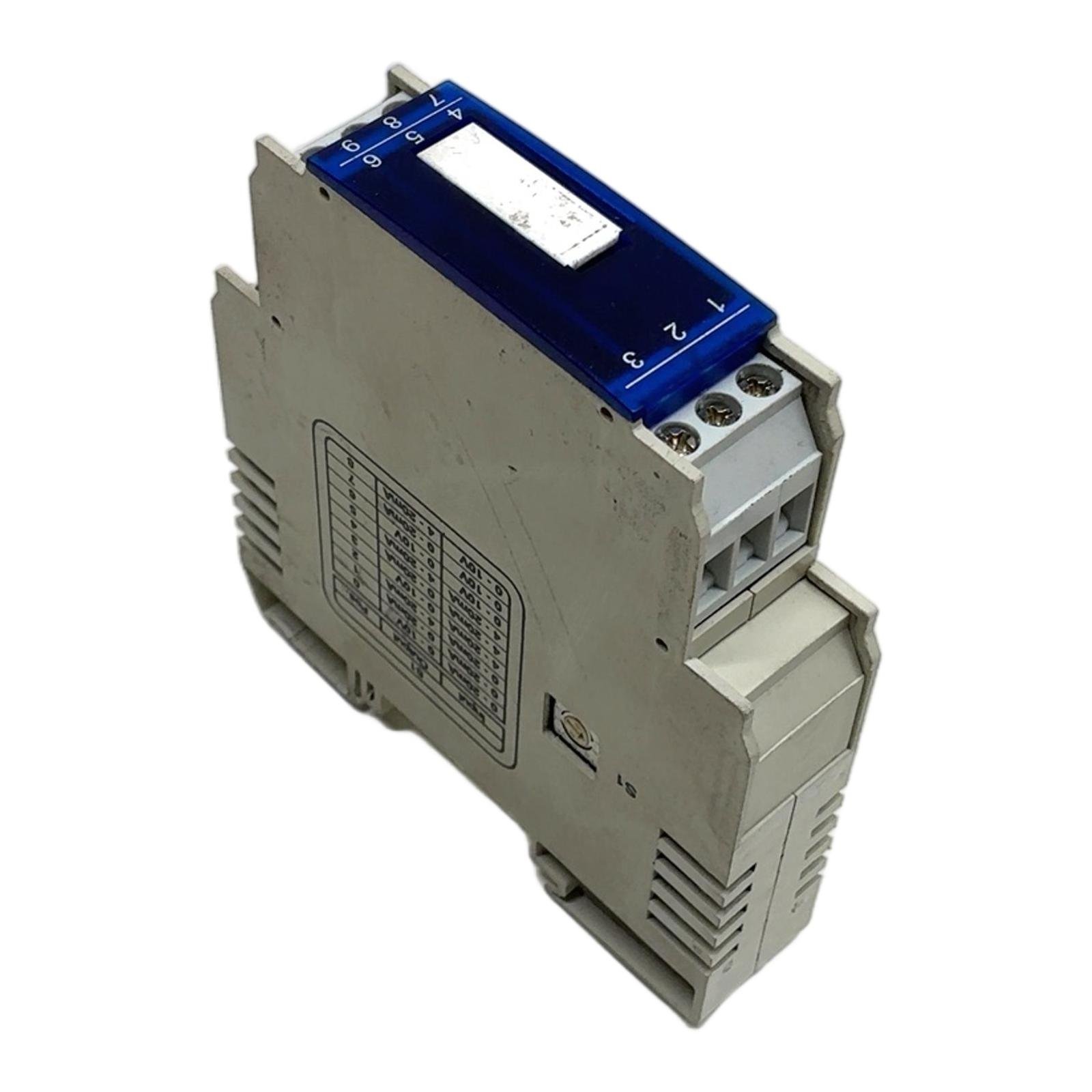

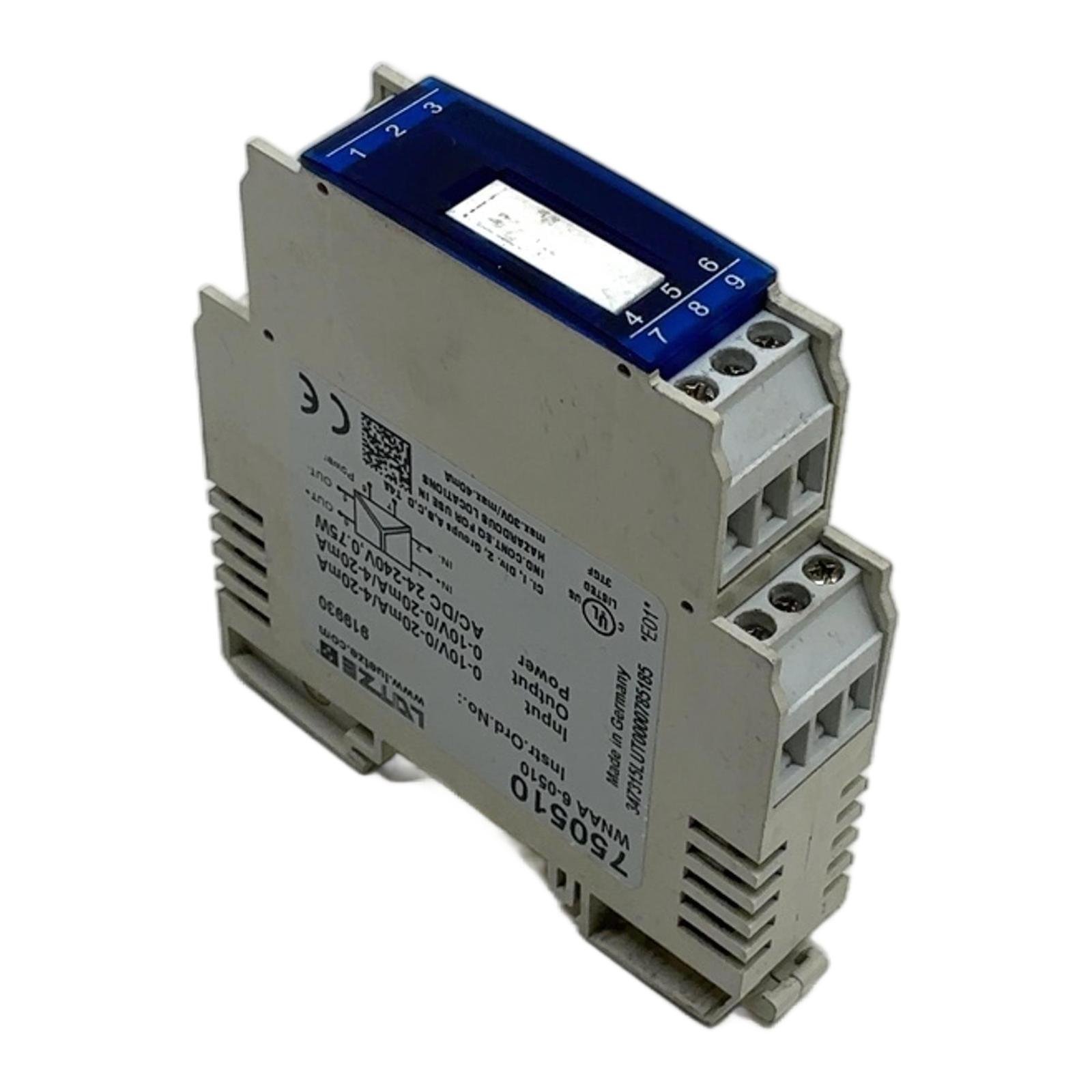

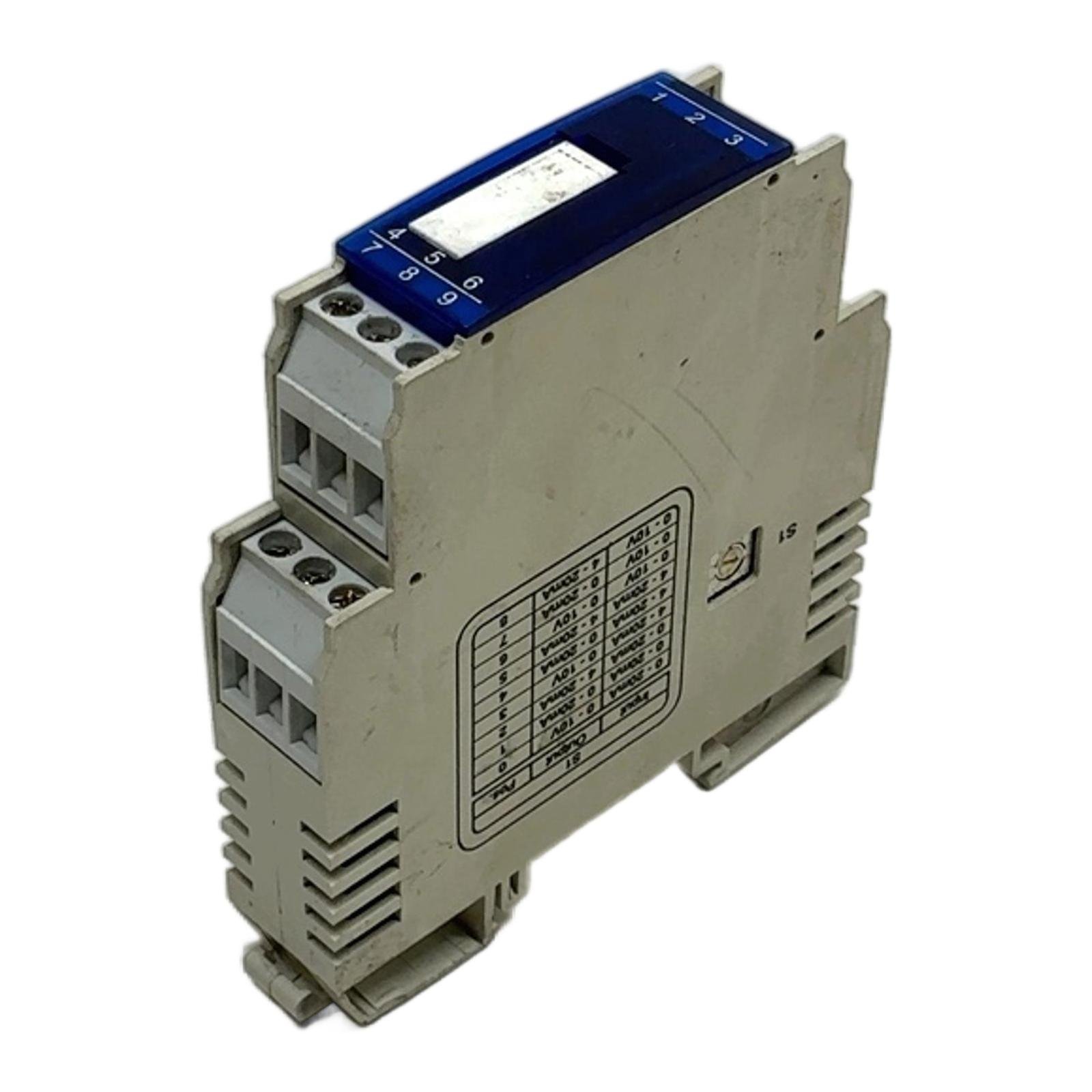

LUTZE Universal Signal Converter 750510 Description The LUTZE 750510 is a highly reliable universal signal converter designed for industrial applications. It provides galvanic isolation and conversion for standard analog signals (voltage and current). With its wide-range power supply and easy DIP-switch configuration, it offers maximum flexibility for system integrators. This module is ideal for eliminating ground loops and protecting sensitive control equipment. Specifications Manufacturer: LUTZE Model: 750510 Order Number: 919930 Power Supply: 24-240V AC/DC, 0.75W Input Signals: 0-10V, 0-20mA, 4-20mA Output Signals: 0-10V, 0-20mA, 4-20mA Isolation: 3-way galvanic isolation Mounting: DIN-rail Configuration: Via DIP switches Label Info Type: 750510 WNAA: 6-0510 Instr.Ord.No.: 919930 Certification: cULus Listed 3TGF, CE Hazardous Location Rating: CI. I, Div. 2, Groups A,B,C,D T4A Application This signal converter is suitable for a wide range of applications in process control and factory automation, including signal isolation in PLC systems, level and pressure measurement, and motor speed control feedback loops. Country of Origin Made in Germany. CO2 Impact By choosing this pre-owned LUTZE 750510, you are saving approximately 4.8 kg of CO2 emissions compared to purchasing a new one. This sustainable choice supports the circular economy and reduces industrial waste. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Question?How do I configure the input and output signal types on the LUTZE 750510? Answer:Configuration is done via the S1 DIP switches located on the side of the unit. A table printed on the device shows the correct switch positions for each combination of input (e.g., 0-10V, 4-20mA) and output signal type. No special software is required. Question?What is the galvanic isolation rating between the input, output, and power supply circuits? Answer:The LUTZE 750510 features 3-way galvanic isolation up to 4 kV. This ensures that the input, output, and power supply circuits are electrically separated, which protects against ground loops and transient voltage spikes. Question?Can this universal converter be used in hazardous locations as indicated by the UL listing? Answer:Yes, it is UL listed for Class I, Division 2, Groups A, B, C, D hazardous locations. When installed in these environments, it must be used within a suitable enclosure and connected according to the specific control drawing requirements, ensuring voltage and current limits (max. 30V/max. 40mA) are not exceeded. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: March 13, 2026
