SKF 6310-2Z/C3

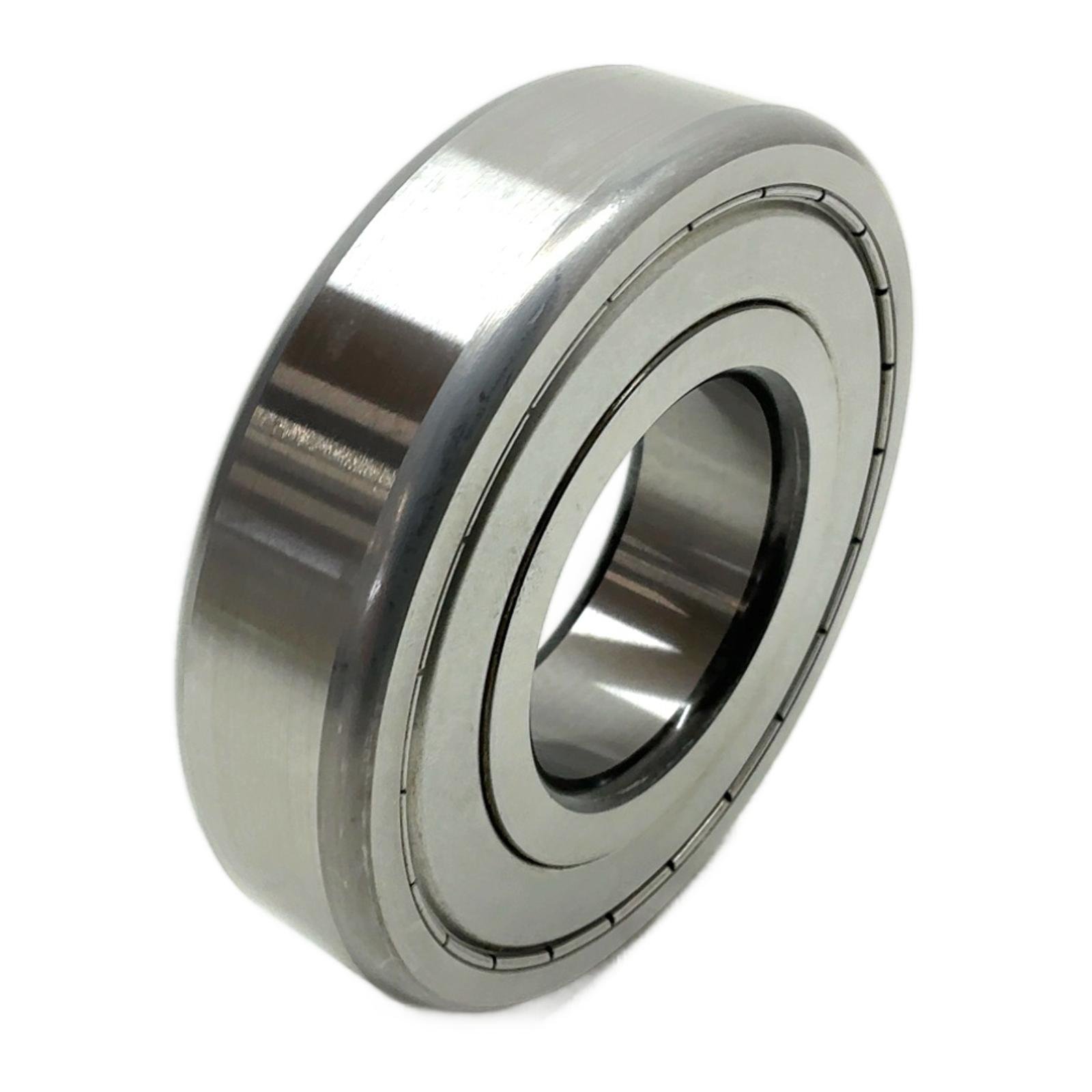

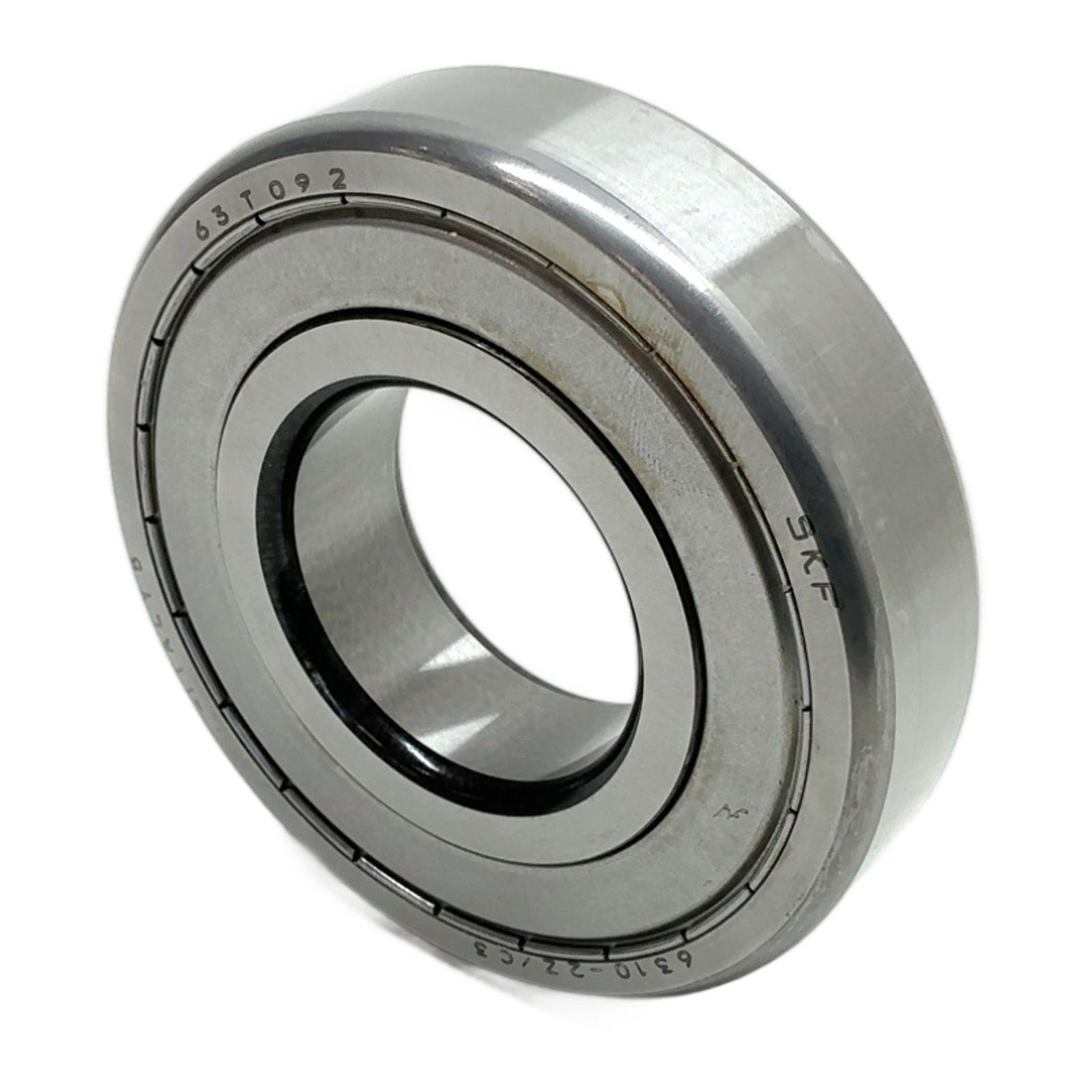

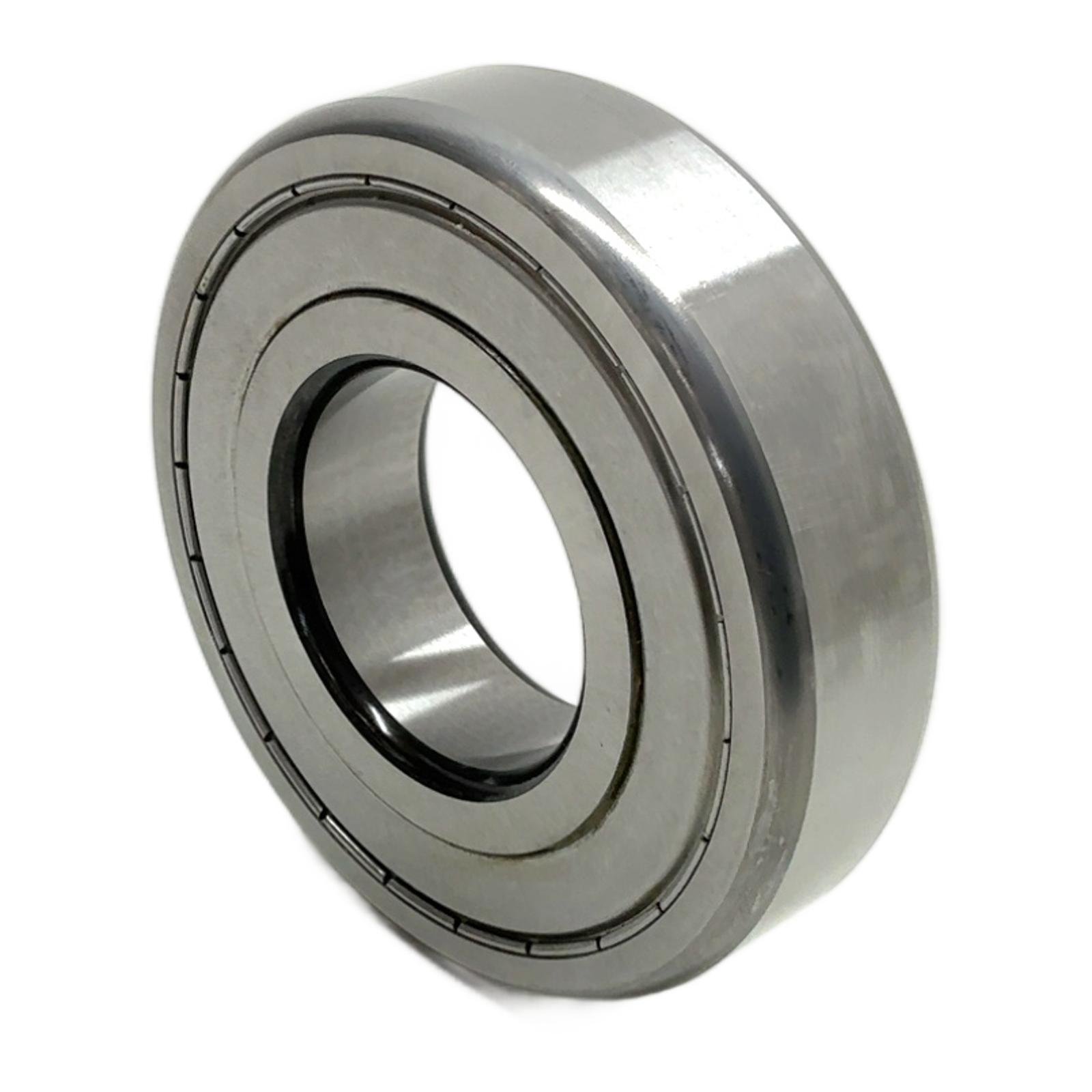

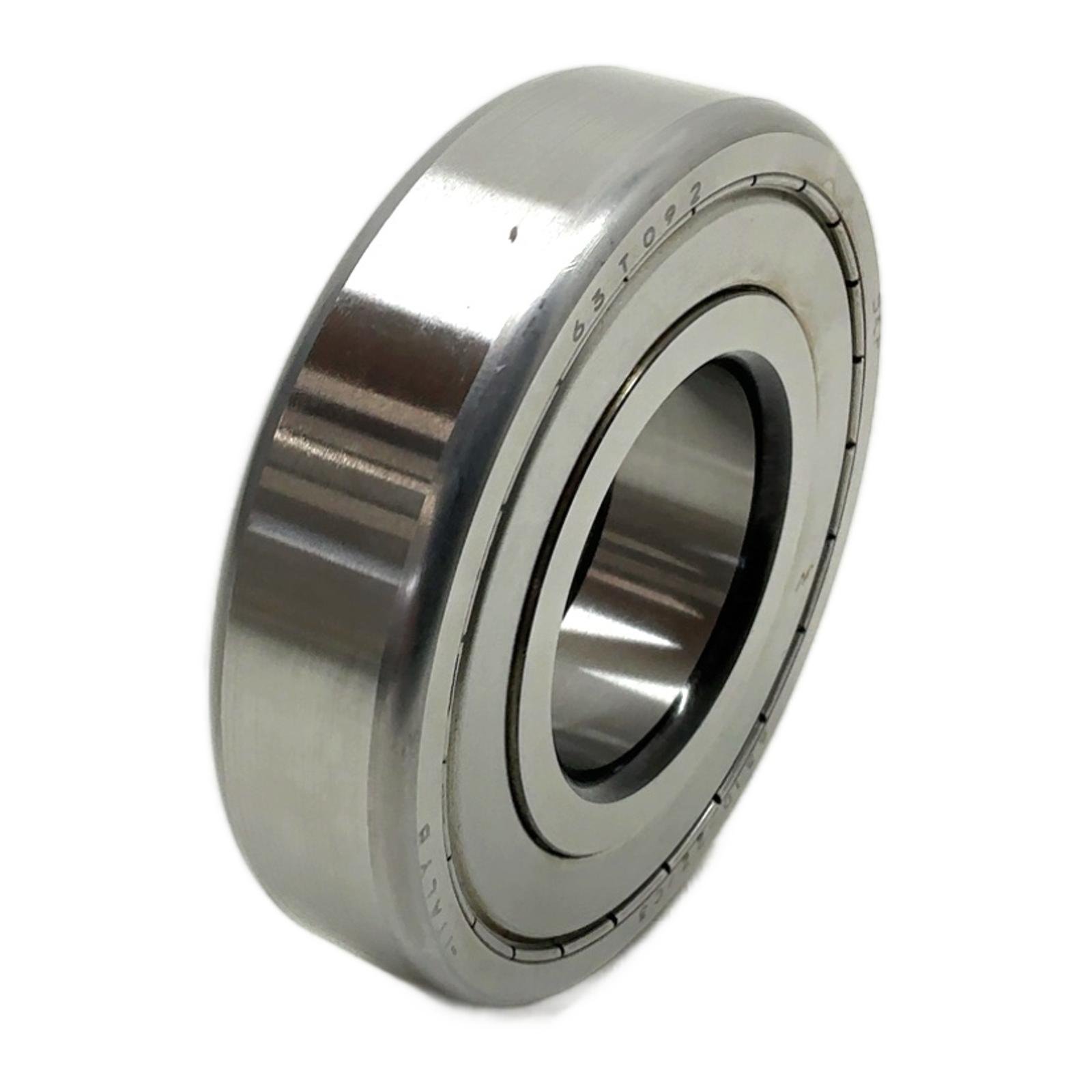

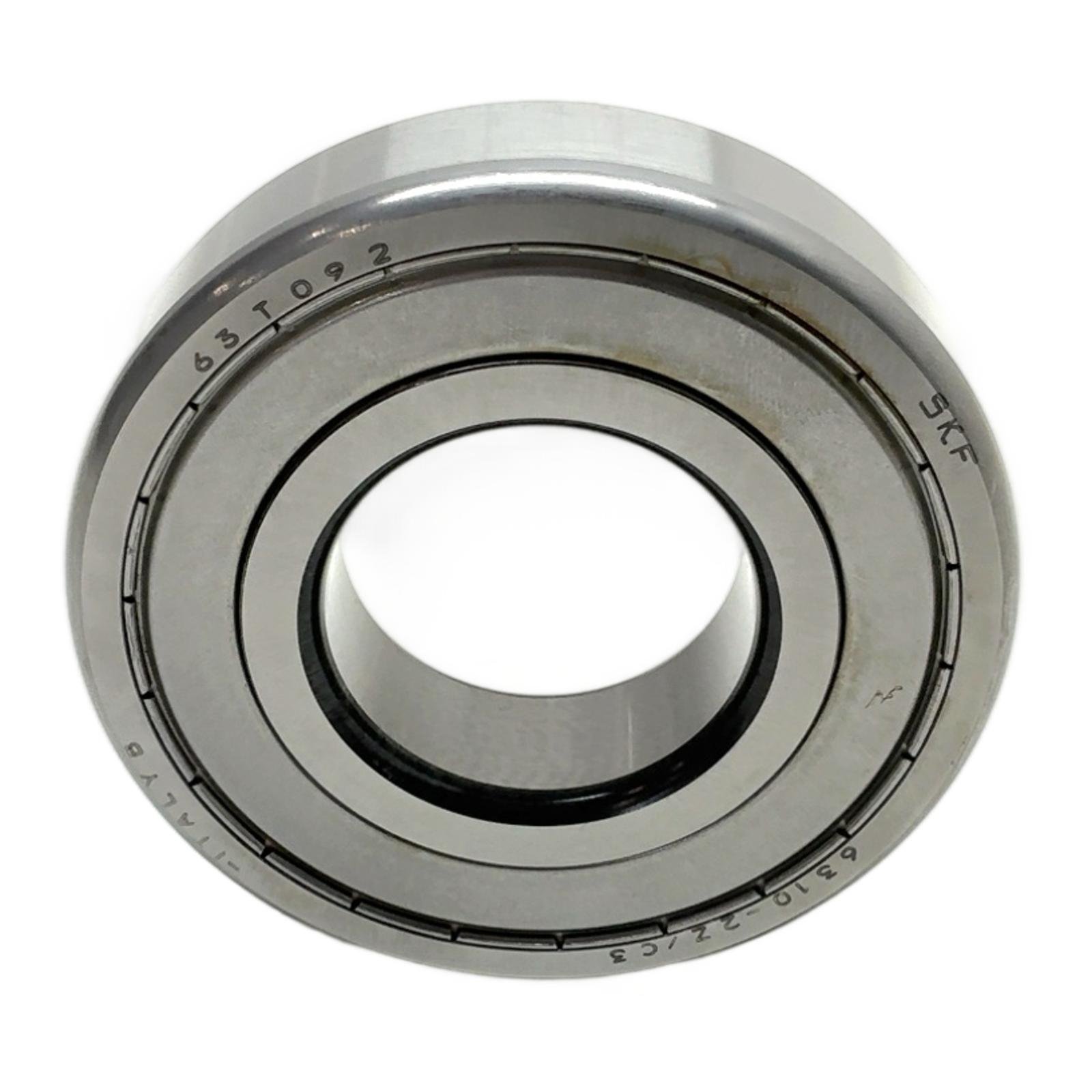

SKF 6310-2Z/C3 Deep Groove Ball Bearing Description The SKF 6310-2Z/C3 is a single-row deep groove ball bearing, a versatile and widely used type of rolling bearing. This model features two metal shields (2Z) to protect against the ingress of dirt and solid contaminants. The C3 internal clearance is greater than standard, making it suitable for applications with high speeds or significant temperature differences between the rings. It is designed to accommodate both radial and axial loads in both directions. Specifications Manufacturer: SKF Part Number: 6310-2Z/C3 Bore Diameter: 50 mm Outside Diameter: 110 mm Width: 27 mm Sealing: Shield on both sides (2Z) Internal Clearance: C3 (Greater than Normal) Weight: approx. 1.09 kg Label Info Brand: SKF Model: 6310-2Z/C3 Application Deep groove ball bearings like the 6310-2Z/C3 are used in a wide array of industrial applications, including electric motors, gearboxes, pumps, agricultural machinery, and conveyor systems where reliability and performance are critical. Country of Origin Made in Italy. CO2 Impact By purchasing this reused bearing, you are avoiding the emission of approximately 2.18 kg of CO2, which is associated with the production of a new unit. This is a direct contribution to a more sustainable industrial practice. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What does the ‘C3’ suffix in 6310-2Z/C3 signify?The ‘C3’ designation indicates that the bearing has a radial internal clearance that is greater than the ‘Normal’ (CN) standard. This is essential for applications involving high speeds, temperature variations, or interference fits, as it allows for thermal expansion without causing excessive preload. Is the 6310-2Z/C3 suitable for high-moisture environments?While the ‘2Z’ steel shields offer good protection against solid contaminants like dust and dirt, they are non-contacting and do not provide a perfect seal against moisture ingress. For applications with high humidity or direct water exposure, a bearing with rubber seals (e.g., SKF 6310-2RS1) would be a more suitable choice. What is the limiting speed for this bearing?The limiting speed for the SKF 6310-2Z/C3 is typically around 6300 revolutions per minute (r/min) for grease lubrication. However, this value can be influenced by factors such as the specific lubricant used, operating temperature, and load conditions. Always consult the official SKF technical datasheet for precise calculations based on your application. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: March 13, 2026
