SKF FY506 M

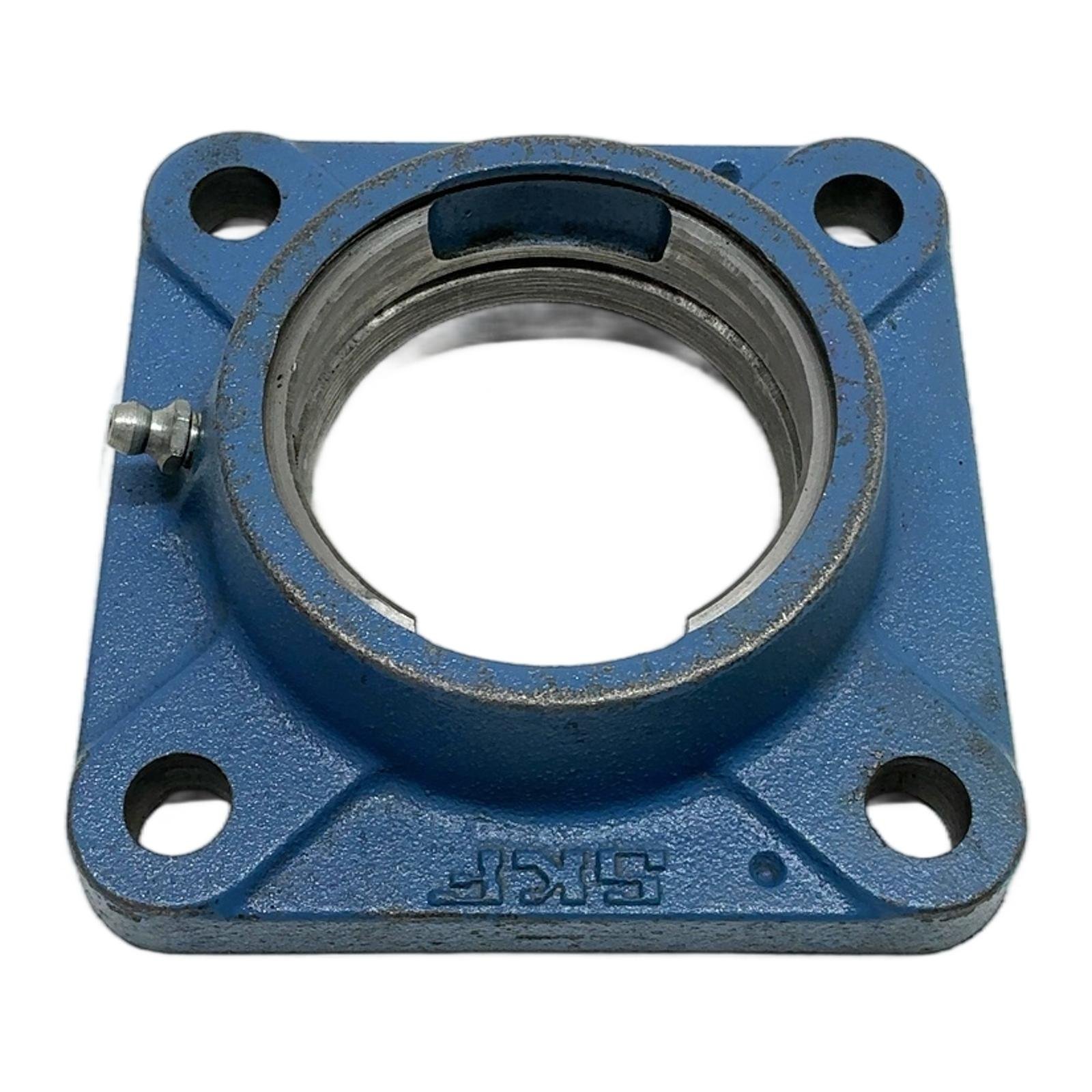

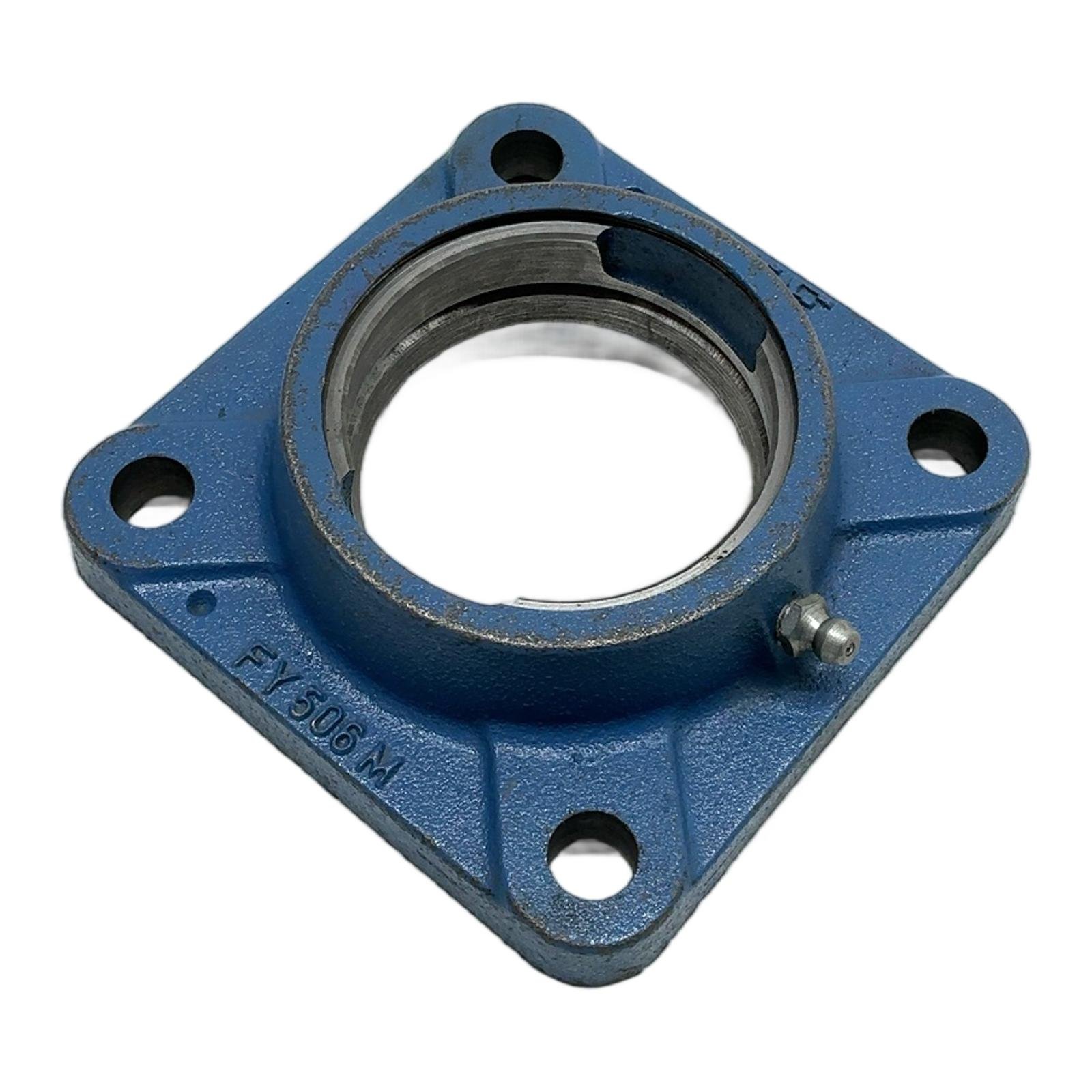

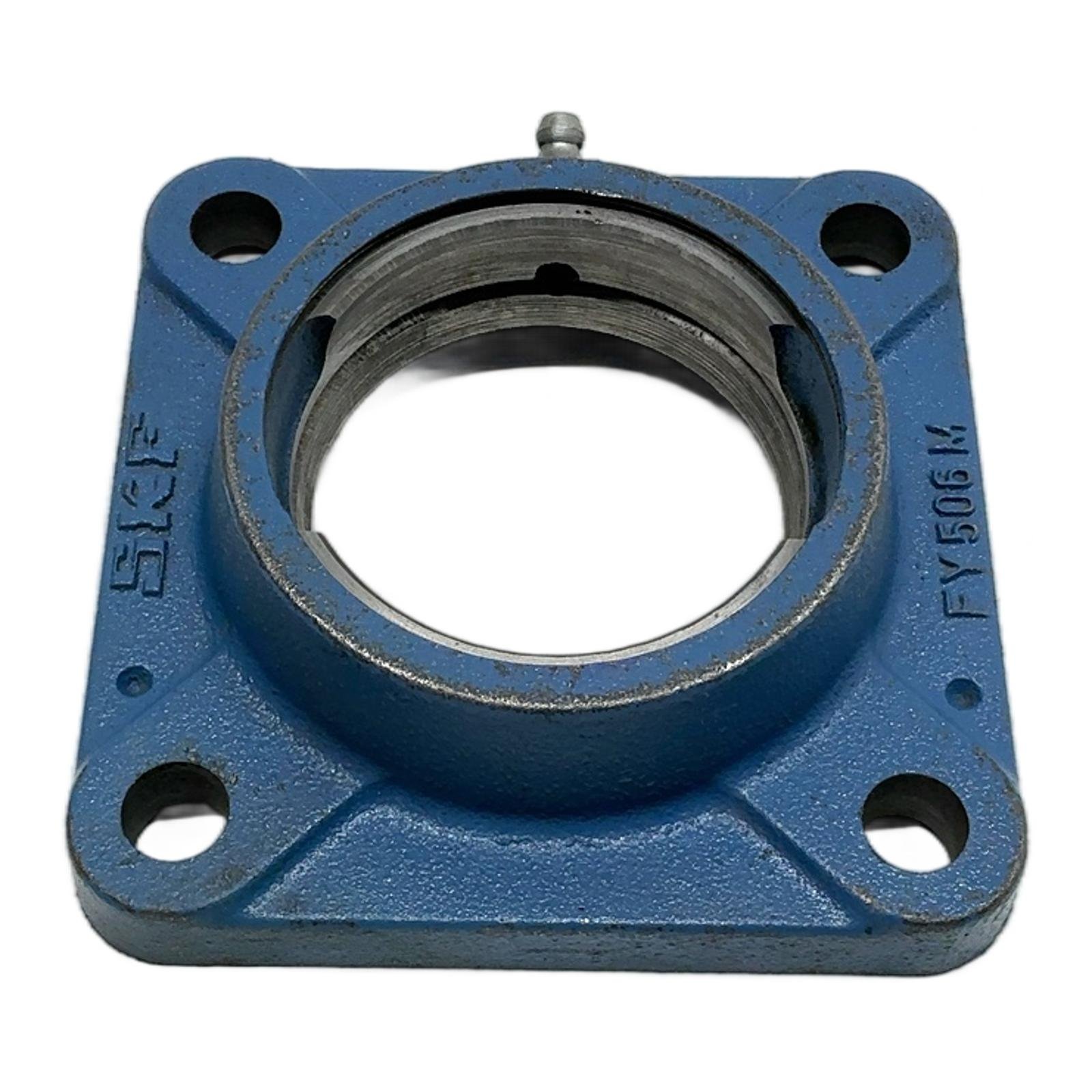

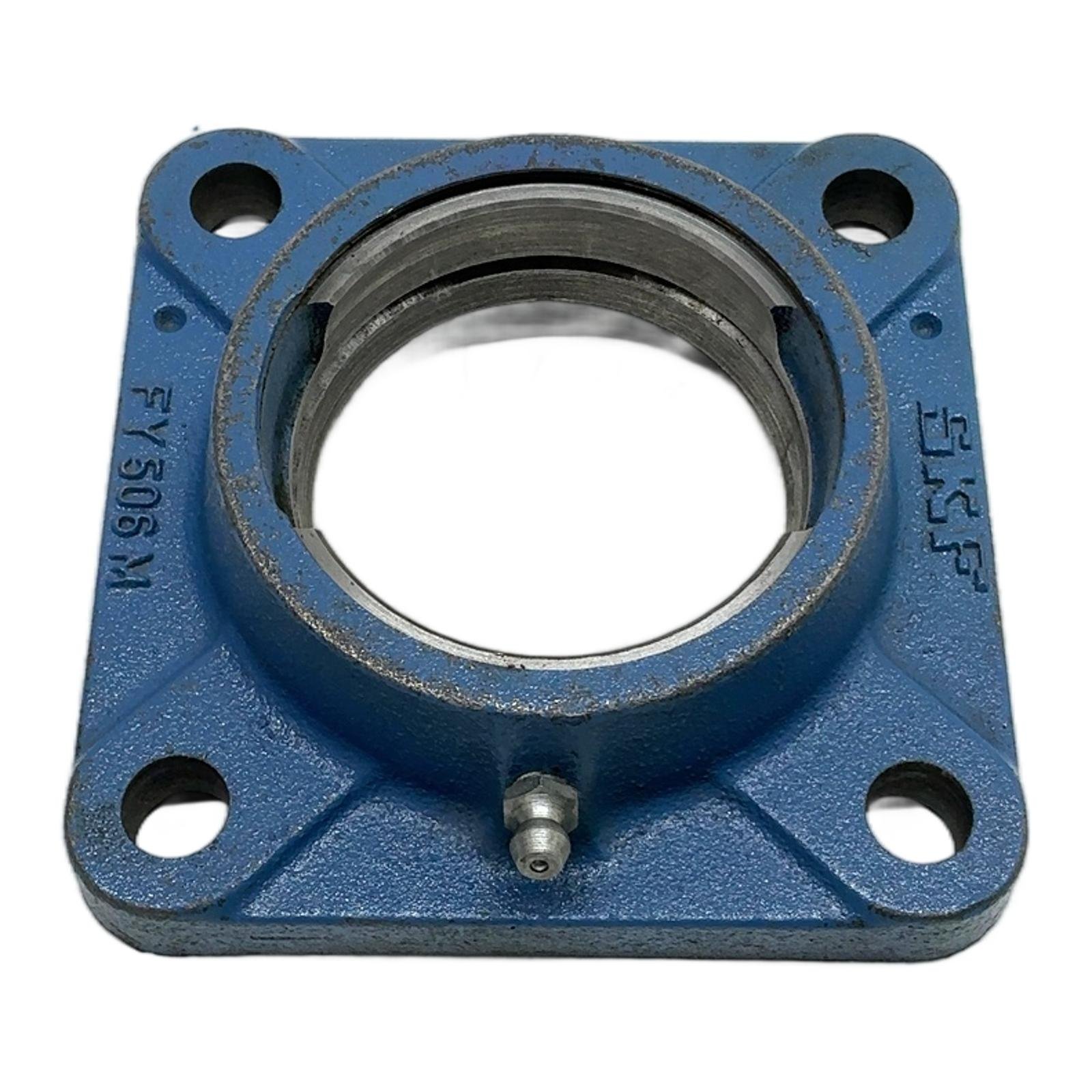

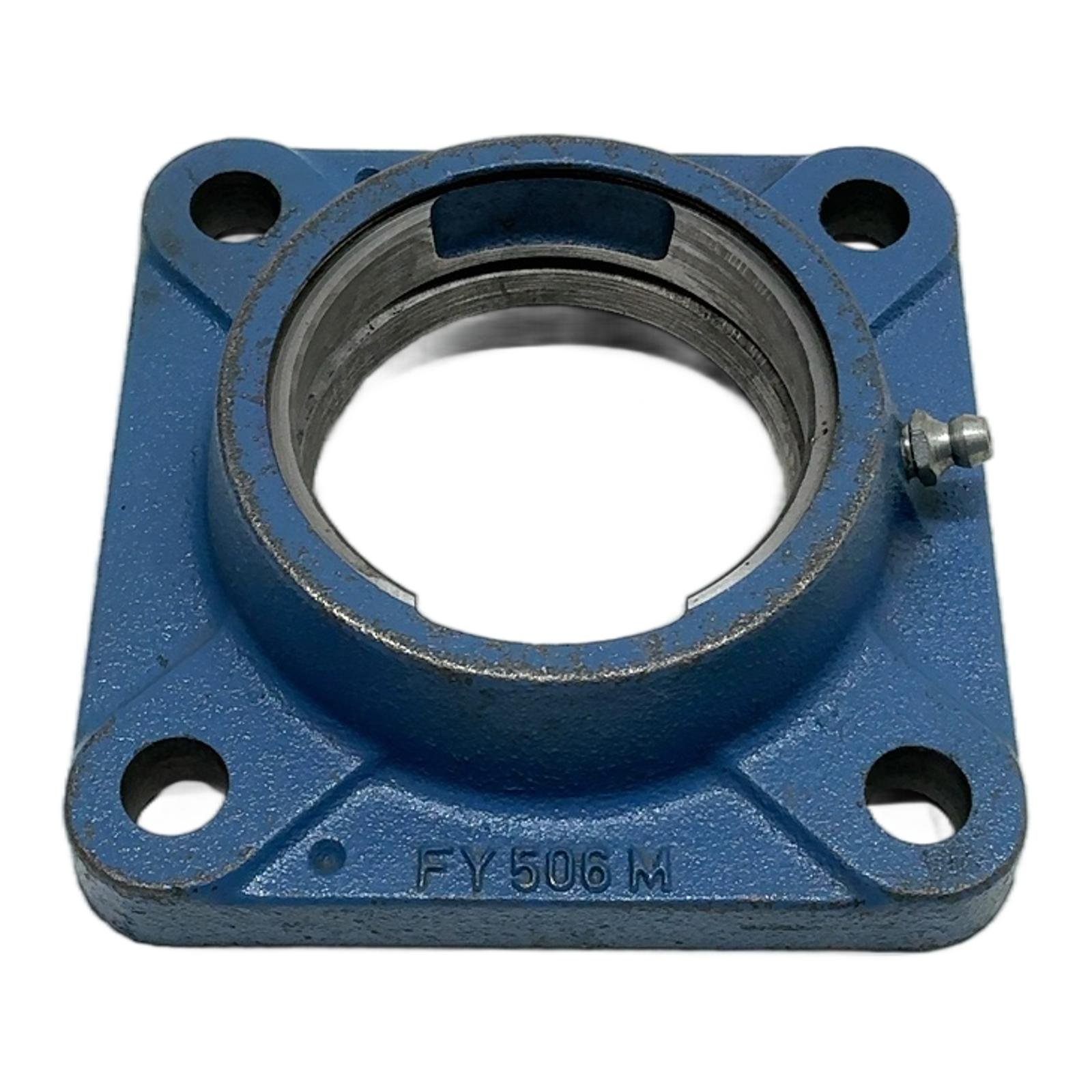

SKF FY 506 M Flange Bearing Housing Description The SKF FY 506 M is a high-quality, square 4-bolt flanged housing designed for Y-bearings (insert bearings). It is manufactured from durable cast iron, providing high strength and rigidity for reliable operation. This housing is suitable for applications with a 30 mm shaft diameter and is equipped with a grease nipple for convenient relubrication, which helps maximize the service life of the bearing. Its simple and robust design makes it a popular choice for general industrial machinery, conveyor systems, and agricultural equipment. Specifications Brand: SKF Type: FY 506 M Product Type: Square Flange Bearing Housing Shaft Diameter: 30 mm Material: Cast Iron Number of Bolt Holes: 4 Compatible Bearing Outside Diameter: 62 mm Label Info Manufacturer: SKF Part Number: FY 506 M Application This bearing housing is ideal for use in conveyor systems, material handling equipment, agricultural machinery, food and beverage processing, and general industrial applications where a simple and robust bearing arrangement is required. Country of Origin This product is manufactured in Italy. CO2 Impact Choosing this reused component saves approximately 1.22 kg of CO2 compared to manufacturing a new one, contributing to a more sustainable industrial environment. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What type of bearing insert is compatible with the FY 506 M housing?The SKF FY 506 M housing is designed for Y-bearings (insert bearings) with a 62 mm spherical outside diameter, such as the SKF YAR 206, YET 206, or YEL 206 series, for a 30 mm shaft. Is this housing supplied with a grease nipple?Yes, the housing comes equipped with a grease nipple for easy relubrication, ensuring a long service life for the installed bearing. What is the recommended bolt size for mounting this housing?The SKF FY 506 M housing has mounting holes suitable for M10 bolts or 3/8 inch bolts. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
