FAG 6411
FAG 6411
€ 64,95
2 op voorraad
2 op voorraad
Betaalmethode:
Specificatie
| Gewicht | 4,00 kg |
|---|---|
| Packing Quantity |
1 Unit(s) |
| Unit of Measure |
Unit(s) |
| Brand |
FAG |
| Category |
Bearings |
| Description |
Deep Groove Ball Bearing |
| MPN |
DSM-16-270-P-A-B 547574 |
| Other Notations |
6411 |
| Fabr. Art. Nr. |
6411 |
- Ophalen in ons magazijn
Roosendaal
Vandaag
- Standaard levering
Nederland
België
1-2 dagen
1-2 dagen
Omschrijving

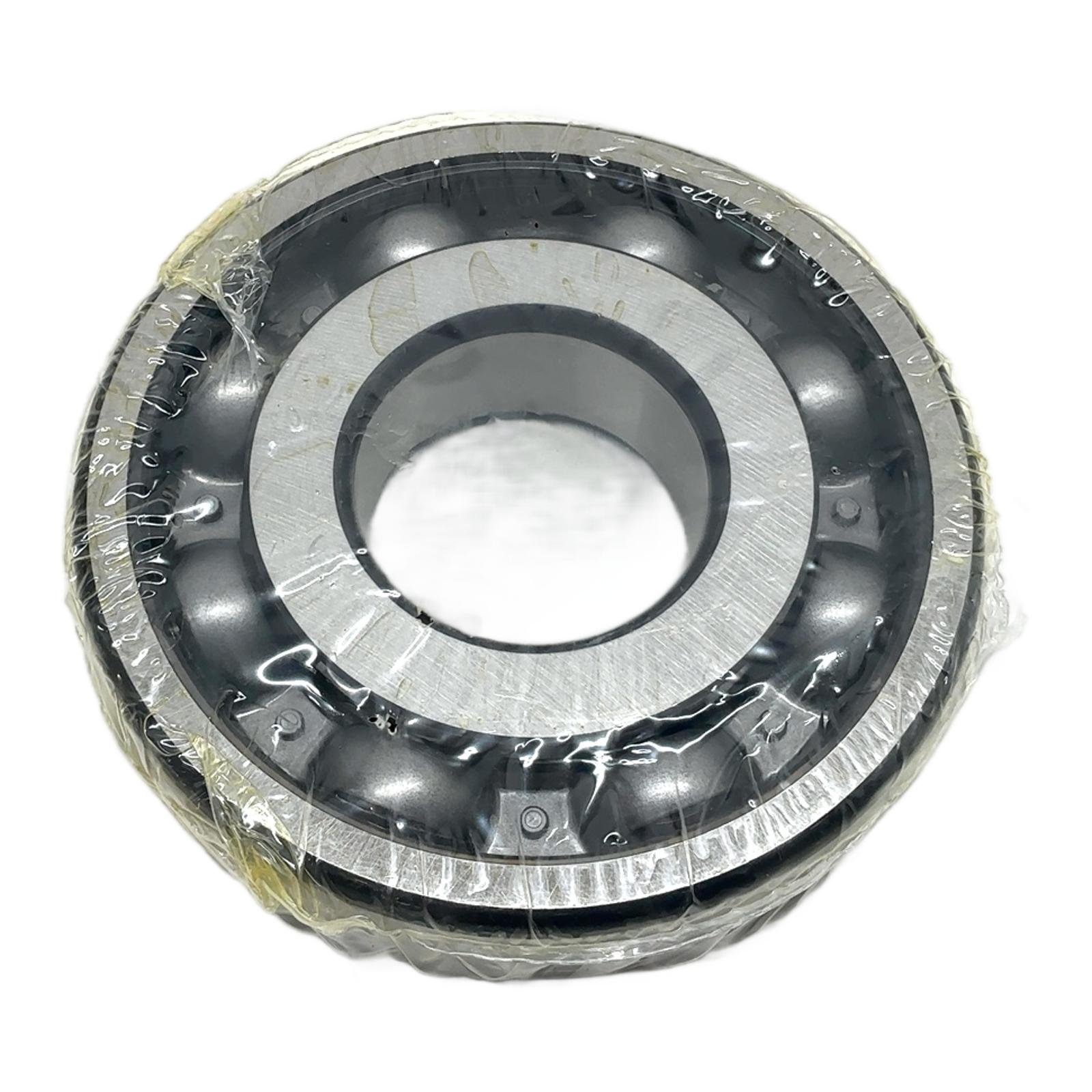

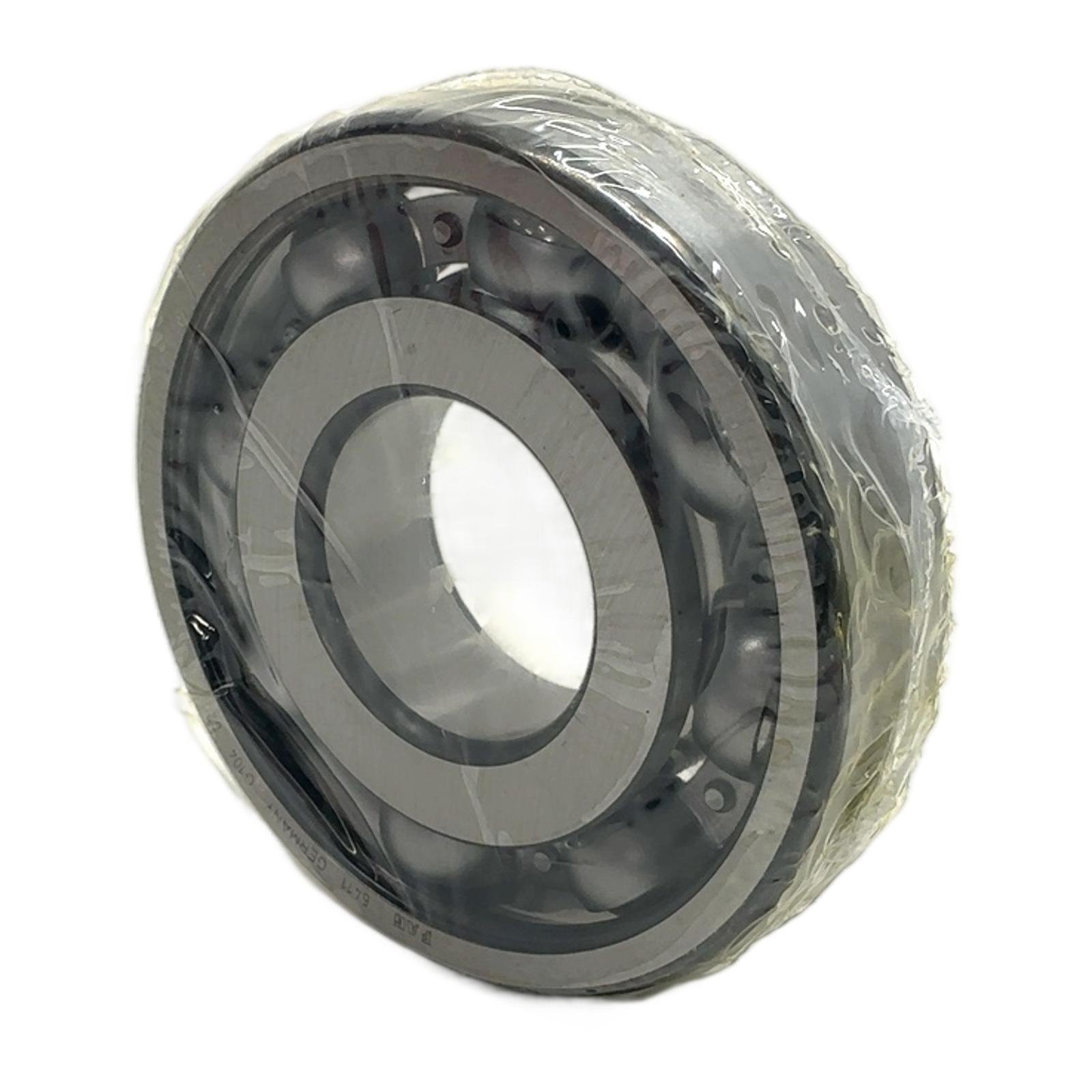

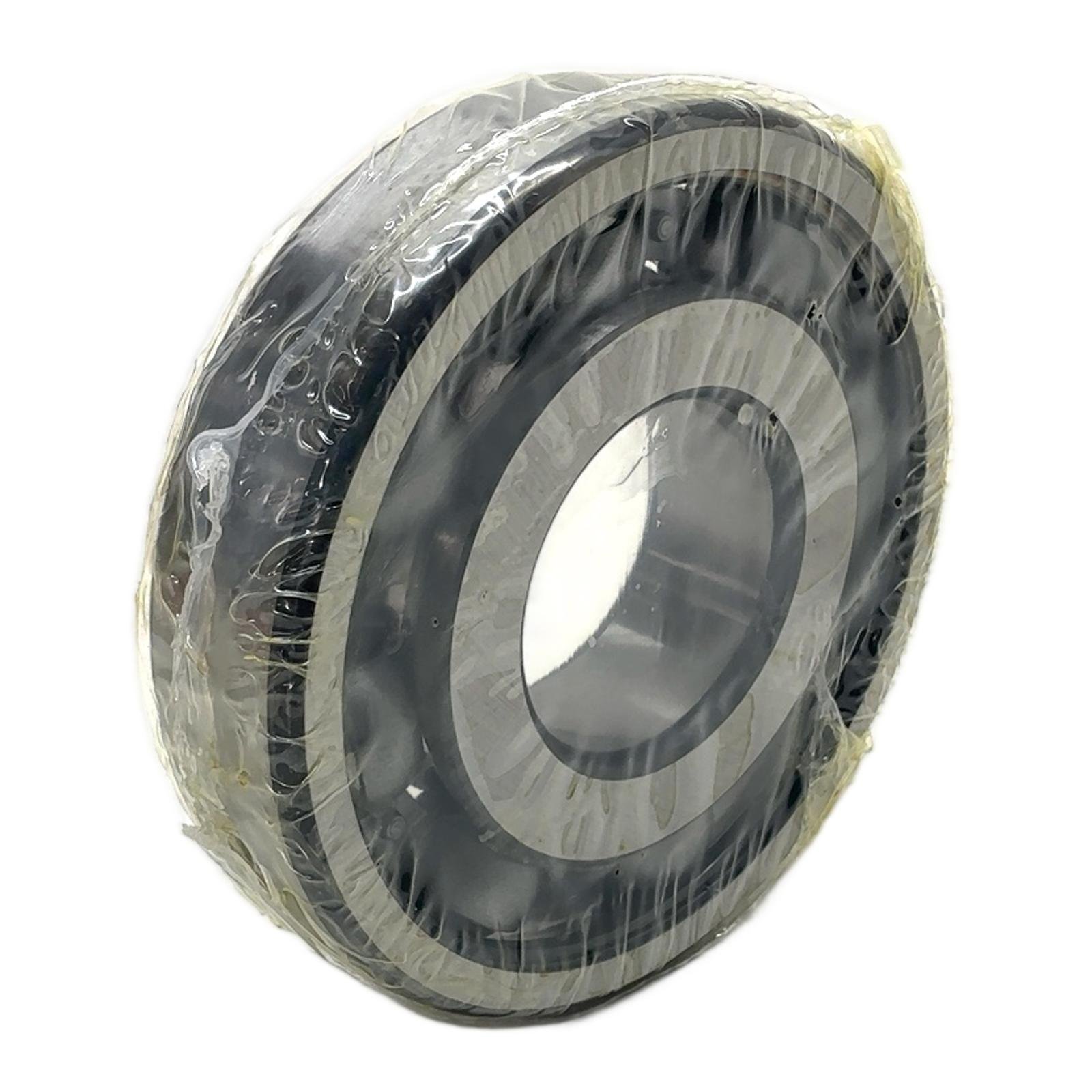

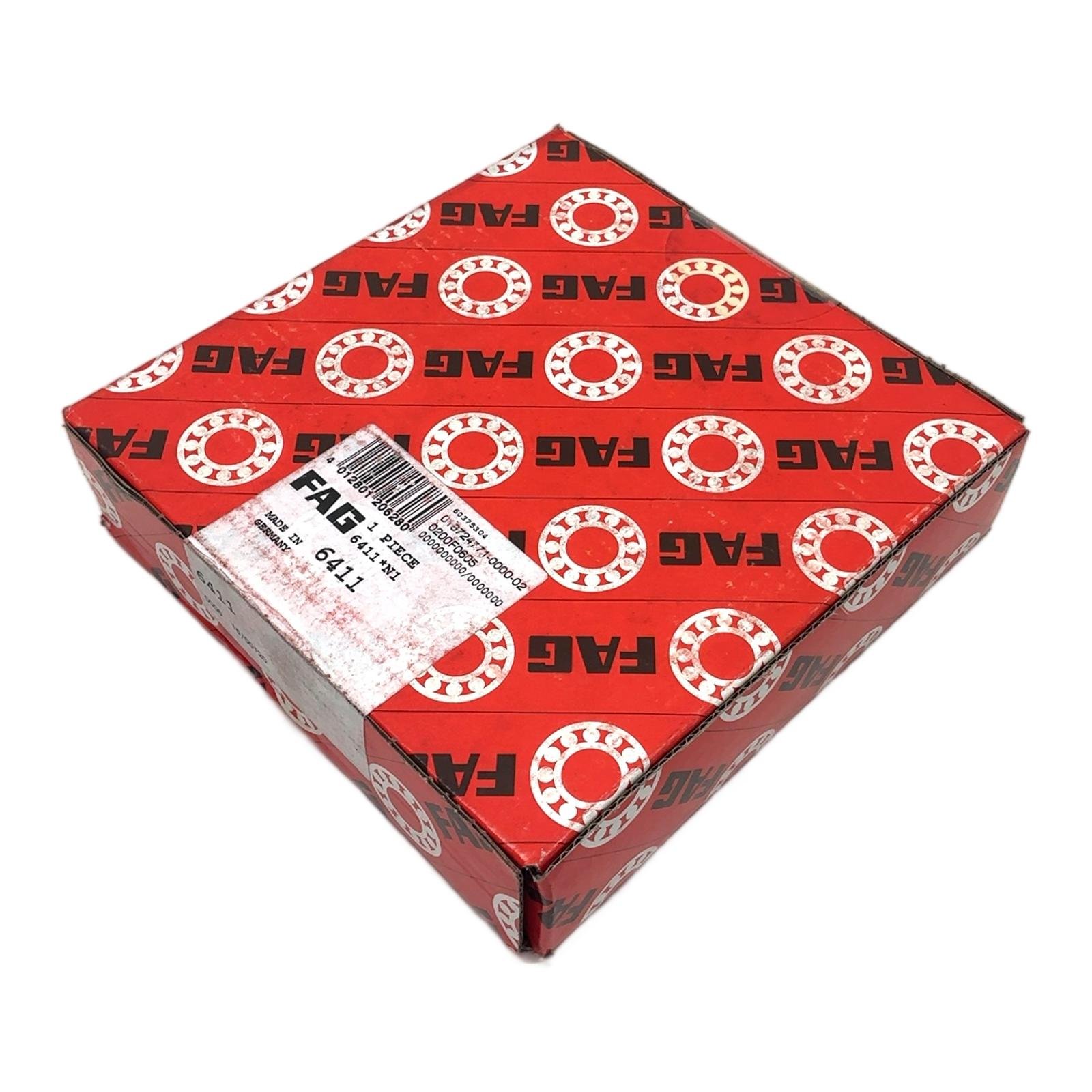

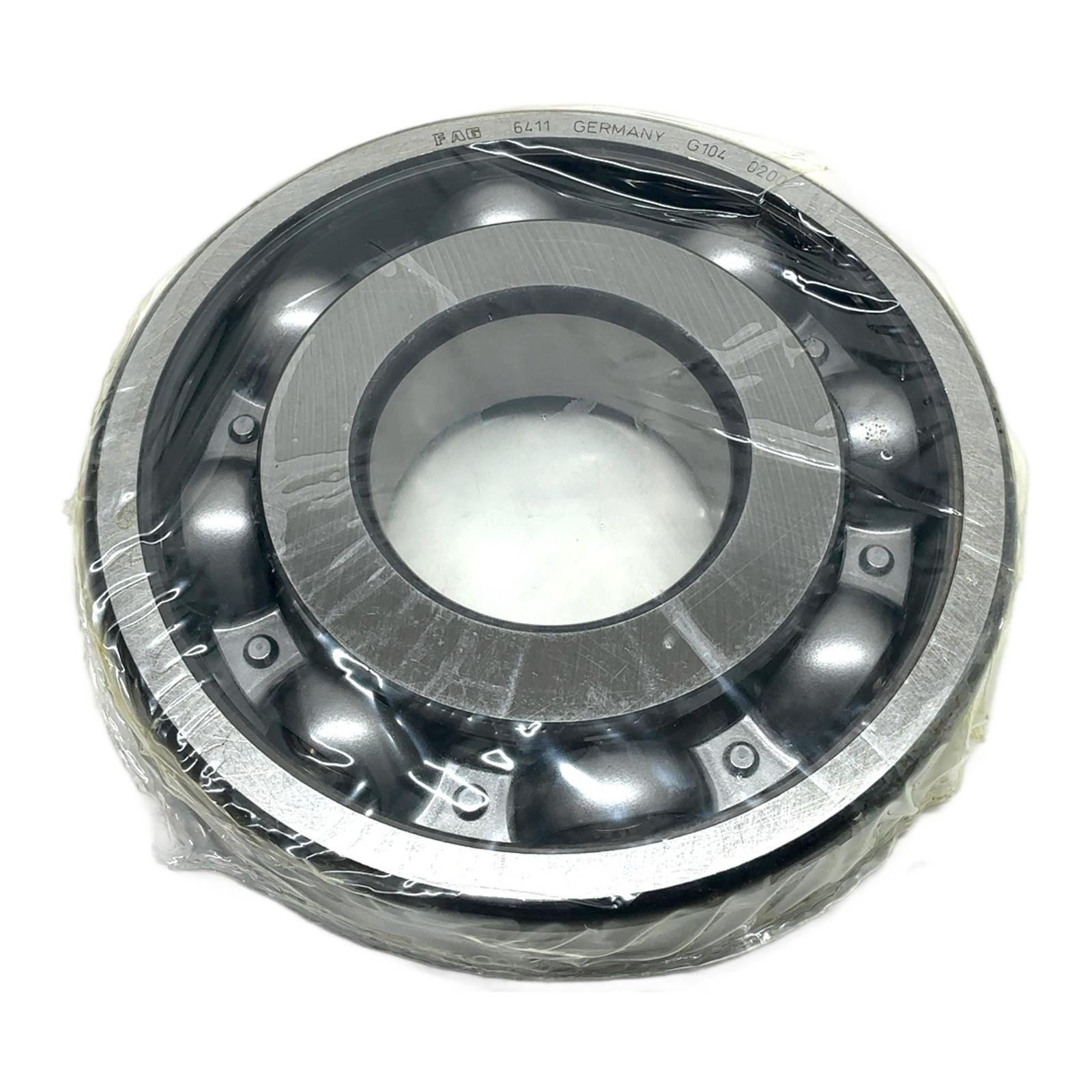

FAG 6411 N1 Deep Groove Ball Bearing Description The FAG 6411 N1 is a premium single-row deep groove ball bearing, designed for superior performance and reliability. Manufactured in Germany by FAG, it supports both radial and axial loads efficiently. Its 55x140x33mm dimensions make it suitable for a wide array of industrial machinery. The ‘N1’ suffix indicates it features a groove in the outer ring for a snap ring, simplifying axial location within a housing. Specifications Manufacturer: FAG Part Number: 6411 N1 Inner Diameter: 55 mm Outer Diameter: 140 mm Width: 33 mm Basic Dynamic Load Rating (C): 104 kN Basic Static Load Rating (C0): 67 kN Cage Material: Steel Label Info EAN: 4012801206280 Order Code: 013724771-0000-02 Application This bearing is commonly used in electric motors, pumps, gearboxes, conveyors, and other rotating machinery where high reliability is essential. Country of Origin Made in Germany. CO2 Impact Choosing this surplus item saves approximately 4.8 kg of CO2 compared to producing a new one, contributing to a more sustainable industrial practice. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What does the ‘N1’ suffix signify on the FAG 6411 bearing?The ‘N’ indicates a groove in the outer ring, designed to accommodate a snap ring (retaining ring). The ‘1’ specifies a particular type of retaining ring is intended for use, which facilitates secure axial location of the bearing in a housing assembly.Is this bearing suitable for high-speed applications?The FAG 6411 has a limiting speed of approximately 6700 rpm with standard grease lubrication. For applications consistently running near or above this speed, consulting the machine’s design manual for oil lubrication requirements or specialized high-speed bearings is recommended.Does this bearing come pre-lubricated?Yes, FAG deep groove ball bearings of this type are typically supplied pre-lubricated from the factory with a high-quality, general-purpose grease suitable for a wide range of operating temperatures and conditions. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
SCHNEIDER ELECTRIC LC1D09BD + LADATBDL
Op voorraad
| Gewicht | 2,00 kg |
|---|---|
| Packing Quantity |
1 Unit(s) |
| Unit of Measure |
Unit(s) |
| Brand |
SCHNEIDER ELECTRIC |
| Category |
Control and Switch Gear |
| Description |
LC1D09BD + LADATBDL Schneider Electric Contactor 3P AC-3/3e 9A 24V DC Coil |
| MPN |
LC1D09BD + LADATBDL |
| Other Notations |
LC1D09BD + LADATBDL ,LC1D09BD+LADATBDL |
| Fabr. Art. Nr. |
LC1D09BD + LADATBDL |
BEI SENSORS DHM5_10//PP59//05000//G6R// DHM510-5000-001
Op voorraad
| Gewicht | 2,00 kg |
|---|---|
| Packing Quantity |
1 Unit(s) |
| Unit of Measure |
Unit(s) |
| Brand |
BEI SENSORS |
| Category |
Motors and Encoders |
| Description |
Incremental Rotary Encoder |
| MPN |
DHM5_10//PP59//05000//G6R// DHM510-5000-001 |
| Other Notations |
DHM5_10 ,DHM5_10//PP59//05000//G6R// DHM510-5000-001 ,DHM5_10//PP59//05000//G6R//DHM5105000001 |
| Fabr. Art. Nr. |
DHM5_10//PP59//05000//G6R// DHM5105000001 |
