PEPPERL+FUCHS NJ30+U1+N 106885

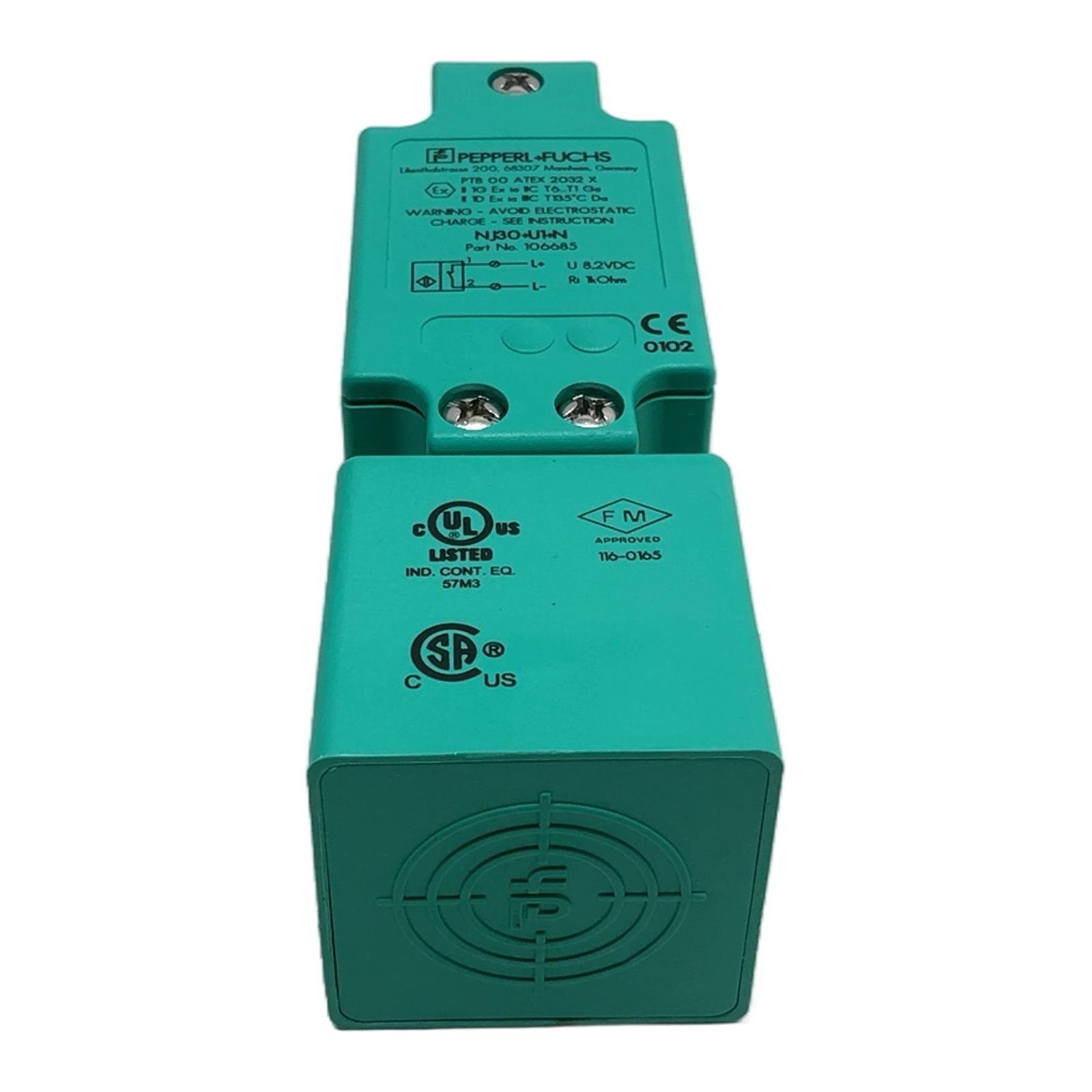

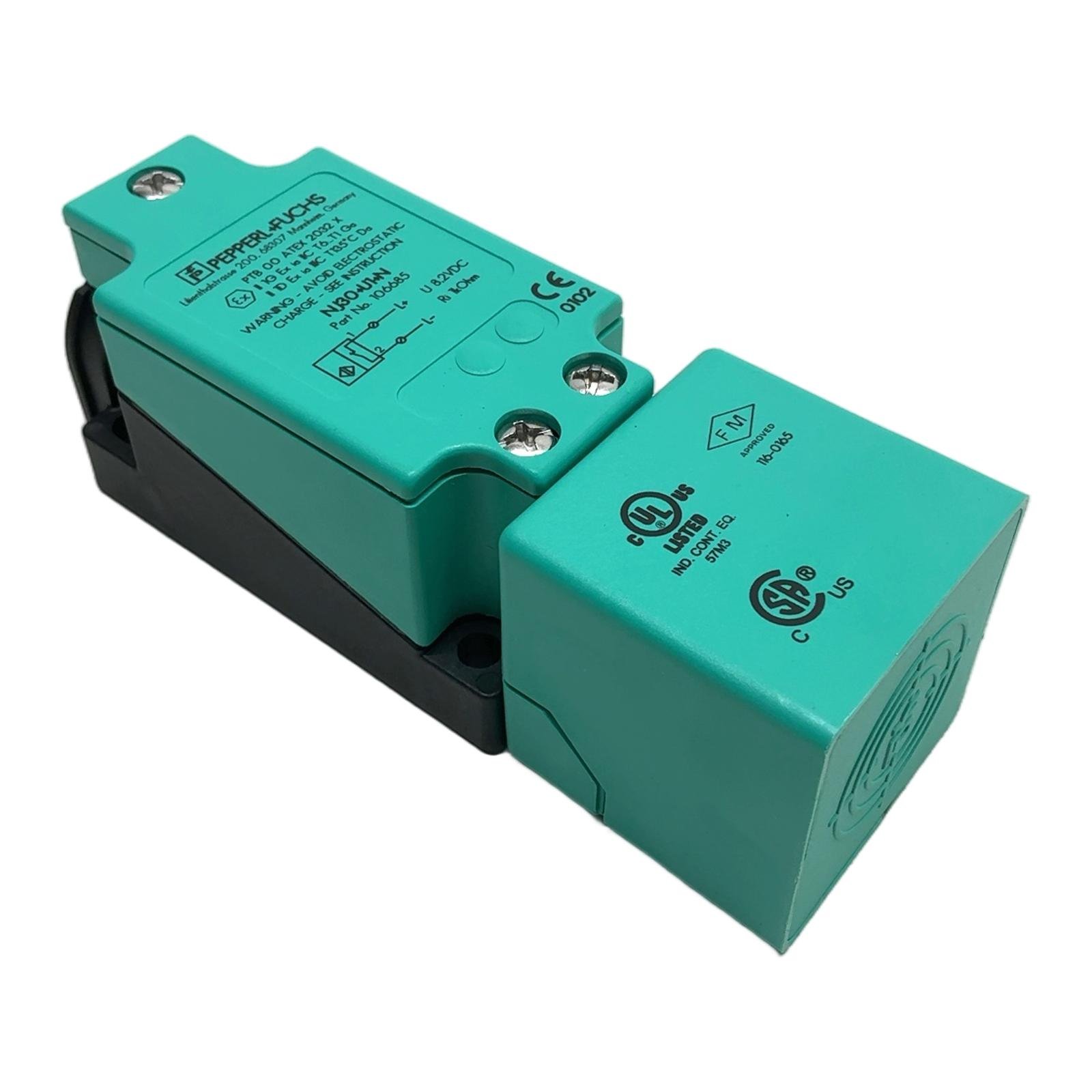

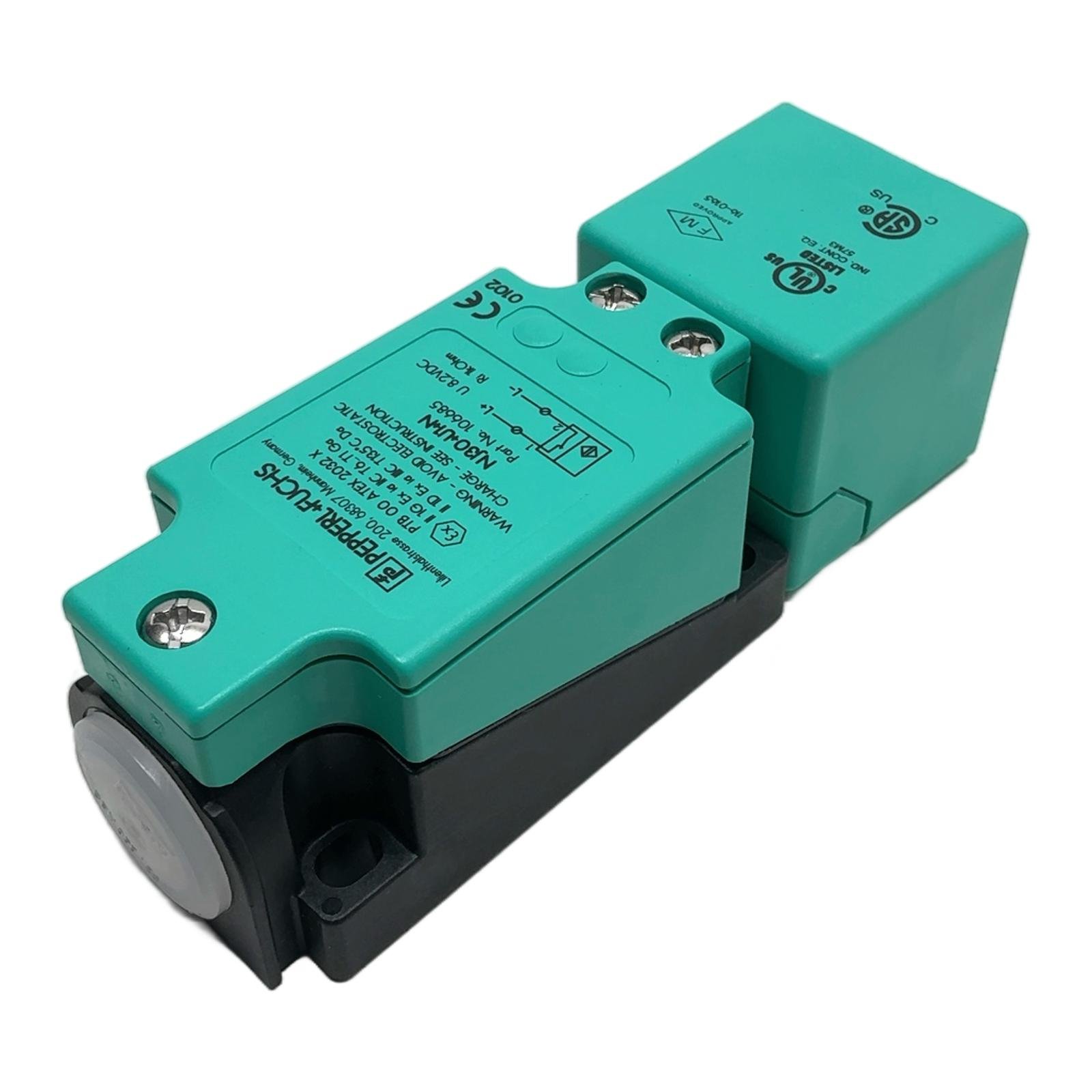

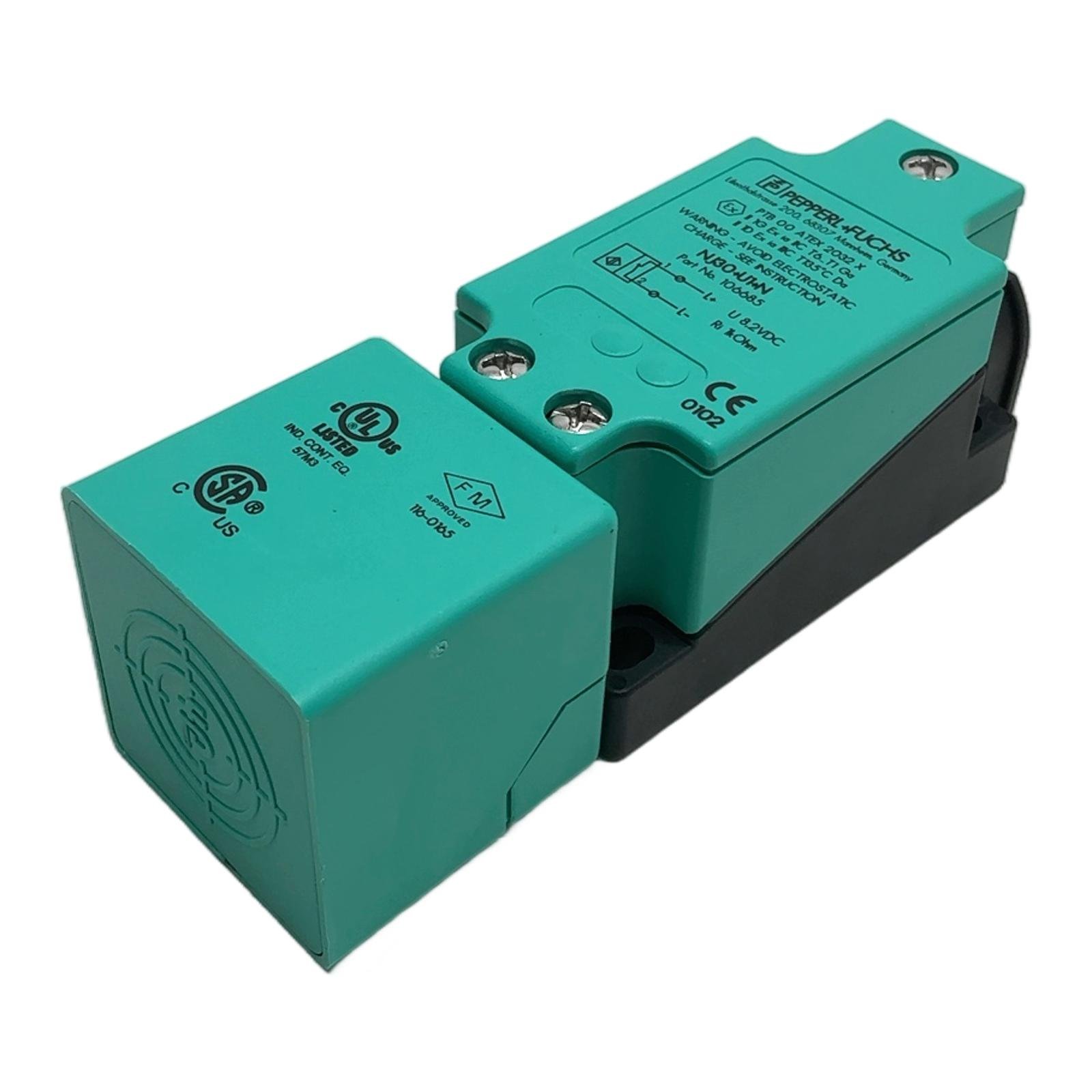

<h2>Pepperl+Fuchs NJ30+U1+N Inductive Sensor for Hazardous Areas</h2> <h3>Description</h3> <p>The NJ30+U1+N is a high-quality inductive proximity sensor from Pepperl+Fuchs, part of the proven VariKont L series. It is specifically designed for use in intrinsically safe circuits and hazardous locations, featuring a NAMUR output according to EN 60947-5-6. With a generous sensing distance of 30 mm and a robust rectangular housing, it provides reliable and non-contact detection of metallic objects in challenging industrial environments. This sensor is ideal for applications in chemical plants, oil and gas facilities, and any area requiring ATEX or FM certified components.</p> <h3>Specifications</h3> <ul> <li>Manufacturer: Pepperl+Fuchs</li> <li>Model: NJ30+U1+N</li> <li>Part Number: 106885</li> <li>Sensing Distance (Sn): 30 mm</li> <li>Installation: Non-flush</li> <li>Output Type: NAMUR, 2-wire</li> <li>Nominal Voltage: 8.2 V DC</li> <li>Connection Type: Screw terminals</li> <li>Housing Style: Rectangular, VariKont L</li> <li>Housing Material: PBT</li> </ul> <h3>Label Info</h3> <ul> <li>Approvals: FM, UL, cULus, CSA, CE</li> <li>Hazardous Area Marking: II 1G EEx ia IIC T6/T5/T4</li> </ul> <h3>Application</h3> <p>This sensor is used for position detection, limit switching, and presence sensing in automated machinery, especially within hazardous areas where explosive atmospheres may be present. It requires a corresponding isolated barrier or amplifier for operation.</p> <h3>Country of Origin</h3> <p>Made in Indonesia.</p> <h3>CO2 Impact</h3> <p>Opting for this component helps avoid approximately 10.0 kg of CO2 emissions compared to manufacturing a new one, contributing to a more sustainable industrial sector.</p> <h3>Availability</h3> <p>This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery.</p> <h3>FAQ</h3> <strong>What is a NAMUR output and why is it used?</strong><br><p>A NAMUR output is a two-wire DC sensor standard (EN 60947-5-6) used in intrinsically safe applications. It limits the current and voltage to prevent sparks in hazardous (explosive) environments, communicating its state (sensed/not sensed) by switching between two distinct low-current levels.</p> <strong>Can I connect this sensor directly to a standard PLC digital input?</strong><br><p>No, a NAMUR sensor cannot be connected directly to a standard PLC input. It requires an approved isolator barrier or amplifier. This device provides the correct operating voltage and interprets the low-current signals, converting them into a standard digital signal for the PLC while maintaining safety isolation.</p> <strong>What does the ‘non-flush’ installation mean for this sensor?</strong><br><p>’Non-flush’ (also called ‘unshielded’) means the sensor’s active face must protrude from any surrounding metal mounting surface. This design allows for a larger electromagnetic field, resulting in a longer sensing distance (30mm in this case) compared to a flush-mountable (shielded) sensor of the same size.</p> <p>Last Update: Friday, March 13, 2026</p> <p><em>profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.</em></p>
