ASCO JOUCOMATIC 52100078

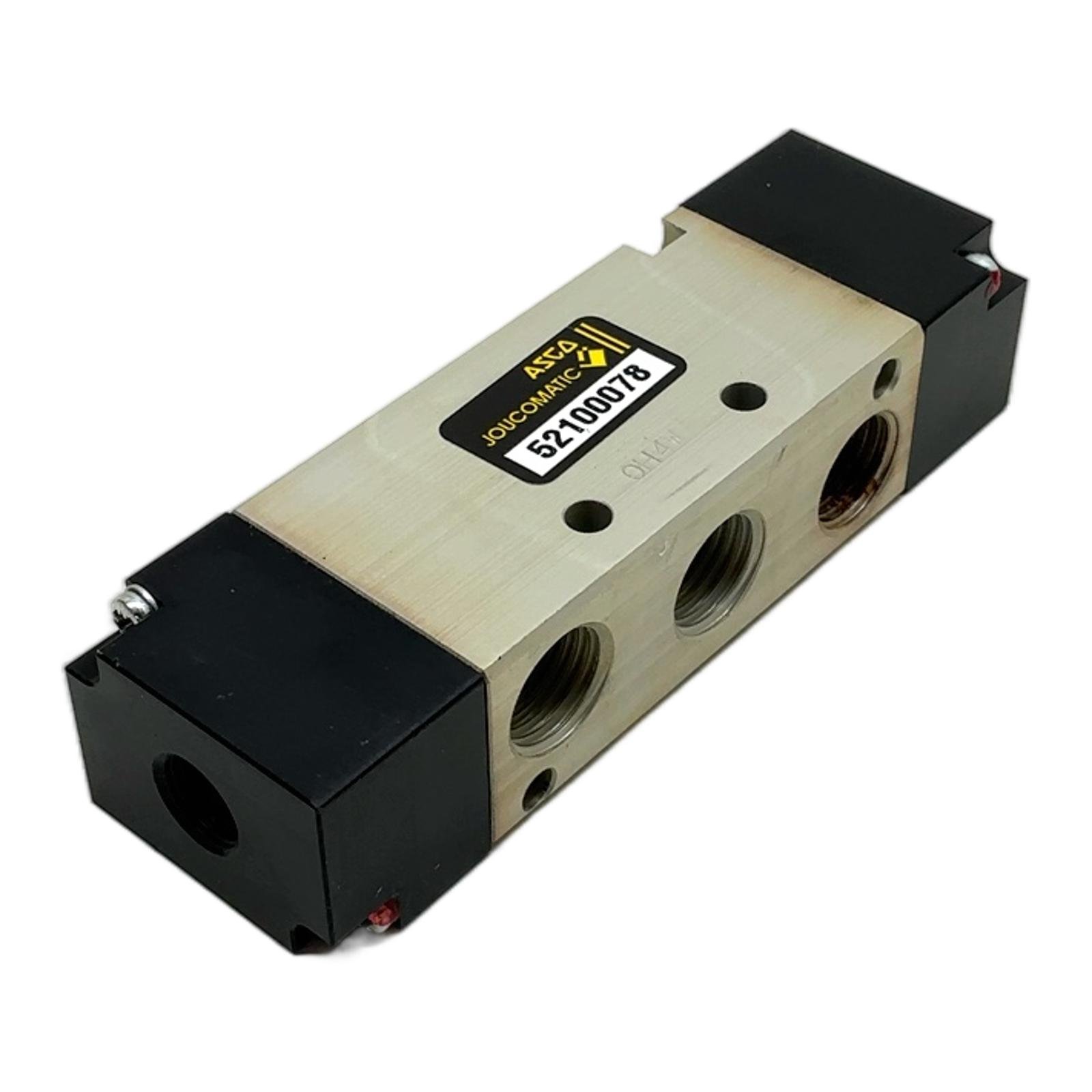

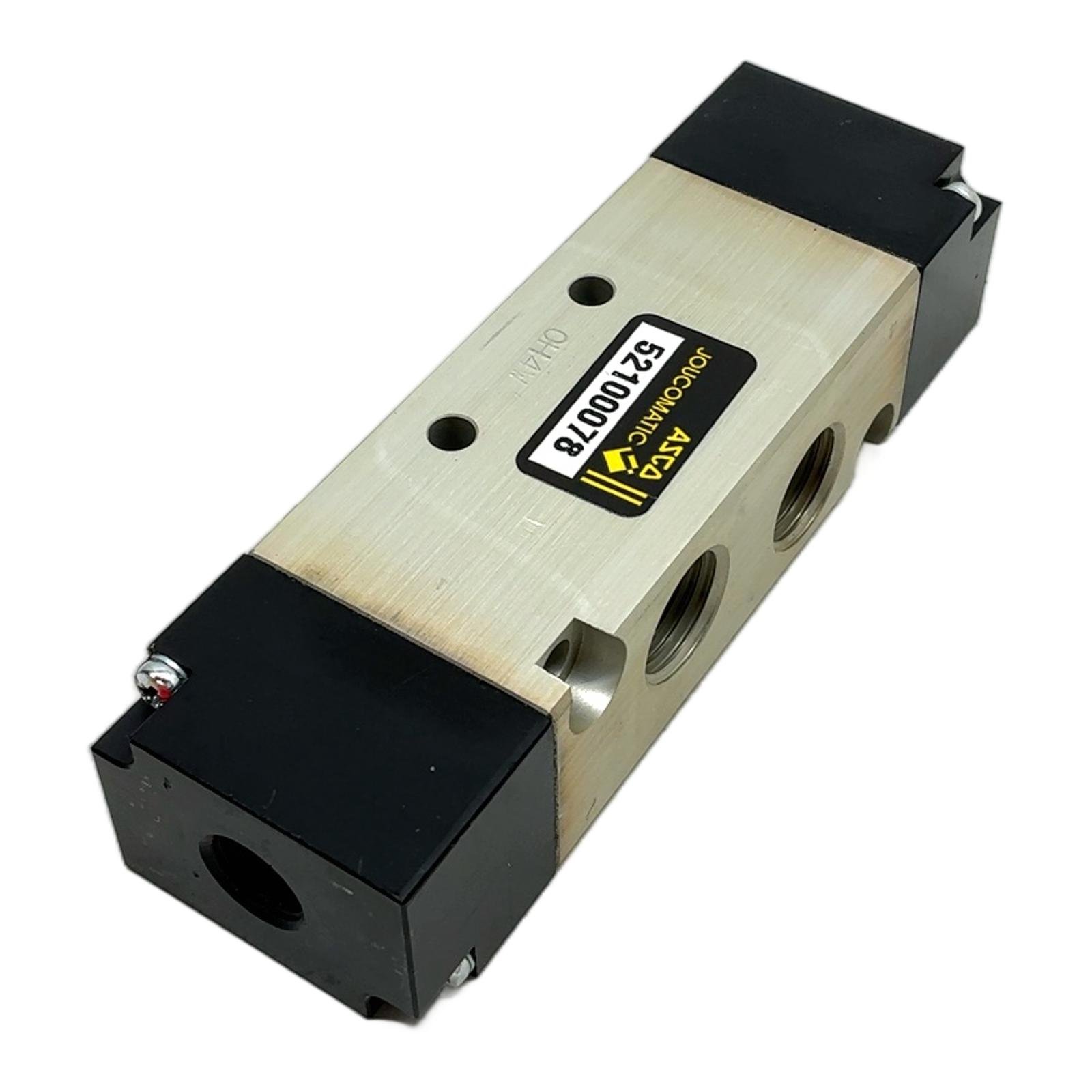

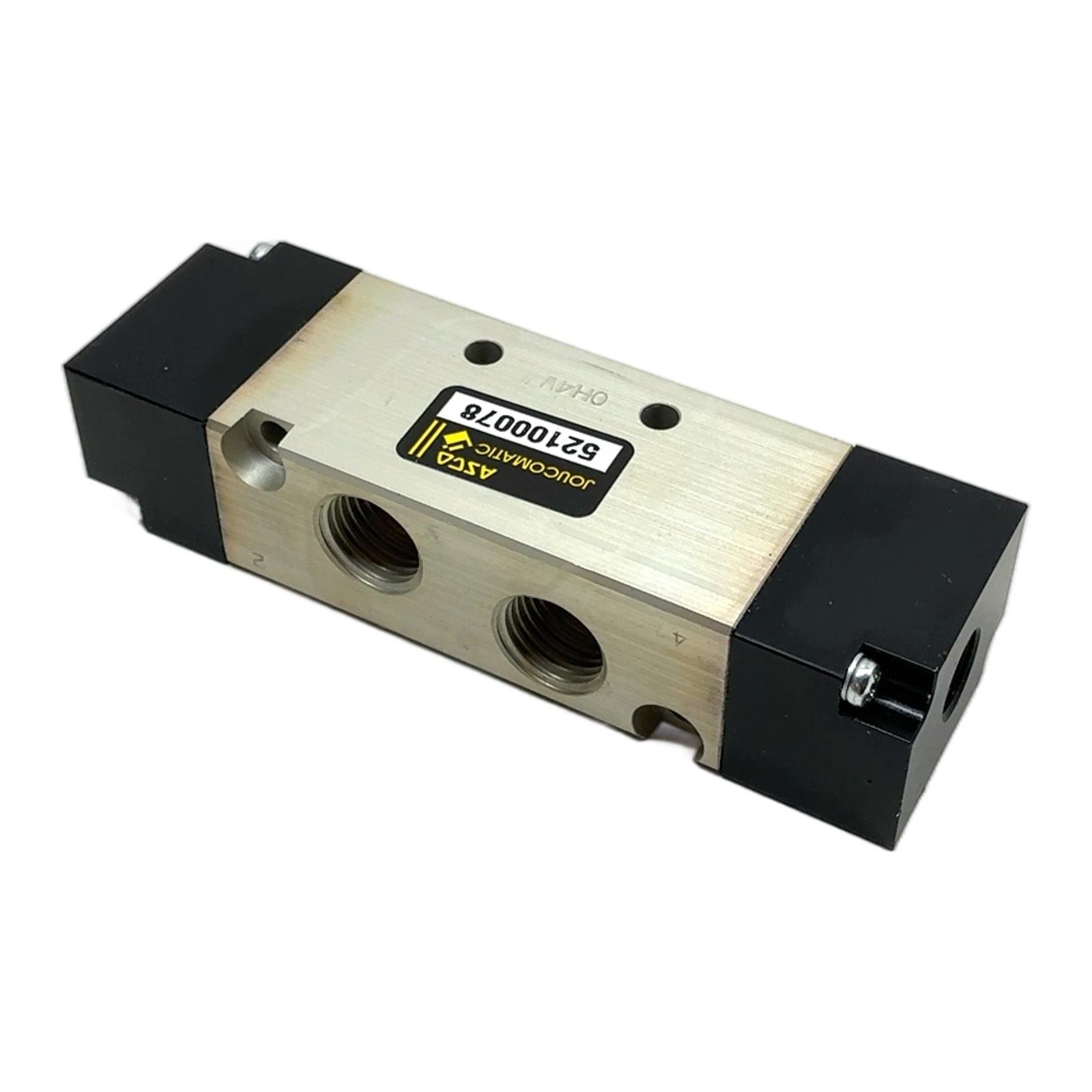

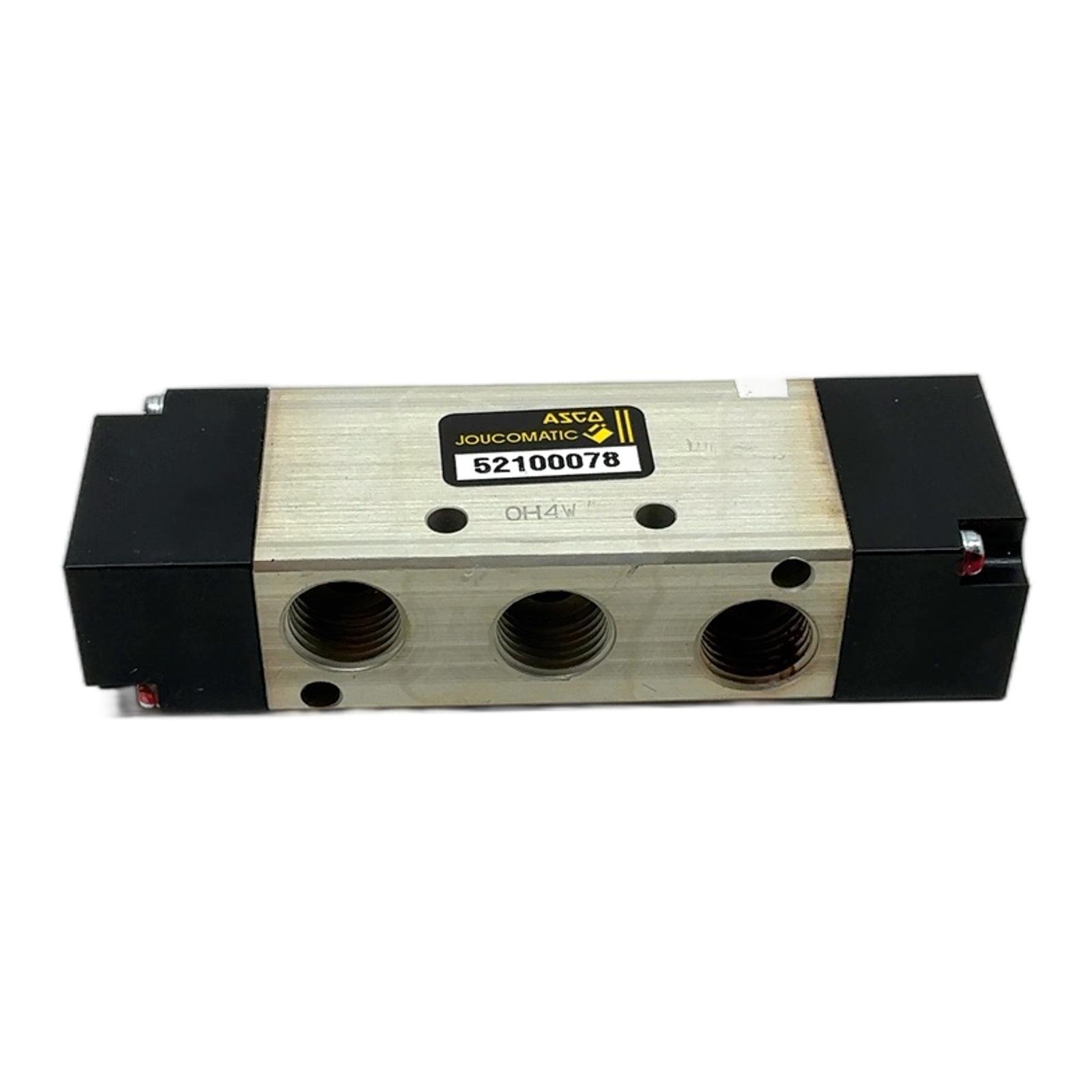

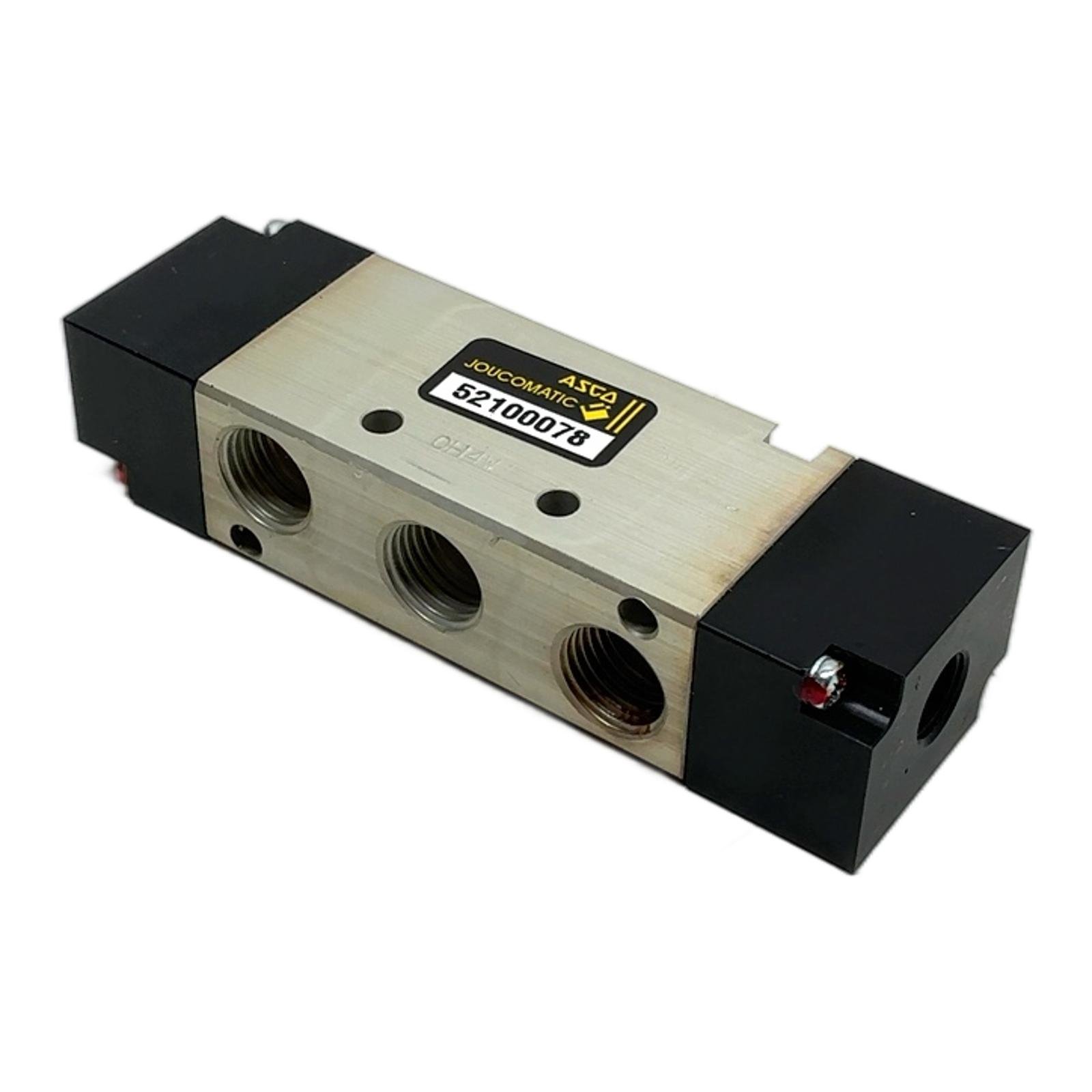

ASCO JOUCOMATIC 521 Series Pneumatic Valve Body Description This is a 52100078 solenoid valve body from ASCO JOUCOMATIC, a high-quality component for building reliable pneumatic control circuits. As a 5/2-way, double solenoid (bistable) valve, it provides precise control over pneumatic actuators like cylinders. The valve shifts position with an electrical pulse and holds its state until an opposing pulse is received, making it energy-efficient for applications where the state is held for long periods. This item is the valve body only; solenoid coils must be purchased separately to complete the assembly. Specifications Manufacturer: ASCO JOUCOMATIC Part Number: 52100078 Series: 521 Valve Function: 5/2 Way, Bistable (Double Solenoid) Port Connection: G1/4 inch Operating Principle: Spool Valve Actuation: Requires two solenoid operators (not included) Body Material: Anodized Aluminium Application Ideal for a wide range of industrial automation applications, including packaging machinery, material handling systems, assembly lines, and machine tools, where reliable directional control of compressed air is required. Country of Origin This product is typically manufactured in France. CO2 Impact Choosing this reused component over a new one prevents the emission of approximately 6 kg of CO2. This saving is comparable to the emissions from driving a standard passenger car for 30 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What type of solenoid coils are compatible with this 52100078 valve body?This valve body is designed for ASCO’s standard range of solenoid operators (coils). You need to select a coil with the correct voltage (e.g., 24V DC, 110V AC, 230V AC) and form factor that matches the stem on the valve body. Always consult the ASCO 521 series datasheet to ensure compatibility. Is this a monostable or bistable valve?This is a bistable (double solenoid) valve body. It has provisions for solenoid operators on both ends. A pulse of electricity to one solenoid shifts the spool, and it will remain in that position until a pulse is sent to the opposite solenoid. It does not have a spring return. What is the maximum operating pressure and flow rate for this valve?The ASCO 521 series valves typically have a maximum operating pressure of 10 bar (1 MPa). The flow rate (Kv) for the G1/4 inch version is approximately 0.75 m3/h or 750 l/min. Please verify these values in the official product datasheet for your specific application requirements. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
