REXROTH Z2FS 6-2-44/2QV R900481624

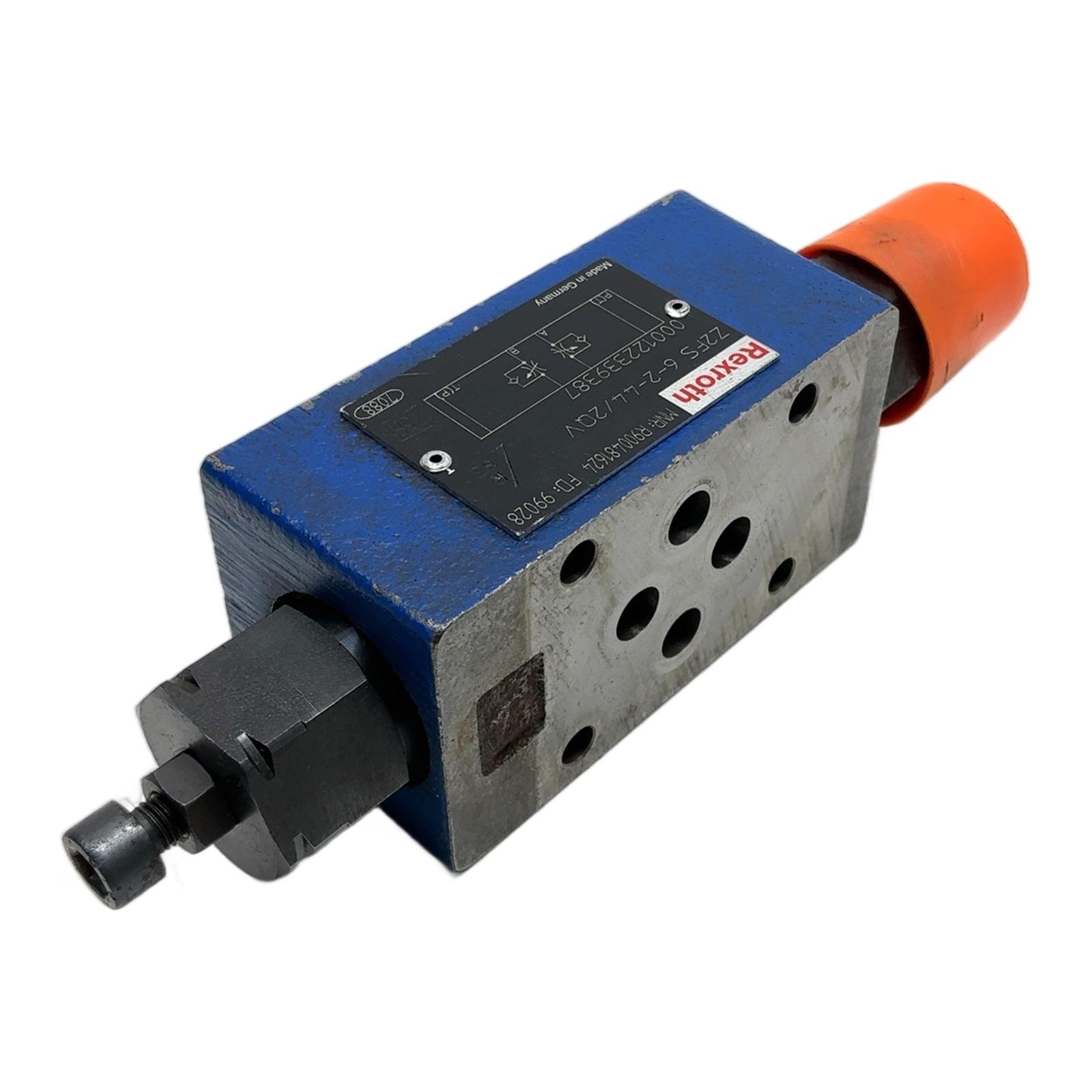

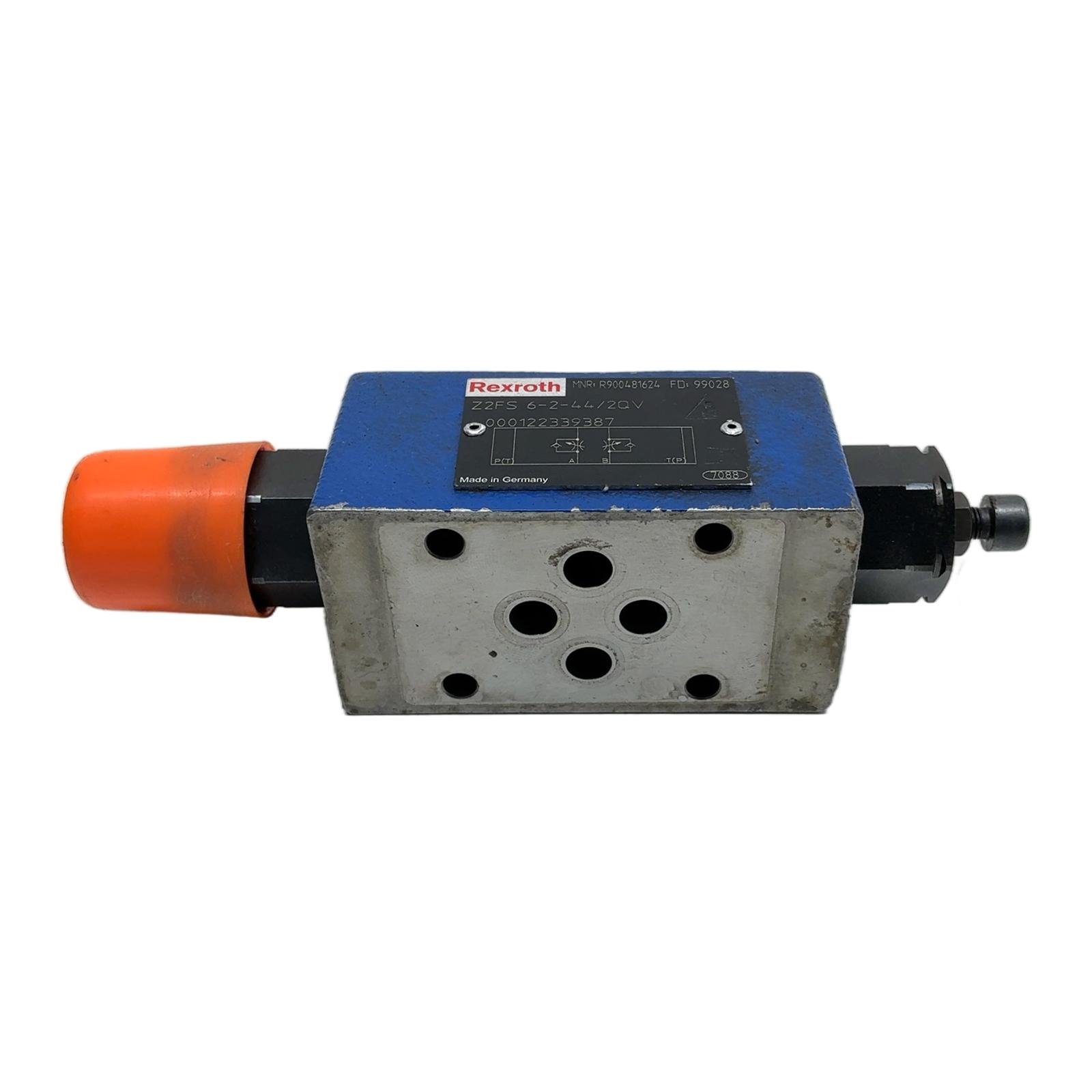

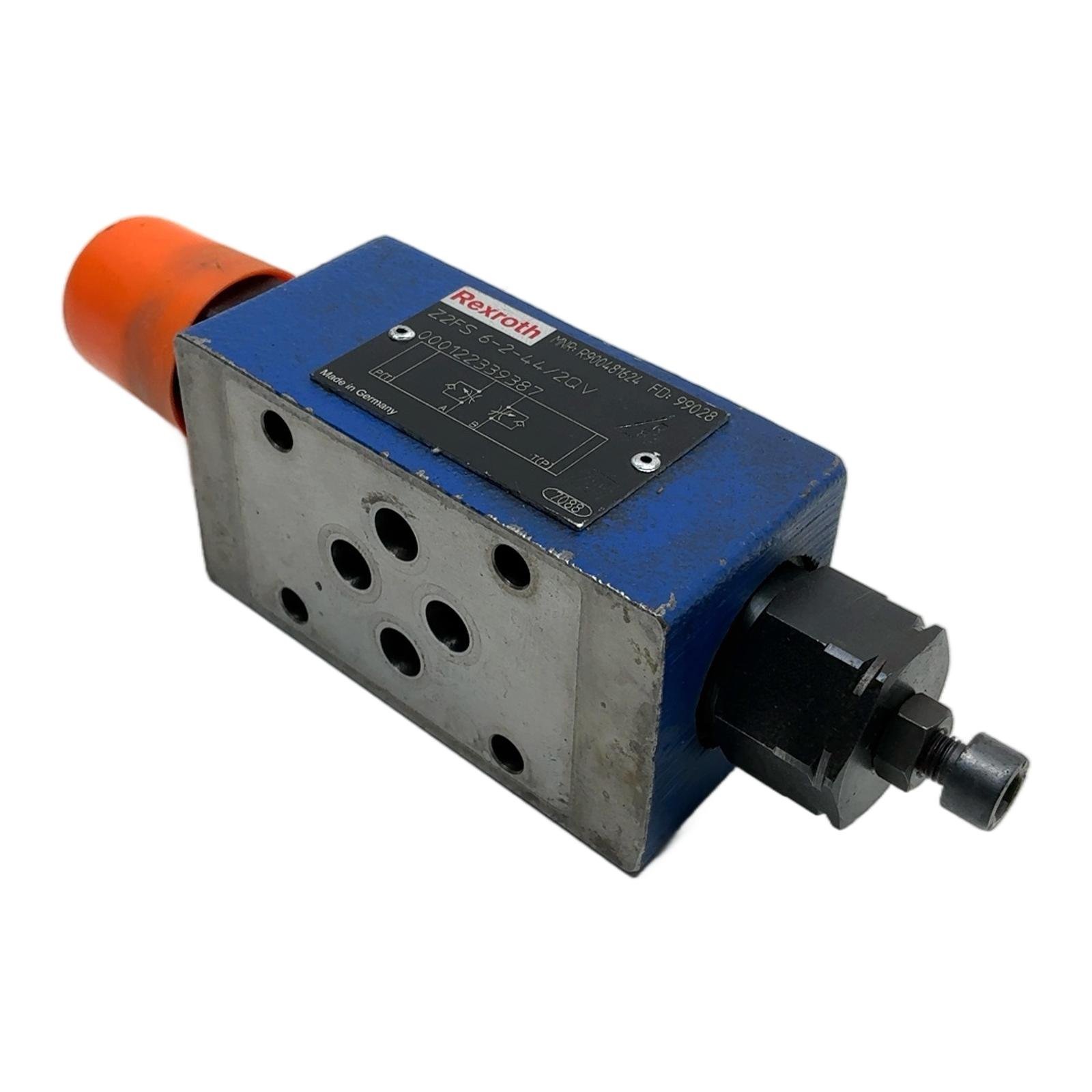

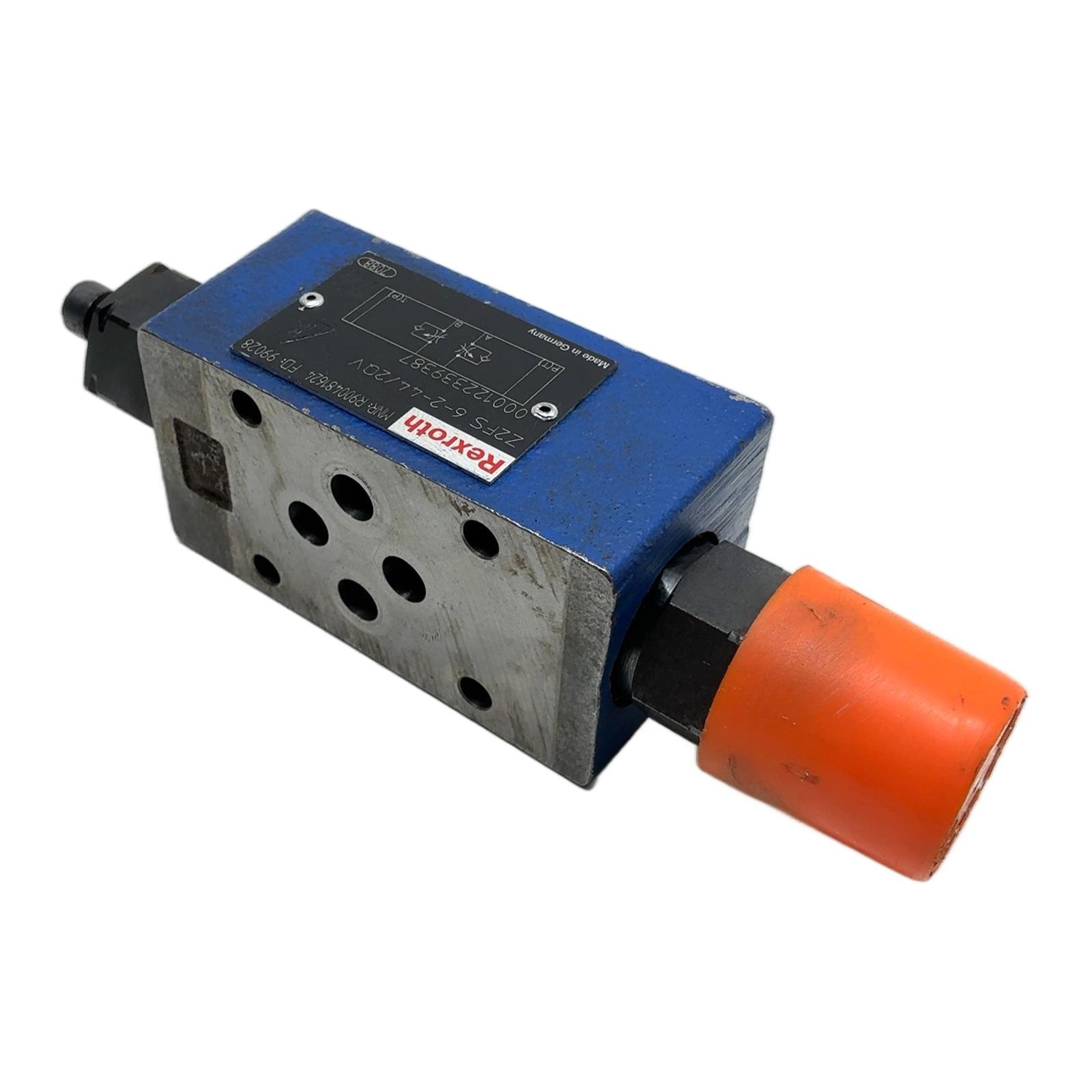

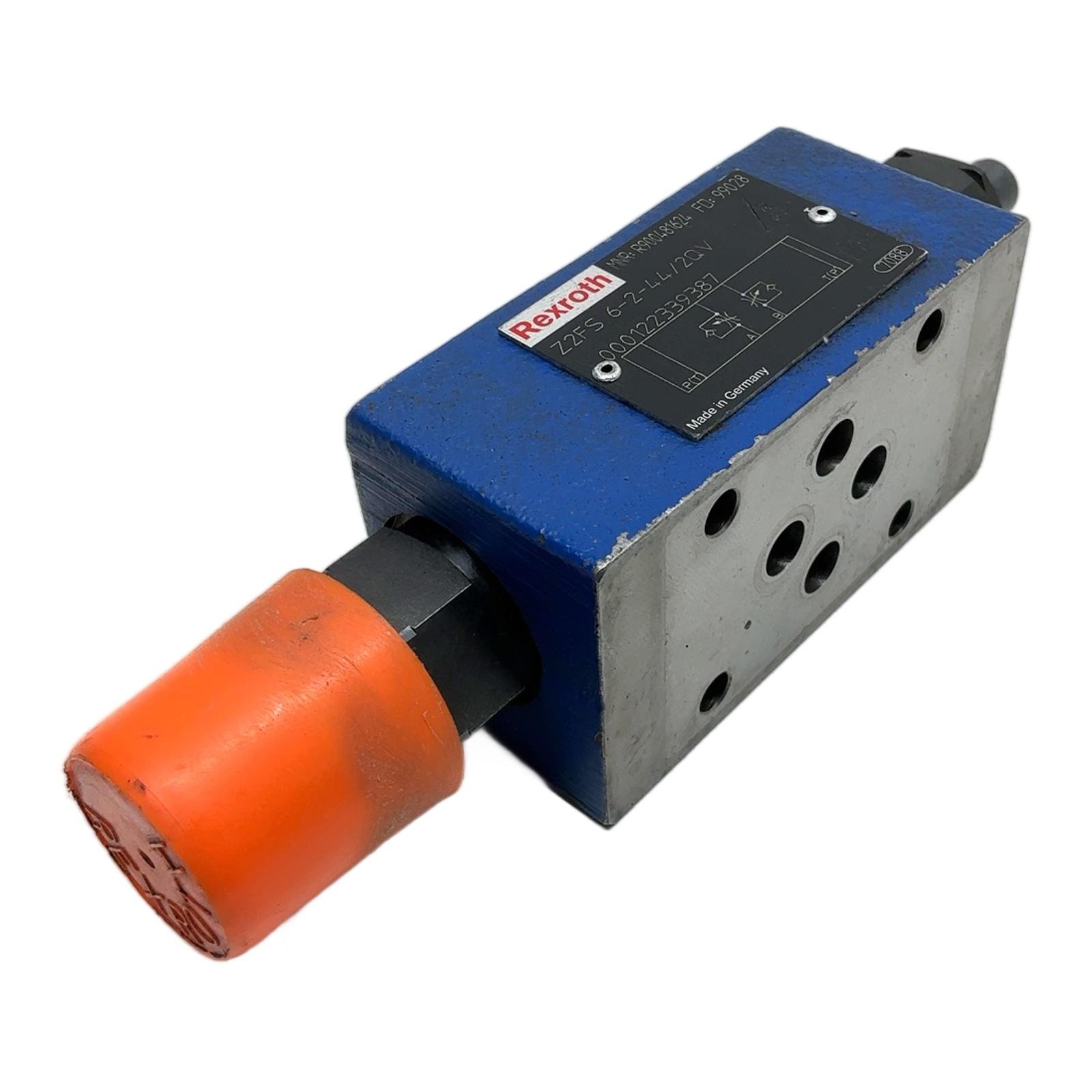

Rexroth Z2FS 6 Double Throttle Check Valve Description This is a used but reliable double throttle check valve, model Z2FS 6-2-44/2QV, from Bosch Rexroth. As a sandwich plate valve of size NG6, it is designed for stacking in hydraulic systems to control the flow rate of fluid to an actuator. It provides meter-in or meter-out control in two ports (A and B) independently, with check valves allowing for free return flow. This component is essential for applications requiring precise speed control of hydraulic cylinders or motors. Specifications Manufacturer: Rexroth Type: Z2FS Double Throttle Check Valve Size: NG6 (CETOP 3) Model: Z2FS 6-2-44/2QV Maximum Operating Pressure: 315 bar Maximum Flow: 80 L/min Seals: FKM (Viton), suitable for a wide range of hydraulic fluids Adjustment: Knob with scale Label Info MNR: R900481624 FD: 99028 Serial: 000122339387 Application Ideal for use in industrial machinery such as presses, machine tools, and manufacturing lines where the speed of hydraulic actuators needs to be controlled accurately and reliably in both directions of movement. Country of Origin Made in Germany. CO2 Impact By purchasing this pre-owned valve, you contribute to a circular economy and avoid approximately 2.8 kg of CO2 emissions associated with the production of a new one. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the function of the check valves in this Z2FS 6-2-44/2QV? The integrated check valves allow free flow in one direction, bypassing the throttle. This means you can control the speed of an actuator (like a cylinder) in one direction (e.g., extending) while allowing it to retract at full speed. What does “NG6” signify for this hydraulic valve? NG6 refers to the nominal size of the valve and its mounting pattern, also known as CETOP 3. It defines the port locations and dimensions, ensuring interchangeability with other NG6 subplates and valves from various manufacturers. The model code ends in “/2QV”. What do these letters mean? The “2Q” indicates the type of adjustment element, which is a two-stepped throttle knob for setting the flow. The “V” specifies the seal material, which is FKM (also known as Viton), suitable for a wide range of hydraulic fluids and higher temperatures. Last Update: March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
