REXROTH 4WE 6 J62/EW230N9DL R900558439

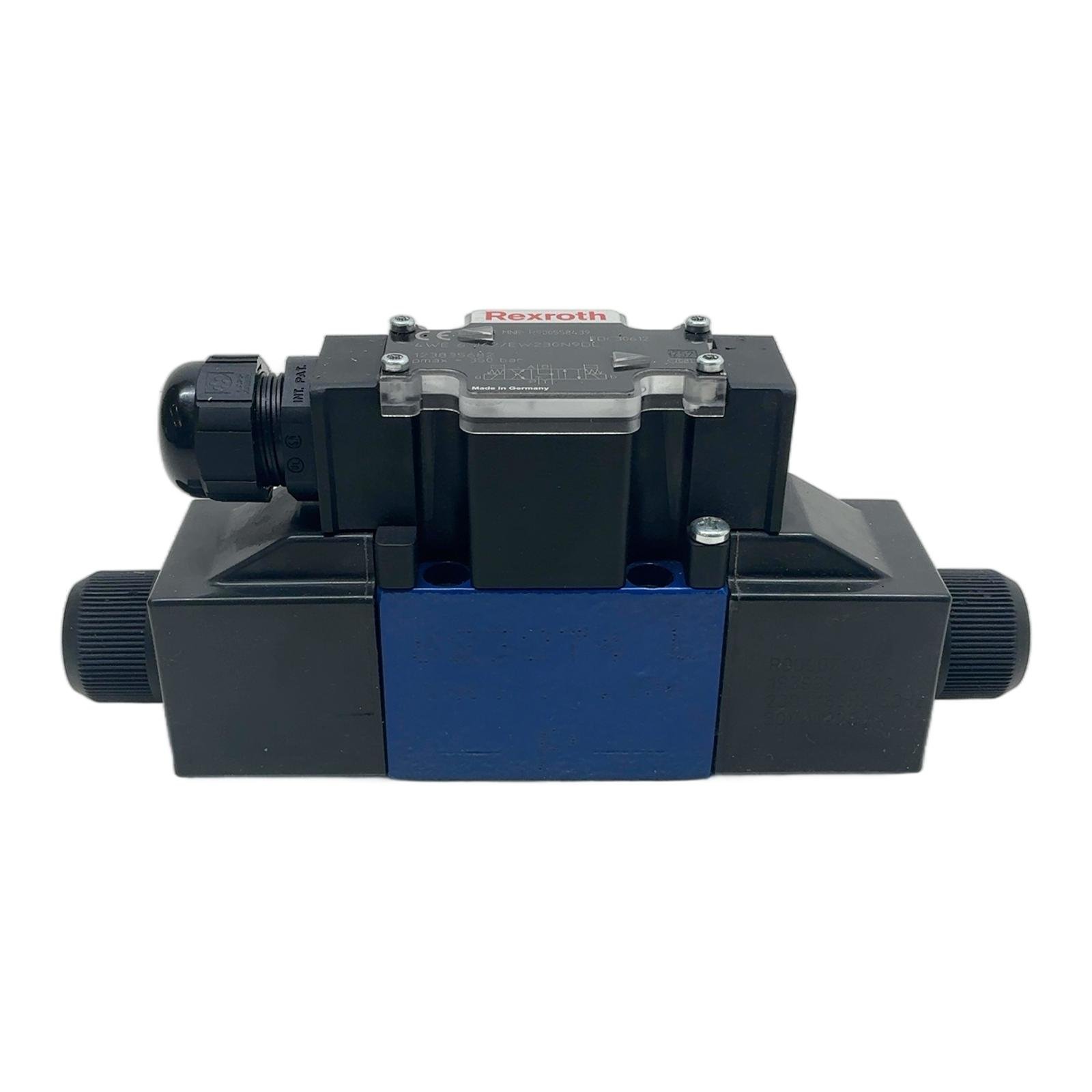

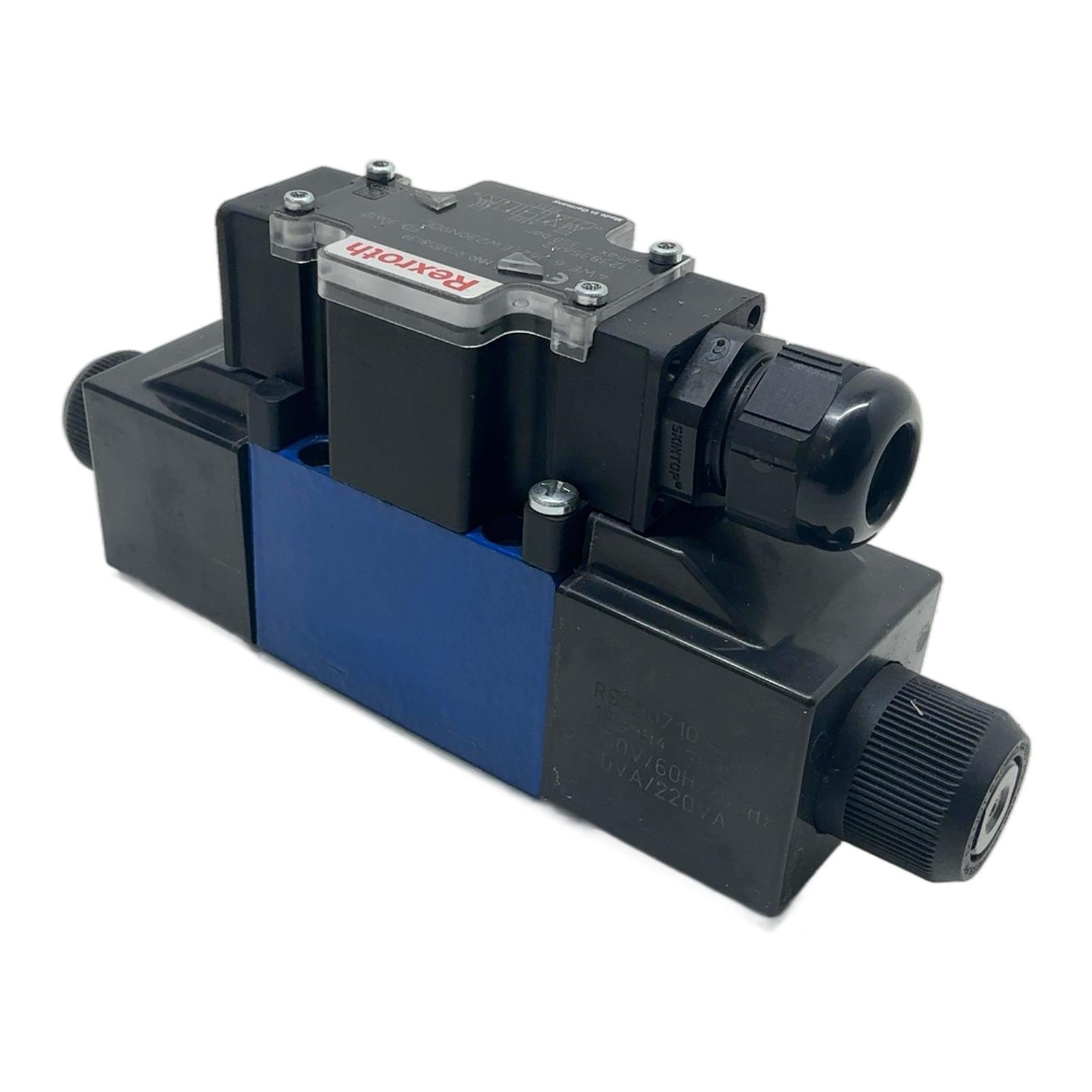

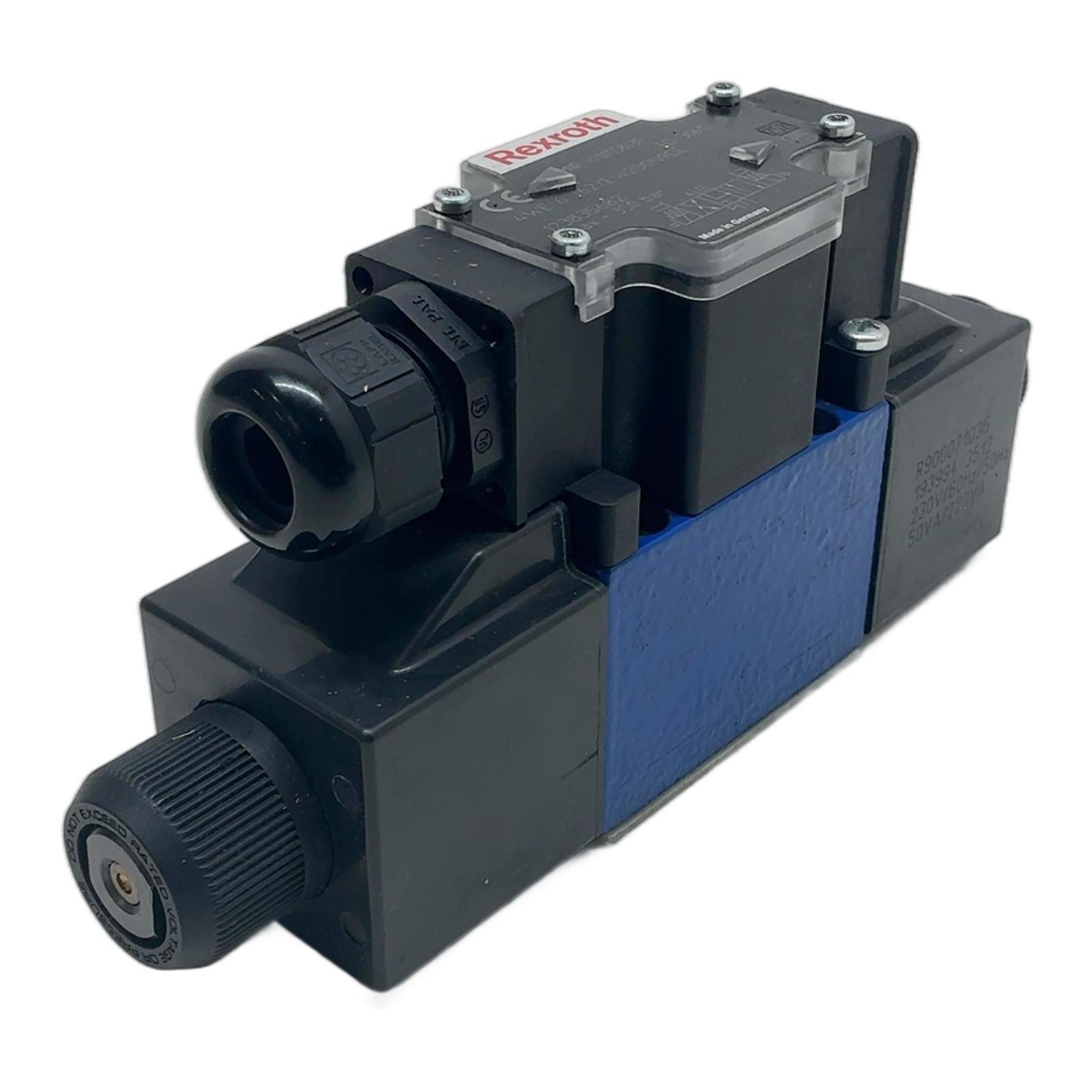

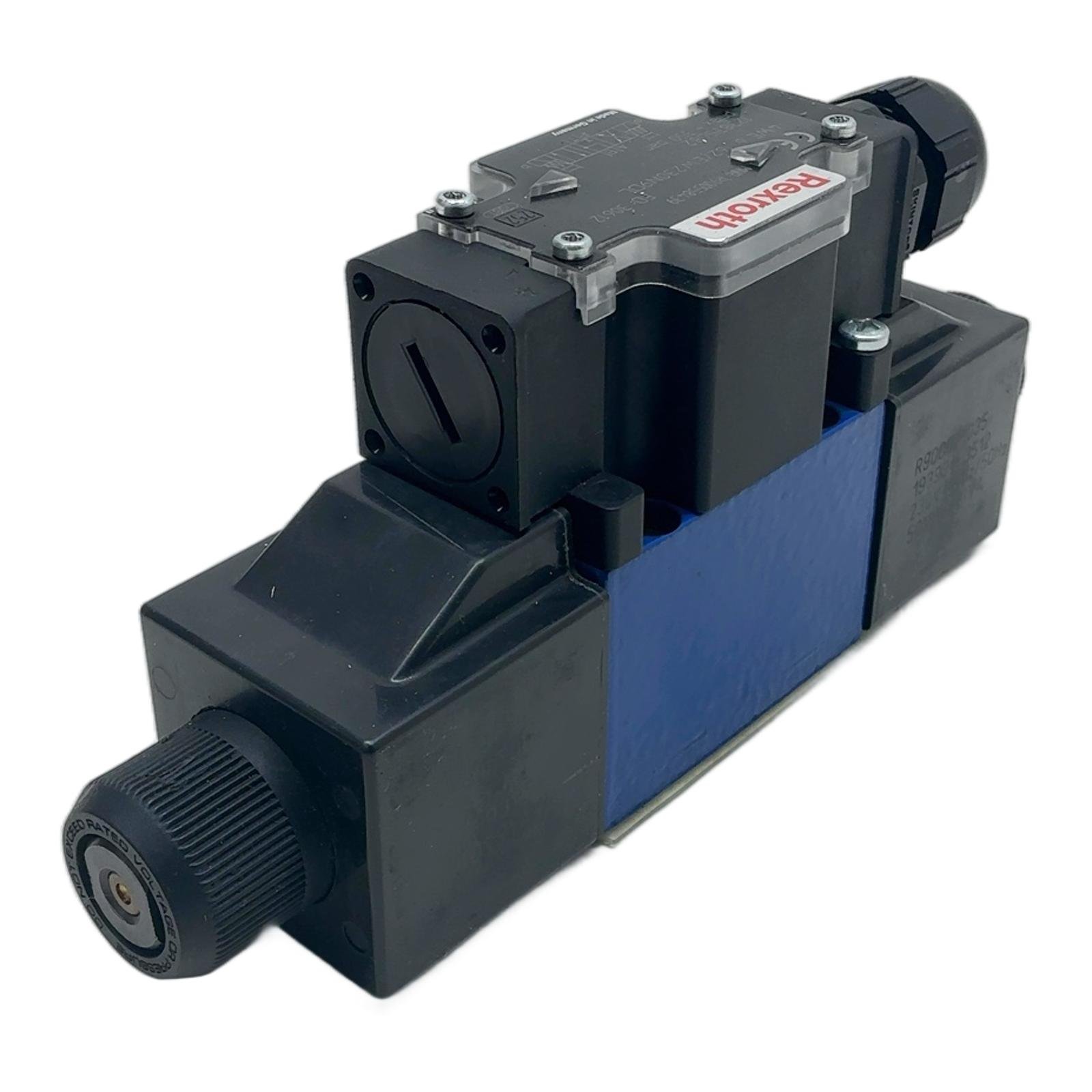

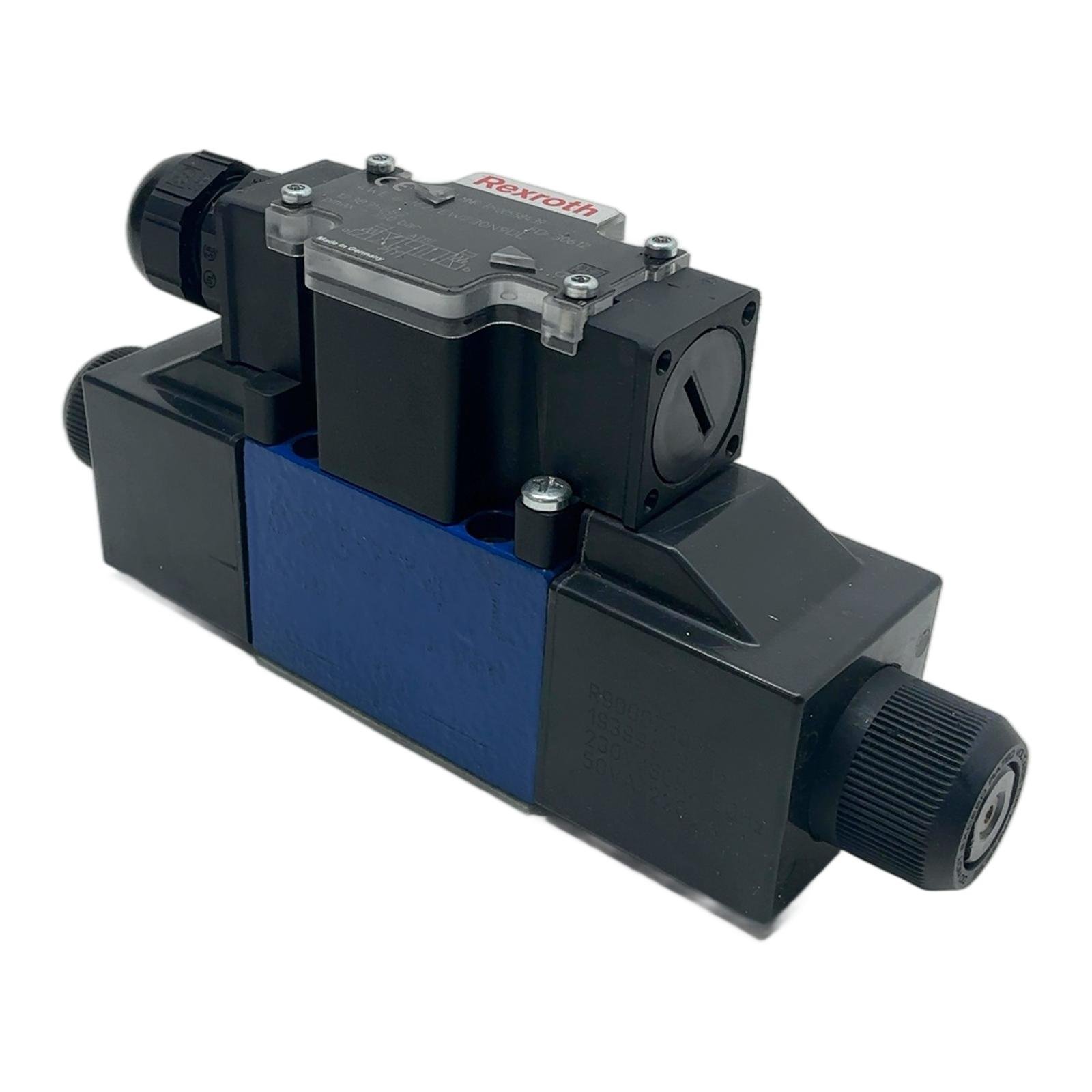

Rexroth 4WE 6 J62/EW230N9DL Hydraulic Directional Valve Description The Rexroth 4WE 6 J62/EW230N9DL is a high-performance, direct-operated directional spool valve. As a 4/3-way valve, it offers precise control over the flow of hydraulic fluid, making it a cornerstone component in industrial hydraulic systems. This model is actuated by a 230V AC solenoid and features a spring-centered ‘J’ spool, which blocks all ports in its neutral position for enhanced safety and control. Specifications Manufacturer: Bosch Rexroth Type: 4WE 6 J62/EW230N9DL Material Number: R900558439 Valve Type: 4/3-Way Directional Spool Valve Size: NG6 (CETOP 3) Maximum Operating Pressure: 350 bar Actuation: Solenoid-operated Solenoid Voltage: 230V AC Spool Symbol: J (All ports blocked in center position) Application This valve is widely used in machine tools, manufacturing equipment, presses, and mobile machinery where reliable and precise hydraulic control is essential. Its standard NG6 mounting interface ensures easy integration into new and existing systems. Country of Origin Made in Germany. CO2 Impact Choosing this reused component saves an estimated 3.6 kg of CO2 compared to manufacturing a new one. This is a sustainable choice for your operations. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What type of hydraulic fluid is compatible with this valve?This valve is designed for use with mineral oil (HL, HLP) according to DIN 51524, and can also be used with synthetic fluids like HETG, HEES, and HEPG on request. Always check the fluid compatibility and seal material (NBR is standard) before installation. What does the spool symbol ‘J’ signify for this 4WE 6 valve?The ‘J’ spool is a 3-position, spring-centered design. In the center (de-energized) position, all ports (P, T, A, B) are blocked. When solenoid ‘a’ is energized, flow is from P to A and B to T. When solenoid ‘b’ is energized, flow is from P to B and A to T. How do I use the concealed manual override on this valve?The concealed manual override allows you to shift the spool without electrical power. It is typically a small pin located in the center of the solenoid retaining nut. To operate it, carefully push the pin with a suitable tool (e.g., a small screwdriver or rod). This is useful for system setup, testing, and emergency operations. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: March 13, 2026
