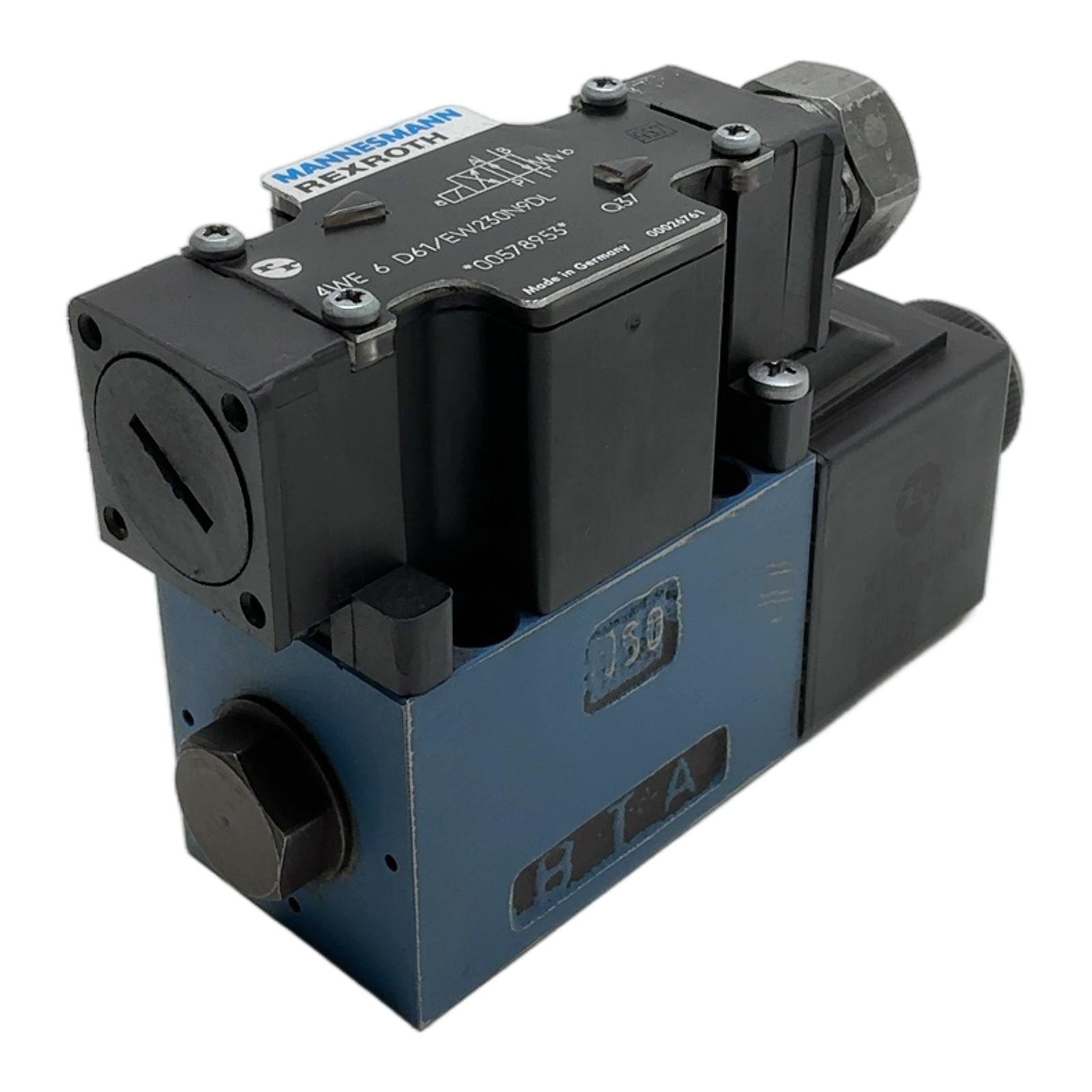

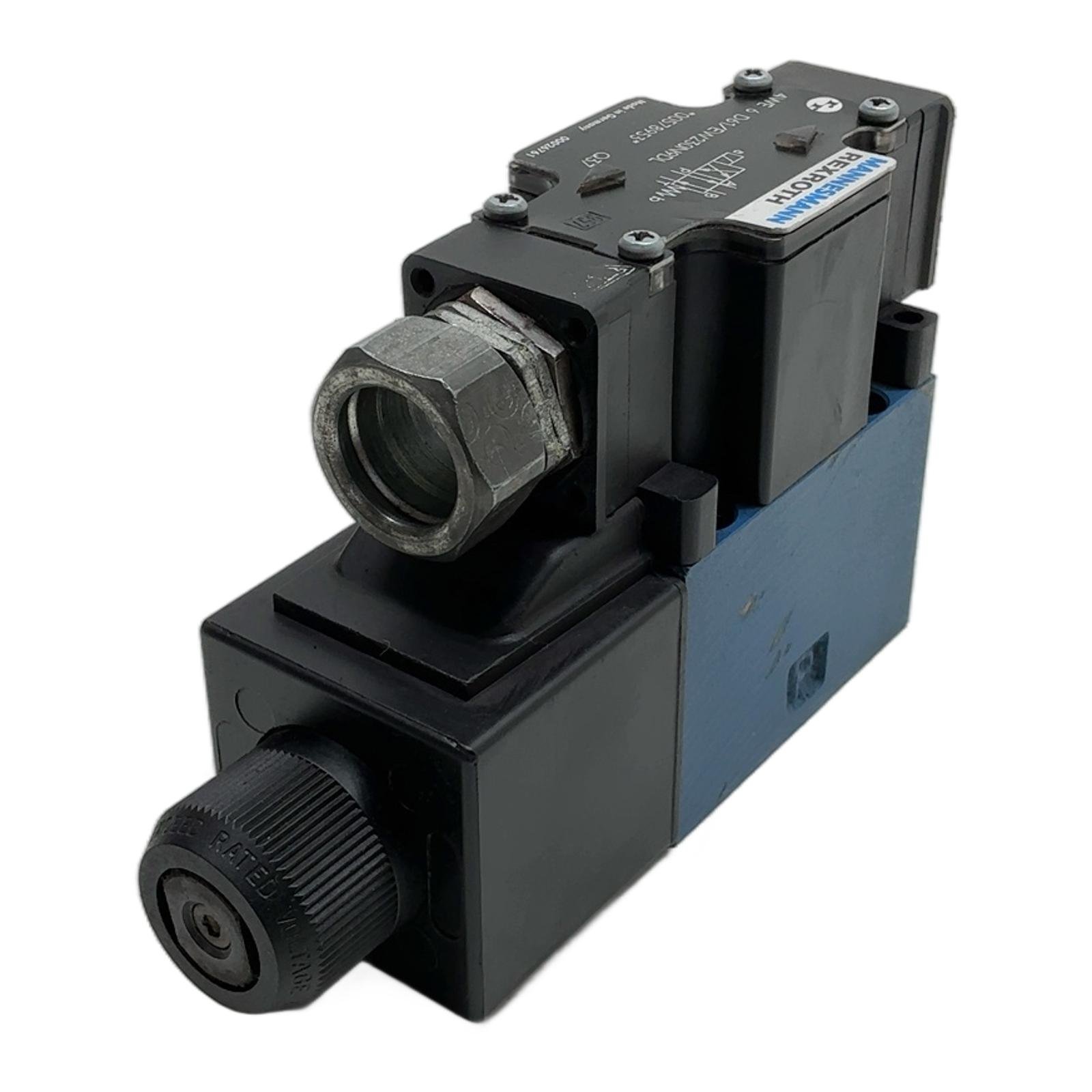

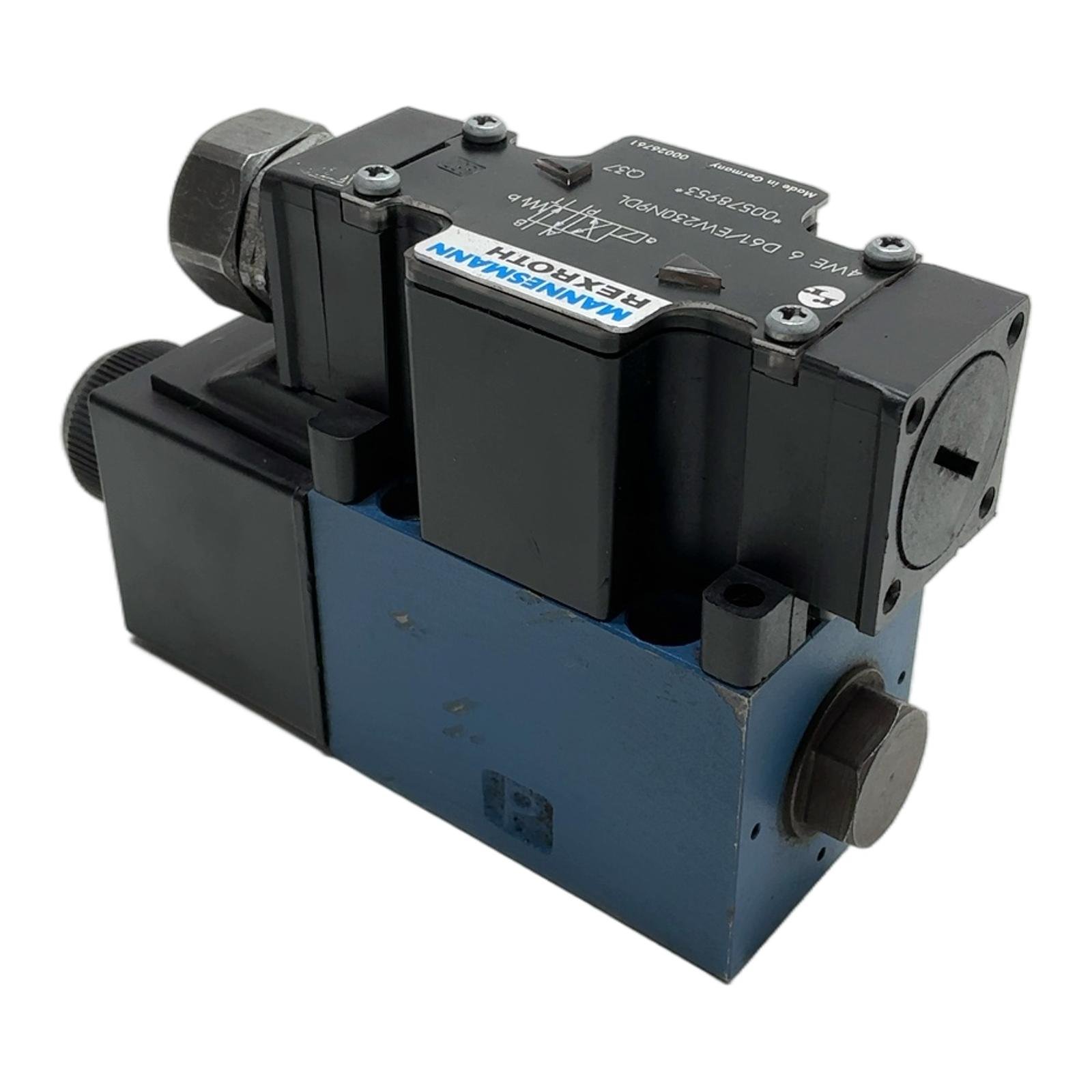

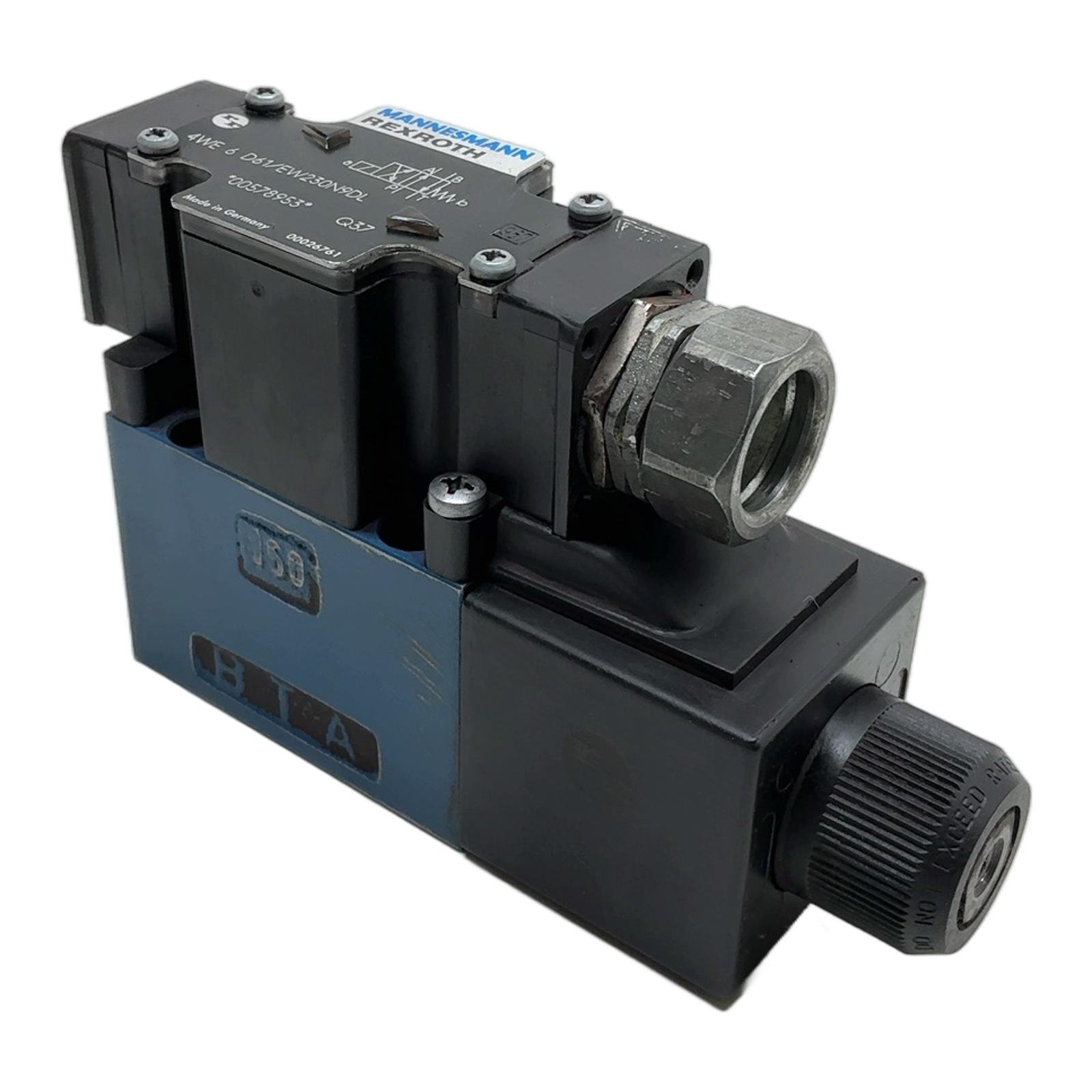

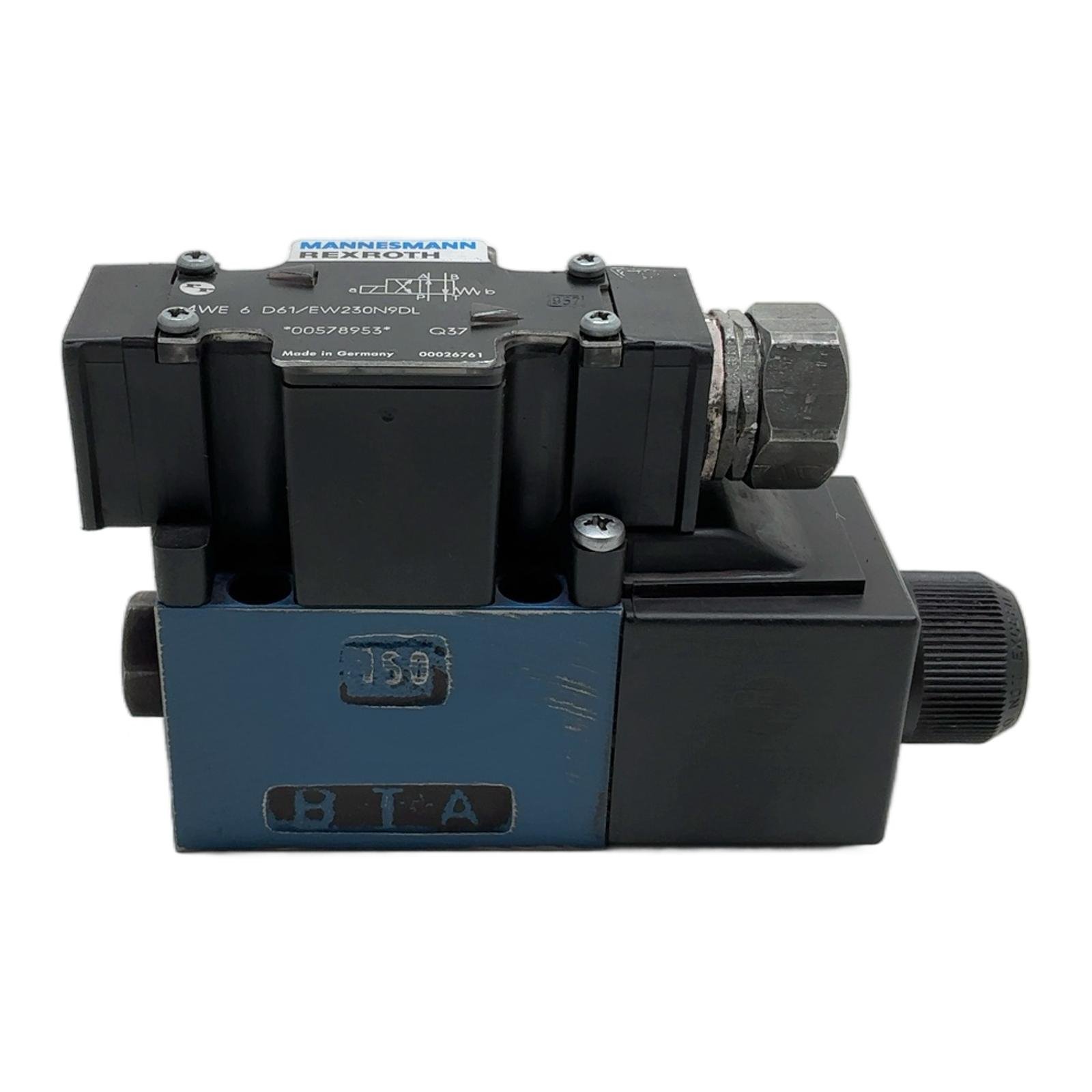

MANNESMANN REXROTH 4WE 6 D61/EW230N9DL 00578953

<h2>Mannesmann Rexroth Directional Solenoid Valve</h2> <h3>Description</h3> <p>This is a 4WE 6 D61/EW230N9DL hydraulic directional spool valve from Mannesmann Rexroth. It is a direct-operated, 4/2-way valve with solenoid actuation, designed for industrial hydraulic systems. Its standardized NG6 (CETOP 3) mounting interface ensures easy integration and interchangeability. The 230V AC solenoid provides reliable switching, and the concealed manual override allows for operation during power loss or setup. This valve is a classic, robust component known for its durability.</p> <h3>Specifications</h3> <ul> <li>Manufacturer: Mannesmann Rexroth</li> <li>Type: Directional Spool Valve</li> <li>Model: 4WE 6 D61/EW230N9DL</li> <li>Part Number: 00578953</li> <li>Nominal Size: NG6 (CETOP 3)</li> <li>Max Operating Pressure: 350 bar</li> <li>Actuation: Solenoid</li> <li>Solenoid Voltage: 230V AC</li> <li>Spool Type: D</li> </ul> <h3>Label Info</h3> <ul> <li>4WE 6 D61/EW230N9DL</li> <li>*00578953*</li> <li>Made in Germany</li> </ul> <h3>Application</h3> <p>This type of valve is commonly used in machine tools, manufacturing lines, presses, and other industrial machinery to control the direction of hydraulic fluid flow, thereby controlling actuators like cylinders and motors.</p> <h3>Country of Origin</h3> <p>Made in Germany.</p> <h3>CO2 Impact</h3> <p>Opting for this pre-owned component avoids the production of a new one, saving approximately 11.2 kg of CO2. This is comparable to the emissions from a 56-kilometer car journey.</p> <h3>Availability</h3> <p>This item is a reliable, used component. Order now from profideals for expert support and fast delivery.</p> <h3>FAQ</h3> <p> <strong>What is the significance of the “NG6” designation?</strong><br> <p>NG6 (from the German “Nenngroesse 6”) refers to the nominal size 6mm port diameter. It corresponds to the CETOP 3 and NFPA D03 mounting interface standards, ensuring interchangeability between valves from different manufacturers that adhere to this standard.</p> <strong>Can I use a 24V DC power supply with this 230V AC valve?</strong><br> <p>No, this valve is specifically designed for a 230V AC power supply, as indicated by “EW230” in the type code. Using a 24V DC supply will not provide enough power to actuate the solenoid and may damage the power source or the coil.</p> <strong>What does the spool symbol on the label mean?</strong><br> <p>The symbol shows a 4/2 directional valve, meaning it has four ports (P, T, A, B) and two switching positions. The diagram for spool type “D” indicates that in its spring-centered (de-energized) position, port P (pressure) is connected to T (tank), and ports A and B are blocked.</p> </p> <p>Friday, March 13, 2026</p> <p><em>profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.</em></p>
