IMI HERION 8020750 4623050

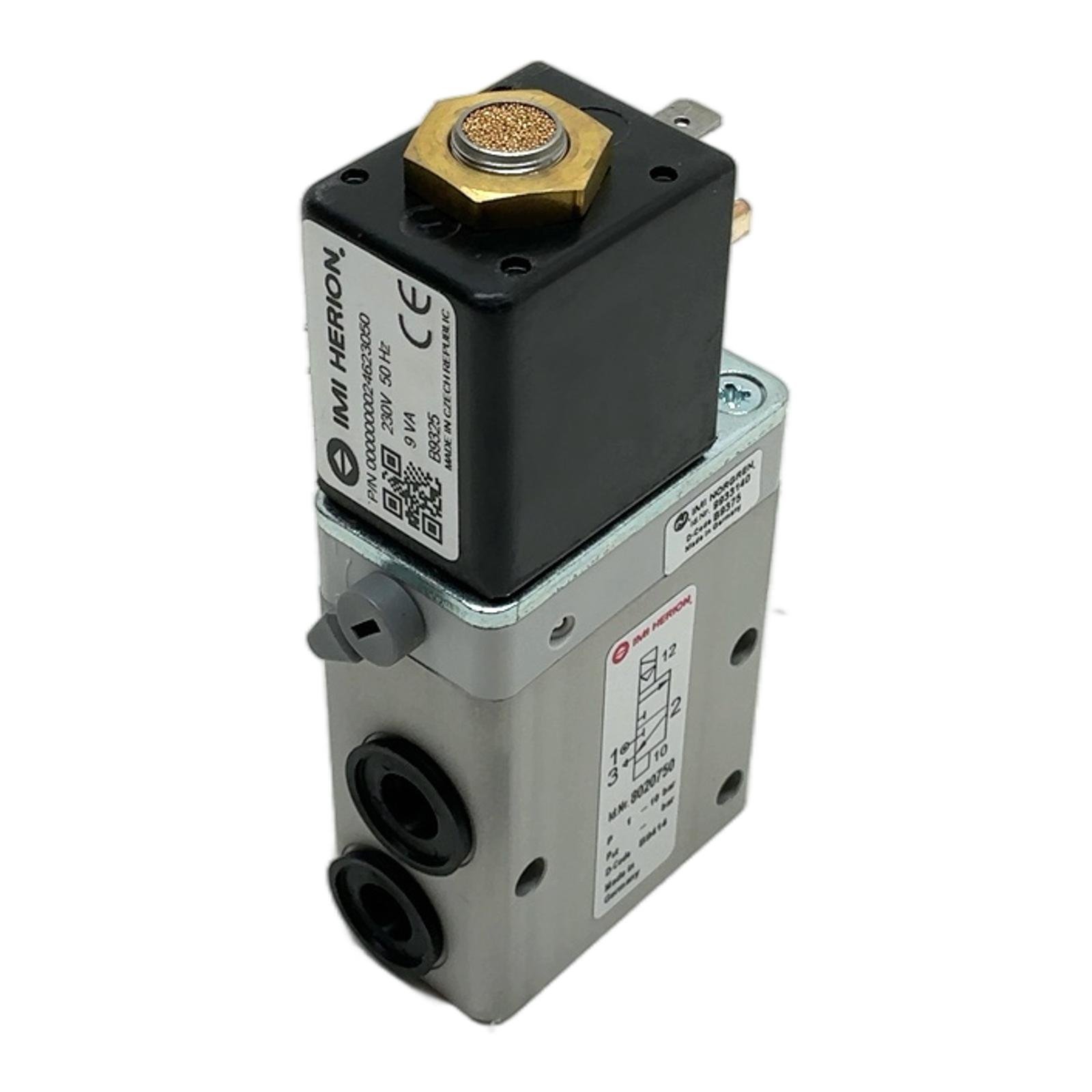

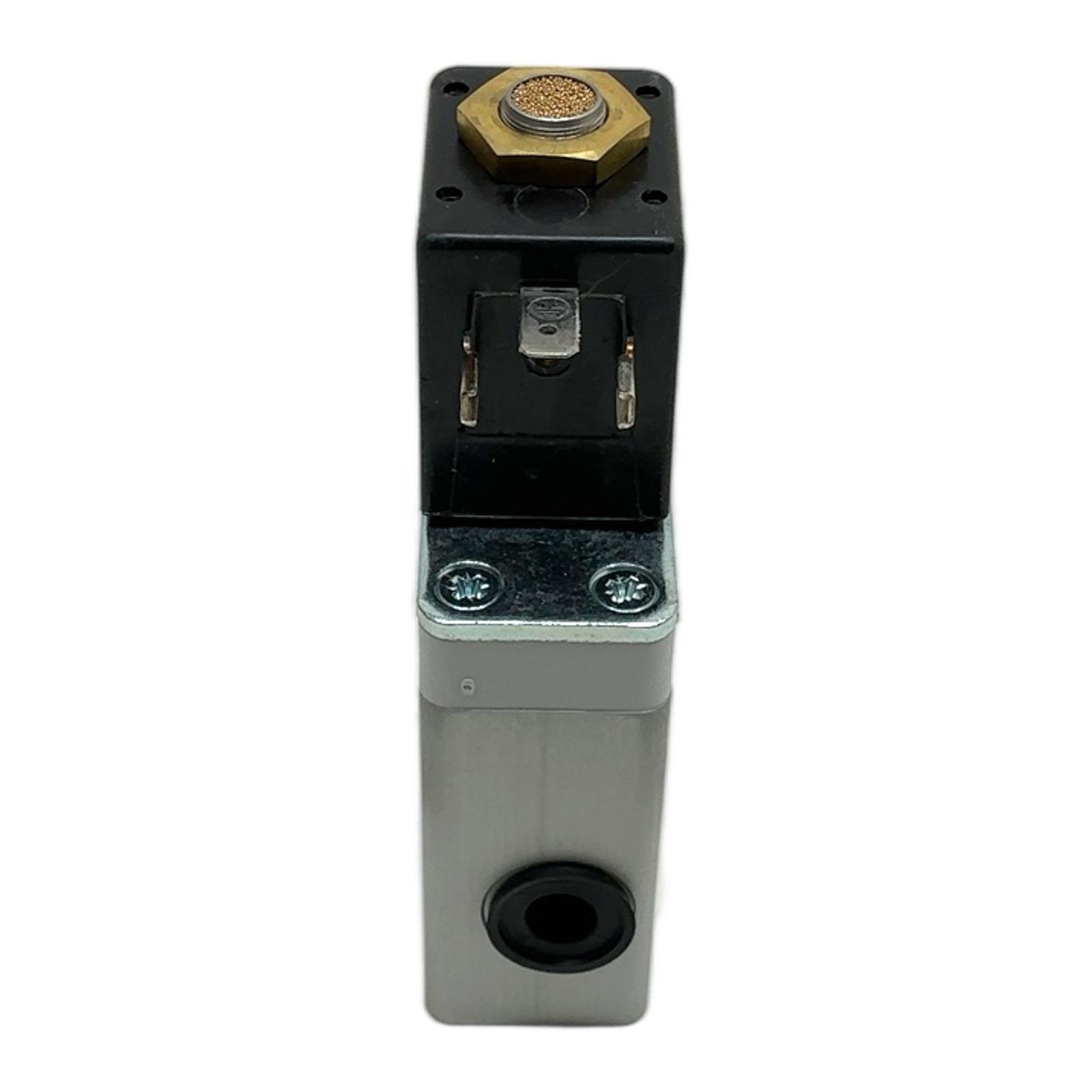

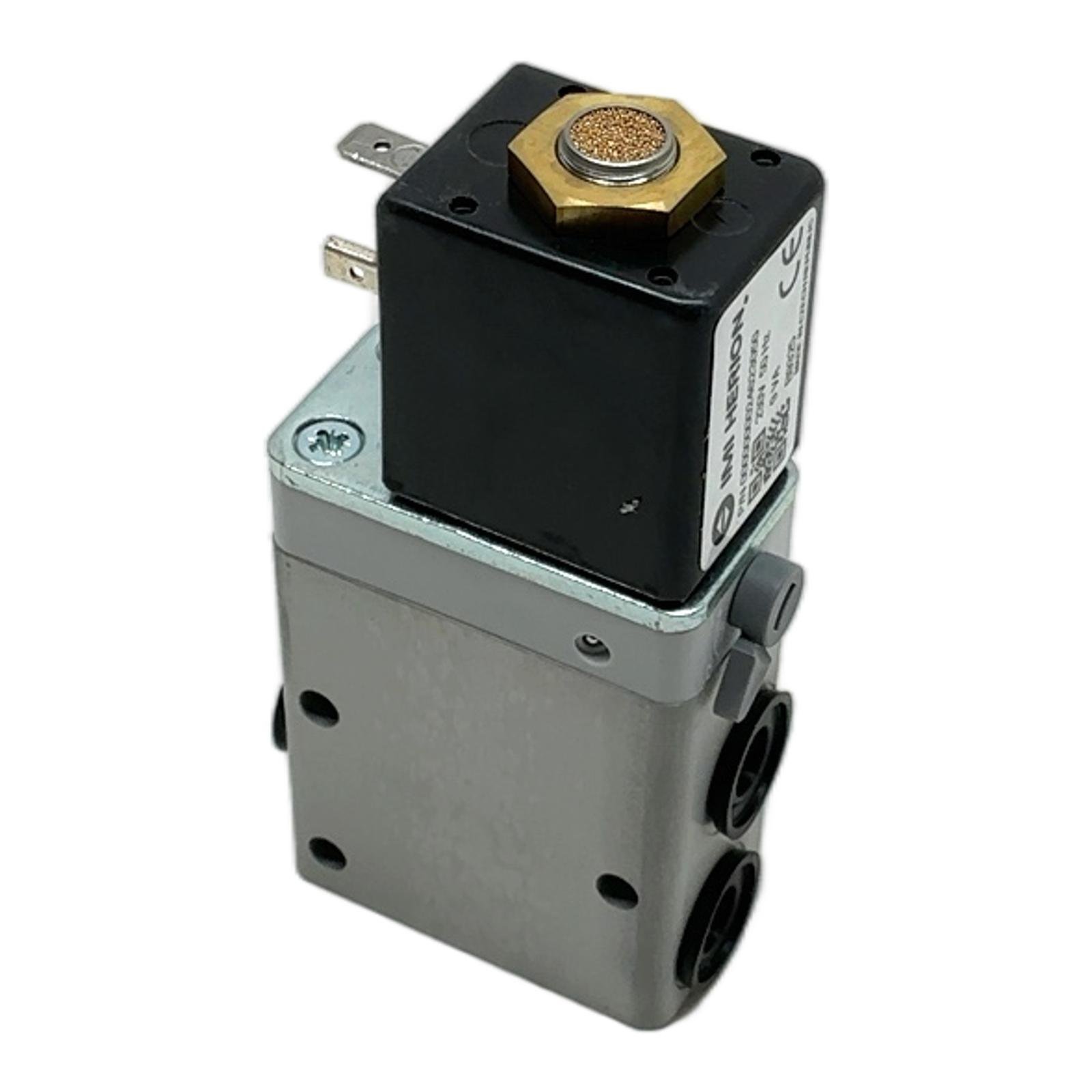

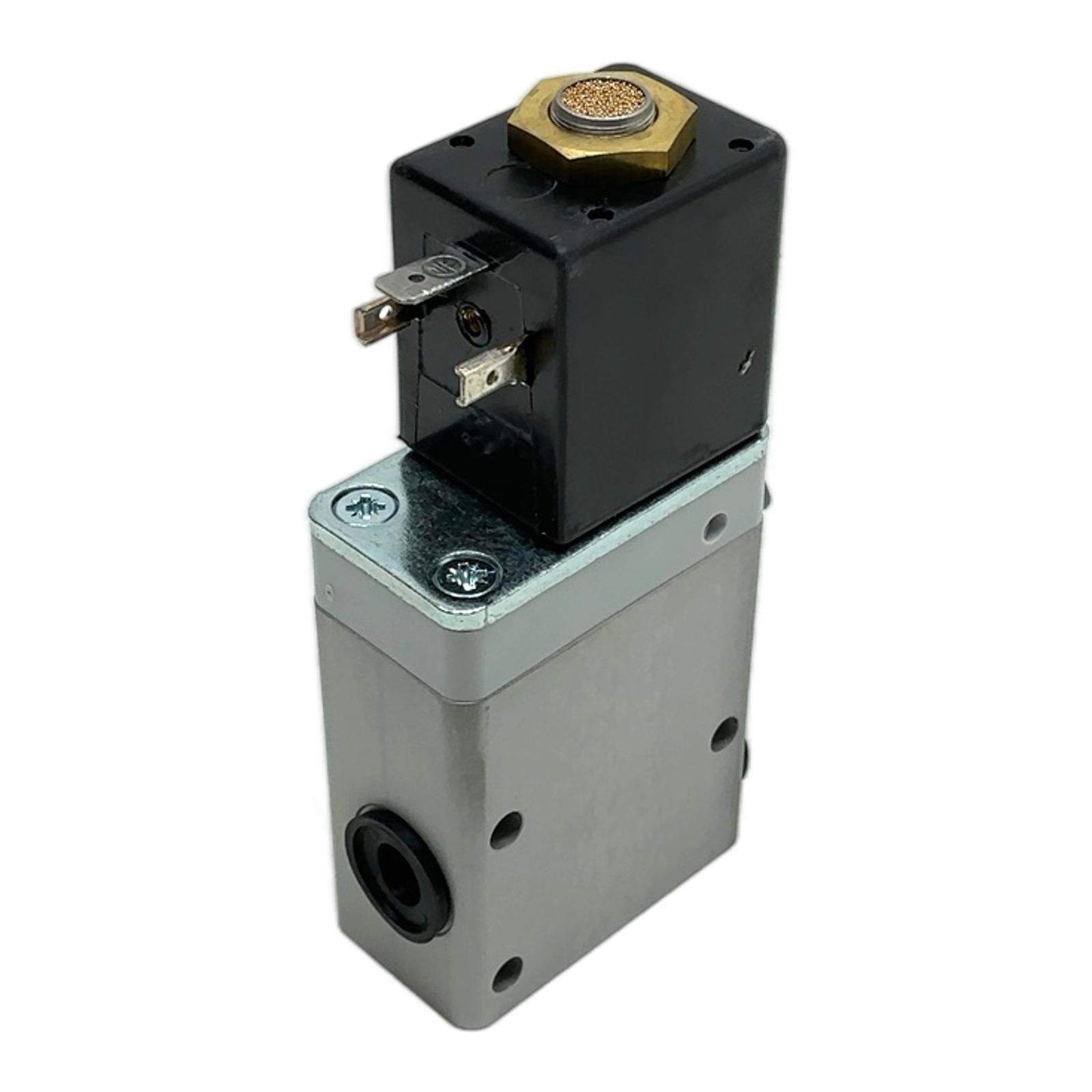

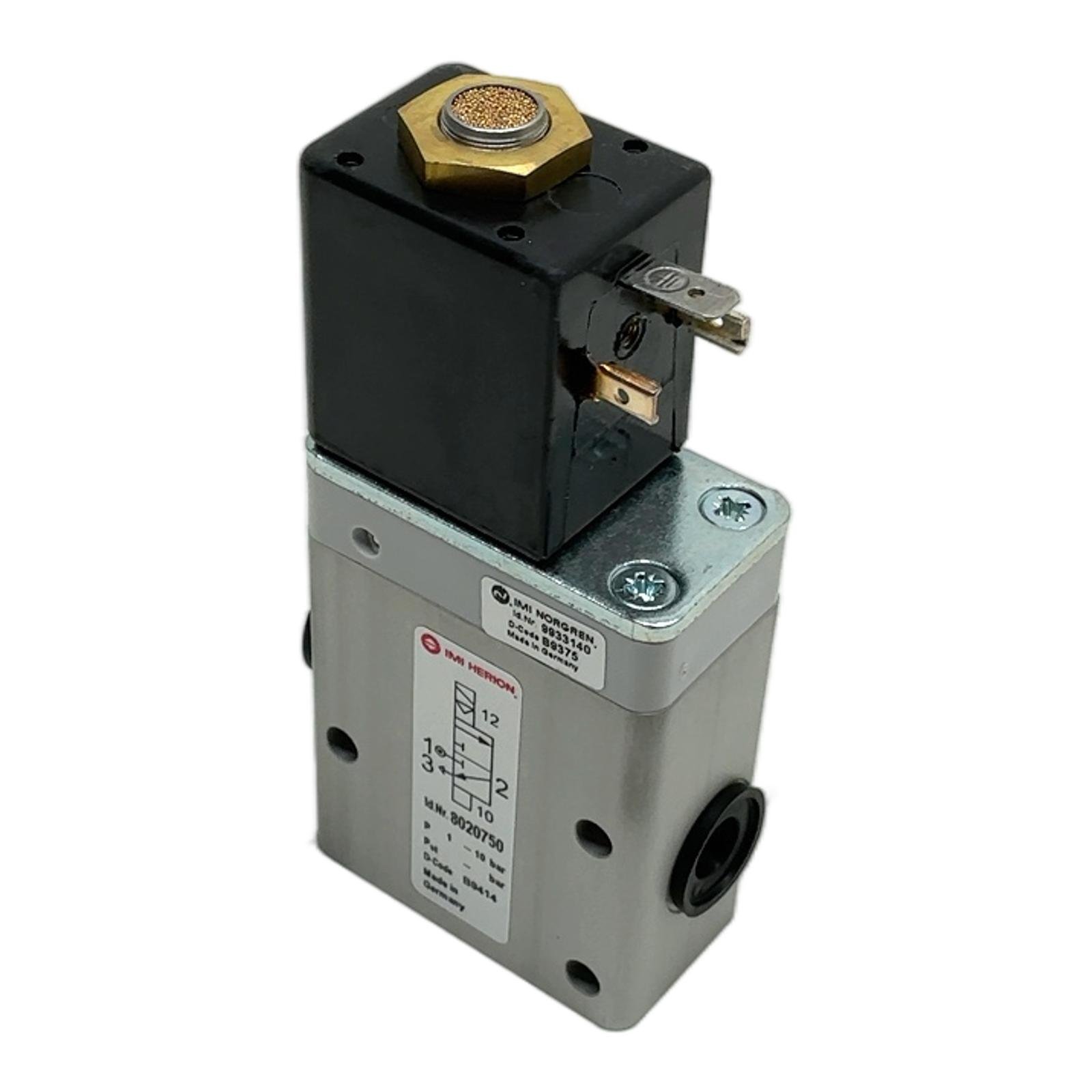

IMI Herion 3/2-Way Pneumatic Solenoid Valve Description This is a high-quality, direct-acting solenoid valve from IMI Herion, model 8020750.0247.23050. Designed for precision control of compressed air, this 3/2-way, normally closed valve is a reliable component for any industrial pneumatic system. It comes complete with its 230V AC coil and is built to withstand pressures from 1 to 10 bar. Specifications Manufacturer: IMI Herion (Part of IMI Norgren / IMI Precision Engineering) Type Number: 8020750.0247.23050 Valve Function: 3/2-Way, Normally Closed (NC) Actuation: Direct Solenoid Actuated Operating Pressure: 1 to 10 bar Coil Voltage: 230V AC, 50 Hz Power Consumption: 9 VA Connection Ports: G1/4 inch Label Info Valve Body Id.Nr: 8020750 Coil P/N: 0000000024623050 Application Ideal for use in factory automation, machine building, and process control where reliable switching of pneumatic lines is required. Common applications include actuator control, piloting larger valves, and single-acting cylinder operation. Country of Origin The valve body is made in Germany, and the solenoid coil is made in the Czech Republic. CO2 Impact By choosing this reused part, you are saving approximately 16 kg of CO2 emissions. This saving is comparable to the emissions from driving a car for 80 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the function of a 3/2-way normally closed (NC) valve?It has three ports and two positions. In its normal, de-energized state, it blocks flow from the inlet port (1) to the outlet port (2), while the outlet port (2) is vented to the exhaust port (3). When energized, it allows flow from 1 to 2 and blocks the exhaust port. What does the ‘0247’ in the model number signify?This part of the Herion model number typically specifies material and connection details. For this series, it usually indicates G1/4 inch port connections and FKM (Viton) seals, suitable for a wide range of temperatures and media. Can I use a different voltage coil with this valve body?Yes, the valve body (8020750) is compatible with various IMI Herion/Norgren coils of the same series. However, you must ensure the replacement coil matches the required voltage and frequency (e.g., 24V DC, 110V AC) for your application and has the correct physical fit. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
