FAG 32005X

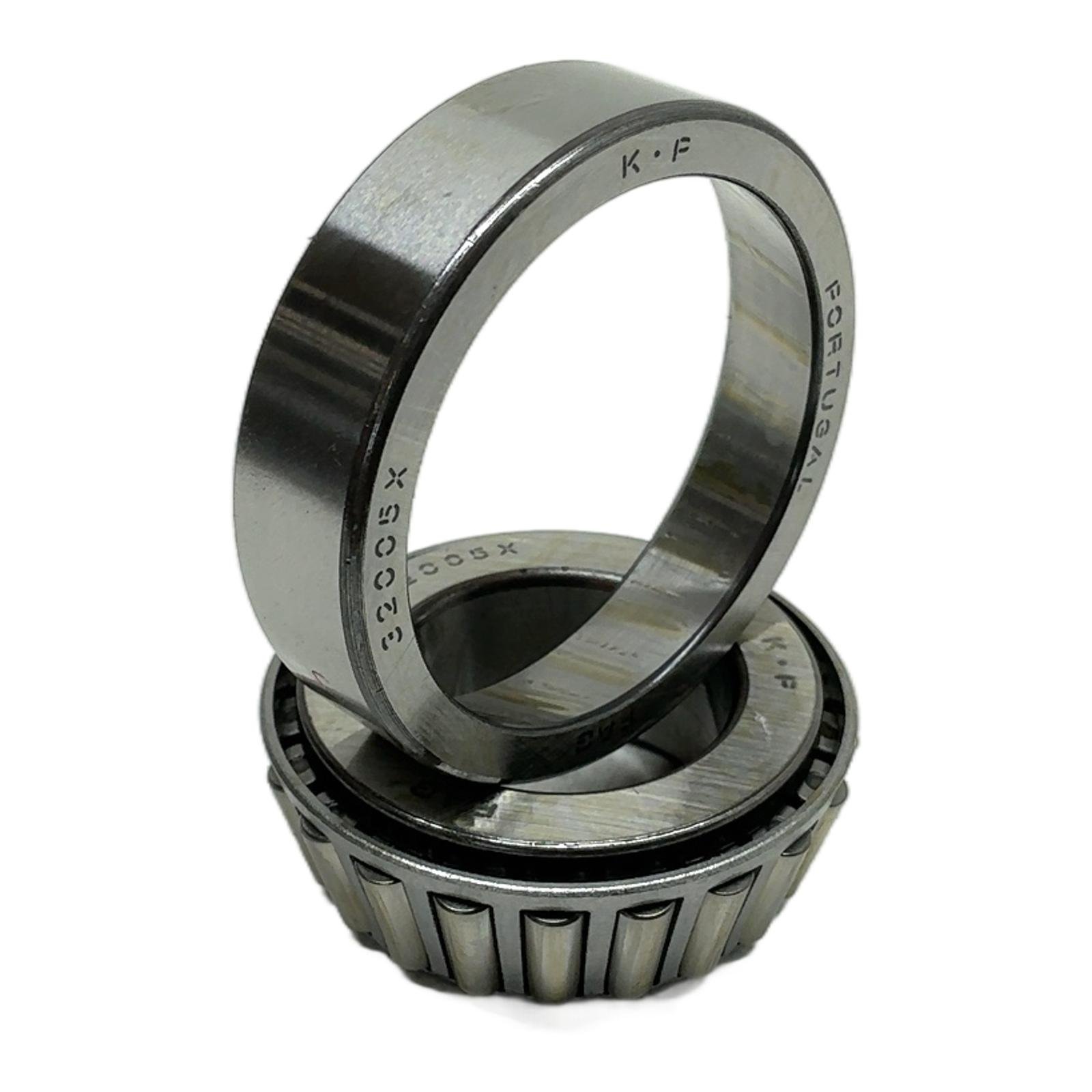

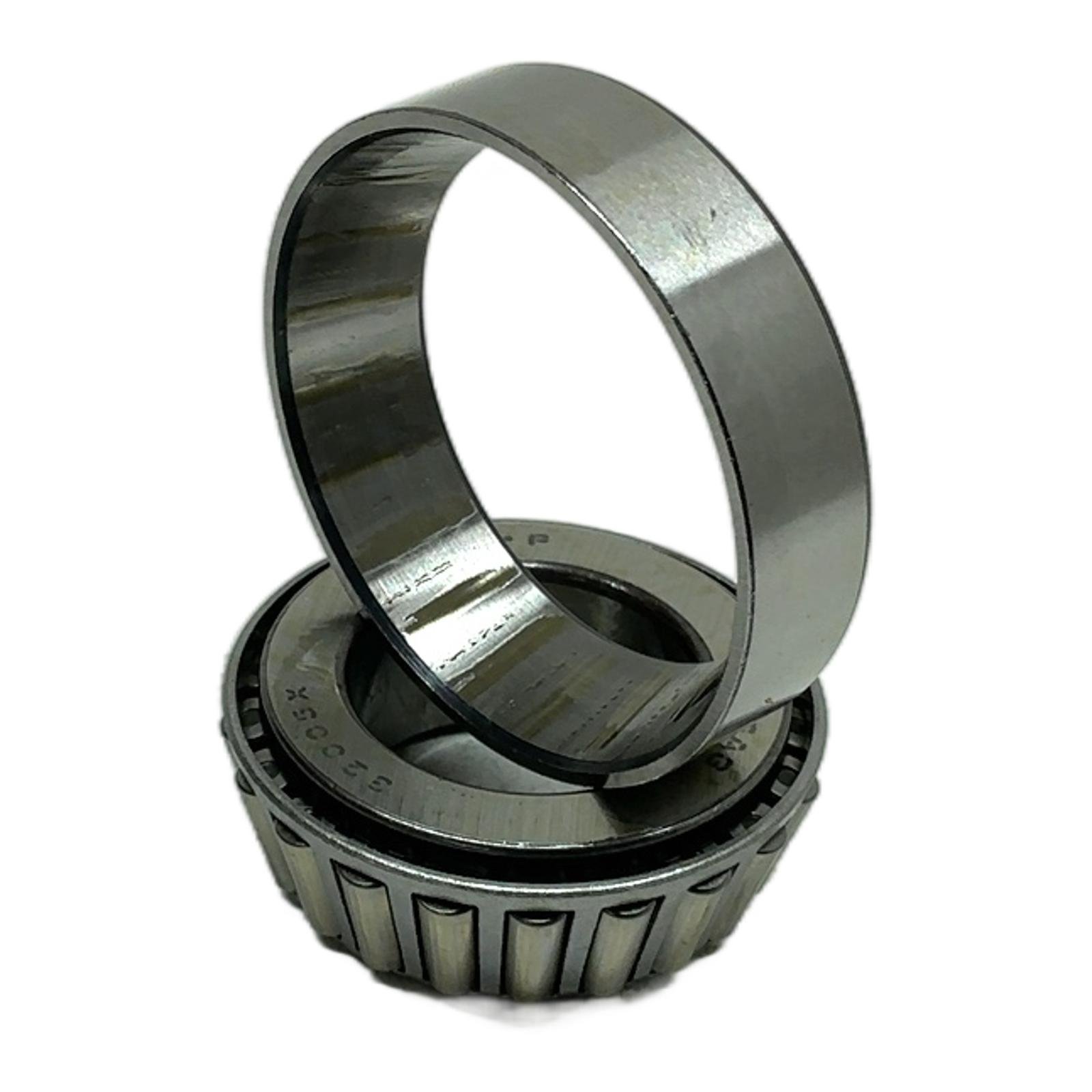

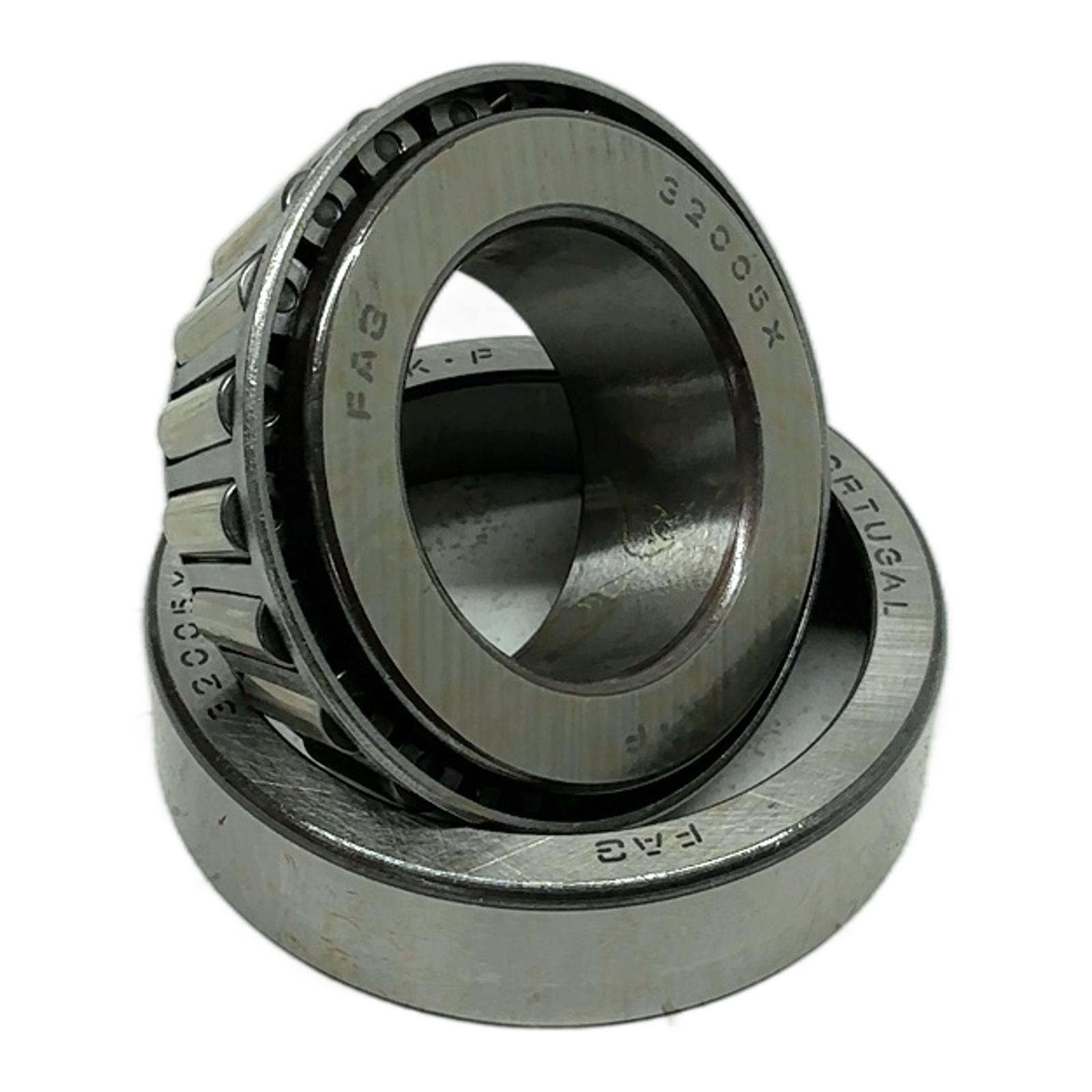

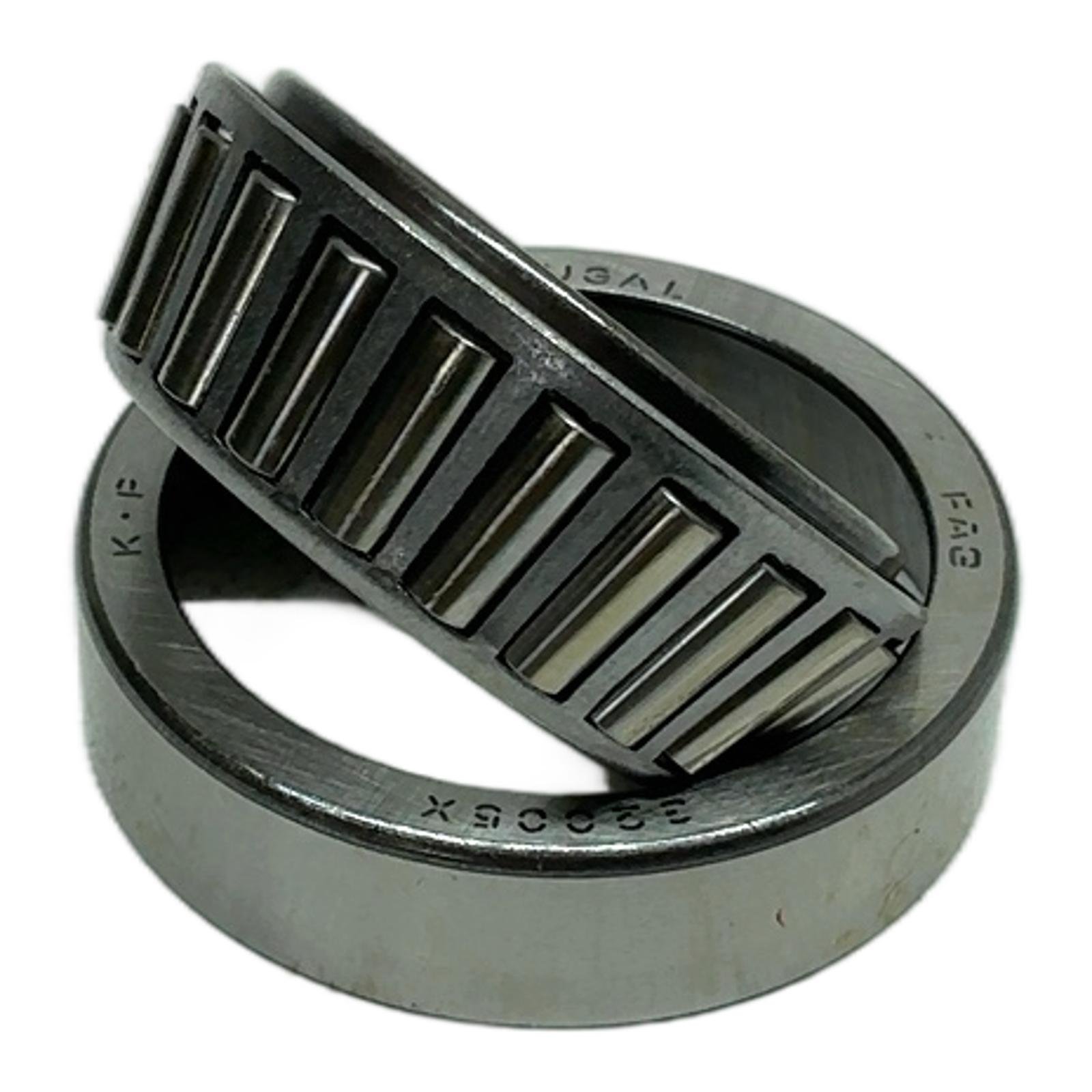

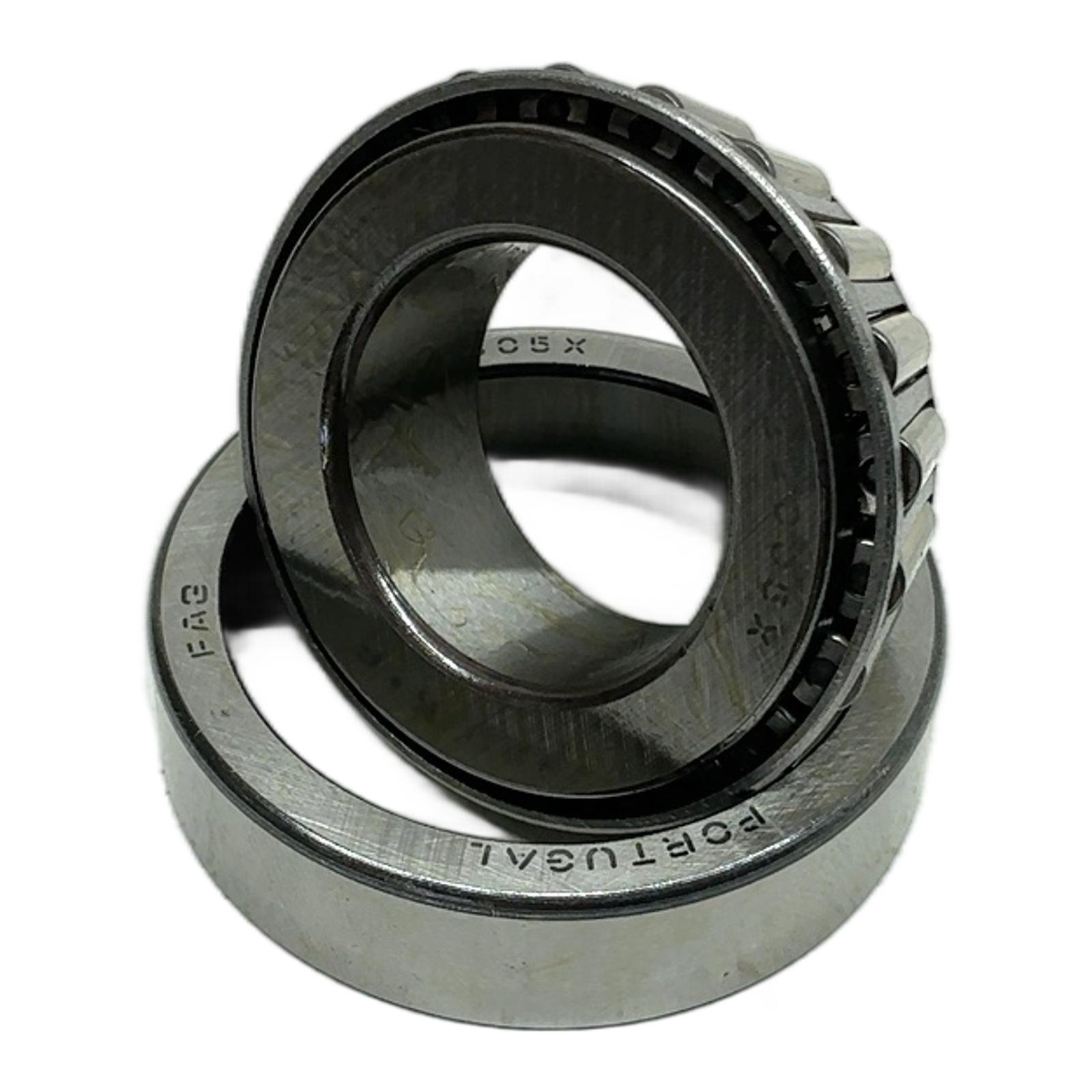

FAG 32005X Tapered Roller Bearing Description This is a single-row tapered roller bearing, model 32005X, manufactured by FAG. These bearings are designed to accommodate combined (radial and axial) loads and are known for their high rigidity and load-carrying capacity. The separable design, with a separate cone and cup, simplifies mounting and maintenance procedures. This specific item was manufactured in Portugal and represents the quality and engineering excellence FAG is known for. Specifications Manufacturer: FAG (Schaeffler Group) Model Number: 32005X Type: Tapered Roller Bearing Inner Diameter: 25 mm Outer Diameter: 47 mm Total Width: 15 mm Material: High-carbon chromium bearing steel Label Info Brand: FAG Part Number: 32005X Order Code: 1K 069312 Application Tapered roller bearings like the 32005X are commonly used in automotive wheel hubs, gearbox shafts, industrial machinery, and agricultural equipment where high combined loads are present. Country of Origin Made in Portugal. CO2 Impact Opting for this reused component prevents the emission of approximately 0.22 kg of CO2, which would have been generated during the production of a new bearing. This is a sustainable choice for your maintenance needs. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What does the ‘X’ suffix signify in the FAG 32005X model?The ‘X’ suffix indicates that the bearing’s boundary dimensions have been adapted to international standards (ISO 355), ensuring interchangeability with other manufacturers’ parts that conform to the same standard. Is this bearing pre-lubricated?Typically, new tapered roller bearings are coated with a preservative oil but are not pre-packed with grease for operation. They must be lubricated with an appropriate grease or oil upon installation, depending on the application’s speed, load, and temperature. Can the cone and cup from different 32005X bearings be interchanged?While the overall dimensions are standardized, it is highly recommended to always use the cone and cup that are supplied as a matched set. Mixing components from different bearings, even of the same part number, can compromise performance, precision, and operational life. profideals is not an authorized distributor, reseller, or representative of the products featured on this website. All product names, trademarks, brands, and logos used on this site are the property of their respective owners. Laatst bijgewerkt: Friday, March 13, 2026
