BOSCH REXROTH NFD03.1-480-007

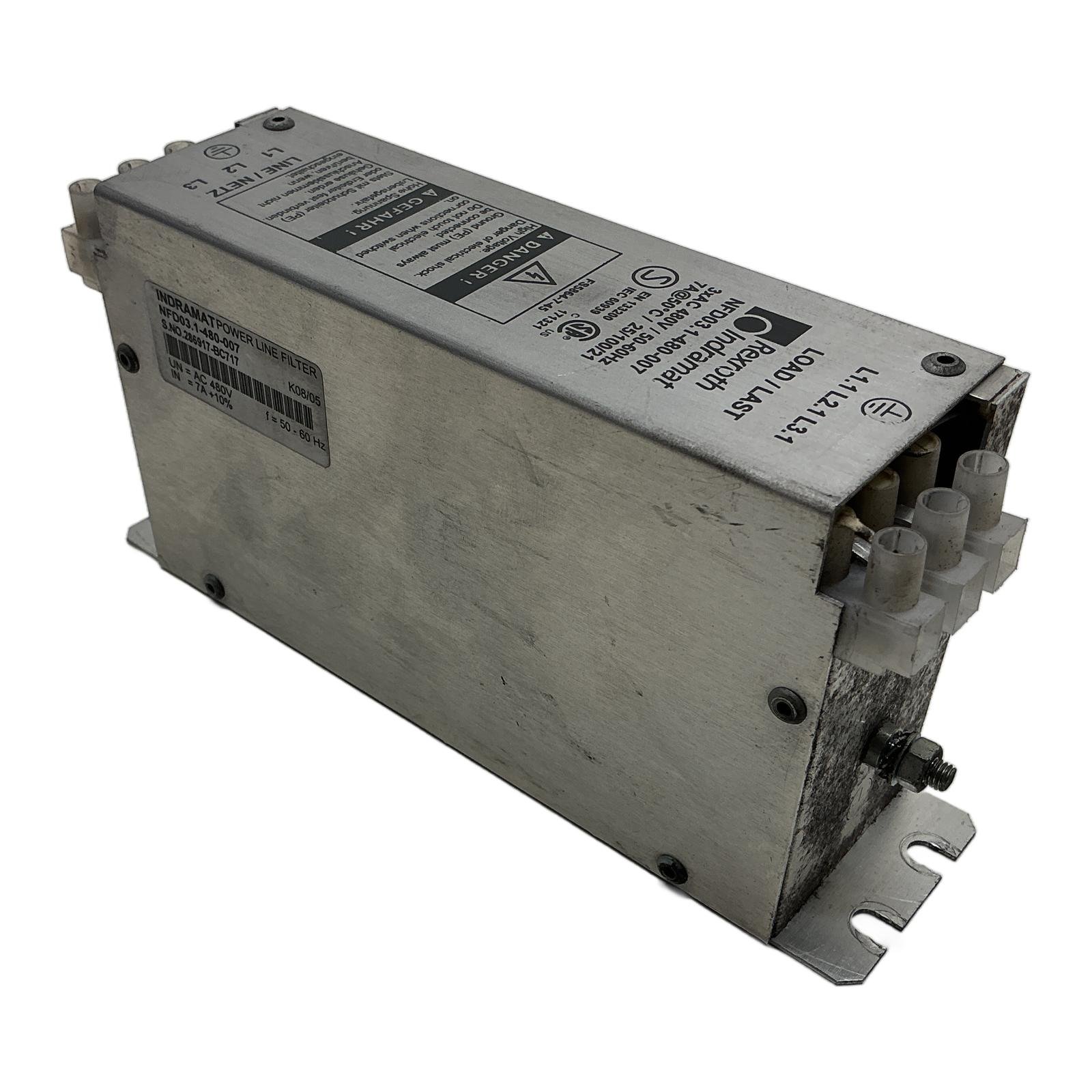

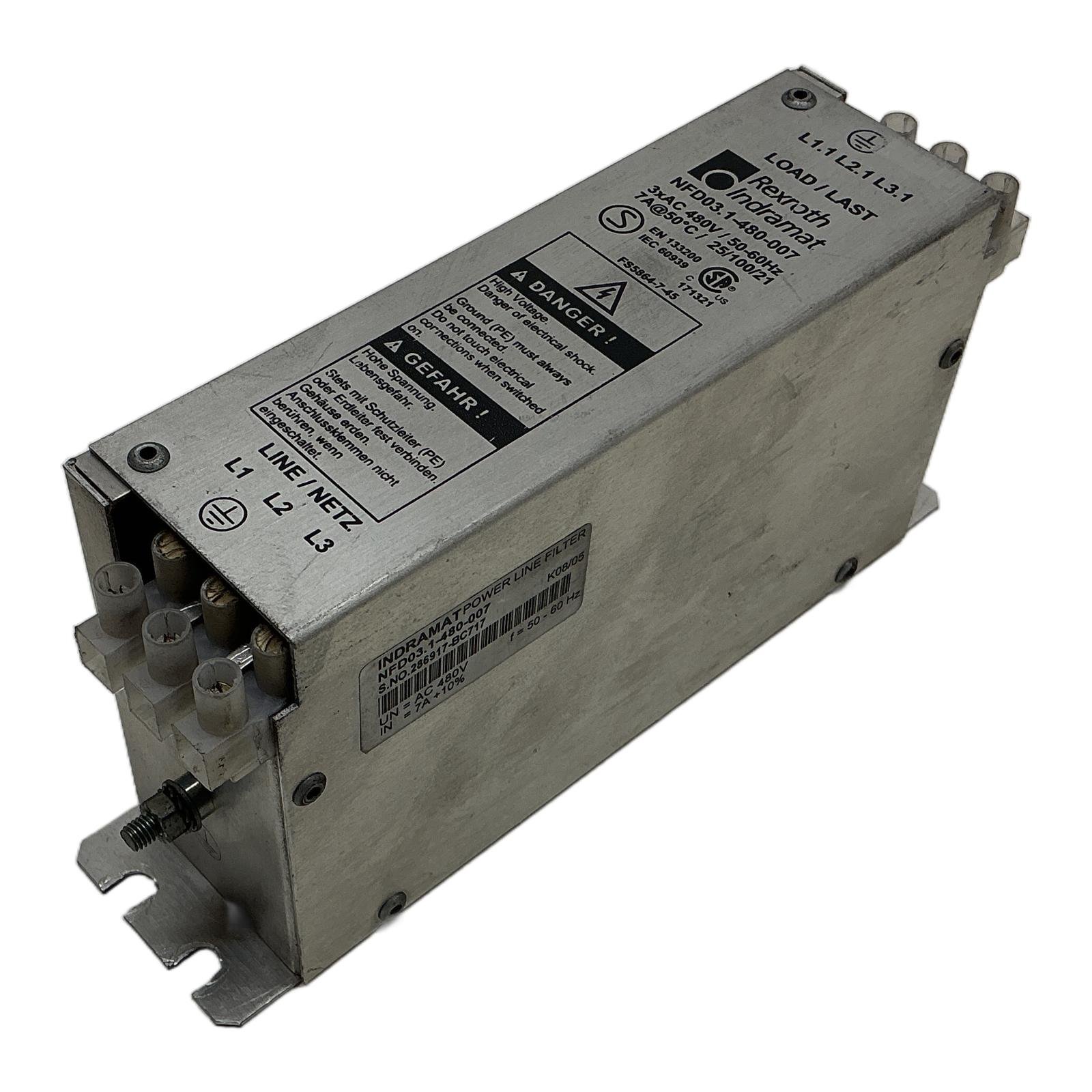

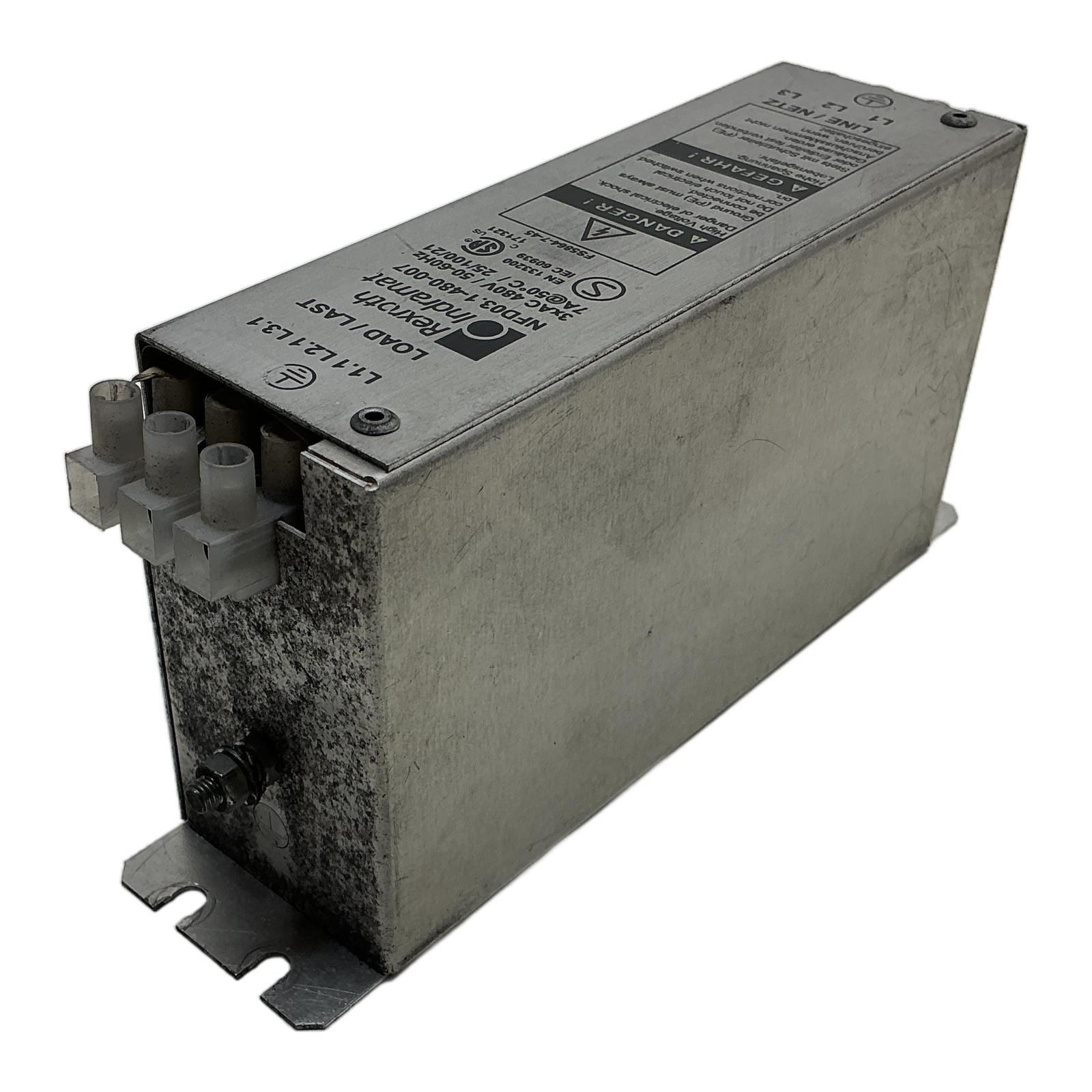

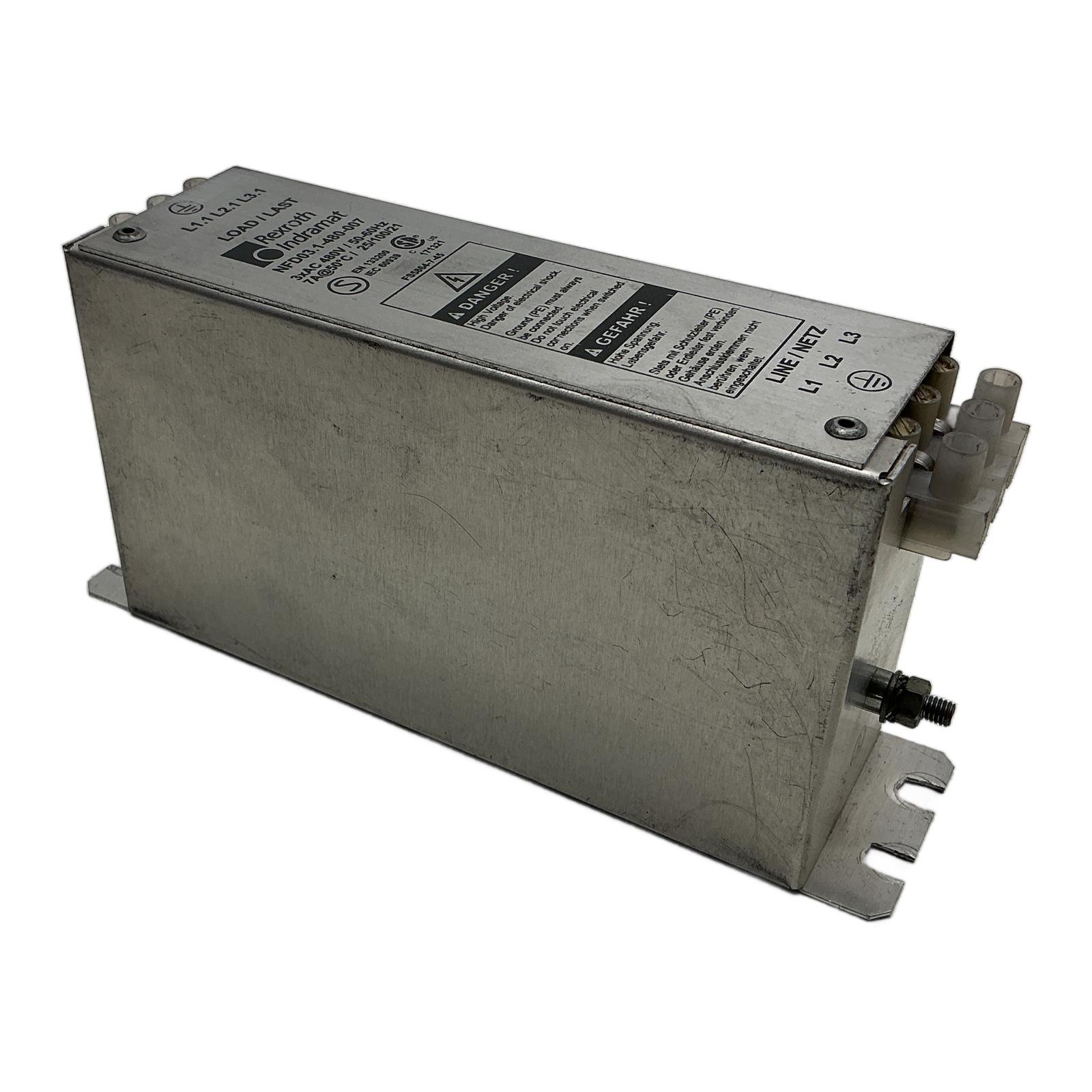

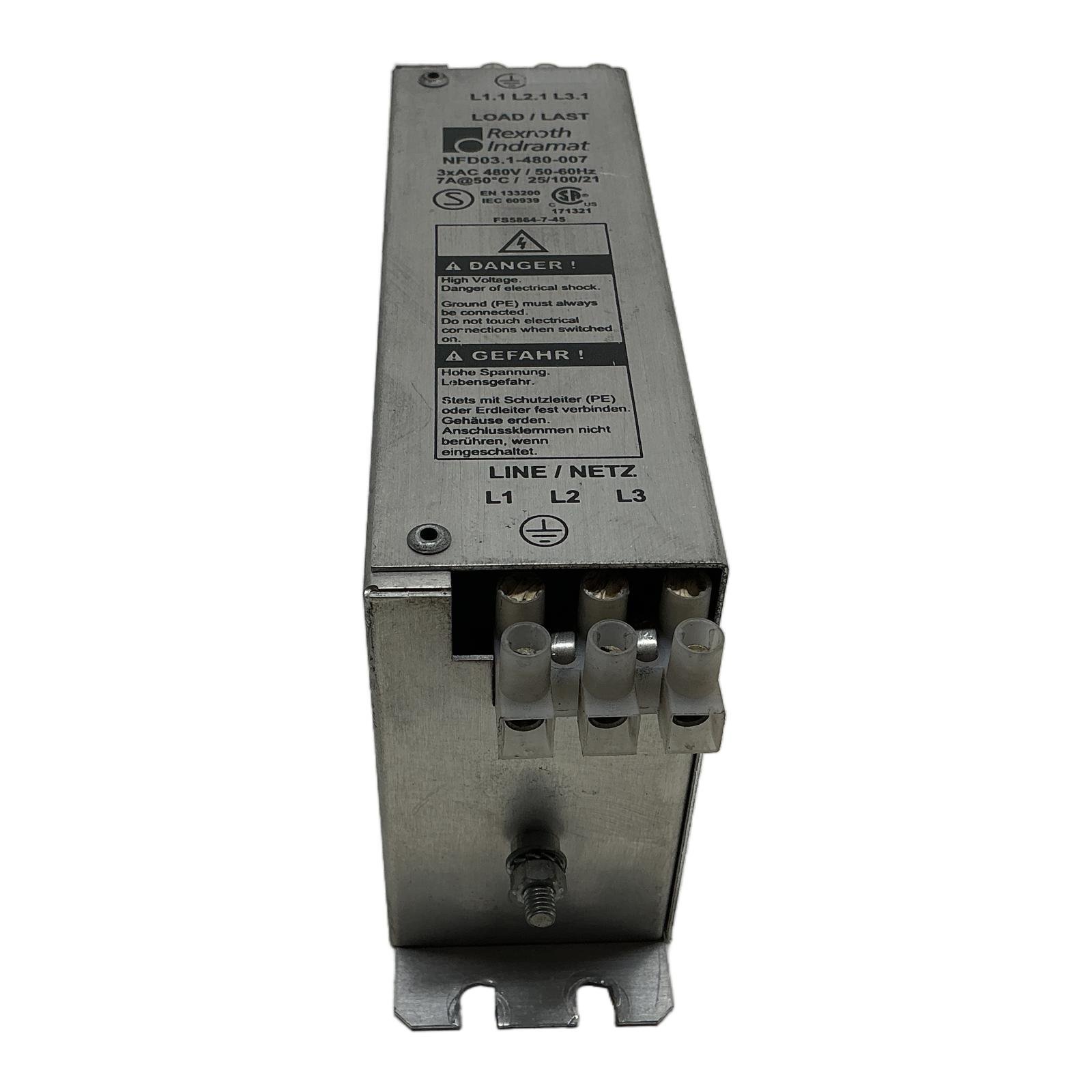

Bosch Rexroth NFD03.1-480-007 Power Line Filter Description The NFD03.1-480-007 is an industrial-grade power line filter designed by Bosch Rexroth Indramat. It is engineered to provide effective suppression of conducted electromagnetic interference (EMI) for three-phase systems. This component is crucial for maintaining signal integrity and ensuring the reliable operation of sensitive equipment, particularly in environments with servo drives and frequency converters. Specifications Manufacturer: Bosch Rexroth Indramat Model: NFD03.1-480-007 Rated Voltage: 3x 480V AC Rated Current: 7A at 50 deg.C Frequency: 50-60 Hz Phases: 3 Terminals: Screw terminals for LINE (L1, L2, L3) and LOAD (L1.1, L2.1, L3.1) Label Info Type: INDRAMAT POWER LINE FILTER Model: NFD03.1-480-007 S.NO: 286917-BC717 Date Code: K08/05 Application This filter is typically used in conjunction with Indramat drive controllers (such as the DIAX or EcoDrive series) to meet stringent EMC standards and prevent interference with other industrial automation components. Country of Origin This product is manufactured in Germany. CO2 Impact By purchasing this reused component, you are helping to avoid the emission of approximately 60 kg of CO2, which is equivalent to the emissions from driving a car for 300 kilometers. Availability This is an obsolete item, available as a refurbished spare part. Limited stock available. Order now from profideals for expert support and fast delivery. FAQ What is the primary function of the NFD03.1-480-007 filter in a drive system?Its primary function is to suppress conducted electromagnetic interference (EMI) generated by the servo drive. This ensures the drive system does not interfere with other sensitive electronics and complies with EMC regulations. Is this filter compatible with modern Bosch Rexroth IndraDrive systems?While originally designed for older Indramat drive series like DIAX and EcoDrive, it may not be the recommended filter for modern IndraDrive systems. Always consult the IndraDrive system documentation for the specified EMC filter to ensure optimal performance and compliance. Does the installation orientation of this filter matter?Yes, for optimal performance, the filter should be mounted as close as possible to the drive’s power input terminals on a conductive, grounded panel. This minimizes the length of unfiltered cable and provides a good high-frequency ground path. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Laatst bijgewerkt: Friday, March 13, 2026
