WIKA 233.50.100 ZT2281.00

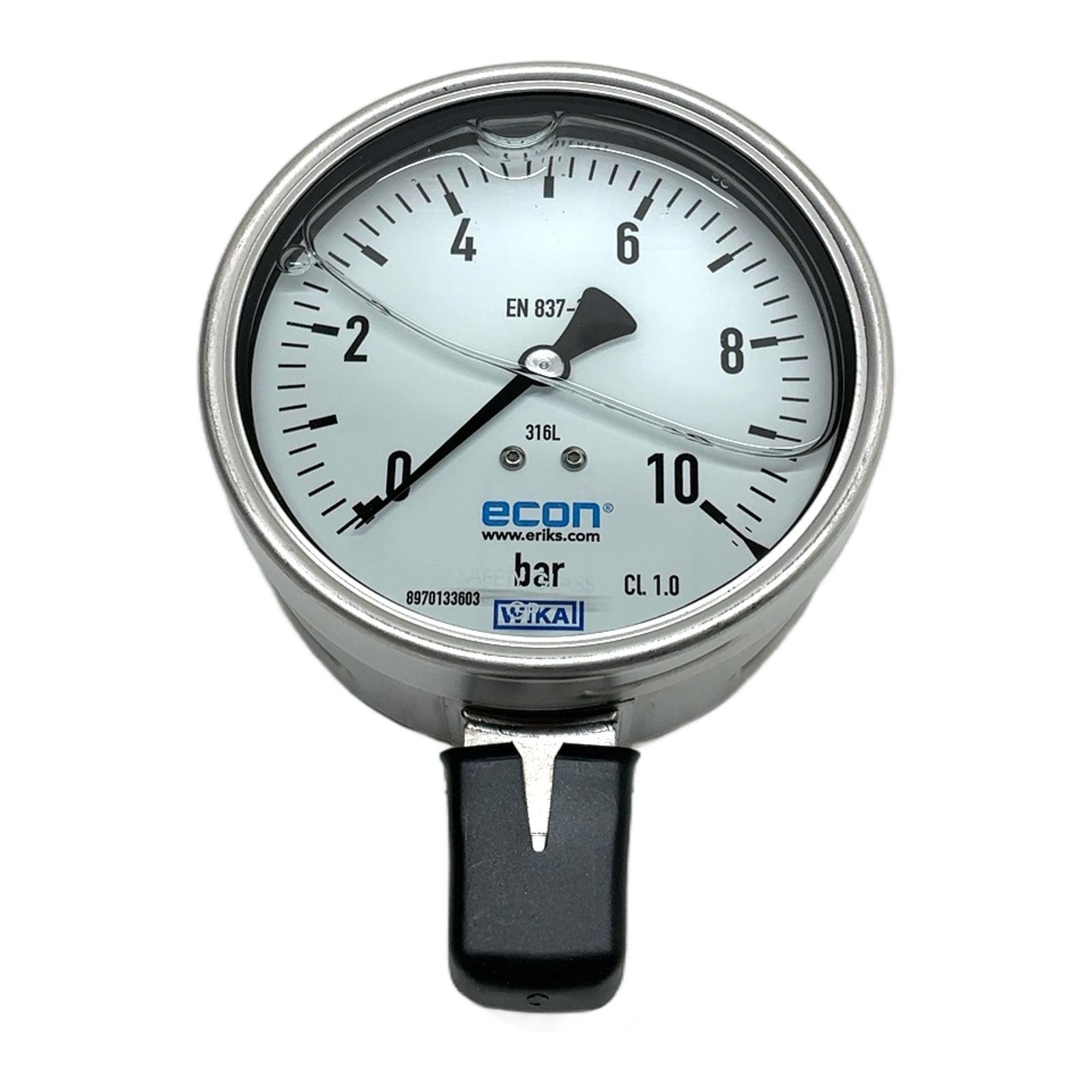

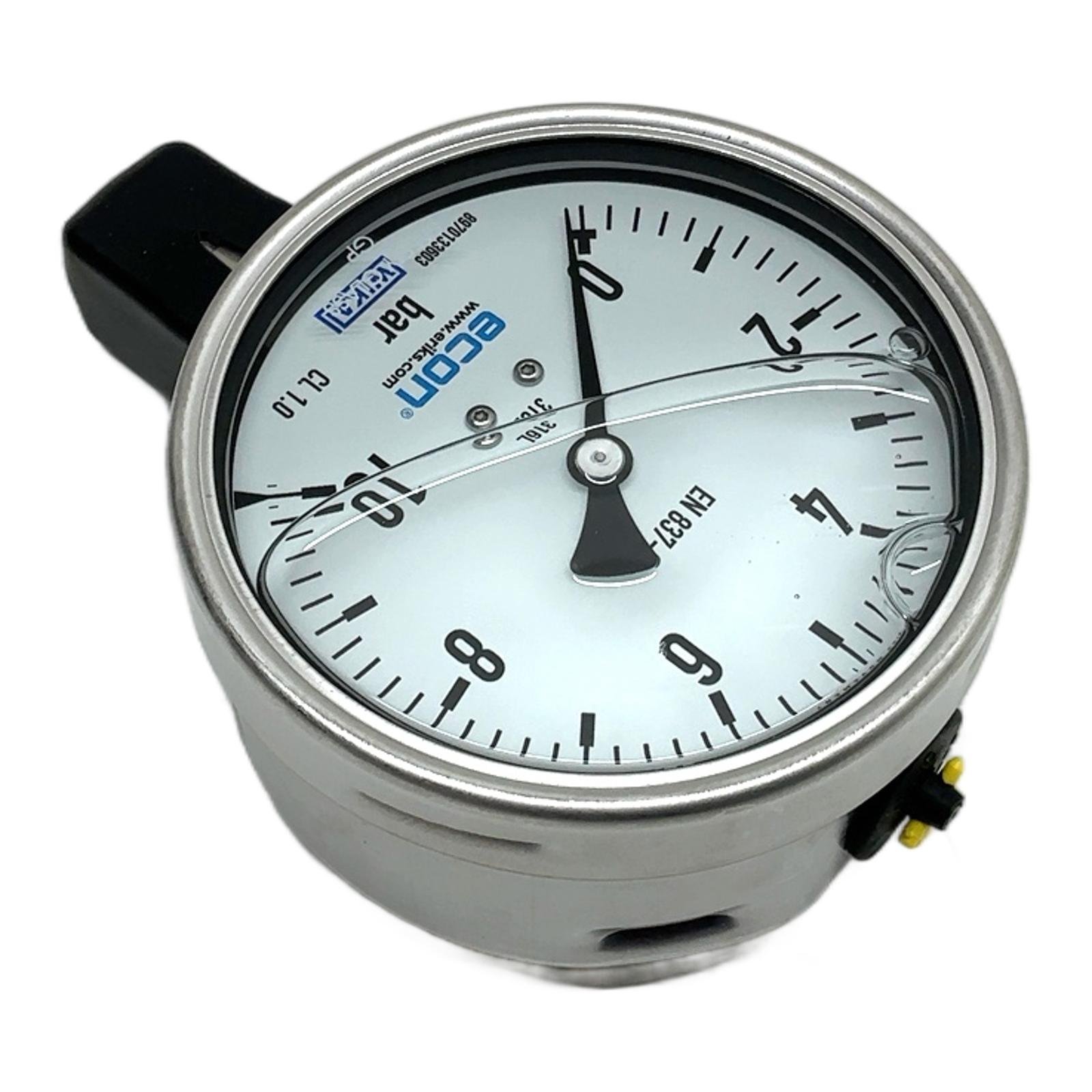

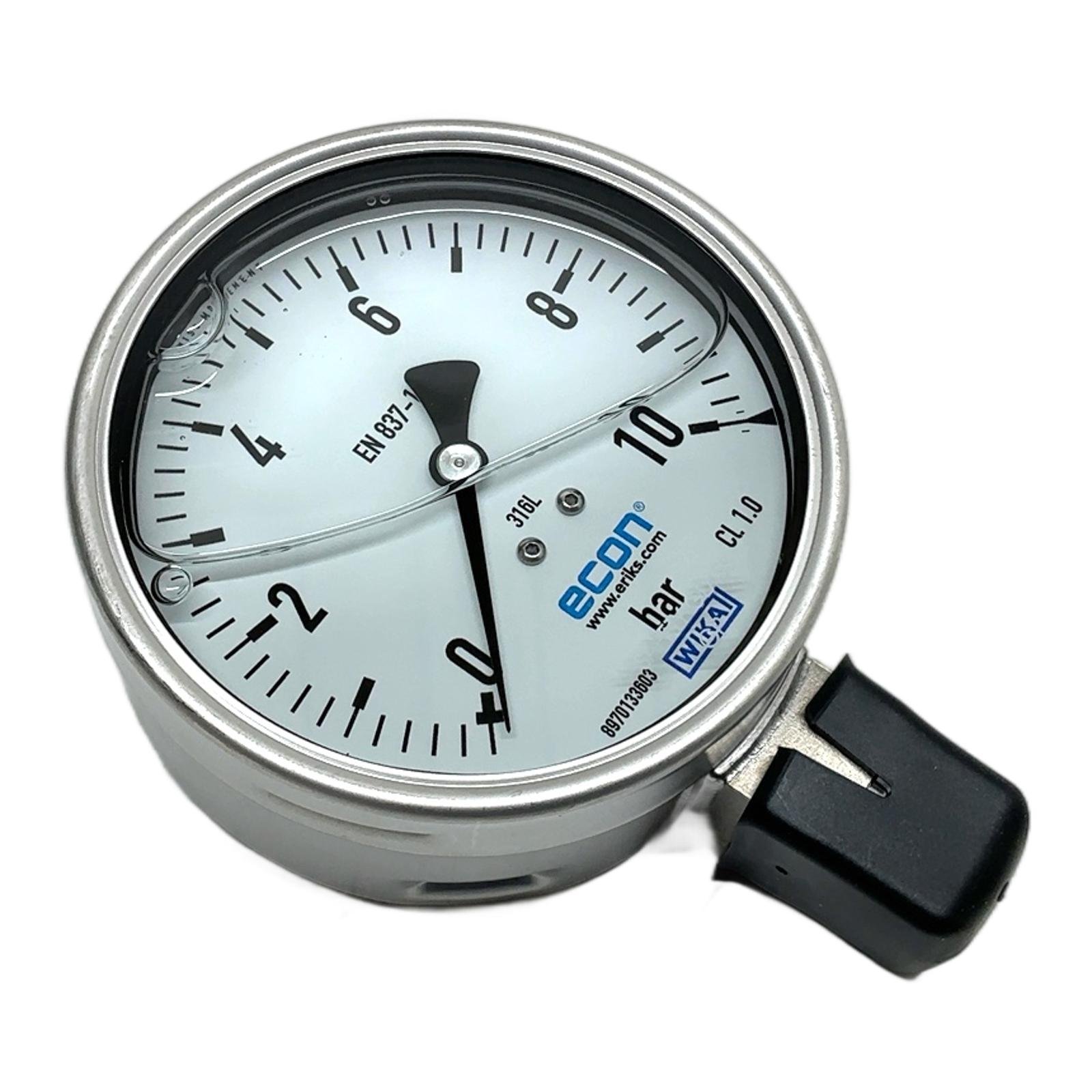

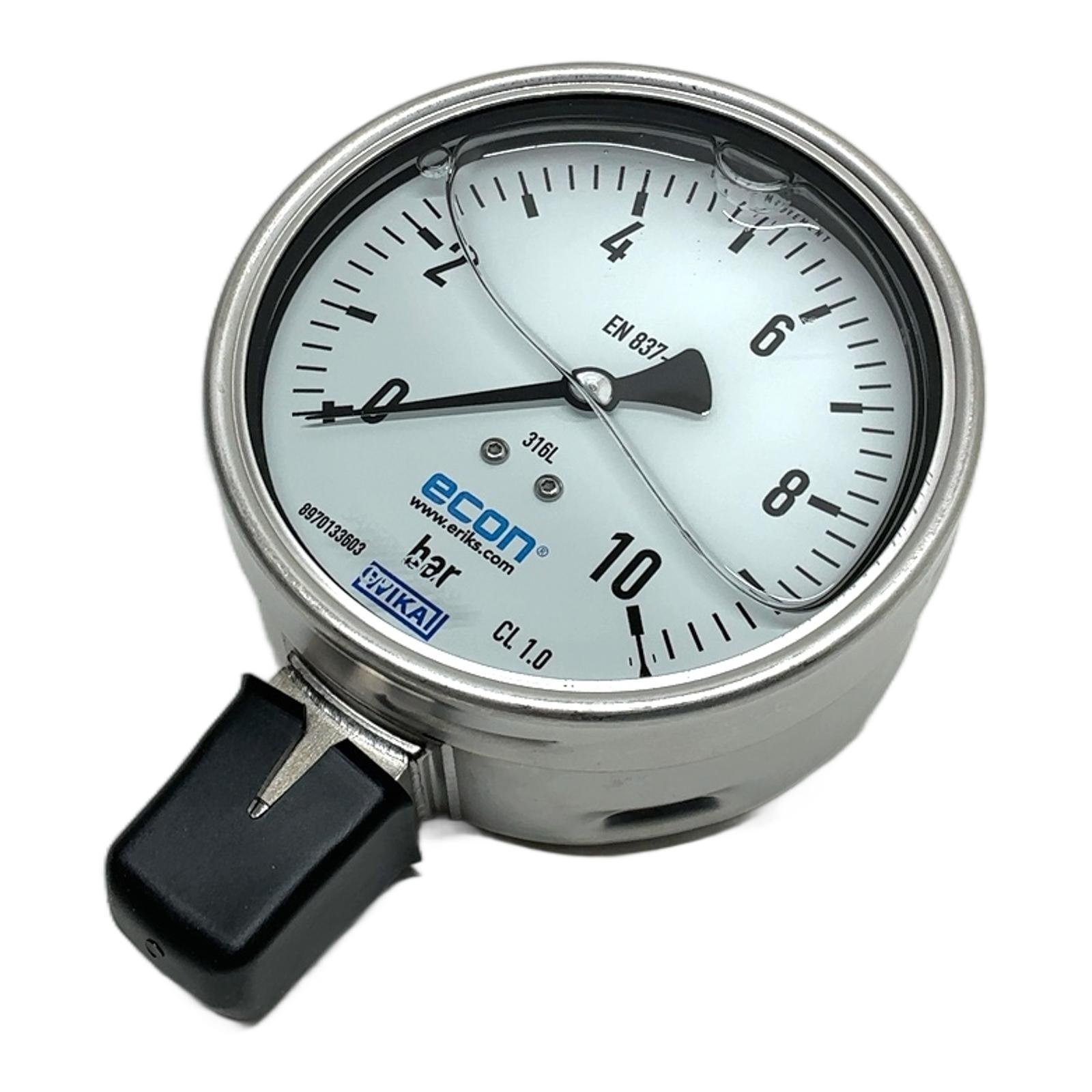

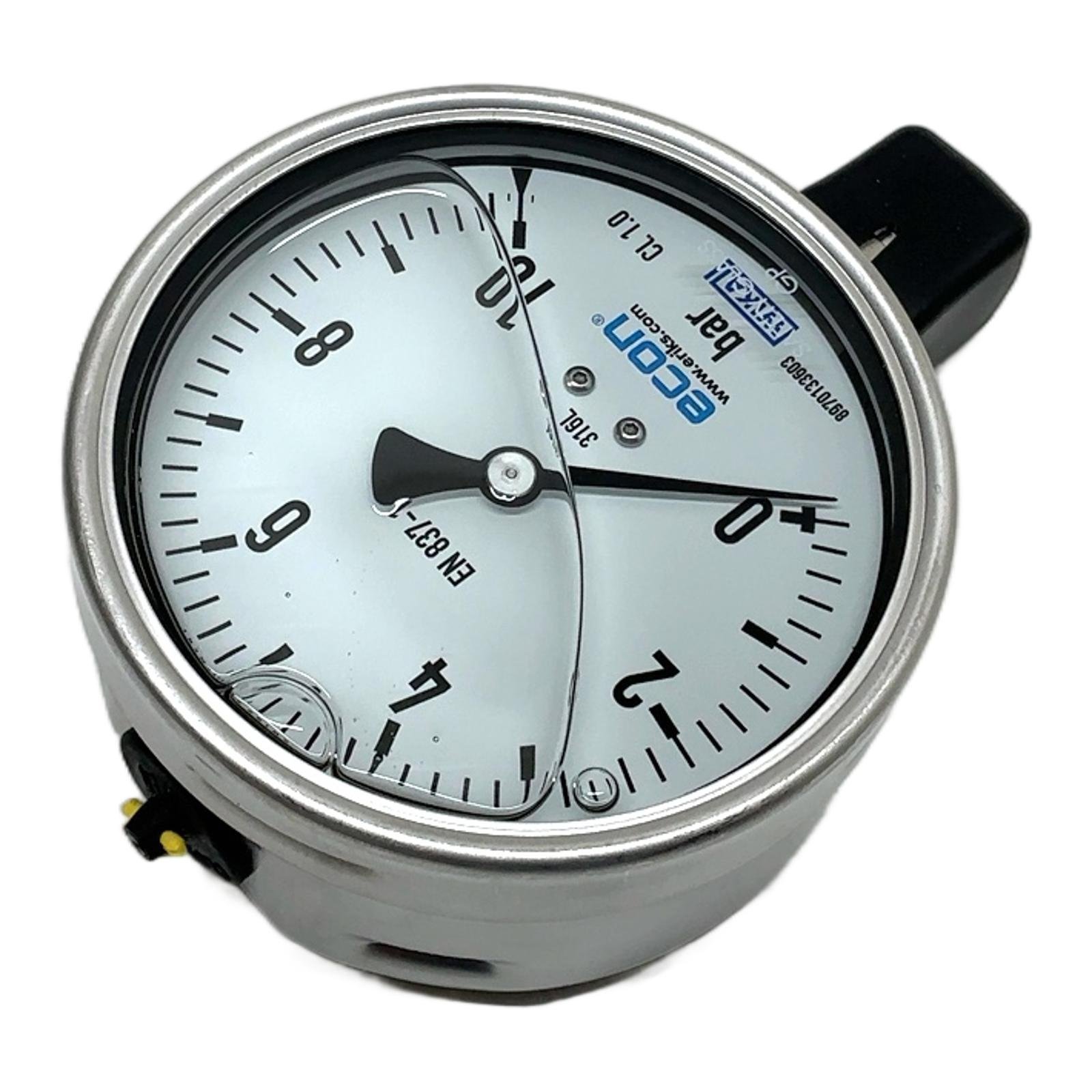

WIKA Pressure Gauge 10 bar 100mm 233.50.100 Description This is a WIKA Bourdon tube pressure gauge, model 233.50.100, designed for the process industry. It features a stainless steel case and 316L stainless steel wetted parts, making it suitable for corrosive media and harsh environments. This particular unit, co-branded by Econ (ERIKS), offers a pressure range of 0 to 10 bar with a 100mm dial for clear readability. It is new old stock from 2016, in its original box. Specifications Manufacturer: WIKA Model: 233.50.100 Item Number (Econ): ZT2281.00 Pressure Range: 0 to 10 bar Dial Size: 100 mm Connection: 1/2 NPT, bottom connection (unten) Measuring System: 316L Stainless Steel Accuracy Class: CL 1.0 Standard: EN 837-1 Label Info Order Number: 21980739 / 15 Date of Manufacture: 09.05.2016 Application Ideal for pressure measurement in chemical, petrochemical, power generation, mining, and other process industries where high accuracy and durability are required. Country of Origin Germany CO2 Impact By reusing this component, you are avoiding the production of a new one, saving approximately 1.6 kg of CO2 emissions. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the accuracy class of this WIKA 233.50.100 gauge?This gauge has an accuracy class of CL 1.0, as indicated on the dial. This means the maximum permissible error is +/- 1.0% of the full scale value. What does “Messsystem 316L” mean?It refers to the material of the wetted parts, which is the measuring system. 316L is a high-grade, corrosion-resistant stainless steel, making this gauge suitable for aggressive media. Is this gauge suitable for outdoor use?Yes, the WIKA 233.50 series features a stainless steel case with IP65 ingress protection, making it robust enough for outdoor installations and harsh industrial environments. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
