CARLO GAVAZZI CLP2EA1C230

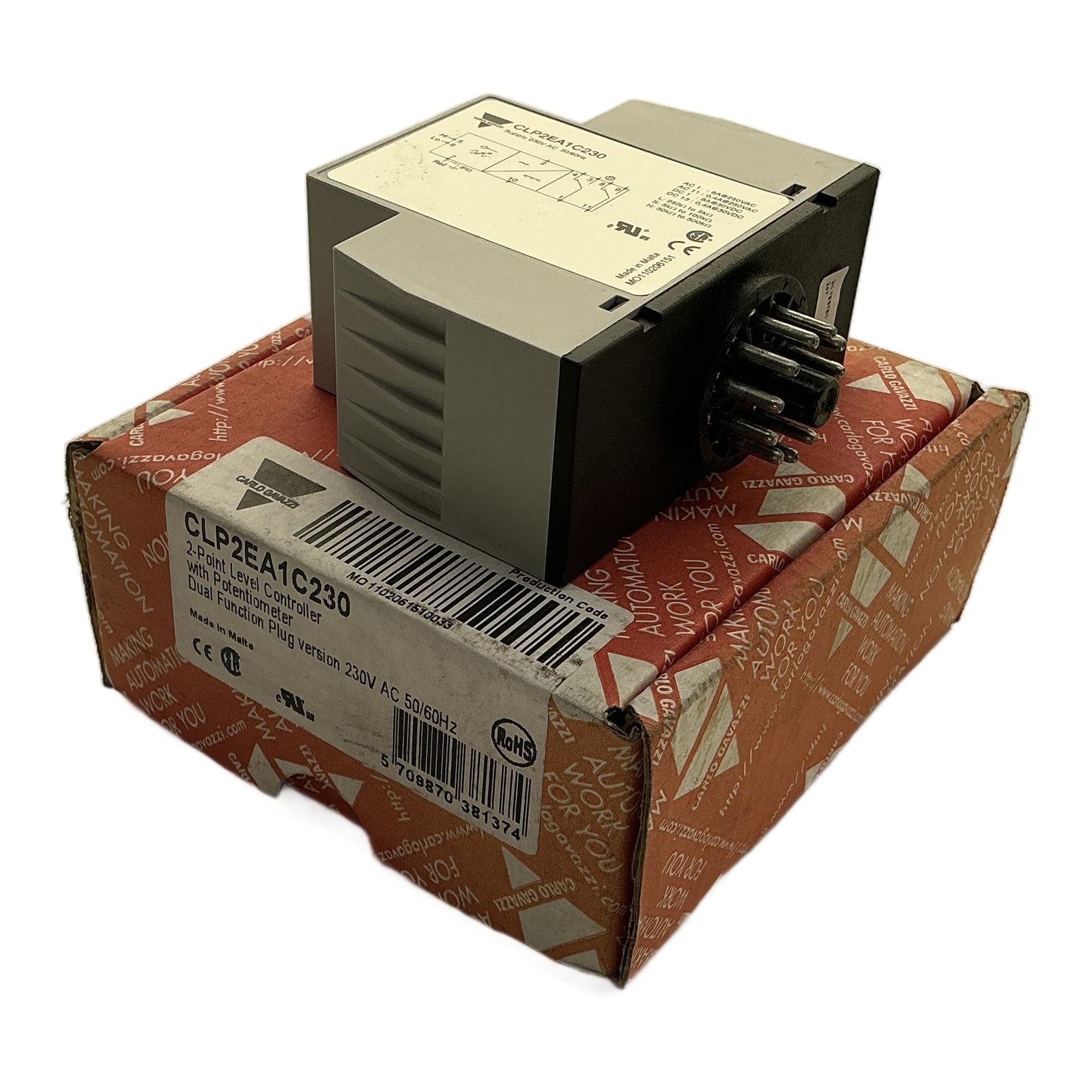

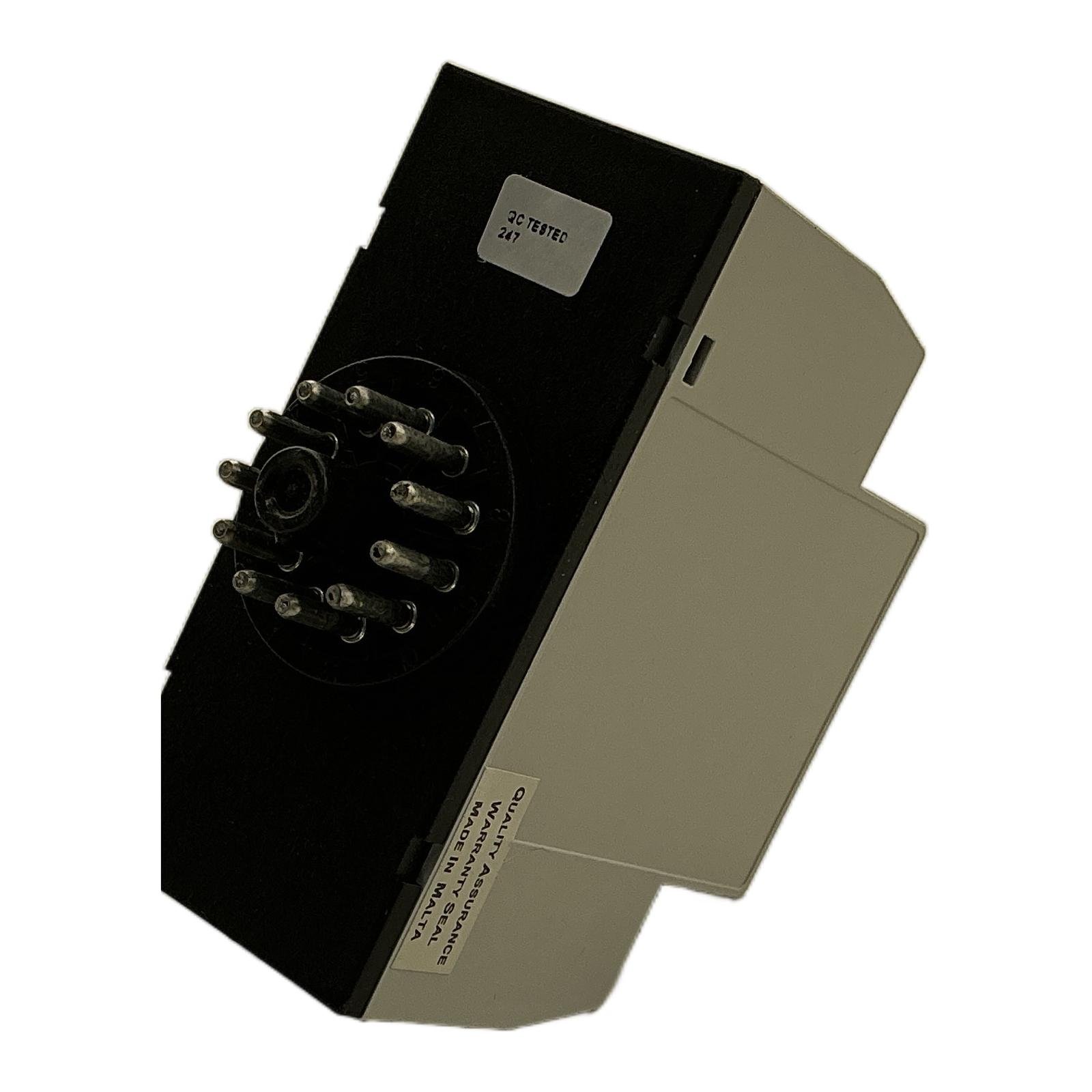

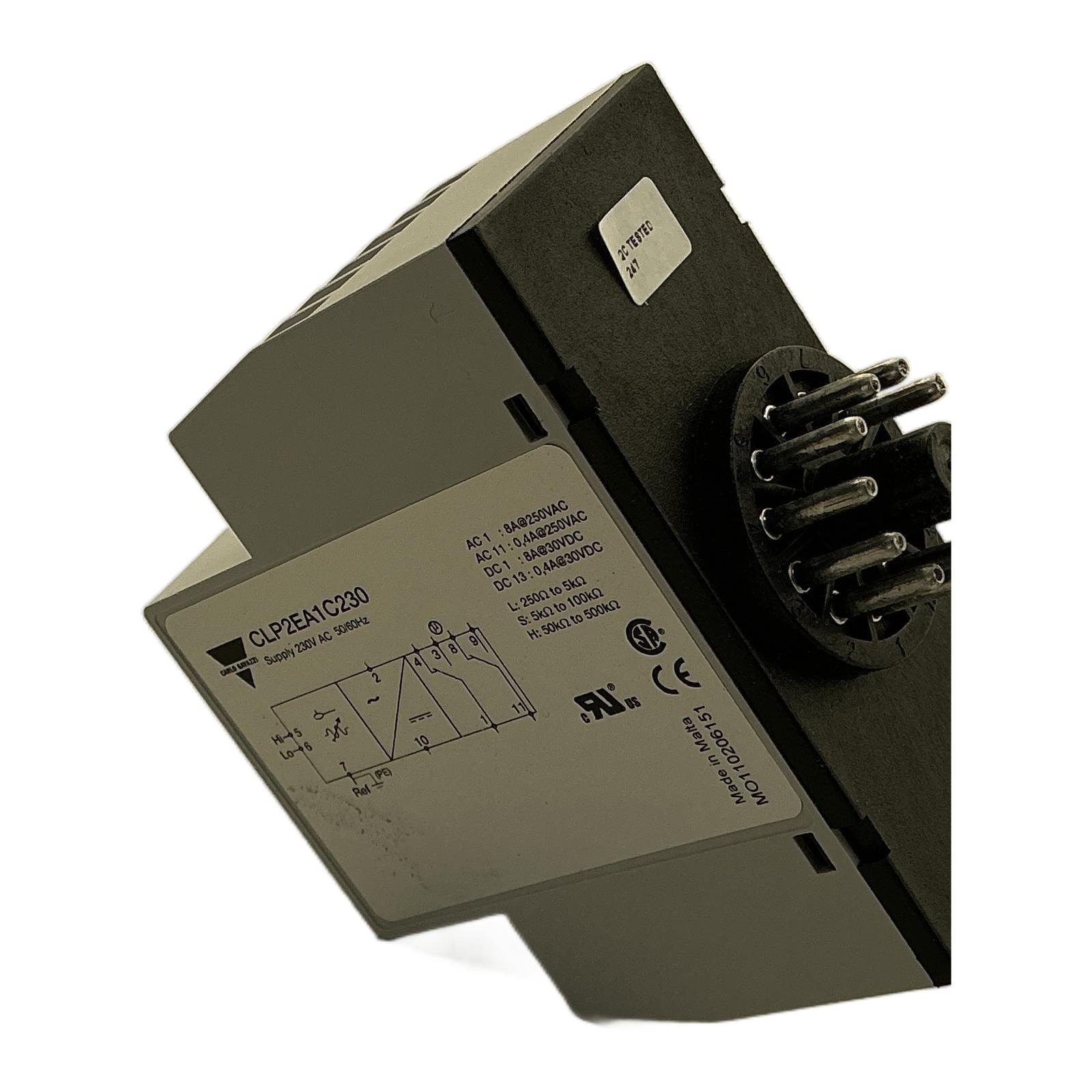

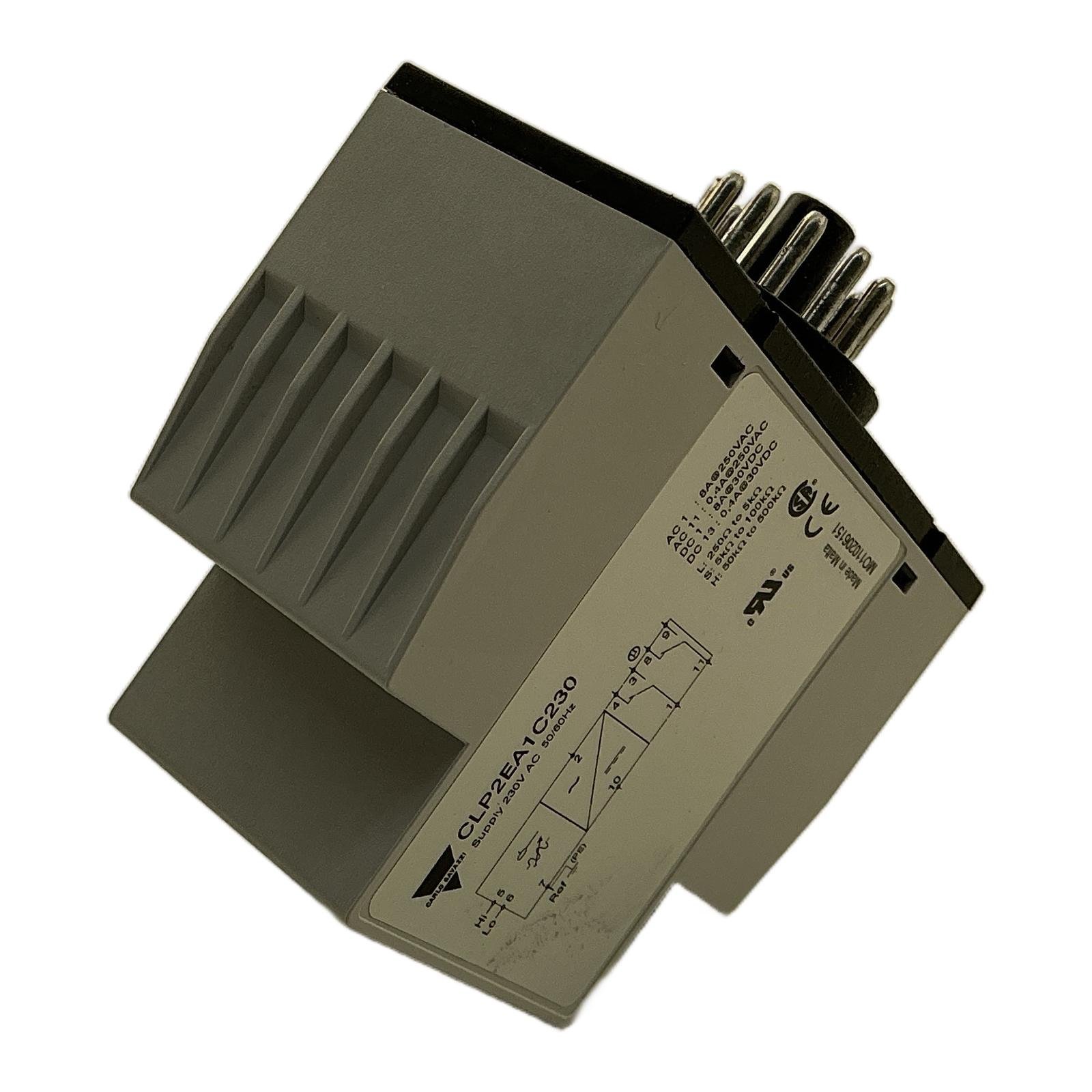

Carlo Gavazzi CLP2EA1C230 Level Controller Description The Carlo Gavazzi CLP2EA1C230 is a versatile conductive level controller designed for single or dual-level monitoring of conductive liquids. It provides reliable control for filling or emptying functions, making it an ideal solution for a wide range of industrial and commercial applications. With its adjustable sensitivity and plug-in design, this controller ensures easy installation and precise performance. Specifications Manufacturer: Carlo Gavazzi Model: CLP2EA1C230 Function: Dual Function Conductive Level Controller Supply Voltage: 230V AC, 50/60Hz Output: 1 x SPDT Relay Contact Rating (AC-1): 8A at 250V AC Contact Rating (DC-1): 8A at 30V DC Sensitivity Range: Adjustable from 250 Ohm to 500 kOhm Mounting Type: 11-pin circular plug-in socket Label Info Model: CLP2EA1C230 Supply: 230V AC 50/60Hz Contact Ratings: AC 1: 8A@250VAC, DC 1: 8A@30VDC Sensitivity Ranges: L: 250 Ohm to 5kOhm, S: 5kOhm to 100kOhm, H: 50kOhm to 500kOhm Application This level controller is suitable for monitoring levels in wells, water tanks, industrial sumps, and reservoirs containing conductive liquids such as tap water, wastewater, or chemical solutions. Country of Origin Made in Malta. CO2 Impact By purchasing this reused item, you contribute to a more sustainable future by avoiding the production of a new one, saving an estimated 4.0 kg of CO2. This saving is comparable to the emissions from driving a standard car for 20 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What kind of liquids can this controller be used with?This is a conductive level controller, designed for use with conductive liquids like tap water, wastewater, milk, or weak chemical solutions. It is not suitable for non-conductive liquids such as oil, fuel, or distilled water. What type of socket or base is required for this plug-in relay?The CLP2EA1C230 requires a standard 11-pin circular socket (undecal base) for mounting, such as the Carlo Gavazzi ZPD11 or equivalent models. How do I select between the filling and emptying functions?The function is selected by how you wire the output relay contacts (Normally Open vs. Normally Closed) to your pump or valve control circuit. Refer to the wiring diagram on the product label or the official datasheet for specific connection details for each function. Last Update: March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
