HONEYWELL BAF3-2RN-LHPG

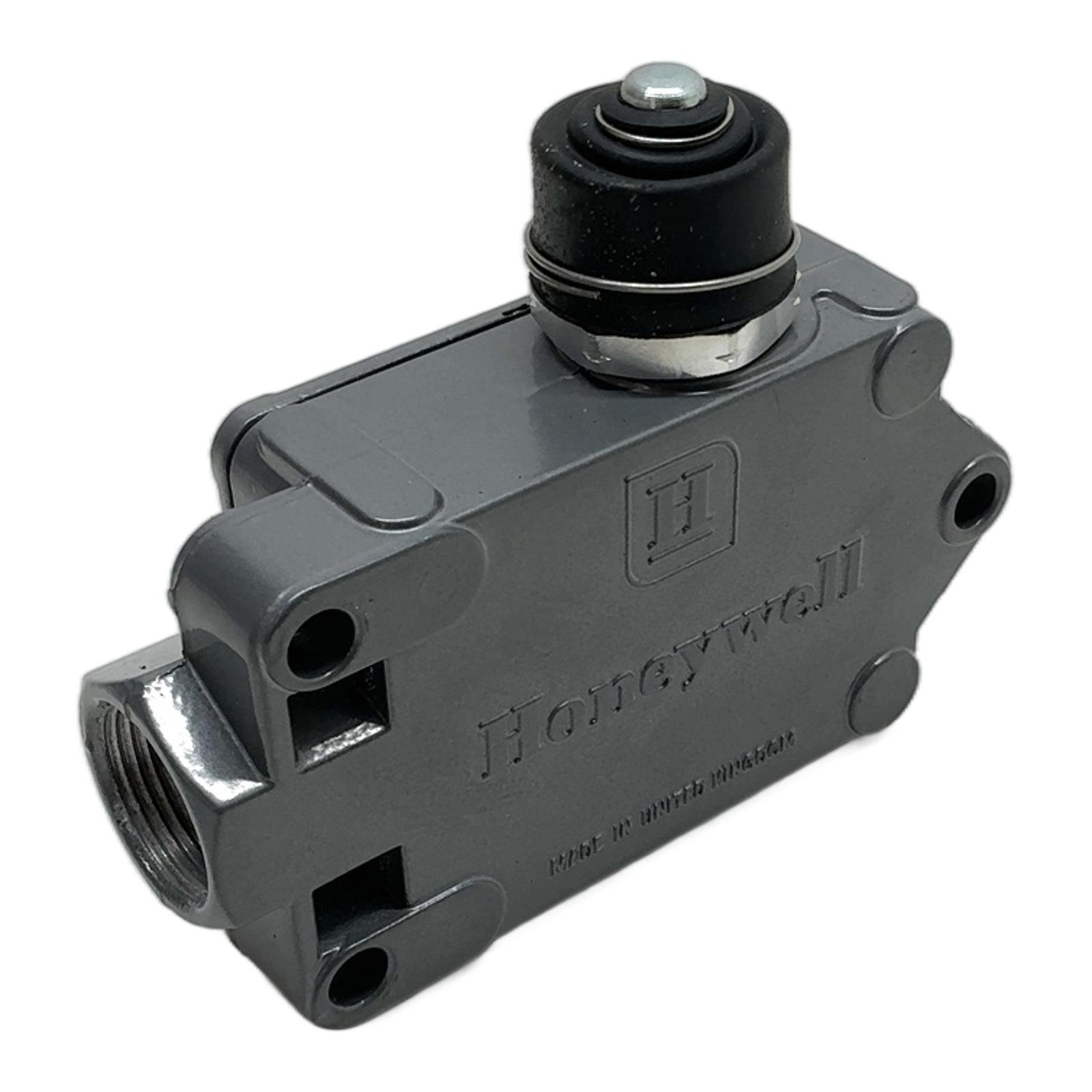

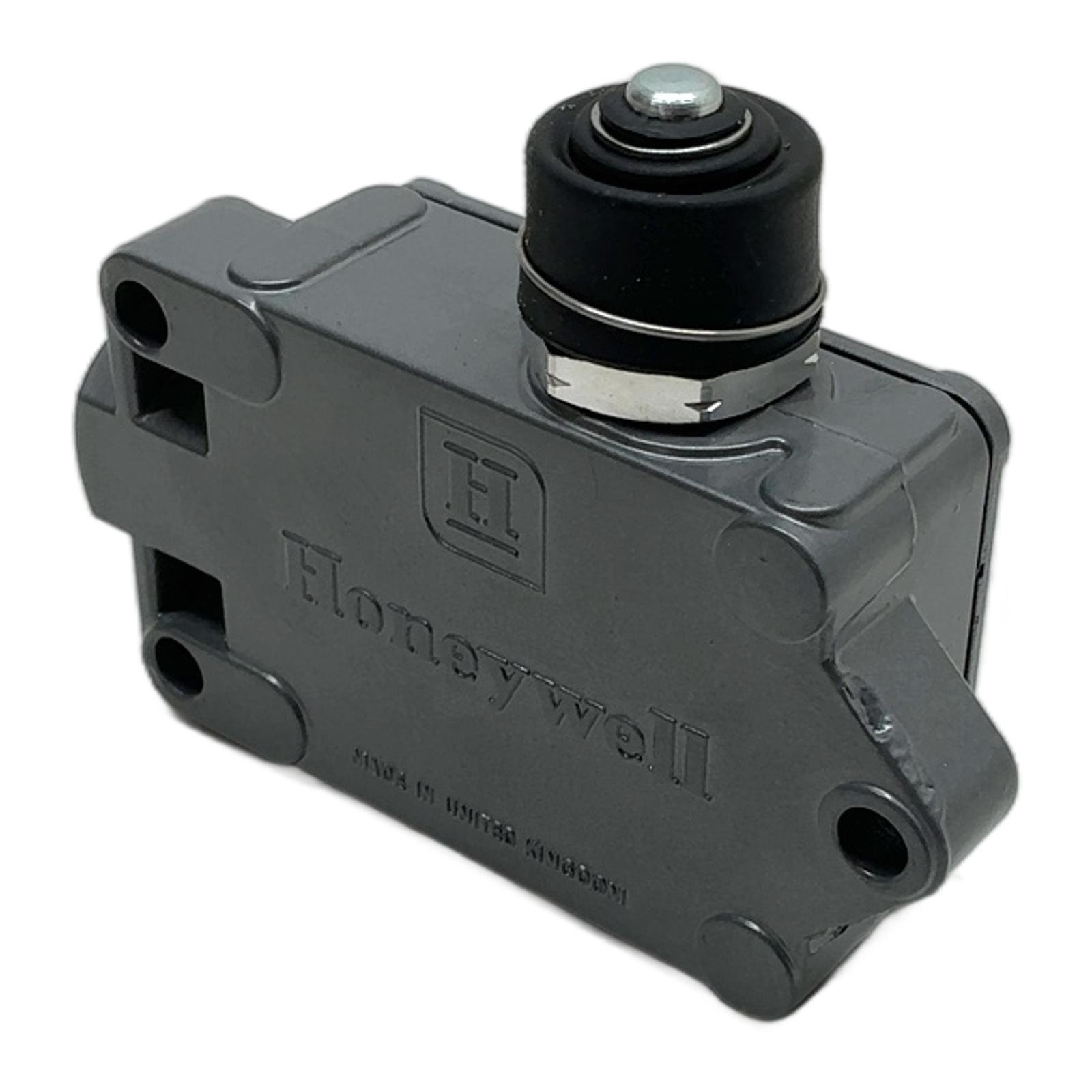

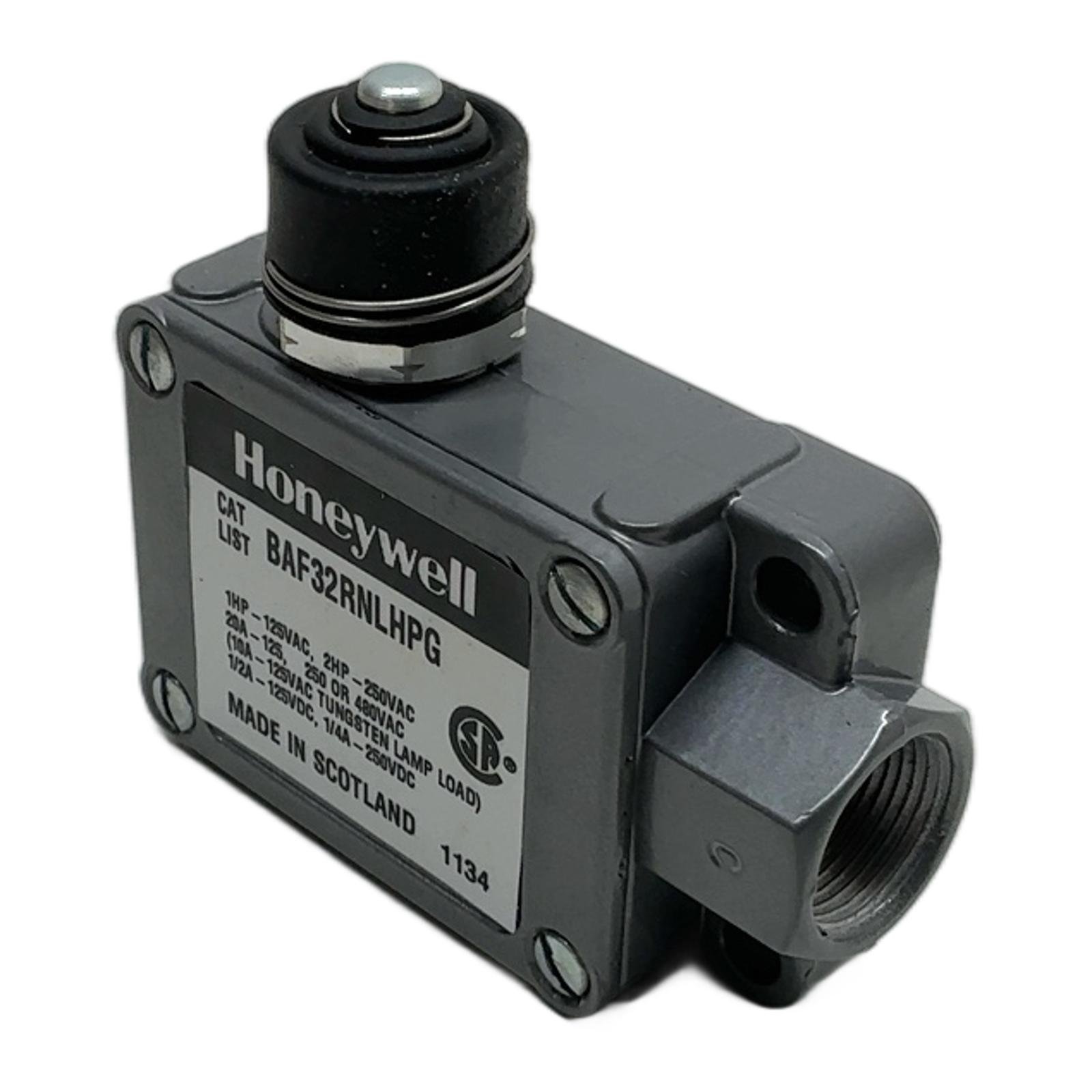

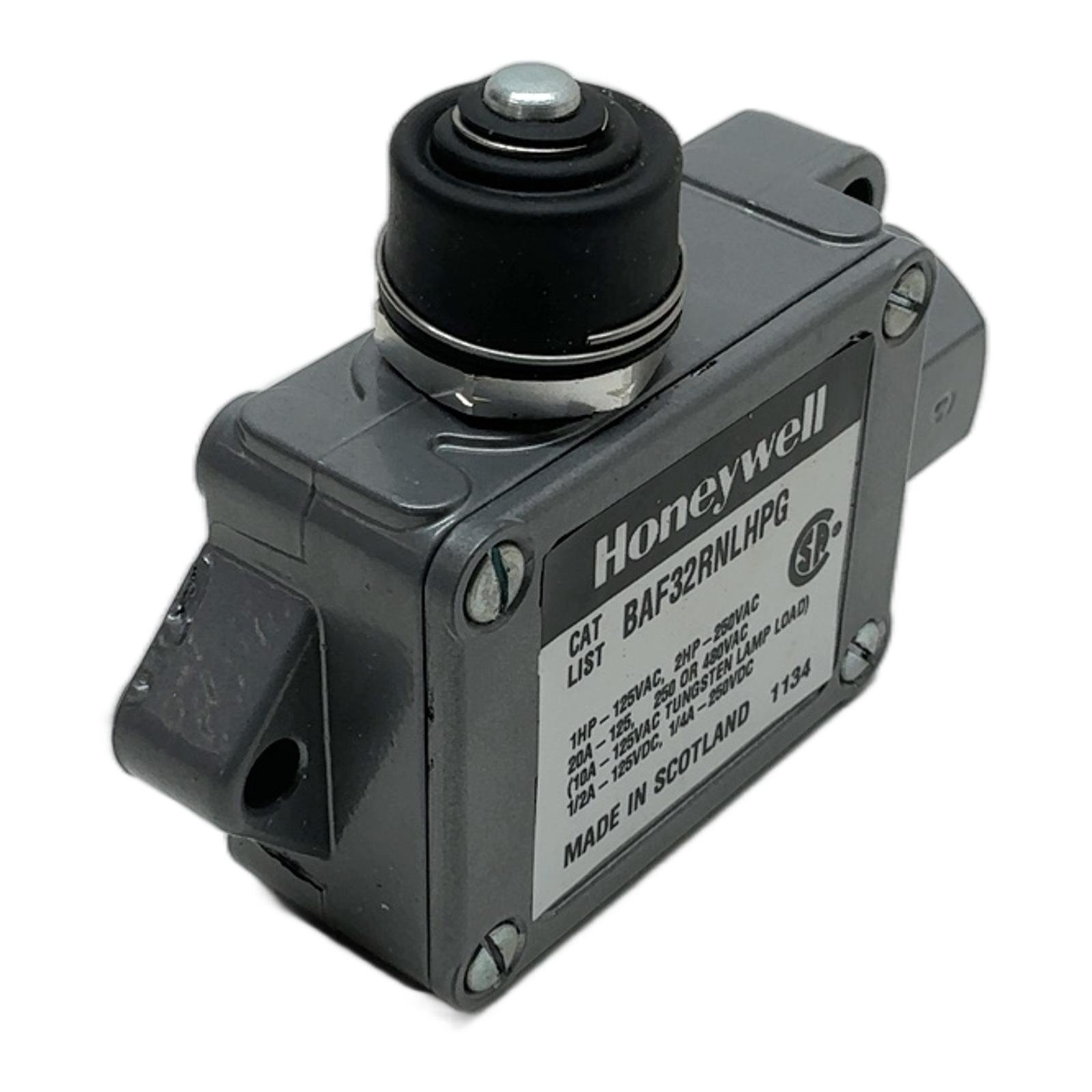

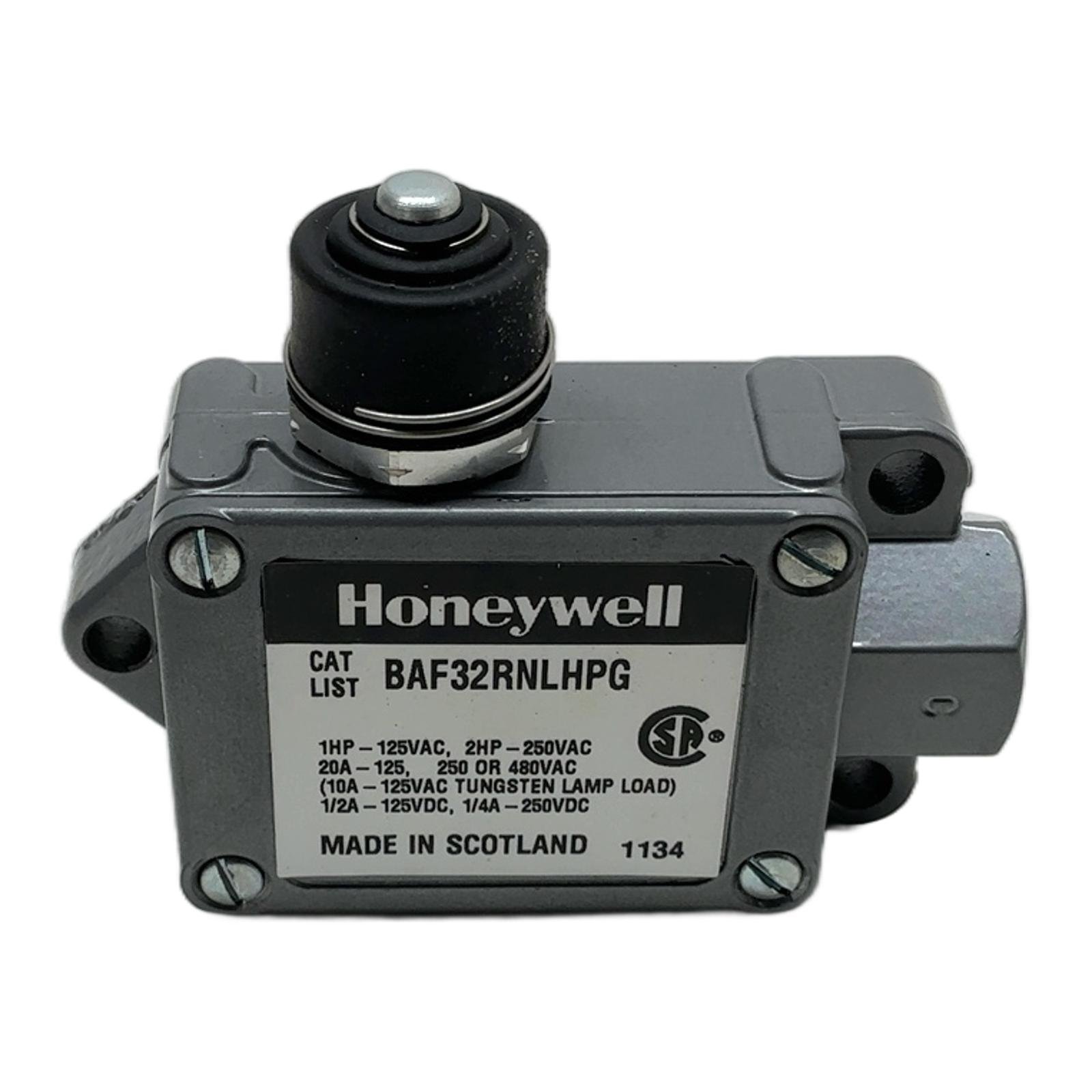

Honeywell BAF3-2RN-LHPG Limit Switch Description The Honeywell BAF3-2RN-LHPG is a high-quality enclosed limit switch from the MICRO SWITCH BAF series, known for its reliability and durability in industrial environments. It features a top pin plunger actuator and is housed in a rugged die-cast enclosure, providing protection against harsh conditions. This switch is ideal for applications requiring precise position detection on industrial machinery. Specifications Manufacturer: Honeywell Type Number: BAF3-2RN-LHPG Actuator Type: Top Pin Plunger Contact Configuration: SPDT (Single Pole, Double Throw) Current Rating: 20A Voltage Rating: 125/250/480 VAC; 125/250 VDC Conduit Entry: 1/2 in – 14NPT Housing Material: Die-cast Zinc Label Info CAT LIST: BAF32RNLHPG 1HP – 125VAC, 2HP – 250VAC 20A – 125, 250 OR 480VAC 10A – 125VAC TUNGSTEN LAMP LOAD 1/2A – 125VDC, 1/4A – 250VDC Application This limit switch is commonly used in machine tools, conveyors, material handling equipment, and various automated systems for end-of-travel sensing, presence/absence detection, and machine control. Country of Origin Made in Scotland, United Kingdom. CO2 Impact By purchasing this pre-owned component, you are helping to avoid the production of a new one, which saves approximately 10.0 kg of CO2. This is comparable to the emissions from driving a car for 50 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What does the ‘SPDT’ circuitry mean for wiring this switch? SPDT stands for Single Pole, Double Throw. This means the switch has three terminals: a common (C), a normally open (NO), and a normally closed (NC). In its resting state, the circuit is complete between C and NC. When the actuator is pressed, the connection to NC breaks, and a new connection is made between C and NO. This allows you to control two different circuits with one switch action. Is the actuator on the BAF3-2RN-LHPG adjustable or replaceable? The top pin plunger on this specific model is typically not adjustable in length. However, the BAF series is modular. Different actuator heads (e.g., roller levers, wobbles) can often be installed on the same switch body, but you should always consult the datasheet to ensure compatibility. What is the IP rating of this limit switch, and what kind of environments is it suitable for? The Honeywell BAF series switches are typically rated for NEMA 1, 3, 4, and 13. This corresponds to an IP rating of approximately IP65/IP66. This makes it dust-tight and protected against water jets, making it suitable for general industrial environments, machine tools, and areas where it might be exposed to oil, coolants, and non-corrosive liquids. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: March 13, 2026
