IKO NKI 25/20 TAF293820 LRT252920

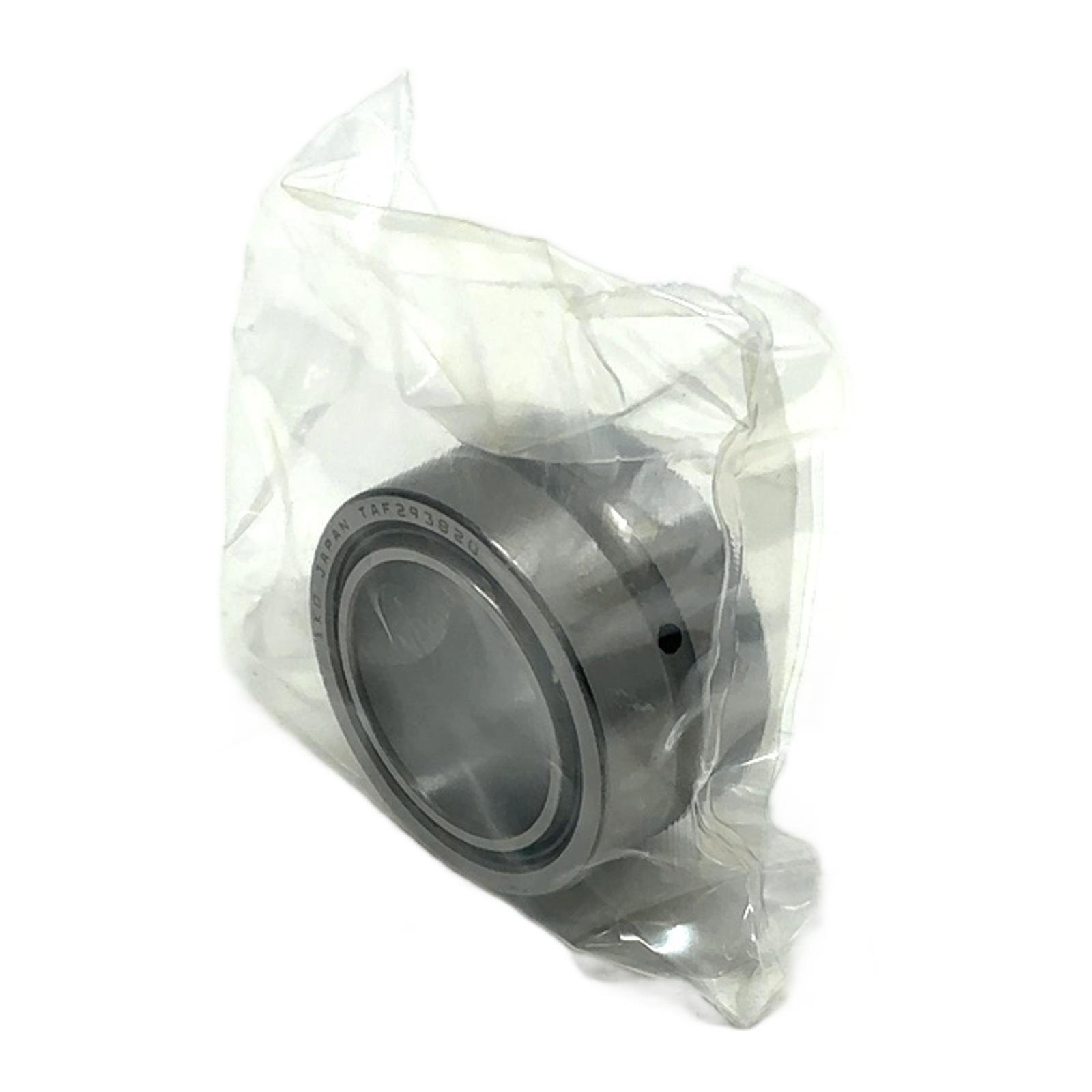

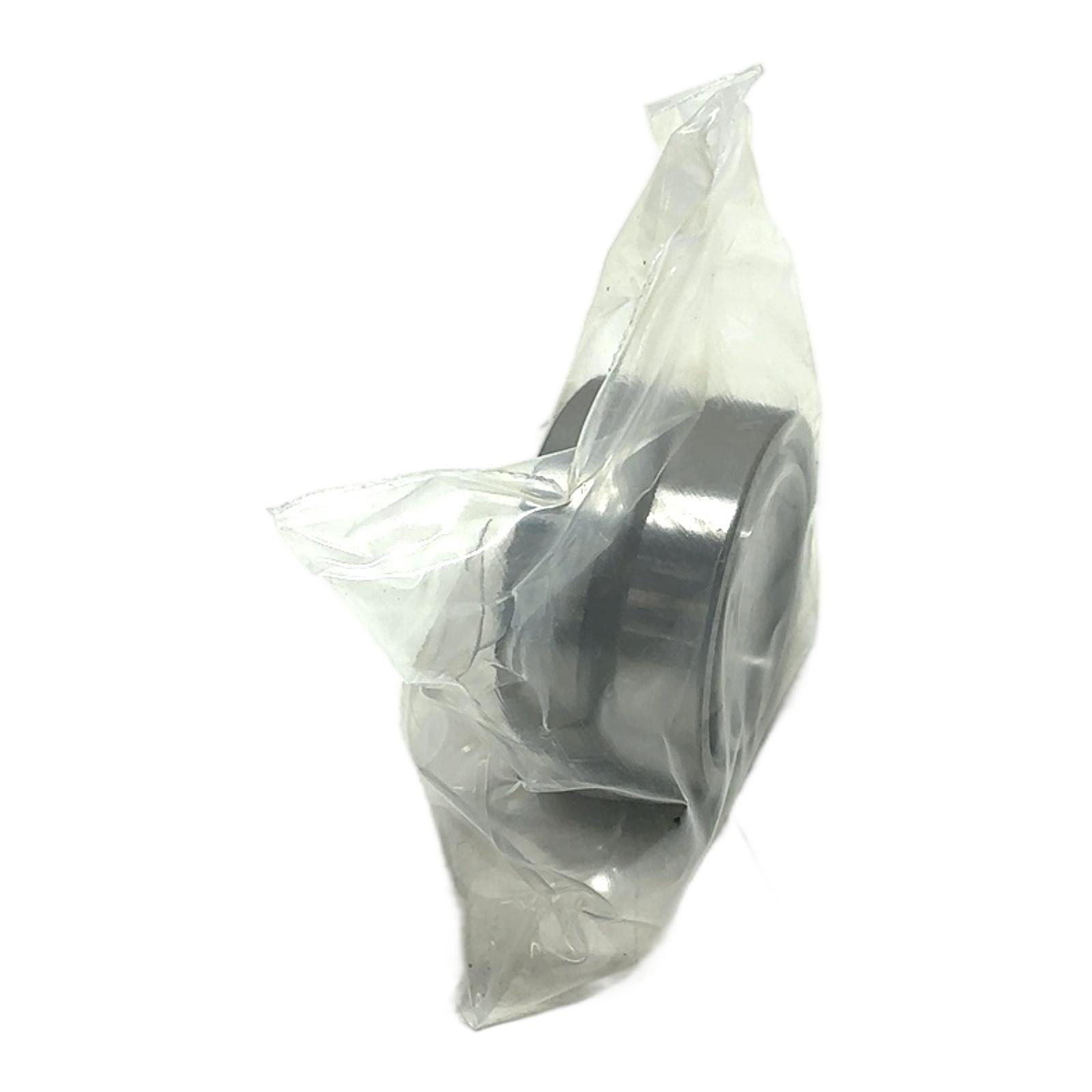

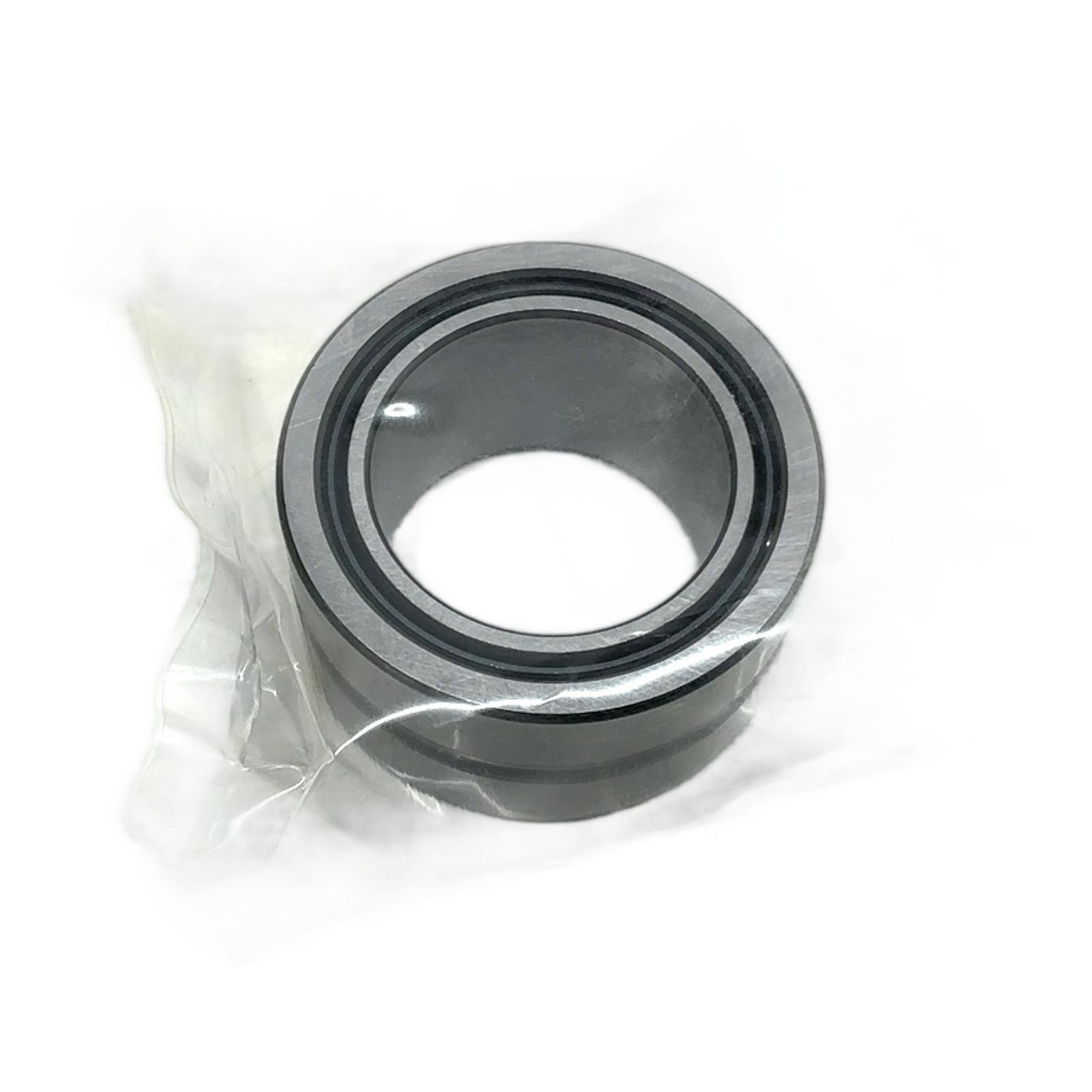

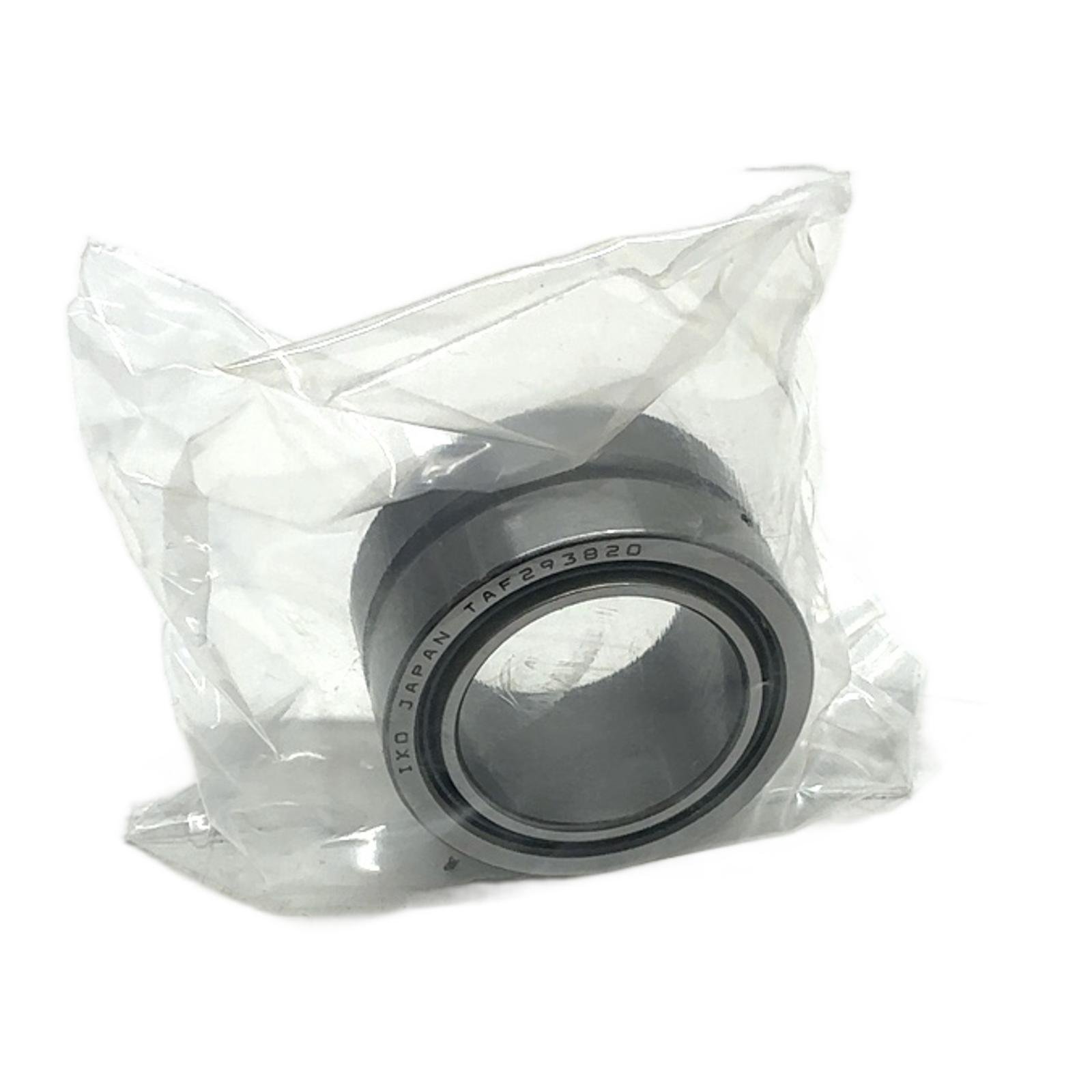

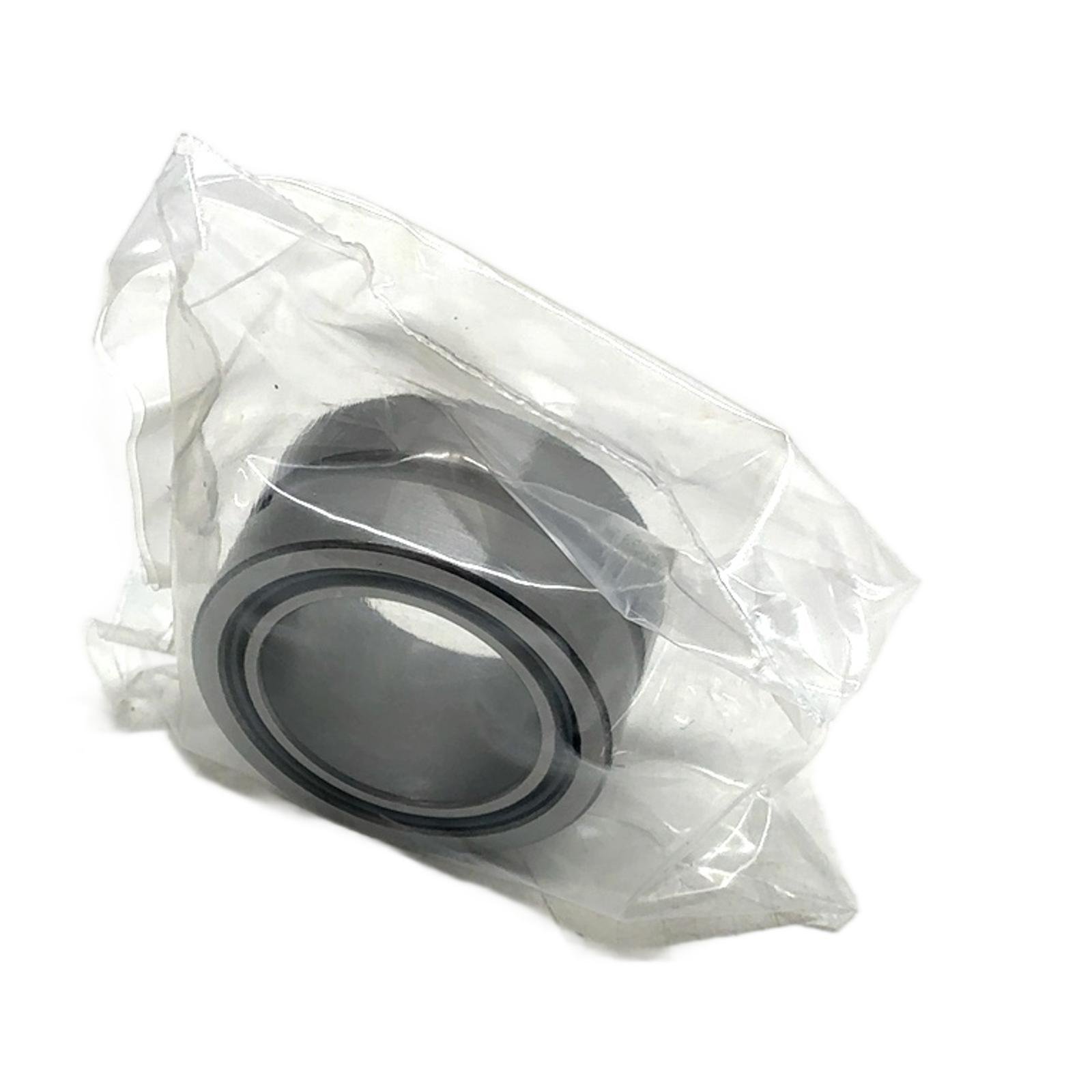

IKO NKI 25/20 Needle Roller Bearing with Inner Ring Description The IKO NKI 25/20 is a high-quality needle roller bearing featuring a machined outer ring and an inner ring. It is designed to handle high radial loads in a compact space, making it suitable for a wide range of industrial applications. This bearing assembly consists of the outer ring with cage and rollers (TAF293820) and the inner ring (LRT252920). Specifications Bore Diameter (d): 25 mm Outer Diameter (D): 38 mm Width (B): 20 mm Type: Needle Roller Bearing with Inner Ring Basic Dynamic Load Rating: 22.8 kN Basic Static Load Rating: 32.5 kN Label Info Manufacturer: IKO Model: NKI 25/20 Component Part Numbers: TAF293820 + LRT252920 Application This bearing is commonly used in applications such as automotive transmissions, two-cycle engines, industrial gearboxes, pumps, and other machinery requiring high radial load capacity and minimal cross-section. Country of Origin Made in Japan. CO2 Impact By purchasing this reused part, you are saving approximately 0.2 kg of CO2. This saving is equivalent to the energy needed to charge a modern smartphone 24 times. Choosing refurbished components helps reduce industrial waste and lowers your carbon footprint. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the difference between NKI and NK series bearings from IKO?The NKI series, like this NKI 25/20, includes a precision-ground inner ring (LRT252920). The NK series does not include an inner ring and is designed to run directly on a hardened and ground shaft. The NKI series is used when the shaft cannot be hardened to the required specifications. What are the lubrication requirements for the NKI 25/20?This bearing is typically supplied with a rust-preventive coating and must be lubricated before or during installation. It is suitable for both grease and oil lubrication. The choice depends on the operating speed, load, and temperature of the application. Always refer to the machinery’s service manual for specific lubricant recommendations. Can the inner ring LRT252920 be purchased separately?Yes, the inner ring (LRT) and the outer ring with cage and roller assembly (TAF) for IKO needle roller bearings can often be sourced as separate components. However, for optimal performance and clearance, it is highly recommended to use them as a matched set as supplied from the factory, especially in precision applications. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
