REGNIER #100X56C400 1816649

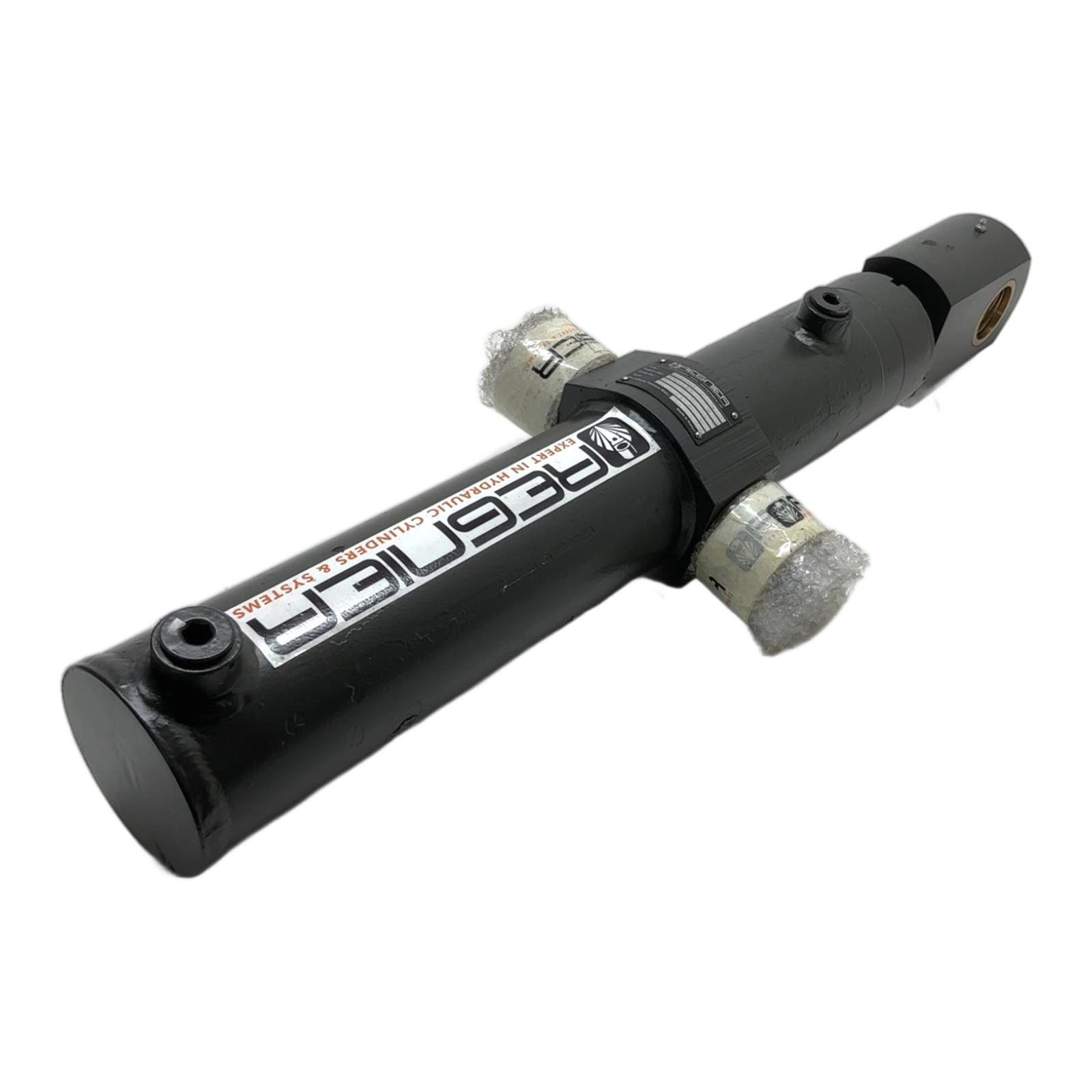

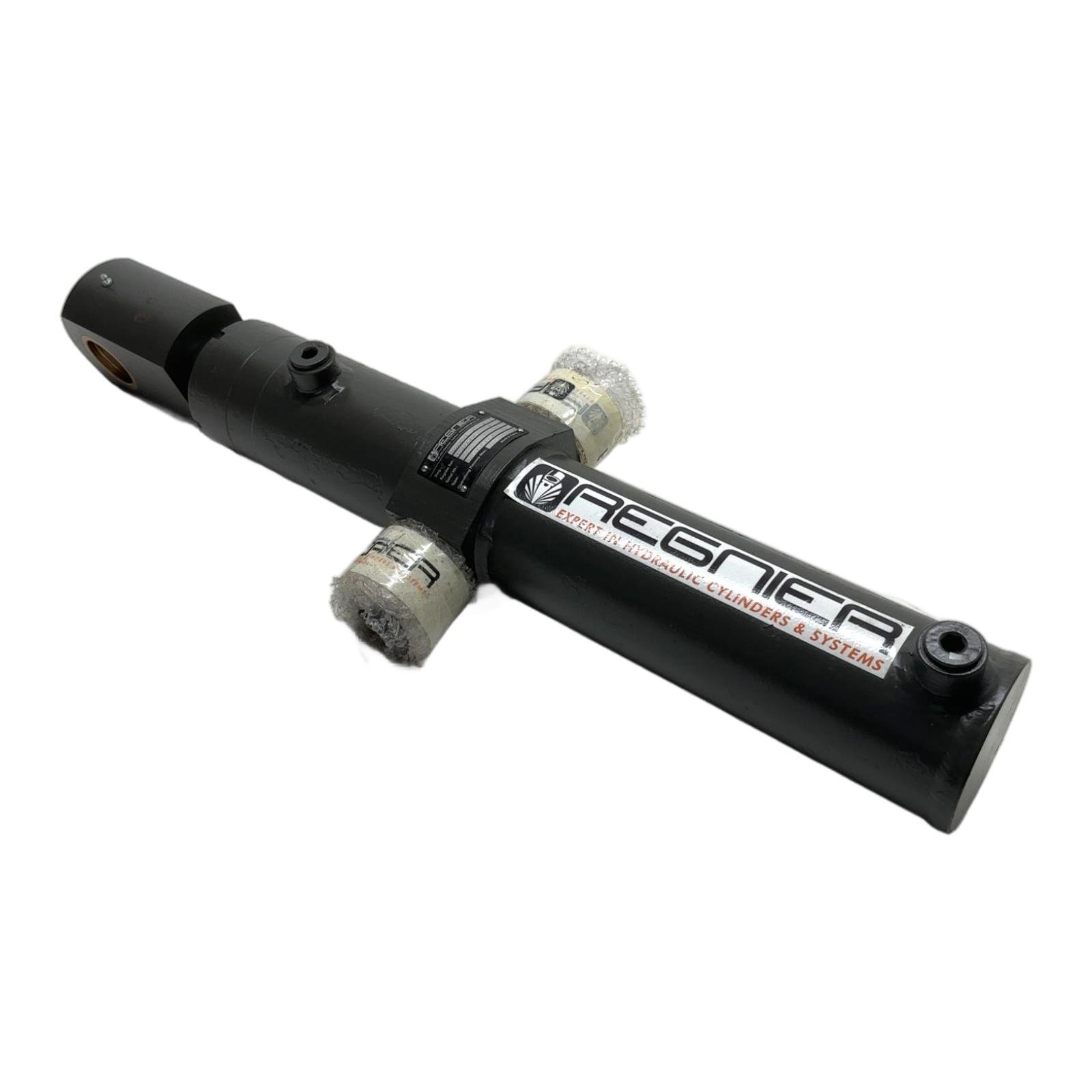

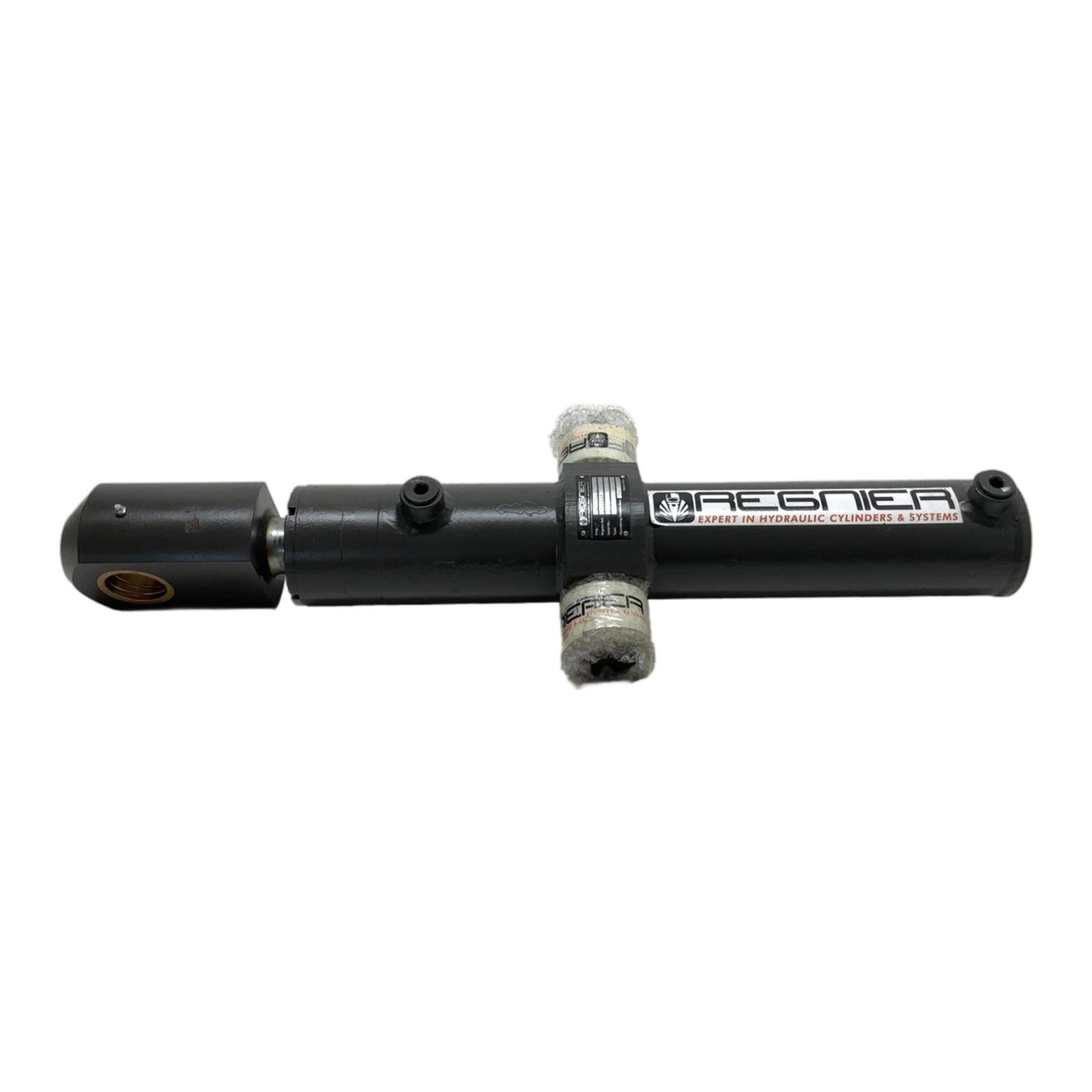

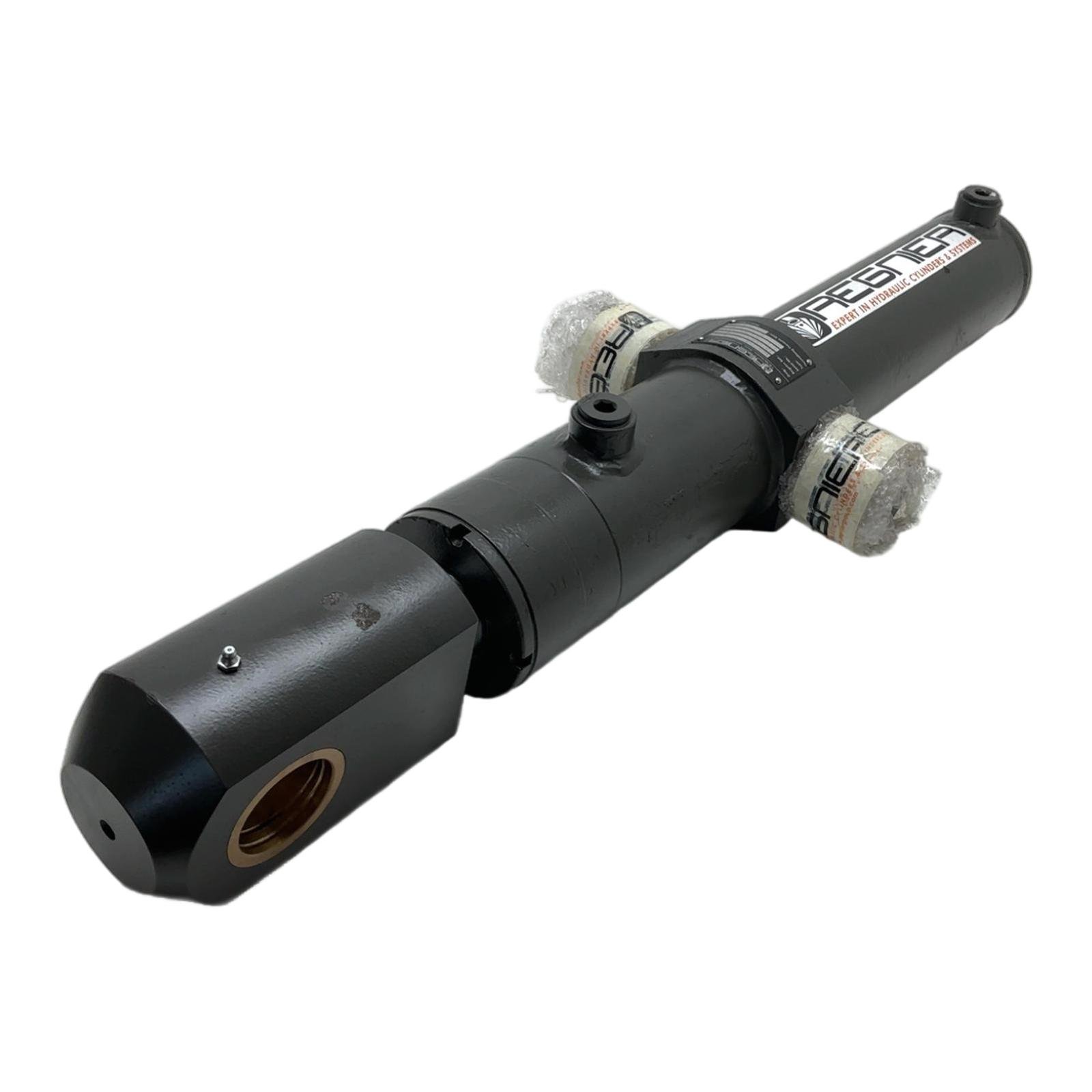

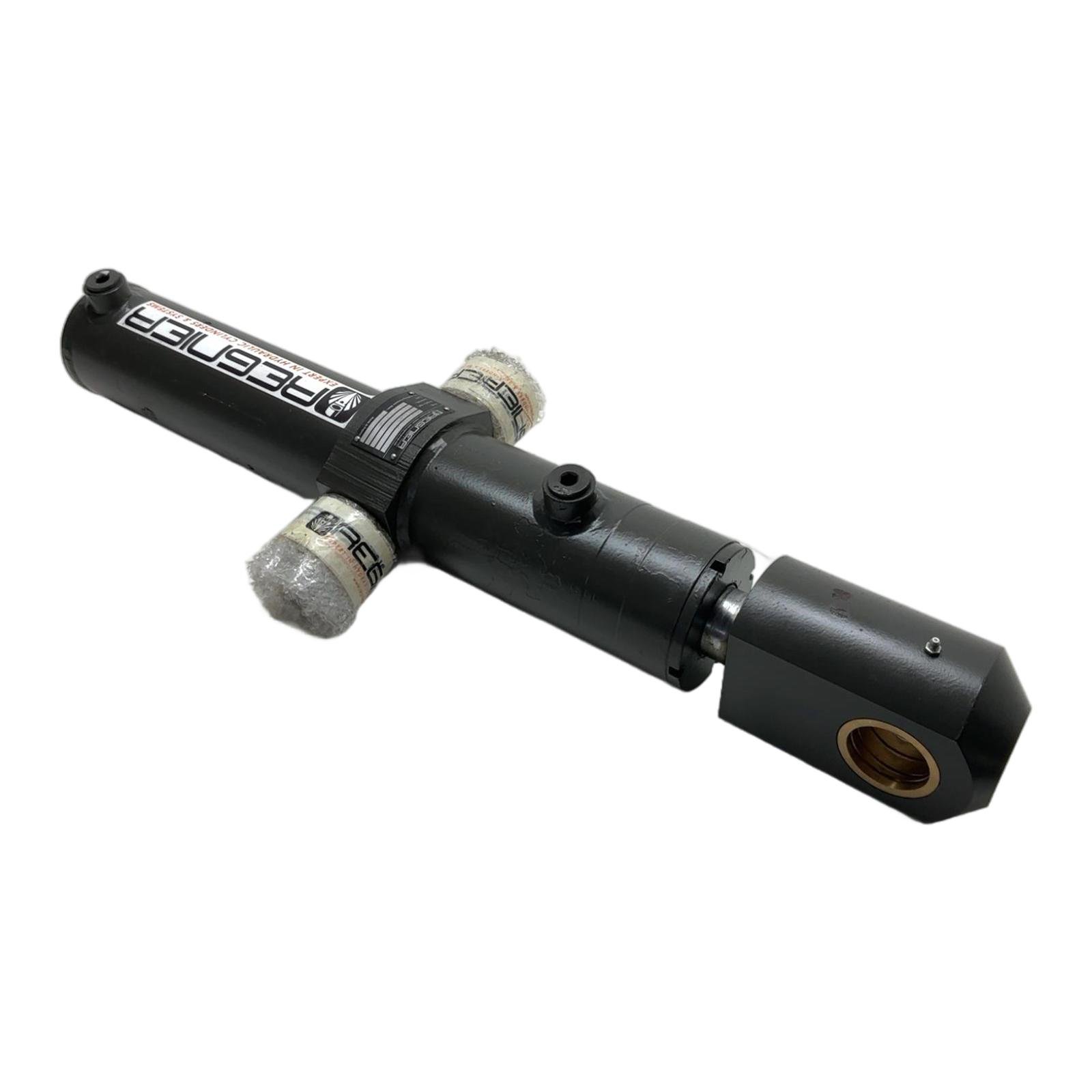

Regnier Double-Acting Hydraulic Cylinder Description This is a new-old-stock hydraulic cylinder from Regnier, a leading French manufacturer of hydraulic systems. It is engineered to provide reliable and powerful linear actuation for a wide range of industrial applications. With a maximum operating pressure of 200 bar and robust construction, it is built for durability and performance. The cylinder features a central trunnion mount and a spherical bearing eye on the rod end. Specifications Manufacturer: Regnier Bore Diameter: 100 mm Rod Diameter: 56 mm Stroke Length: 400 mm Maximum Operating Pressure: 200 bar Mounting Style: Center Trunnion, Rod-End Eye Label Info Type: #100X56C400 Regnier Ref.: 1816649 Drawing (Dwg.): MA27354-S Application This type of cylinder is ideal for applications requiring pivoting motion, such as in mobile equipment (excavators, loaders), industrial presses, lifting platforms, and automated manufacturing systems. Country of Origin Made in France CO2 Impact Choosing this reused cylinder saves an estimated 70 kg of CO2 compared to manufacturing a new one. This environmental saving is comparable to the emissions from driving an average car for 350 kilometers. Availability This item is in stock and available for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What type of hydraulic fluid is recommended for this Regnier cylinder?Standard mineral oil-based hydraulic fluids (like ISO VG 32, 46, or 68) are typically compatible. However, always verify fluid compatibility with the seal materials and your system’s operating temperature for optimal performance and longevity. Can the mounting configuration be modified for my specific application?The integrated trunnion mounts and the rod-end eye are part of the cylinder’s core construction. Modification is generally not recommended as it could compromise structural integrity. It is best to ensure these mounting points match your application’s requirements. Given the maximum pressure of 200 bar, what is the theoretical push and pull force of this cylinder?The push force (extending) is calculated by pressure times the piston area: 200 bar * (pi * (10 cm)^2 / 4) approx. 15,708 daN or 16 tons. The pull force (retracting) is pressure times the piston area minus the rod area, resulting in a slightly lower force. Last Update: March 13, 2026 profideals is not an authorized distributor, reseller, or representative of the products featured on this website. All product names, trademarks, brands, and logos used on this site are the property of their respective owners.
