SCHNEIDER ELECTRIC ABE7-H16R20

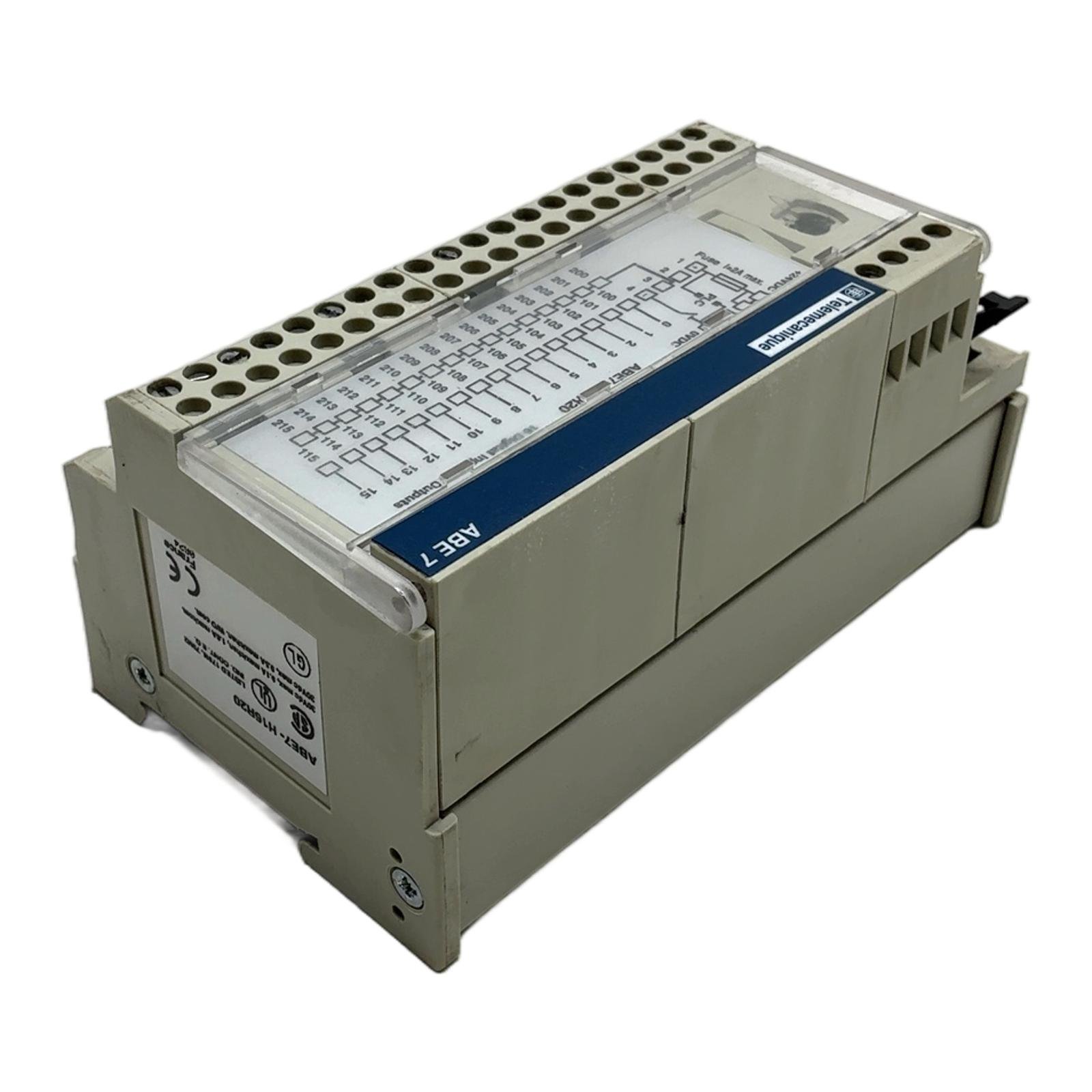

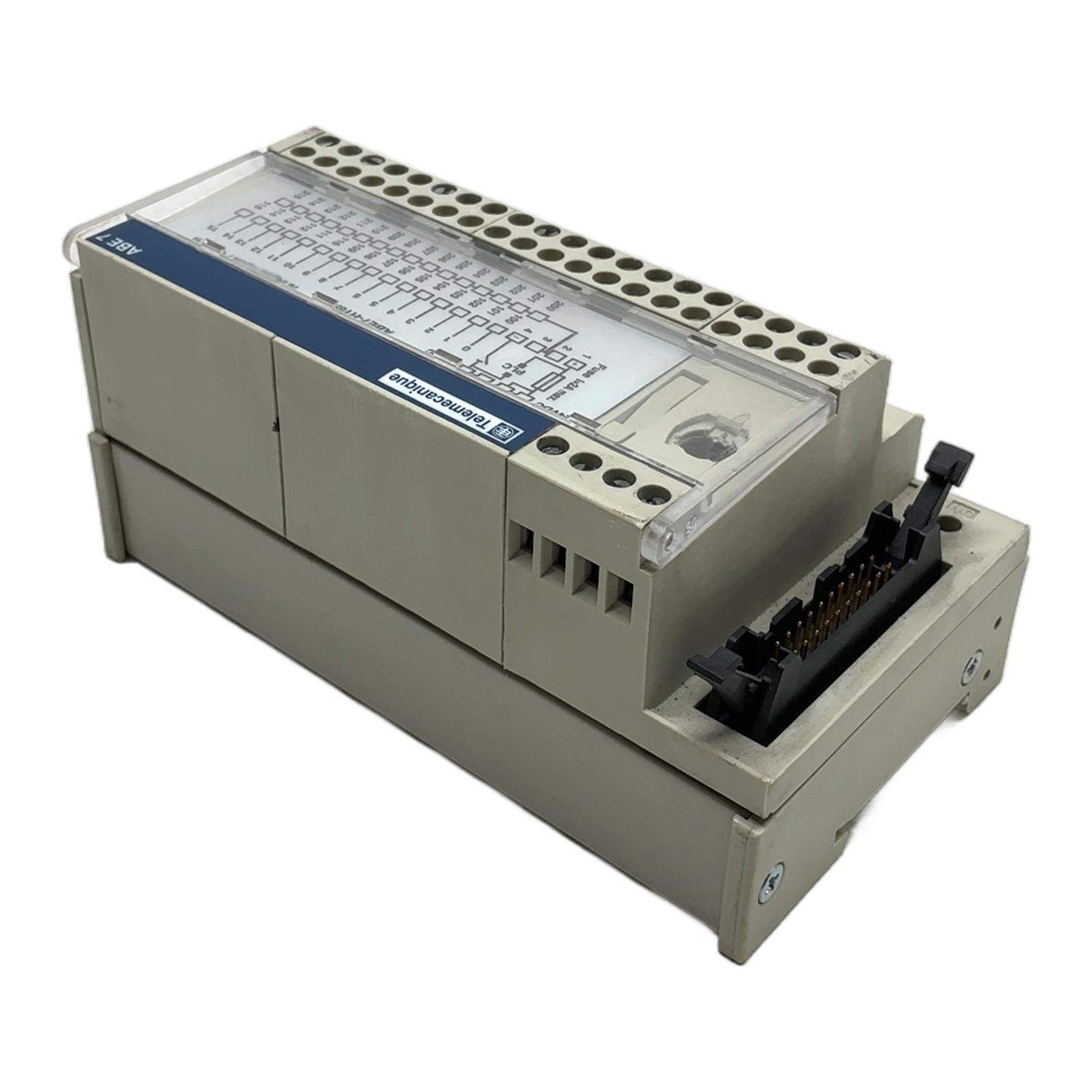

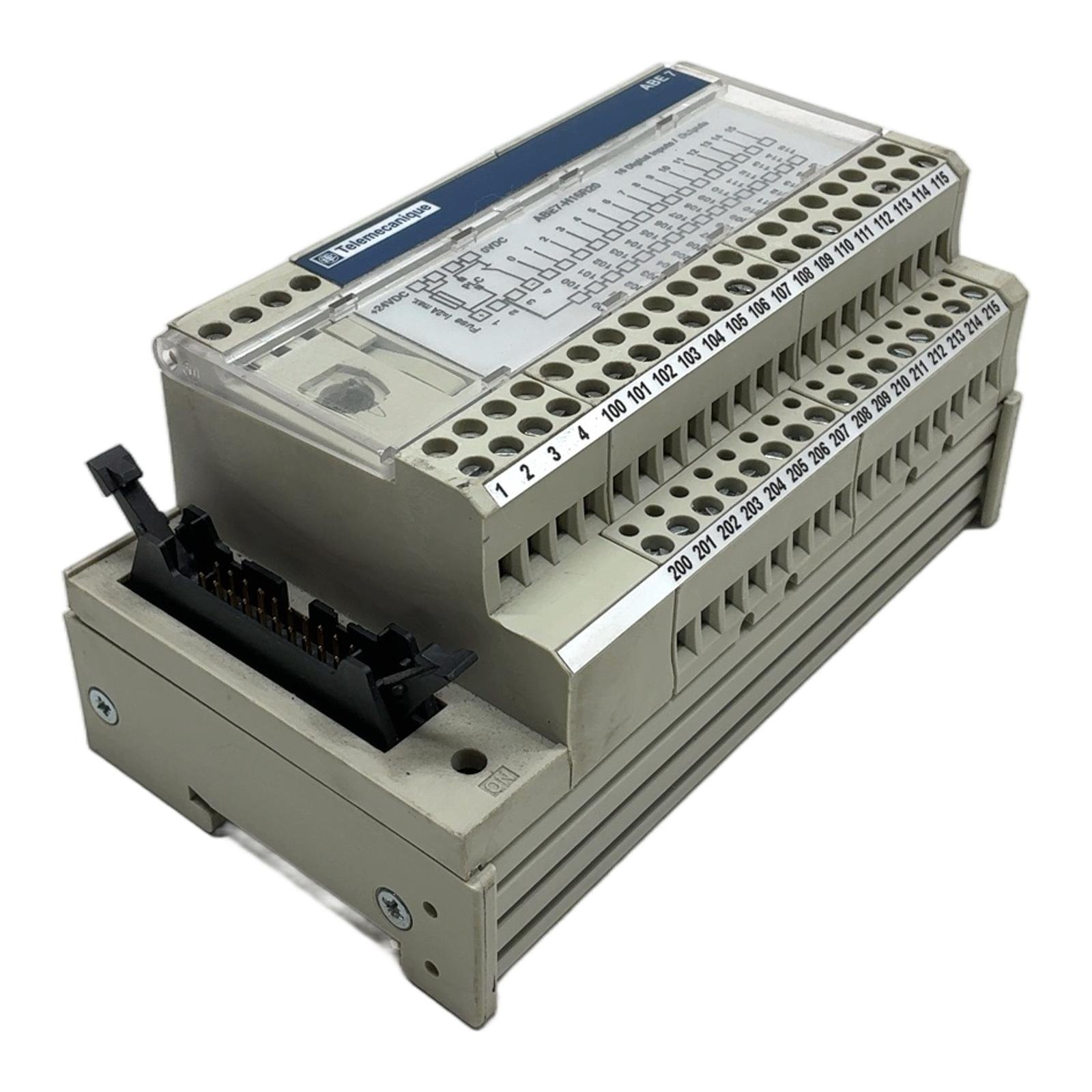

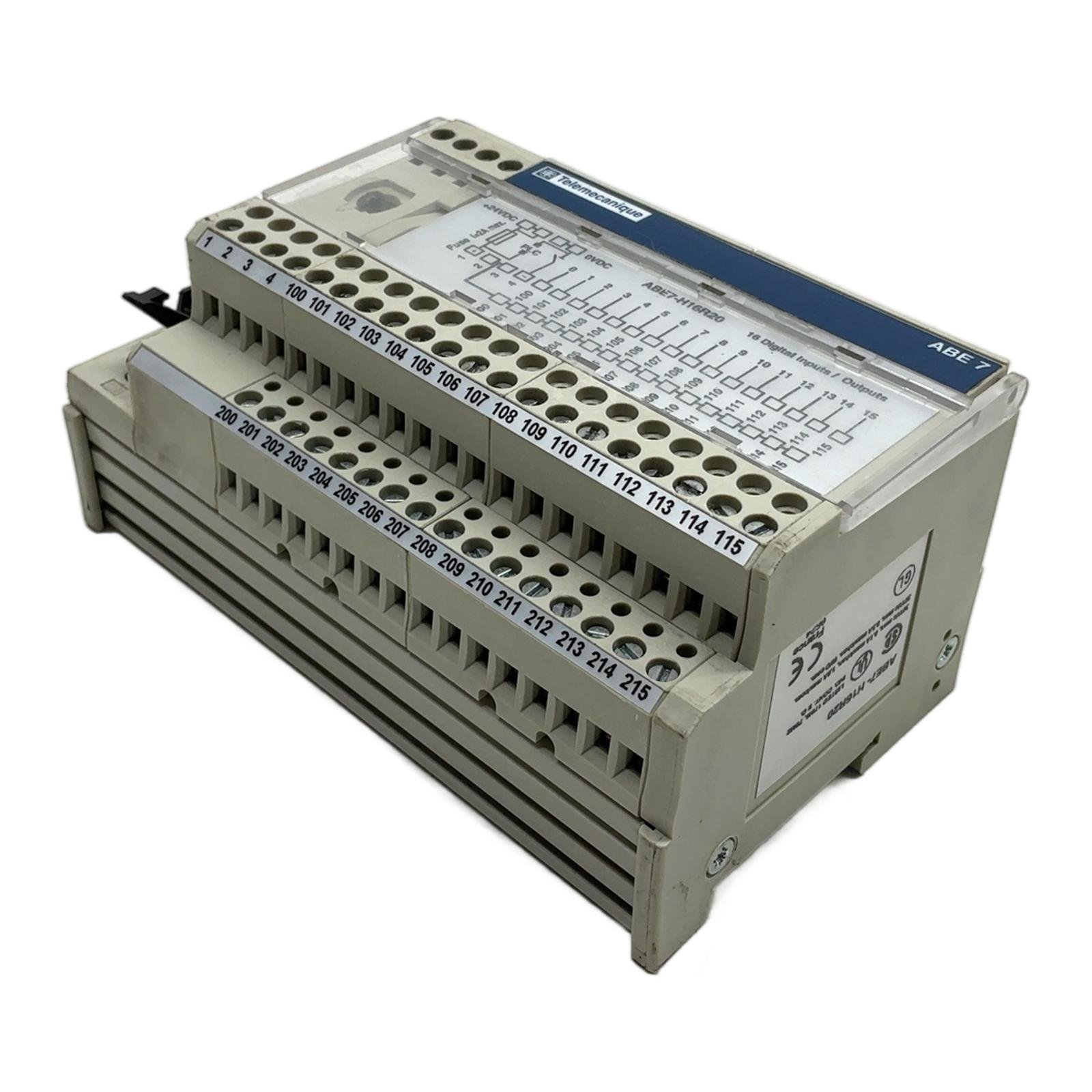

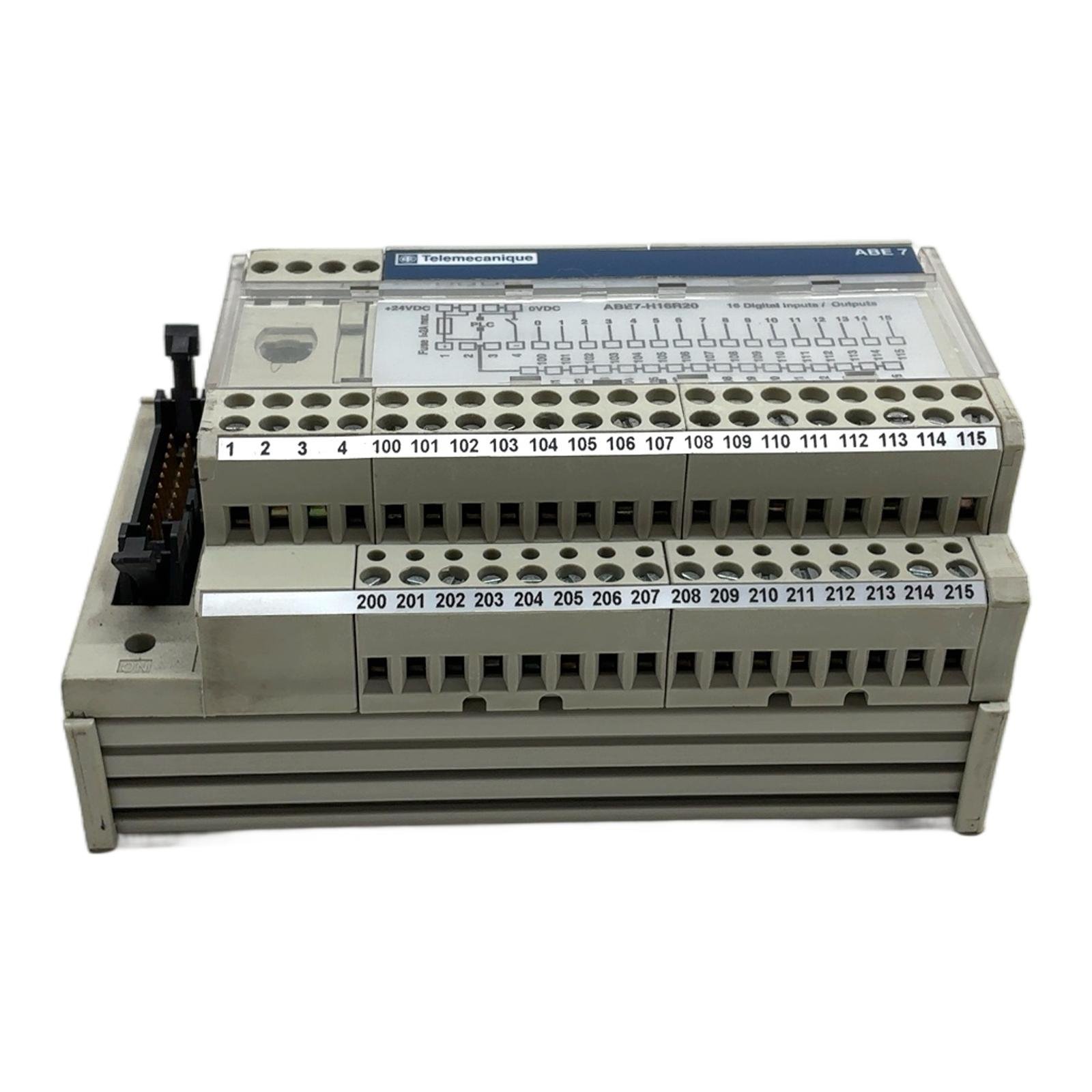

Schneider Electric ABE7-H16R20 I/O Sub-Base Description The ABE7-H16R20 is a 16-channel pluggable connection sub-base from the Schneider Electric Modicon ABE7 Telefast 2 series. It is designed to provide a simplified and reliable wiring interface for 16-channel relay output PLC modules. This sub-base helps to organize control cabinet wiring, reduce installation time, and minimize potential wiring errors. Specifications Manufacturer: Schneider Electric (Telemechanique) Model: ABE7-H16R20 Product Range: Modicon ABE7 Function: Sub-base for 16-channel relay output modules Number of Channels: 16 Connections to PLC: HE10 connector Connections to Field: Screw-type terminals Maximum Voltage: 30V DC Maximum Current: 0.5A per channel, 1.6A per common Label Info Type: ABE7-H16R20 Certifications: CE, UL, SP, GL Application Ideal for use in industrial automation systems requiring a clear and maintainable interface between PLC output cards and field devices such as contactors, solenoid valves, and indicator lamps. Country of Origin Made in France. CO2 Impact Reusing this component saves an estimated 8.0 kg of CO2 compared to manufacturing a new one. This is equivalent to the emissions from a 40 km car journey. Availability This is an obsolete item but is available from our stock. Order now from profideals for expert support and fast delivery. FAQ What type of connector is used to link this sub-base to a PLC module? The ABE7-H16R20 uses a HE10 (IDC) connector. You would typically use a pre-fabricated cable, like the Schneider Electric ABF T2… series, to connect it to the corresponding I/O card. Can I use this sub-base for both input and output signals? While the label mentions “Inputs / Outputs,” this specific model, ABE7-H16R20, is optimized for 16-channel relay output modules. It provides the necessary common connections (COM) for relay contacts. Using it for inputs might be possible but is not its primary designed function. What is the maximum wire size that can be used with the screw terminals? The screw terminals on the ABE7 series are designed to accept a wire cross-section from 0.09 mm squared to 1.5 mm squared (AWG 28 to AWG 16), ensuring a secure connection for standard control cabinet wiring. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
