RHP H309x40mm

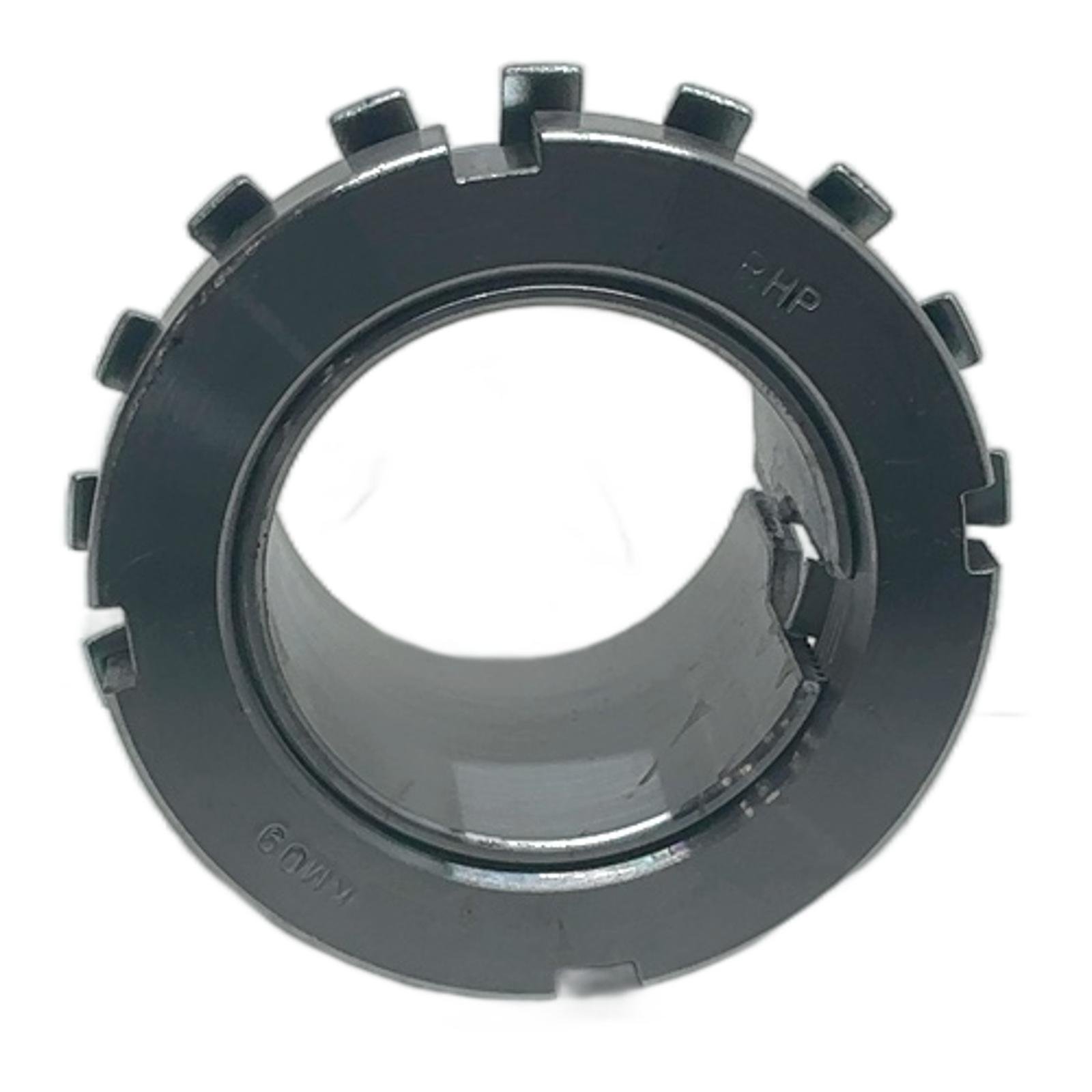

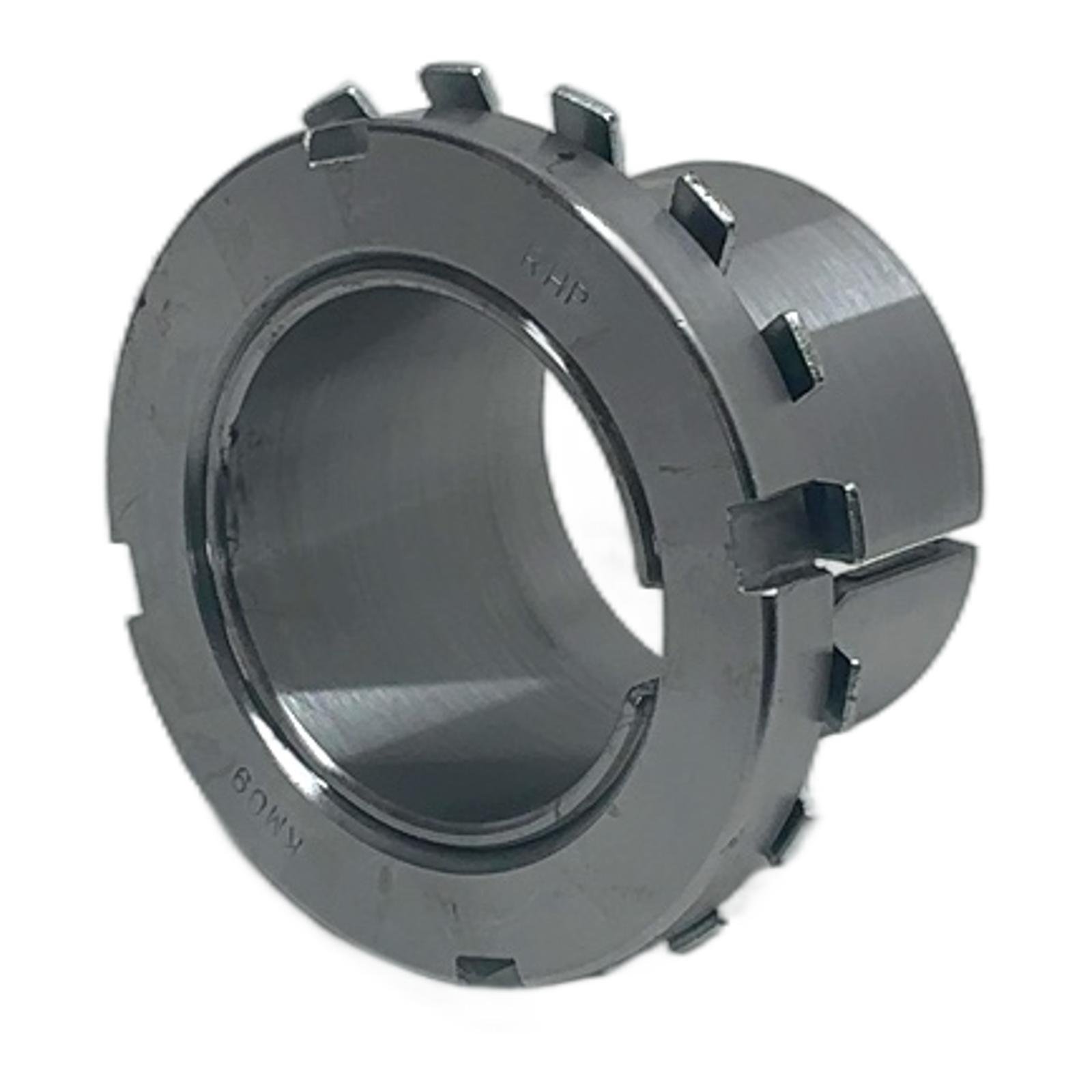

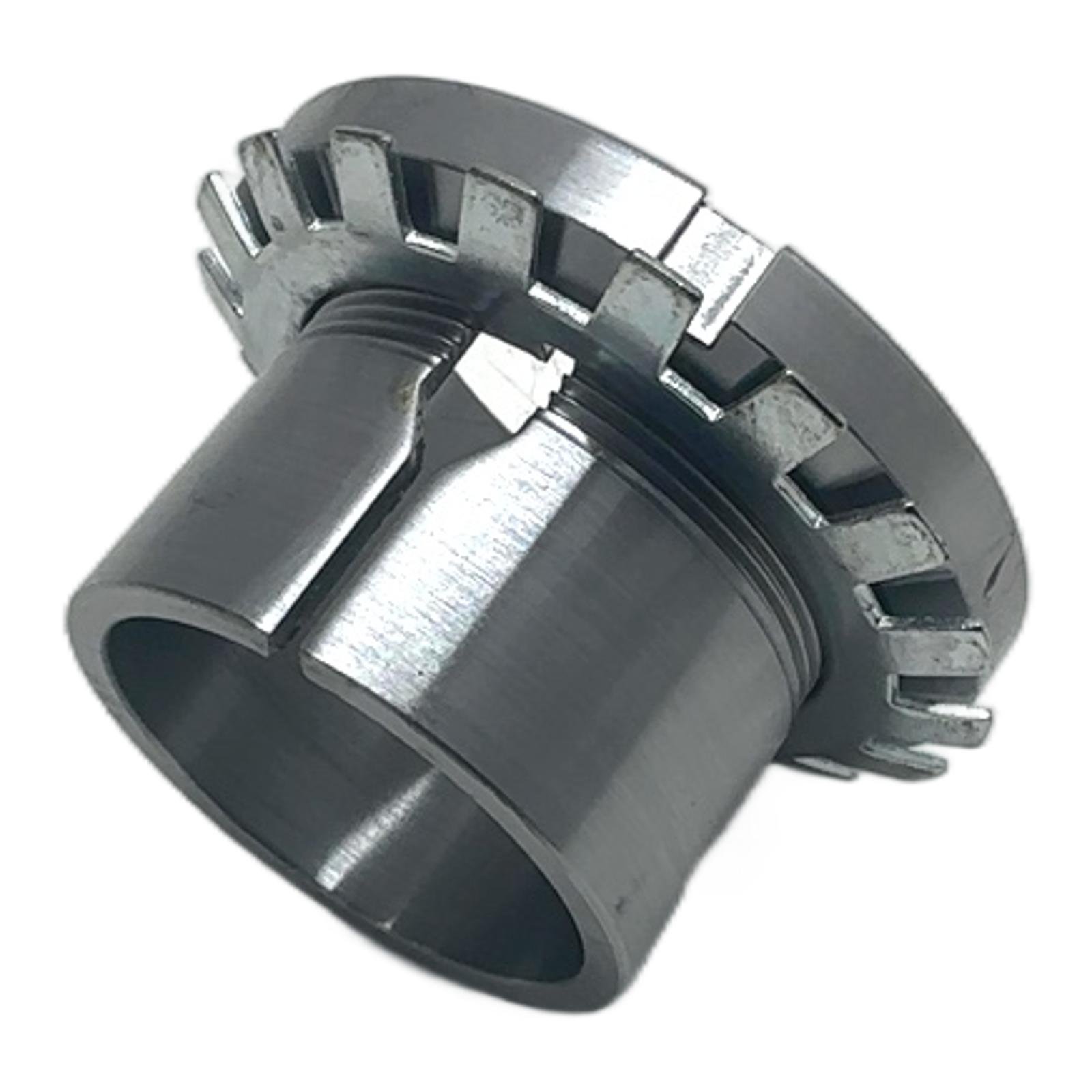

RHP H309x40mm Adapter Sleeve for 40mm Shafts Description The RHP H309x40mm is a high-quality adapter sleeve designed for mounting rolling bearings with a tapered bore onto cylindrical shafts. This component provides a simple and reliable method for securing bearings, allowing for wider shaft tolerances and easy dismounting. Manufactured by RHP, a brand known for its precision engineering, this sleeve ensures excellent concentricity and a firm fit, essential for demanding industrial environments. Specifications Manufacturer: RHP Model: H309x40mm Product Type: Adapter Sleeve Bore Diameter (Shaft Size): 40 mm Taper: 1:12 Material: Steel Compatible Lock Nut: KM9 (sold separately) Compatible Locking Washer: MB9 (sold separately) Label Info Brand: RHP Item: H309x40mm Application This adapter sleeve is widely used in various industrial applications, including conveyor systems, agricultural machinery, fans and blowers, and general power transmission systems where bearings need to be mounted on smooth or stepped shafts without a shoulder. Country of Origin United Kingdom CO2 Impact By choosing this pre-owned but unused adapter sleeve, you are contributing to a circular economy. This choice avoids the production of a new item, saving an estimated 0.44 kg of CO2 emissions. This is equivalent to the energy needed to power over 50 smartphone charges. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the correct procedure for mounting a bearing using this H309 sleeve?The bearing should be pushed up the tapered sleeve until the required reduction in radial internal clearance is achieved. The final position is secured by tightening the corresponding lock nut (KM9) and bending a tab of the lock washer (MB9) into one of the nut’s slots. Which lock nut and washer are required for the H309x40mm sleeve?The standard compatible hardware for an H309 sleeve is a KM9 lock nut and an MB9 locking washer. These components are not included and must be sourced separately. Can this sleeve be used with any type of bearing?No, this adapter sleeve is specifically designed for use with bearings that have a tapered bore (taper 1:12), such as certain self-aligning ball bearings, spherical roller bearings, and CARB toroidal roller bearings. It is not suitable for bearings with a cylindrical bore. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
