SCHNEIDER ELECTRIC XD2PA22

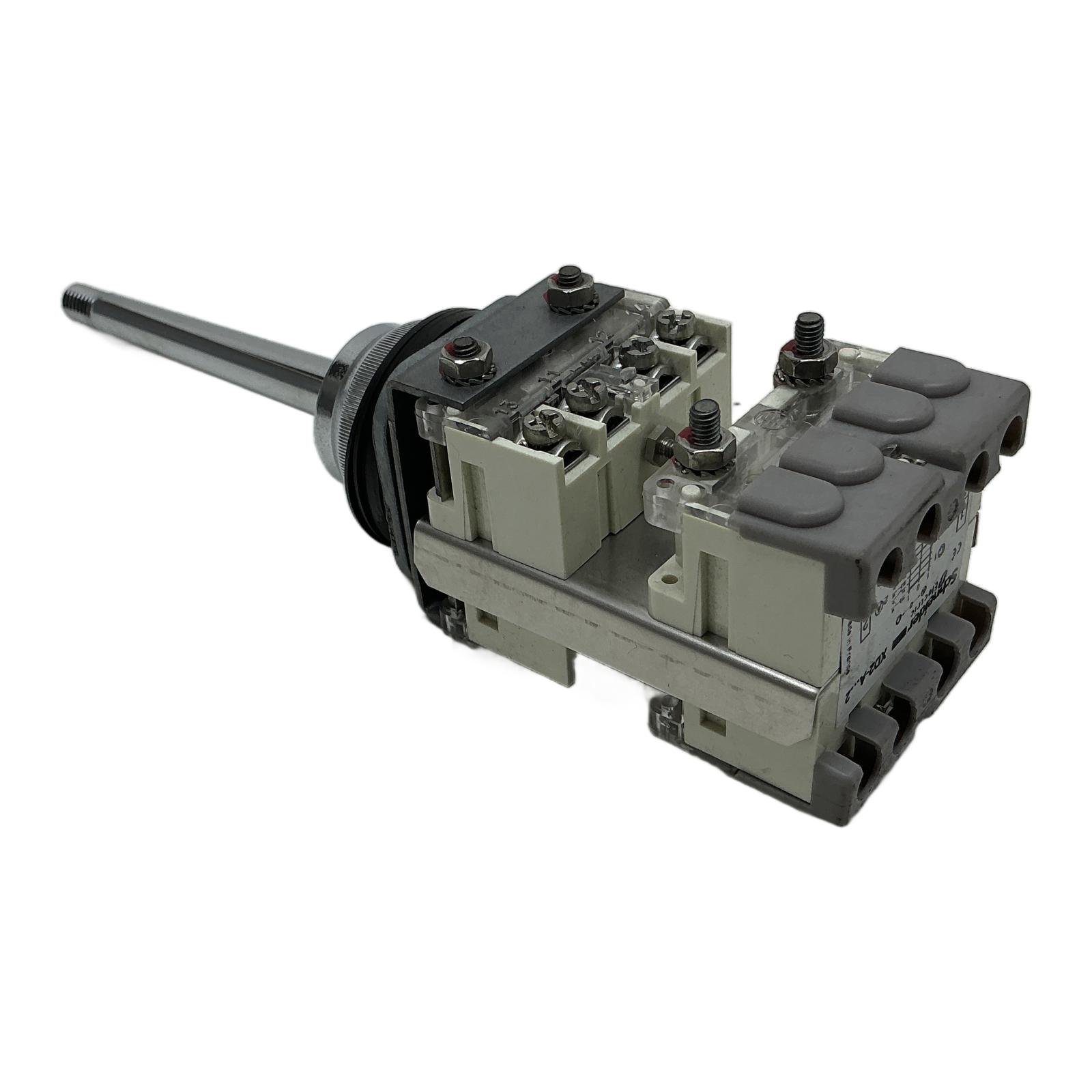

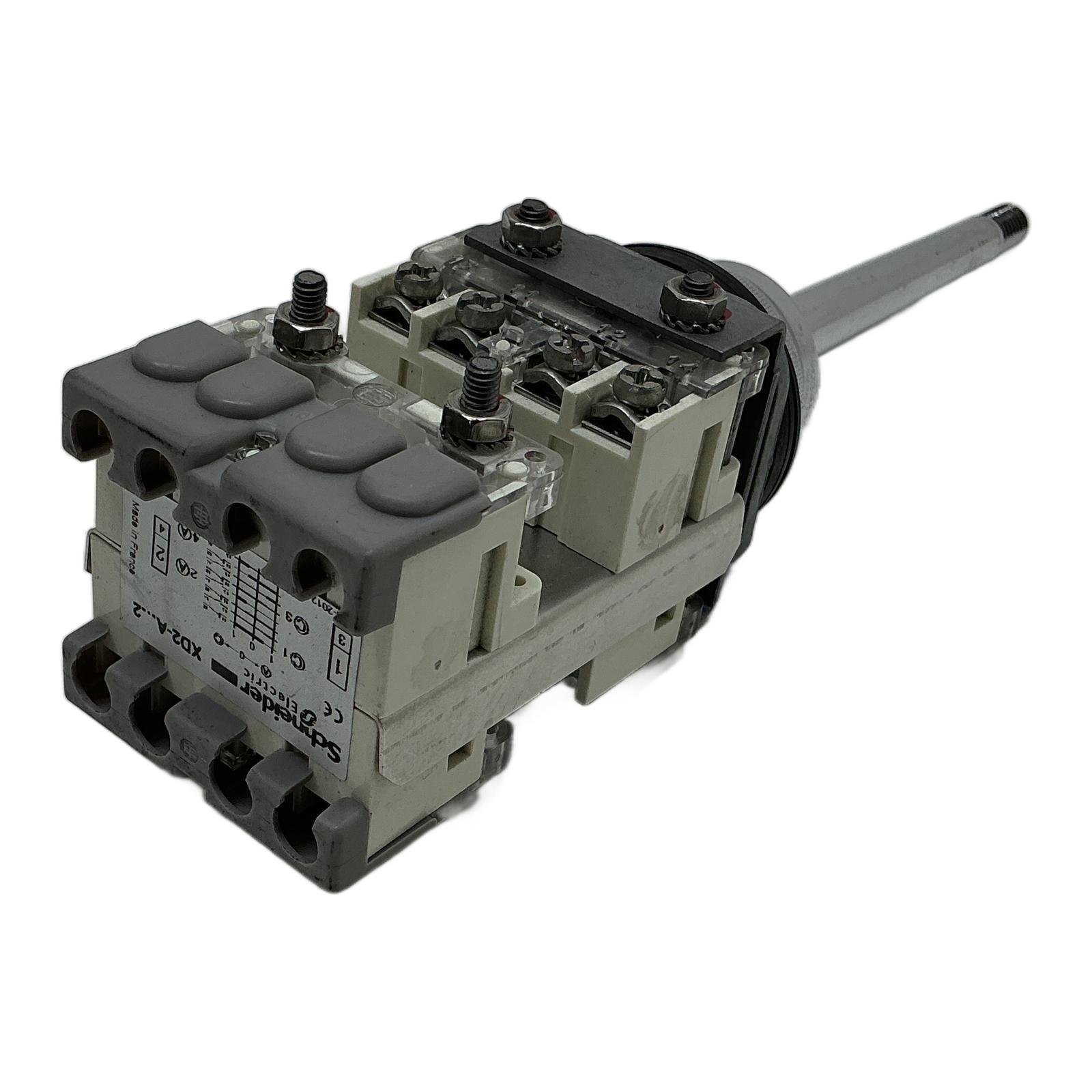

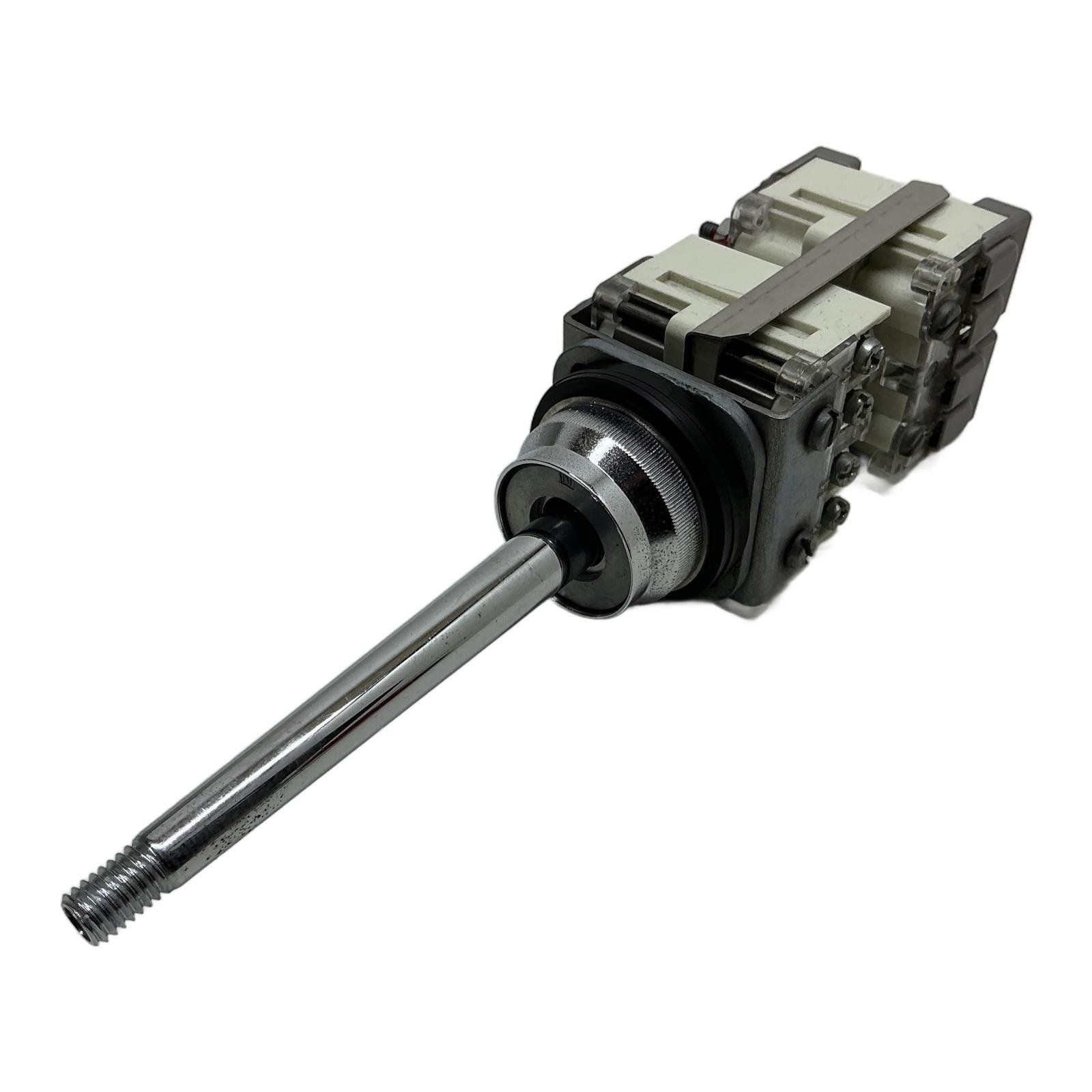

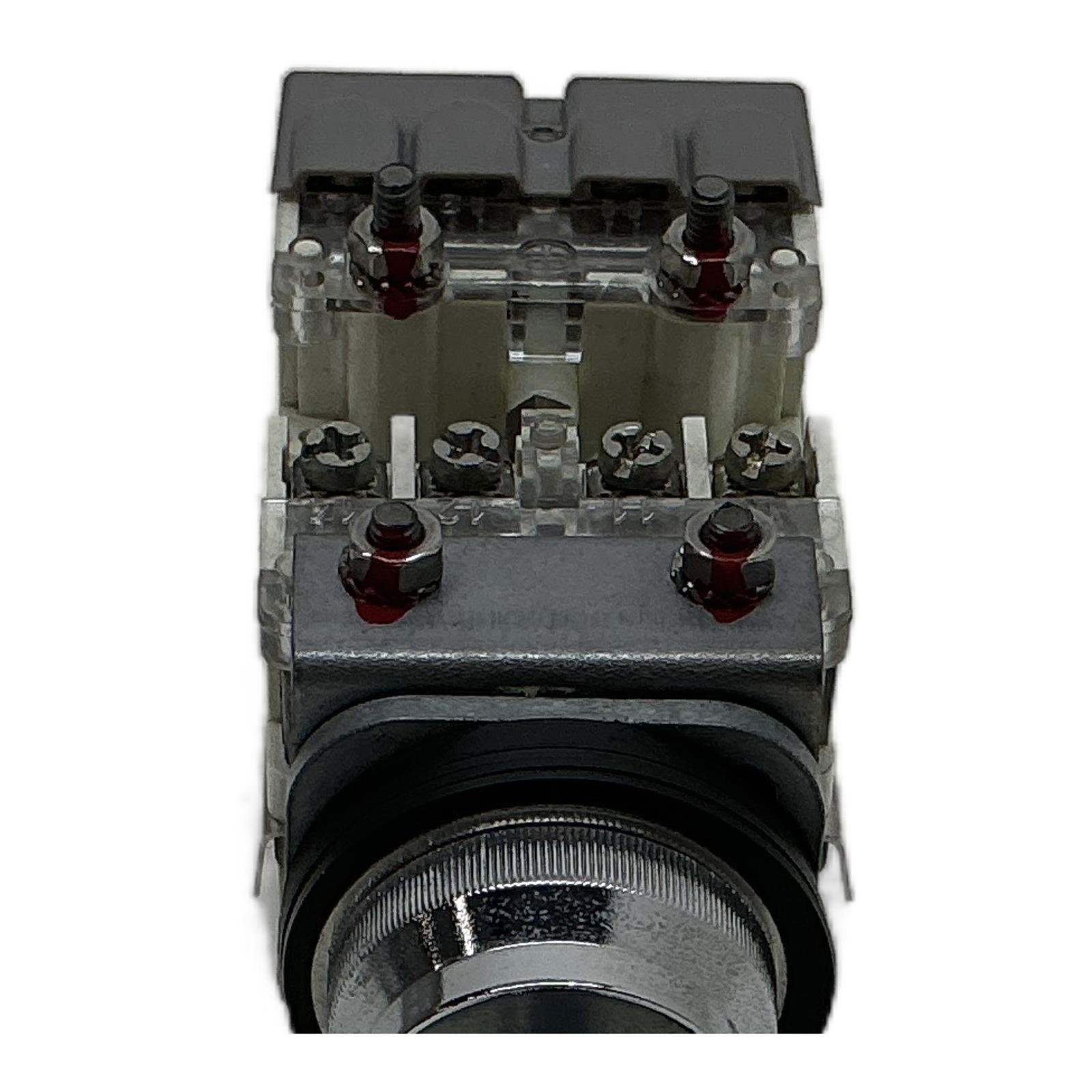

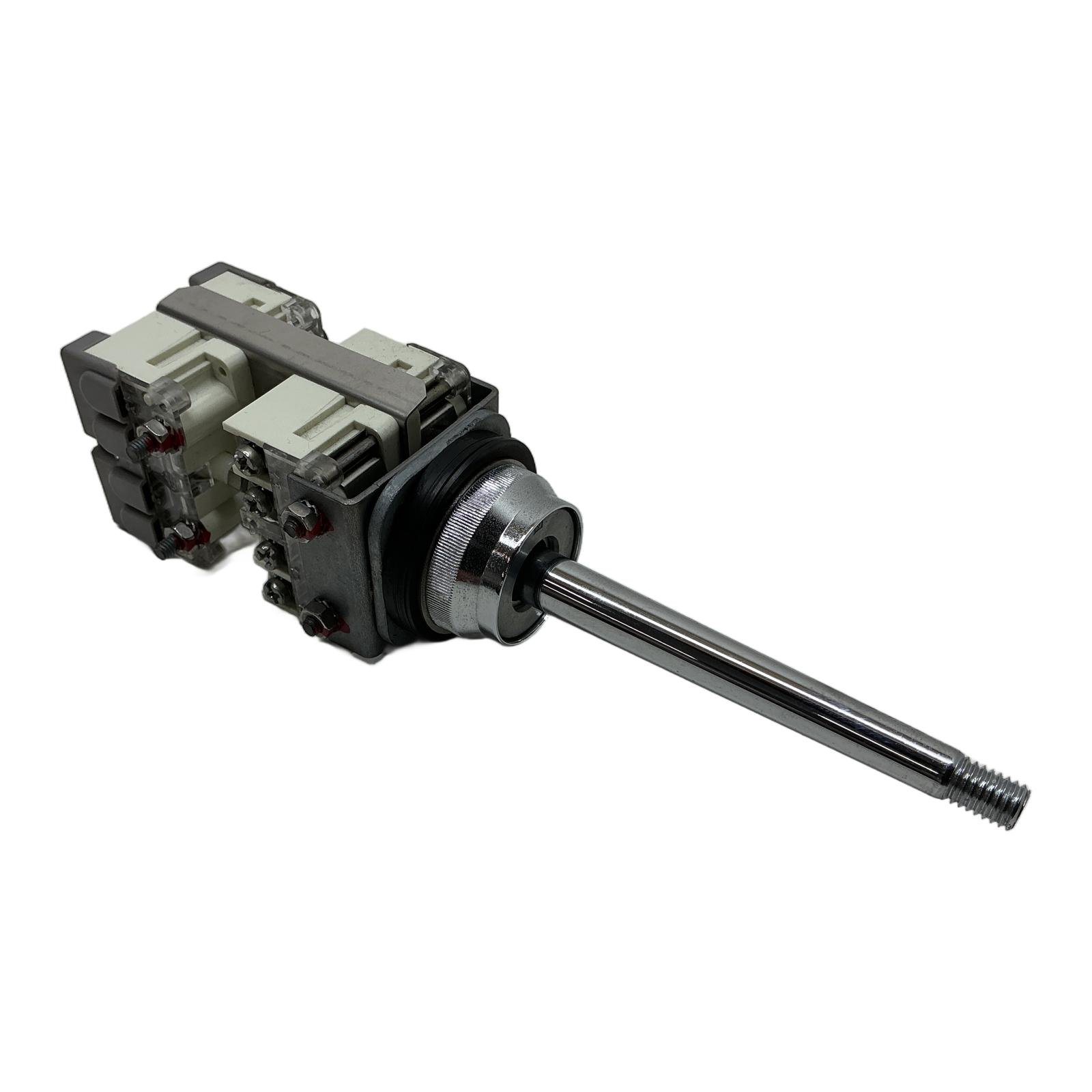

Schneider Electric Joystick Controller 2-Direction XD2PA22 Description The Schneider Electric XD2PA22 is a 2-direction joystick controller from the robust Harmony Style 4 (XD2) series. It is designed for heavy-duty industrial applications, offering intuitive control with a spring-return-to-center mechanism. The durable metal construction ensures a long operational life in demanding environments. This controller is ideal for cranes, hoists, and material handling equipment. Specifications Manufacturer: Schneider Electric Type: XD2PA22 Series: Harmony XD2 (Style 4) Number of Directions: 2 Operation: Momentary (Spring return to center) Contact Configuration: 1 NO + 1 NC per direction Mounting Diameter: 22 mm Actuator: Long lever Label Info Brand: Schneider Electric Model Reference: XD2-A…2 Batch Code: 3N-2012-W29 Application This joystick controller is commonly used in control panels for industrial machinery, production lines, and automation systems where manual, multi-directional control is required. Country of Origin Made in France CO2 Impact By purchasing this refurbished item, you are contributing to a circular economy and have helped avoid approximately 4.0 kg of CO2 emissions, which is comparable to driving a car for 20 kilometers. Availability This is an obsolete product, but it is available from our stock. Order now from profideals for expert support and fast delivery. FAQ What is the mounting hole diameter for this XD2 series joystick?The Schneider Electric Harmony XD2 series, also known as Style 4, requires a standard 22mm mounting cutout, which is common for industrial pushbuttons and switches. Is this a momentary or maintained action joystick?This is a momentary action joystick, also known as spring return. When the lever is released from either direction, it automatically returns to the central ‘off’ position. Can I add or change the contact blocks on this controller?Yes, the Harmony XD2 series is modular. You can typically add, remove, or replace the ZBE series contact blocks to customize the switching configuration to your specific application needs, provided you respect the maximum number of blocks the operator can support. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
