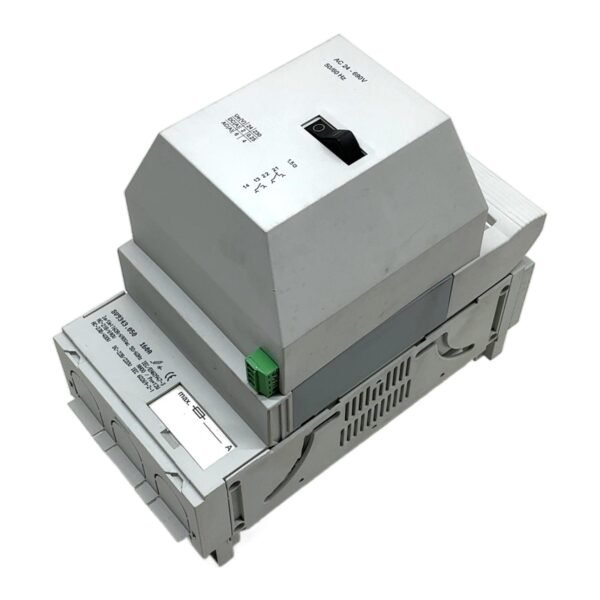

RITTAL SV9343.050

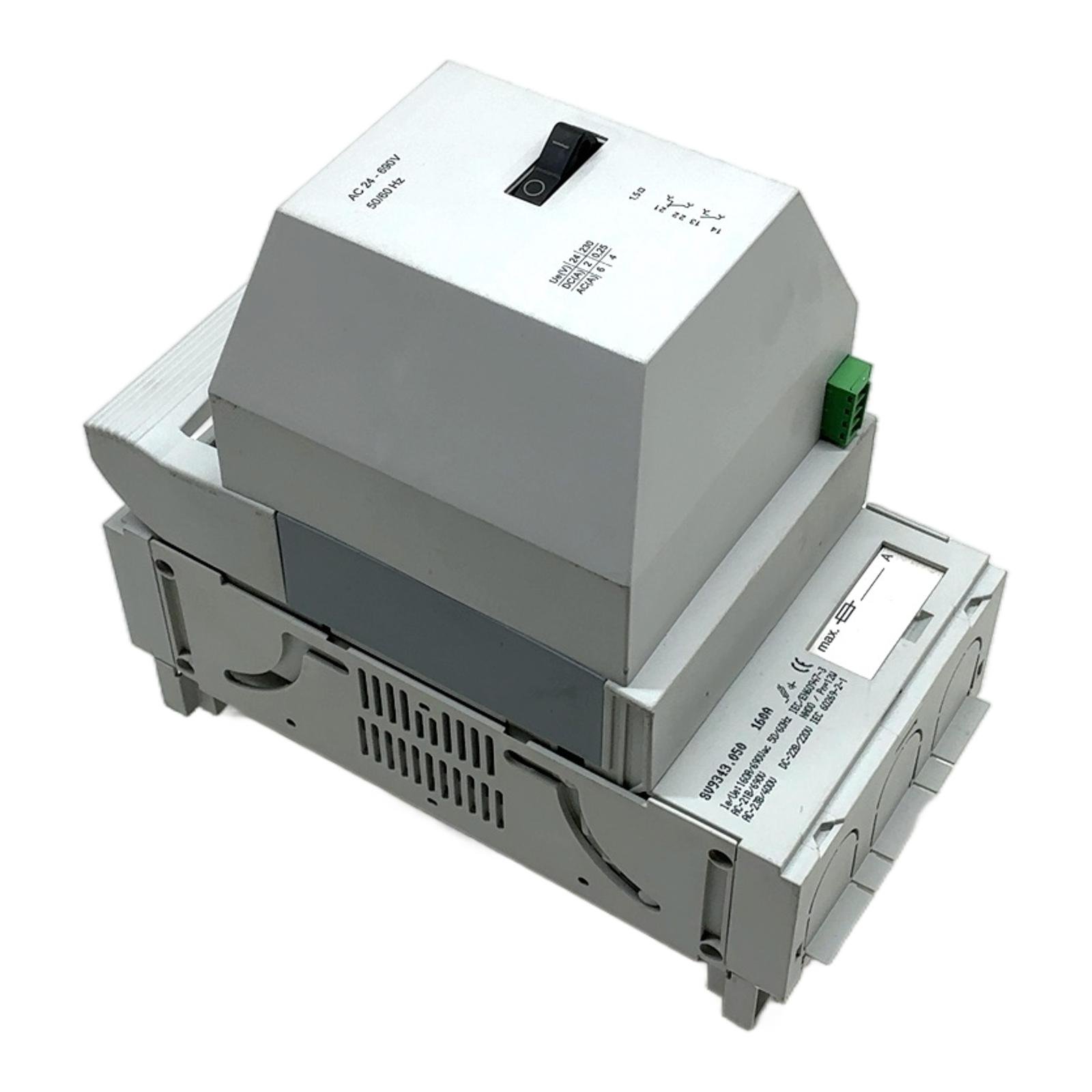

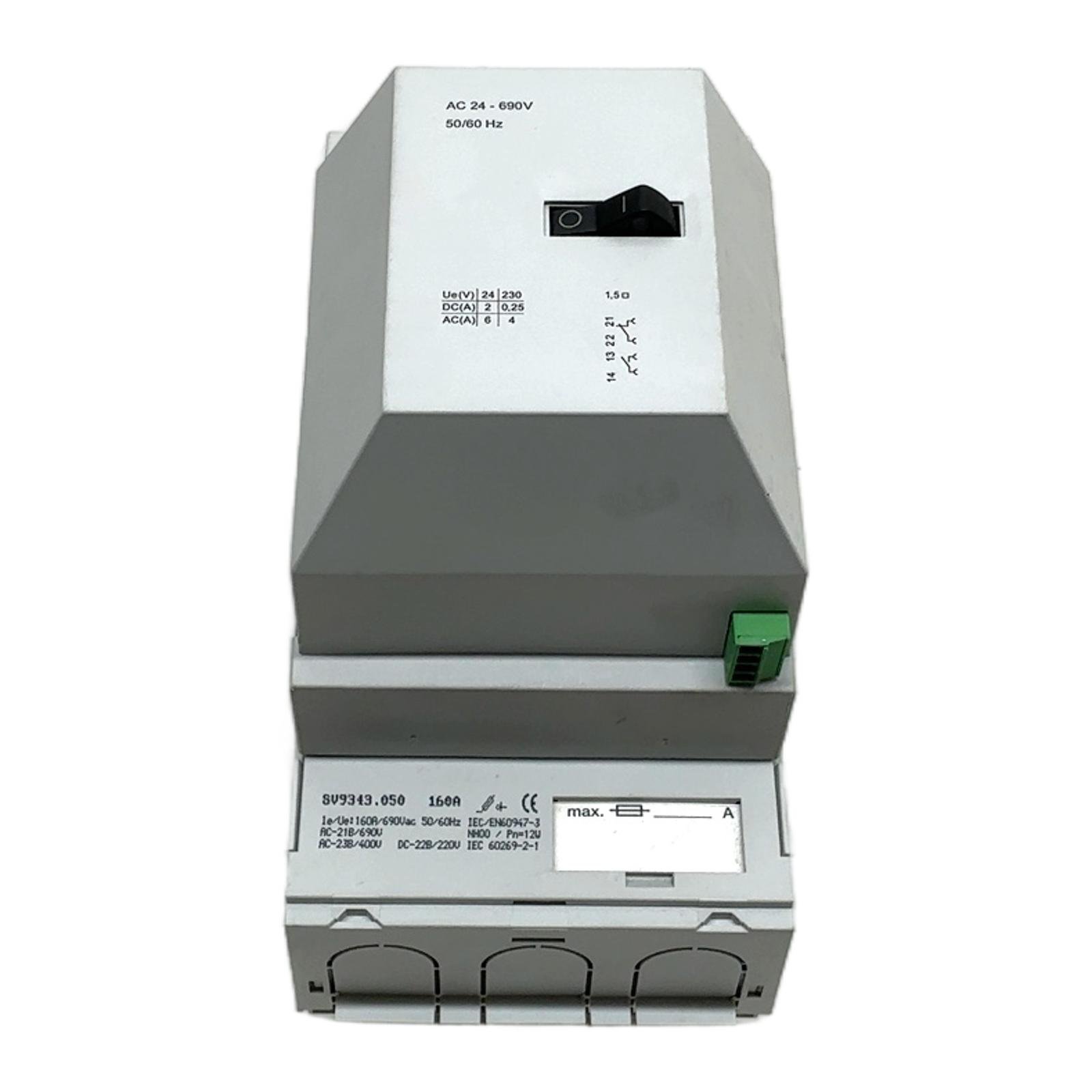

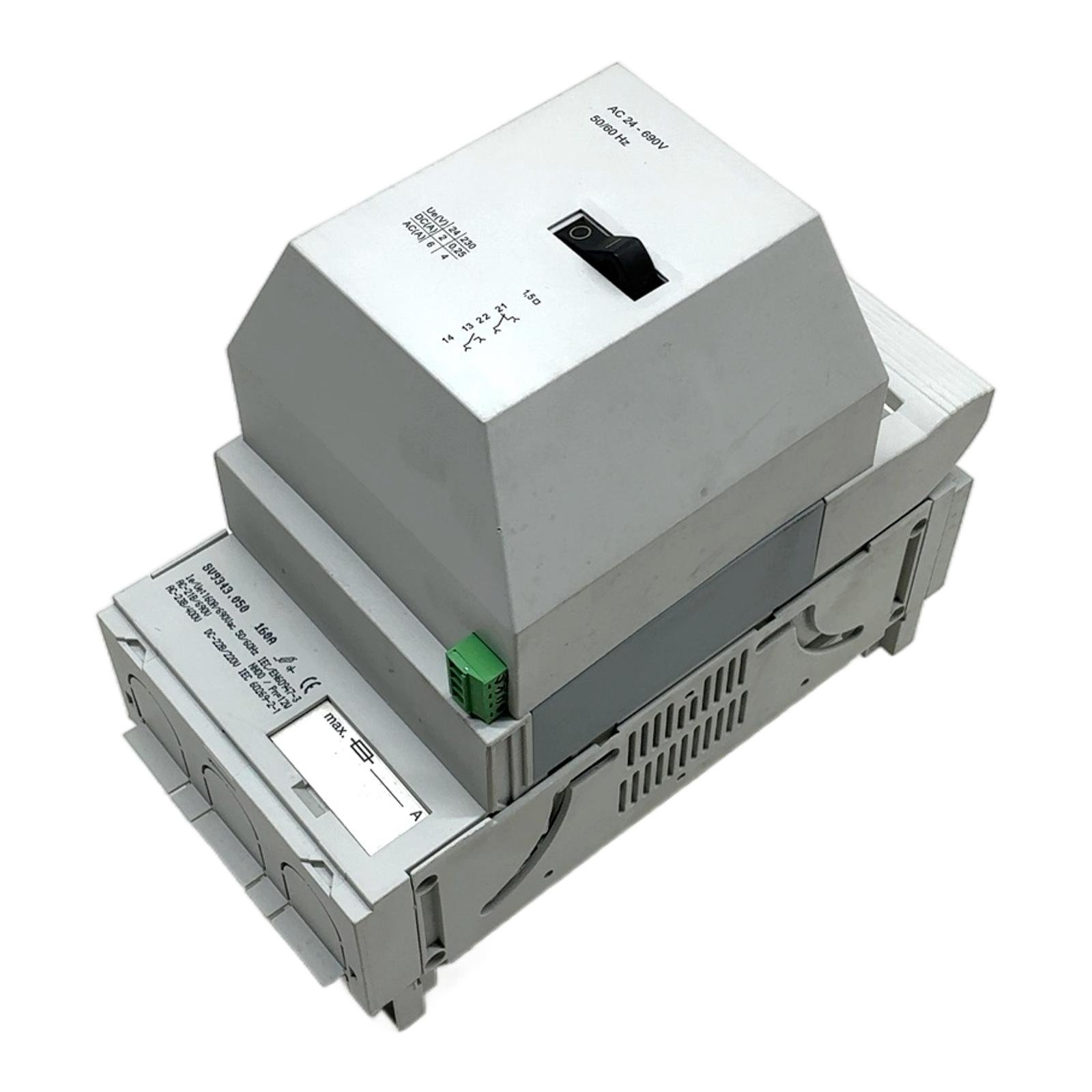

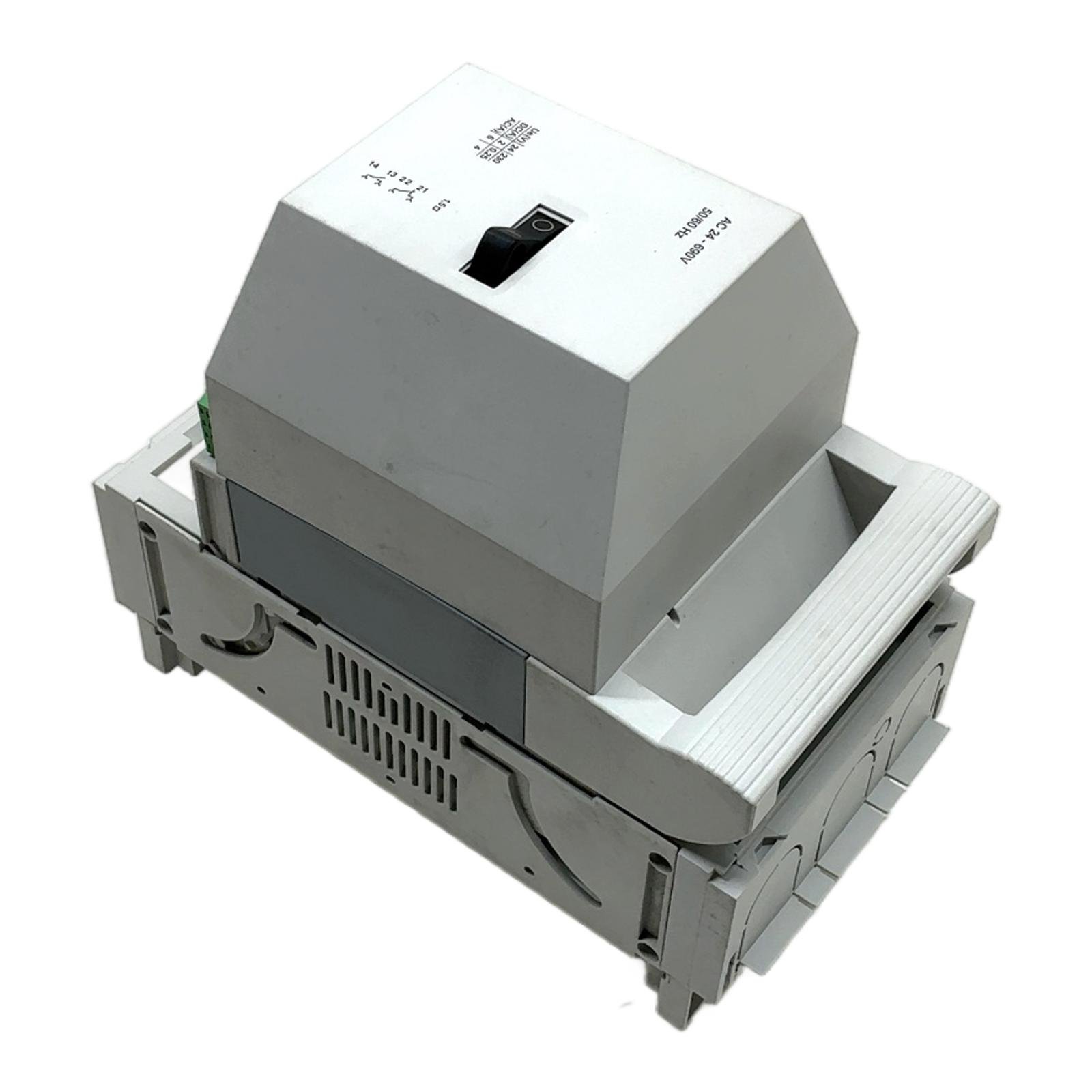

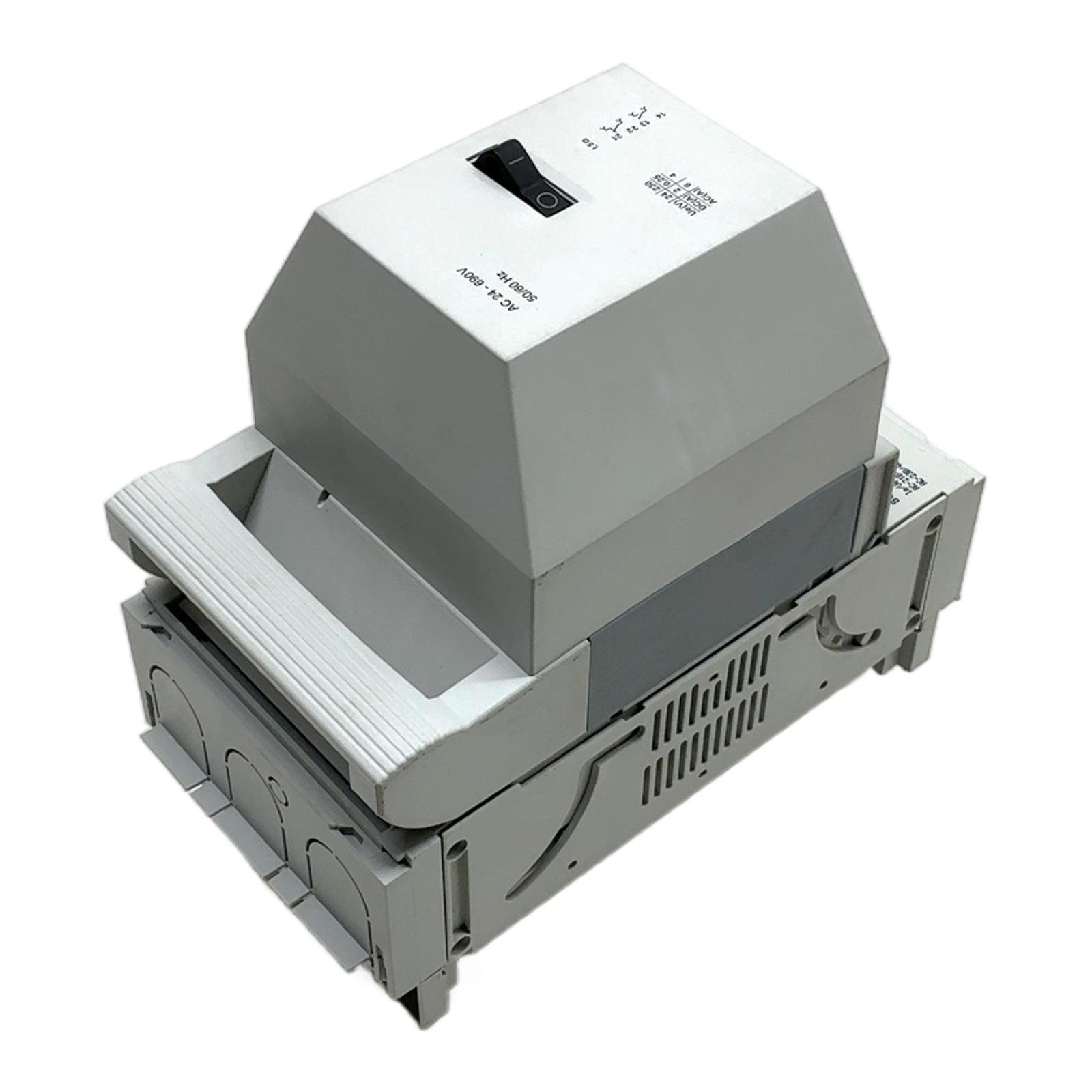

Rittal SV9343.050 3-Pole NH00 Fuse Switch Disconnector Description The Rittal SV9343.050 is a high-quality 3-pole fuse switch disconnector designed for NH size 00 fuses. It provides dependable circuit protection for industrial applications with a rated current of 160A and a maximum voltage of 690V AC. This unit is specifically engineered for seamless integration into Rittal’s RiLine60 busbar systems, offering a safe and space-saving solution for power distribution and control panels. Specifications Manufacturer: Rittal Model: SV9343.050 Rated Operational Current (Ie): 160 A Rated Operational Voltage (Ue): 690V AC, 50/60 Hz Number of Poles: 3 Fuse Size: NH00 Mounting System: Rittal RiLine60 Auxiliary Contact Rating: AC 6A/230V, DC 2A/24V Label Info Type: SV9343.050 Current: 160A Voltage: 160A/690Vac 50/60Hz Standard: IEC/EN60947-3 Utilization Categories: AC-21B/690V, AC-23B/400V, DC-22B/220V Application This component is ideal for use in power distribution boards, machine control panels, and industrial switchgear assemblies where reliable overcurrent protection and a means of disconnection are required. Its design for the RiLine60 system makes it perfect for compact and modular cabinet layouts. Country of Origin Made in Germany. CO2 Impact By purchasing this pre-owned component, you are helping to avoid the emission of approximately 60 kg of CO2. This saving is equivalent to the carbon captured by 3 trees in one year. Availability This item is a tested, used product. Available for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What size fuses can be used with the SV9343.050?This unit is specifically designed for NH size 00 (NH00) fuses. Using other sizes is not possible and would be unsafe. Is this fuse switch disconnector suitable for direct mounting on a DIN rail?No, the SV9343.050 is designed for direct mounting on a Rittal RiLine60 busbar system. It features specific connections on the back for this purpose and is not intended for standard DIN rail mounting. Can the auxiliary contacts be changed or modified?The unit comes with integrated auxiliary contacts for monitoring the switch position. While they are factory-installed, Rittal offers various accessories, but modification of the integrated contacts is generally not recommended and should only be performed by qualified personnel. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
