TELEMECANIQUE XCKN2110P20

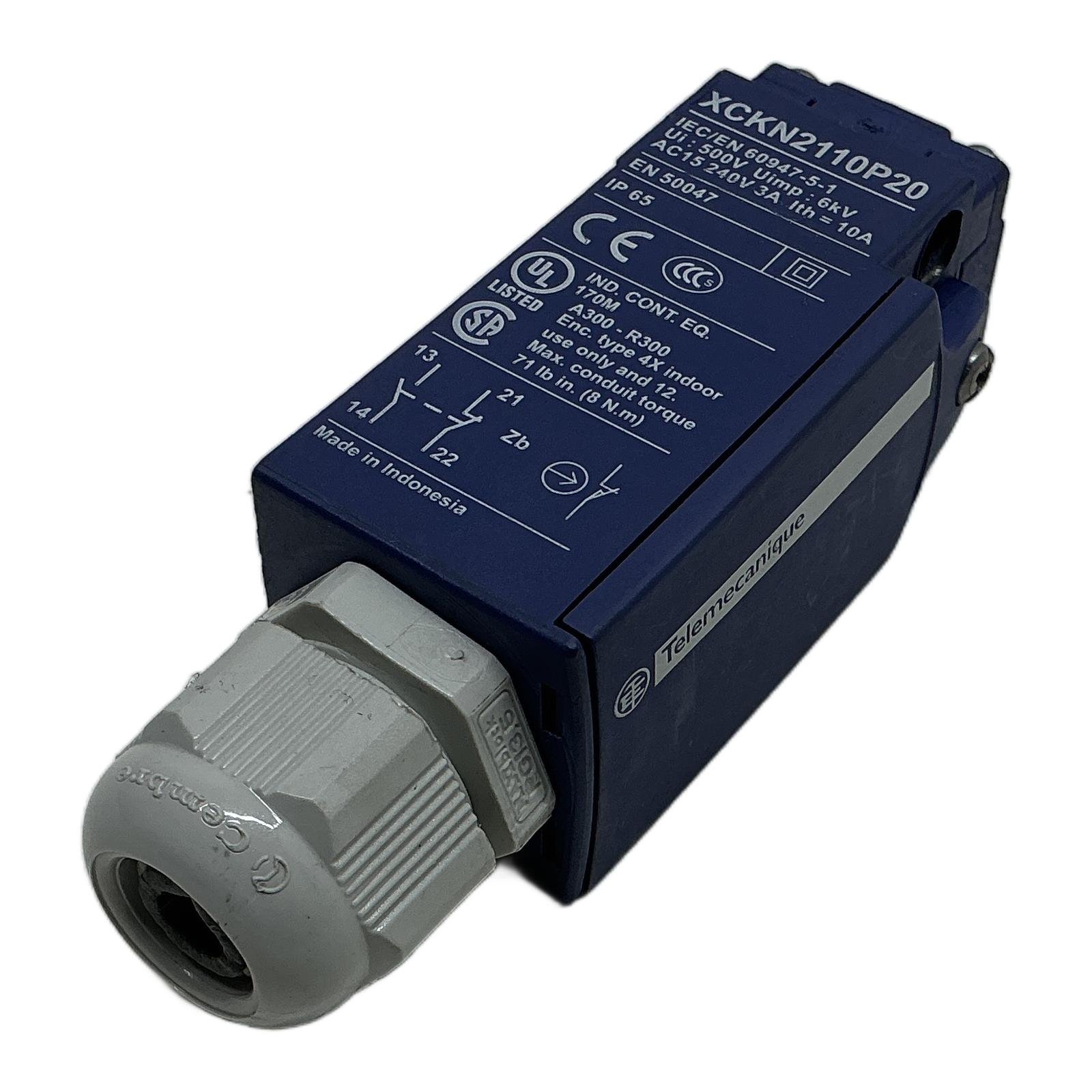

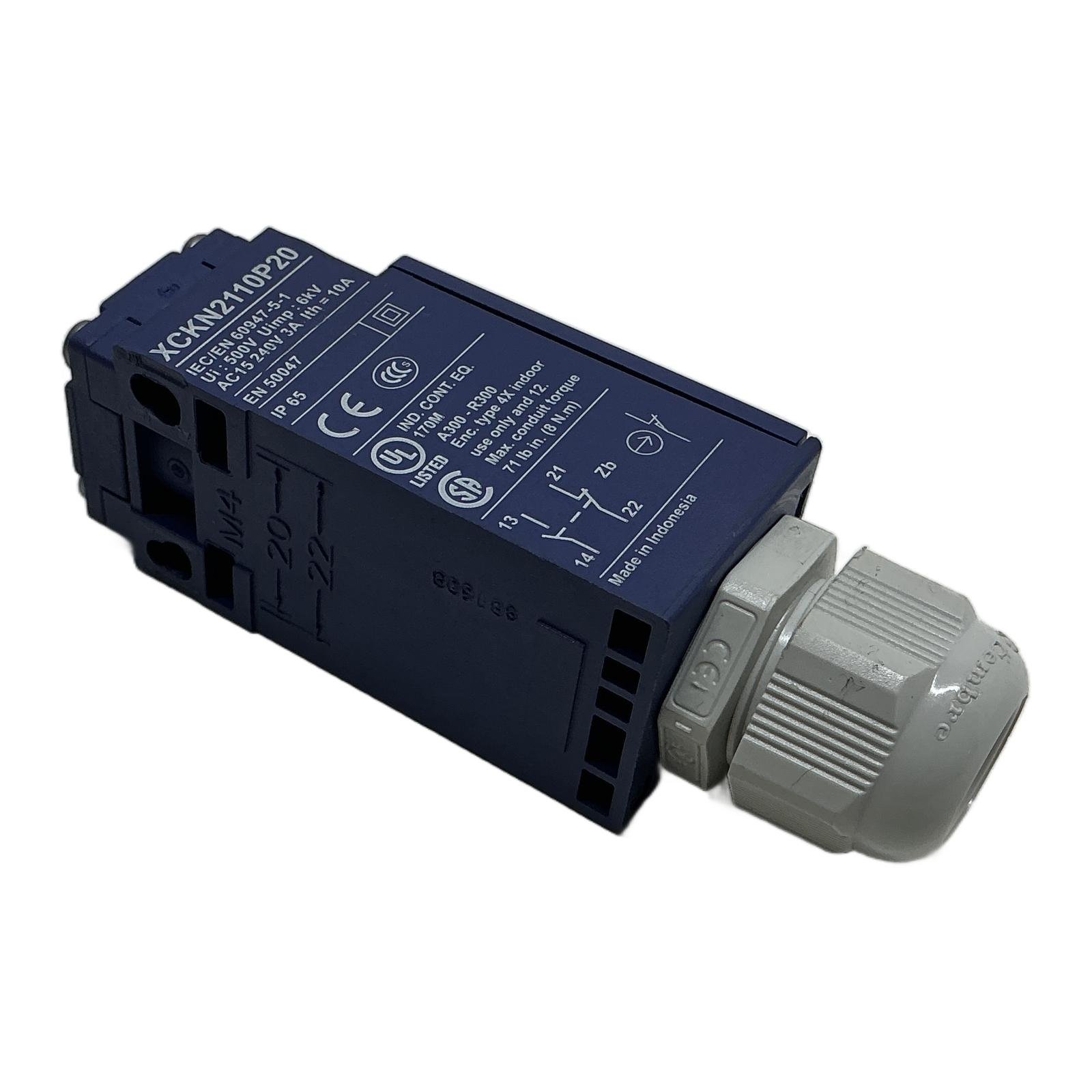

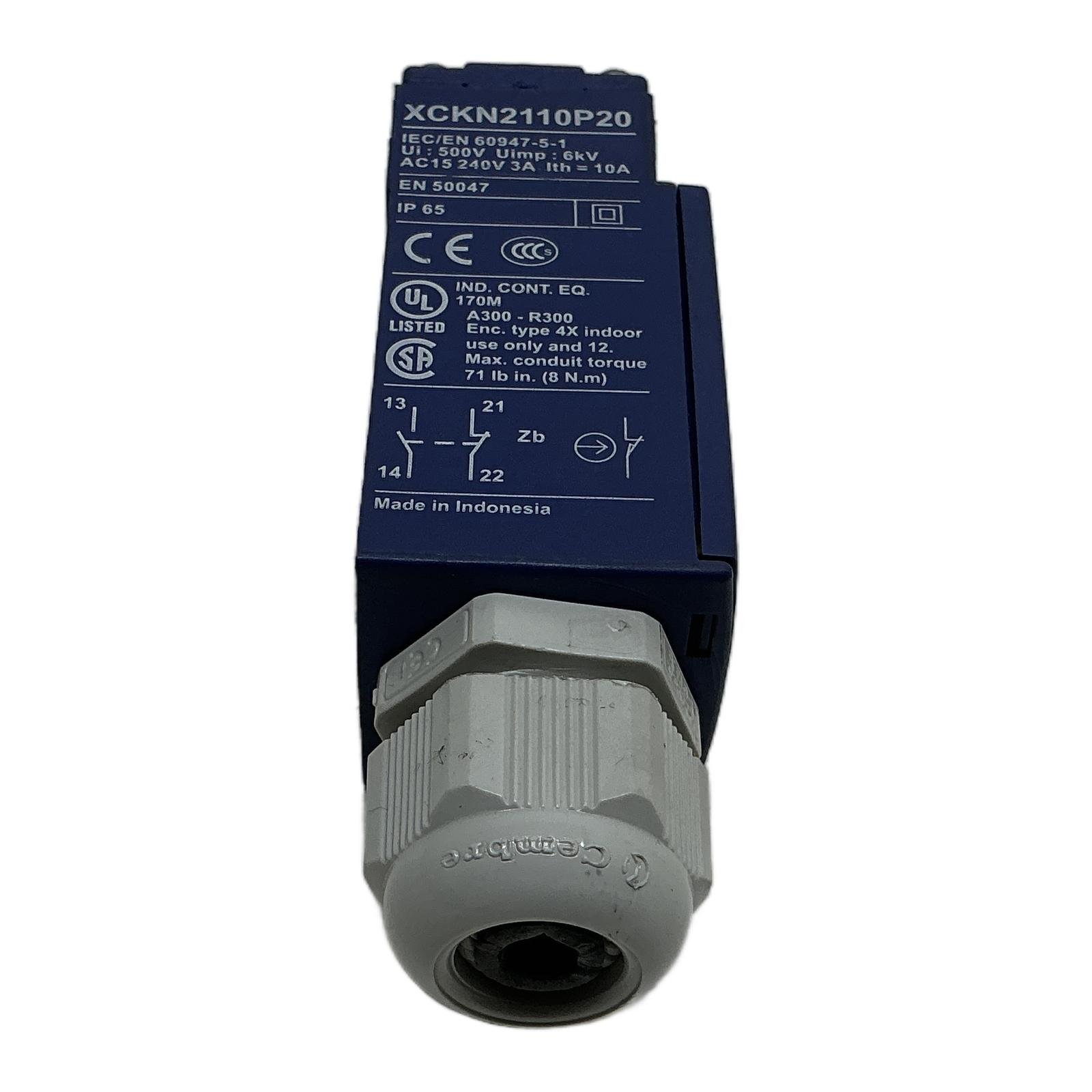

Telemecanique XCKN2110P20 Limit Switch Description The Telemecanique XCKN2110P20 is a compact and reliable limit switch from the OsiSense XC series. It is designed for standard-duty applications in industrial environments, providing accurate position feedback for machinery and automated systems. Its thermoplastic body offers good resistance to mechanical stress and chemical agents, and the pre-fitted M20 cable gland simplifies installation. Specifications Manufacturer: Telemecanique (Schneider Electric) Model: XCKN2110P20 Series: OsiSense XC Actuator Type: Plunger Contact Configuration: 1 NO + 1 NC Contact Action: Snap Action (Zb type) Rated Operational Current (AC-15): 3 A at 240 V Conventional Thermal Current (Ith): 10 A Rated Insulation Voltage (Ui): 500 V Ingress Protection: IP65 Cable Entry: 1 entry for M20 x 1.5 cable gland Label Info IEC/EN 60947-5-1 AC15 240V 3A Ui 500V, Uimp 6kV, Ith 10A Certifications: CE, UL, CSA (SP), CCC Application This limit switch is ideal for a wide range of applications, including packaging machines, conveyors, material handling equipment, and assembly lines where the detection of a part’s presence or position is critical for process control. Country of Origin Made in Indonesia. CO2 Impact Opting for a refurbished component like this one saves approximately 5.2 kg of CO2, which is comparable to the emissions saved by not driving a car for 26 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Question? What is the difference between snap action and slow-break contacts in a limit switch? Answer: Snap-action contacts (like in the XCKN2110P20) change state rapidly, regardless of the actuator speed, providing a decisive switching action. Slow-break contacts open and close at a speed proportional to the actuator’s movement, which is suitable for some applications but can cause arcing with slow actuation. Question? Is the M20 cable gland included with this switch? Answer: Yes, as seen in the product photos, this XCKN2110P20 comes pre-fitted with a grey M20 plastic cable gland, ready for wiring installation. Question? What does the ‘Zb’ contact designation mean on the label? Answer: The ‘Zb’ symbol indicates snap-action contacts with one normally open (NO) and one normally closed (NC) circuit. Importantly, it signifies that the contacts are electrically separated, meaning they can be used in two different control circuits. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
