SCHNEIDER ELECTRIC XCKN2110P20

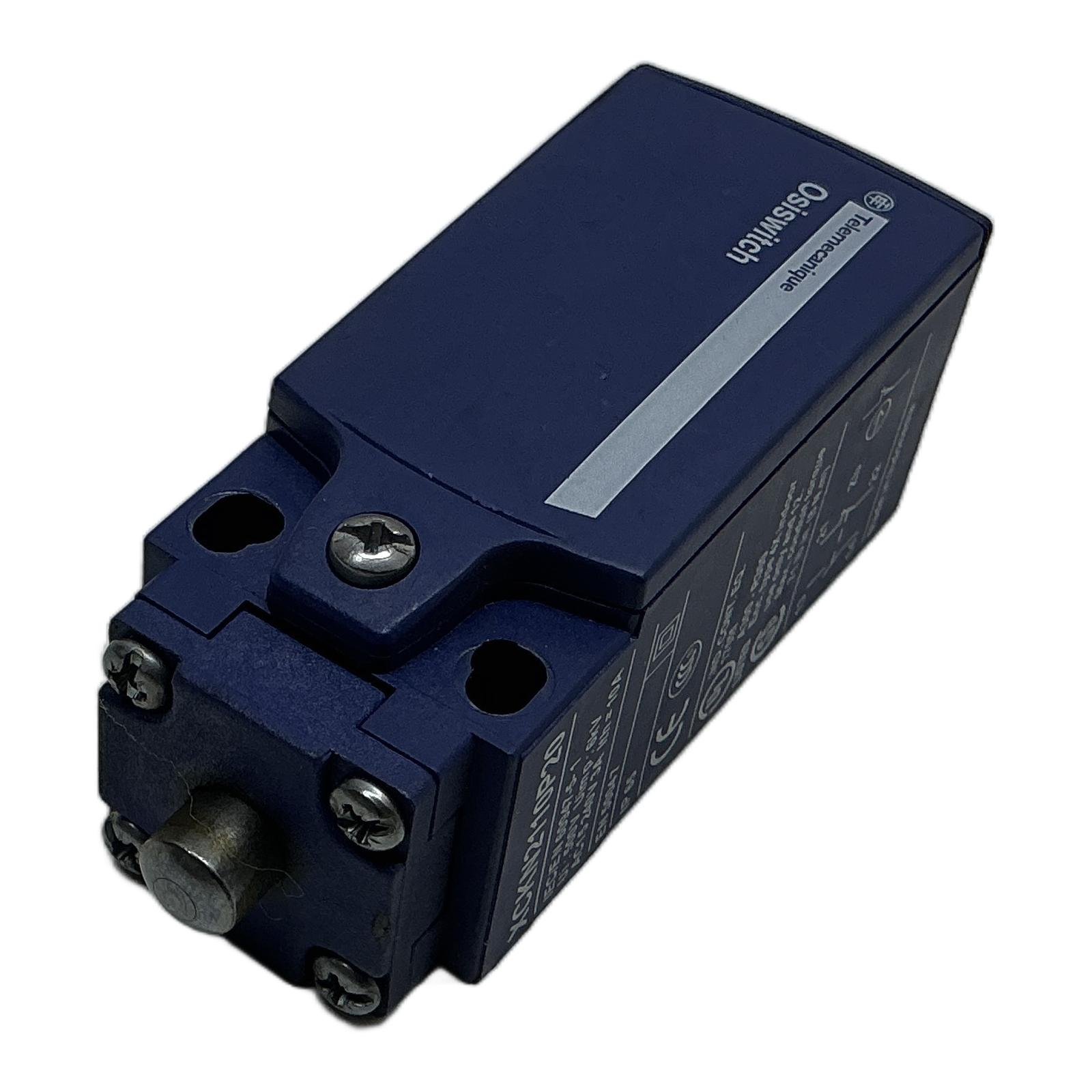

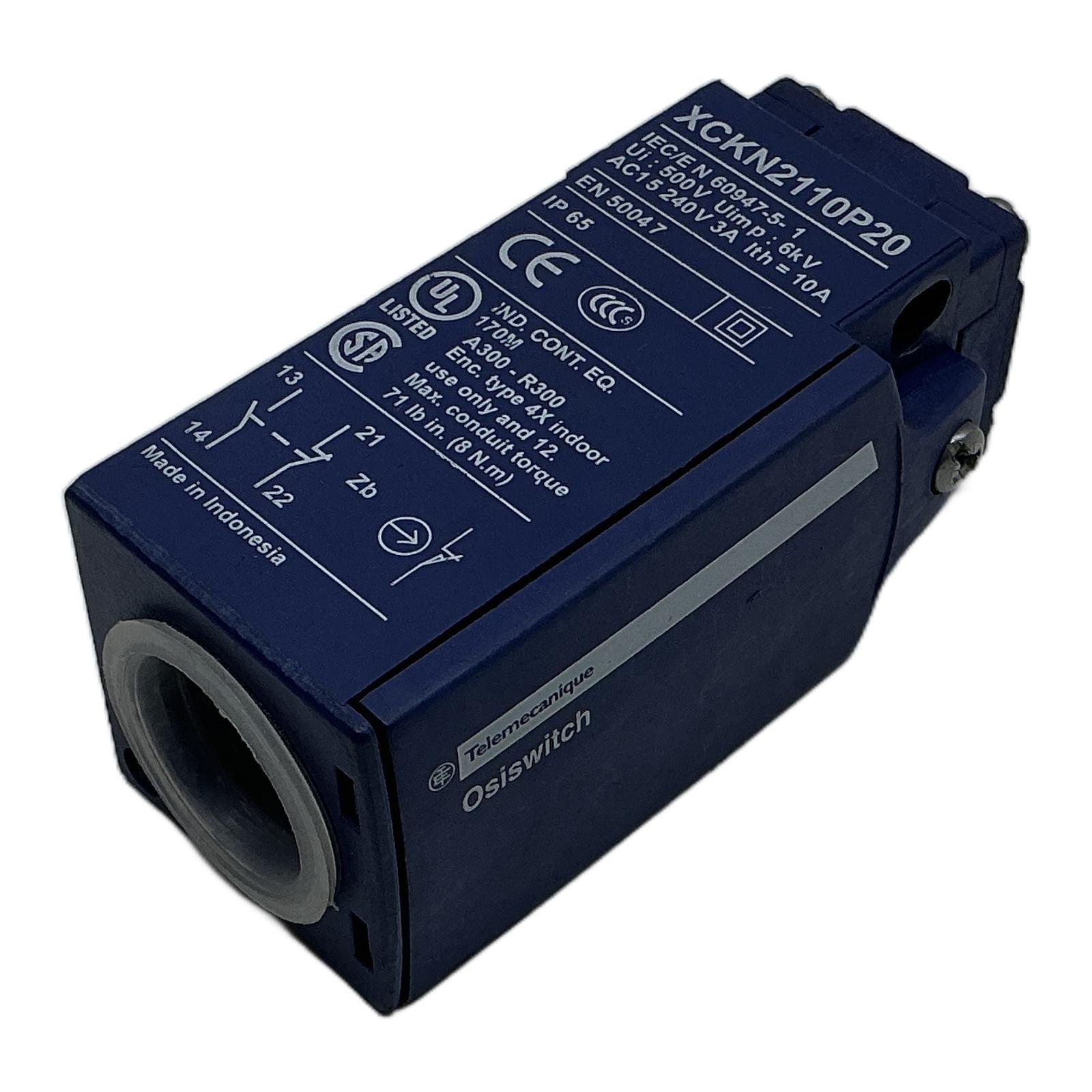

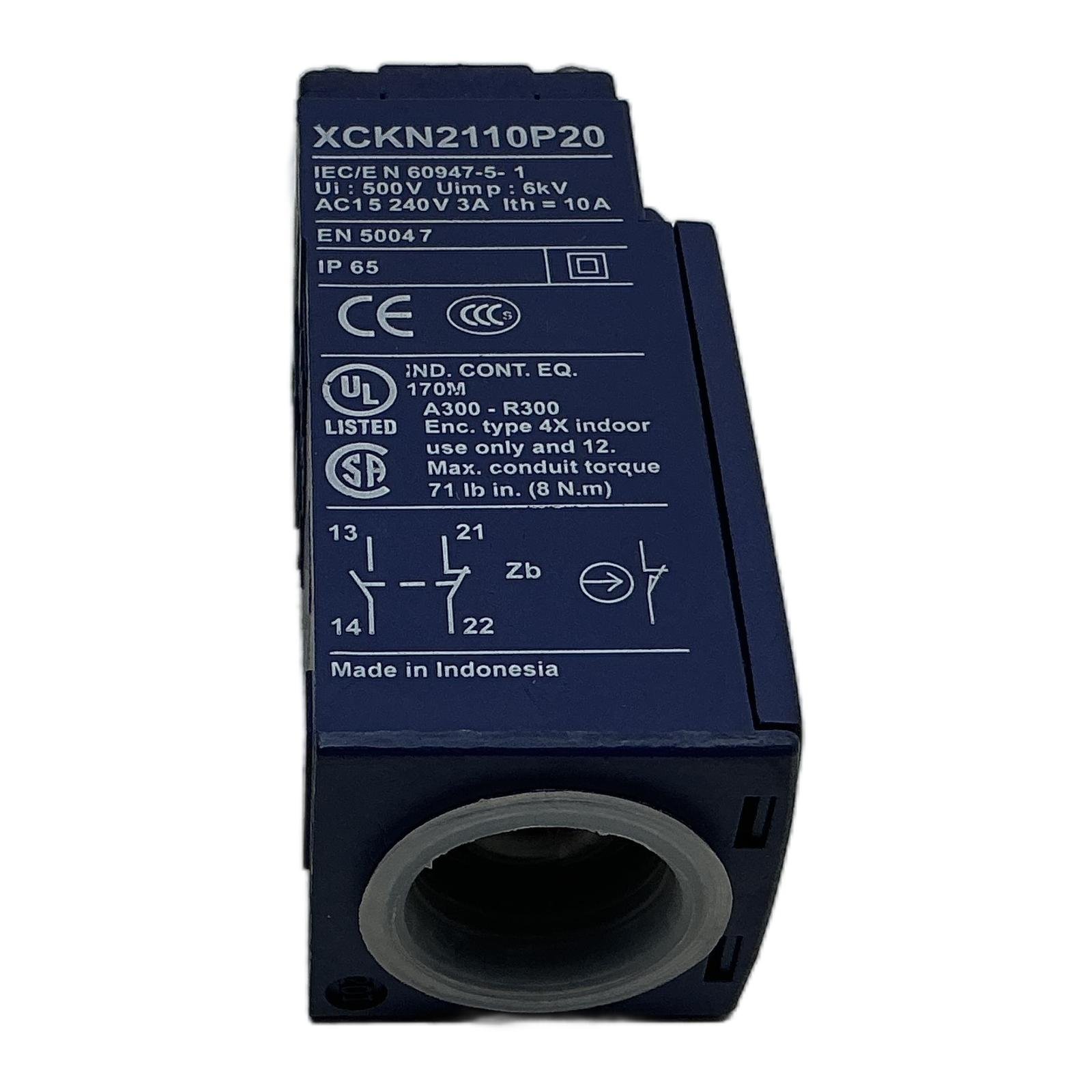

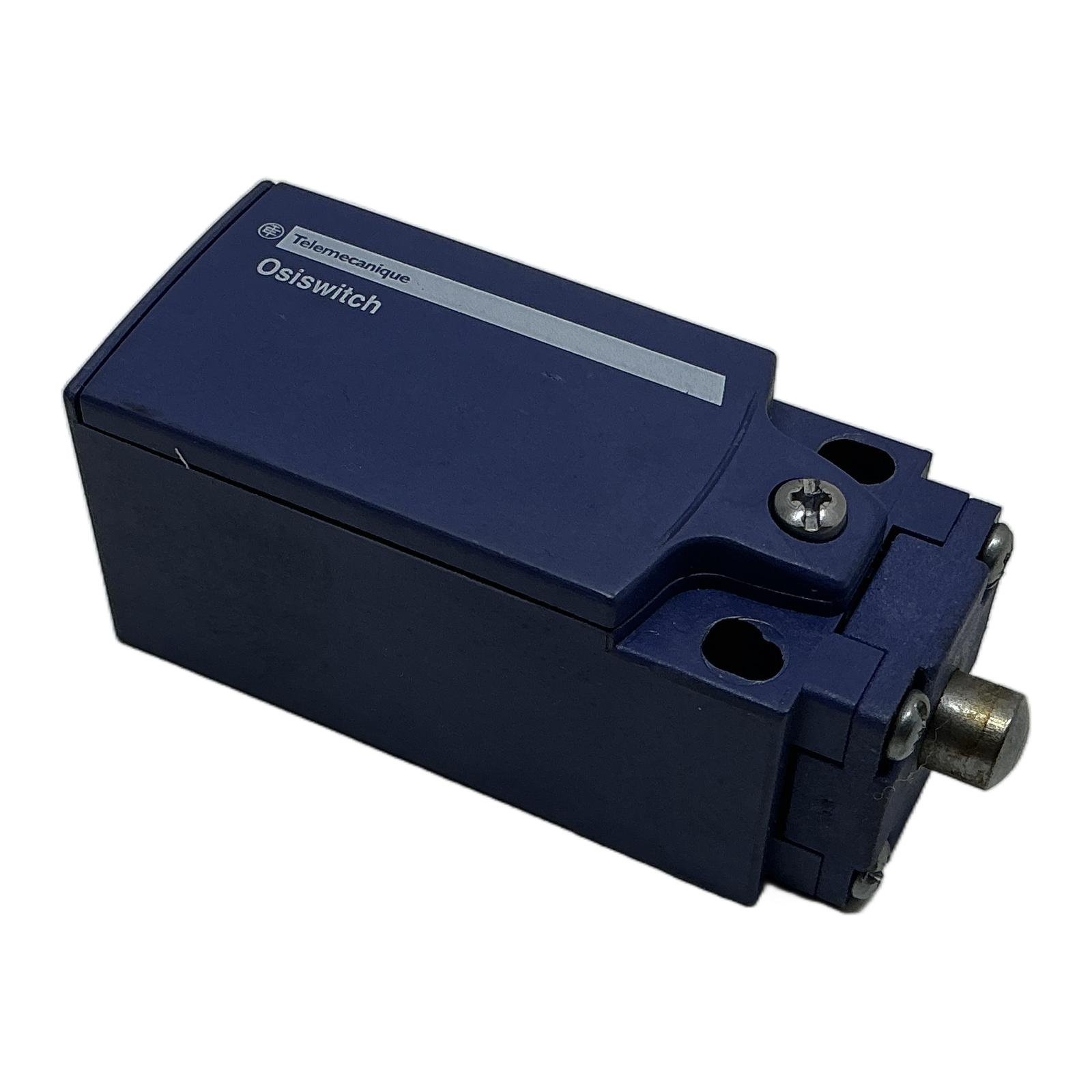

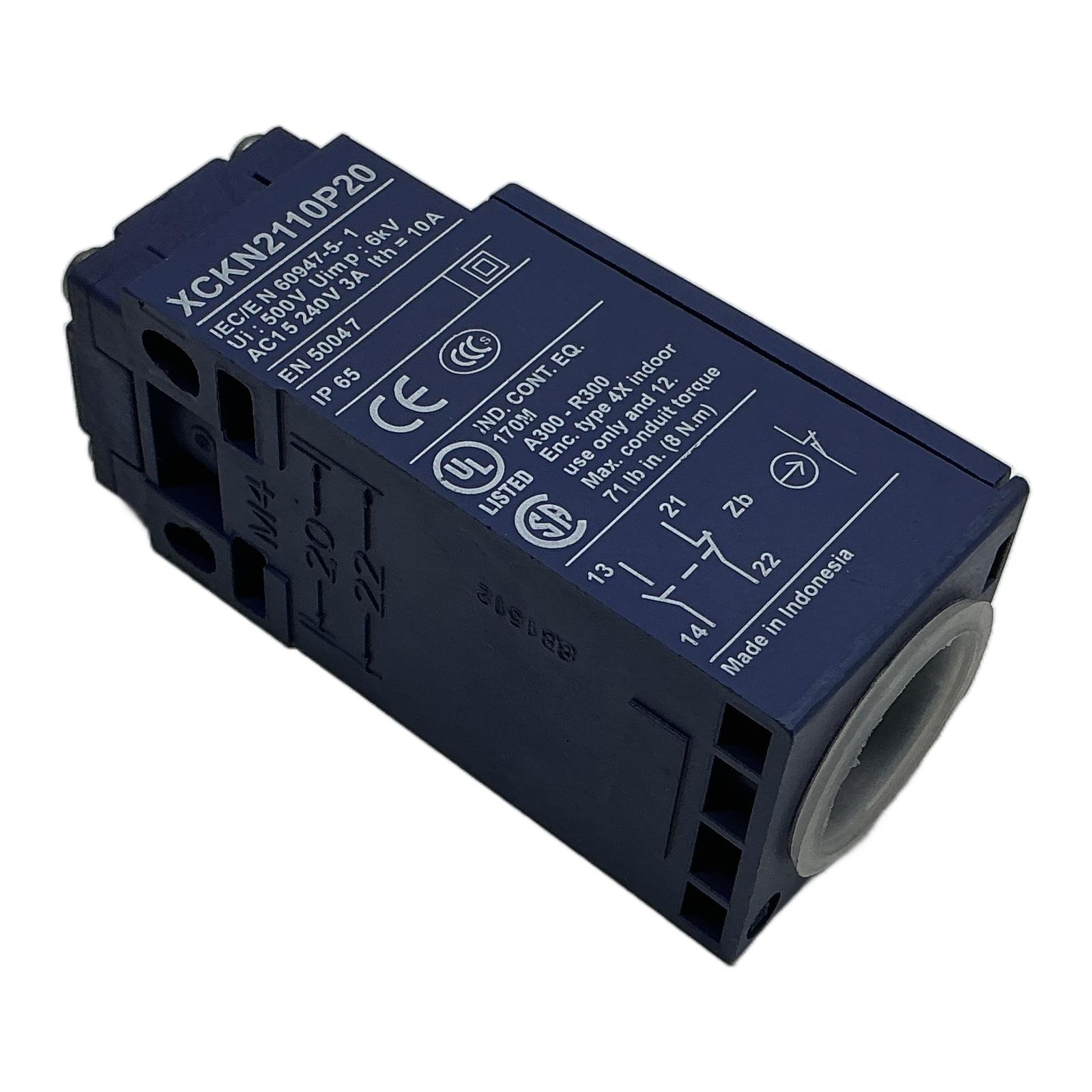

Schneider Electric OsiSwitch Limit Switch Body Description The XCKN2110P20 is a robust and reliable limit switch body from Schneider Electric’s OsiSense XC range. This component serves as the core of a complete limit switch assembly, designed for detecting the presence or position of objects in industrial machinery and automated systems. Its plastic housing provides excellent durability and resistance in various environments. This body must be combined with a compatible actuator head to form a complete switch. Specifications Manufacturer: Schneider Electric Part Number: XCKN2110P20 Series: OsiSense XC Body Material: Plastic Contact Configuration: 1 NO + 1 NC Contact Operation: Snap action (Zb) Cable Entry: 1 entry tapped for M20 x 1.5 cable gland Protection Rating: IP65 Label Info Standard: IEC/EN 60947-5-1 Rated Insulation Voltage (Ui): 500V Rated Impulse Withstand Voltage (Uimp): 6kV Operational Current (AC-15): 3A at 240V Conventional Thermal Current (Ith): 10A Application This limit switch body is ideal for use in packaging, material handling, conveying, and machine tool applications where reliable position sensing is critical for process control and safety. Country of Origin Made in Indonesia. CO2 Impact By purchasing this pre-owned component, you are avoiding the emission of approximately 2.8 kg of CO2, contributing to a more sustainable industrial environment. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What actuator heads are compatible with the XCKN2110P20 body?This body is part of the OsiSense XC standard format (EN 50047) and is compatible with various Schneider Electric heads, including plunger types (ZCE01, ZCE02), roller levers (ZCE06, ZCE10), and more. Always consult the OsiSense XC catalog to ensure compatibility. What does the ‘Zb’ contact type signify?The ‘Zb’ designation refers to the contact block type, which in this case is a snap-action contact with 1 Normally Open (NO) and 1 Normally Closed (NC) circuit. This configuration provides a positive opening operation of the NC contact, a key feature for safety-related functions. Is this limit switch body suitable for safety applications?While standard limit switches are used in control circuits, for dedicated safety functions (e.g., emergency stops, guard interlocking), it is crucial to use components specifically rated for safety standards like ISO 13849-1. This switch has a positive opening NC contact, which is a prerequisite for safety circuits, but you should always verify the required Performance Level (PL) for your specific application. profideals is not an authorized distributor, reseller, or representative of the products featured on this website. All product names, trademarks, brands, and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
