SCHNEIDER ELECTRIC XB4BW34B5

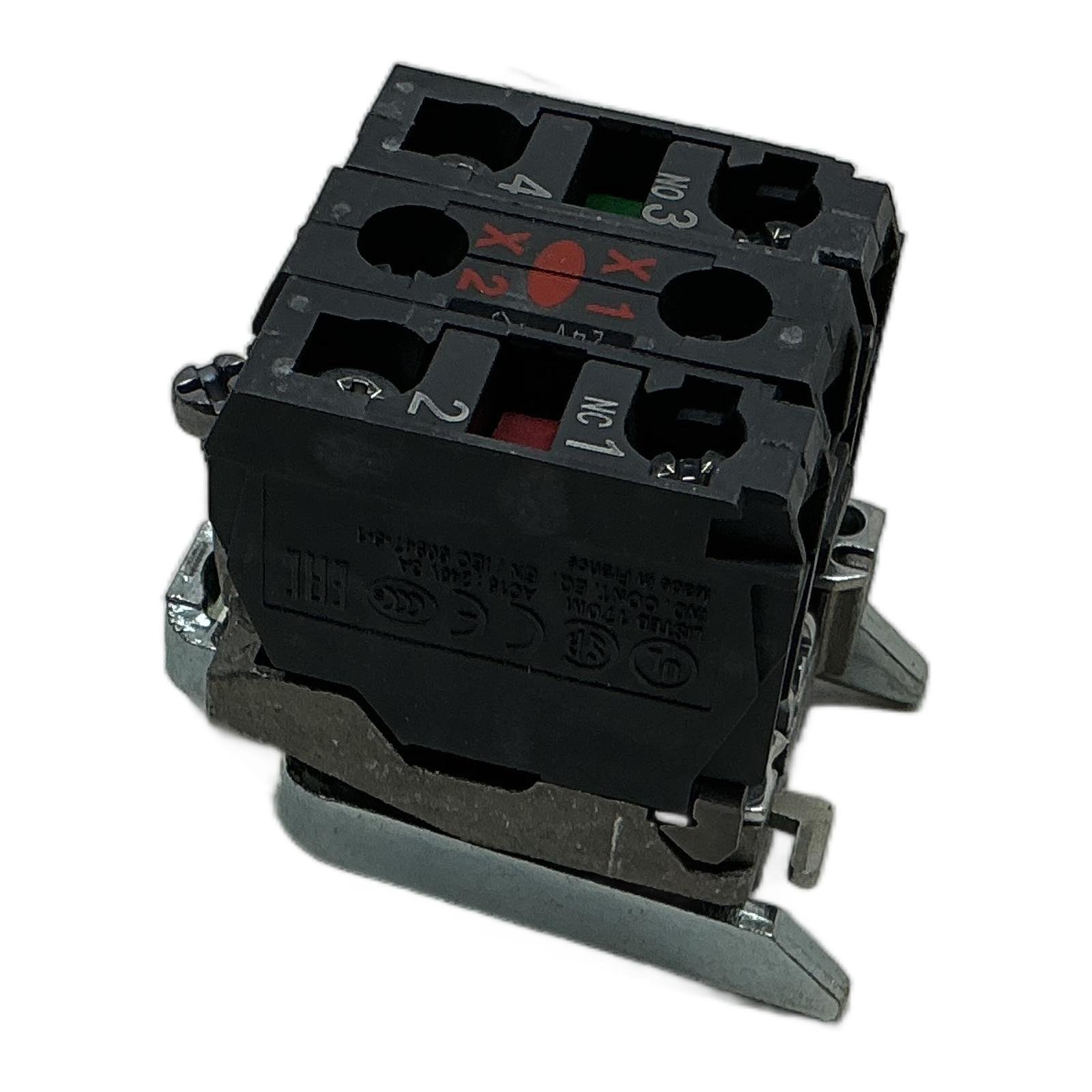

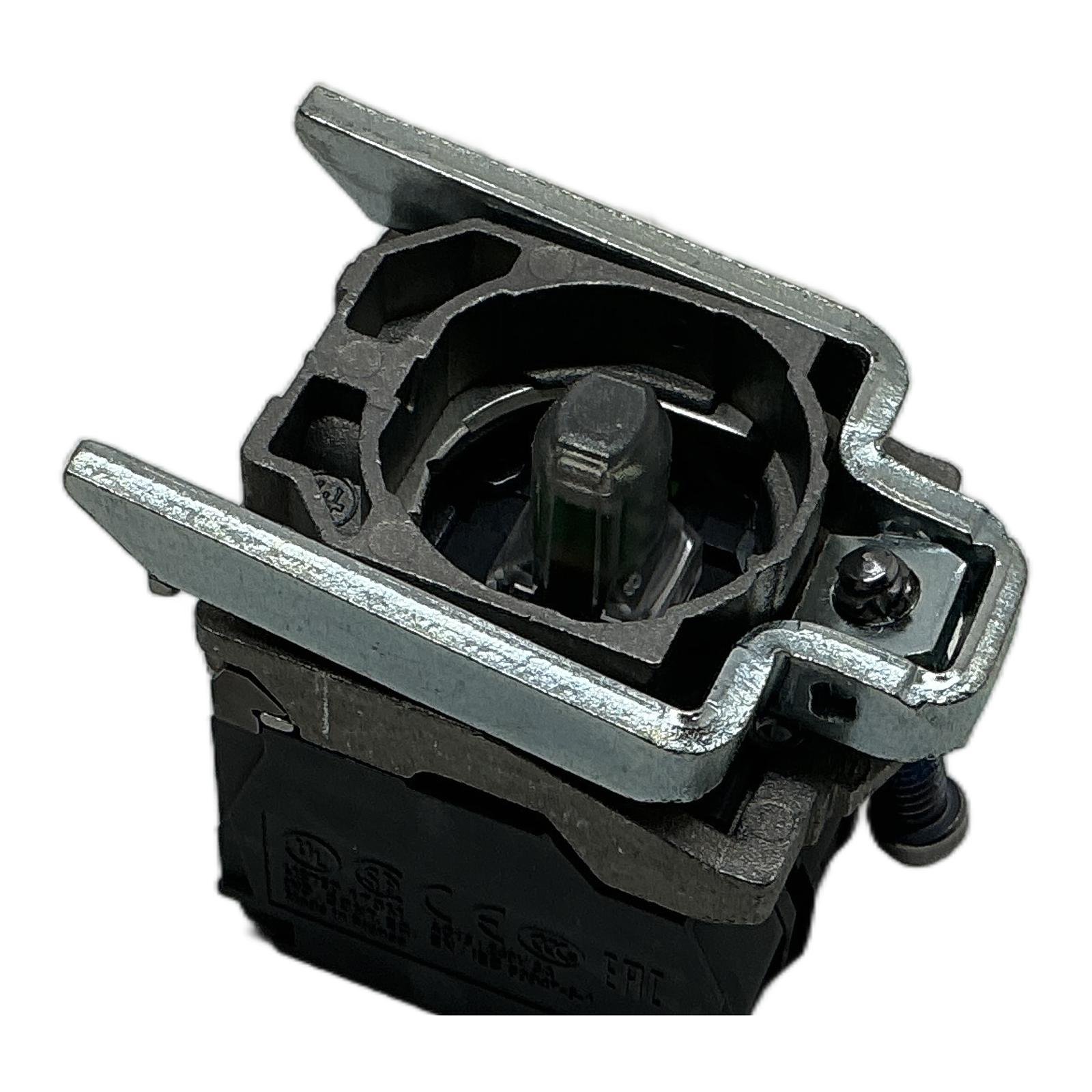

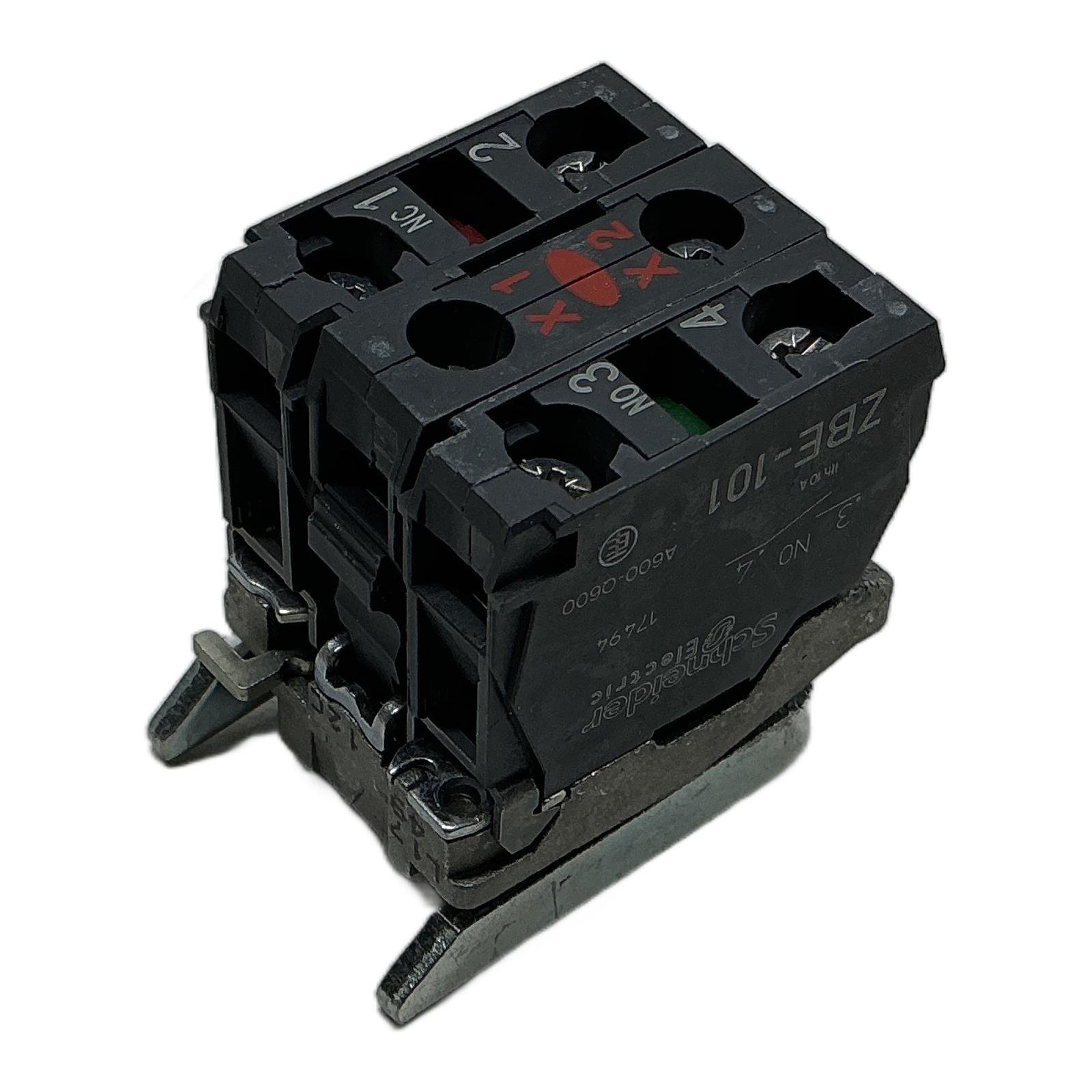

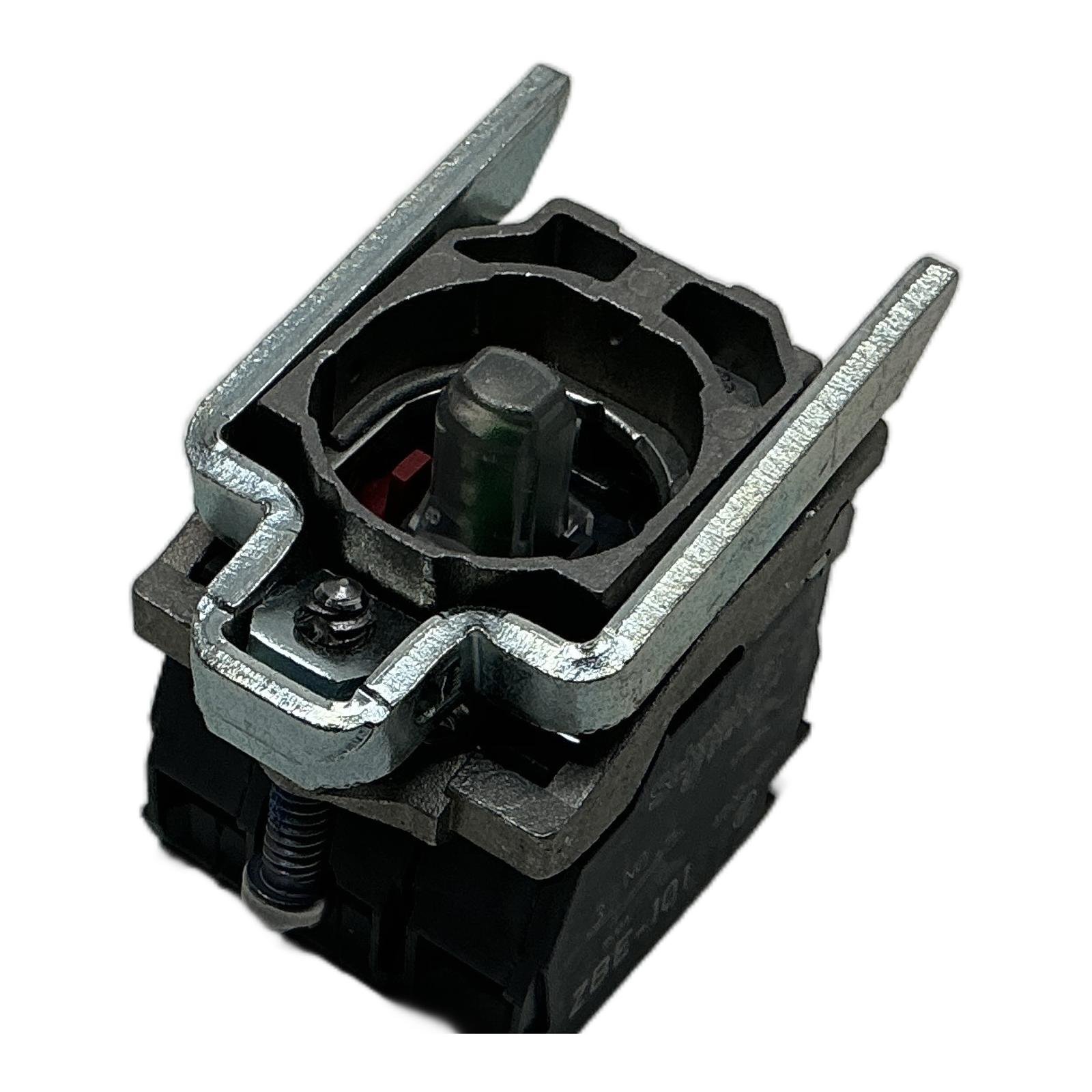

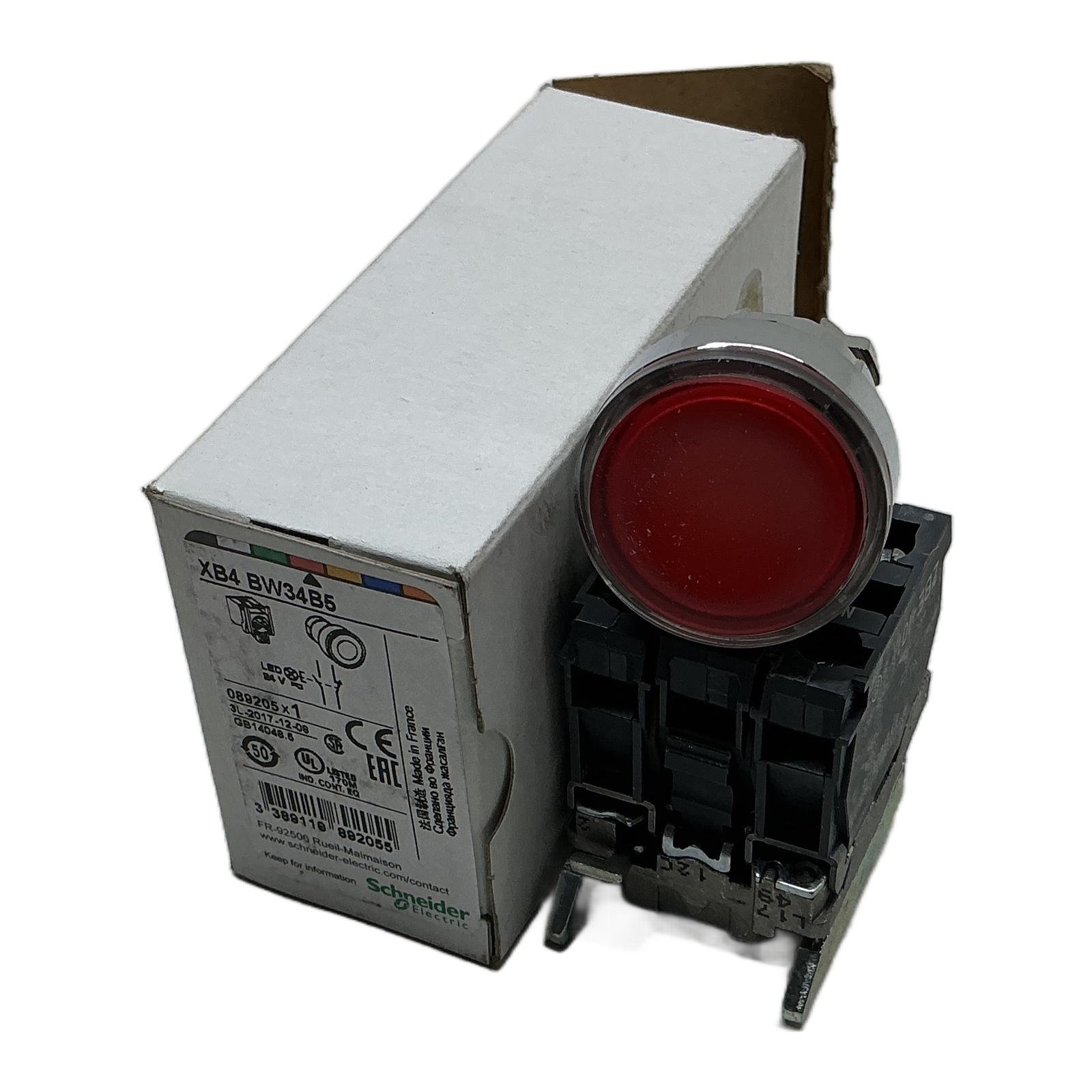

Schneider Electric XB4BW34B5 Illuminated Pushbutton Description The XB4BW34B5 is a complete illuminated pushbutton unit from Schneider Electric’s Harmony XB4 range. This robust component is designed for industrial applications requiring reliable manual control and clear status indication. It features a 22mm mounting diameter and a chromium-plated metal bezel for durability. The flush red pushbutton is spring-return operated and includes an integrated universal LED for illumination. Specifications Manufacturer: Schneider Electric Series: Harmony XB4 Type Number: XB4BW34B5 Product Type: Illuminated Pushbutton Mounting Diameter: 22 mm Operator Head: Flush, Red, Unmarked Light Source: Protected LED, Universal Rated Voltage: 24V AC/DC Contact Configuration: 1 NO + 1 NC Terminals: Screw clamp terminals Bezel Material: Chromium plated metal Label Info EAN: 3389110892055 Date Code: 3L-2017-12-08 Application Ideal for use in control panels for manufacturing lines, building automation, and machinery control. The combination of pushbutton and indicator light saves panel space and provides an intuitive user interface for operators. Country of Origin This product is Made in France. CO2 Impact Opting for a refurbished unit like this one avoids approximately 3.44 kg of CO2 emissions compared to manufacturing a new one, contributing to a more sustainable industrial environment. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the IP rating of the XB4BW34B5 pushbutton?The operator (front of panel) is rated IP66, IP67, IP69, and IP69K, which ensures excellent protection against dust ingress and high-pressure, high-temperature water jets. The terminals at the back of the panel are rated IP20. Can the contact blocks be changed or added to this unit?Yes, the Harmony XB4 series is highly modular. You can easily add, remove, or change the ZBE type contact blocks. This unit comes standard with one ZBE-101 (NO) and one ZBE-102 (NC) block, but the configuration can be customized for your specific application. What is the difference between a ‘protected LED’ and a standard LED in this series?A ‘Protected LED’, as indicated by the model number, includes built-in protection against overvoltage, reverse polarity, and short circuits. This offers superior durability and reliability compared to a simple ‘direct supply’ LED, especially in demanding industrial electrical environments. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
