MOELLER (EATON) DILM12-01(24VDC) 277002

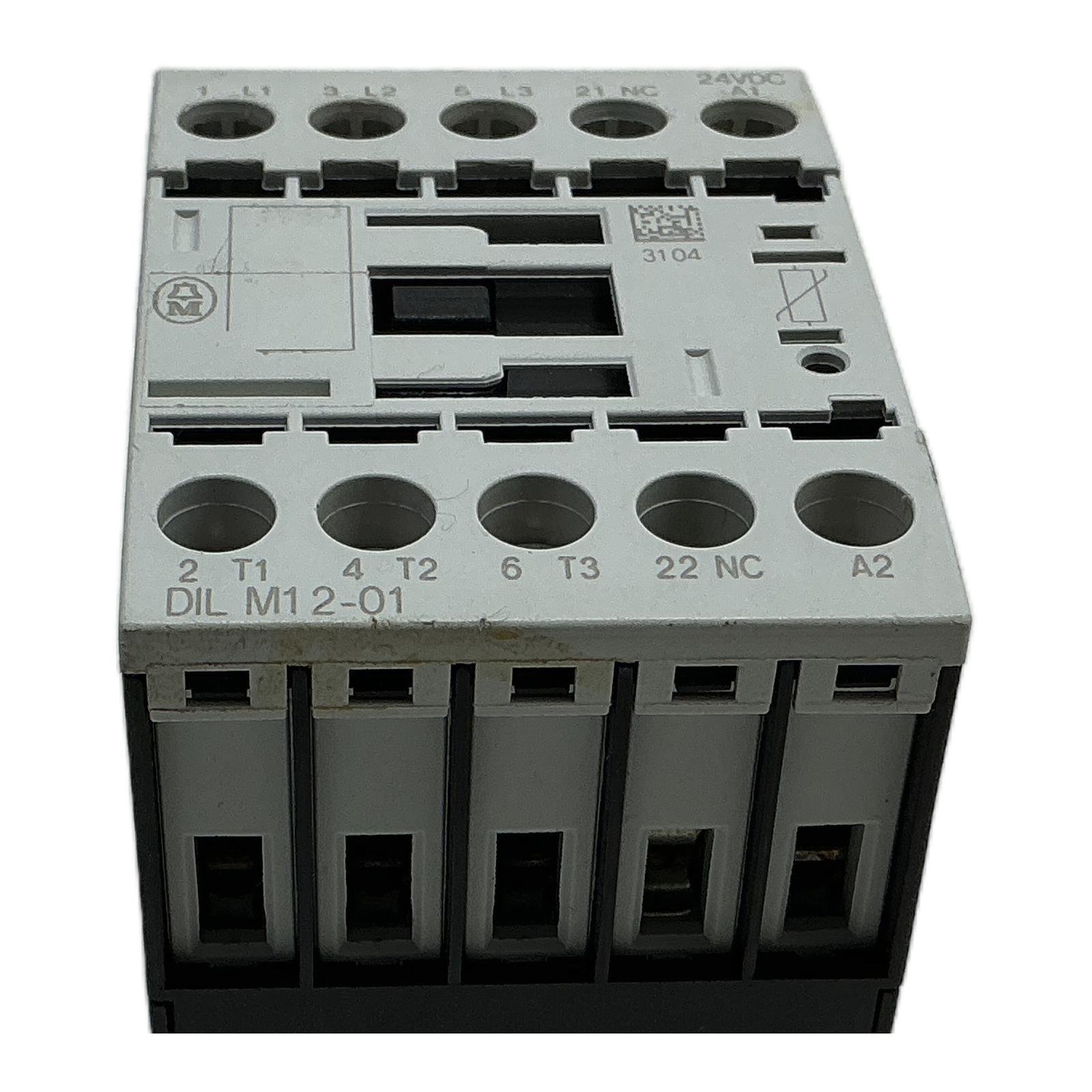

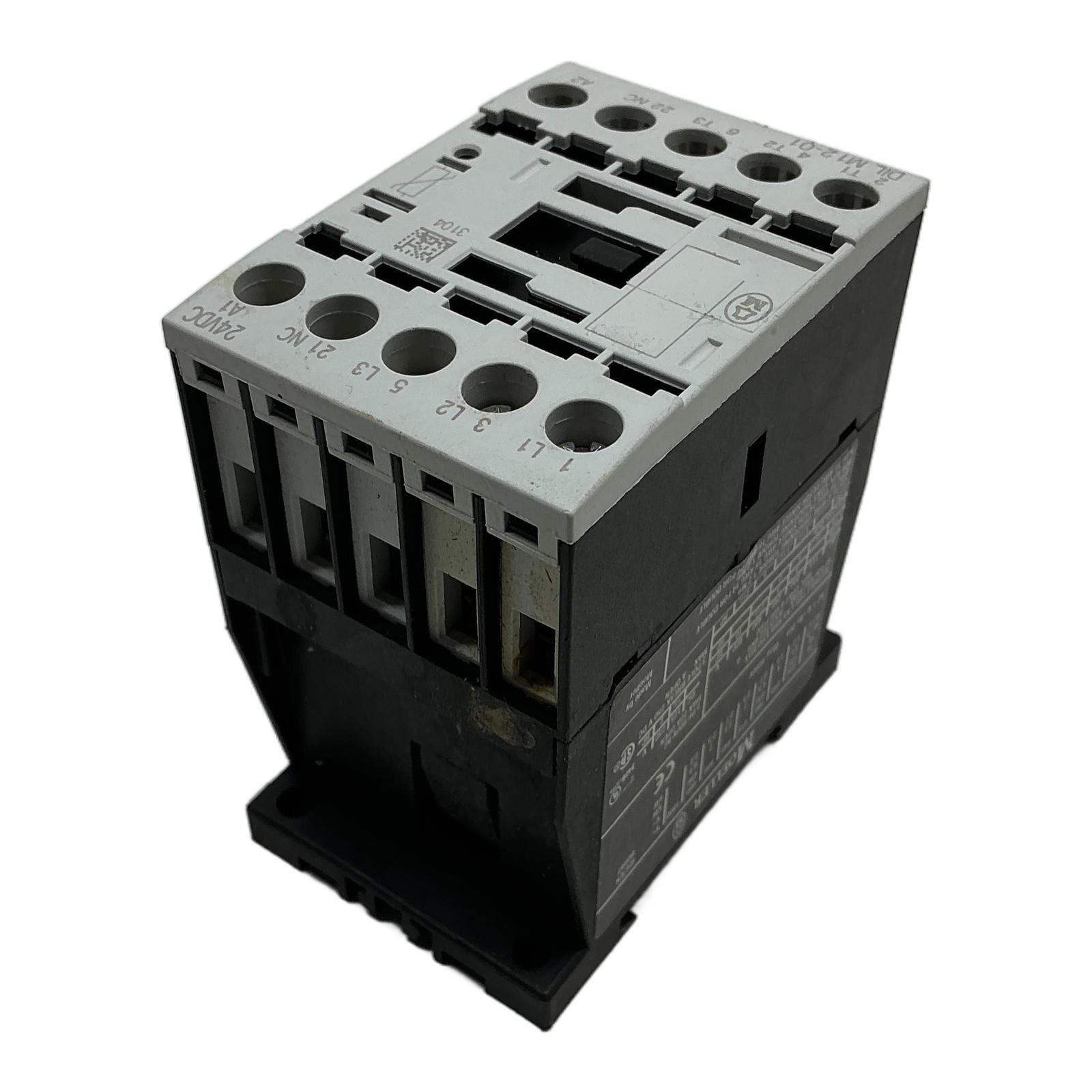

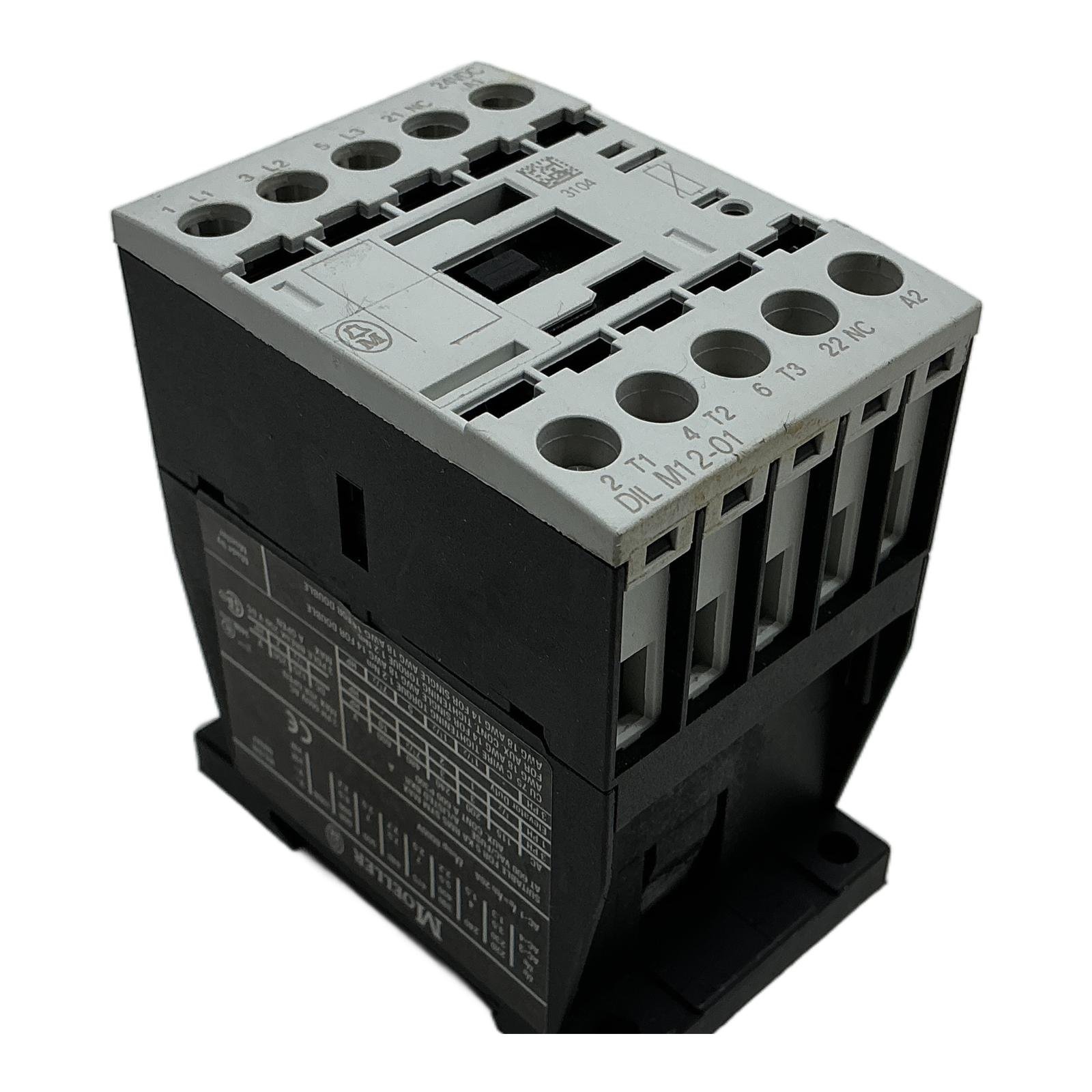

<h2>Moeller (Eaton) DIL M12-01 Contactor</h2> <h3>Description</h3> <p>The Moeller DIL M12-01 is a high-performance 3-pole contactor designed for industrial applications, including motor control and power switching. This unit, now supported by Eaton, is part of the renowned DILM series, known for its reliability and long service life. It operates with a 24V DC coil and is capable of switching motors up to 5.5 kW at 400V AC. It includes one built-in normally closed (NC) auxiliary contact. This is a tested, reliable component for your automation system. Order now from profideals for expert support and fast delivery.</p> <h3>Specifications</h3> <ul> <li>Manufacturer: Moeller (Eaton)</li> <li>Type: DIL M12-01</li> <li>Part Number: 277002</li> <li>Coil Voltage: 24V DC</li> <li>Main Contacts: 3-pole</li> <li>Auxiliary Contacts: 1 NC</li> <li>Rated Operational Power (AC-3, 400V): 5.5 kW</li> <li>Rated Operational Current (AC-3, 400V): 12 A</li> <li>Rated Operational Current (AC-1): 20 A</li> <li>Rated Insulation Voltage (Ui): 1000V</li> </ul> <h3>Label Info</h3> <ul> <li>Model: DIL M12-01</li> <li>Coil: 24VDC</li> <li>Standard: IEC/EN 60947</li> </ul> <h3>Application</h3> <p>This contactor is ideal for use in motor starters, control panels, HVAC systems, and general industrial load switching applications where a 24V DC control voltage is used.</p> <h3>Country of Origin</h3> <p>Germany</p> <h3>CO2 Impact</h3> <p>Opting for this pre-owned contactor prevents the emission of approximately 9.6 kg of CO2 compared to manufacturing a new one. This saving is equivalent to the emissions from driving a car for 48 kilometers.</p> <h3>Availability</h3> <p>This is a refurbished item, fully tested and ready for immediate deployment. Available from stock.</p> <h3>FAQ</h3> <p><strong>What is the significance of the “-01” in the type number DIL M12-01?</strong><br><p>The “-01” suffix indicates the configuration of the built-in auxiliary contacts. “0” stands for zero Normally Open (NO) contacts, and “1” stands for one Normally Closed (NC) contact.</p> <strong>Can I use this Moeller contactor to replace a newer Eaton DILM12-01 model?</strong><br><p>Yes, the Moeller DIL M series and the Eaton DILM series are dimensionally and electrically compatible. This DIL M12-01 with a 24VDC coil is a direct predecessor to the Eaton DILM12-01(24VDC), part number 277002.</p> <strong>What is the maximum switching frequency for this contactor?</strong><br><p>According to the manufacturer’s data, the maximum mechanical switching frequency is 9000 operations per hour. For AC-3 applications, the electrical switching frequency is typically up to 1000 operations per hour, depending on the load.</p> </p> <p>Last Update: Friday, March 13, 2026</p> <p><em>profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.</em></p>
