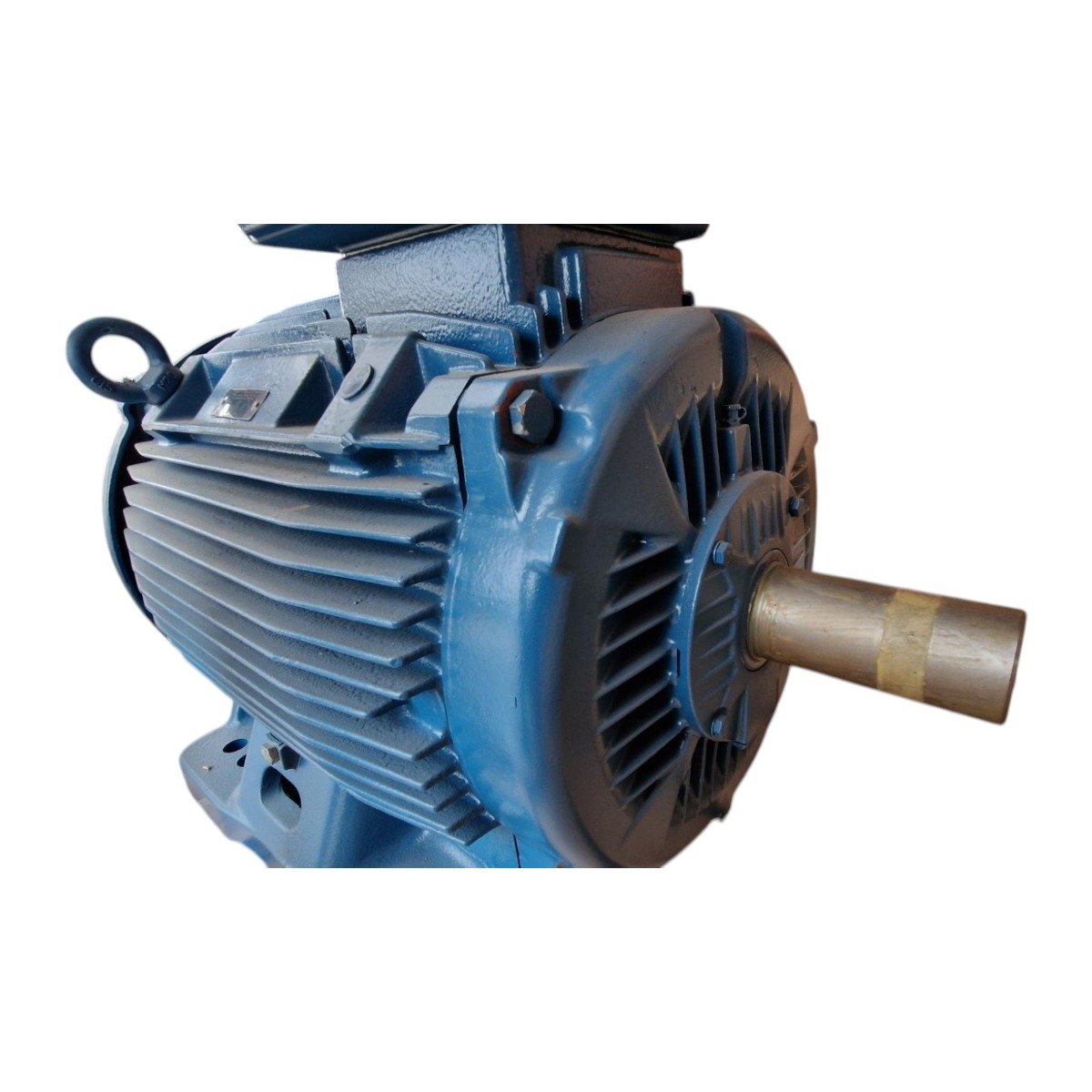

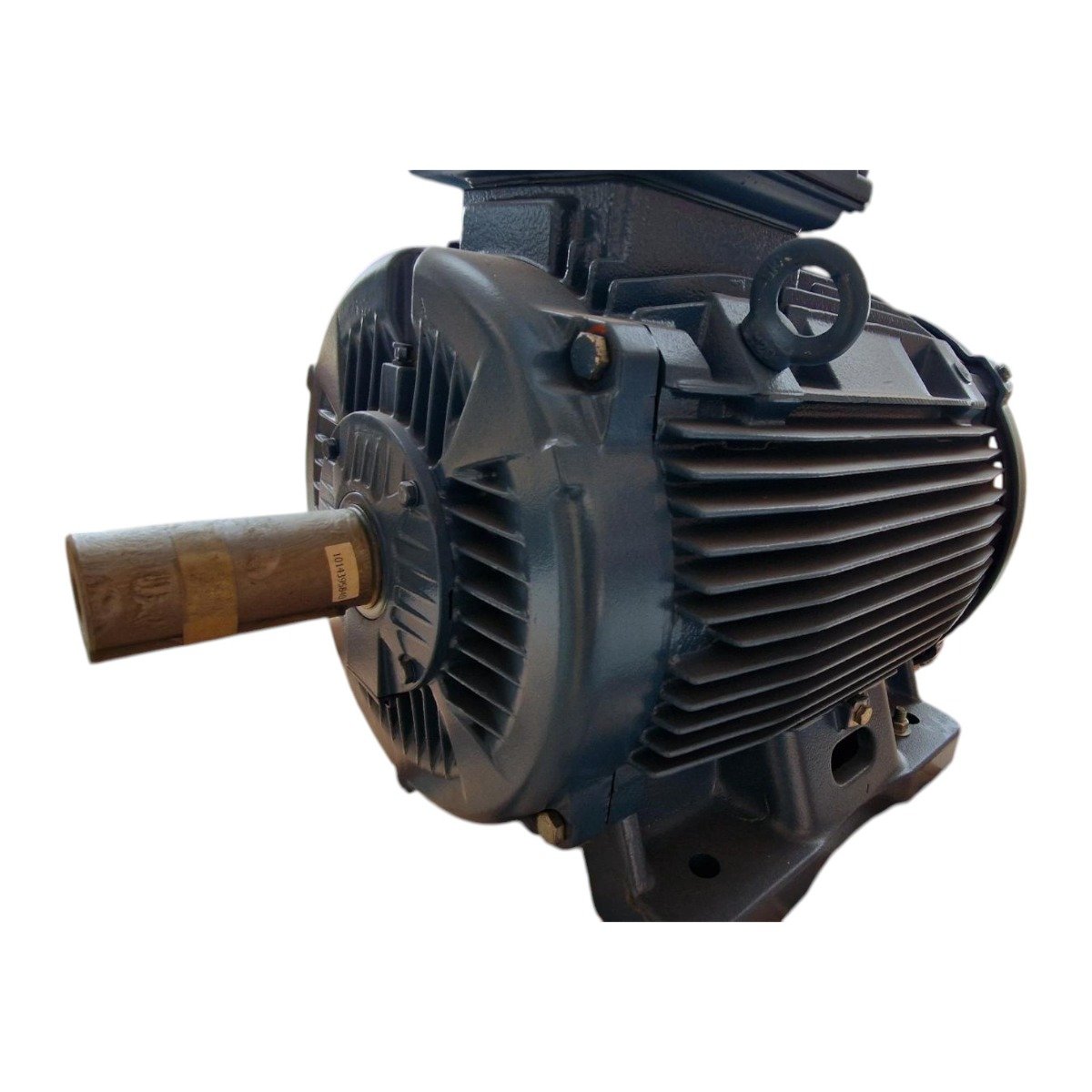

WEG W22 IE2 GY 250S/M-04 55KW 4p B3T

W22 IE2 GY 250S/M-4 55KW 4P B3T WEG Three-Phase Motor Base, GY 4/6: Construction Type: B3 (Foot), Efficiency Class: IE2, Height H: 250mm, Motor Size: Iec 250S/M, Series: W22, RPM: 1500 RPM, Assets: 55 KW, Additional Information, Series W22, Assets 55 KW, Construction Type B3 (Foot), Engine Cooling LC411 – Tefc, Efficiency Class IE2, Iec Height H 250Mm, Frame Material Cast Iron, Connection Voltage 400/690 V, Pool Number 4 P, Motor Size Iec 250S/M, Insulation Class F, RPM 1500 RPM, Protection Class IP55, Terminal Box Position Top, Output Shaft Diameter De D 65M6, Length Of The Shaft E 140mm, Pitch Of The Holes, Side View B 311/349mm, Chest Of Axle To 1St Mounting Hole 168mm, Pitch Of The Holes, For View A 406mm<ul> <li>Construction Type: B3 (Foot)</li> <li>Efficiency Class: IE2</li> <li>Height H: 250mm</li> <li>Motor Size: Iec 250S/M</li> <li>Series: W22</li> <li>RPM: 1500 RPM</li> <li>Assets: 55 KW</li> <li>Additional Information</li> <li>Series W22</li> <li>Assets 55 KW</li> <li>Construction Type B3 (Foot)</li> <li>Engine Cooling LC411 – Tefc</li> <li>Efficiency Class IE2</li> <li>Iec Height H 250Mm</li> <li>Frame Material Cast Iron</li> <li>Connection Voltage 400/690 V</li> <li>Pool Number 4 P</li> <li>Motor Size Iec 250S/M</li> <li>Insulation Class F</li> <li>RPM 1500 RPM</li> <li>Protection Class IP55</li> <li>Terminal Box Position Top</li> <li>Output Shaft Diameter De D 65M6</li> <li>Length Of The Shaft E 140mm</li> <li>Pitch Of The Holes, Side View B 311/349mm</li> <li>Chest Of Axle To 1St Mounting Hole 168mm</li> <li>Pitch Of The Holes, For View A 406mm</li> </ul><h1><strong>W22 IE2 GY 250S/M-04 55KW 4p B3T WEG</strong></h1> <p>This item, manufactured by WEG, is a powerful 55KW 4p B3T electric motor. It is suitable for various industrial applications, including but not limited to manufacturing, processing, and automation. This item can be purchased at profideals, a reliable supplier of industrial automation products.</p>
