SAUTER VUG065F304 AVM234S F132

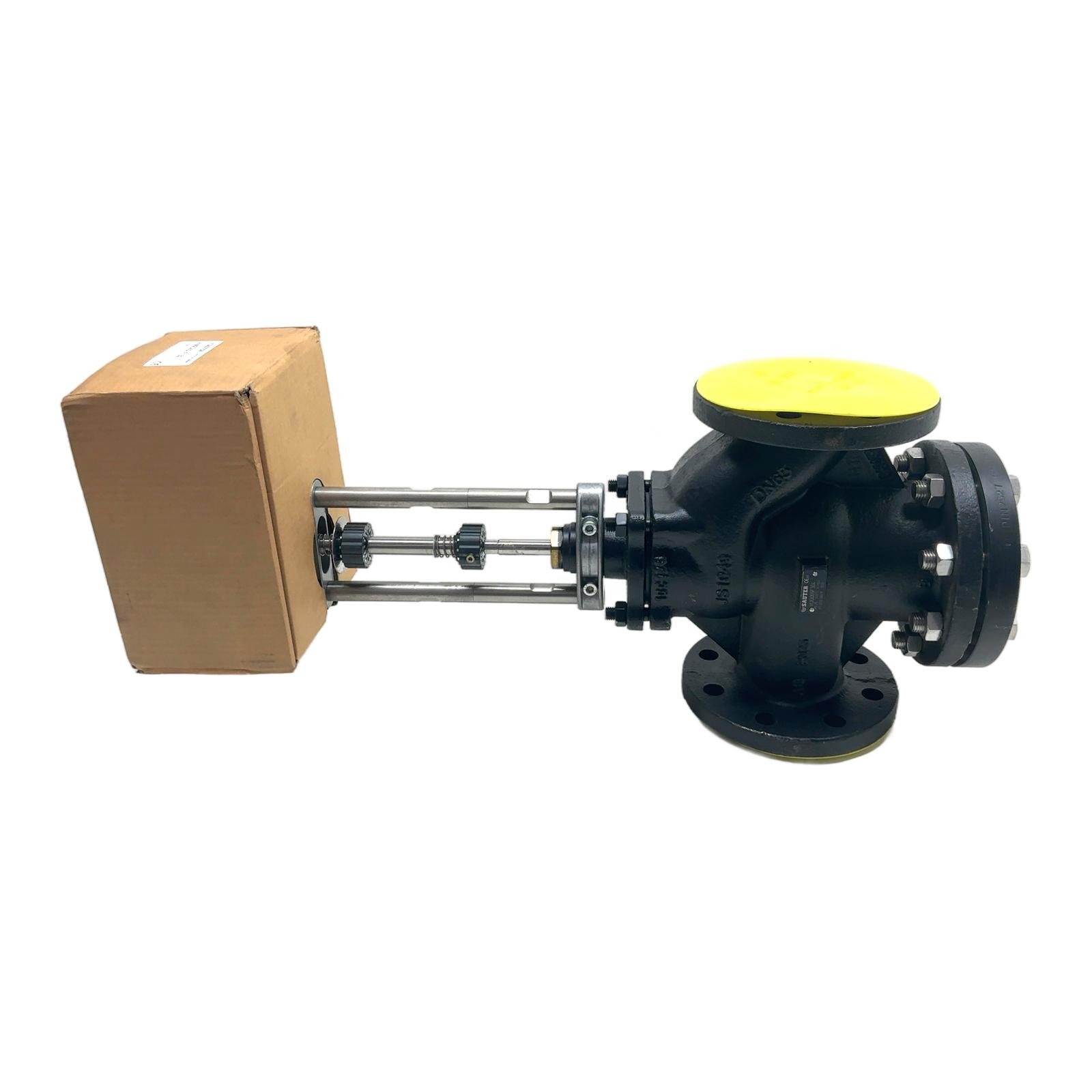

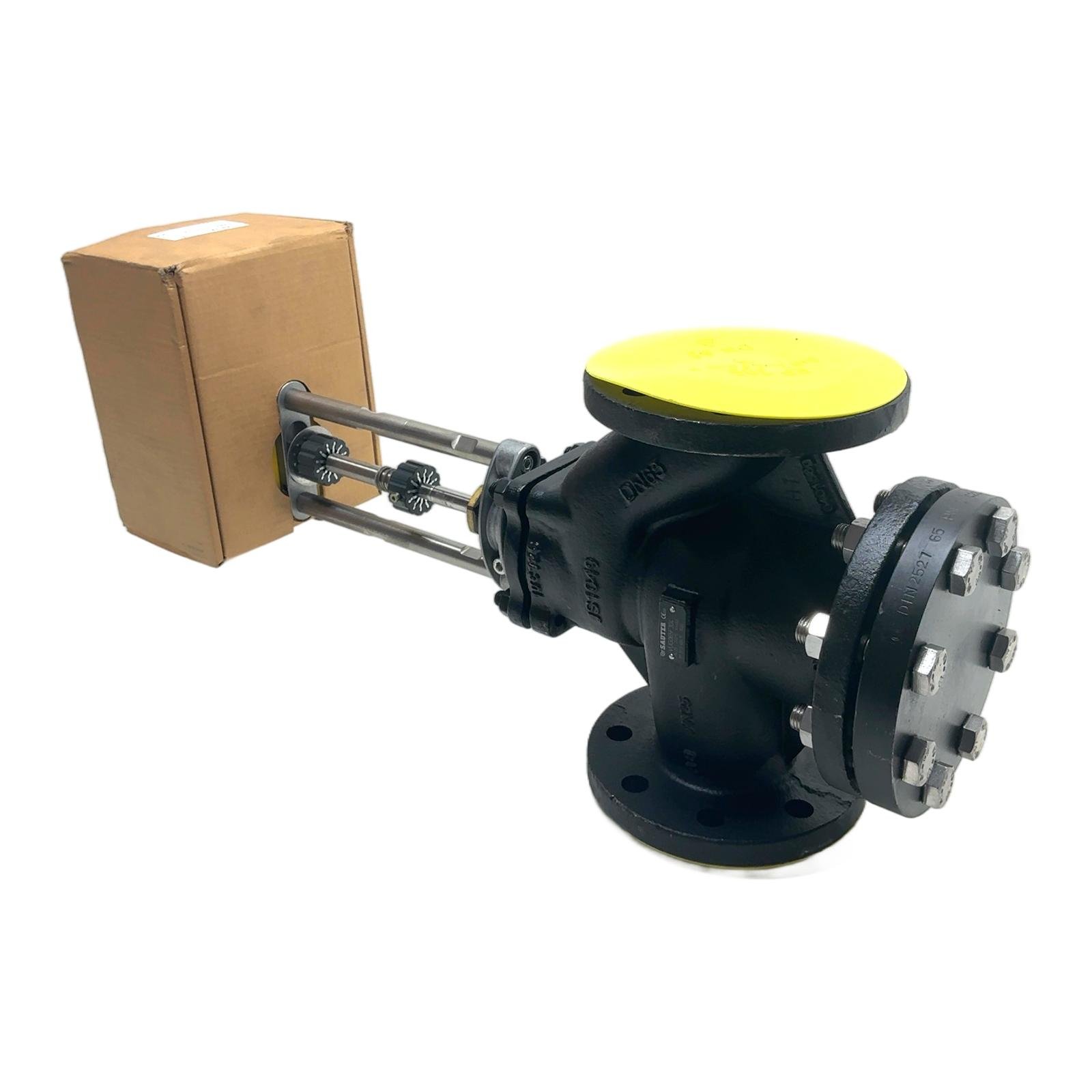

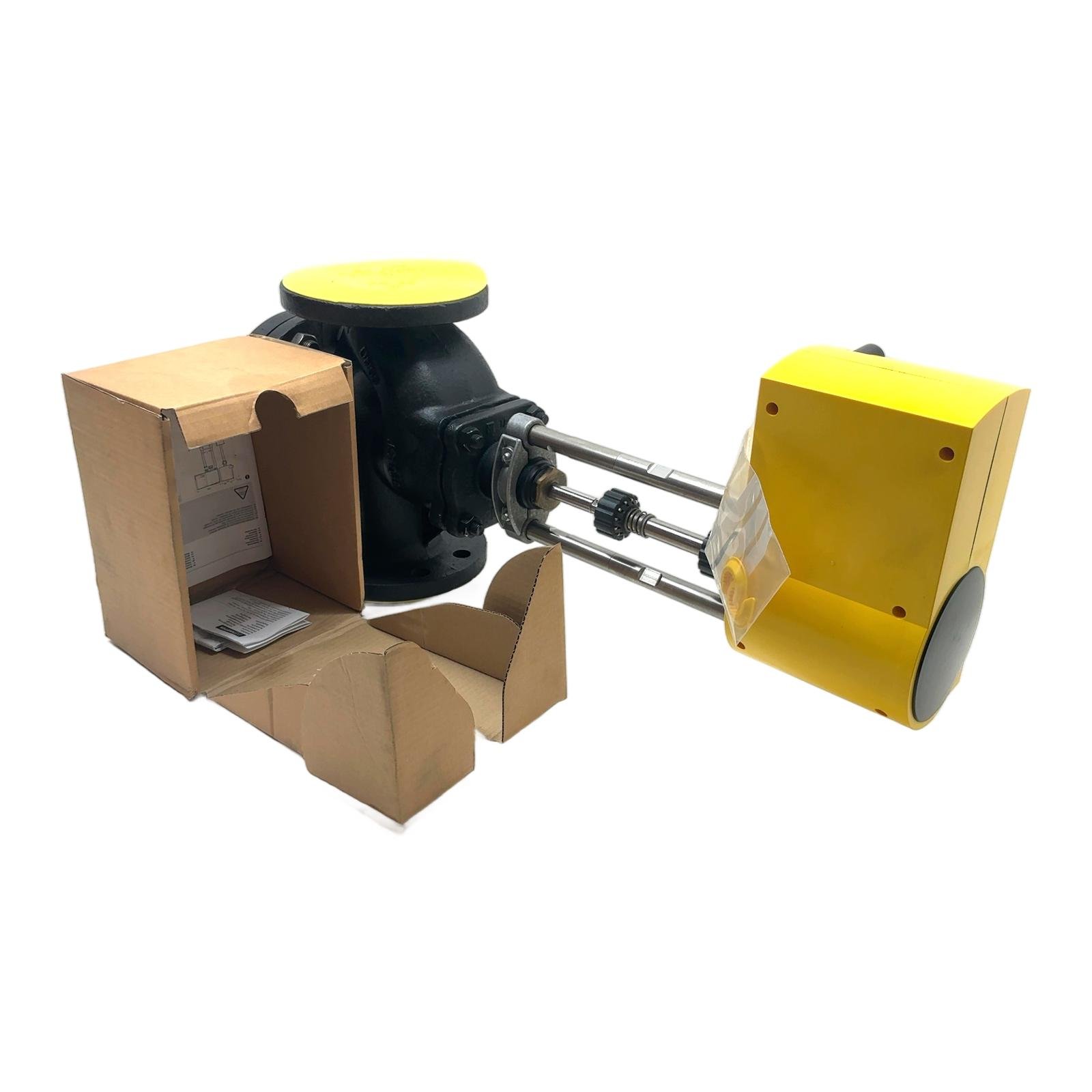

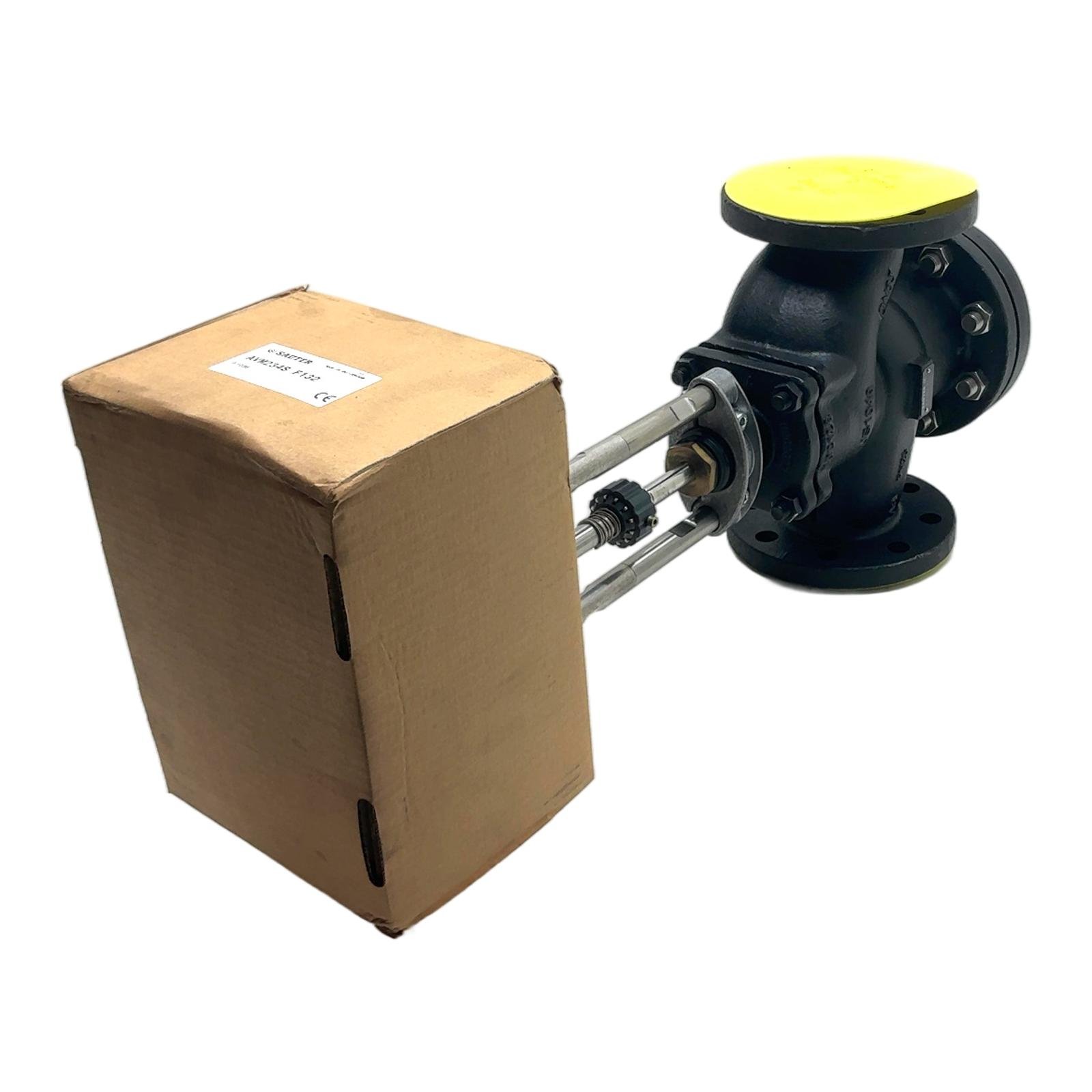

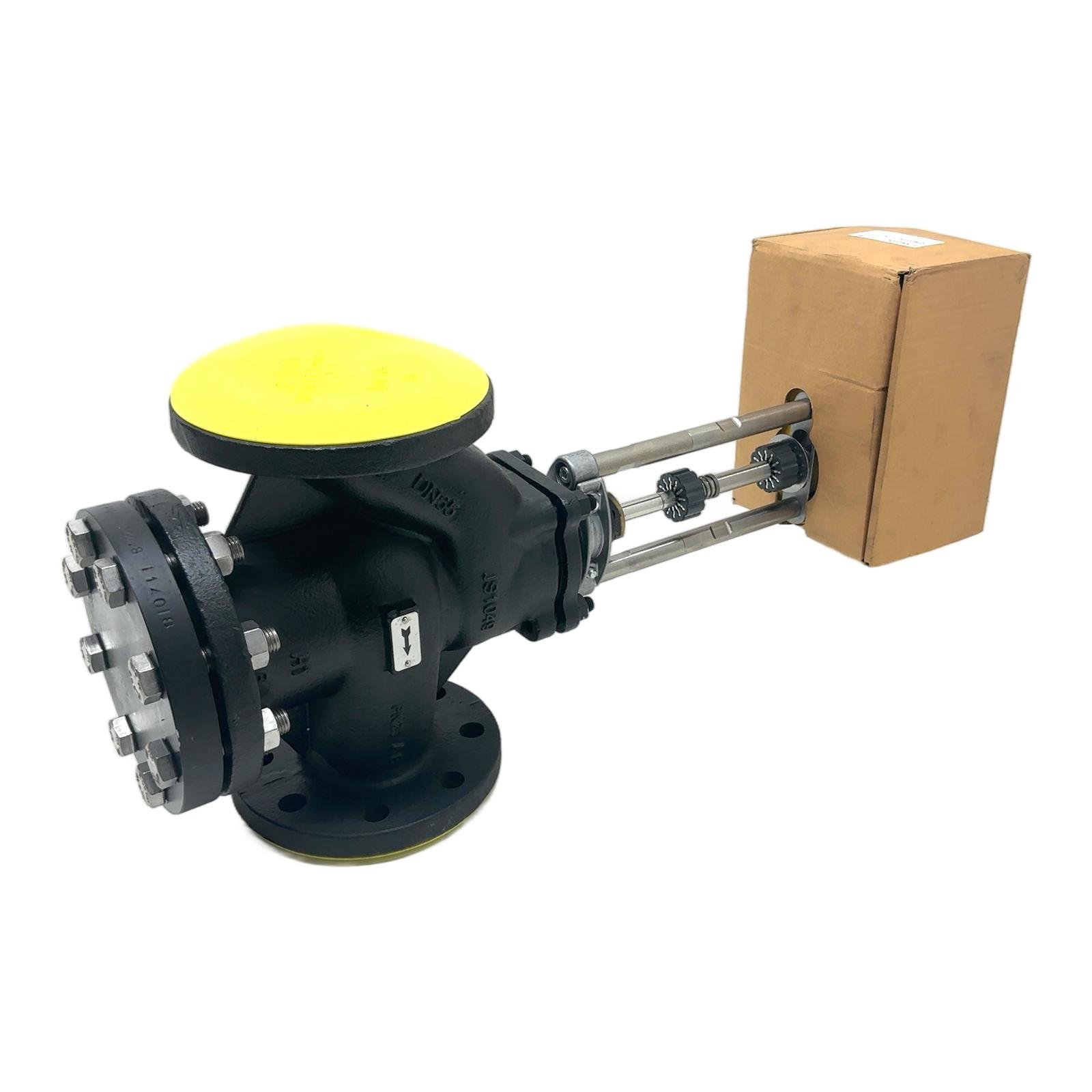

Sauter 3-Way Control Valve Assembly Description This is a complete control valve assembly from Sauter, combining the VUG065F304 3-way flanged valve with the AVM234S F132 electric actuator. Designed for precise modulating control in HVAC and industrial process systems, this Swiss-engineered unit ensures high reliability and performance. The valve body is constructed from robust ductile iron, making it suitable for high-pressure and high-temperature applications involving water or water-glycol mixtures. The actuator provides 2000 N of force and includes a spring-return safety function, ensuring the valve returns to a predefined safe position upon power failure. Specifications Brand: Sauter Valve Model: VUG065F304 Actuator Model: AVM234S F132 Valve Type: 3-Way Mixing/Diverting Valve Nominal Diameter (DN): 65 Pressure Rating (PN): 25 Kvs Value: 63 m3/h Max. Medium Temperature: 240 deg C Connection: Flanges according to EN 1092-2 Actuator Force: 2000 N Actuator Type: Electric, Modulating with Spring Return Label Info Valve: SAUTER VUG065F304, PN 25, 240 deg C, Kvs63 Actuator: SAUTER AVM234S F132 Body Markings: DN65, PN25, JS1049 Application Ideal for controlling fluid flow in heating plants, air handling units, district heating, and other process control applications where precise temperature and flow regulation are critical. Country of Origin Made in Switzerland. CO2 Impact By purchasing this pre-owned item, you help avoid the production of a new one, saving an estimated 49.4 kg of CO2. This is comparable to the emissions from driving a standard car for 247 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What type of control signal does the AVM234S F132 actuator accept?The AVM234S is a modulating actuator that can be controlled via a standard analog signal, typically 0-10V DC or 4-20mA, allowing for precise positioning of the valve. What is the purpose of the spring-return function?The spring-return function is a safety feature. In the event of a power outage, an internal spring automatically drives the valve to a predetermined safe position (either fully open or fully closed, depending on configuration), preventing potential system damage or hazardous conditions. Is this valve suitable for use with steam?While the valve has a high temperature rating of 240 deg C, its primary design is for hot water and water-glycol mixtures. For steam applications, it is crucial to consult the official Sauter technical documentation to ensure the pressure/temperature limits and materials are appropriate for the specific steam conditions. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
