NORGREN VP5006BJ411H00 4095822.9000

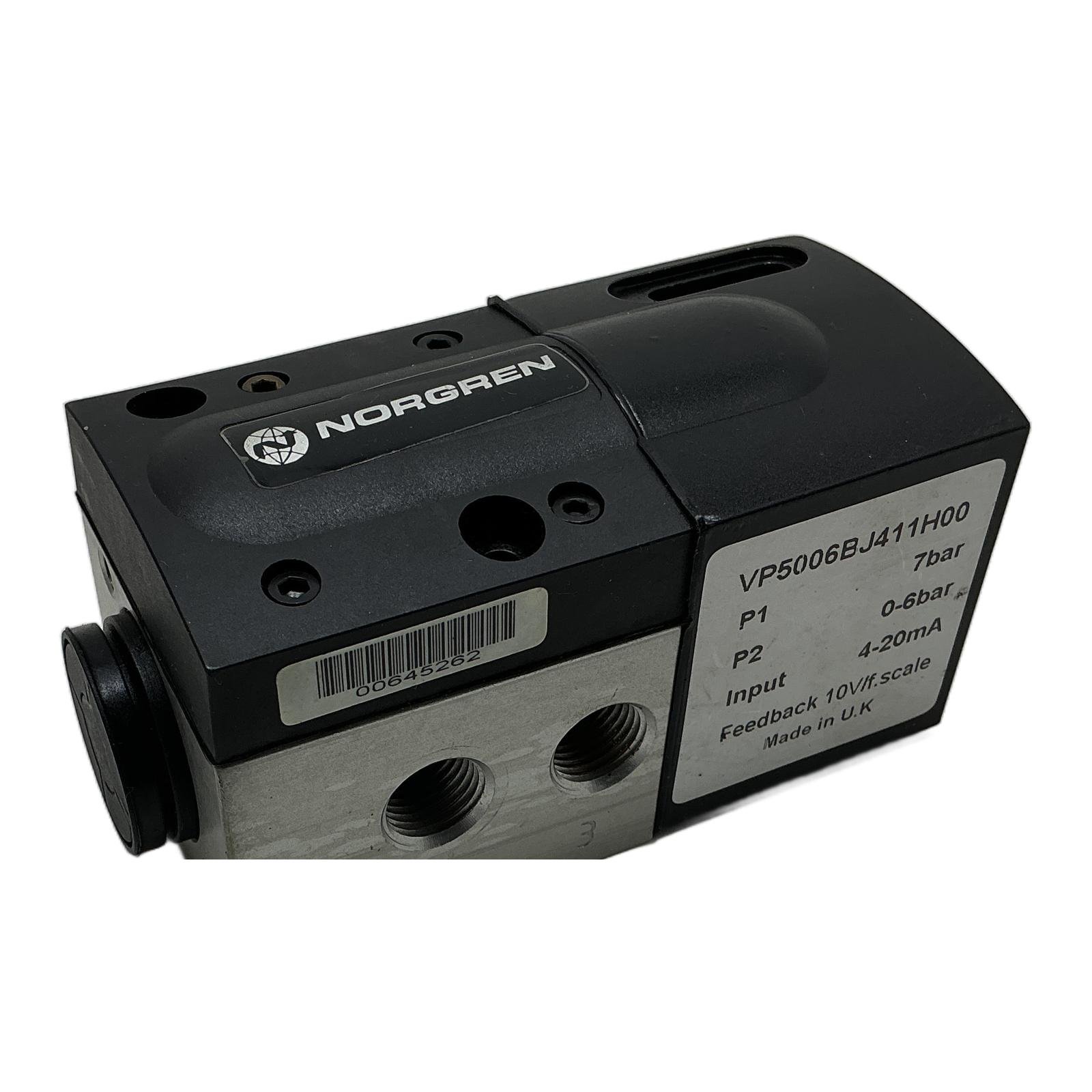

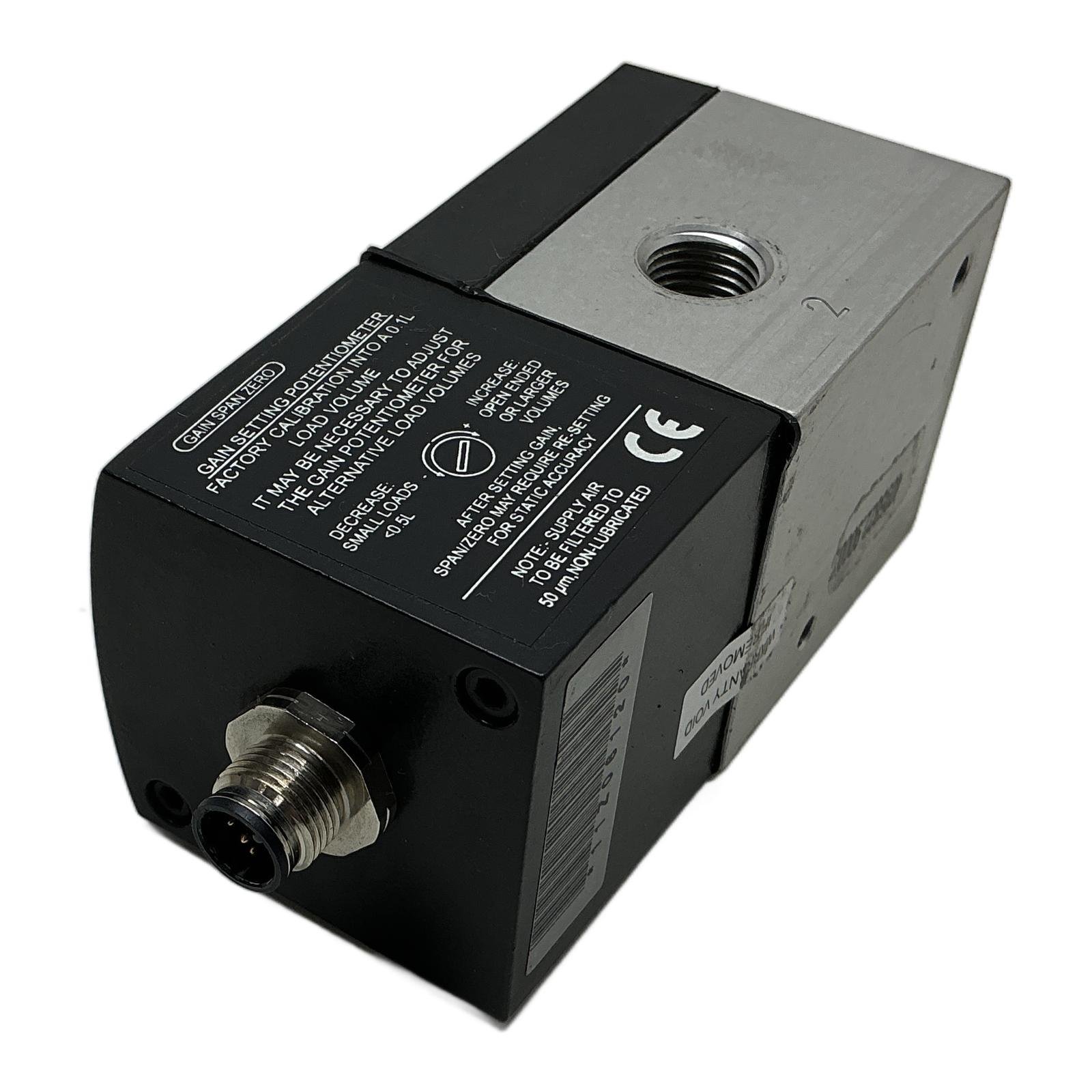

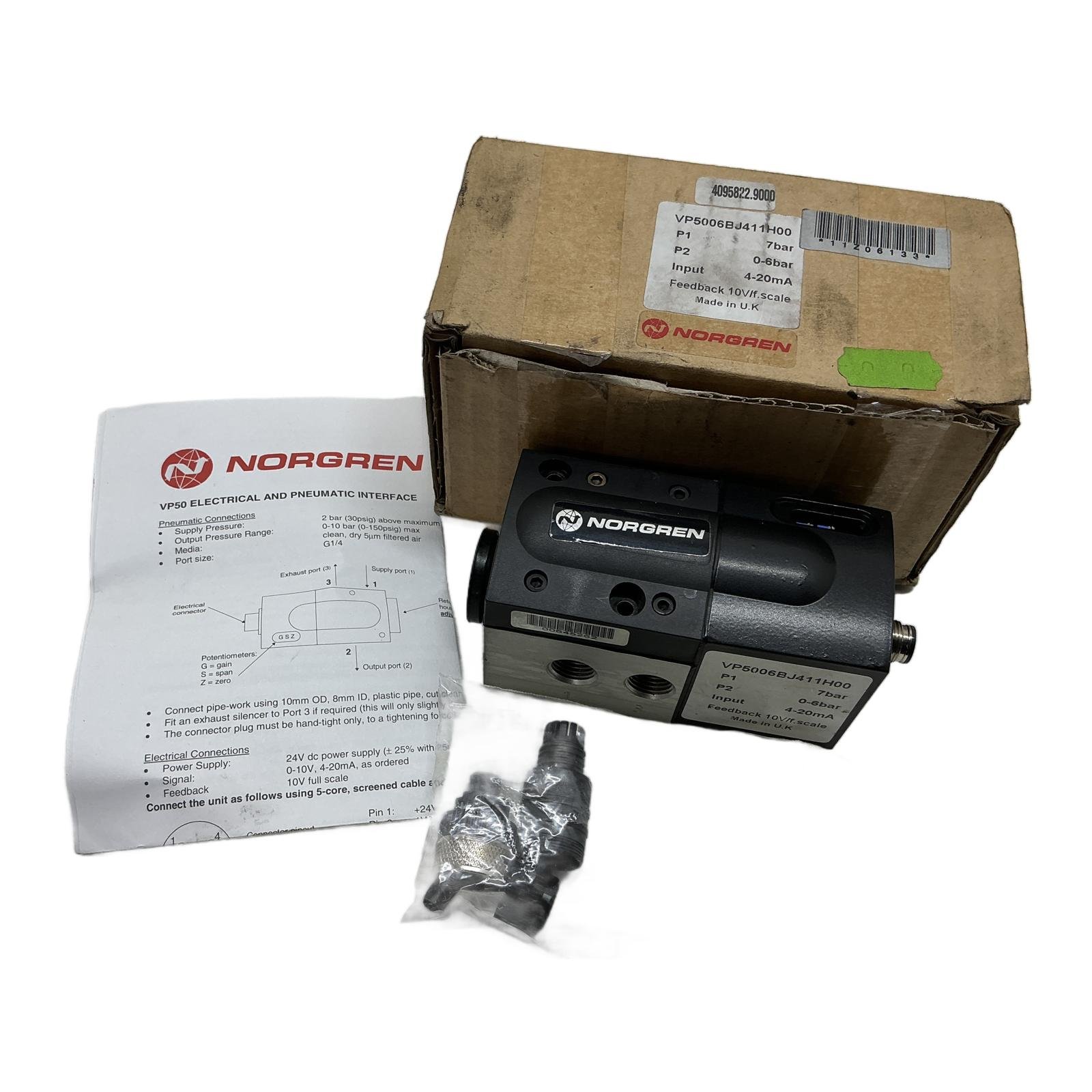

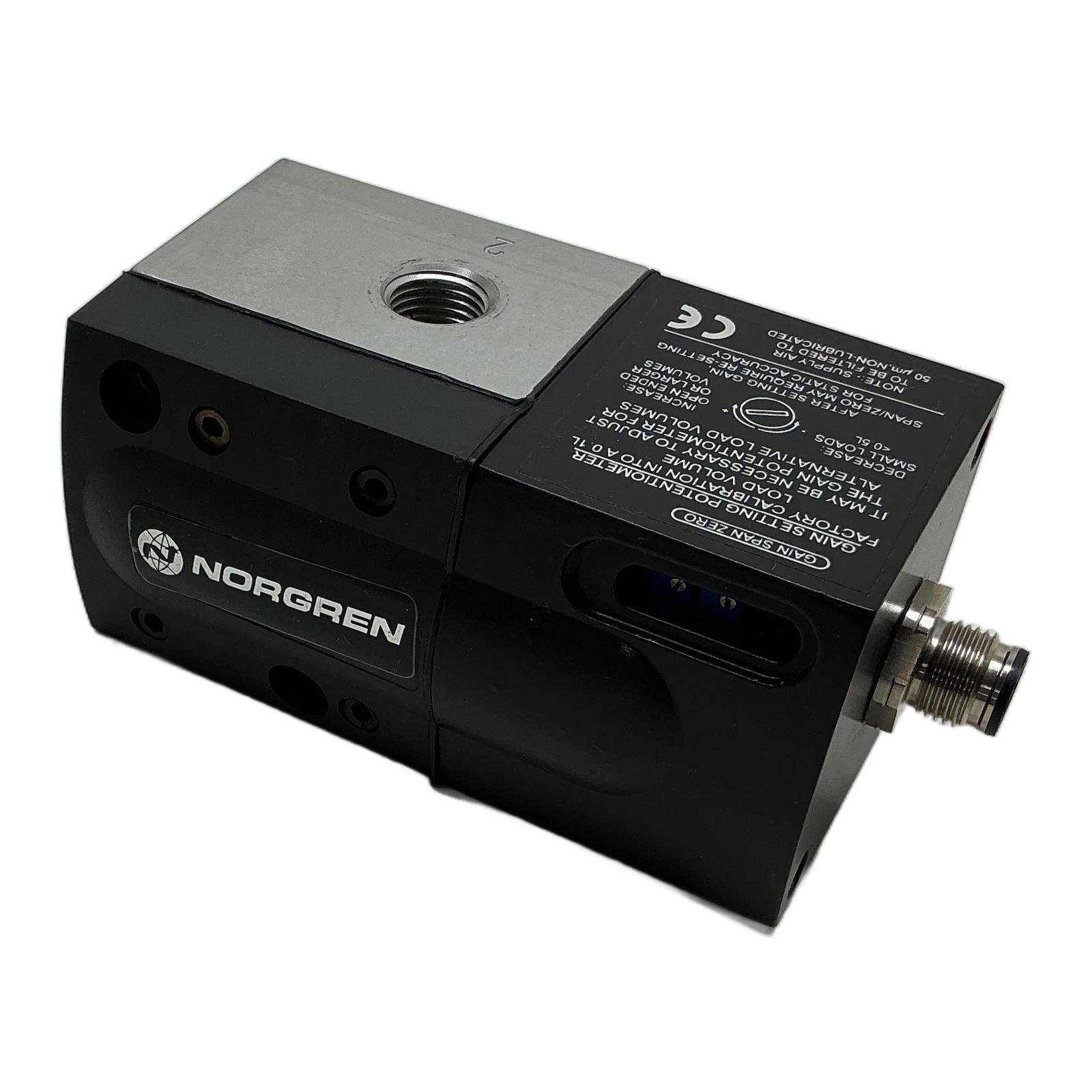

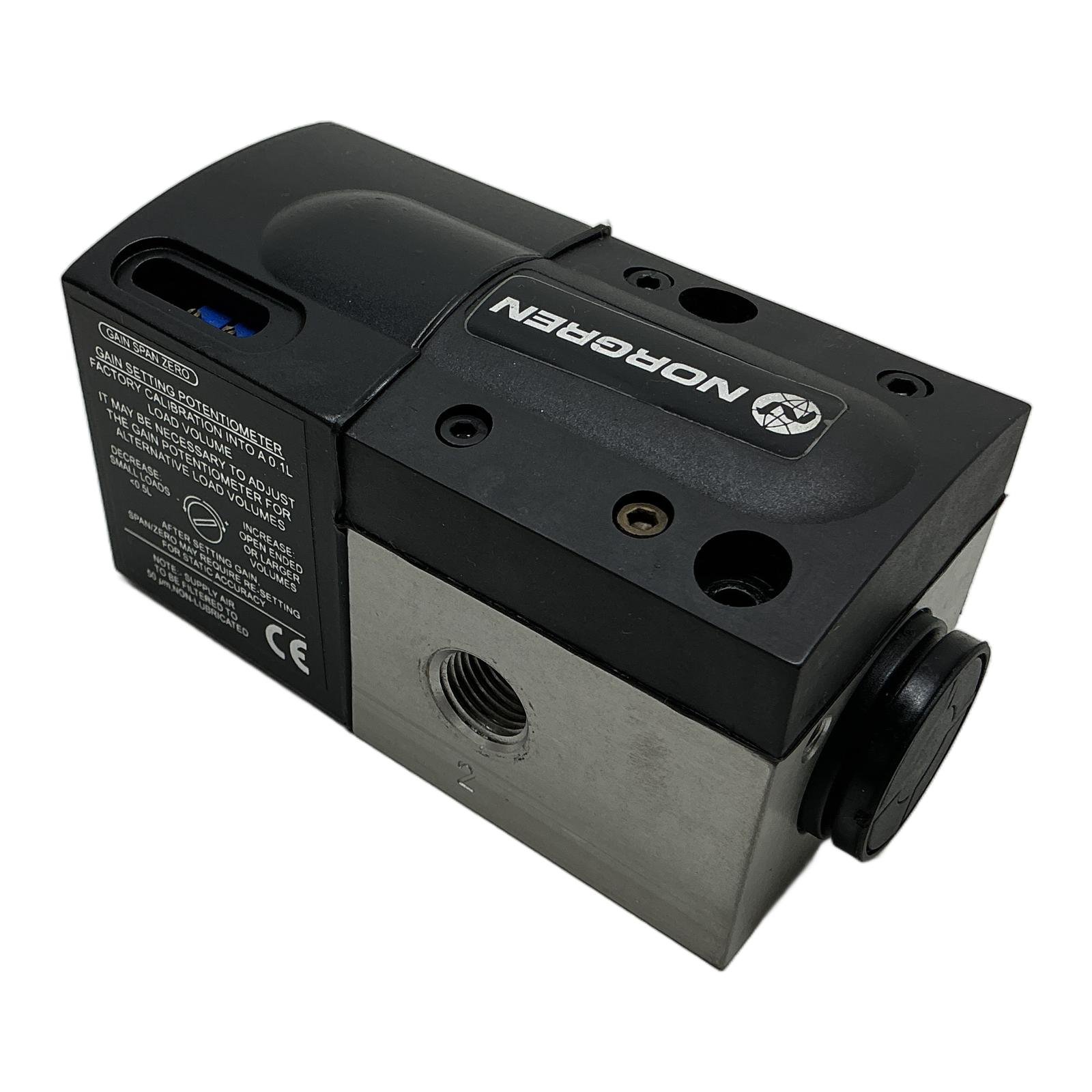

Norgren VP50 Series Proportional Pressure Control Valve Description The Norgren VP5006BJ411H00 is a high-precision electro-pneumatic proportional valve designed for applications requiring accurate pressure control. It converts a variable electrical input signal (4-20mA) into a proportional pneumatic output pressure (0-6 bar). This valve is ideal for industrial automation systems where fine control of cylinders, actuators, and other pneumatic equipment is critical. It includes a 10V feedback signal for closed-loop control and system monitoring. This unit is new in its original box, complete with connector and documentation. Specifications Manufacturer: Norgren Type: VP5006BJ411H00 Part Number: 4095822.9000 Series: VP50 Function: Proportional Pressure Control Valve Input Signal: 4-20mA Output Pressure (P2): 0-6 bar Supply Pressure (P1): 7 bar Feedback Signal: 10V full scale Port Connections: G3/8 Electrical Connection: M12 5-pin Power Supply: 24V DC Label Info P1: 7bar P2: 0-6bar Input: 4-20mA Feedback: 10V/f.scale Application This valve is widely used in factory automation, material handling, packaging machinery, and process control applications where precise and repeatable pressure regulation is essential for product quality and process efficiency. Country of Origin Made in the United Kingdom. CO2 Impact By purchasing this reconditioned item, you are helping to avoid the emission of 18 kg of CO2. This is comparable to the savings from driving a car for 90 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the function of the ‘G’ (gain) and ‘Z’ (zero) potentiometers mentioned in the manual?The ‘Z’ potentiometer adjusts the zero point, setting the output pressure when the input signal is at its minimum (e.g., 4mA). The ‘G’ potentiometer adjusts the gain or span, setting the output pressure at the maximum input signal (e.g., 20mA). These allow for fine-tuning the valve’s response to your specific application requirements. What is the required air quality for the Norgren VP50 series valve to ensure optimal performance and longevity?The manufacturer recommends using compressed air filtered to at least 5 micrometres. The air should be dry and non-lubricated to prevent internal contamination and ensure consistent, reliable operation over the valve’s lifespan. Can this 4-20mA input valve be controlled by a standard PLC analog output module?Yes, absolutely. The 4-20mA current loop input is a common industrial standard, making it fully compatible with most PLC analog output modules. The 10V feedback can also be connected to a PLC analog input module to monitor the valve’s output pressure. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Friday, March 13, 2026
