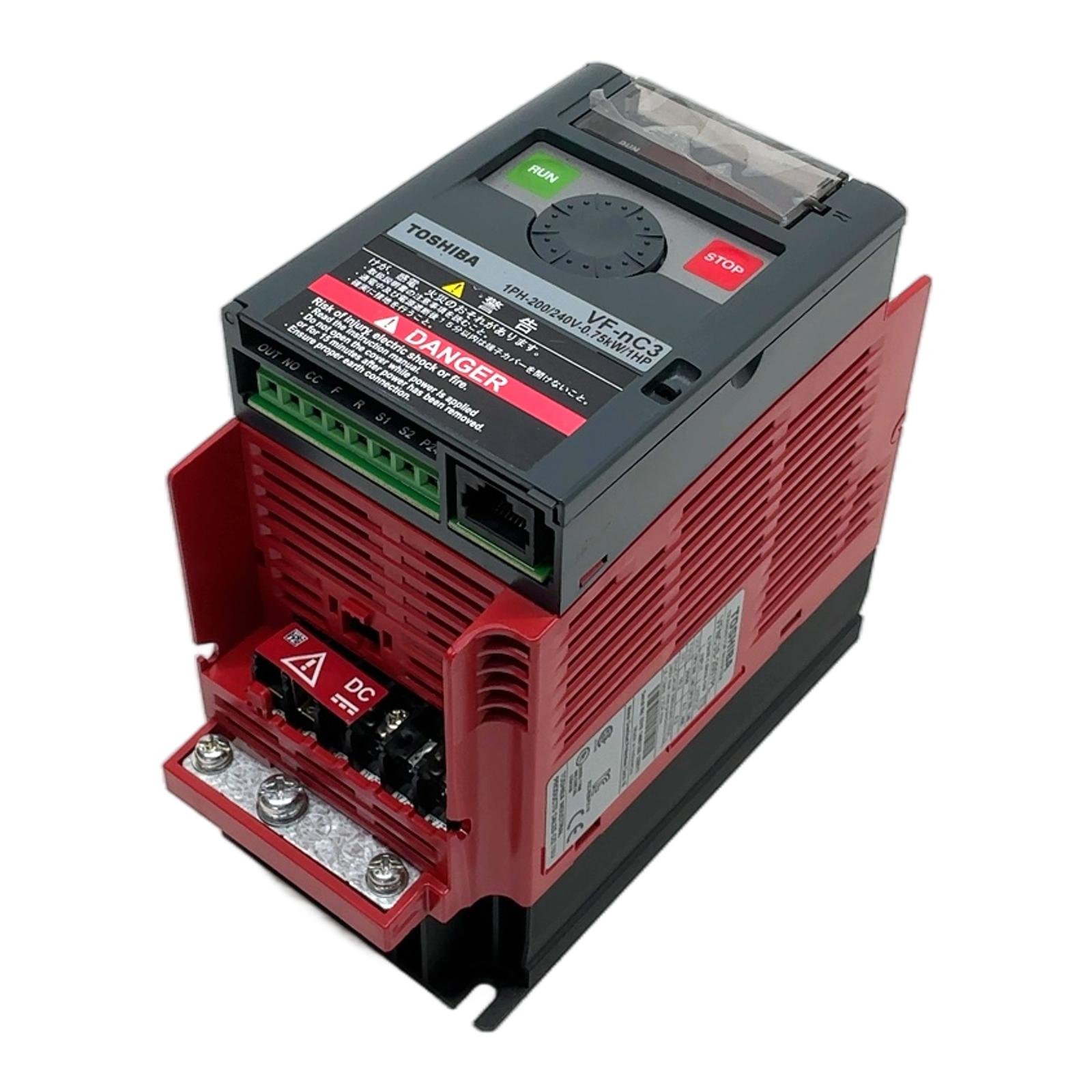

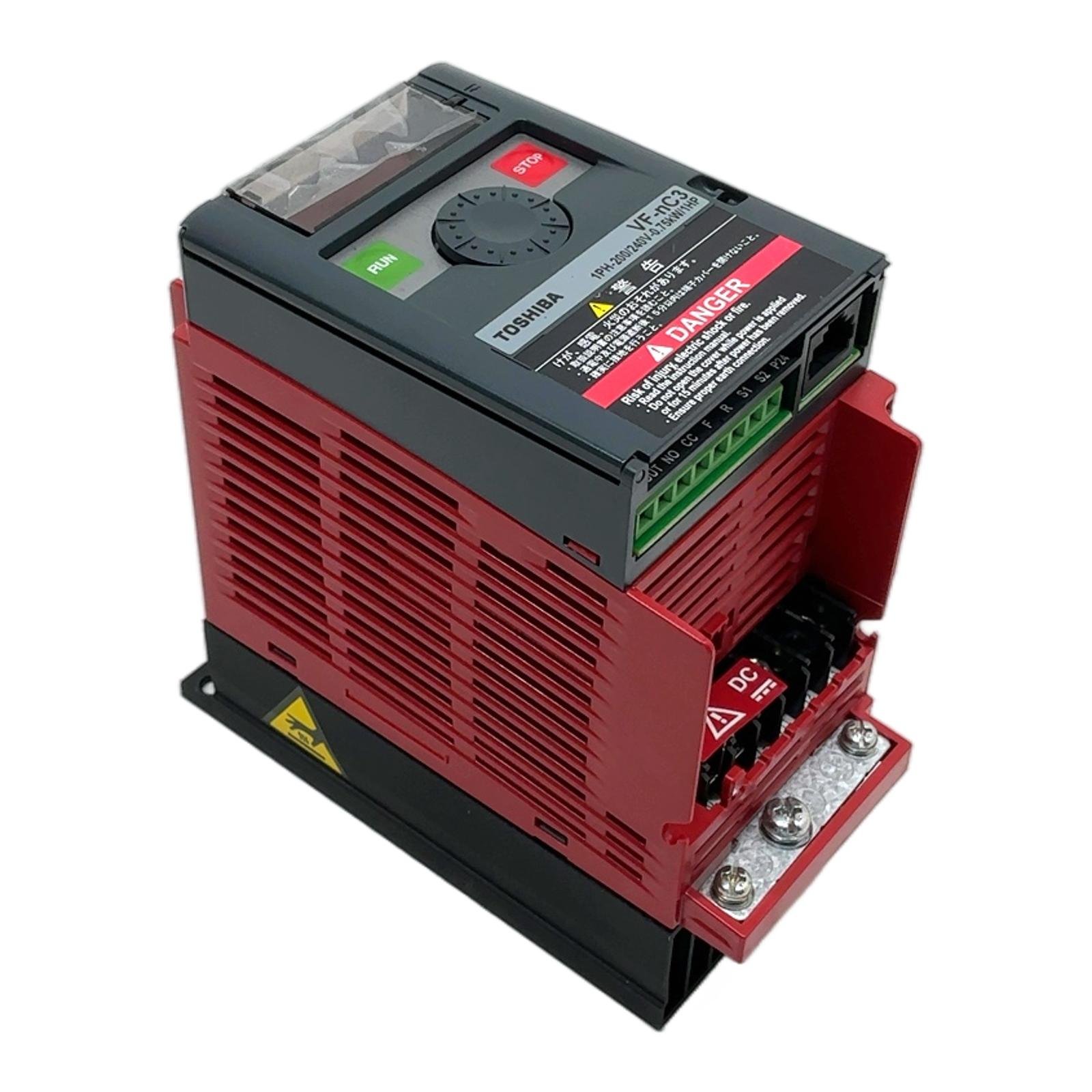

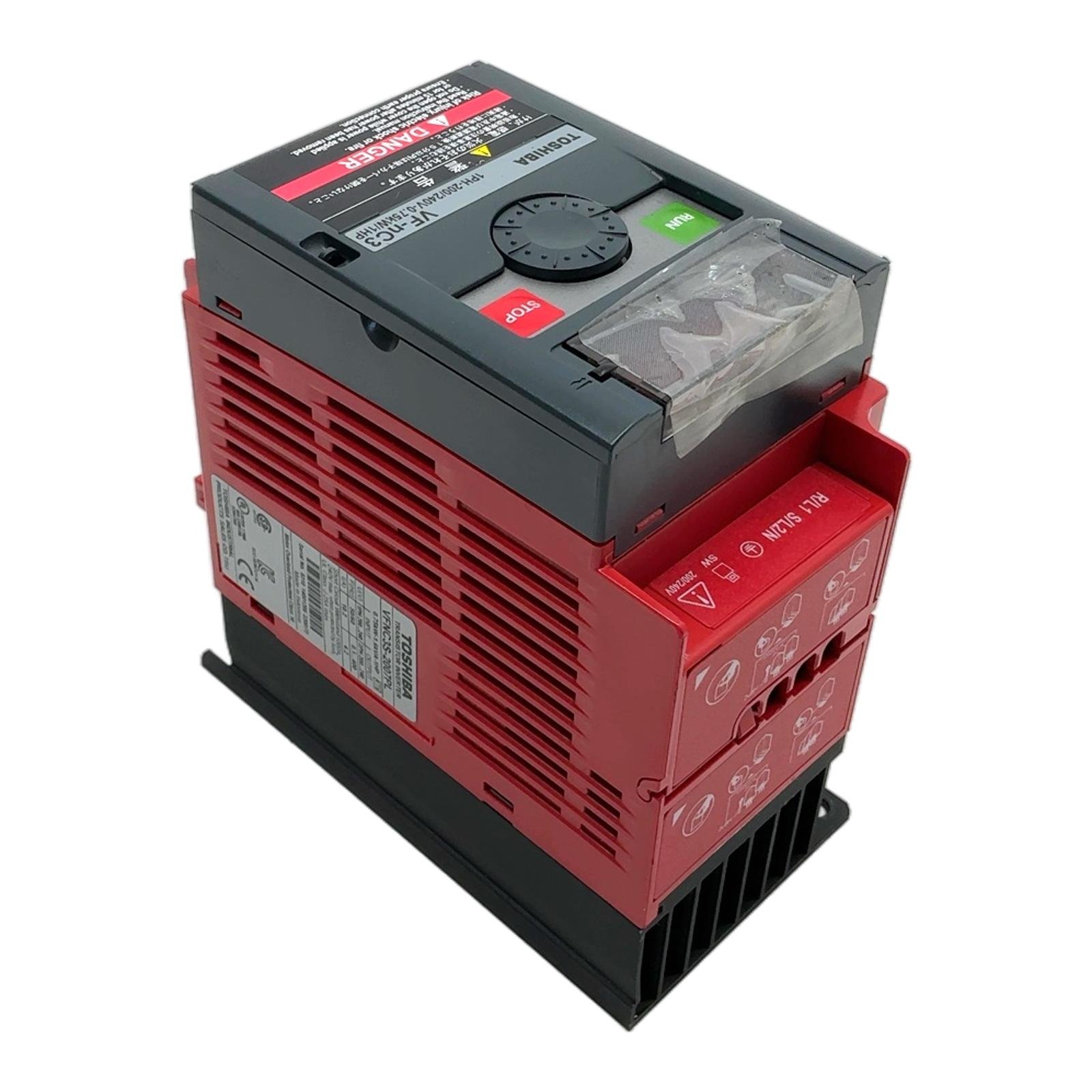

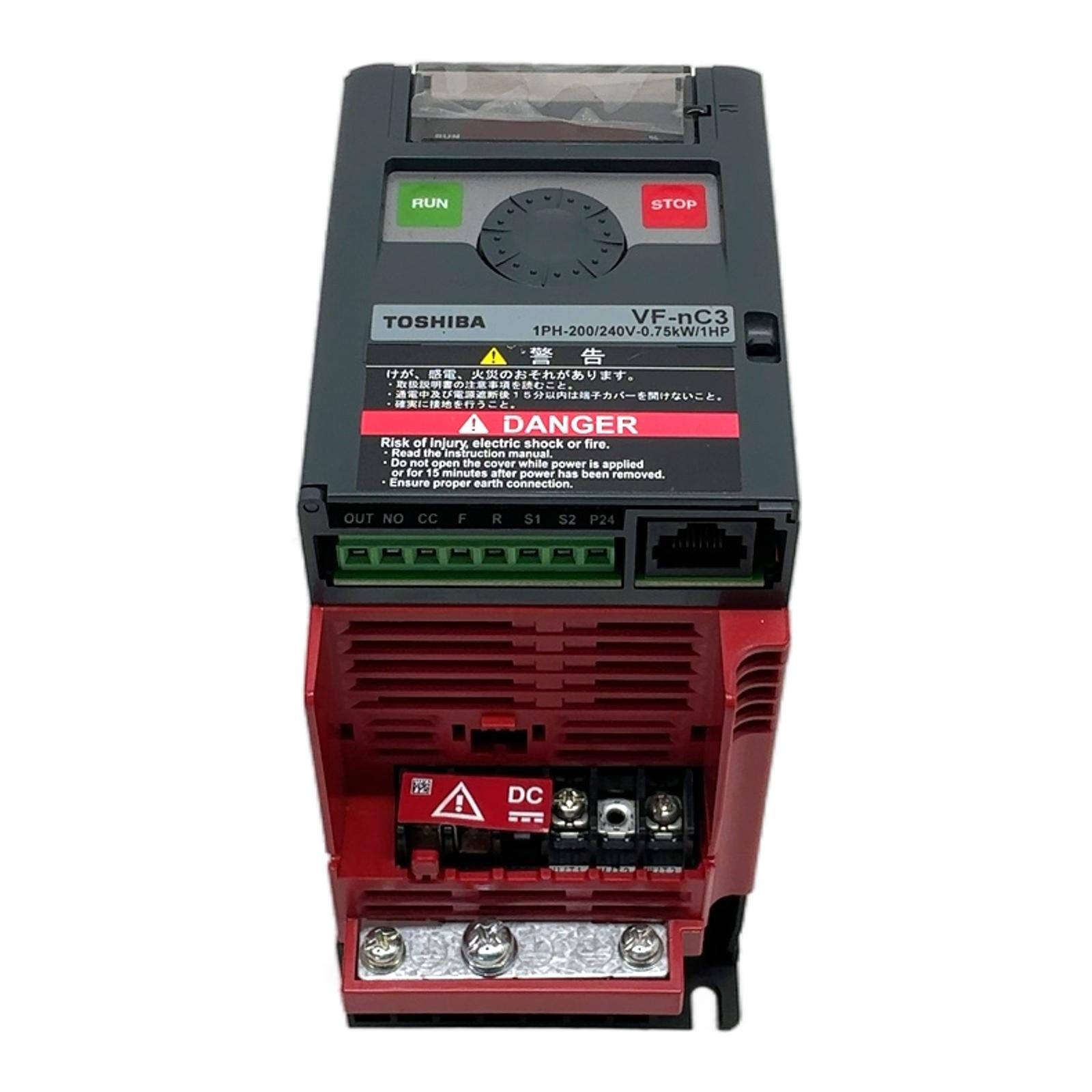

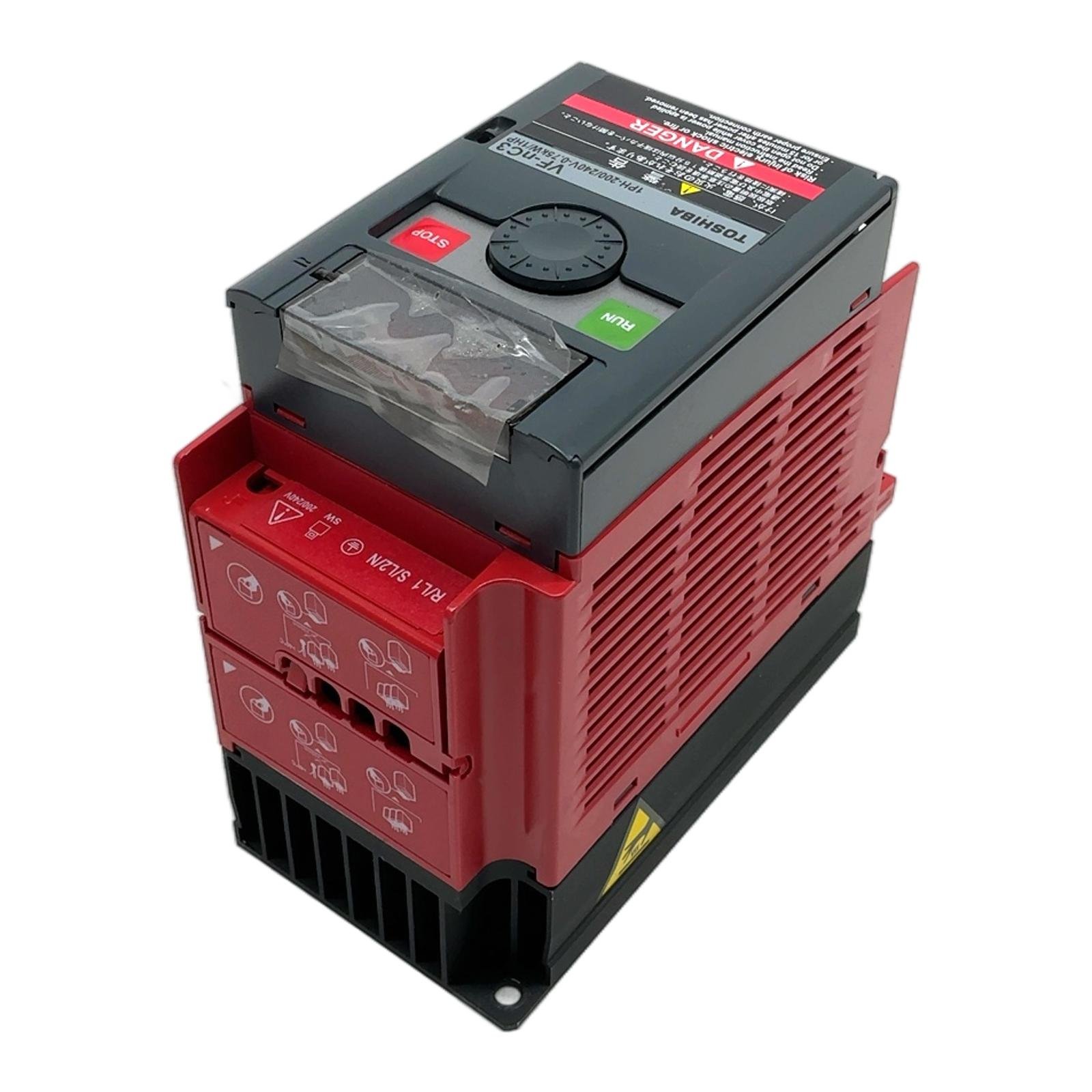

TOSHIBA VF-nC3 VFNC3S-2007PL 0,75kW

Toshiba VF-nC3 Series Frequency Inverter Description The Toshiba VFNC3S-2007PL is a compact and user-friendly variable frequency drive (VFD) designed for controlling the speed of three-phase AC motors. With a power rating of 0.75 kW (1 HP) and operating on a single-phase 200-240V input, it is an ideal solution for a wide range of simple industrial applications such as fans, pumps, and conveyors. Its integrated control panel with a potentiometer and start/stop buttons allows for quick and easy setup without the need for external programming devices. This drive is part of the reliable VF-nC3 series, known for its compact design and efficient performance. Specifications Manufacturer: Toshiba Series: VF-nC3 Model: VFNC3S-2007PL Power Rating: 0.75 kW / 1 HP Input Voltage: 1-Phase 200-240V AC, 50/60 Hz Input Current: 10.2 A Output Voltage: 3-Phase 200-240V AC Output Current: 4.2 A Output Frequency Range: 0.1 to 400 Hz Enclosure: IP20 Label Info Serial No: 8310 14001205 3200 (1) Certifications: CE, UL, SP, KCC Application This inverter is perfectly suited for applications requiring basic speed control, including ventilation systems, small conveyor belts, centrifugal pumps, and other machinery where adjusting motor speed improves process efficiency and saves energy. Country of Origin Made in Indonesia. CO2 Impact By purchasing this pre-owned inverter, you are contributing to a circular economy and preventing approximately 40 kg of CO2 emissions that would be generated from the production of a new unit. Availability This item is an obsolete model but is available from our stock for immediate dispatch. It serves as an excellent spare part to maintain existing installations. Order now from profideals for expert support and fast delivery. FAQ Question?Can the VFNC3S-2007PL be controlled remotely without using the front panel buttons?AnswerYes, it can be controlled via the terminal strip. You can wire external switches for run/stop and a potentiometer for speed reference using the control terminals (F, R, S1, S2, etc.) as detailed in the user manual. Question?What is the maximum output frequency of this drive, and is it suitable for high-speed applications?AnswerThe VFNC3S-2007PL has a maximum output frequency of 400 Hz. This makes it suitable for standard motor applications as well as some higher-speed applications like spindles or grinders, provided the motor is rated for such speeds. Question?Is an external braking resistor required for this inverter?AnswerThis compact model does not have a built-in braking chopper or terminals for an external braking resistor. It relies on DC injection braking. For applications with high inertia or requiring fast deceleration, a larger model with braking capabilities would be necessary. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder. Last Update: Friday, March 13, 2026
