VEGA VEGASON S66 550195

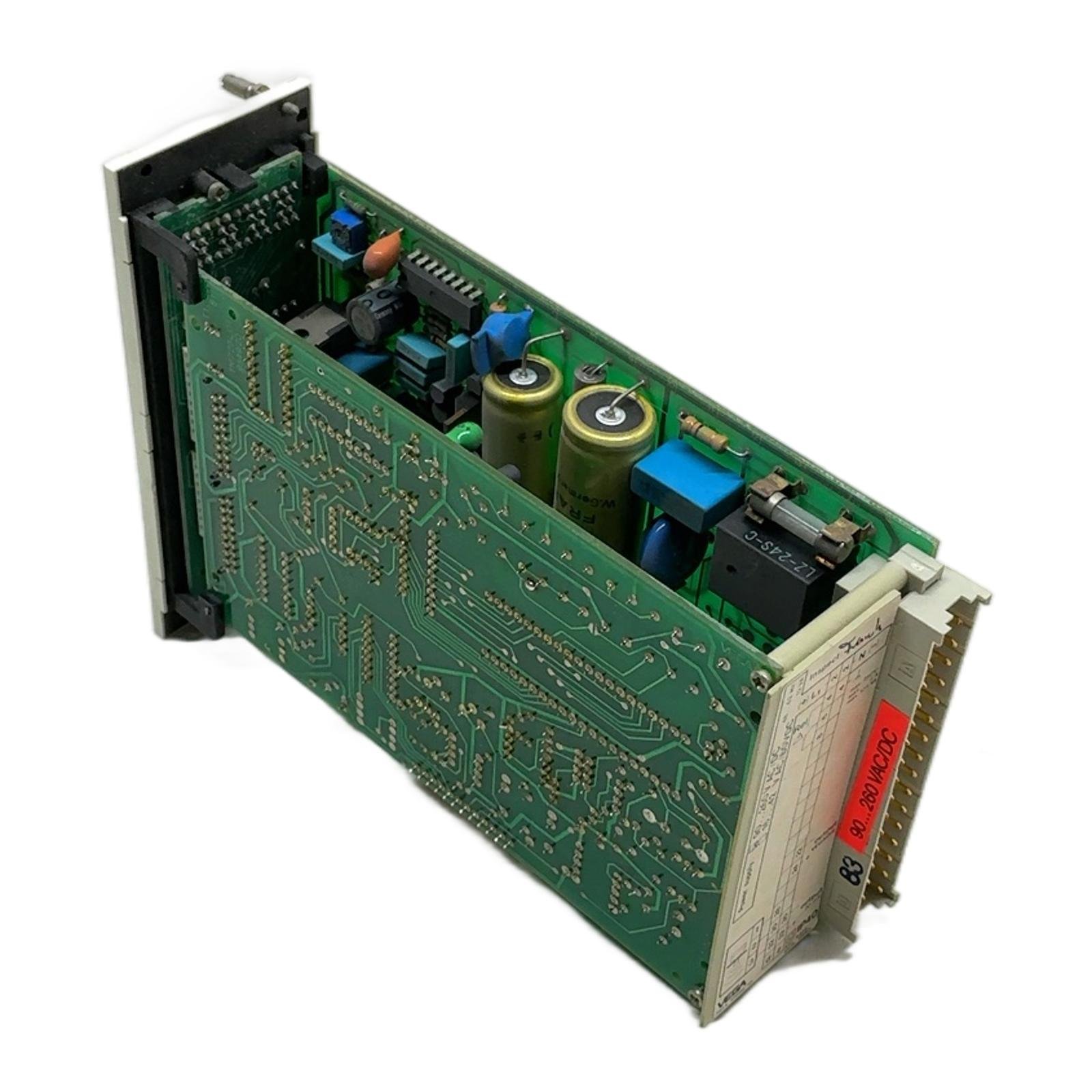

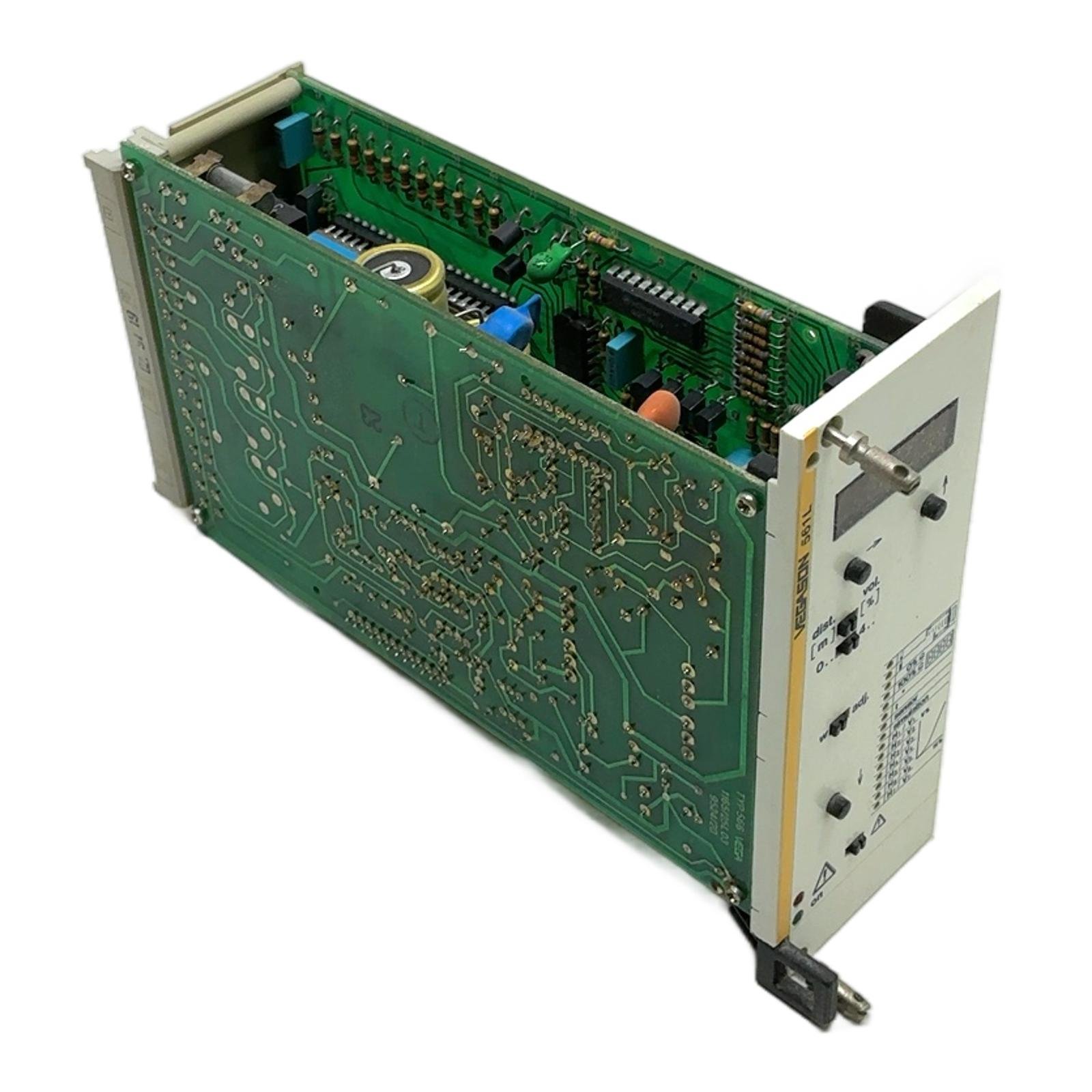

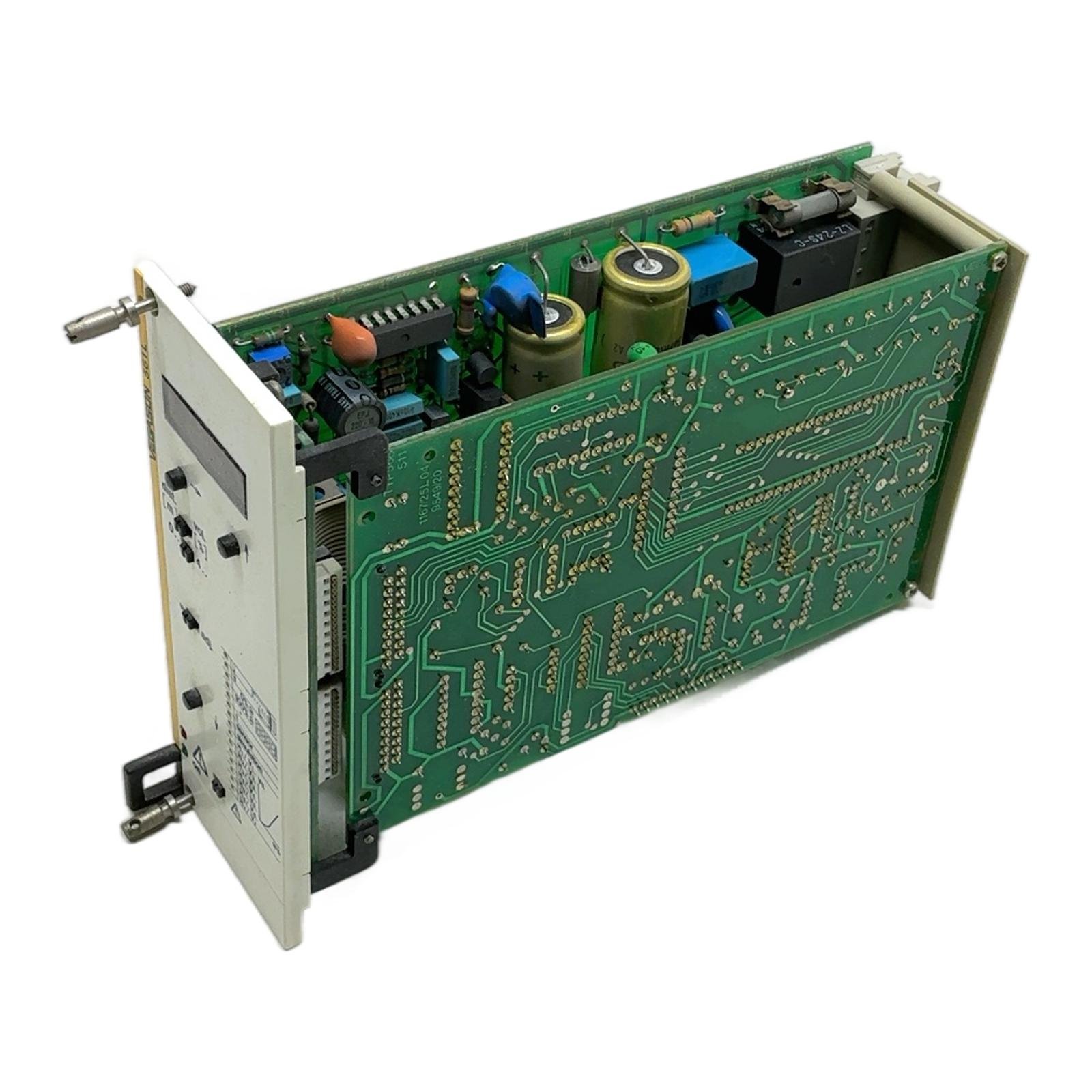

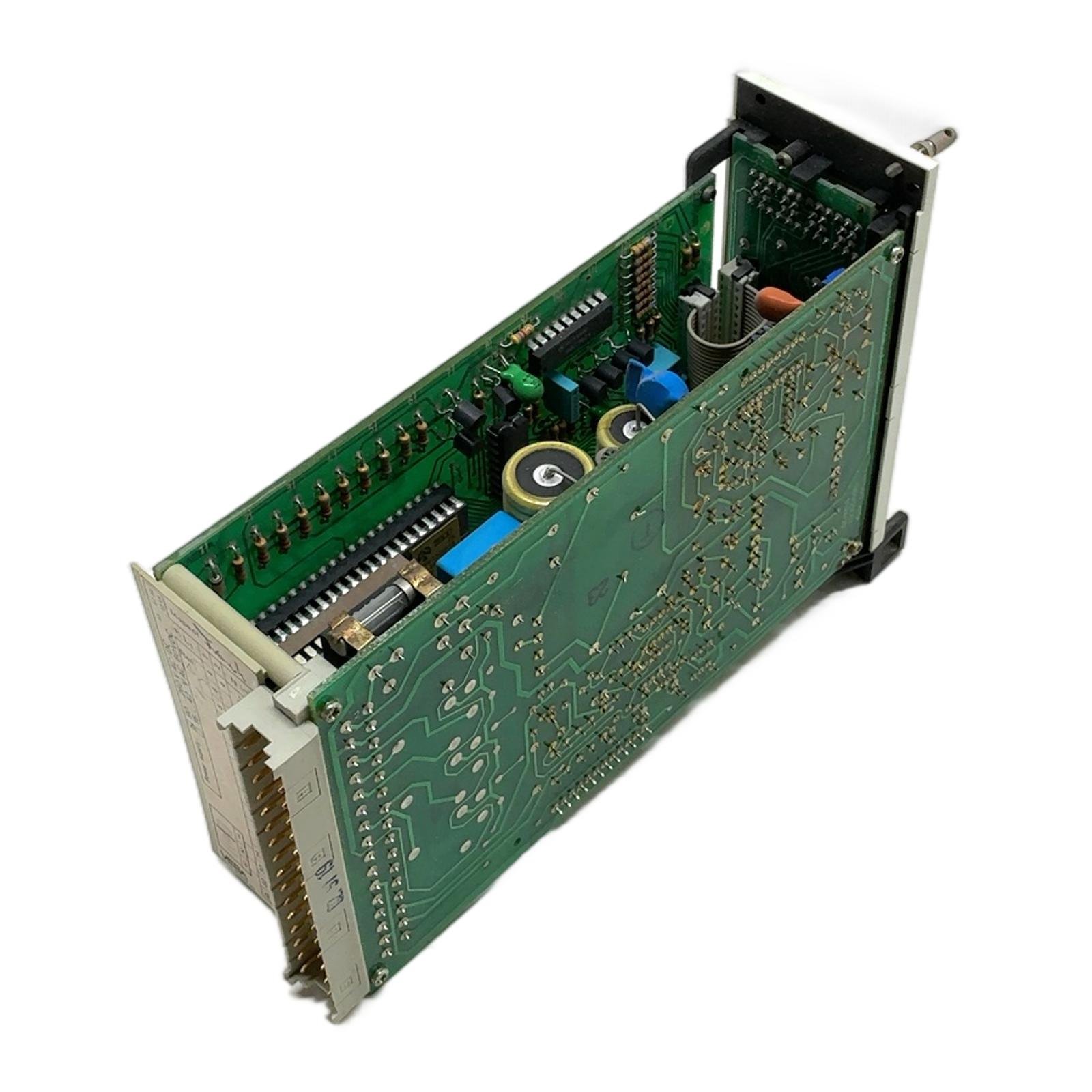

VEGA VEGASON S66 Ultrasonic Level Controller Description The VEGA VEGASON S66 is a microprocessor-controlled evaluation unit for ultrasonic level sensors. Designed as a 10 TE wide plug-in card for Eurocard rack systems, it provides a complete solution for processing sensor signals. This unit features a wide-range power supply, a standard analog output, and three integrated limit switches for process control and alarms. It is an ideal spare part for maintaining older, yet reliable, industrial automation systems. Specifications Manufacturer: VEGA Model: VEGASON S66 Also known as: VEGASON 366 (per box label) Power Supply: 90-240V AC/DC Output Signal: 0/4-20 mA, selectable Relay Outputs: 3x Limit Switches (changeover contacts) Form Factor: 19-inch plug-in card, 10 TE width Display: Digital display for value indication Application This evaluation unit is suitable for a wide range of level measurement applications in tanks, silos, and open channels in various industries, including water/wastewater, chemical, and food processing. Country of Origin Manufactured in Germany. CO2 Impact Opting for this refurbished component avoids the emission of approximately 20.0 kg of CO2, which would have been generated during the production of a new unit. This saving is comparable to driving a car for 100 km. Availability This is an obsolete item, available as a refurbished spare part. Stock is limited. Order now from profideals for expert support and fast delivery. FAQ Question?Is the VEGASON S66 compatible with modern VEGA ultrasonic sensors? Answer:The VEGASON S66 was designed for older VEGA sensors of its era. While it may function with some modern 4-20mA sensors in a basic capacity, full compatibility, including advanced diagnostics and parameterization, is not guaranteed. It is recommended to use this unit as a direct replacement for an identical failed unit. Question?How are the three limit switch relays configured on this device? Answer:The limit switches are typically configured using potentiometers on the device’s front panel. These adjustment screws allow you to set the switch points for process control actions like high or low level alarms. For precise setup, referring to the original VEGA documentation is recommended. Question?What does the “10 TE” form factor mean? Answer:”TE” stands for “Teilungseinheit,” a German term for a standard unit of width in 19-inch rack systems, equivalent to Horizontal Pitch (HP). A 10 TE module like this VEGASON S66 occupies a width of approximately 50.8 mm in a standard Eurocard subrack. profideals is not an authorized distributor, reseller, or representative of the products featured on this website. All product names, trademarks, brands, and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
