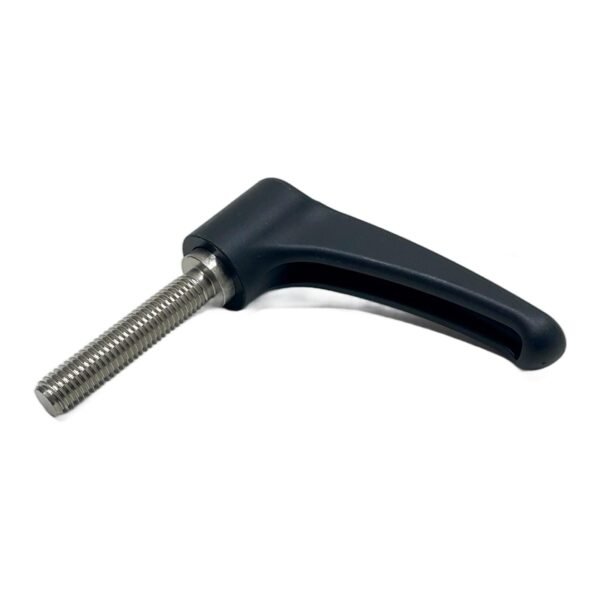

ELESA+GANTER ERZ.78- SST-p-M10x50 239661

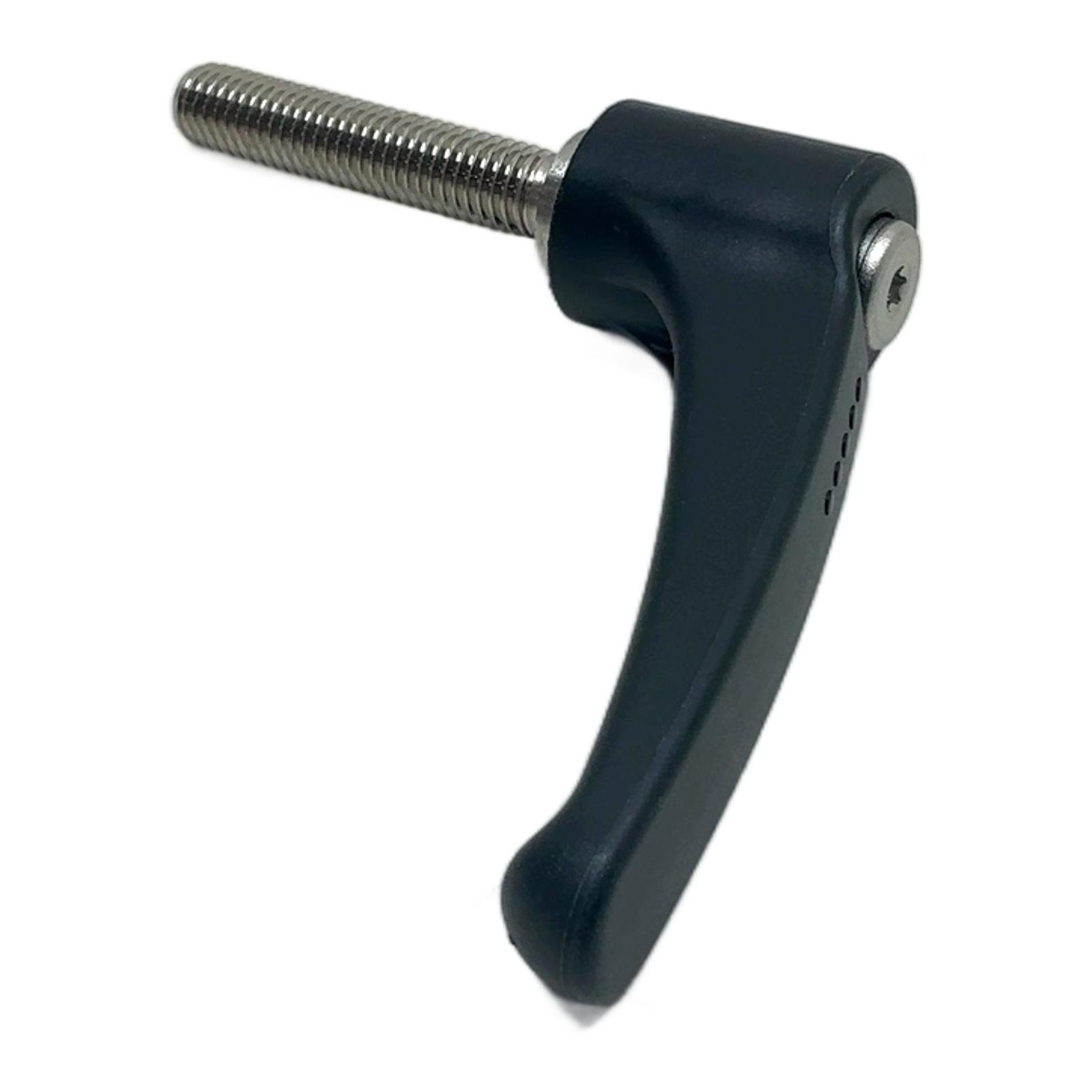

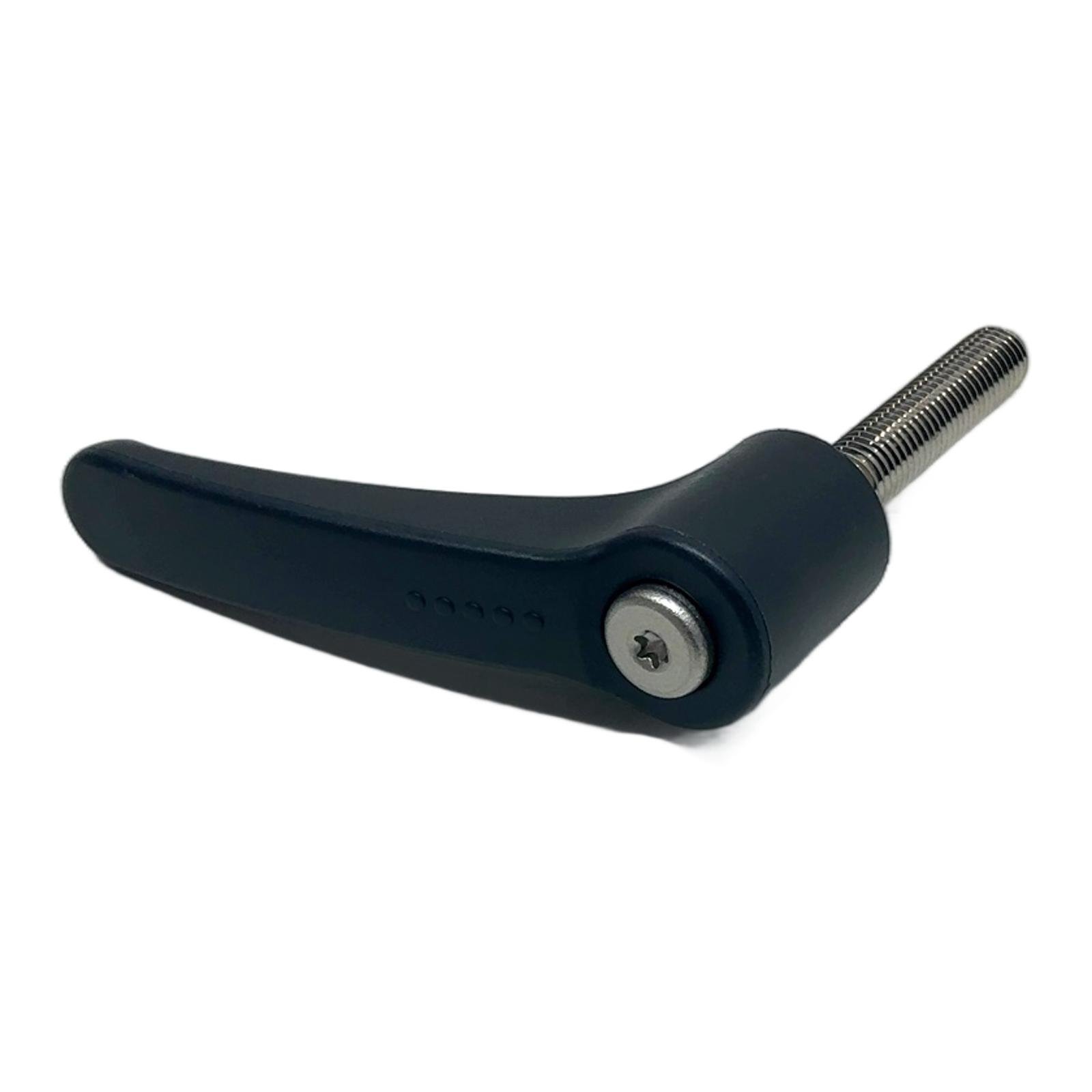

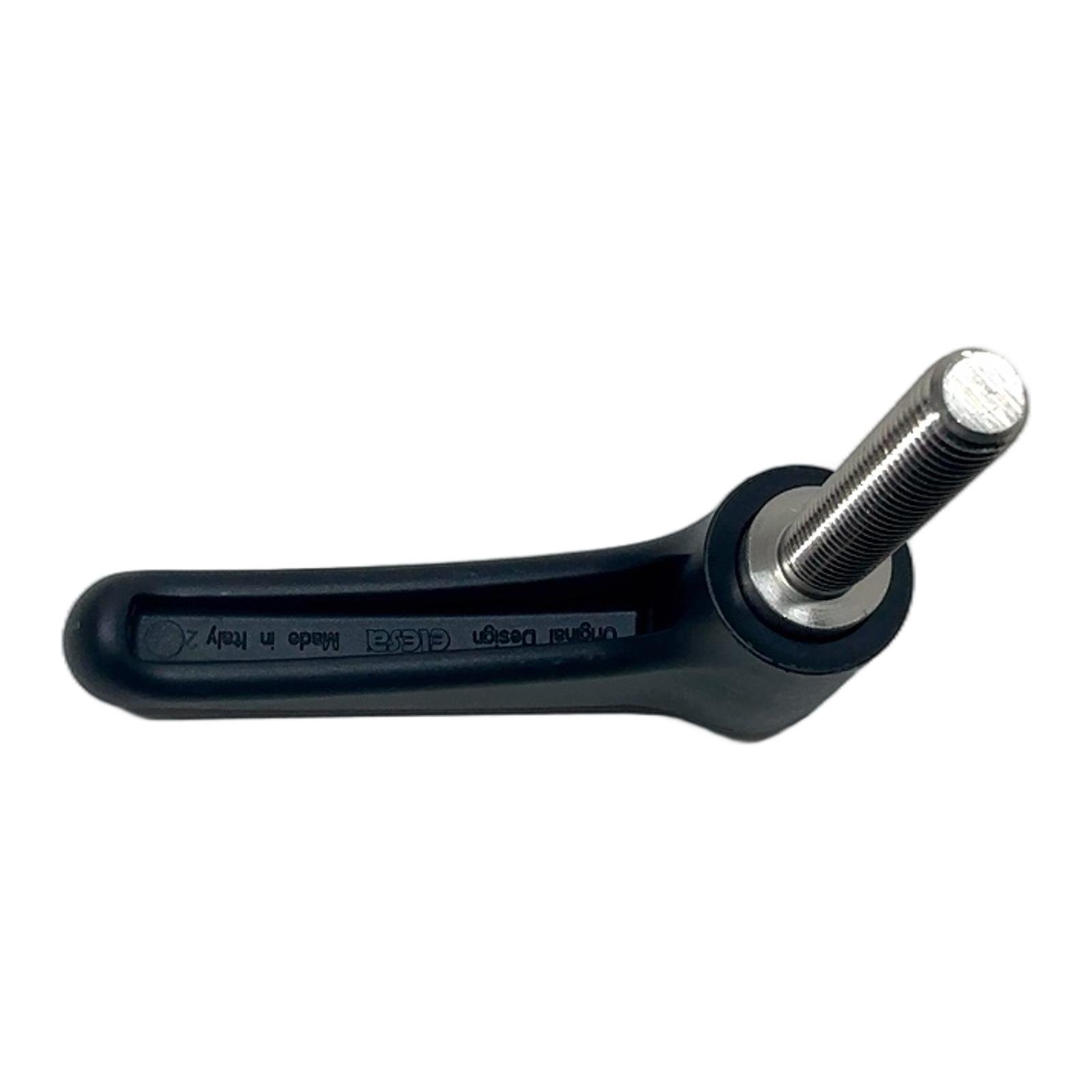

Elesa ERZ.78 Series Adjustable Clamping Lever Description The ERZ.78 SST-p-M10x50 is a high-performance adjustable clamping lever from Elesa, designed for industrial machinery and equipment. It features a push-button mechanism that disengages the handle for quick repositioning without altering the clamping position. This makes it exceptionally useful in applications with limited space. The combination of a glass-fibre reinforced technopolymer handle and a stainless steel threaded stud ensures durability and excellent corrosion resistance. Specifications Manufacturer: Elesa Type: ERZ.78 SST-p-M10x50 Handle Material: Technopolymer (Polyamide PA) Clamping Element: AISI 303 Stainless Steel Threaded Stud Thread Size: M10 Thread Length (l): 50 mm Handle Length (L): 78 mm Operating Temperature: -30 deg C to +130 deg C Label Info Model: ERZ.78 SST-p-M10x50 Part Number: 239661 EAN: 8055007033980 Application Ideal for use in machine construction, jigs and fixtures, equipment manufacturing, and any application requiring repeatable clamping or quick adjustment. The stainless steel component makes it suitable for environments with moderate exposure to moisture or chemicals. Country of Origin Made in Italy. CO2 Impact Choosing this component helps avoid the emission of approximately 1.5 kg of CO2 compared to manufacturing a new one. This saving is equivalent to charging a smartphone 180 times. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the maximum tightening torque for the ERZ.78 SST-p-M10x50?The manufacturer’s datasheet specifies a maximum tightening torque of 18 Nm for the M10 version of the ERZ.78 series. Exceeding this may damage the internal mechanism. Is the stainless steel stud (AISI 303) suitable for marine or food-grade applications?AISI 303 stainless steel offers good corrosion resistance in normal atmospheric conditions. However, for highly corrosive environments like direct saltwater exposure or food processing areas requiring specific certifications, a higher grade like AISI 316 might be recommended. Always check your application’s specific requirements. How does the push-button mechanism work?The push button disengages the internal serrations between the handle and the clamping insert. This allows you to lift and rotate the handle to the desired position without turning the stud. Releasing the button re-engages the serrations, allowing you to apply clamping force. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder. Friday, March 13, 2026
