SCHLEICHER UZD48 (A) 06307622

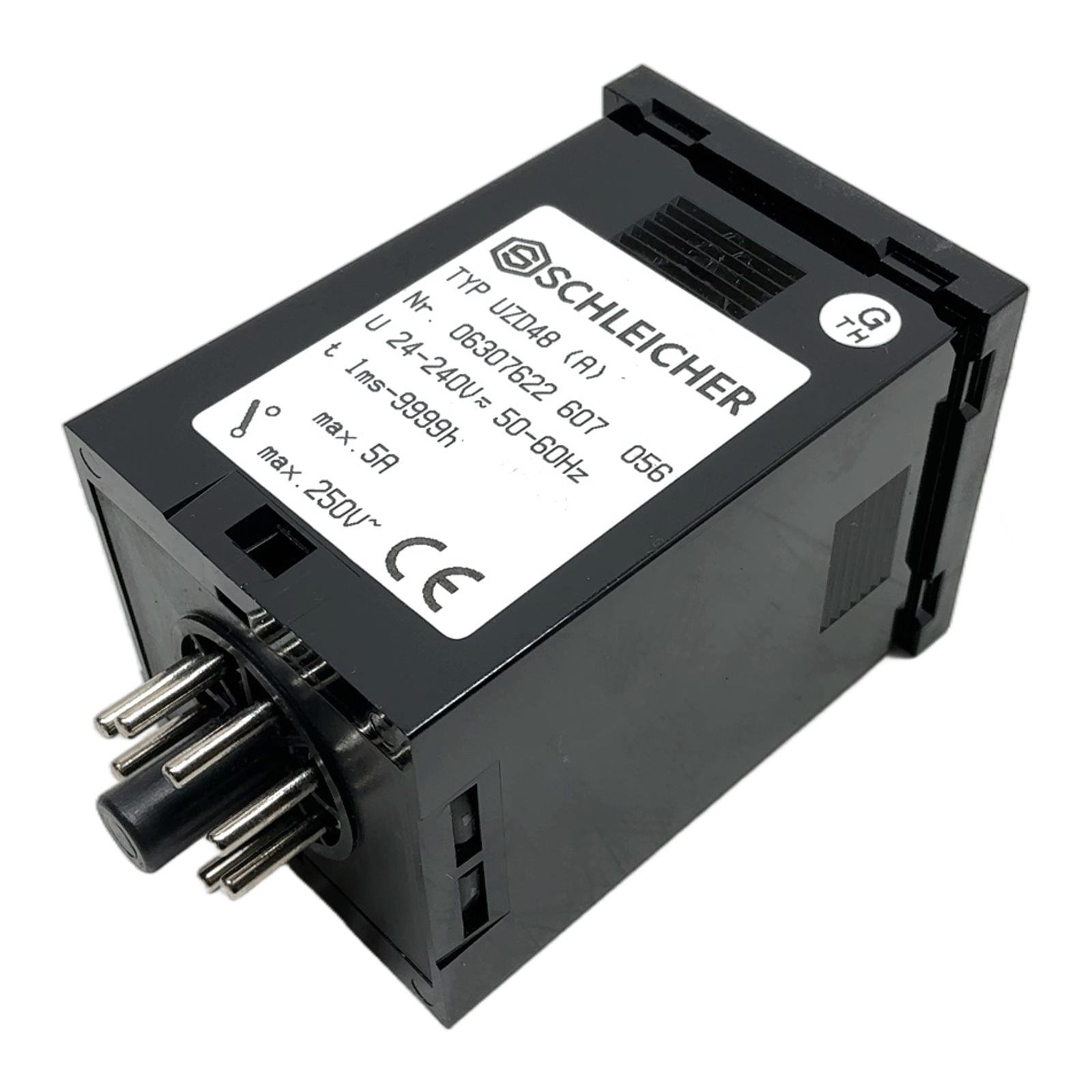

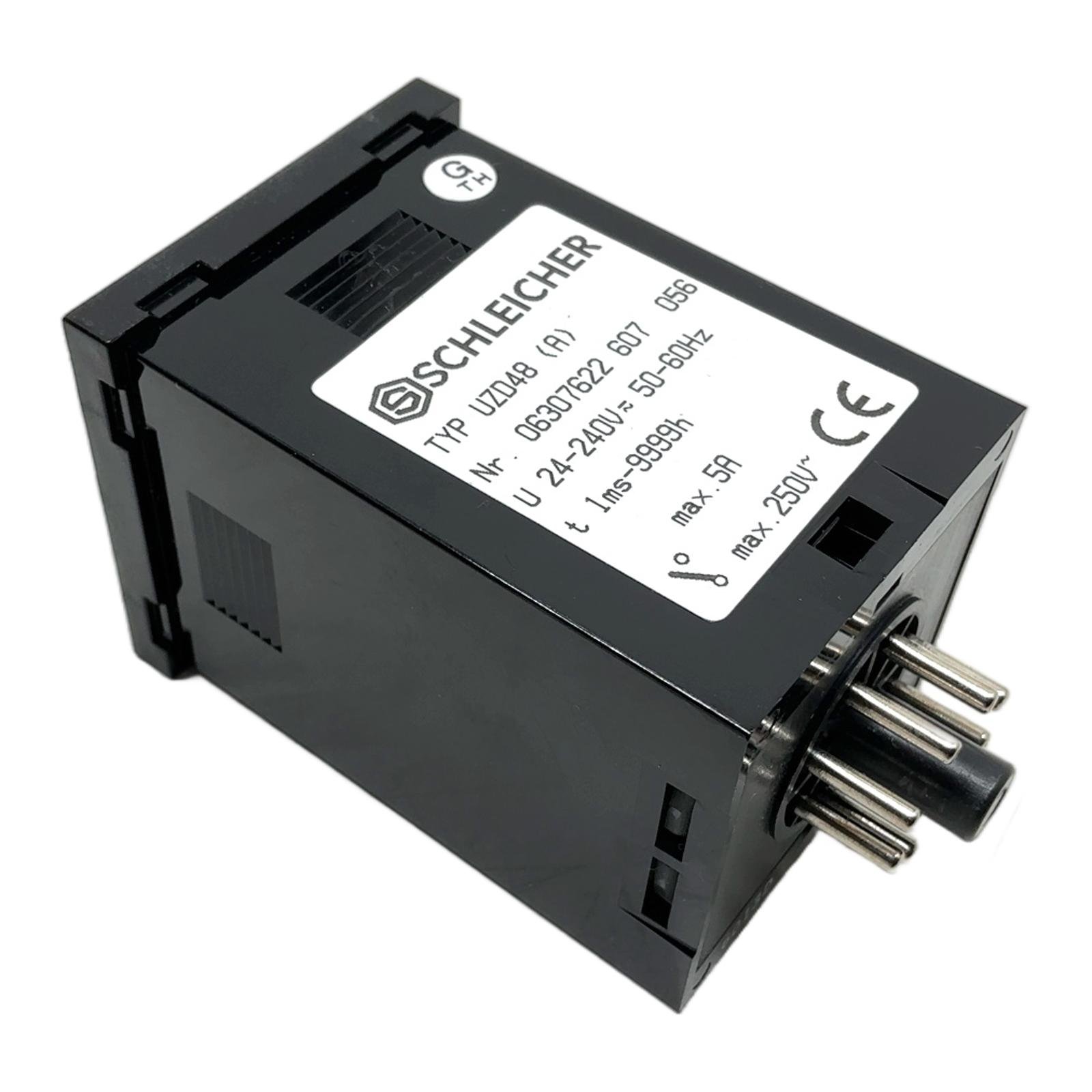

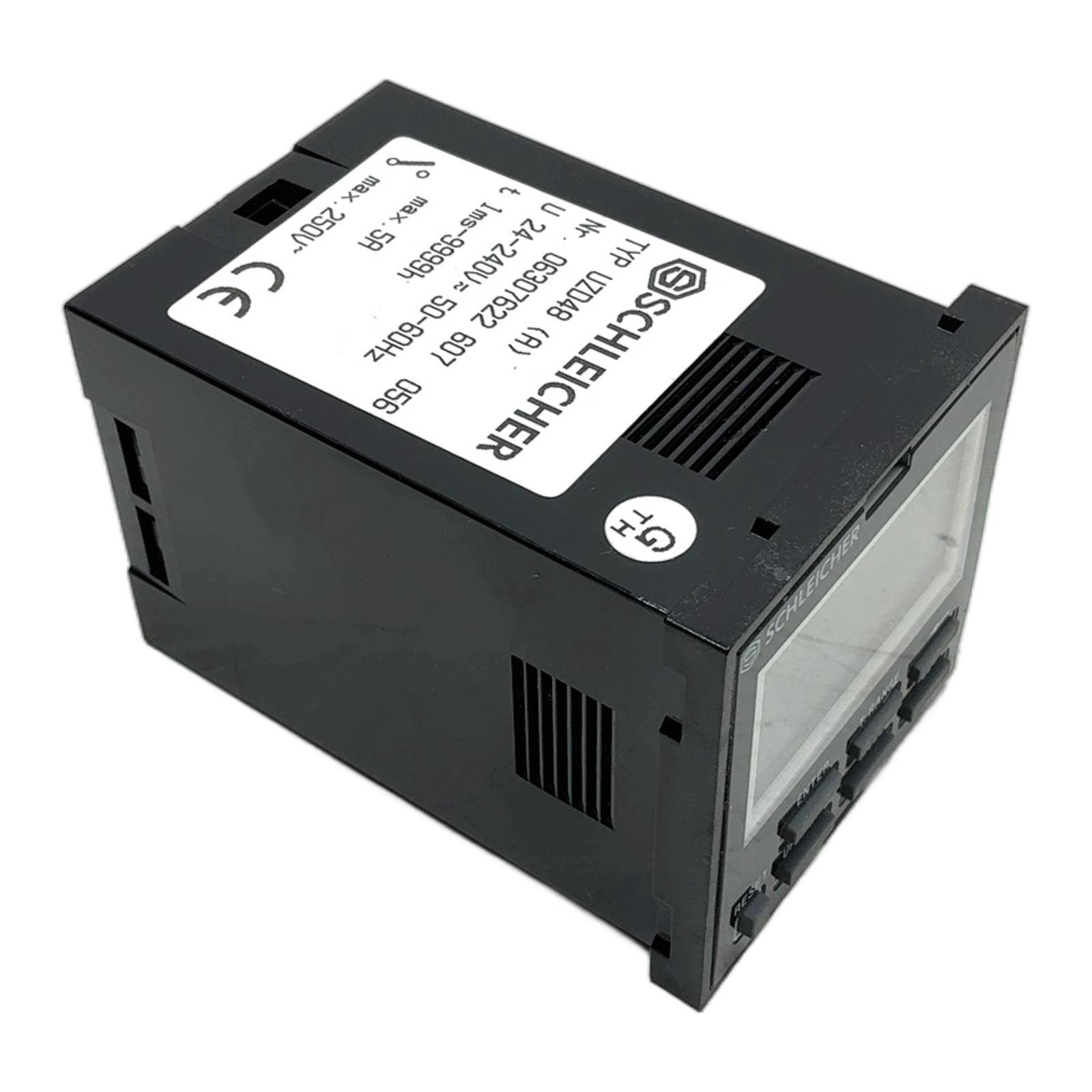

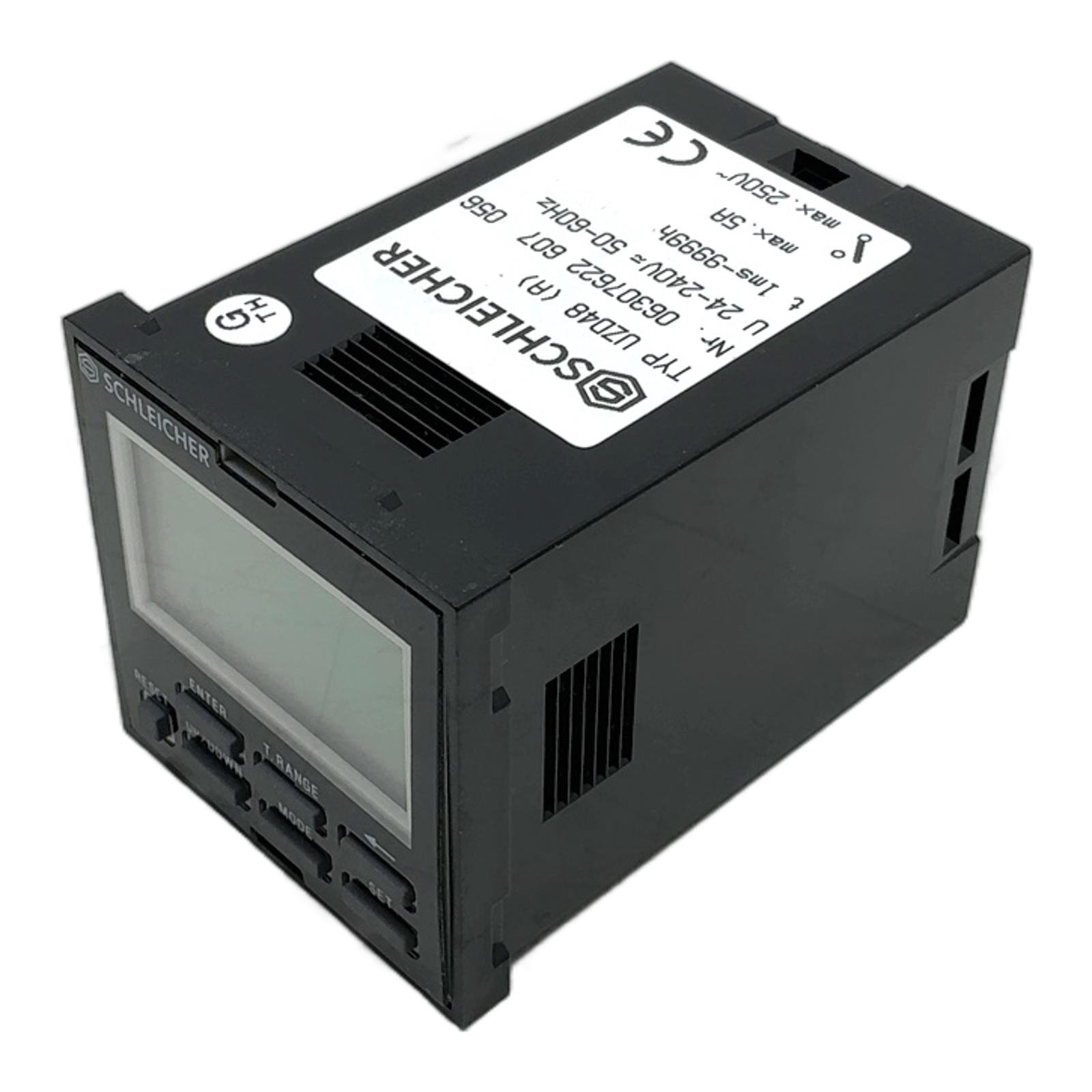

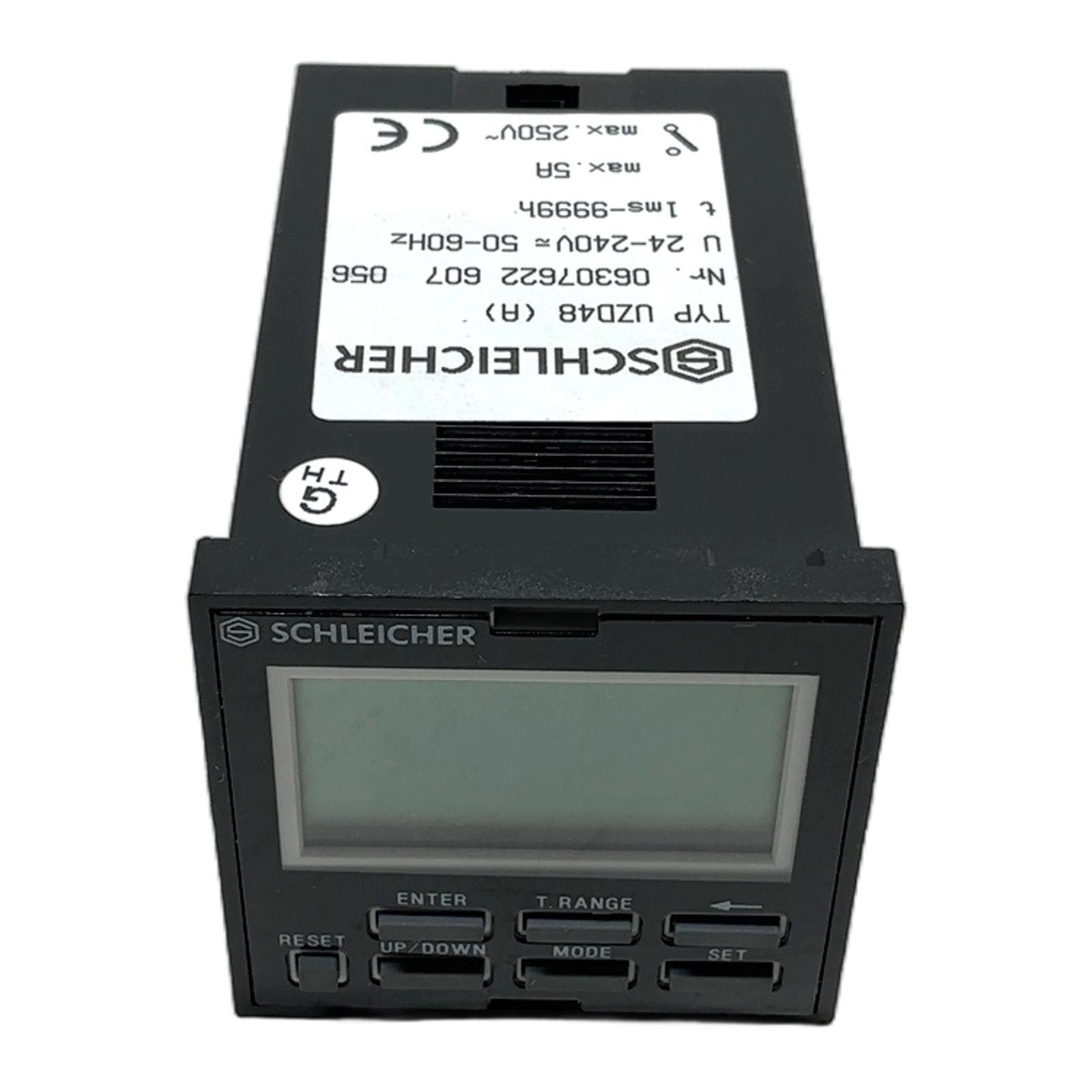

Schleicher UZD48 (A) Digital Multifunction Timer Description The Schleicher UZD48 (A) is a high-precision, digital multifunction timer relay designed for panel mounting. It provides a wide range of timing functions and operates on a universal supply voltage of 24-240V AC/DC, making it extremely versatile for various automation and control applications. Its clear digital display and intuitive button layout allow for easy setup and monitoring of timing processes. Specifications Manufacturer: Schleicher Type: UZD48 (A) Part Number: 06307622 607 056 Supply Voltage: 24-240V AC/DC (50-60Hz) Time Range: 1ms to 9999h Output Contacts: Relay, max. 5A / 250V Display: Digital LCD Mounting: 48x48mm Panel Mount Application This timer is ideal for applications requiring precise control over time-based sequences, such as in control cabinets, machine tools, packaging machinery, and process control systems. Country of Origin Made in Germany. CO2 Impact By purchasing this reused component, you are helping to avoid approximately 4.8 kg of CO2 emissions that would be generated from the production of a new one. Availability This item is a discontinued, new-old-stock product. Availability is limited. Order now from profideals for expert support and fast delivery. FAQ What is the pinout for the Schleicher UZD48?The pinout is shown on the side diagram labeled KS0279/1. Typically for these relays, pins 2 and 7 are for the supply voltage. The relay contacts are configured across the other pins. Always verify with the diagram on the unit before installation. Is this timer compatible with both AC and DC supply voltages?Yes, the label indicates a supply voltage range of 24-240V with symbols for both AC and DC, making it highly flexible for various control panel designs. How do I program the time functions on the UZD48?Programming is done via the front panel buttons. Use the ‘MODE’ button to select the desired timing function (e.g., on-delay, off-delay) and the ‘T.RANGE’, ‘UP/DOWN’, and ‘SET’ buttons to configure the time value and units. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Laatst bijgewerkt: Friday, March 13, 2026
