CONTROL TECHNIQUES UNI1405

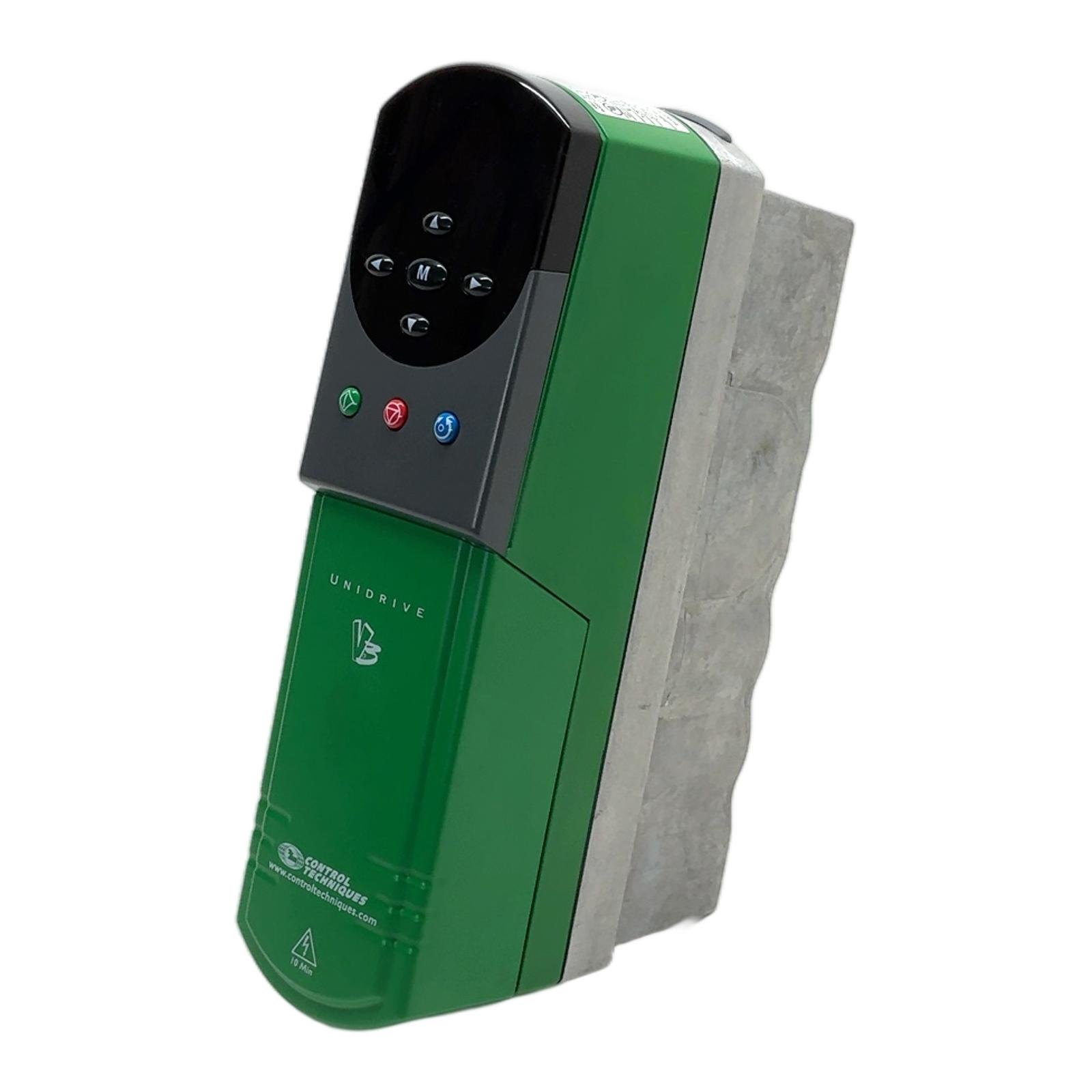

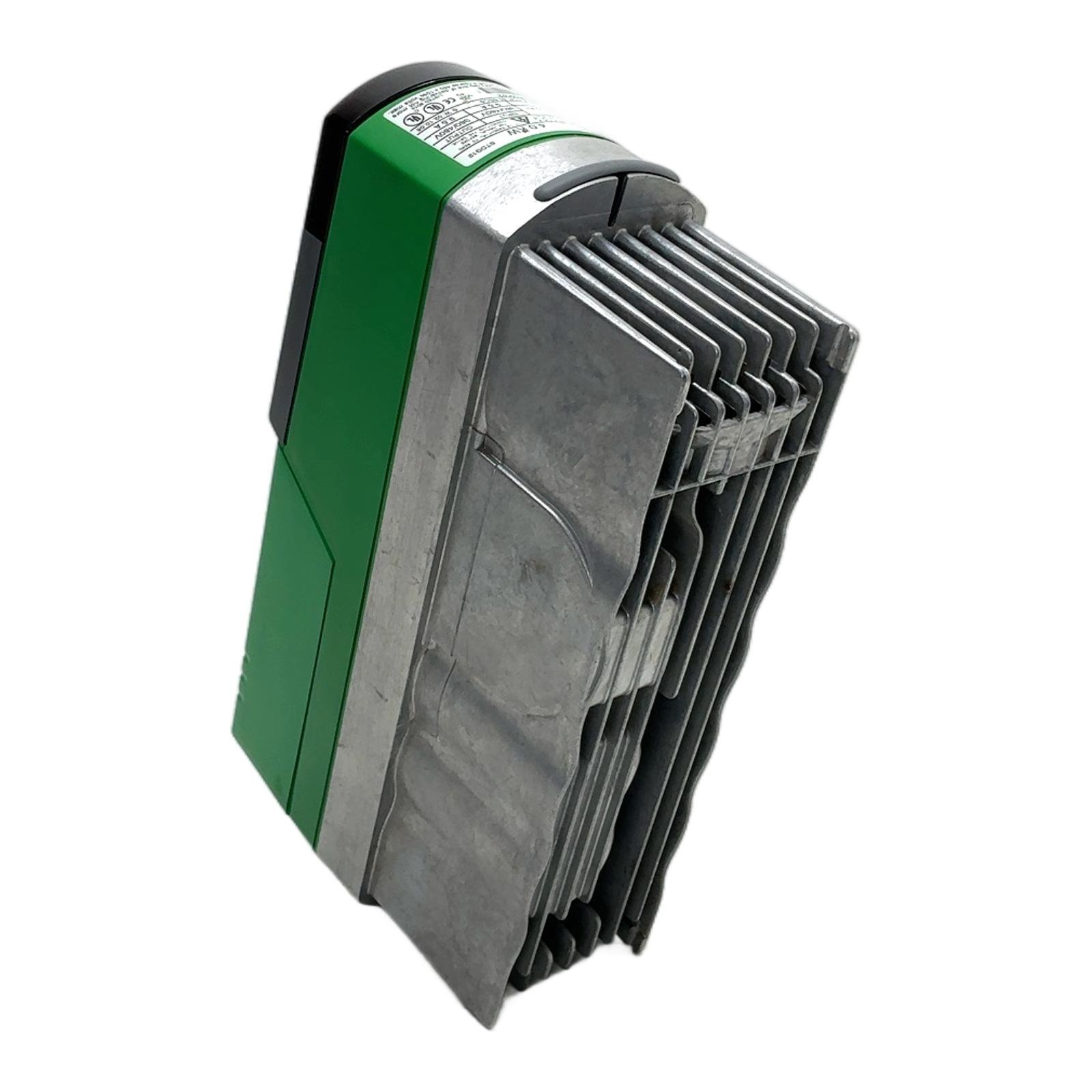

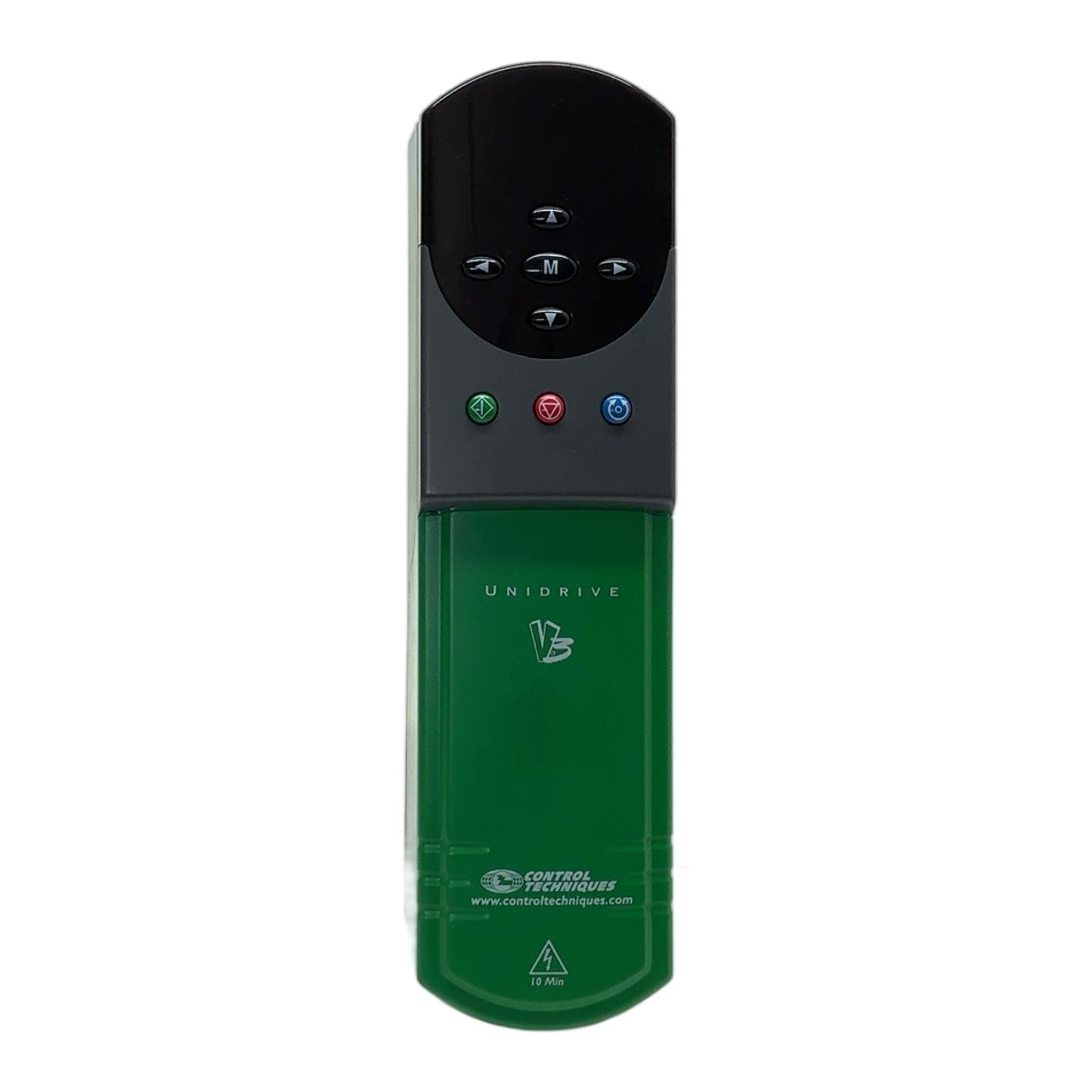

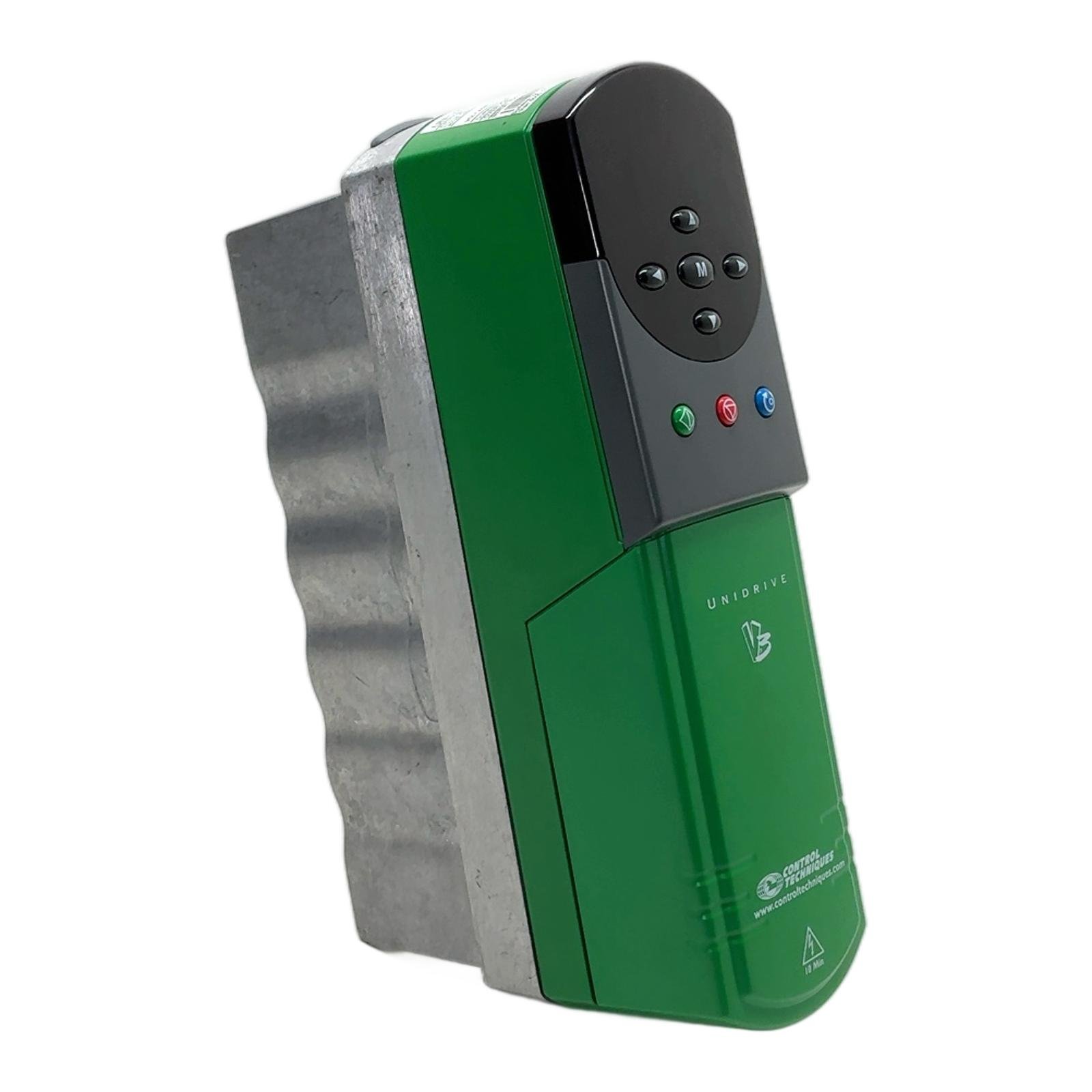

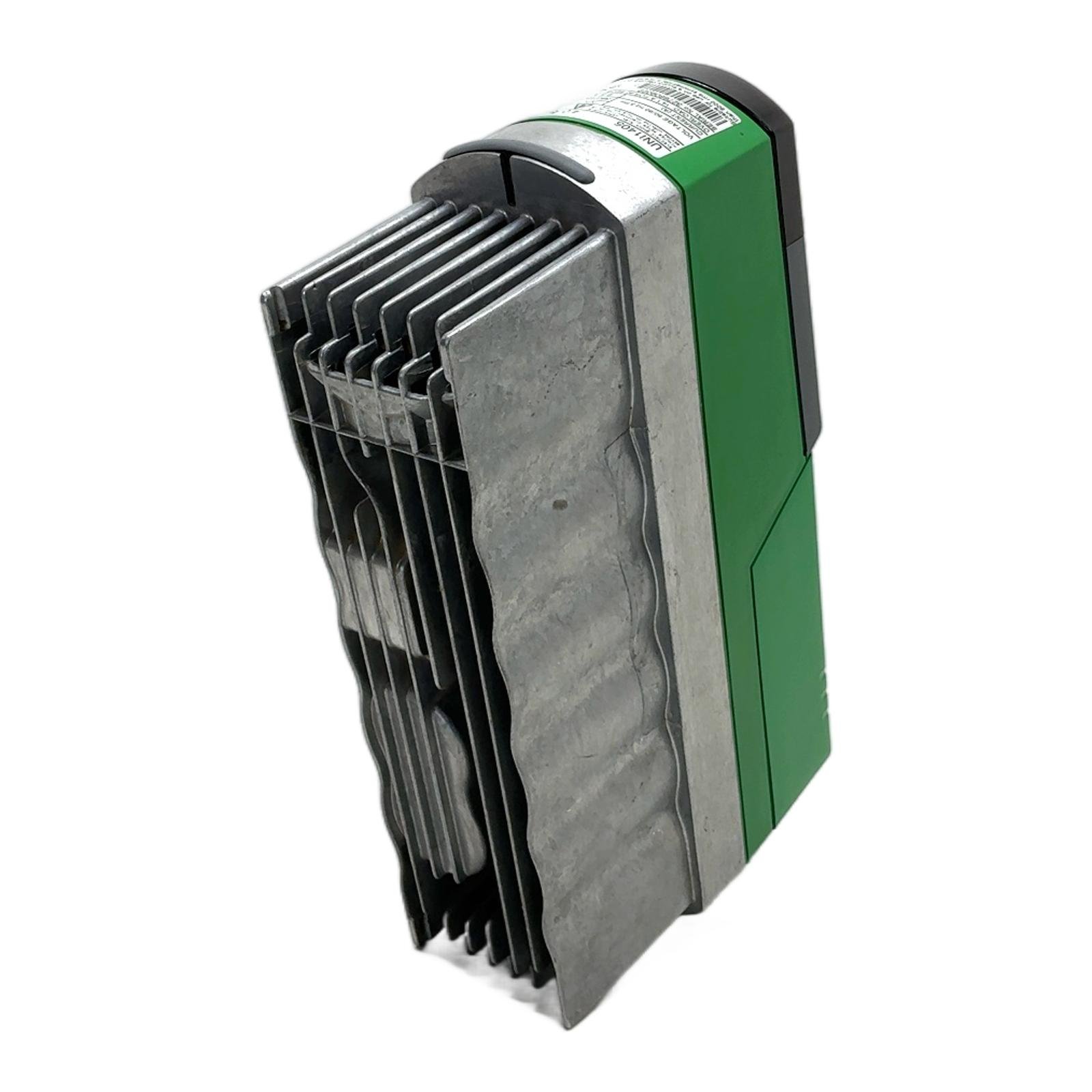

Control Techniques Unidrive SP UNI1405 – 4.0kW AC Drive Description The Control Techniques UNI1405 is a high-performance AC frequency inverter from the renowned Unidrive SP series. This versatile 4.0 kW drive is designed for panel mounting and provides precise control over three-phase AC motors. It is suitable for a wide range of industrial applications, offering flexibility through its multiple control modes (V/Hz, open-loop vector, closed-loop vector, and servo). Its robust design and plug-in option module capability make it a powerful solution for system integrators and maintenance teams. Order now from profideals for expert support and fast delivery. Specifications Manufacturer: Control Techniques Model: UNI1405 Series: Unidrive SP Power Rating: 4.0 kW Input Voltage: 380-480V AC (3-Phase) Input Frequency: 50/60 Hz Nominal Output Current: 9.5 A Overload Current: 14.1 A for 60 seconds Mounting: Panel Mount Label Info Model Number: UNI1405 Power: 4.0 KW Serial Number: 3276609022 Software Version: 02.10.06 Application Ideal for applications such as conveyors, pumps, fans, mixers, and other general-purpose machinery requiring variable speed motor control. The Unidrive SP is also capable of more demanding tasks like positioning and synchronization when used with appropriate feedback and option modules. Country of Origin Manufactured in the United Kingdom. CO2 Impact Choosing this pre-owned Control Techniques drive over a new one saves an estimated 55 kg of CO2. This saving is equivalent to the emissions from driving a car for 275 km. Availability This is an obsolete item, but it is available from our stock as a reliable spare part for existing installations. Condition is used but tested and fully functional. FAQ Question? What type of option modules are compatible with the Unidrive SP UNI1405?The Unidrive SP platform supports a wide range of ‘SM’ (Solutions Module) options. These include modules for additional I/O (SM-I/O Lite, SM-I/O Plus), feedback devices (SM-Encoder, SM-Resolver), and various fieldbus communications like PROFIBUS-DP (SM-PROFIBUS-DP), DeviceNet (SM-DeviceNet), and EtherCAT (SM-EtherCAT). Question? Can this drive operate in servo mode?Yes, the Unidrive SP is a universal drive that can operate in servo mode. To achieve this, it requires a high-resolution feedback option module (e.g., SM-Encoder or SM-Resolver) connected to a suitable servomotor. Question? What software is used to program and configure the Unidrive SP?The Unidrive SP series is configured using Control Techniques’ ‘CTSoft’ commissioning software. For more advanced programming and motion control applications, ‘SyPTPro’ (System Programming Tool) is used. Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
