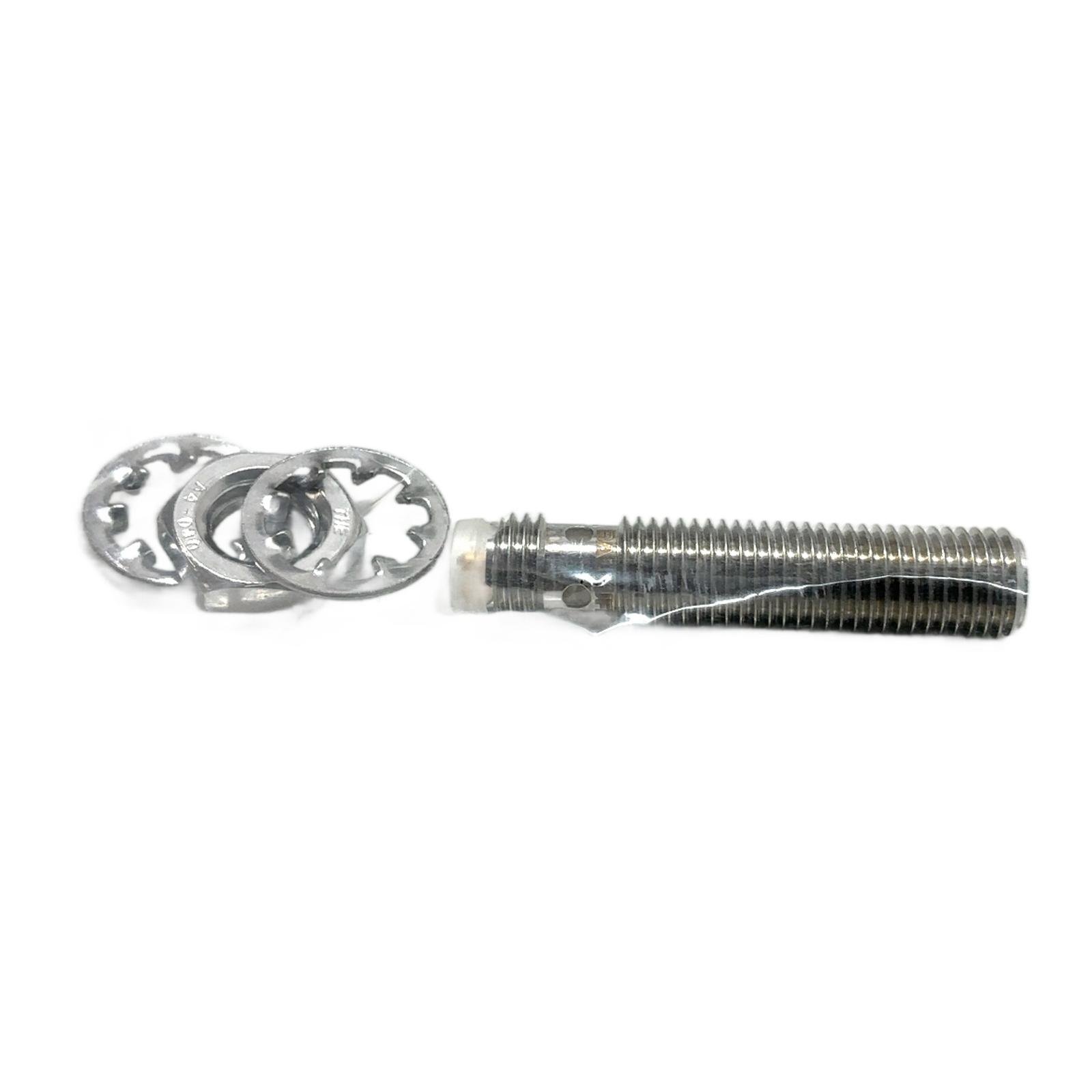

BALLUFF BES00CJ BES M08EE-PSC15B-S49G-003

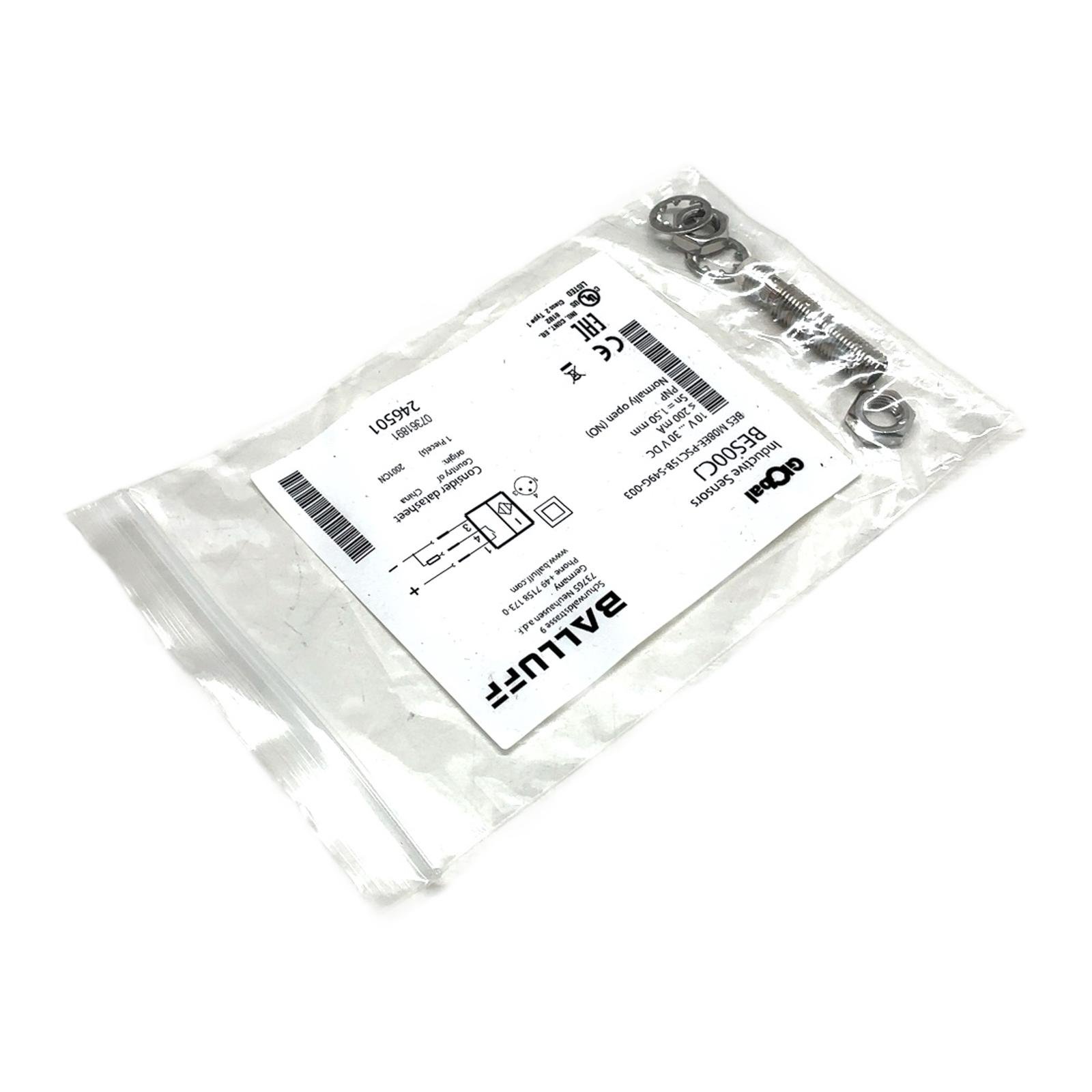

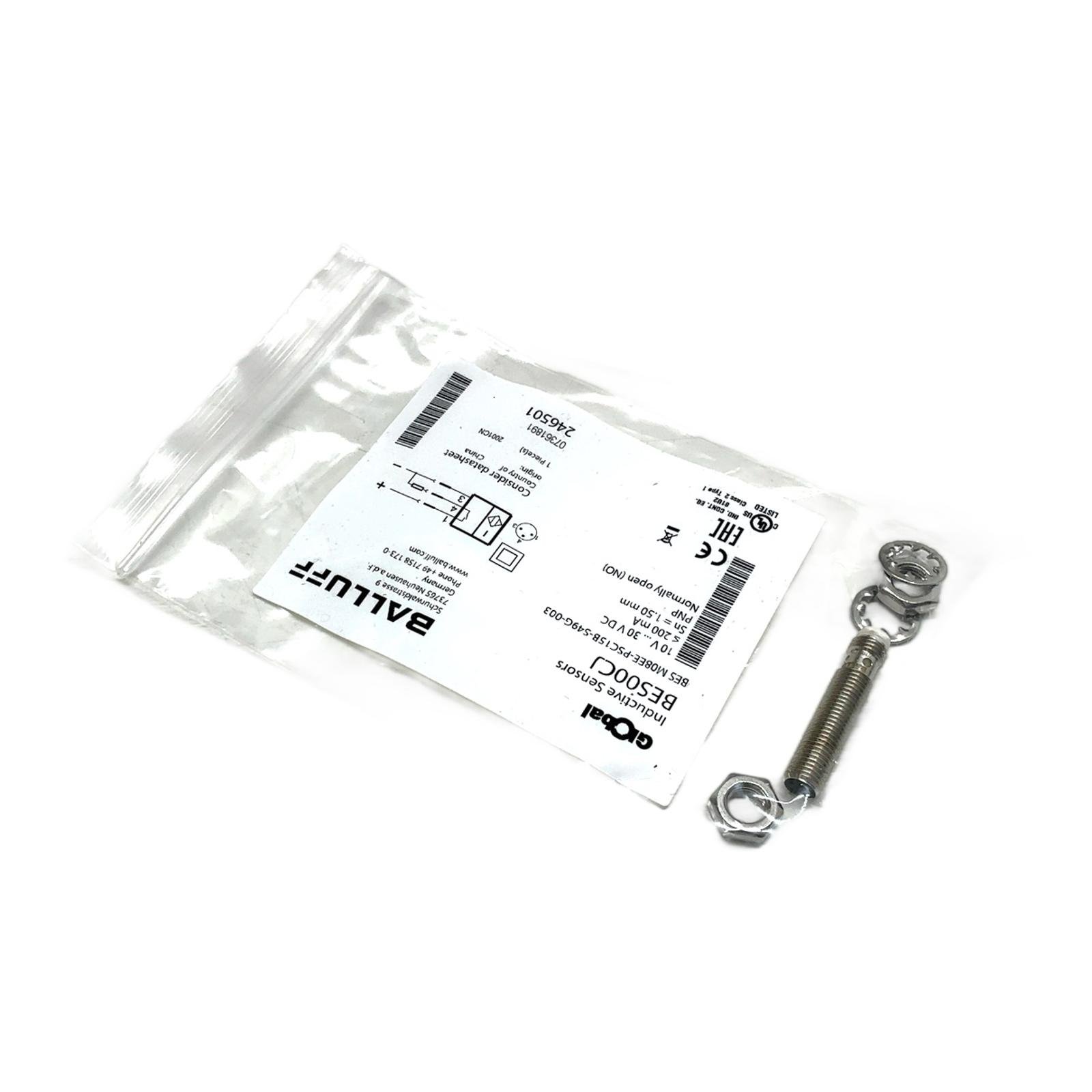

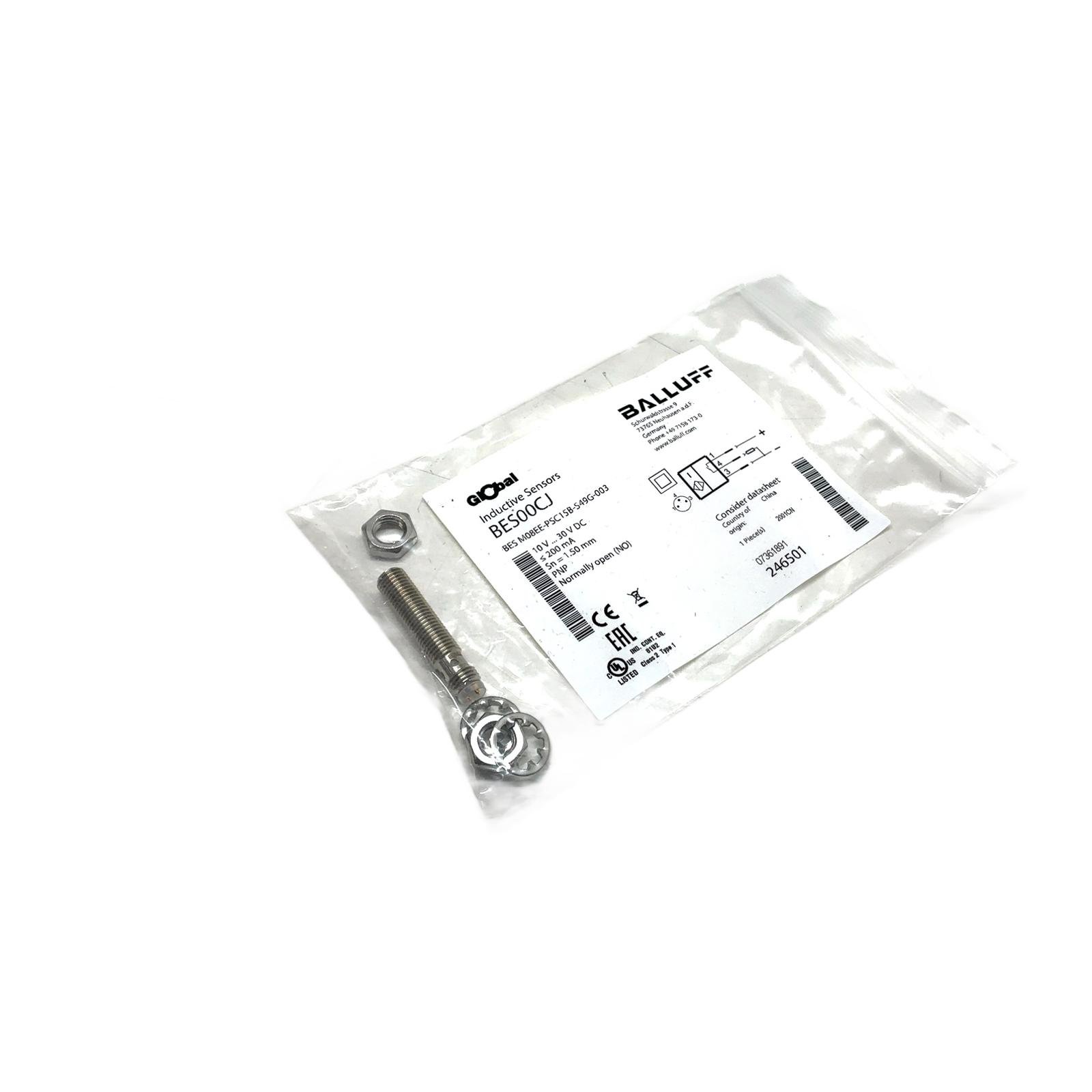

Balluff BES00CJ Inductive Sensor Description The Balluff BES00CJ (BES M08EE-PSC15B-S49G-003) is a high-quality inductive proximity sensor designed for detecting metallic objects in industrial automation environments. Part of the reliable Global series, it features a robust M8 stainless steel housing, making it suitable for demanding conditions. This sensor provides a precise sensing distance of 1.5 mm and is flush-mountable for easy and protected installation. Specifications Manufacturer: Balluff Model: BES00CJ Full Type: BES M08EE-PSC15B-S49G-003 Sensing Distance (Sn): 1.5 mm Housing Size: M8 x 1 Mounting: Flush mountable Output Type: PNP Switching Function: Normally Open (NO) Operating Voltage: 10 to 30V DC Connection: M8 male connector, 3-pin Housing Material: Stainless steel Protection Class: IP67 Label Info Order Code: BES00CJ Part Number: 07361891 / 246501 Application This sensor is commonly used for presence detection, positioning, and counting tasks in machinery, conveyor systems, and assembly lines where reliable detection of metal parts is crucial. Country of Origin Made in China. CO2 Impact By purchasing this reused component, you are contributing to a circular economy and avoiding approximately 1.0 kg of CO2 emissions associated with the production of a new unit. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What does “flush mountable” mean for this BES00CJ sensor?Flush mountable means the sensor can be installed so its sensing face is level with the surrounding metal mounting surface without affecting its performance. This is ideal for applications where the sensor needs to be protected or space is limited. What is the pinout for the M8 3-pin connector on this sensor?For this Balluff PNP sensor, the standard M8 3-pin pinout is typically: Pin 1 for positive supply (10-30V DC), Pin 3 for ground (0V), and Pin 4 for the signal output. Pin 2 is usually not connected. Always verify with the official datasheet before wiring. Can this PNP sensor be used in a system that requires an NPN input?No, not directly. This sensor has a PNP (sourcing) output, which provides a positive voltage signal. An NPN (sinking) input expects to be connected to ground. To use this sensor with an NPN input, you would need an intermediary device like a signal converter or a relay with a suitable coil voltage. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
