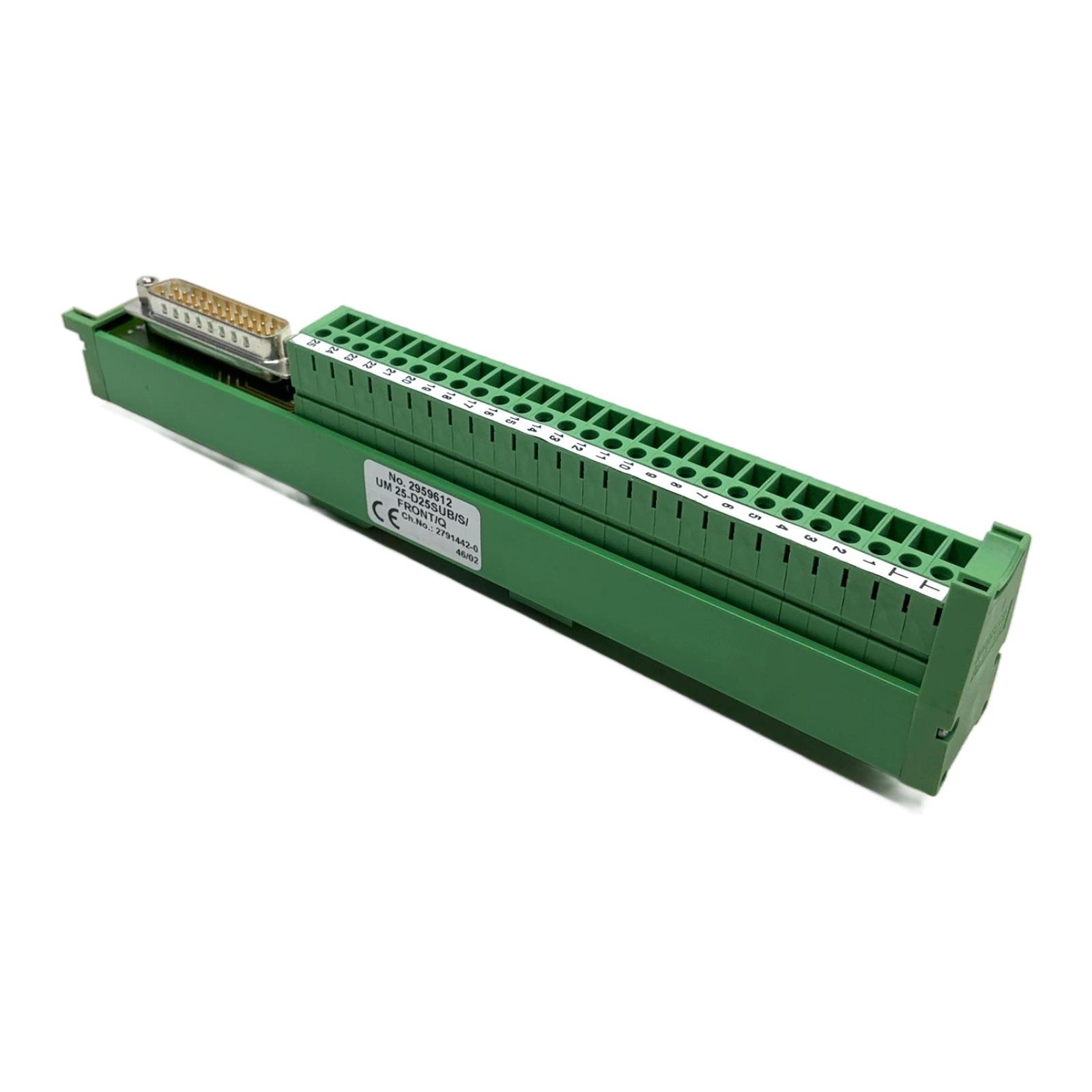

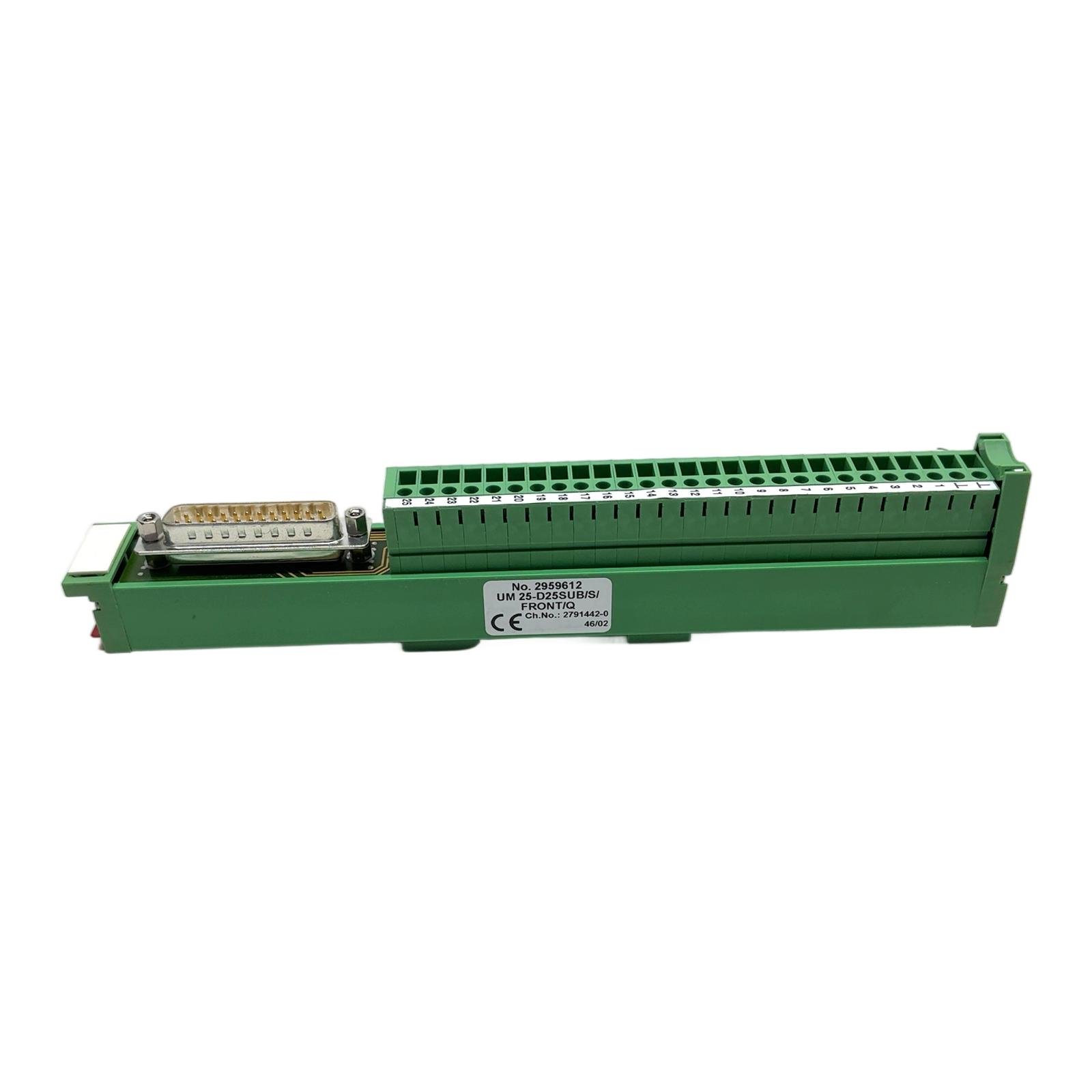

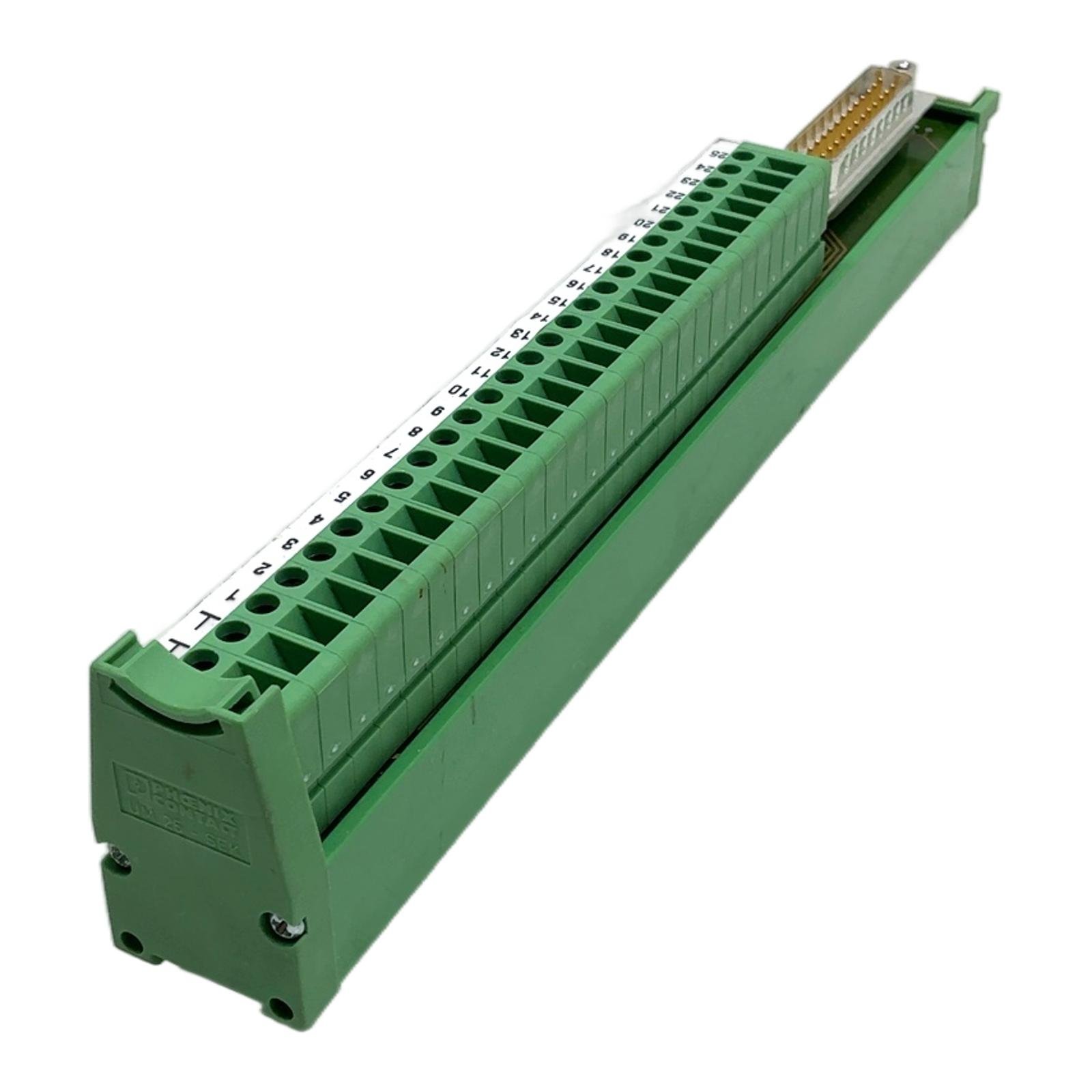

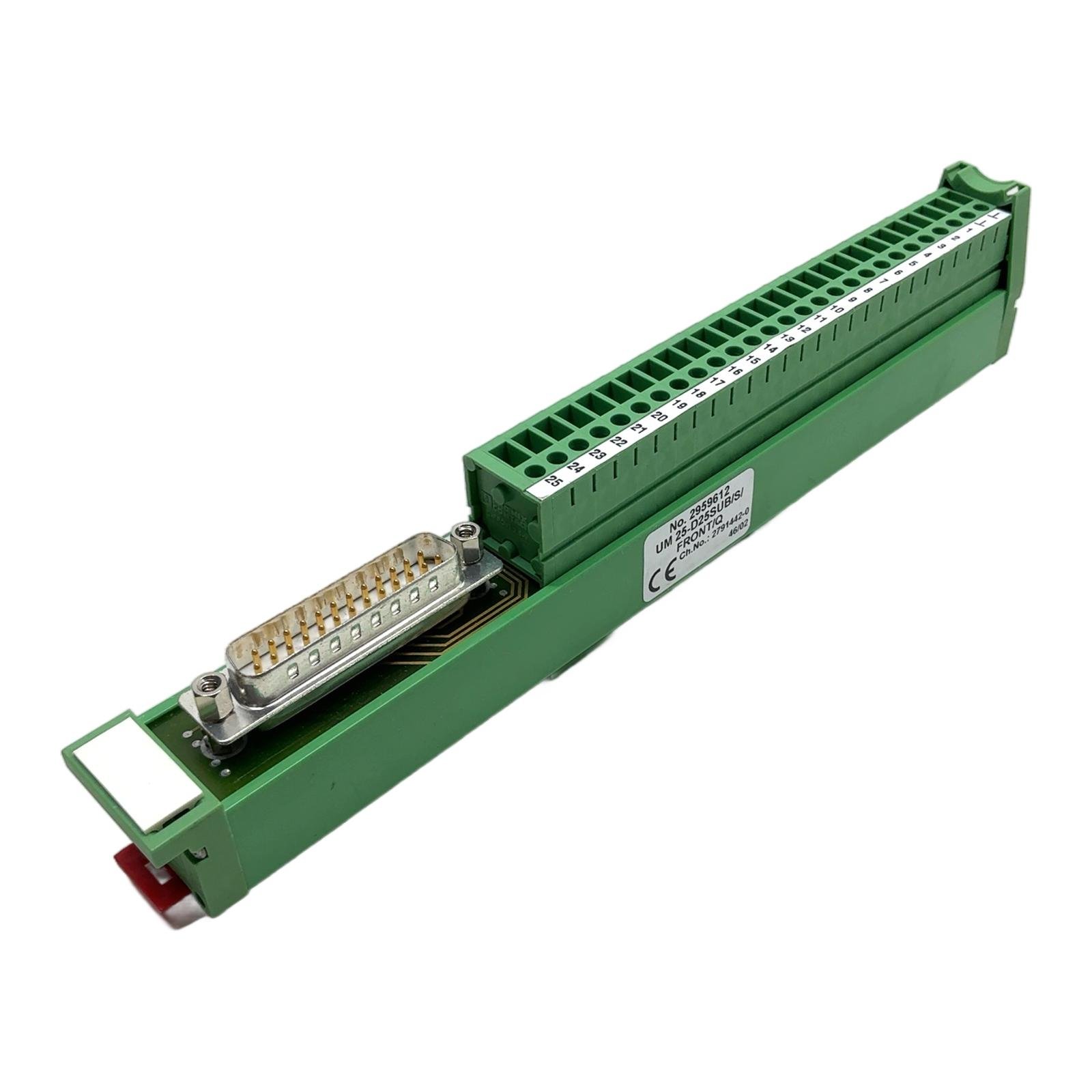

PHOENIX CONTACT UM 25-D25SUB/S/FRONT/Q 2959612

Phoenix Contact 25-Position D-SUB Interface Module Description The UM 25-D25SUB/S/FRONT/Q, part number 2959612, is a VARIOFACE interface module from Phoenix Contact. It is engineered to provide a seamless 1:1 connection from a 25-position D-SUB male connector to screw terminals. This DIN rail mountable module is ideal for simplifying I/O wiring in control cabinets, saving installation time and ensuring reliable signal transmission. Specifications Manufacturer: Phoenix Contact Type: UM 25-D25SUB/S/FRONT/Q Part Number: 2959612 Number of positions: 25 Connection 1: D-SUB male connector (25-pin) Connection 2: Screw connection terminals Nominal Voltage: 125 V AC/DC Max. Current per branch: 2.5 A Ambient Temperature (operation): -20 deg C to 50 deg C Mounting: DIN rail NS 35/7.5 Label Info No. 2959612 UM 25-D25SUB/S/FRONT/Q Ch.No.: 2791442-0 Application This module is perfectly suited for applications in industrial automation, process control, and measurement systems where signals from a D-SUB cable need to be distributed to individual wires. It is commonly used with PLCs, data acquisition cards, and other control equipment. Country of Origin Made in Germany. CO2 Impact Choosing this pre-owned component over a new one prevents the emission of approximately 6.0 kg of CO2, contributing to a more sustainable industrial practice. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the maximum current and voltage rating for this module?The module is rated for a maximum current of 2.5 A per connection and a nominal voltage of 125 V AC/DC. What wire gauge (AWG) is compatible with the screw terminals?The screw terminals are designed to accept wire sizes from 26 to 14 AWG (0.14 mm2 to 2.5 mm2). Is this module 1:1 wired from the D-Sub pins to the terminals?Yes, this is a passive module with a 1:1 connection, meaning pin 1 on the D-SUB connector corresponds to terminal 1, pin 2 to terminal 2, and so on. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
