NSK UCHP204D1

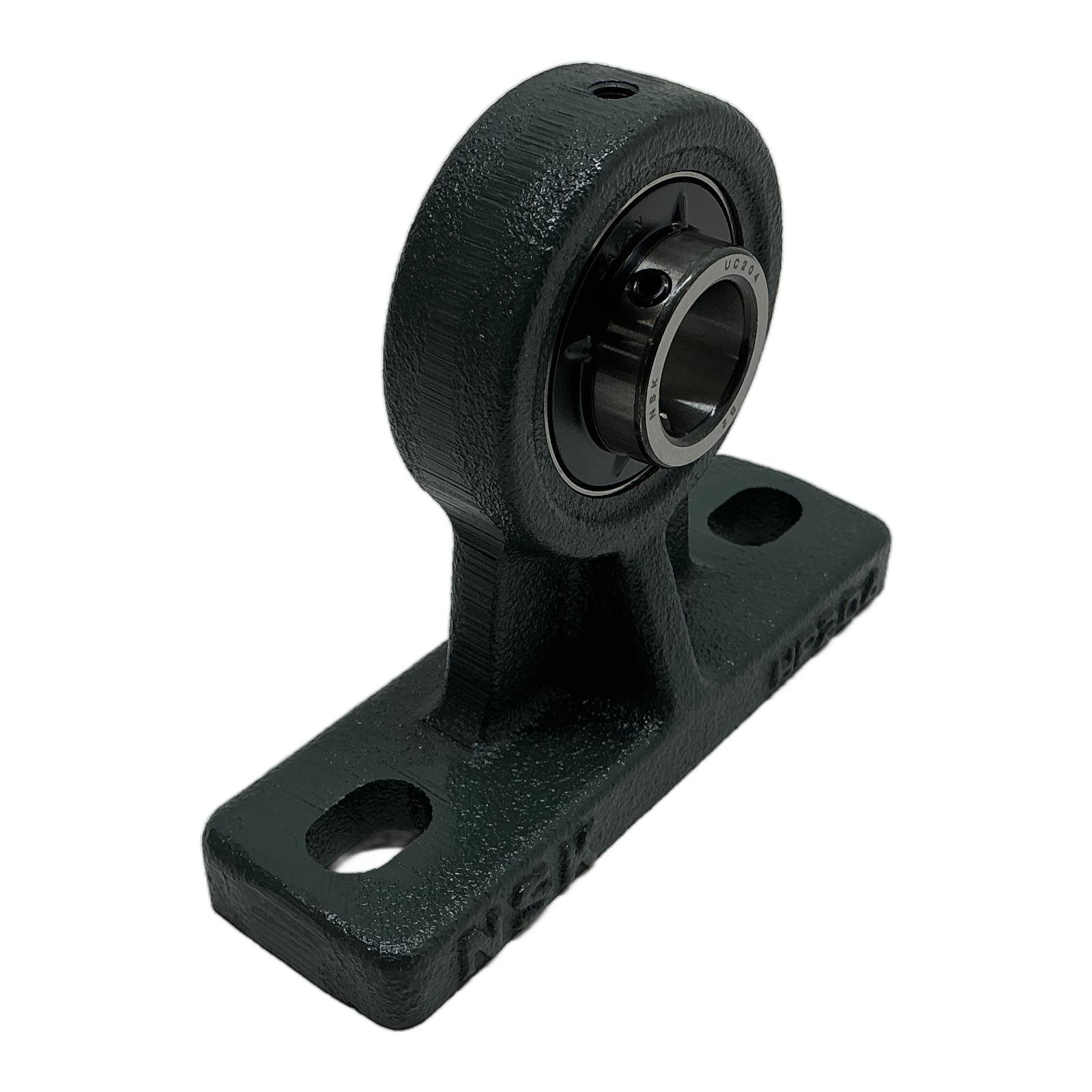

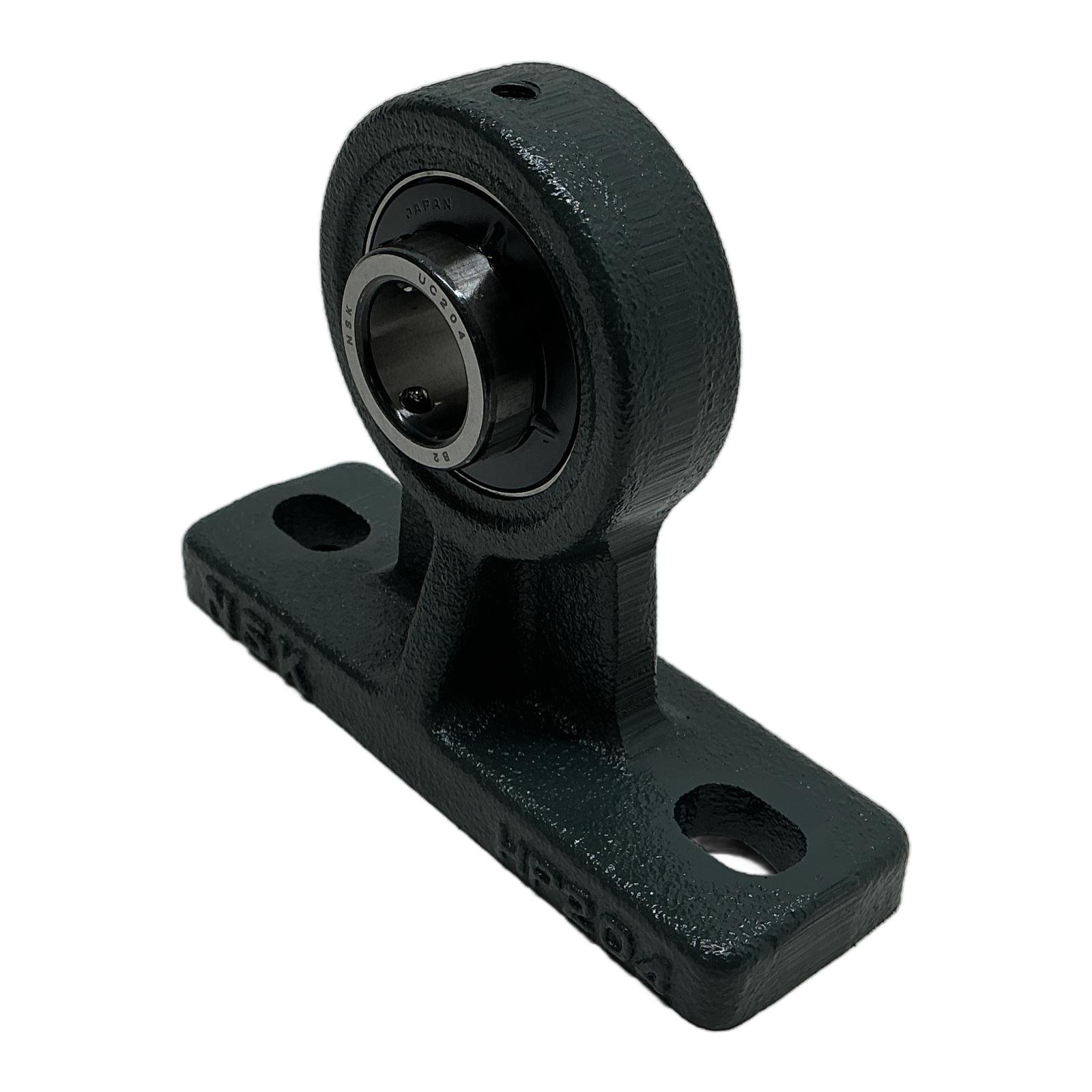

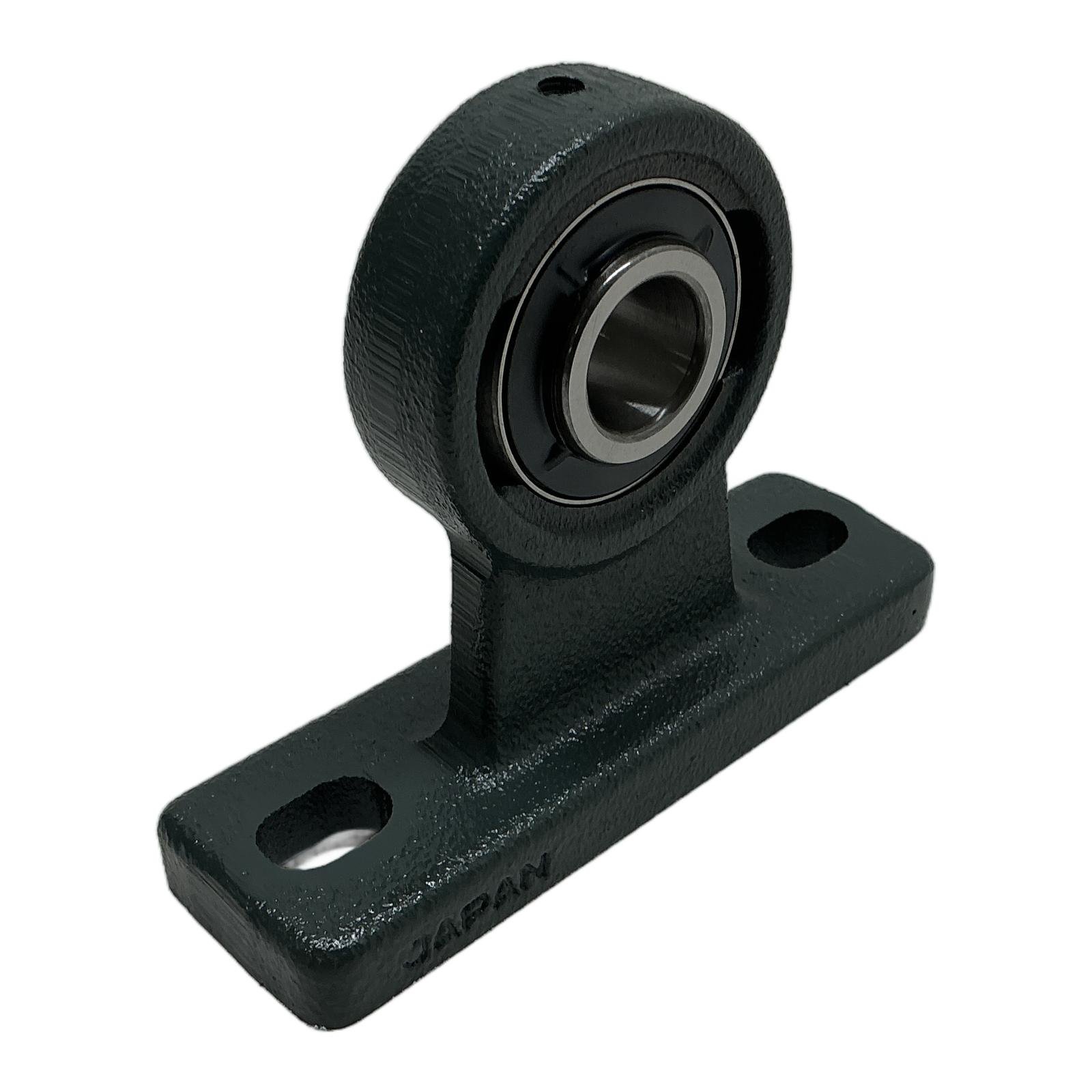

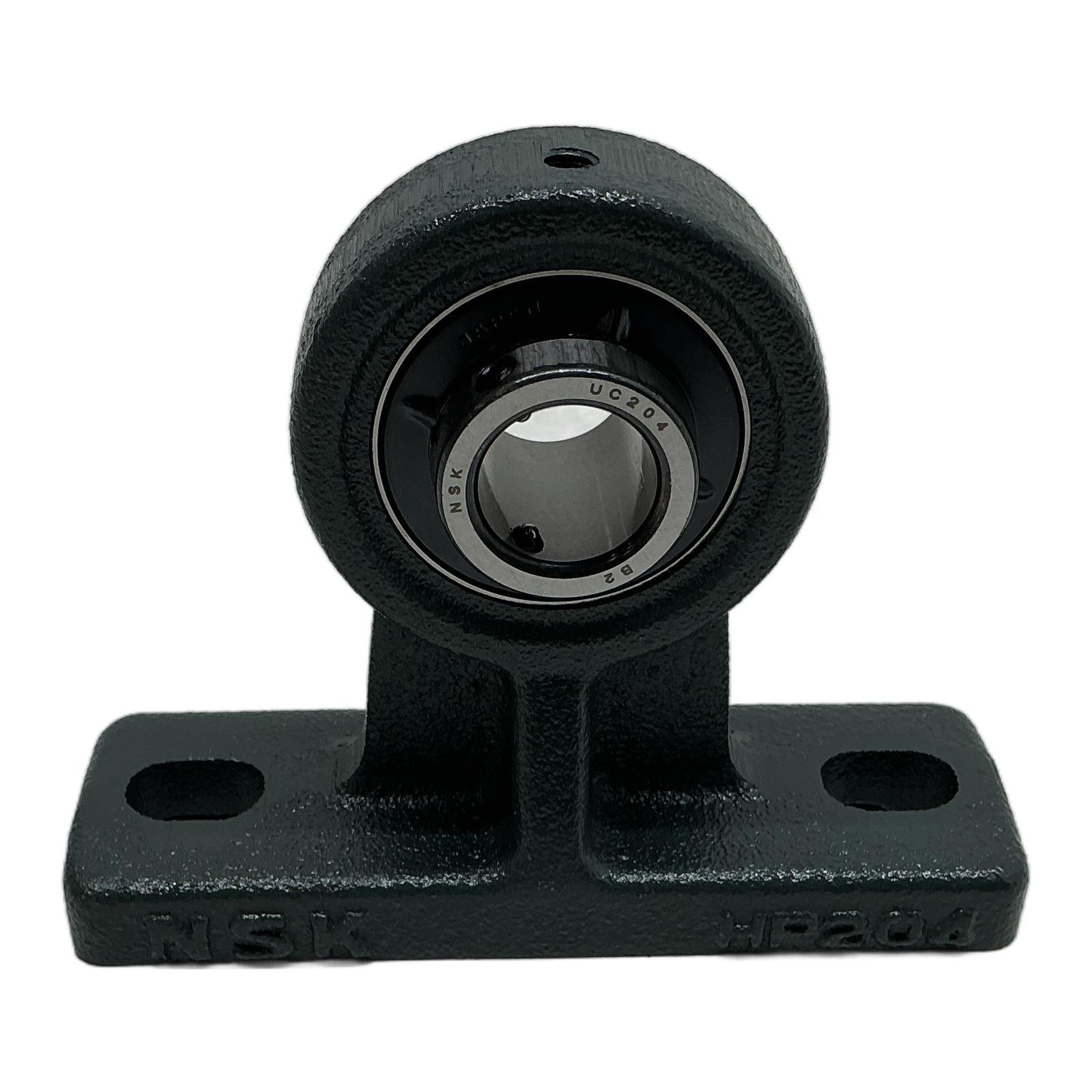

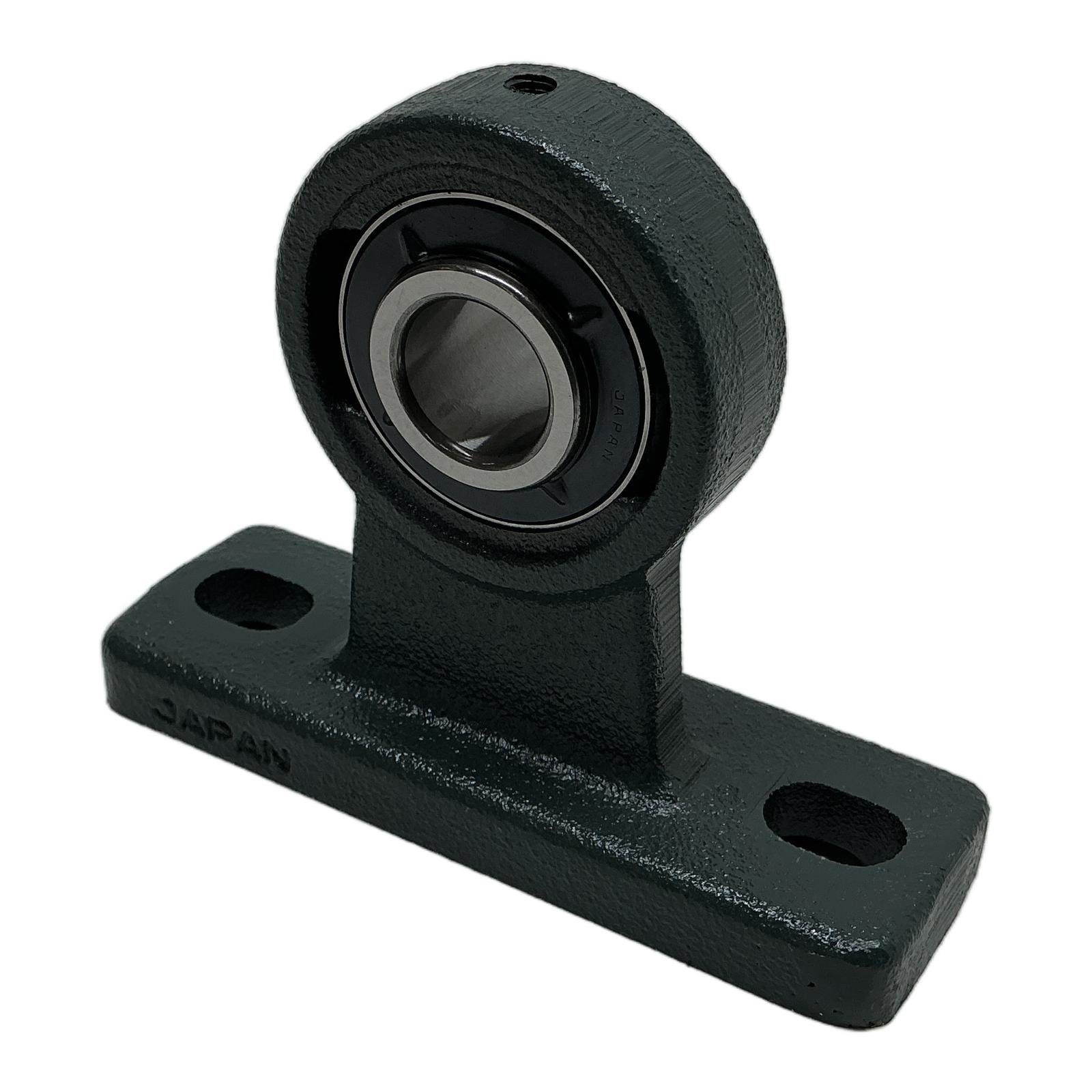

NSK UCHP204D1 High Center Pillow Block Bearing Unit Description The NSK UCHP204D1 is a robust and reliable high center pillow block bearing unit, commonly referred to as a hanger bearing. It is designed for applications requiring shaft support from a vertical surface. The unit comprises a durable cast iron housing (HP204) and a high-performance bearing insert (UC204) with a 20mm bore, secured to the shaft via set screws. Specifications Manufacturer: NSK Part Number: UCHP204D1 Product Type: High Center Pillow Block Bearing Unit Bore Diameter: 20 mm Housing Material: Cast Iron Bearing Insert: UC204 Locking Method: Set Screw Locking Housing Number: HP204 Label Info Brand: NSK Model: UCHP204D1 Housing: HP204 Application This hanger bearing unit is ideally suited for use in conveyor systems, food processing equipment, agricultural machinery, and other industrial applications where a take-up or hanging support is necessary. Country of Origin Made in Japan. CO2 Impact By choosing this pre-owned but unused bearing unit, you help avoid the emission of approximately 1.1 kg of CO2. This saving is comparable to the emissions from driving an average car for 5.5 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the main advantage of a high center pillow block like the UCHP204D1?Its elevated design provides necessary clearance and stability for mounting on vertical surfaces, making it perfect for hanger or take-up frame applications. How do I correctly tighten the set screws on the UC204 bearing insert?It is crucial to follow the manufacturer’s recommended torque specifications. Tighten the two set screws alternately to ensure they apply even pressure on the shaft, which prevents misalignment and potential shaft damage. Is the UCHP204D1 pre-lubricated and ready for installation?Yes, NSK bearing units are factory pre-lubricated with high-quality grease (the D1 suffix indicates standard lubrication) and are sealed, making them ready for installation out of the box for most standard applications. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: March 13, 2026
