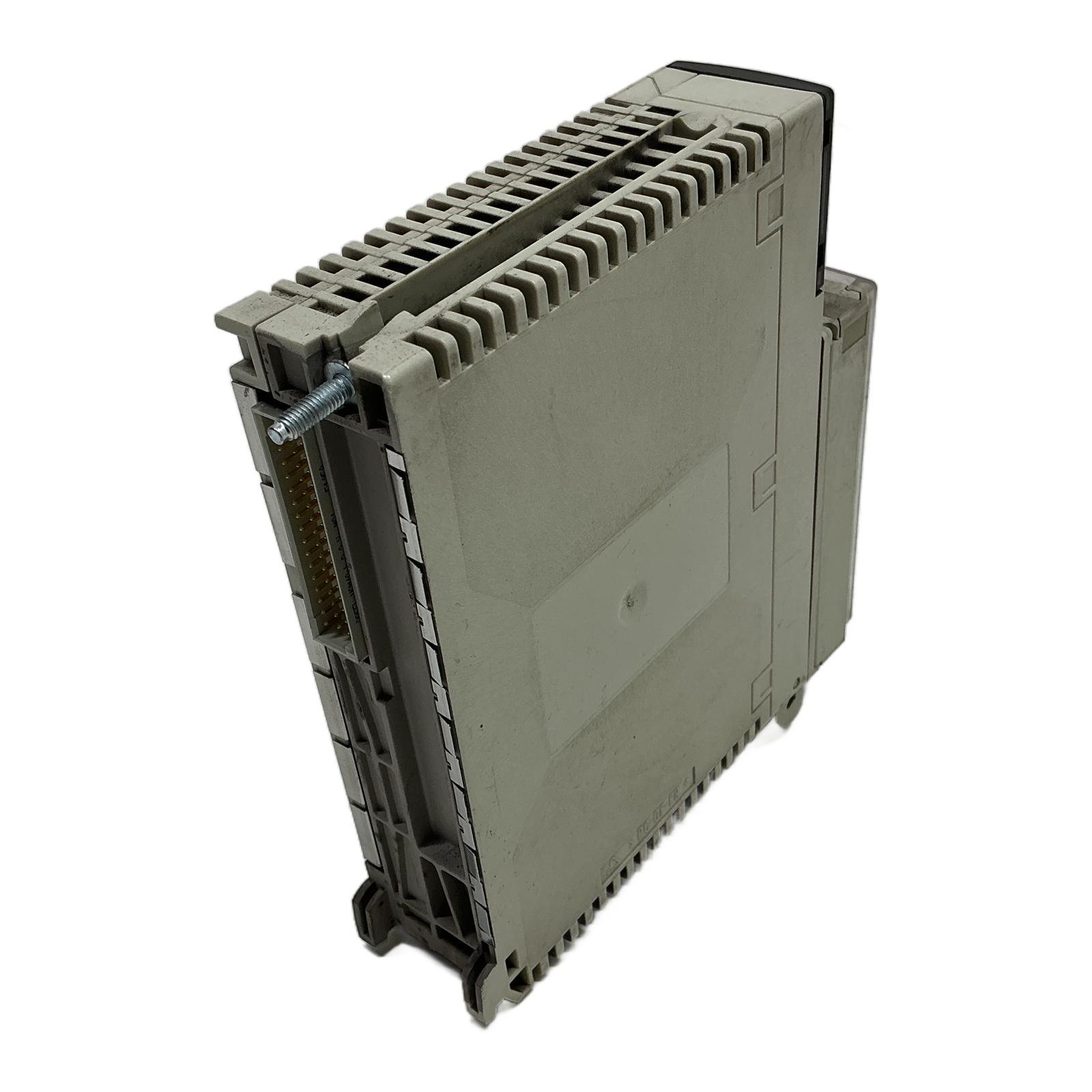

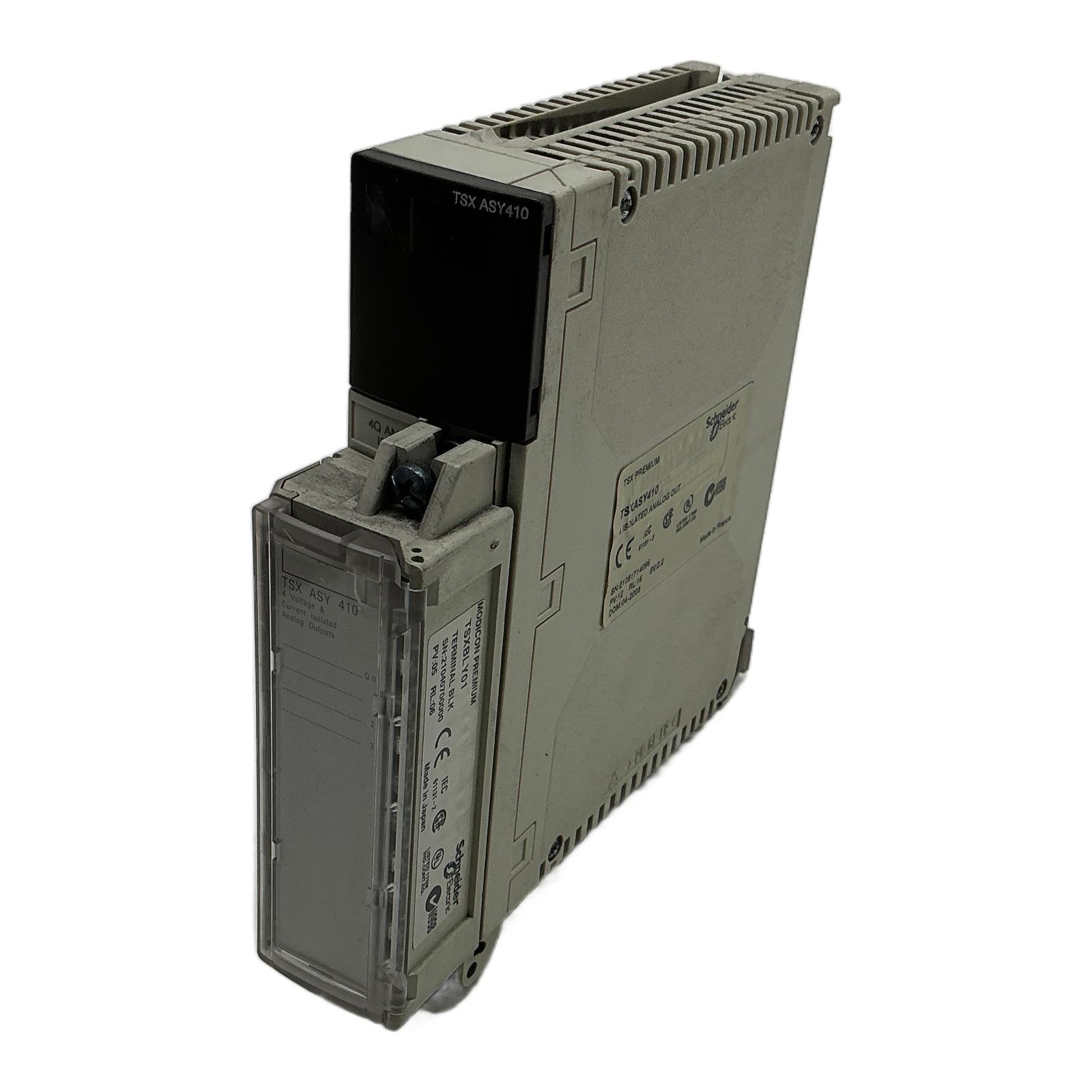

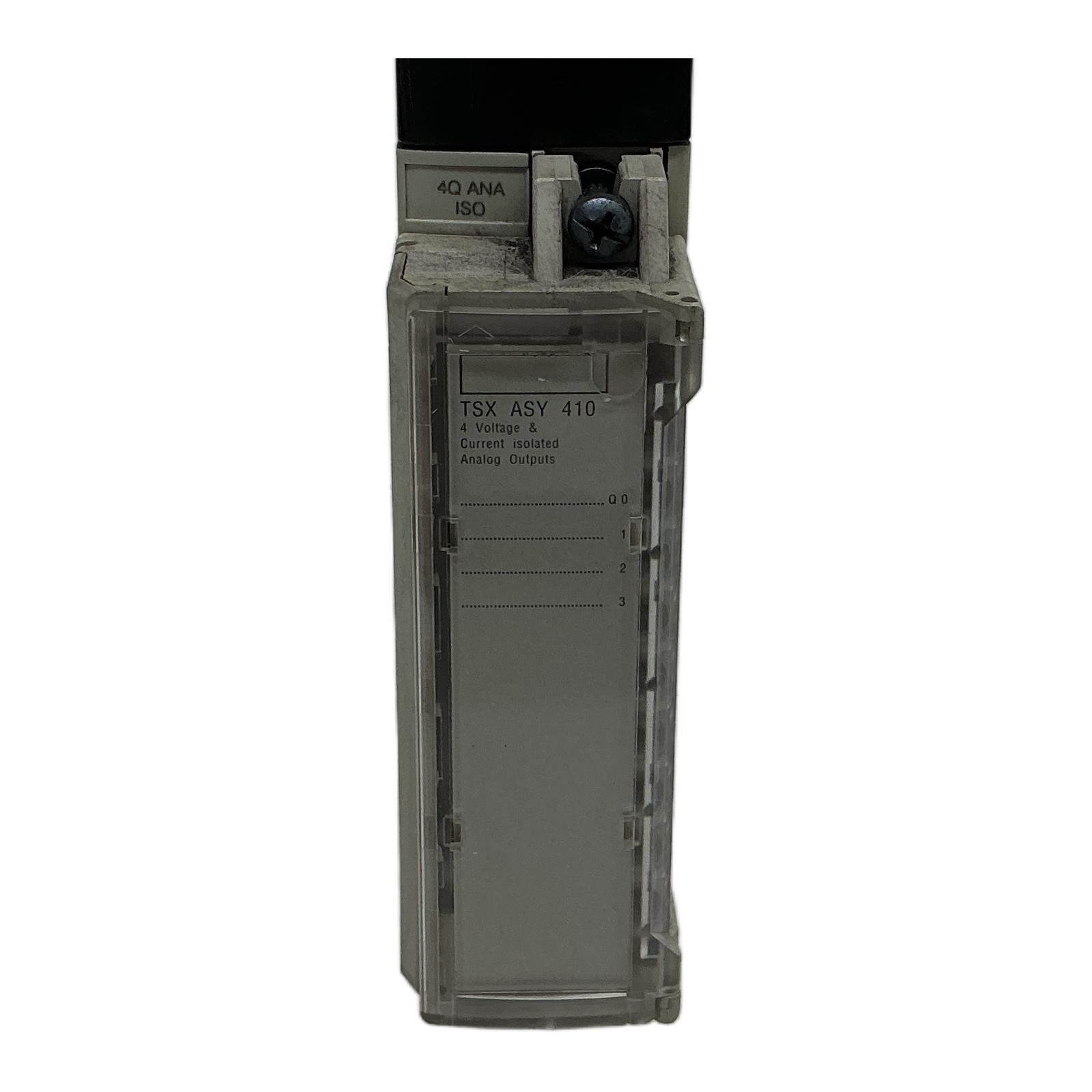

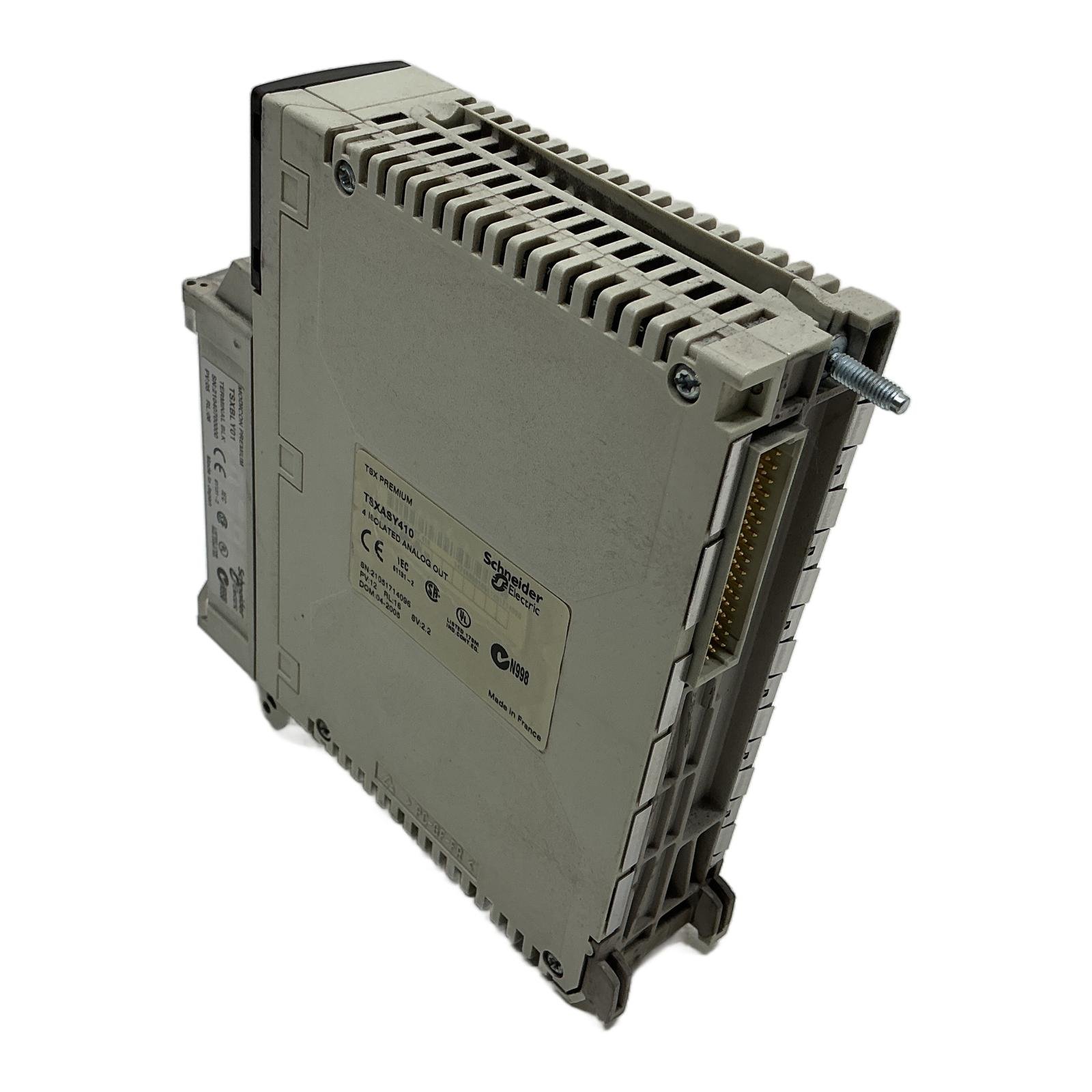

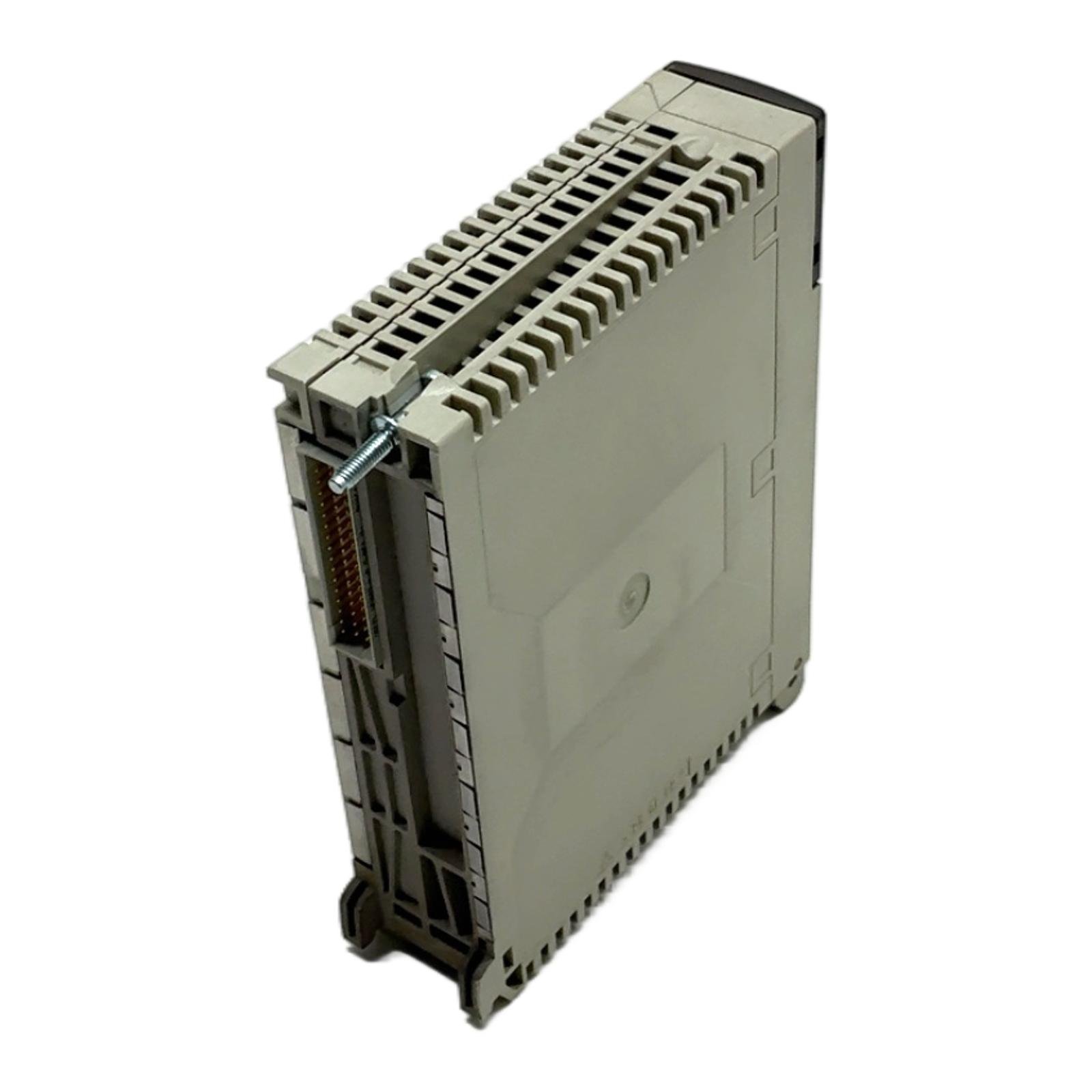

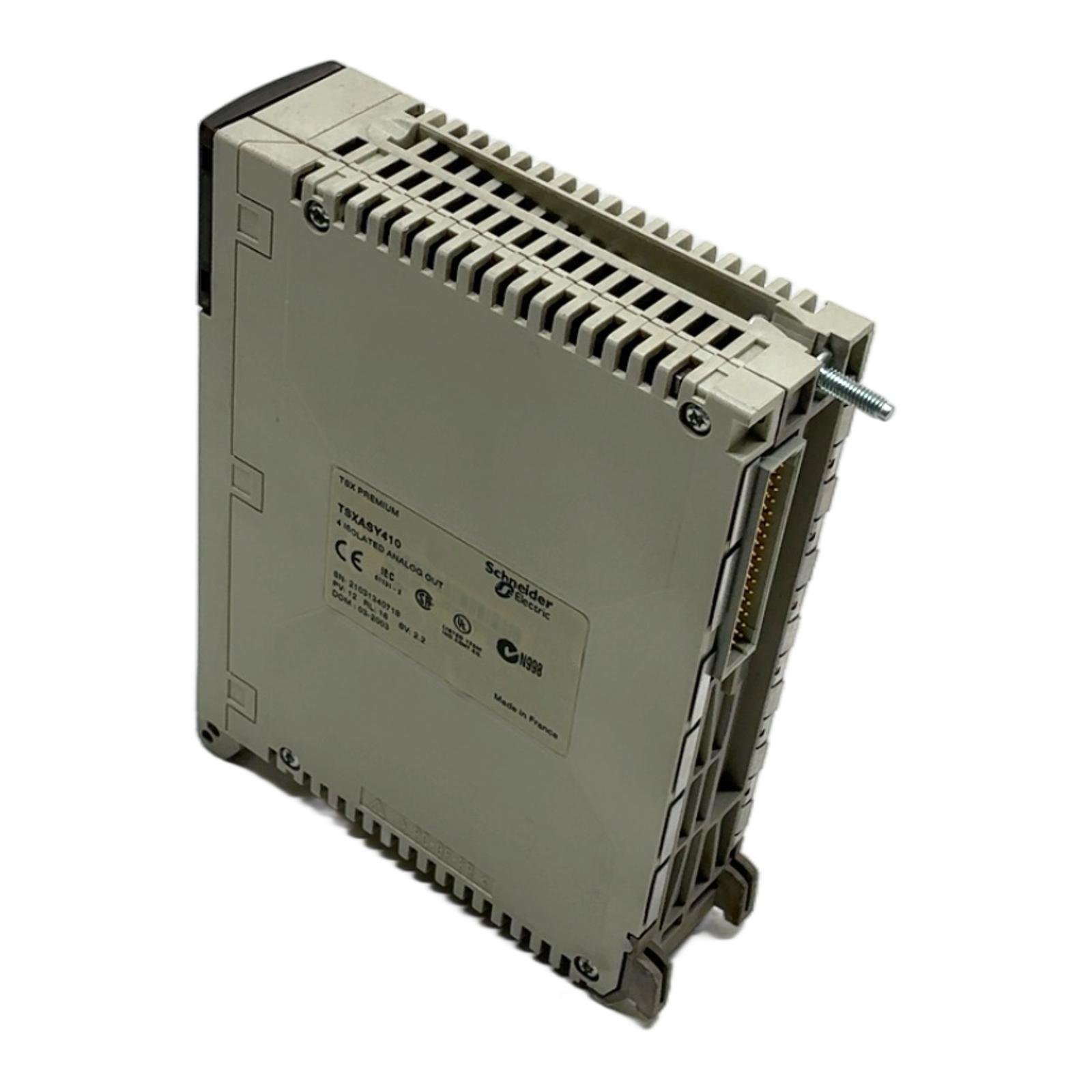

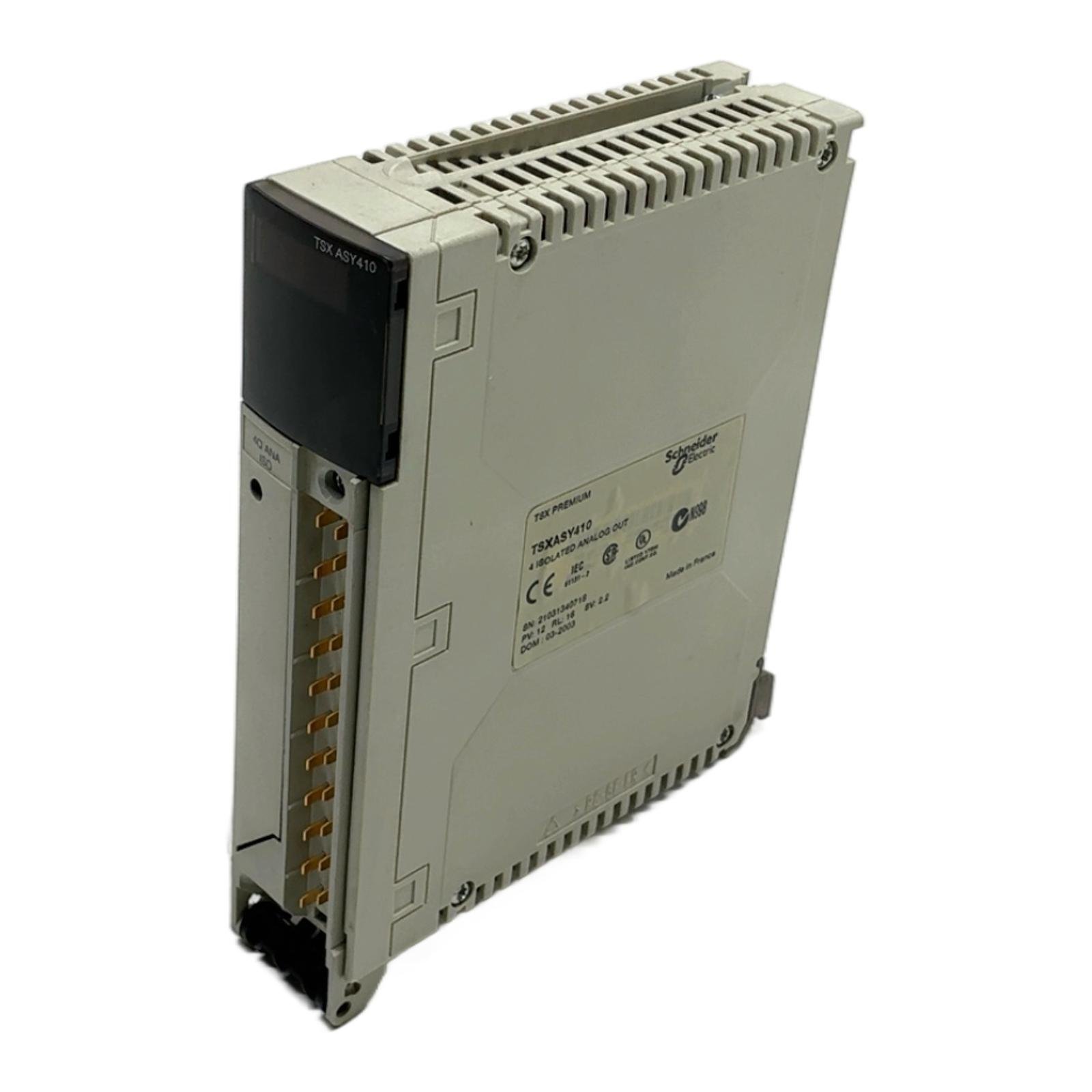

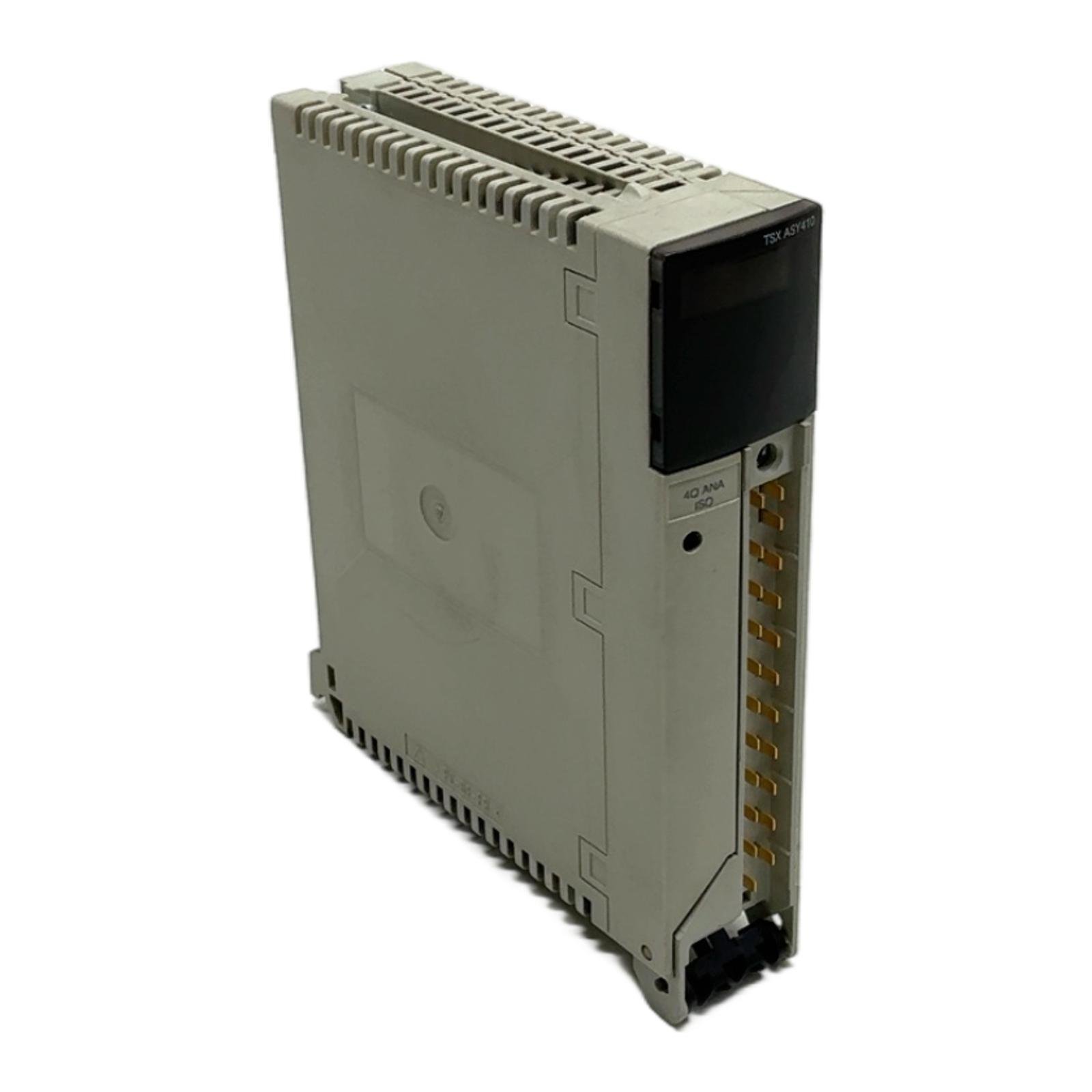

SCHNEIDER ELECTRIC TSXASY410

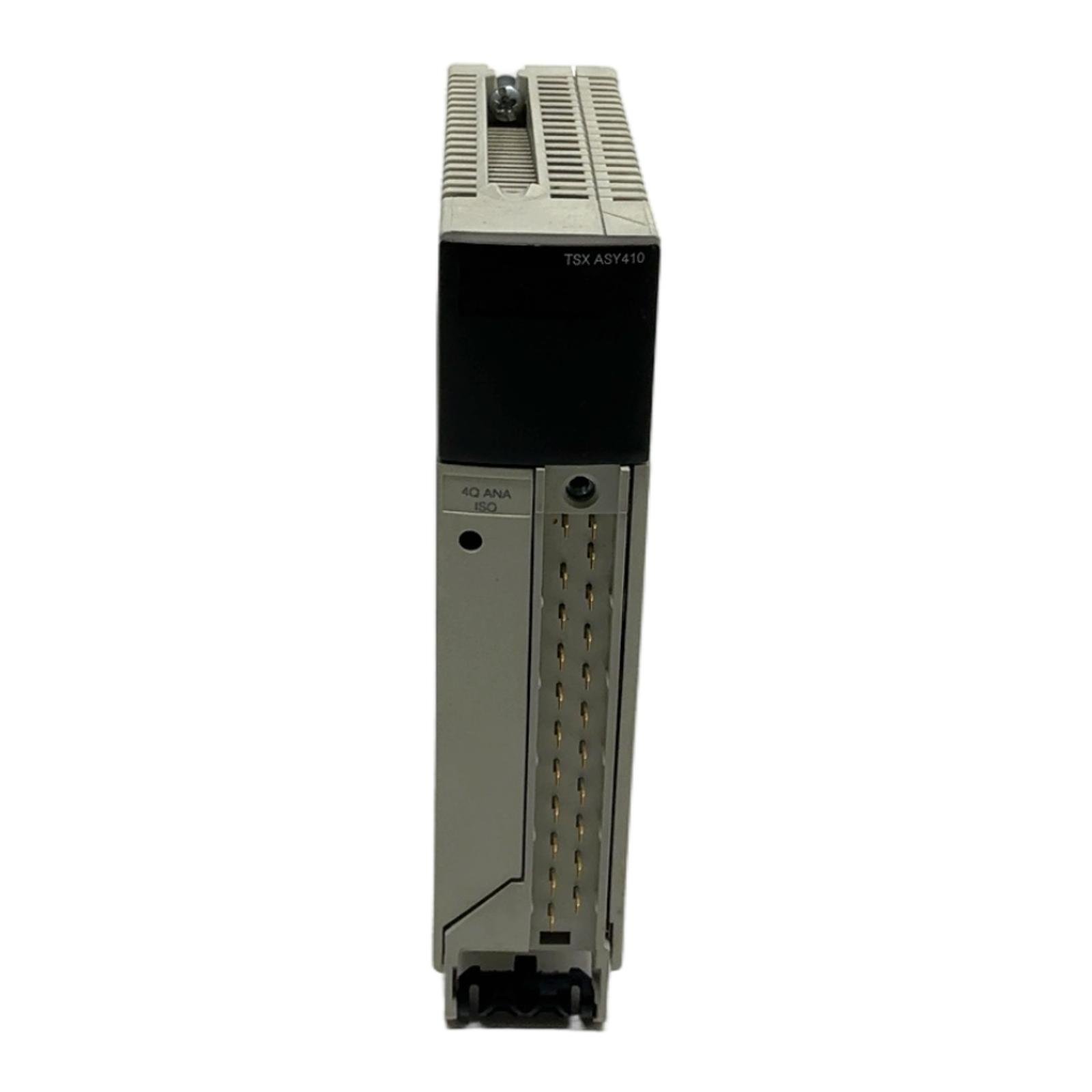

Schneider Electric TSXASY410 Analog Output Module Description The TSXASY410 is an isolated analog output module for the Schneider Electric Modicon Premium PLC platform. It provides four configurable output channels, making it a versatile component for controlling actuators, drives, and other devices that require analog signals. As a key part of the now-obsolete Modicon Premium series, this module is essential for maintaining and extending the life of existing control systems. Specifications Manufacturer: Schneider Electric Series: Modicon Premium Model: TSXASY410 Product Type: 4-Channel Isolated Analog Output Module Output Signal Range: +/- 10 V, 0 to 20 mA, 4 to 20 mA Resolution: 12 bits (voltage), 11 bits (current) Isolation: Channel-to-channel and channel-to-bus Label Info Model: TSXASY410 SN: 21031340718 PV: 12 RL: 16 SV: 2.2 DOM: 03-2003 (March 2003) Application This module is typically used in industrial automation for precise control of variable frequency drives, proportional valves, indicators, and other field devices within manufacturing, process control, and infrastructure applications. Country of Origin Made in France. CO2 Impact By purchasing this pre-owned module, you are avoiding the production of a new one, saving an estimated 12.0 kg of CO2. This is comparable to the emissions saved by driving a car for 60 kilometers. Availability This is an obsolete item, but it is available from our stock as a reliable spare part. Order now from profideals for expert support and fast delivery. FAQ Question? What PLC series is the TSXASY410 compatible with?Answer The TSXASY410 is designed for the Schneider Electric Modicon Premium (TSX Premium) PLC series. It is not compatible with newer series like Modicon M340 or M580 without system migration. Question? How do I configure the output type for each channel (voltage vs. current)?Answer The output type for each channel on the TSXASY410 is configured through the programming software, such as PL7 Pro or Unity Pro, depending on the processor used. There are no physical jumpers or switches on the module for this setting. Question? What is the significance of the SV 2.2 firmware version?Answer The software version (SV) indicates the firmware revision of the module. Version 2.2 may have specific bug fixes or performance improvements over earlier versions. It is important to ensure compatibility with your PLC processor’s executive firmware. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: March 13, 2026
