BRINKMANN PUMPS TA302/490+001 0711010662-69644 001

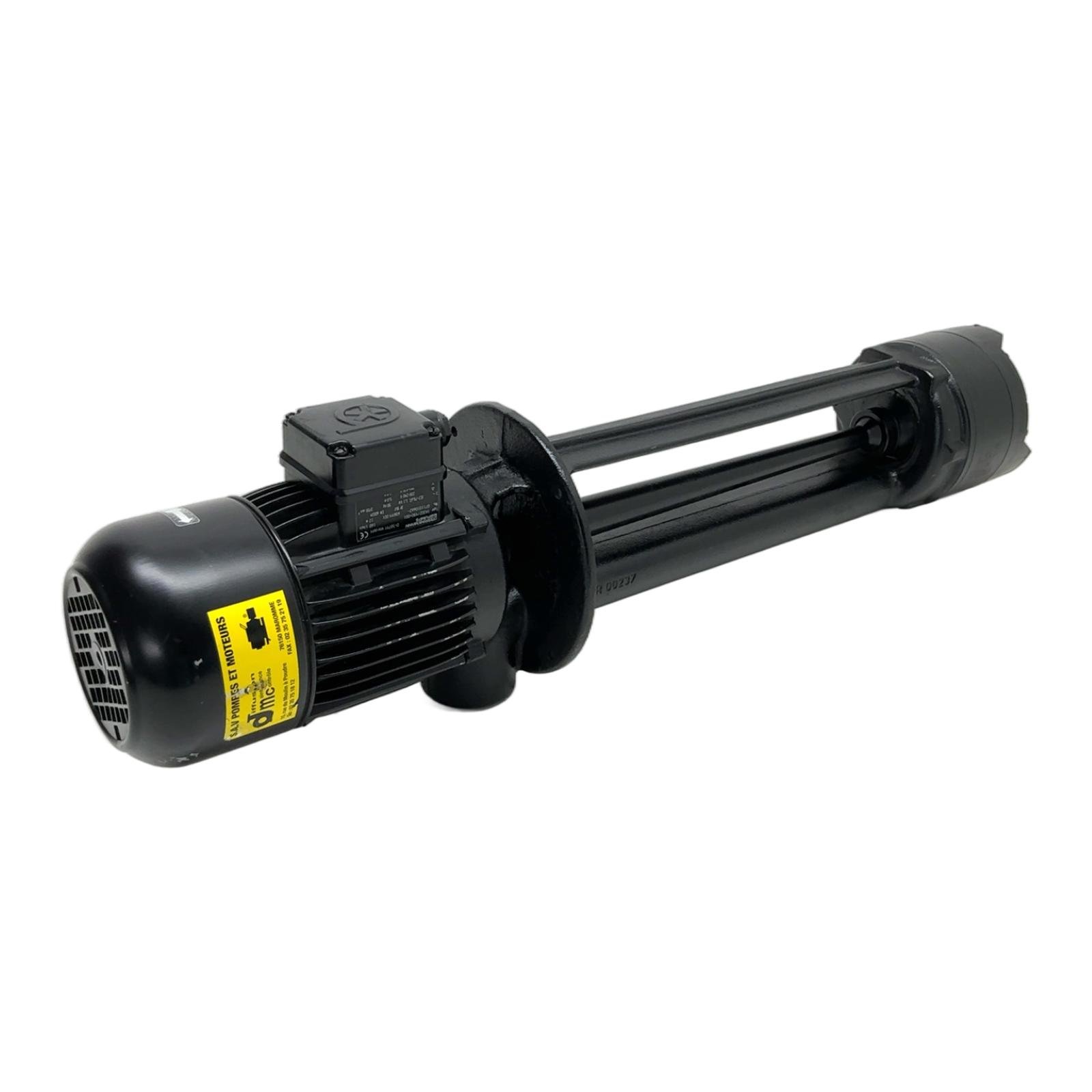

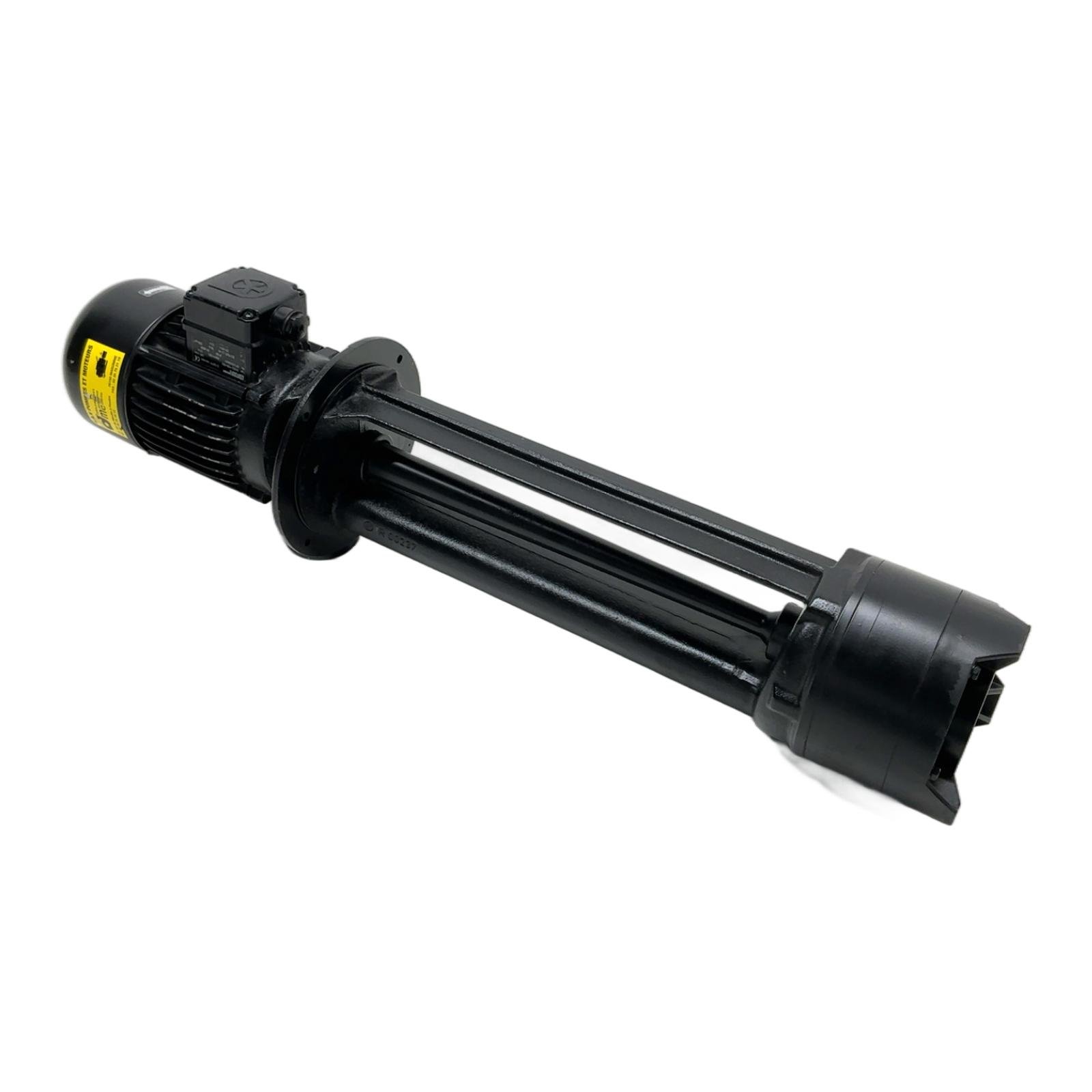

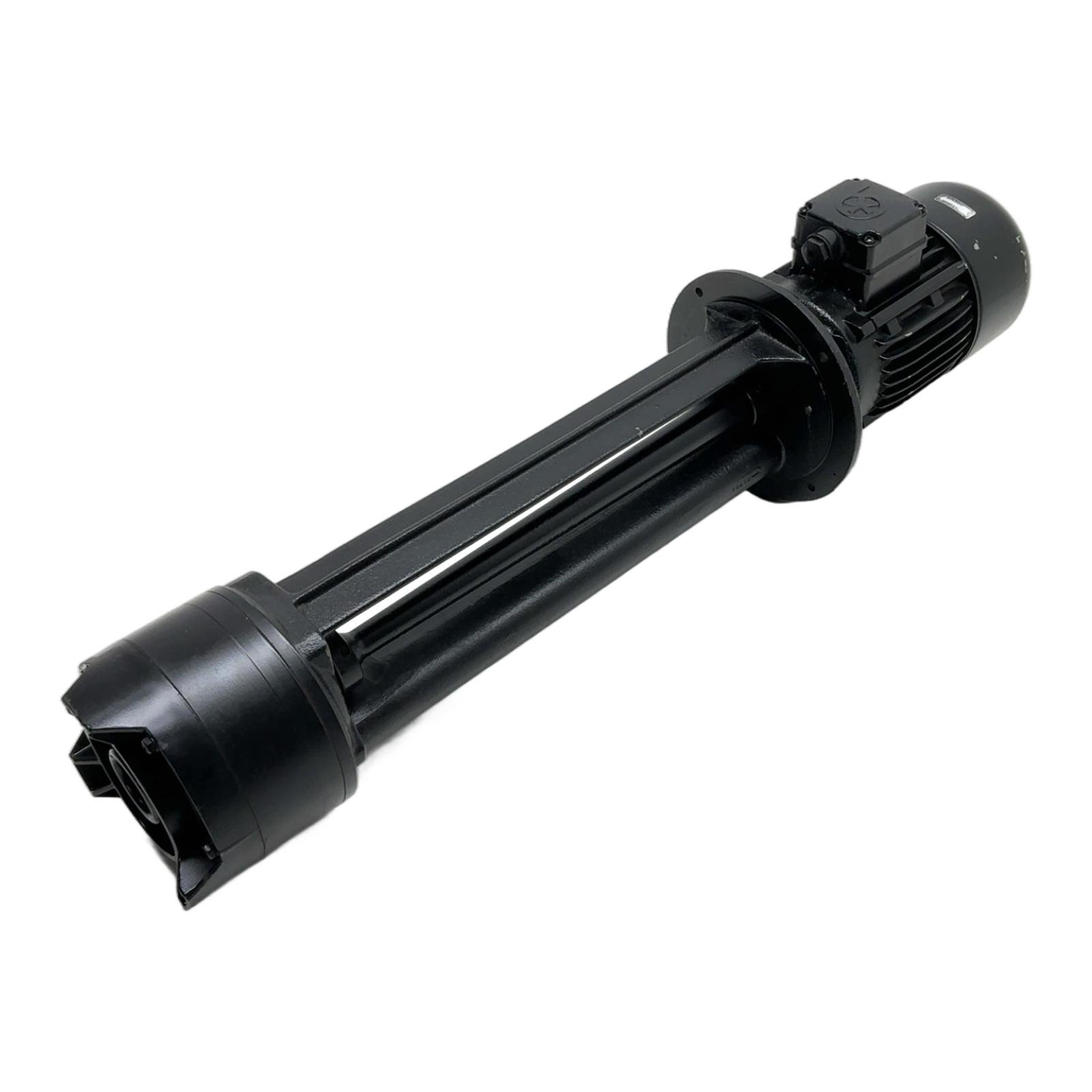

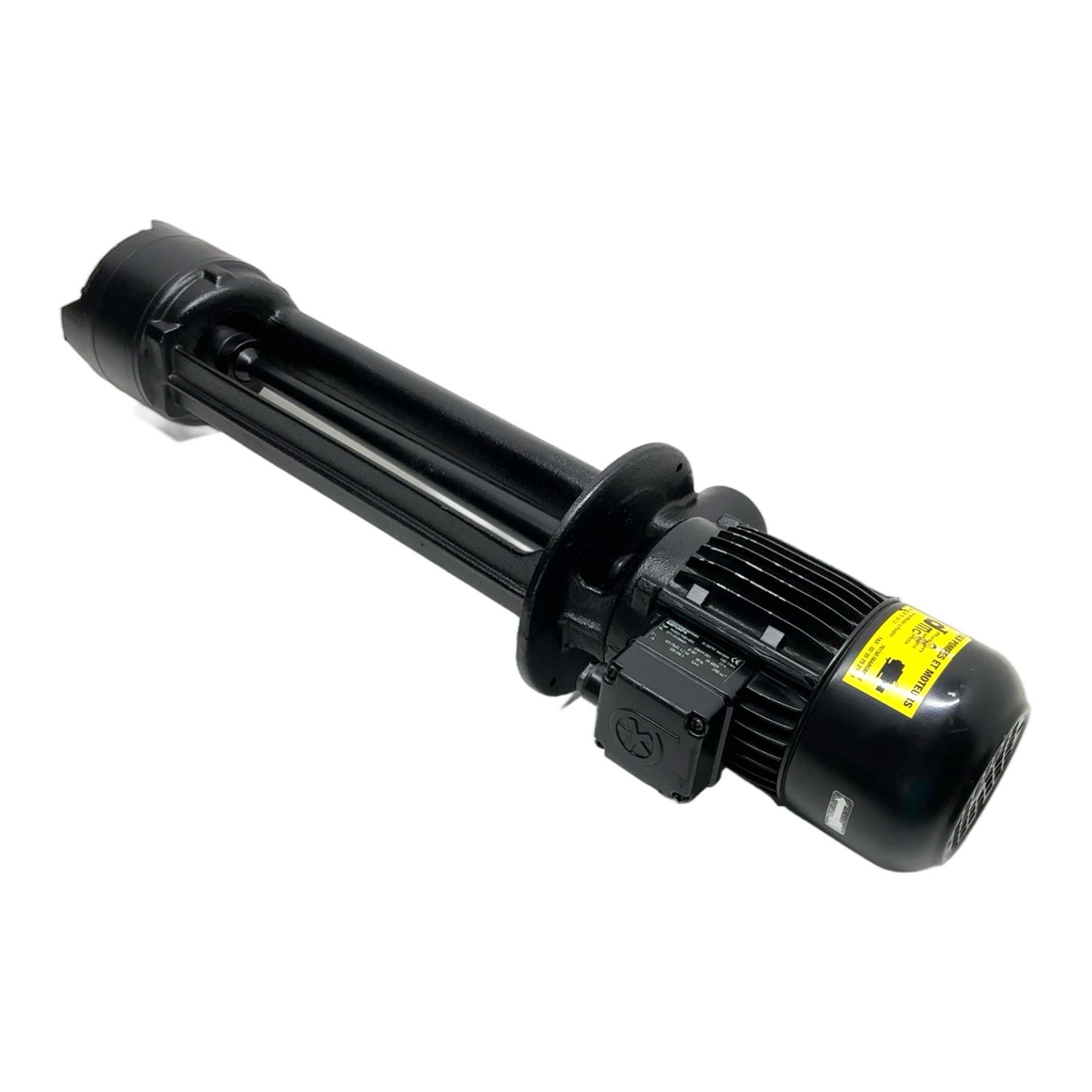

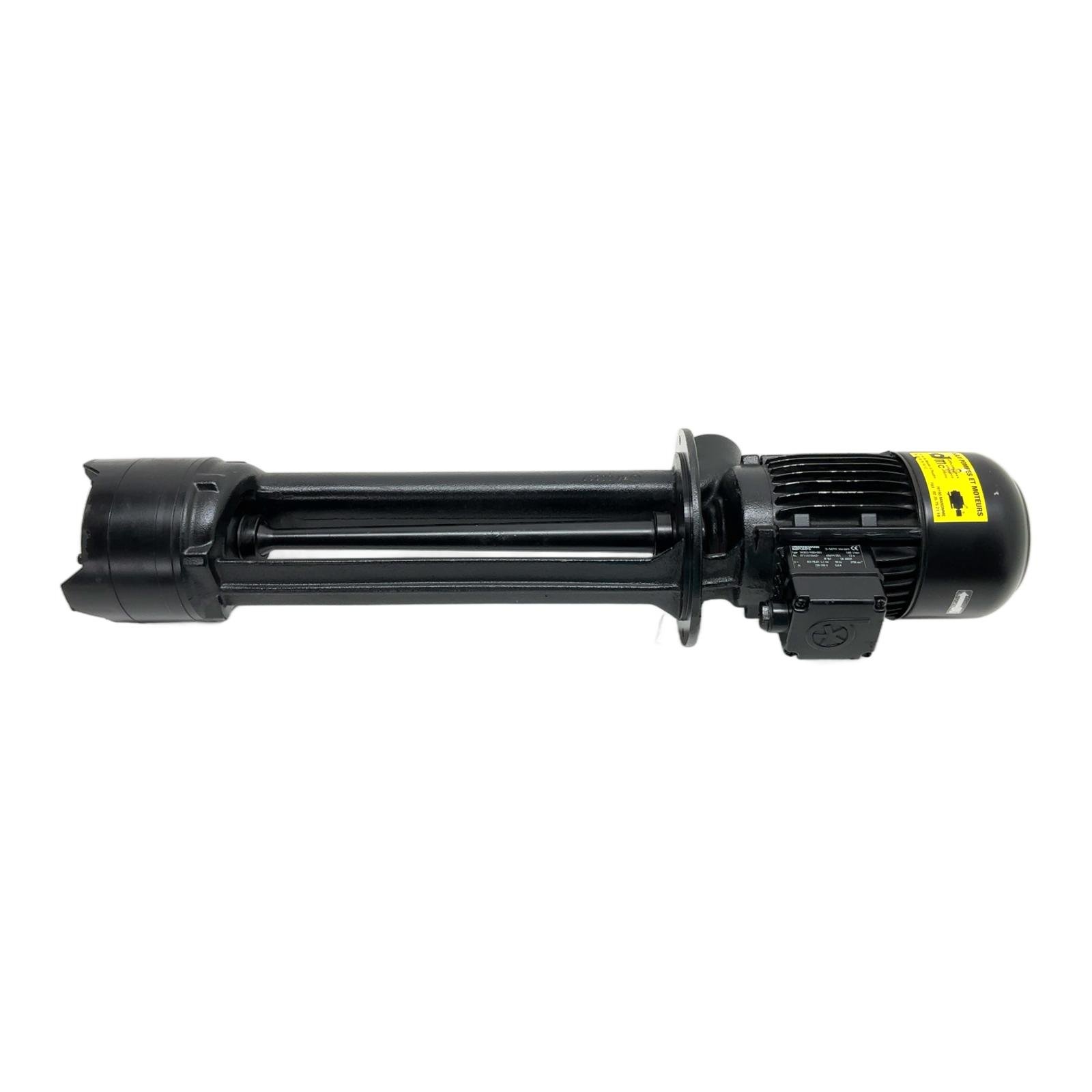

Brinkmann Pumps TA302/490+001 Coolant Immersion Pump Description The Brinkmann Pumps TA302/490+001 is a high-performance vertical immersion pump designed for coolant circulation on machine tools. It features a robust 1.1 kW motor and is engineered for reliability and long service life in industrial settings. This pump provides a consistent flow rate for cooling and lubrication applications, ensuring optimal machine performance. Specifications Manufacturer: Brinkmann Pumps Type: TA302/490+001 Power Rating: 1.1 kW (IE2 Efficiency) Voltage: 3-phase, 220-240V (Delta) / 380-420V (Star) Frequency: 50 Hz Current: 5.0 A (at 230V) / 2.9 A (at 400V) Speed: 2700 min-1 Flow Rate: 160 l/min Delivery Head: 12 m Immersion Depth: 490 mm Protection Class: IP 55 Label Info Type: TA302/490+001 No.: 0711010662-69644 001 Standard: EN 60034 Application Ideal for use in CNC machining centers, grinding machines, and filtration systems where reliable delivery of cooling emulsions, grinding oils, and other low-viscosity fluids is critical. Country of Origin Made in Germany. CO2 Impact Choosing this surplus unit over a new one avoids the emission of approximately 116 kg of CO2, contributing to a more sustainable industrial operation. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What type of fluid is the TA302/490+001 designed for?It is designed for filtered machine tool coolants, such as emulsions and grinding oils, with low viscosity. It is not suitable for highly abrasive or corrosive fluids. Can the immersion depth of 490 mm be modified?The immersion depth is fixed at 490 mm as determined by the pump’s column length. It cannot be extended or shortened without significant modification. What are the required motor protection settings for this 1.1 kW pump?For the 380-420V connection, a motor protection switch should be set according to the nominal current of 2.9 A, with a trip class appropriate for motor starting currents. Always consult a qualified electrician. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
