RITTAL SK3304540
RITTAL SK3304540
€ 552,50
1 op voorraad
1 op voorraad
Betaalmethode:
Specificatie
| Gewicht | 95,00 kg |
|---|---|
| Packing Quantity | 1 Unit(s) |
| Unit of Measure | Unit(s) |
| Brand | RITTAL |
| Category | Fans |
| Description | Enclosure Cooling Unit |
| MPN | SK3304540 |
| Other Notations | SK3304540 |
| Fabr. Art. Nr. | SK3304540 |
- Ophalen in ons magazijn
Roosendaal
Vandaag
- Standaard levering
Nederland
België
1-2 dagen
1-2 dagen
Omschrijving

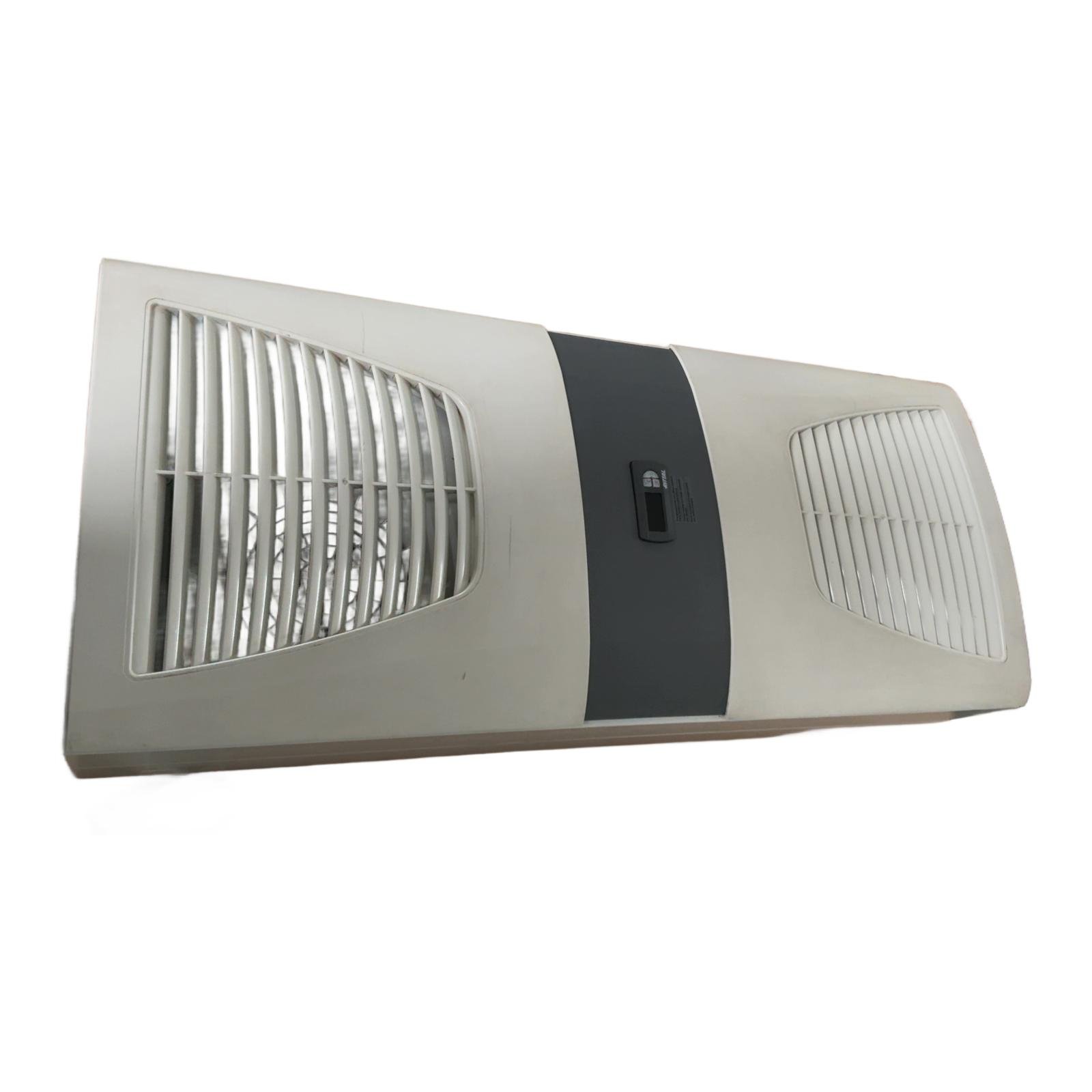

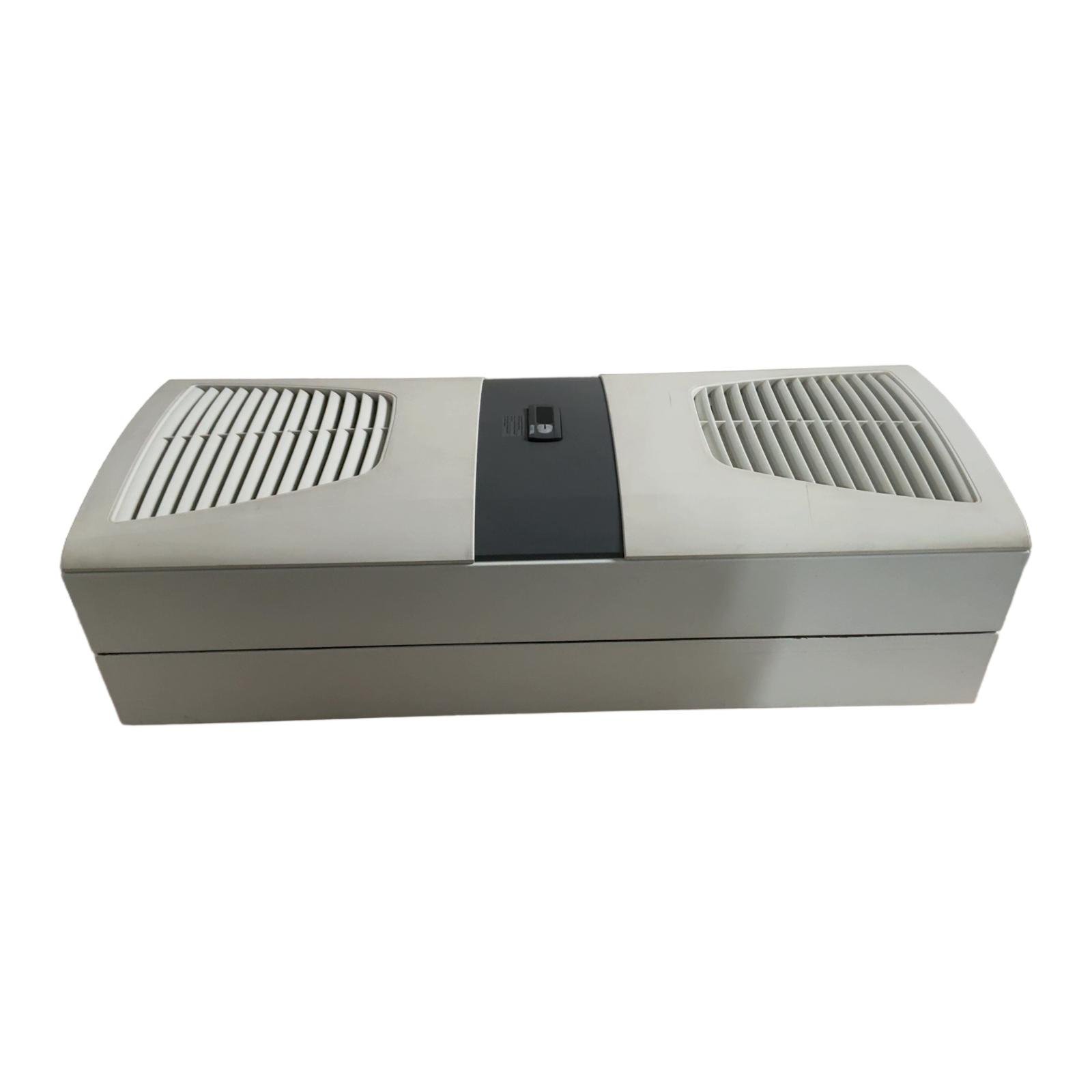

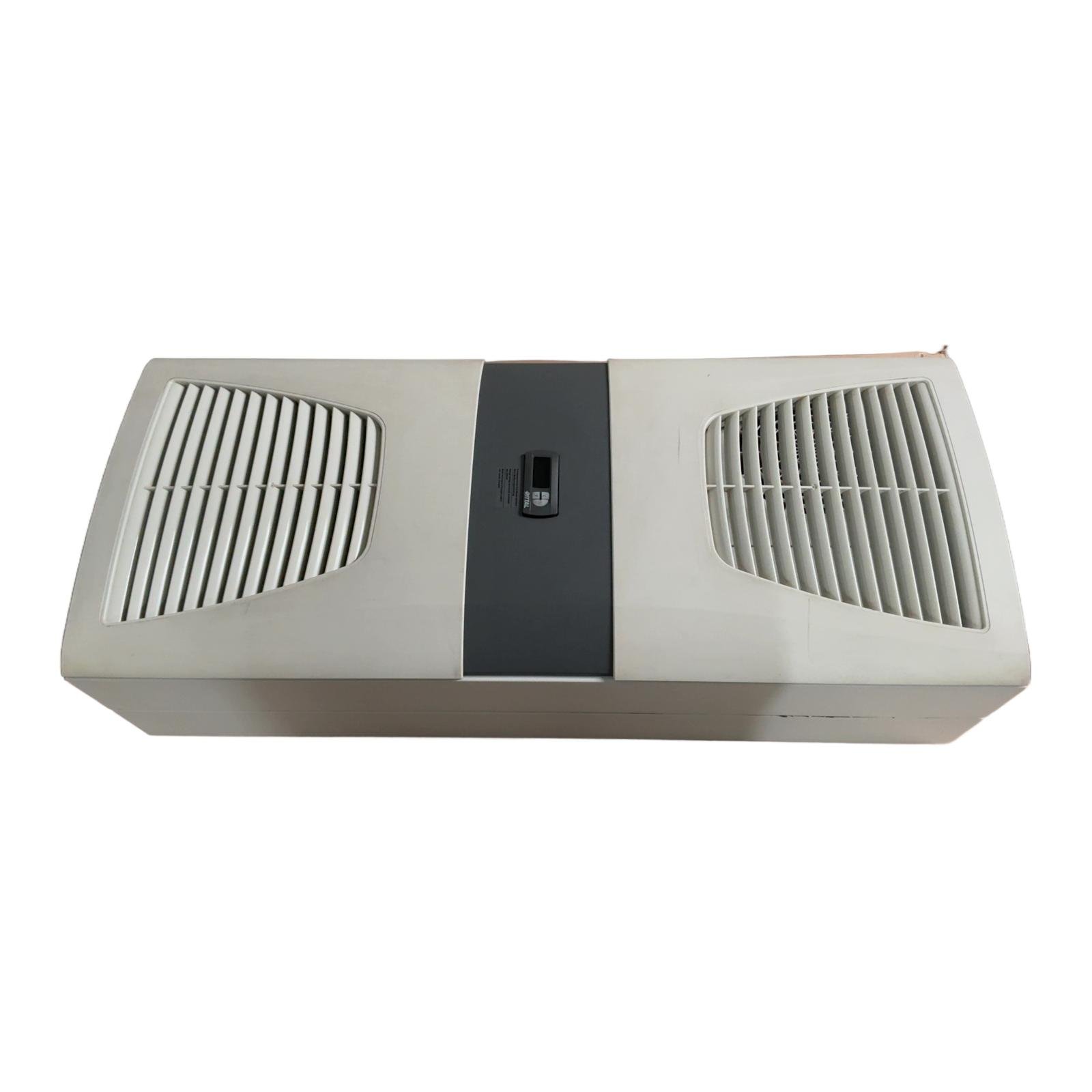

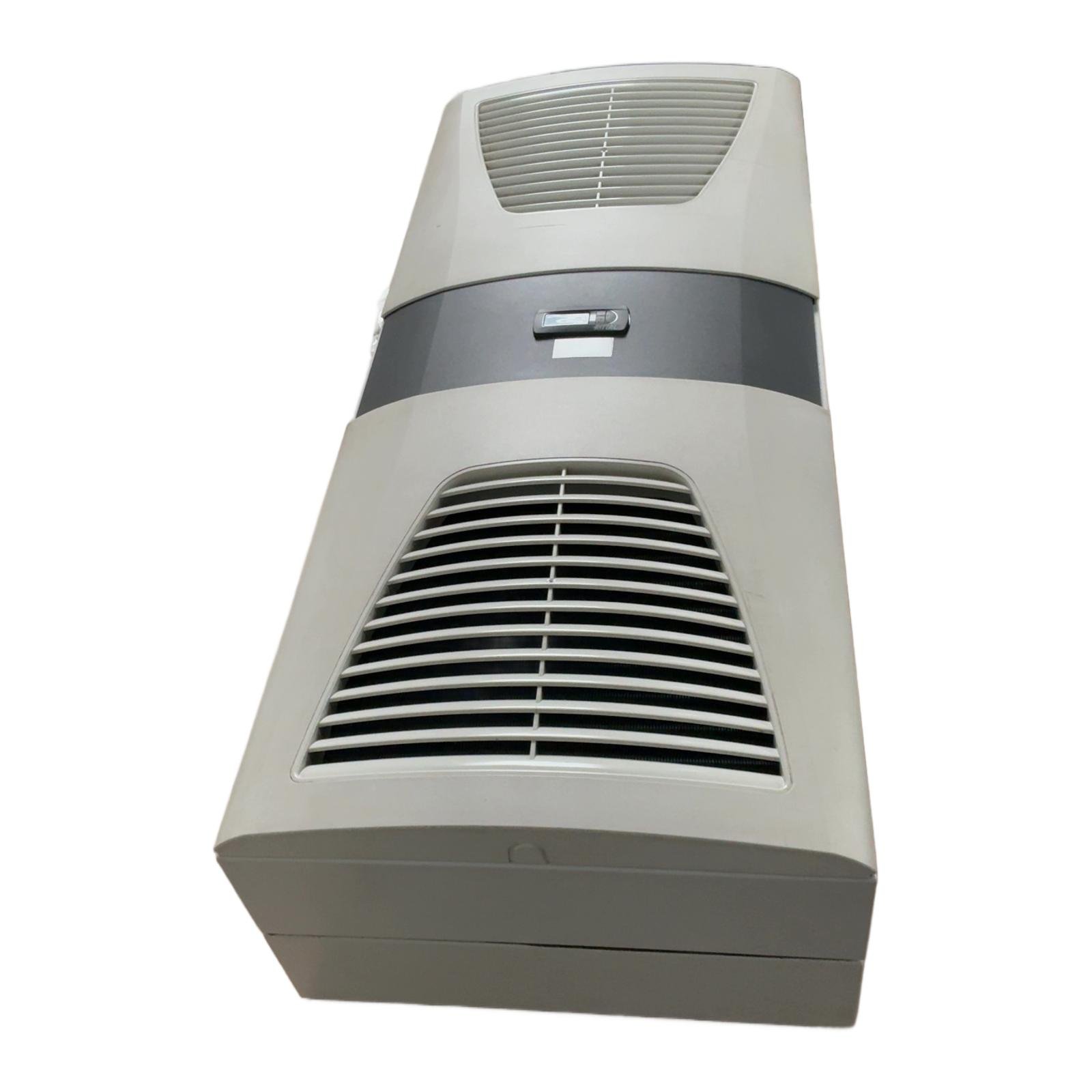

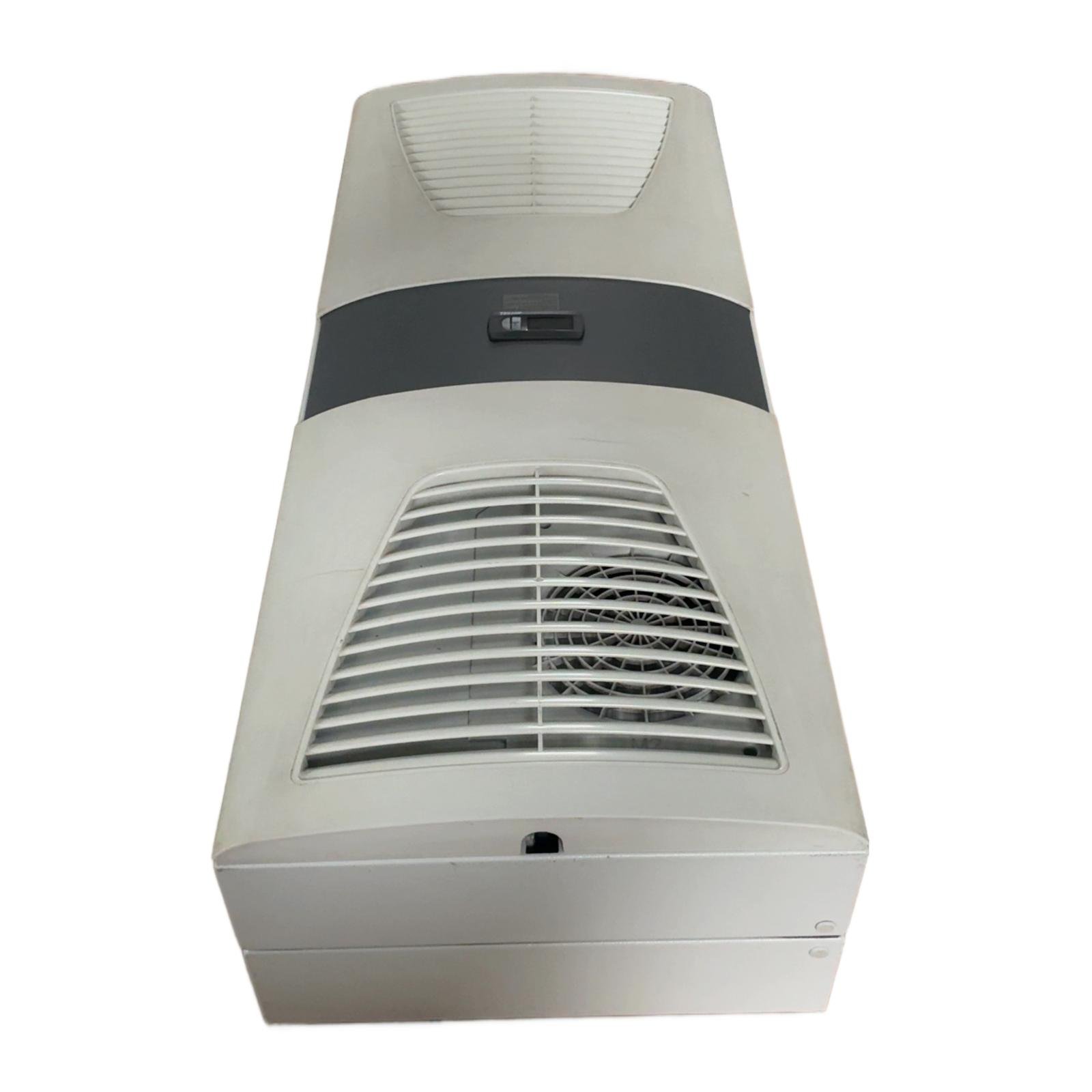

Rittal TopTherm Enclosure Cooling Unit SK 3304540 Description The Rittal SK 3304540 is a high-efficiency TopTherm wall-mounted cooling unit designed for industrial enclosures. It ensures reliable and precise temperature control, protecting sensitive electronic components from overheating. This unit is ideal for maintaining optimal performance and extending the lifespan of equipment in demanding industrial environments. Specifications Model: SK 3304540 Series: TopTherm Cooling Output at 50Hz (L35 L35): 1000 W Cooling Output at 60Hz (L35 L35): 1460 W Rated Operating Voltage: 400 V / 50 Hz (3-phase), 460 V / 60 Hz (3-phase) Rated Current (max): 2.2 A at 50 Hz / 2.1 A at 60 Hz Refrigerant: R134a (325 g) Operating Temperature Range: 20 deg C to 55 deg C Protection Category (Internal Circuit): IP 54 Weight: 40 kg Label Info Manufacturer: Rittal GmbH & Co. KG Part Number: SK 3304540 Production Date: 28.08.2013 Serial Number: 2013K000097273 Application This cooling unit is designed for mounting on electrical cabinets and enclosures in various sectors, including manufacturing, automation, data centers, and process control, to prevent equipment failure due to excessive heat. Country of Origin Made in Germany. CO2 Impact By purchasing this pre-owned cooling unit, you help avoid the emission of 510 kg of CO2 required for the production of a new one. This is a sustainable choice for your operations. Availability In stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Question?What is the significance of the L35 L35 and L35 L50 cooling output ratings? Answer: These ratings indicate the cooling performance under specific ambient (external) and enclosure (internal) temperature conditions. L35 L35 means an external temperature of 35 deg C and an internal temperature of 35 deg C. L35 L50 refers to an external temperature of 35 deg C and an internal temperature of 50 deg C. The unit provides different cooling power at these setpoints. Question?Can this unit be used with a 230V single-phase power supply? Answer: No, this specific model SK 3304540 is designed exclusively for 3-phase power systems, specifically 400V at 50Hz or 460V at 60Hz. Attempting to connect it to a different voltage or phase configuration will damage the unit. Question?What maintenance is required for the R134a refrigerant in this unit? Answer: The SK 3304540 is a hermetically sealed unit, meaning the refrigerant circuit is factory-sealed and should not require routine topping up. Maintenance should focus on keeping the condenser and evaporator coils clean and ensuring unobstructed airflow. Any work on the refrigerant circuit must be performed by a certified technician. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Current Date: Friday, March 13, 2026
METAL WORK 9031011C MRF-N-M-C 10 1/4 Snelheidsregelventiel 10mm – G 1/4″
Op voorraad
| Gewicht | 2,00 kg |
|---|---|
| Packing Quantity | 1 Unit(s) |
| Unit of Measure | Unit(s) |
| Brand | METAL WORK |
| Category | Valves |
| Description | Pneumatic Flow Control Valve |
| MPN | 9031011C MRF-N-M-C 10 1/4 Snelheidsregelventiel 10mm – G 1/4″ |
| Other Notations | 9031011C MRF-N-M-C 10 1/4 Snelheidsregelventiel 10mm – G 1/4″, 9031011CMRF-N-M-C101/4Snelheidsregelventiel10mm-G1/4″, 9031011CMRFNMC101/4Snelheidsregelventiel10mmG1/4″ |
| Fabr. Art. Nr. | 9031011C MRFNMC 10 1/4 Snelheidsregelventiel 10mm G 1/4″ |
PEPPERL+FUCHS 3RG7012-7AB01-PF 554277
Op voorraad
| Gewicht | 2,00 kg |
|---|---|
| Packing Quantity | 1 Unit(s) |
| Unit of Measure | Unit(s) |
| Brand | PEPPERL+FUCHS |
| Category | Sensors |
| Description | Photoelectric Proximity Sensor |
| MPN | 3RG7012-7AB01-PF 554277 |
| Other Notations | 3RG7012-7AB01-PF 554277, 3RG7012-7AB01-PF554277, 3RG70127AB01PF 554277, 3RG70127AB01PF554277 |
| Fabr. Art. Nr. | 3RG70127AB01PF 554277 |
DORMER C100 14.00mm HSCo 80 Slot drill short ISO1641
Op voorraad
| Gewicht | 2,00 kg |
|---|---|
| Packing Quantity | 1 Unit(s) |
| Unit of Measure | Unit(s) |
| Brand | DORMER |
| Category | Abrasive and Cutting Tools |
| Description | End milling cutter |
| MPN | C100 14.00mm HSCo 80 Slot drill short ISO1641 |
| Other Notations | C100 14.00mm HSCo 80 Slot drill short ISO1641, C10014.00mmHSCo80SlotdrillshortISO1641 |
| Fabr. Art. Nr. | C100 1400mm HSCo 80 Slot drill short ISO1641 |
METAL WORK Metal Work LUB 1/4 N TMV Lubricator (1223001)
Op voorraad
| Gewicht | 2,00 kg |
|---|---|
| Packing Quantity | 1 Unit(s) |
| Unit of Measure | Unit(s) |
| Brand | METAL WORK |
| Category | Compressed Air Preparation |
| Description | Pneumatic Air Lubricator |
| MPN | Metal Work LUB 1/4 N TMV Lubricator (1223001) |
| Other Notations | Metal Work LUB 1/4 N TMV Lubricator (1223001), MetalWorkLUB1/4NTMVLubricator(1223001) |
| Fabr. Art. Nr. | Metal Work LUB 1/4 N TMV Lubricator (1223001) |
