FYH SC204

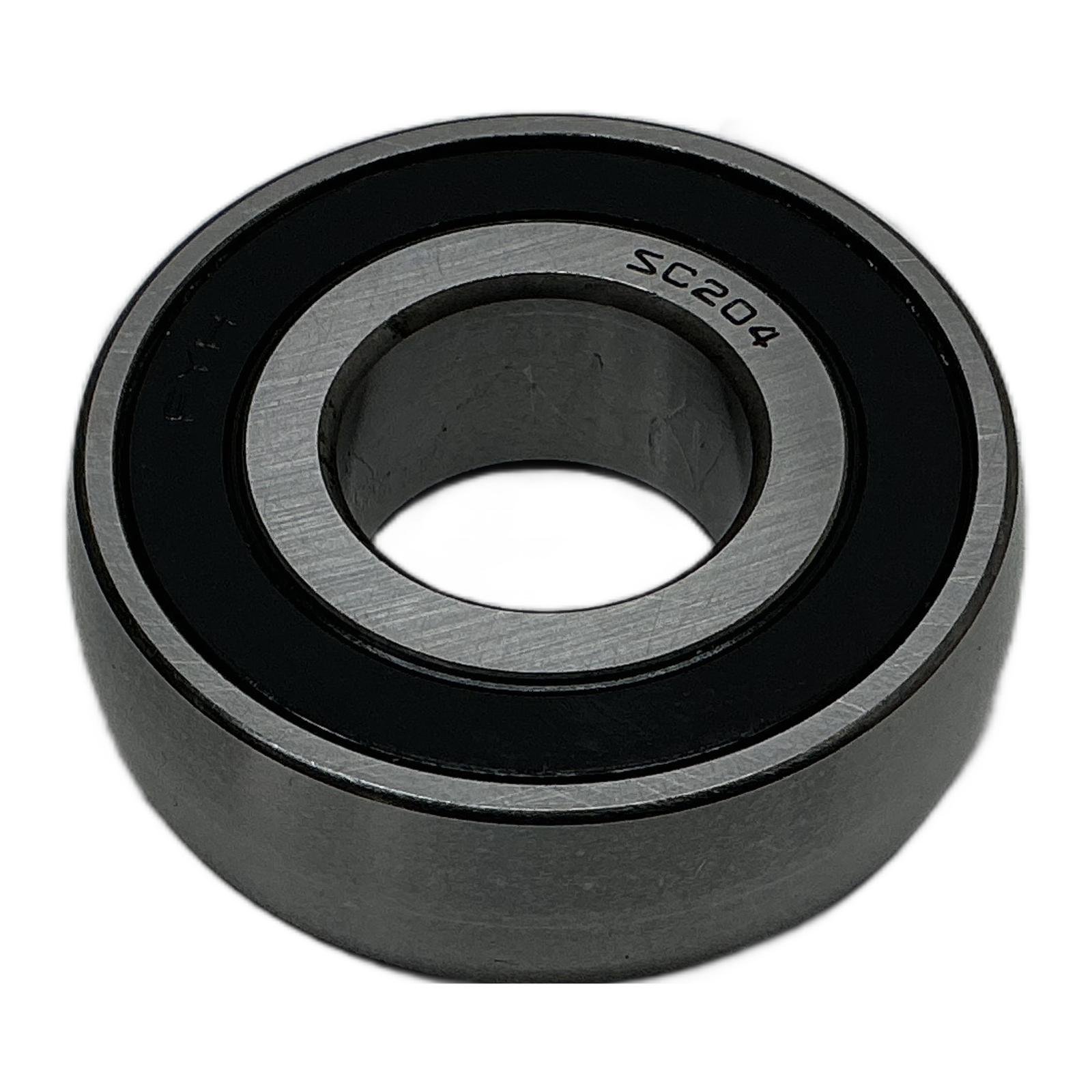

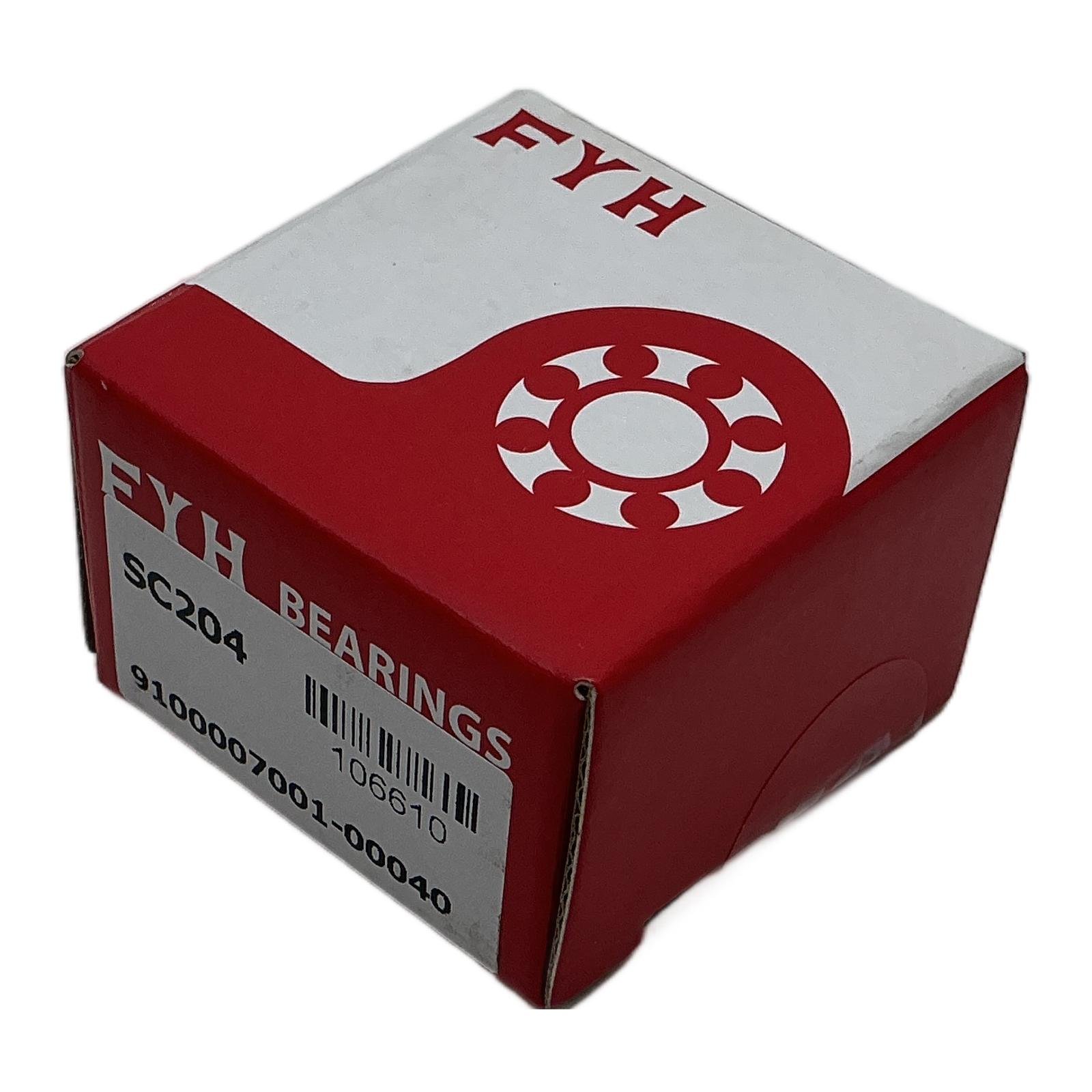

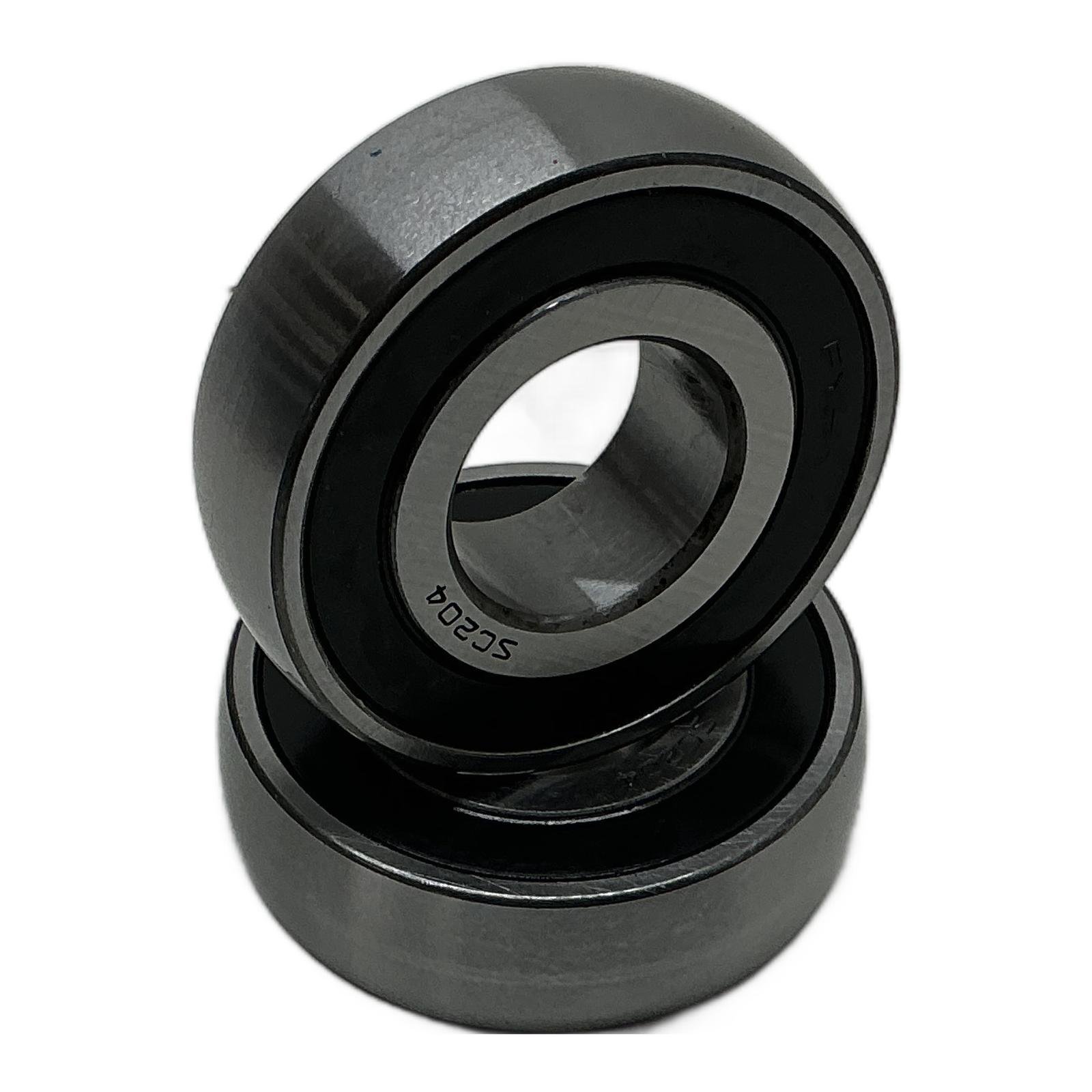

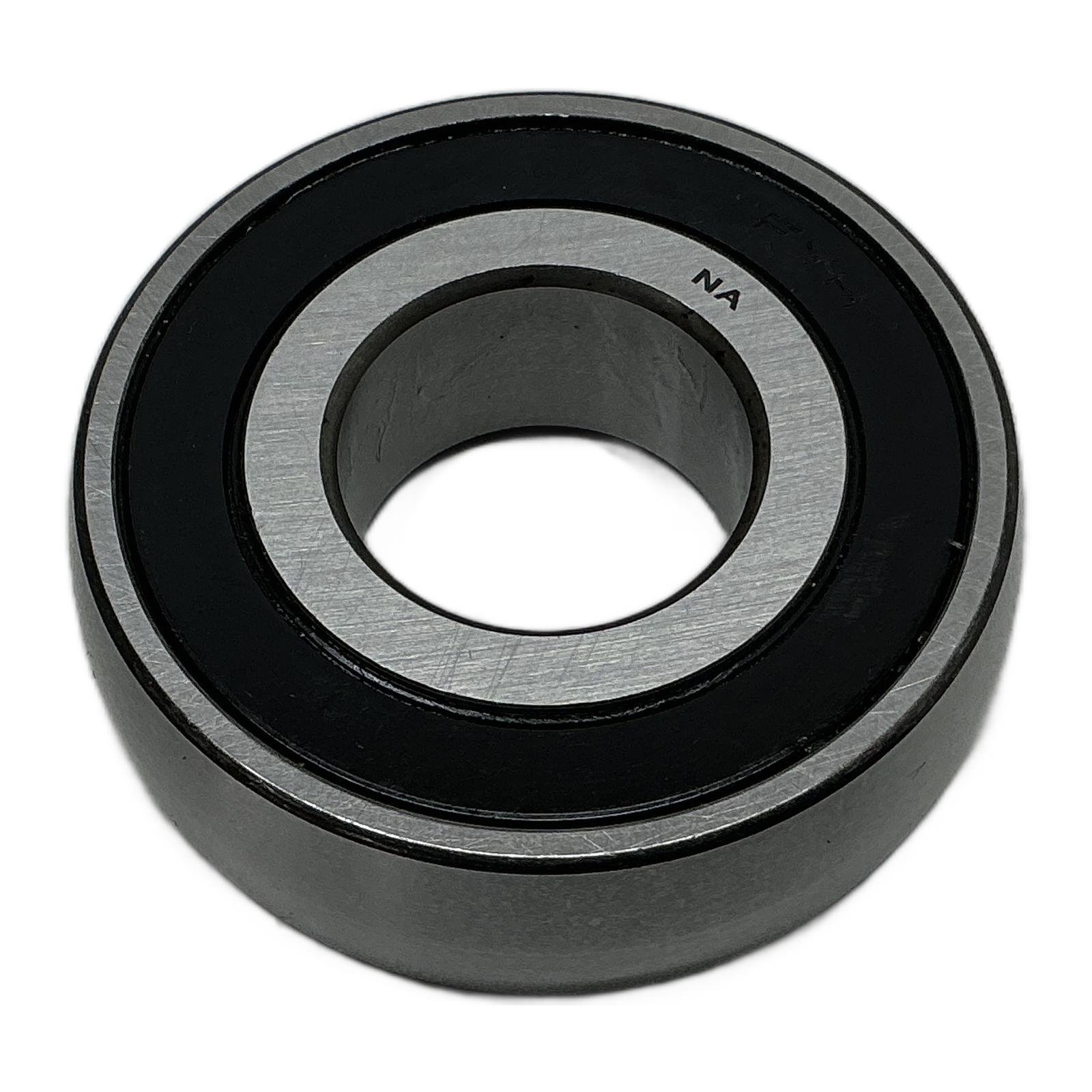

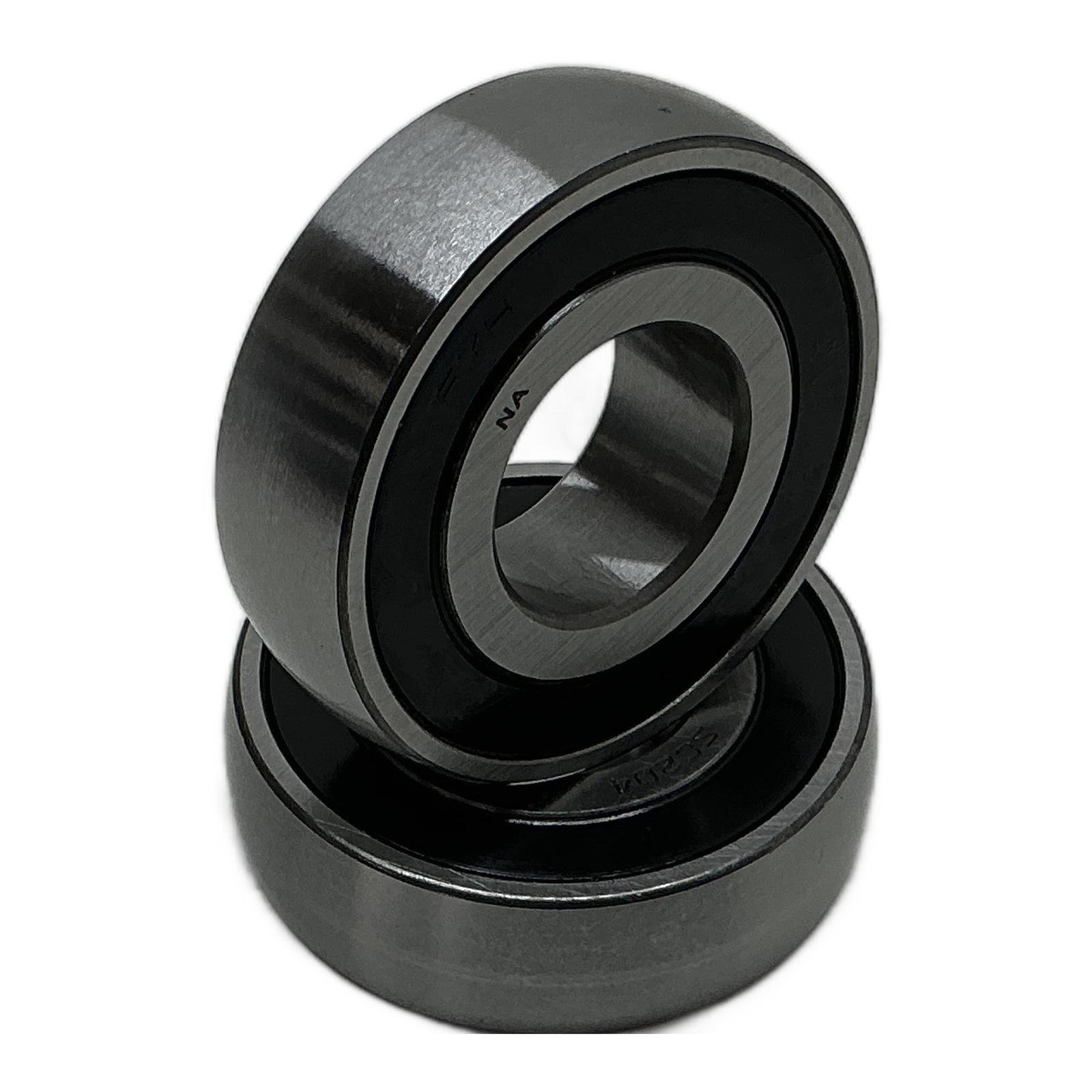

FYH SC204 Ball Bearing Insert Description The FYH SC204 is a high-quality, reliable ball bearing insert designed for use in various industrial applications. It features a set screw locking mechanism for secure attachment to the shaft and is sealed on both sides to protect against contaminants and retain lubricant. Its spherical outer surface allows it to be mounted in various types of pillow block or flanged housings, accommodating initial misalignment. Specifications Manufacturer: FYH Model: SC204 Bore Diameter: 20 mm Outer Diameter: 47 mm Width (Inner Ring): 24 mm Width (Outer Ring): 14 mm Locking Mechanism: Set Screw Seals: Double Labyrinth Seals (2S) Dynamic Load Rating: 12.8 kN Static Load Rating: 6.65 kN Application This bearing insert is commonly used in conveyor systems, agricultural machinery, food processing equipment, and general manufacturing machinery where a reliable and easy-to-mount bearing solution is required. Country of Origin Manufactured in Japan by FYH (Nippon Pillow Block Co., Ltd.). CO2 Impact Choosing this reused FYH SC204 bearing prevents the emission of approximately 0.24 kg of CO2 compared to manufacturing a new one. This saving is equivalent to charging a smartphone nearly 29 times. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the difference between an SC204 and a UC204 bearing insert? Both the FYH SC204 and the UC204 are dimensionally interchangeable bearing inserts with a 20mm bore. The main differences are typically in internal design, cage material, and seal construction, which can vary by manufacturer. However, for most applications, they can be used as direct replacements for one another. What is the proper tightening torque for the set screws on the SC204? The recommended tightening torque for the M6x0.75 set screws on an SC204 bearing insert is typically between 4.0 and 5.5 Newton-meters (Nm). Always consult the manufacturer’s installation guide for precise values to ensure proper locking without damaging the shaft or bearing. Can this SC204 bearing be re-lubricated? The FYH SC204 is a sealed-for-life bearing and is not designed to be re-lubricated. The pre-packed grease and dual seals are intended to last the entire service life of the bearing under normal operating conditions. Attempting to re-grease it may damage the seals and lead to premature failure. profideals is not an authorized distributor, reseller, or representative of the products featured on this website. All product names, trademarks, brands, and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
