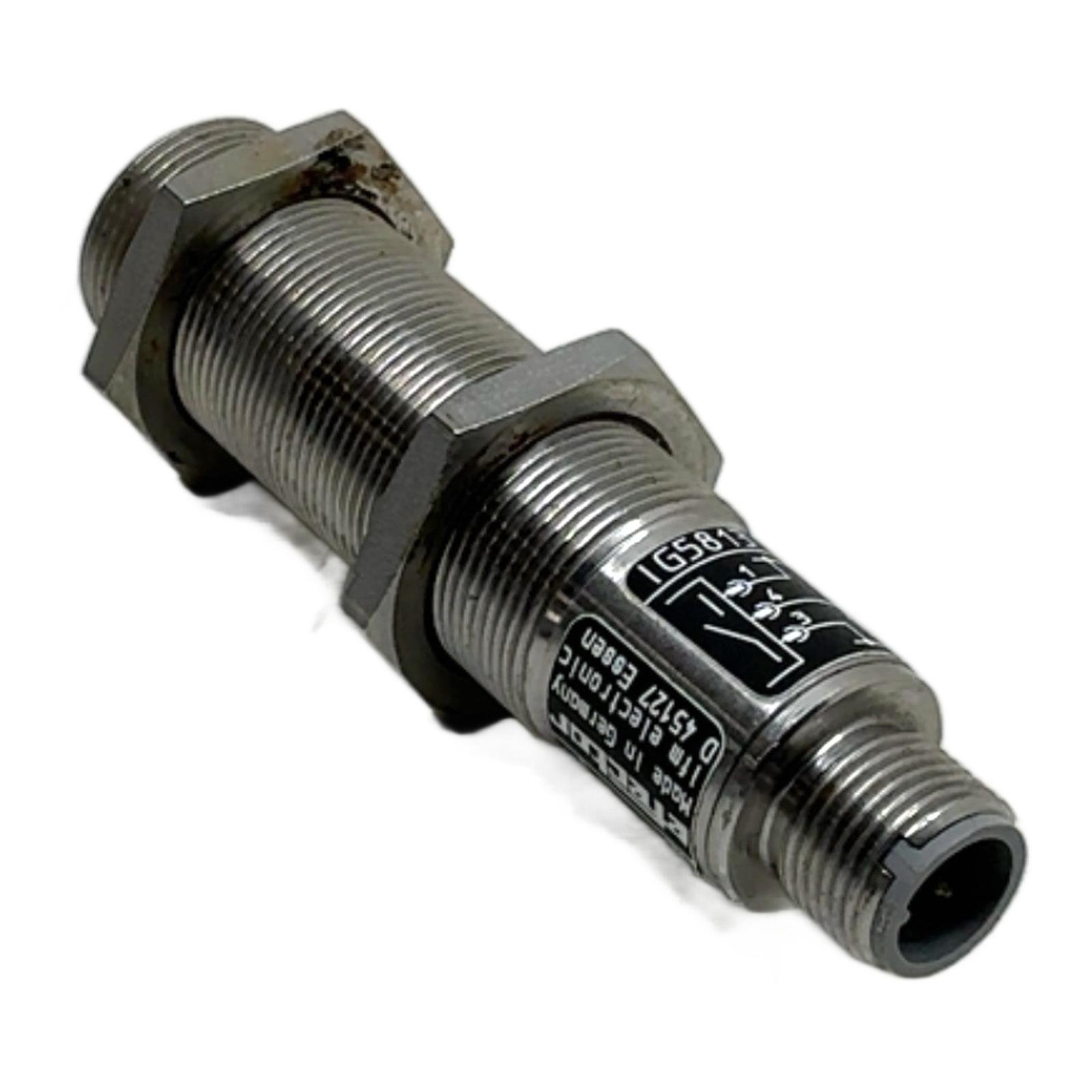

IFM IG5813 IGA3005-BPKG/V4A/US

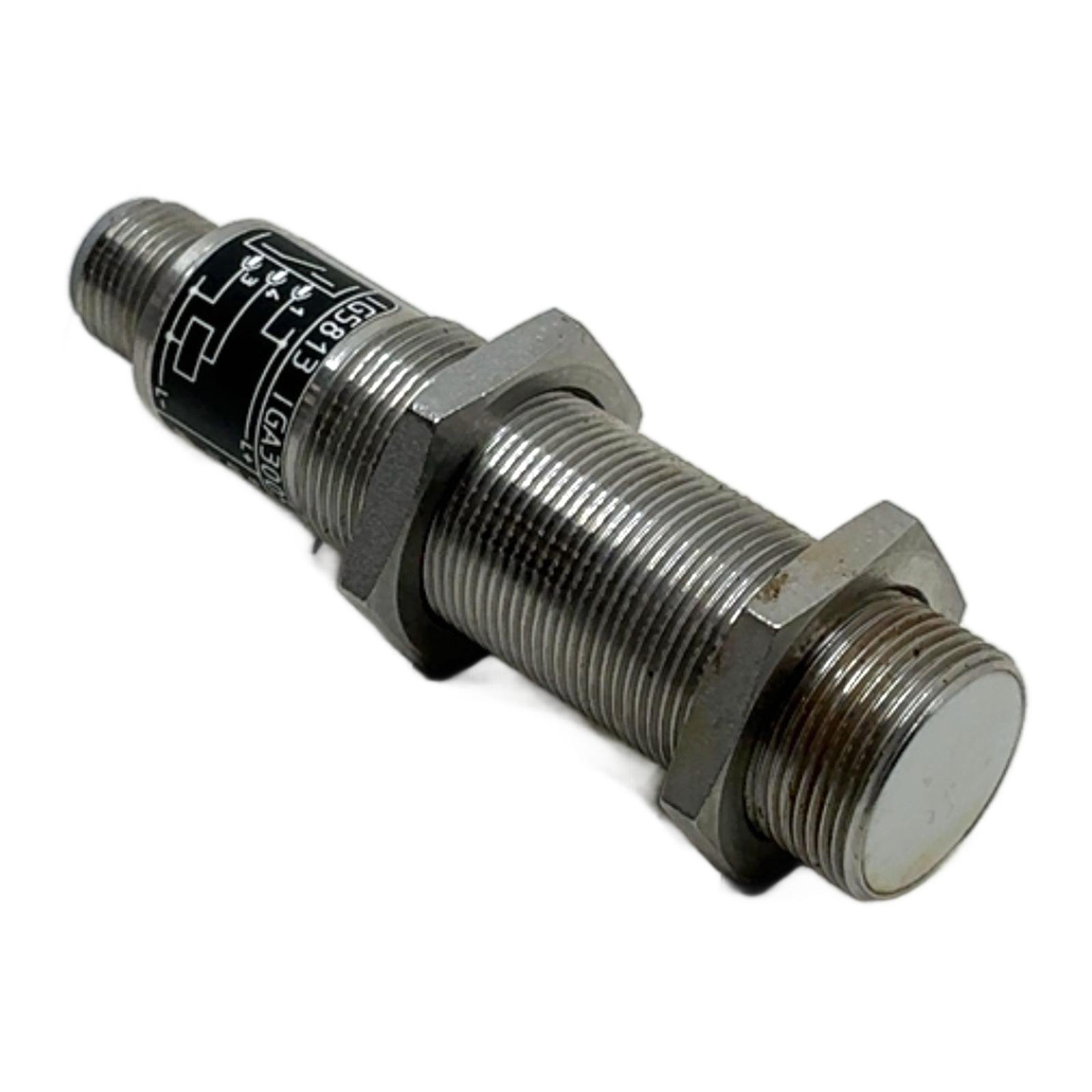

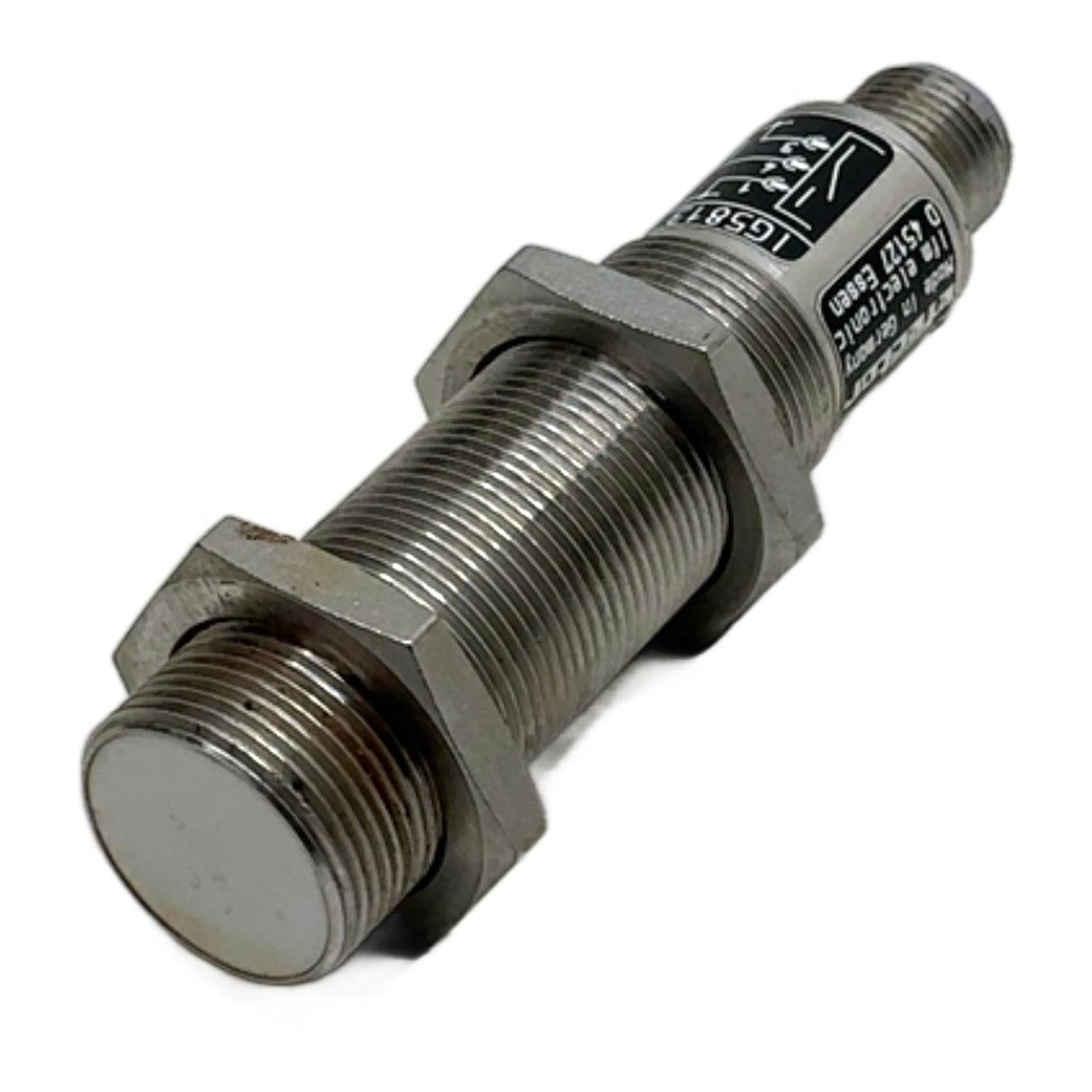

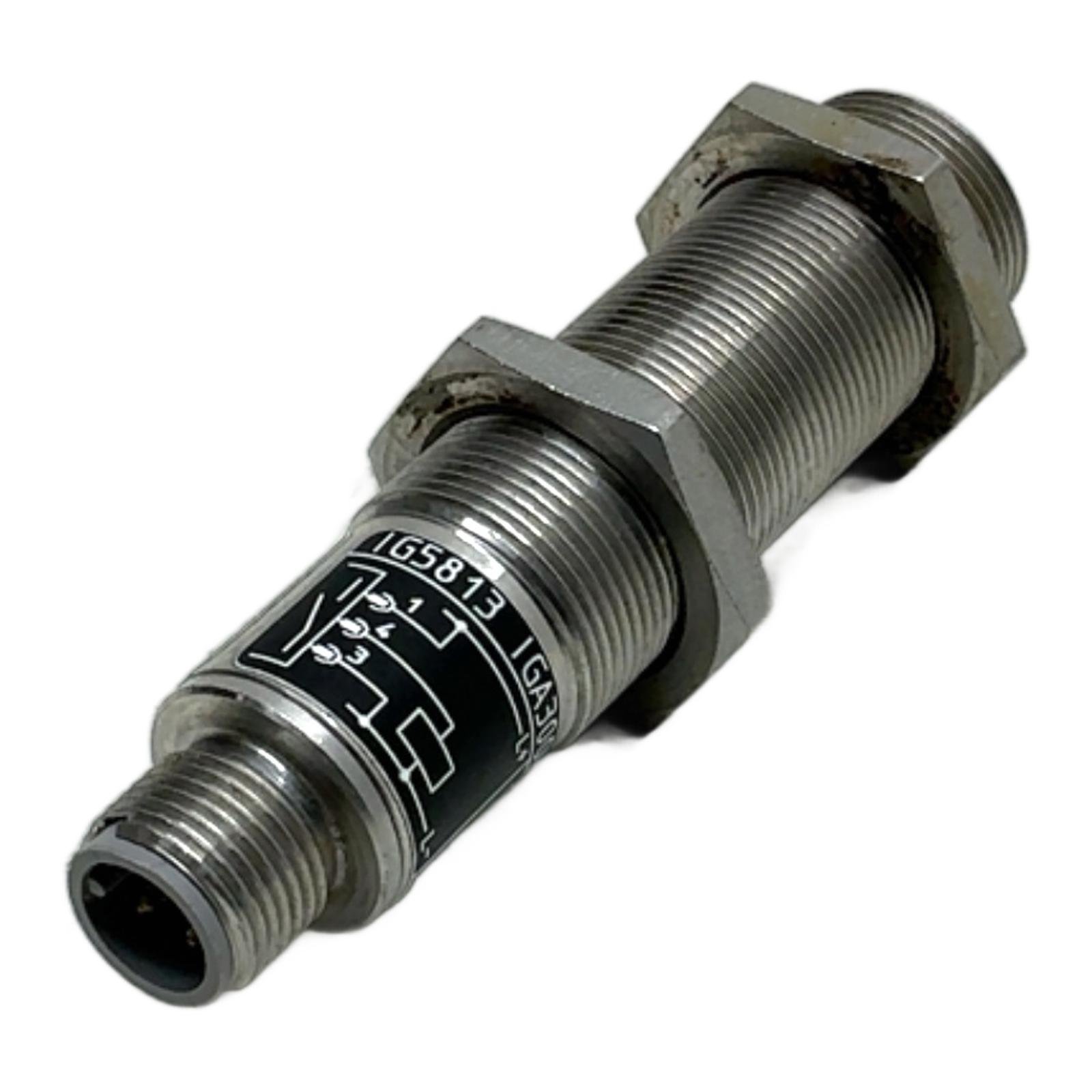

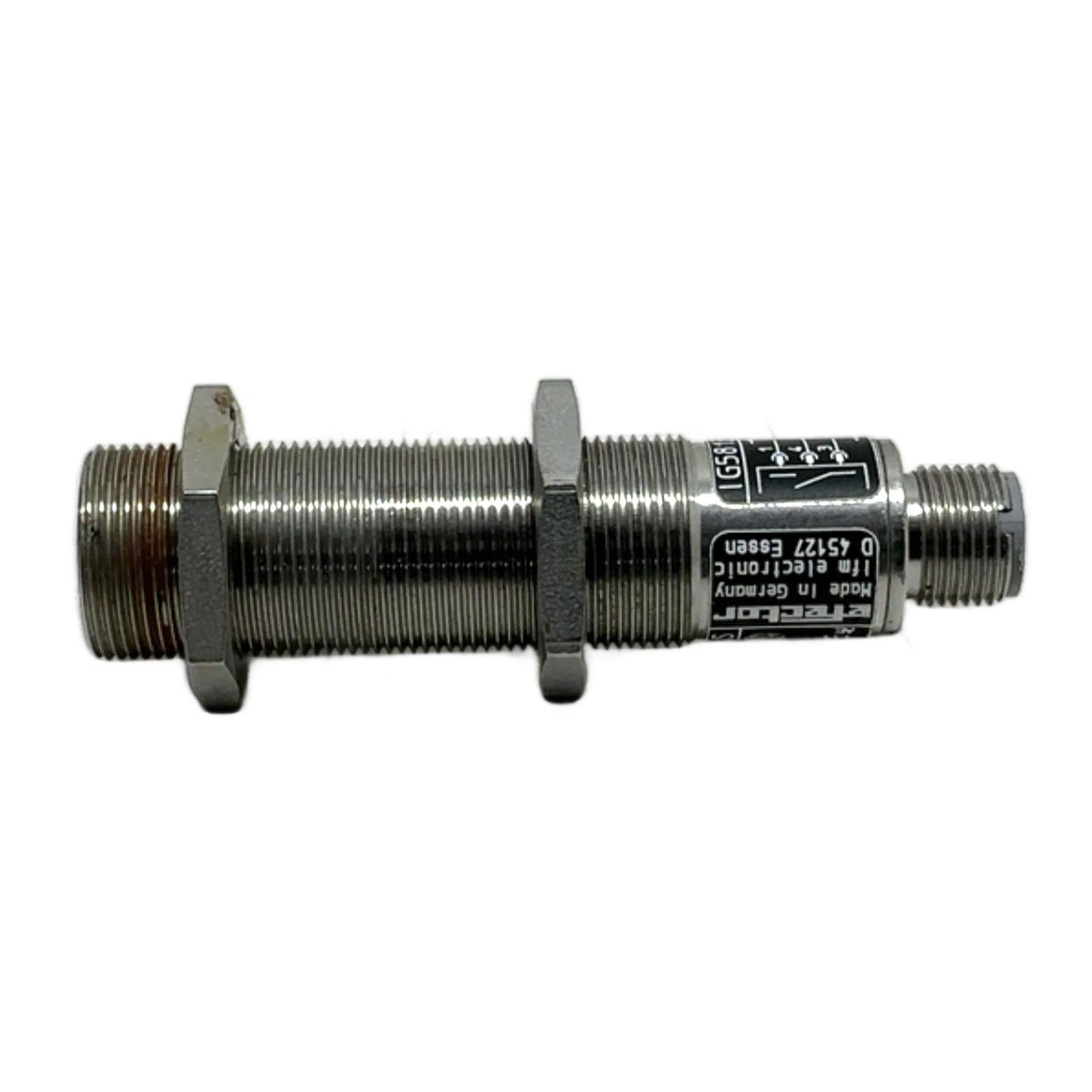

ifm Inductive Proximity Sensor Description The ifm IG5813 (IGA3005-BPKG/V4A/US) is a high-performance inductive proximity sensor designed for reliable detection of metal objects in industrial settings. Its M30 threaded body is constructed from high-grade V4A stainless steel, offering excellent resistance to corrosion and aggressive media. This makes it particularly suitable for use in the food and beverage industry, chemical plants, and other demanding environments. The sensor provides a 5 mm flush-mountable sensing range and features a flexible PNP output that can be programmed as either normally open (NO) or normally closed (NC). Specifications Manufacturer: ifm electronic Article Number: IG5813 Full Type: IGA3005-BPKG/V4A/US Sensing Range: 5 mm Mounting: Flush mountable Output Type: PNP (NO/NC programmable) Operating Voltage: 10 to 36 V DC Max Current Load: 250 mA Housing: M30 x 1.5, Threaded Material: Stainless steel (1.4404 / 316L) Connection: M12 connector, 4-pin, gold-plated contacts Protection Rating: IP67 Application Ideal for position sensing, part detection, and counting applications on conveyor systems, assembly lines, and packaging machinery, especially where high hygiene standards or chemical resistance is required. Country of Origin Made in Germany. CO2 Impact By purchasing this refurbished component, you are actively contributing to the circular economy and have helped avoid approximately 6.0 kg of CO2 emissions associated with the production of a new unit. Availability This is an obsolete item, but it is available from our stock. Order now from profideals for expert support and fast delivery. FAQ What does the “BPKG/V4A/US” designation mean in the model number IGA3005-BPKG/V4A/US?This code specifies the sensor’s features: ‘B’ for flush mounting, ‘P’ for PNP output, ‘K’ for M12 connector, ‘G’ for gold-plated contacts, ‘/V4A’ for high-grade stainless steel (1.4404/316L) housing, and ‘/US’ for the specific US market version. Is the output of this IG5813 sensor Normally Open (NO) or Normally Closed (NC)?This sensor model is programmable, meaning its output function can be set to either Normally Open (NO) or Normally Closed (NC) depending on how it is wired, providing flexibility for different logic requirements in your control system. What is the maximum switching frequency of this sensor?The ifm IG5813 has a maximum switching frequency of 250 Hz, making it suitable for applications with moderate-speed moving targets. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
