NVENT ERIFLEX SB2C400 561154

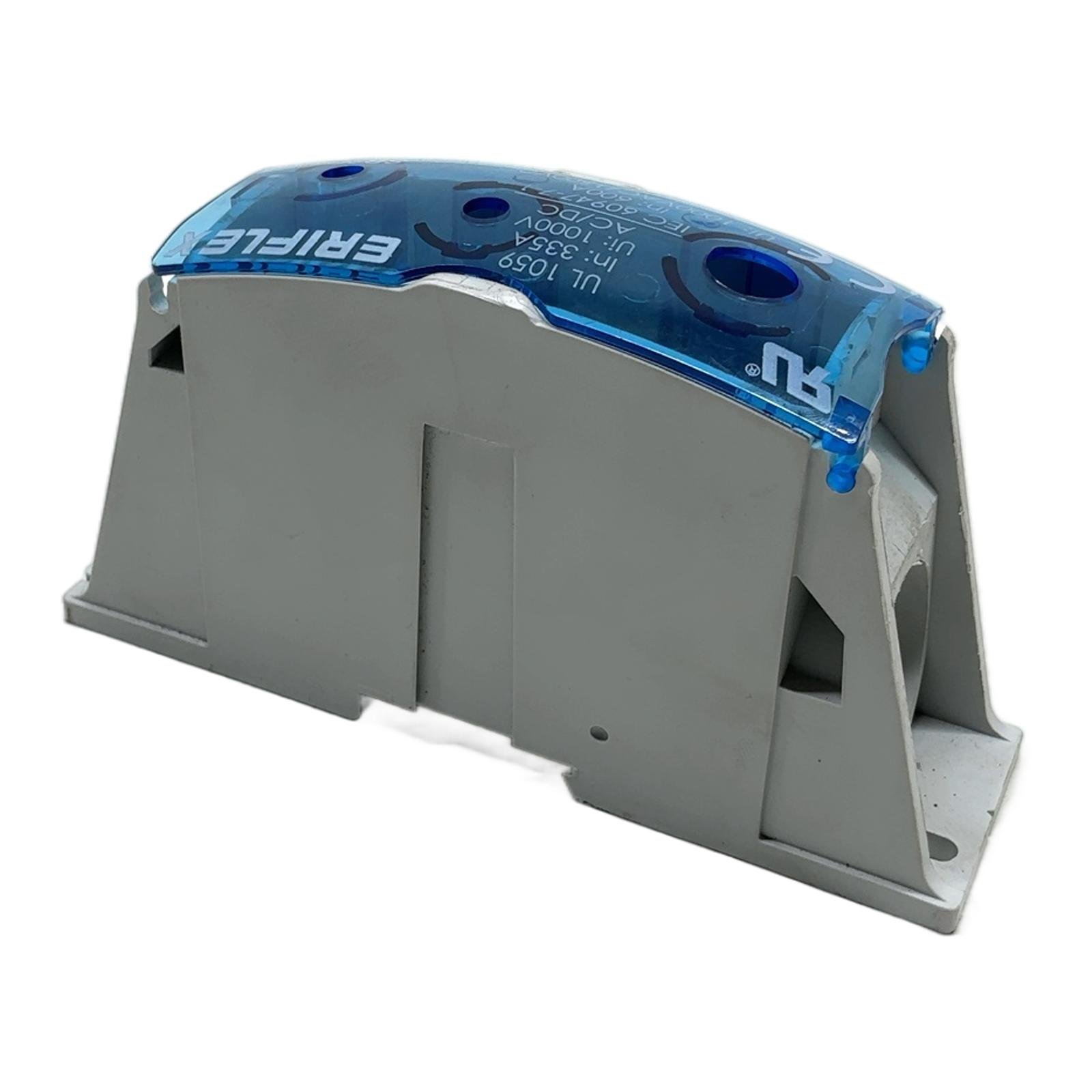

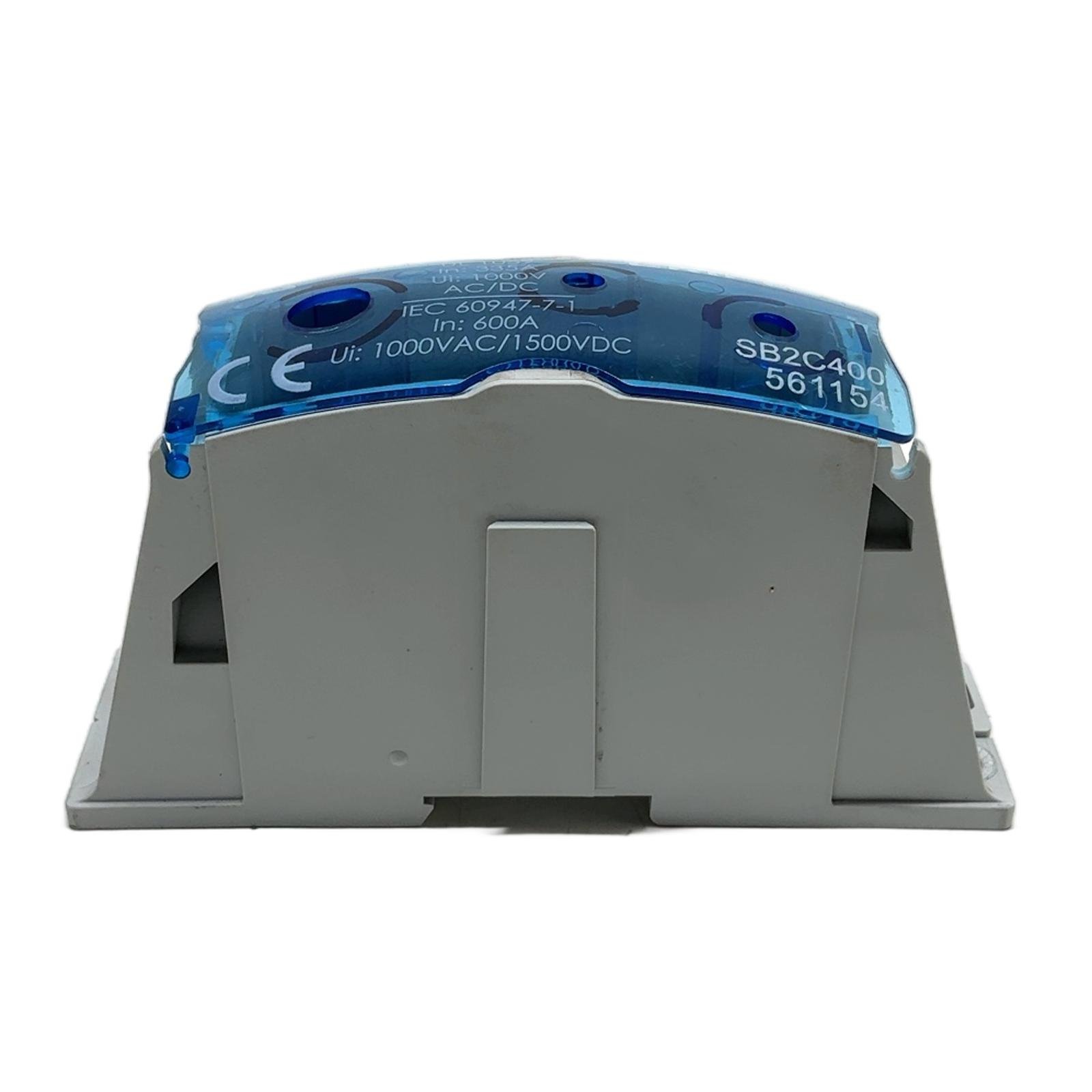

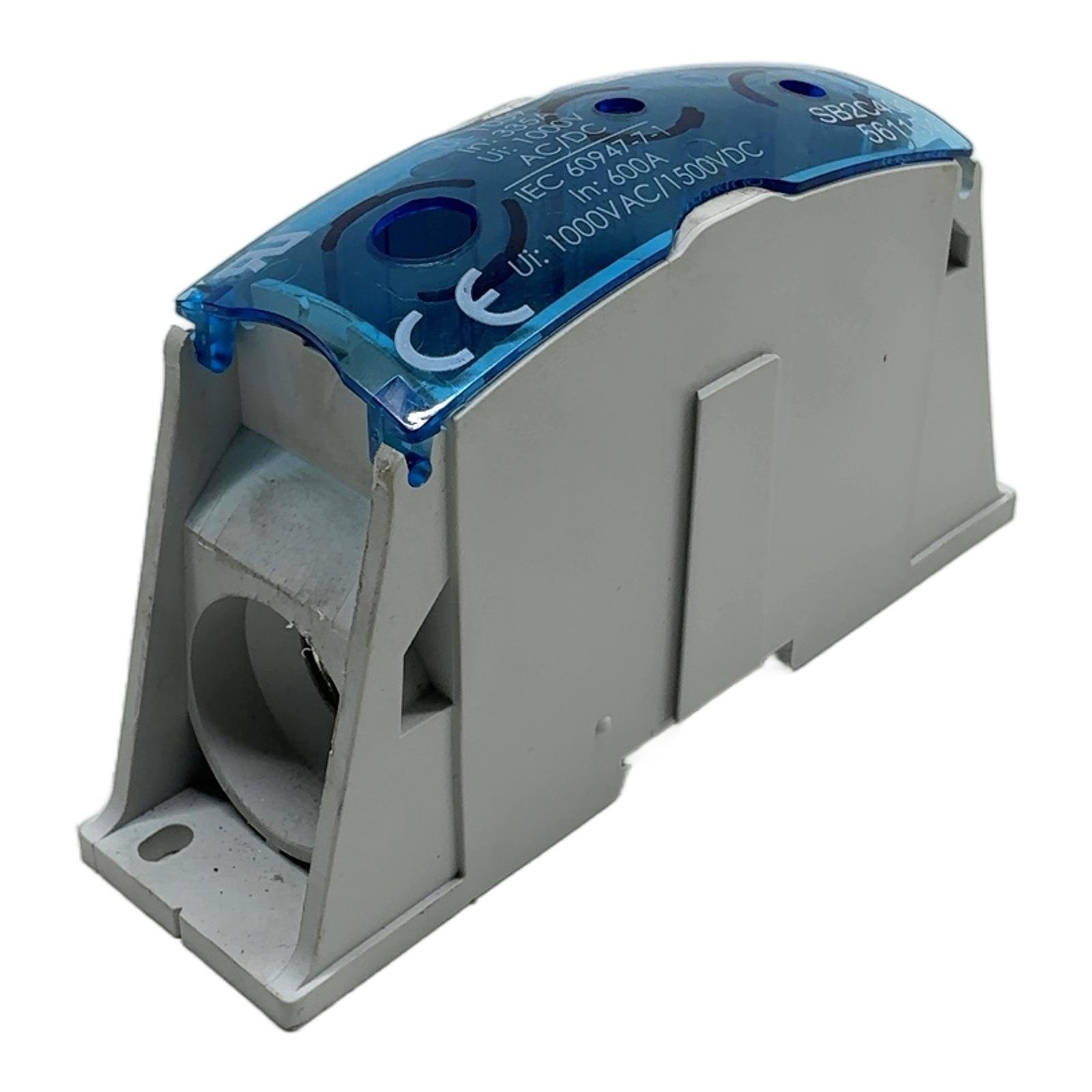

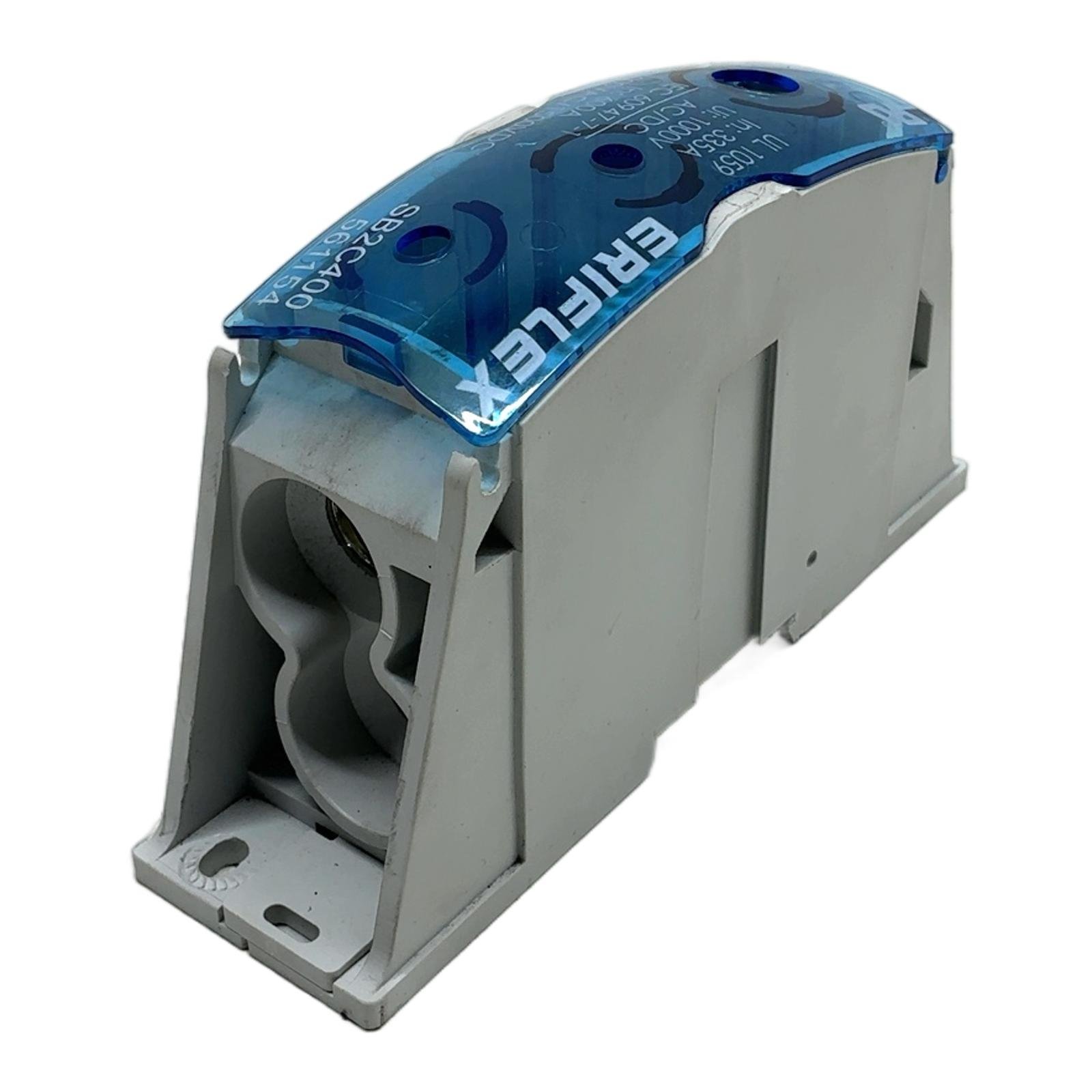

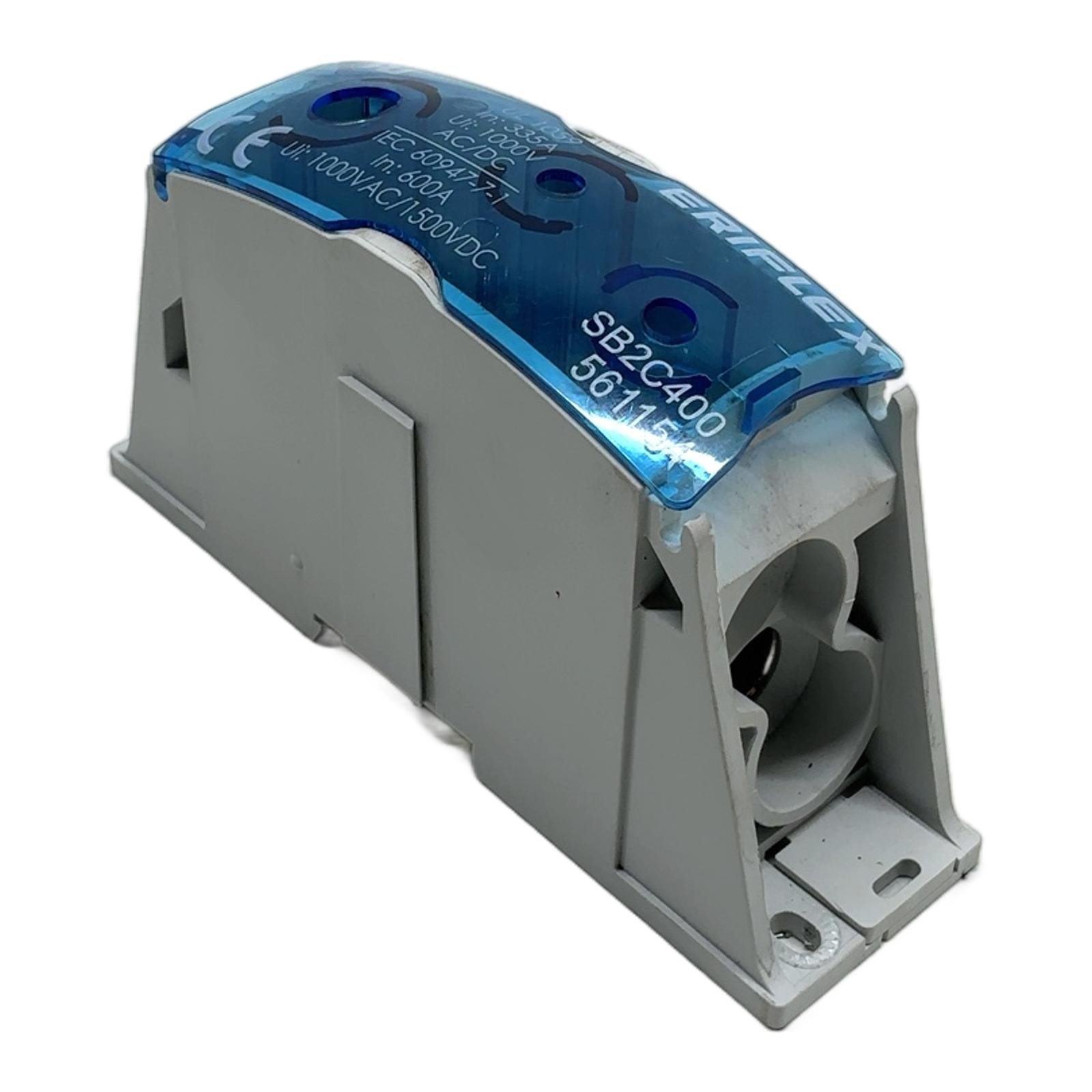

nVent ERIFLEX Power Distribution Block 400A 2-Pole SB2C400 561154 Description The nVent ERIFLEX SB2C400 is a high-performance, two-pole power distribution block designed for safely and reliably distributing high currents in industrial control panels, switchgear, and other electrical enclosures. Its compact design allows for efficient use of space, while the transparent, hinged cover provides finger-safe protection (IP20) and allows for easy visual inspection of the connections. The tin-plated copper or aluminum block offers excellent conductivity and compatibility with both copper and aluminum conductors. Specifications Manufacturer: nVent ERIFLEX Type: SB2C400 Part Number: 561154 Number of Poles: 2 Nominal Current: 400A Max Current (IEC 60947-7-1): 600A Max Current (UL 1059): 335A Max Voltage: 1000V AC / 1500V DC Mounting: Panel or DIN Rail mountable Label Info UL 1059 In: 335A, Ui: 1000V AC/DC IEC 60947-7-1 In: 600A, Ui: 1000VAC/1500VDC Application Ideal for power distribution in industrial machinery, HVAC systems, control panels, and solar power applications where multiple loads need to be connected to a single source in a compact and organized manner. Country of Origin This product is made in France. CO2 Impact By purchasing this reused part, you are contributing to a circular economy and avoiding approximately 11.2 kg of CO2 emissions associated with the production of a new unit. This saving is equivalent to the emissions from driving a car for 56 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the maximum wire size this block can accommodate?The nVent ERIFLEX SB2C400 accepts a wide range of wire sizes. The main input can handle 6 AWG to 350 kcmil (or 16 mm2 to 185 mm2), and the distribution outputs typically handle smaller gauges. Always consult the manufacturer’s datasheet for specific combinations. Is this distribution block suitable for both copper and aluminum conductors?Yes, the block is made from tin-plated copper or aluminum, making it compatible with both copper (Cu) and aluminum (Al) conductors. Ensure you use the correct anti-oxidant compound for aluminum connections as per local electrical codes. What is the recommended tightening torque for the connection screws?The correct tightening torque is critical for a safe and reliable connection. It varies based on the screw size and conductor used. Refer to the official nVent installation sheet for the SB2C400, which specifies the exact torque values in Newton-meters (Nm) or pound-inches (lb-in). profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: March 13, 2026
