TEKNOMEGA RPQ125-14

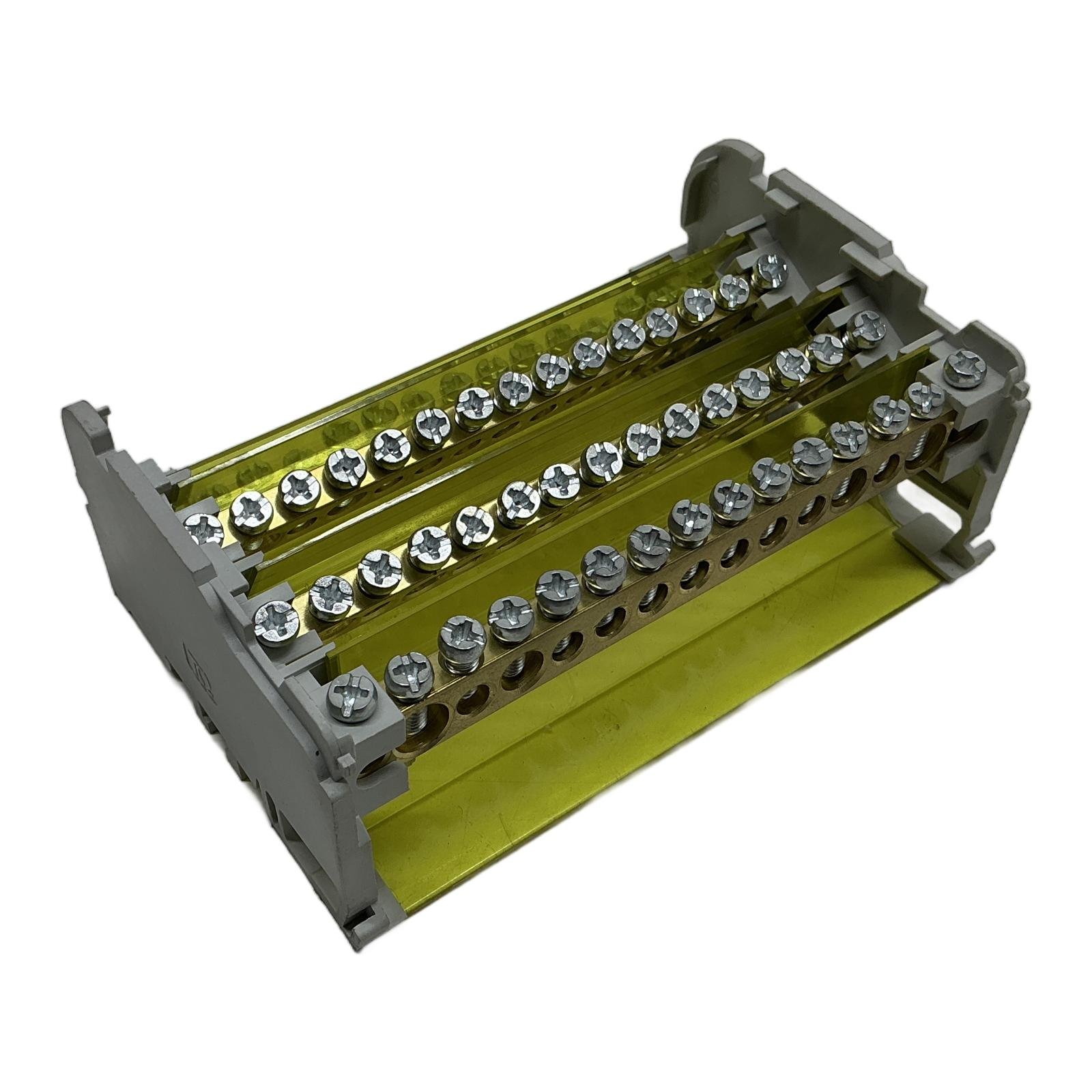

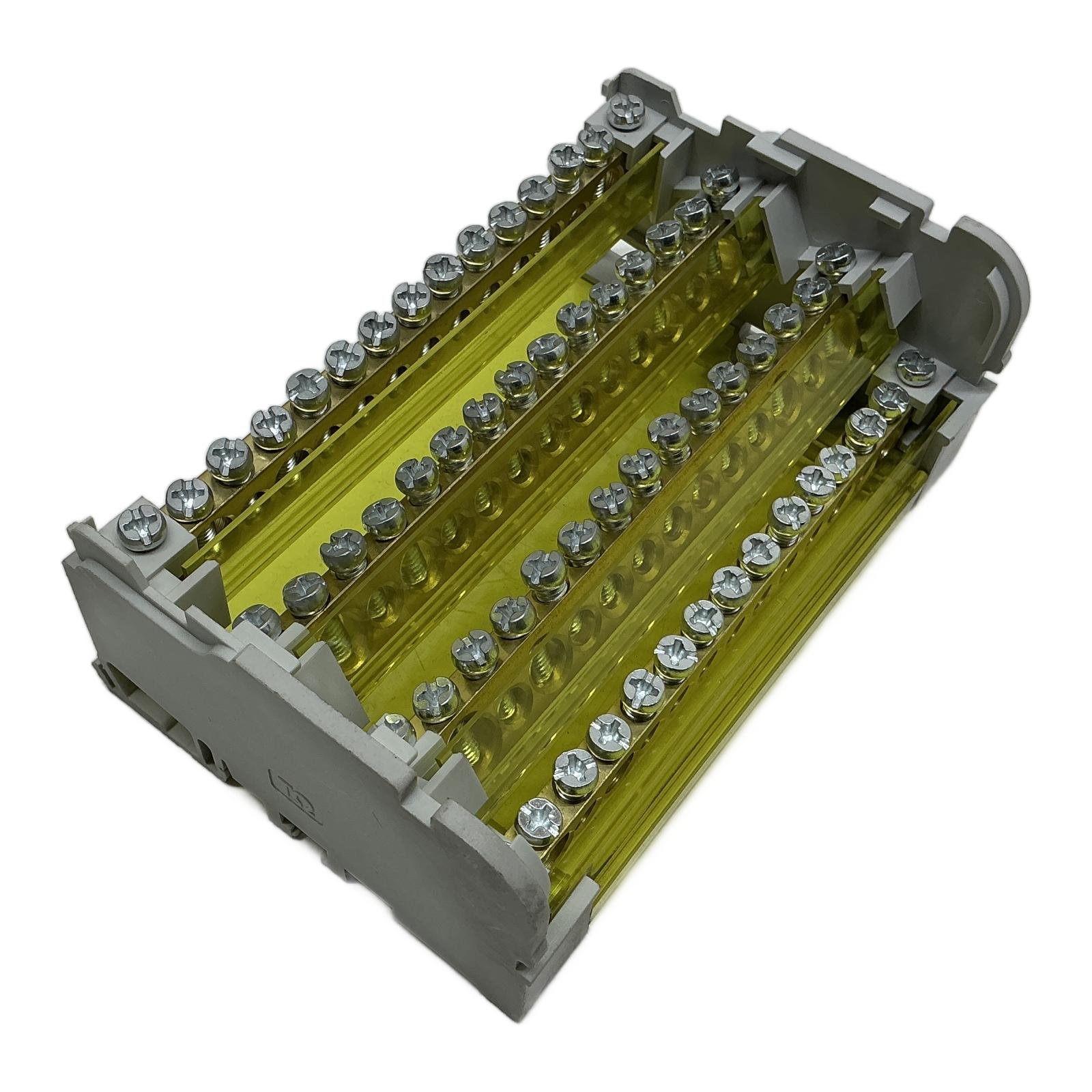

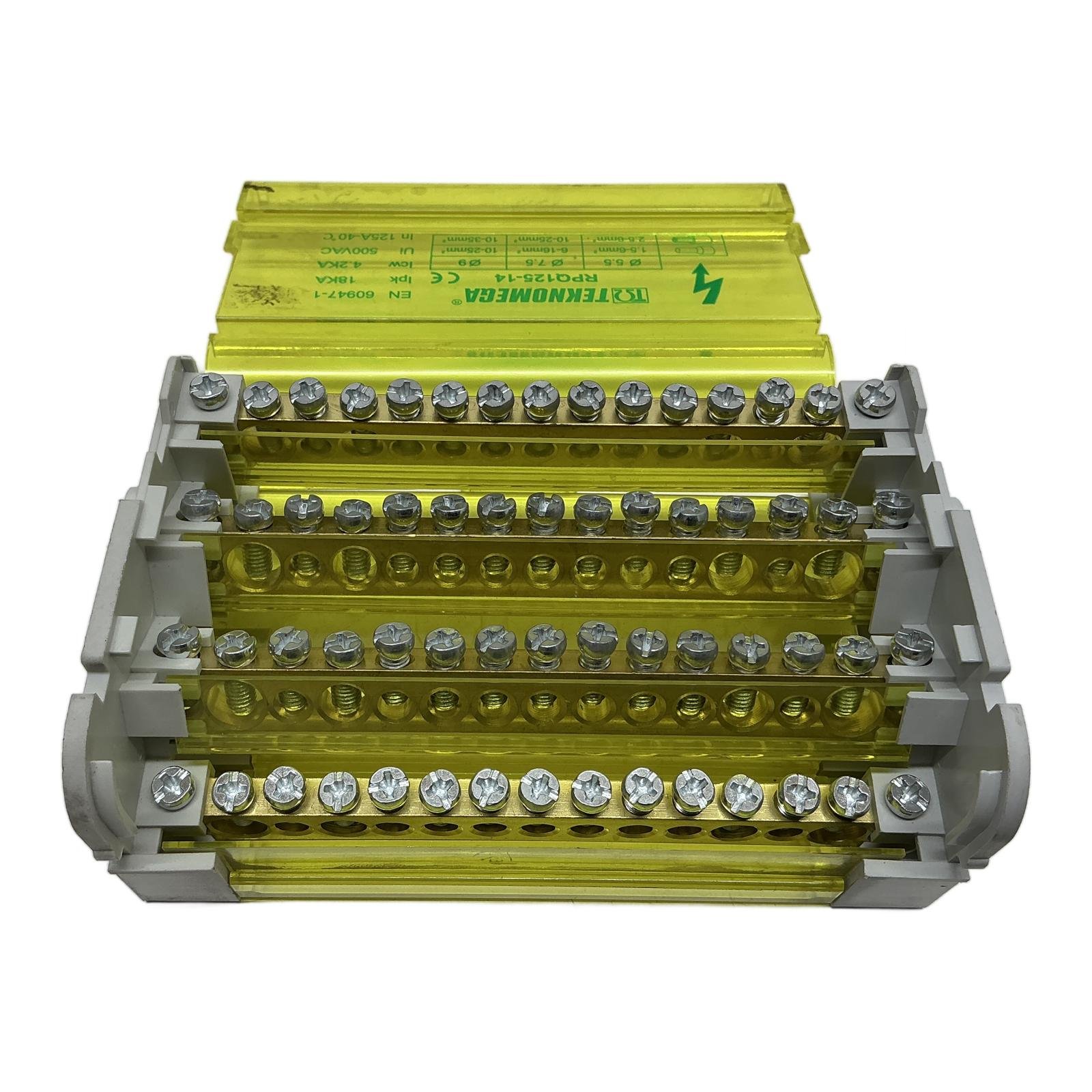

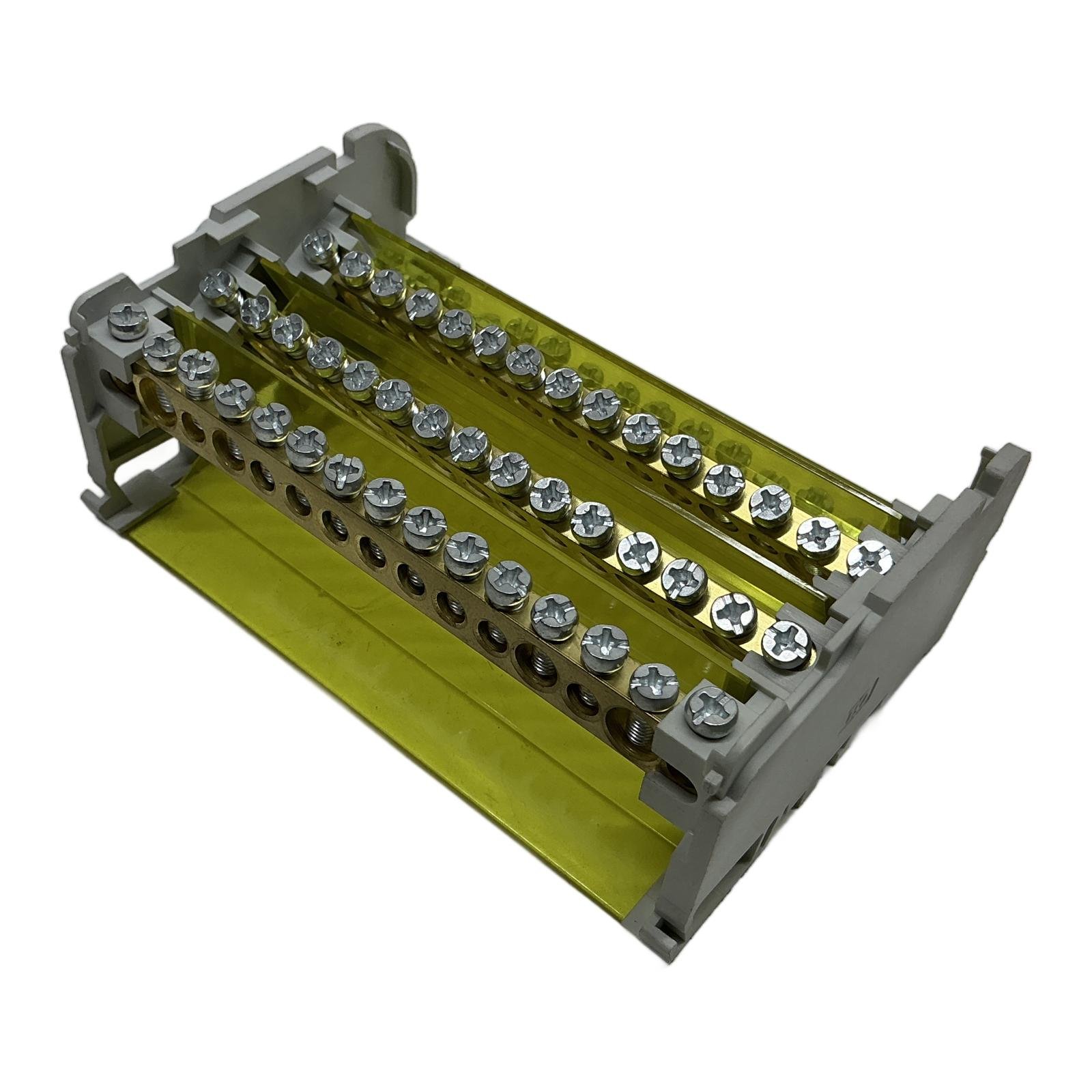

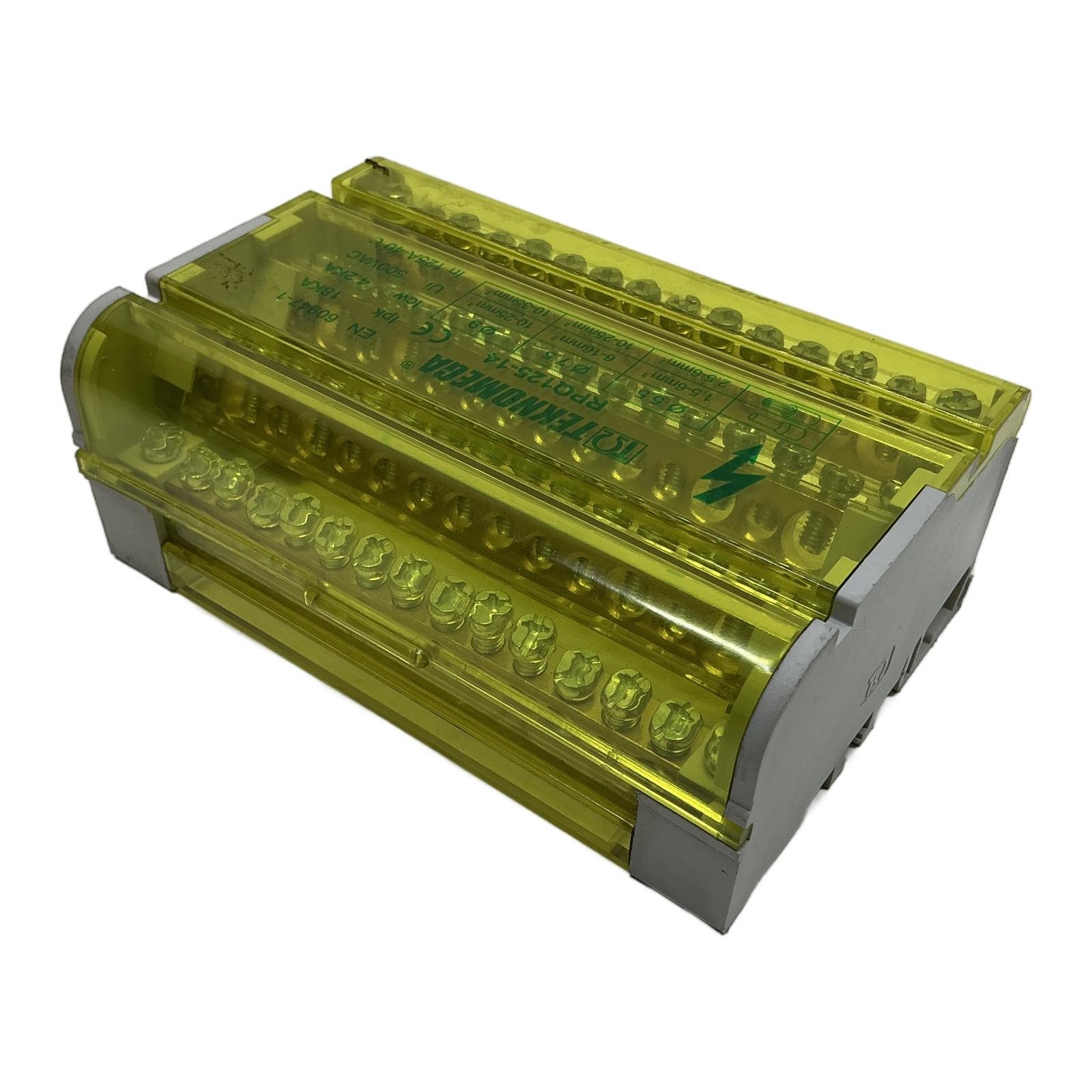

Teknomega RPQ125-14 4-Pole Modular Distribution Block Description The Teknomega RPQ125-14 is a high-quality, 4-pole modular distribution block engineered for reliable power distribution in industrial control panels and electrical installations. With a nominal current rating of 125A and an insulation voltage of 500VAC, it provides a safe and compact solution for connecting multiple conductors. Its robust design ensures excellent electrical performance and mechanical durability, compliant with international standard EN 60947-1. Specifications Manufacturer: Teknomega Model: RPQ125-14 Poles: 4 Rated Current (In): 125 A (at 40 deg C) Rated Insulation Voltage (Ui): 500 VAC Peak Withstand Current (Ipk): 18 kA Short-time Withstand Current (Icw): 4.2 kA Mounting: DIN Rail (TH/35) Standard Compliance: EN 60947-1 Label Info Input Wire Cross-section: 10-35mm2 (flexible), 10-25mm2 (rigid) Output Wire Cross-section: 1.5-16mm2 (depending on terminal) Application Ideal for use in industrial automation, machinery, switchgear assemblies, and building electrical systems where efficient and secure power distribution is critical. Country of Origin Made in Italy. CO2 Impact By choosing this refurbished or surplus component, you are avoiding the emission of approximately 5.4 kg of CO2 associated with the production of a new one. This saving is comparable to the emissions from driving a car for 27 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the maximum torque for the connection screws?The datasheet specifies torque values based on screw size. For the M5 (diameter 5.5mm) screws it is 1.2 Nm, for M6 (diameter 7.5mm) it is 2 Nm, and for M8 (diameter 9mm) it is 4 Nm. Applying the correct torque is crucial for a secure connection. Is the RPQ125-14 suitable for use with both copper and aluminum conductors?This distribution block is designed and certified for use with copper (Cu) conductors only. Using aluminum conductors is not recommended as it may lead to galvanic corrosion and connection failure over time. Can this block be mounted on a standard 35mm DIN rail?Yes, the RPQ125-14 is designed for easy snap-on mounting on a standard TH/35 (35mm) DIN rail, according to the EN 60715 standard. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
