AKN BM 505515 03435334

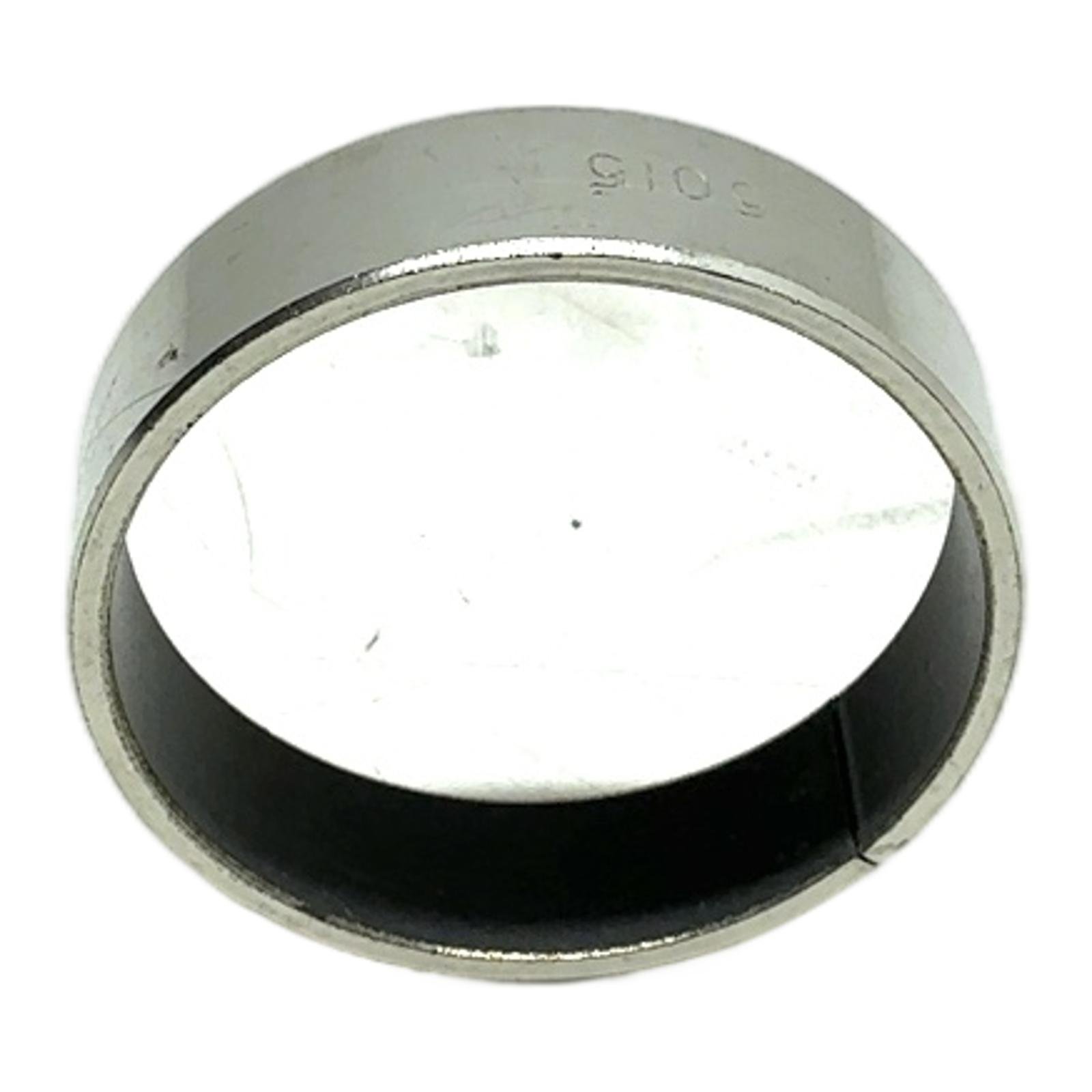

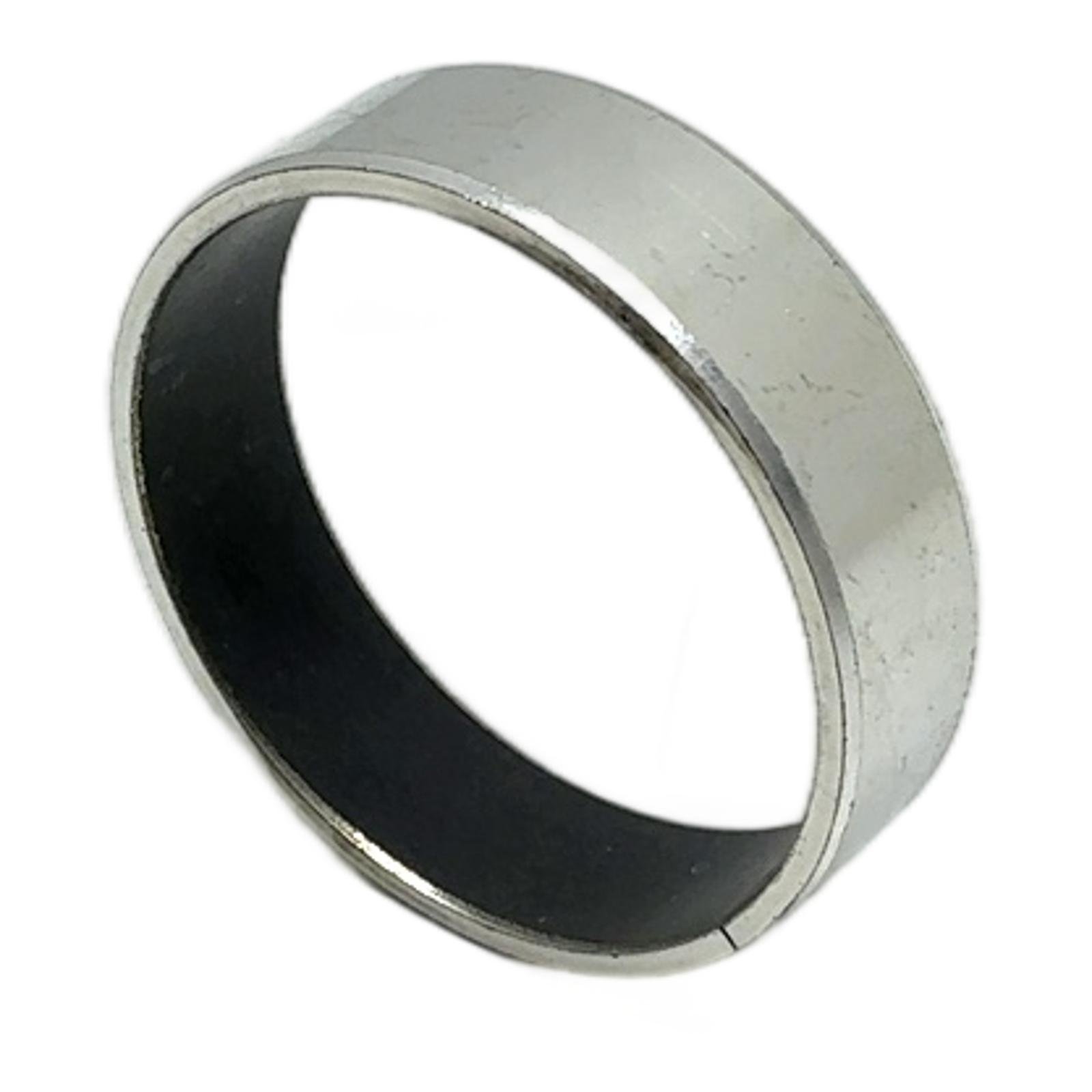

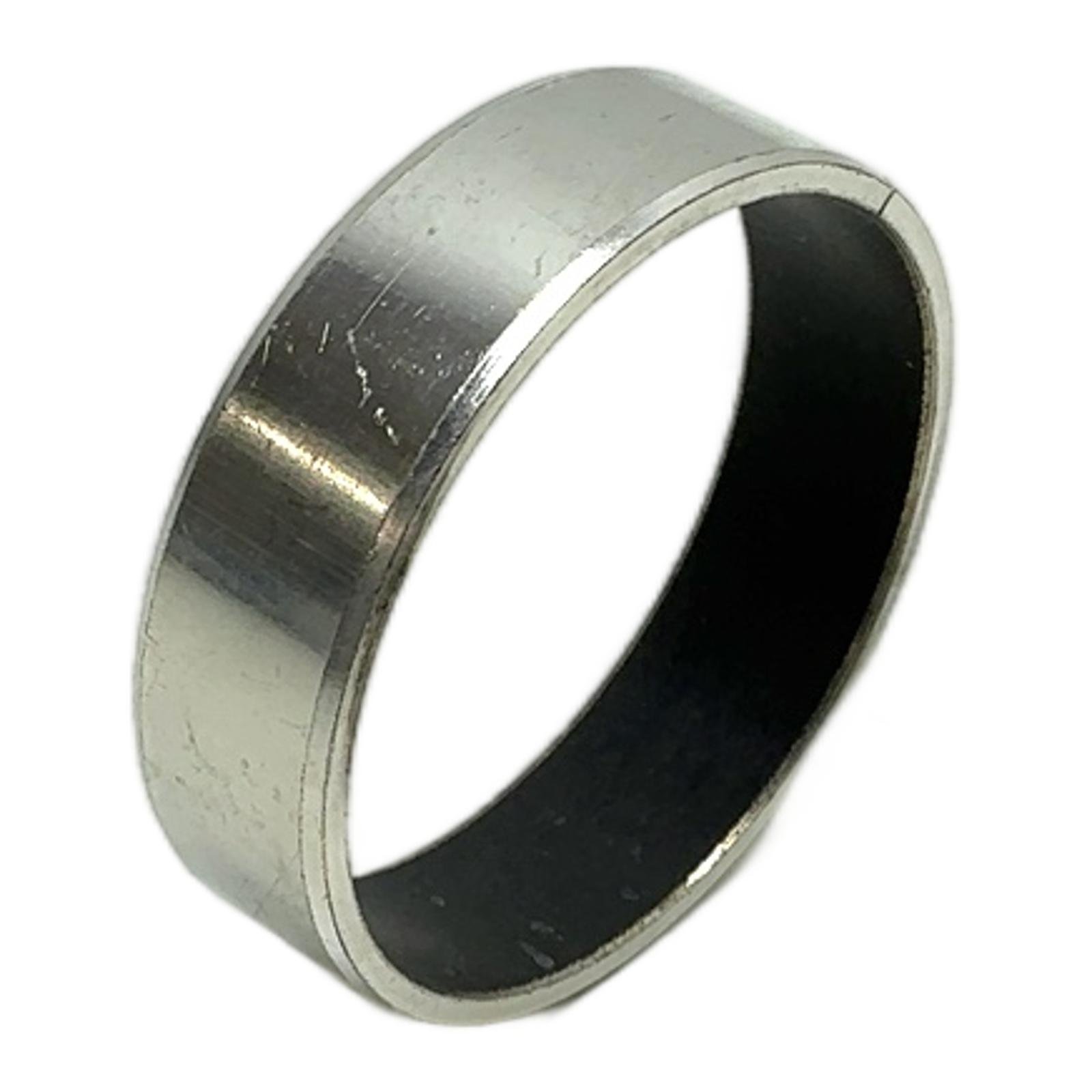

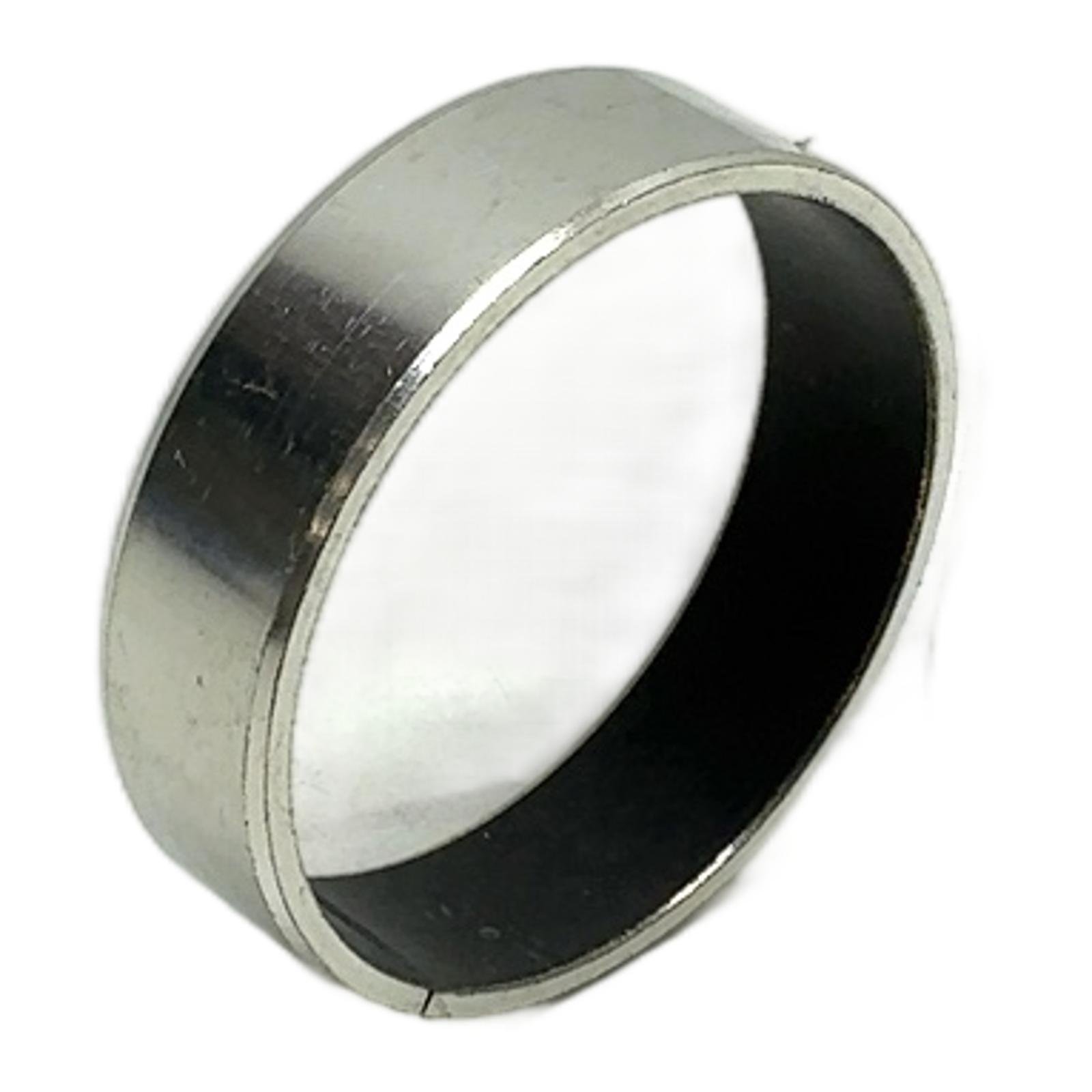

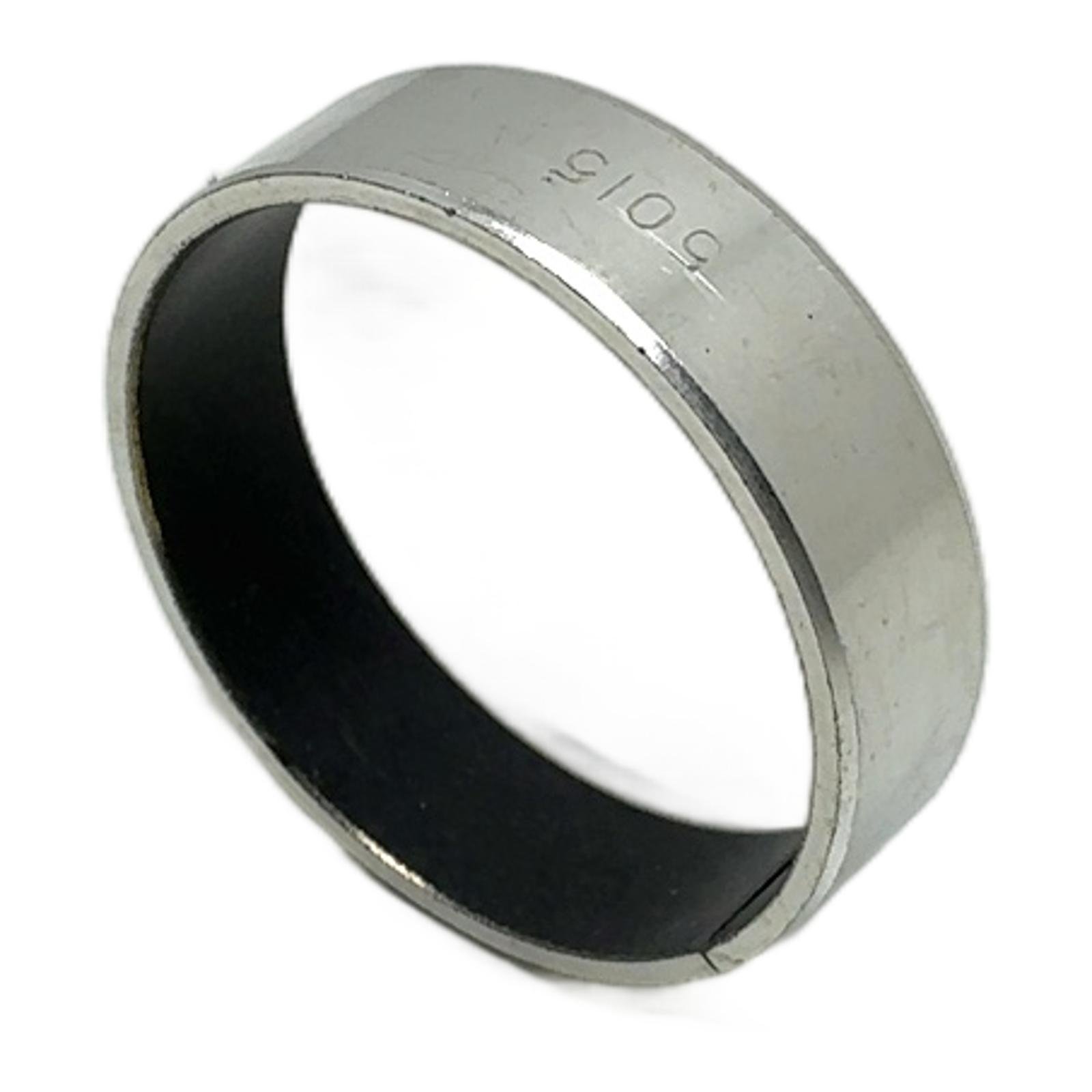

AKN BM 505515 Bimetal Plain Bearing Bush Description The AKN BM 505515 is a high-performance, maintenance-free bimetal plain bearing bush. It is constructed with a steel backing for high load capacity and a sintered bronze layer impregnated with a PTFE-based sliding material. This design ensures low friction, excellent wear resistance, and reliable operation in demanding industrial environments, particularly for slow rotational and oscillating movements. Specifications Inner Diameter (d): 50 mm Outer Diameter (D): 55 mm Length (L): 15 mm Material: Bimetal (Steel back, Sintered Bronze, PTFE sliding layer) Operational Temperature Range: -200 to +280 deg C Label Info Manufacturer: AKN Model: BM 505515 Article Number: 03435334 Application This type of bearing bush is widely used in applications such as hydraulic cylinder pivots, construction and agricultural machinery, automotive suspension systems, and general mechanical engineering where high loads and intermittent motion are common. CO2 Impact By choosing this new surplus bearing, you are contributing to a circular economy. Reusing this part avoids the production of a new one, saving approximately 0.1 kg of CO2. This is equivalent to the energy needed to charge a smartphone 12 times. Availability This is a new surplus item. It is in excellent condition but may not come in the original factory box. Order now from profideals for expert support and fast delivery. FAQ What are the main advantages of a bimetal bearing like the BM 505515?Bimetal bearings offer a great combination of high load-bearing capacity due to their steel backing and excellent self-lubricating, low-friction properties from the PTFE sliding layer. This makes them ideal for maintenance-free applications. Is this bearing suitable for high-speed rotational applications?No, this type of bearing is optimized for high-load, low-speed, or oscillating movements. For continuous high-speed rotation, a ball or roller bearing would be more appropriate. What kind of shaft tolerance is recommended for a 50mm inner diameter bush?For optimal performance and press-fit, it is generally recommended to use a shaft with an h-tolerance (e.g., h8 or h9). However, always consult the specific application and manufacturer’s guidelines for precise recommendations. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder. Last Update: Friday, March 13, 2026
