GEA TUCHENHAGEN REC-OD21/2″-SZ-TM1.L2BAM-BD/CLR-L0-32N/52/05

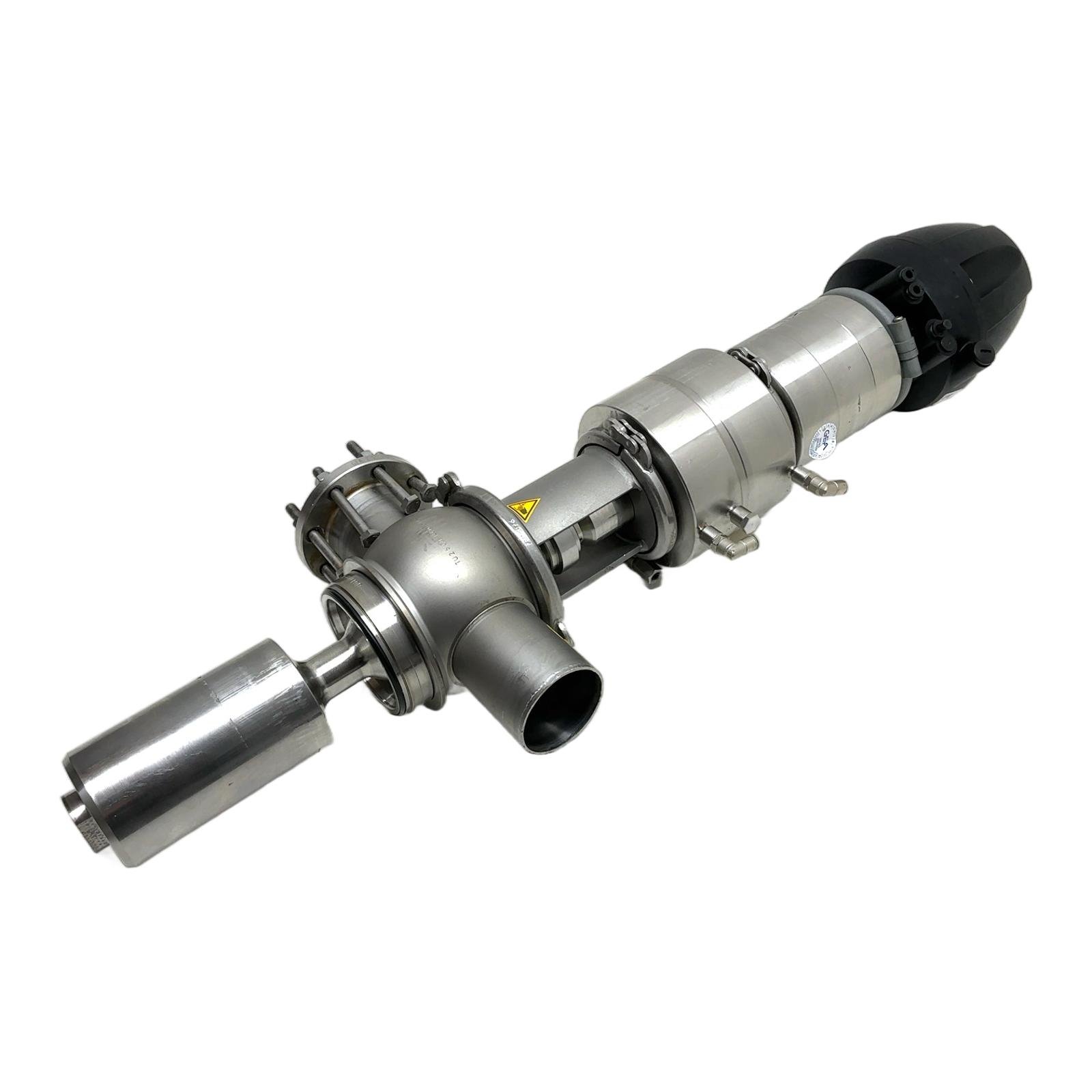

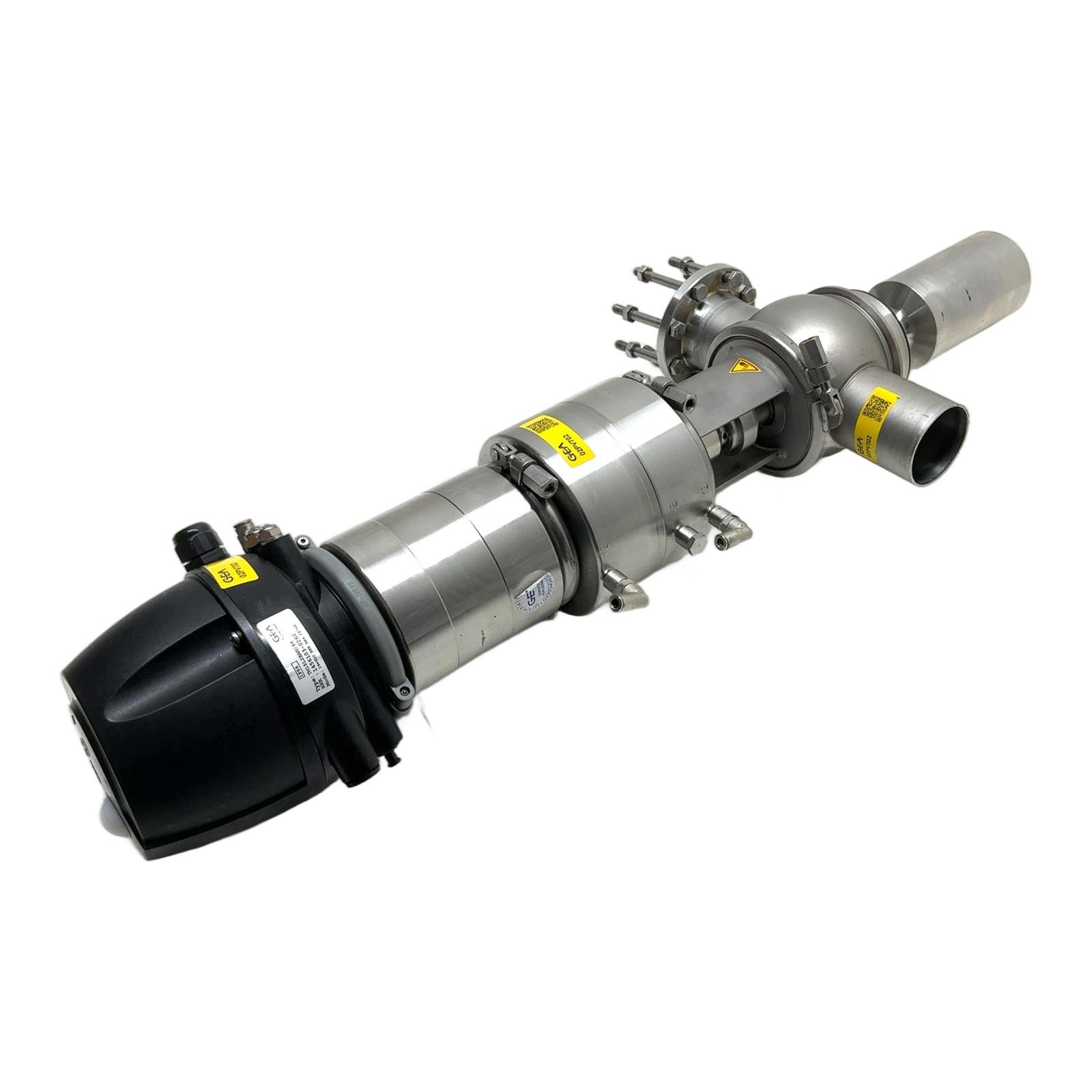

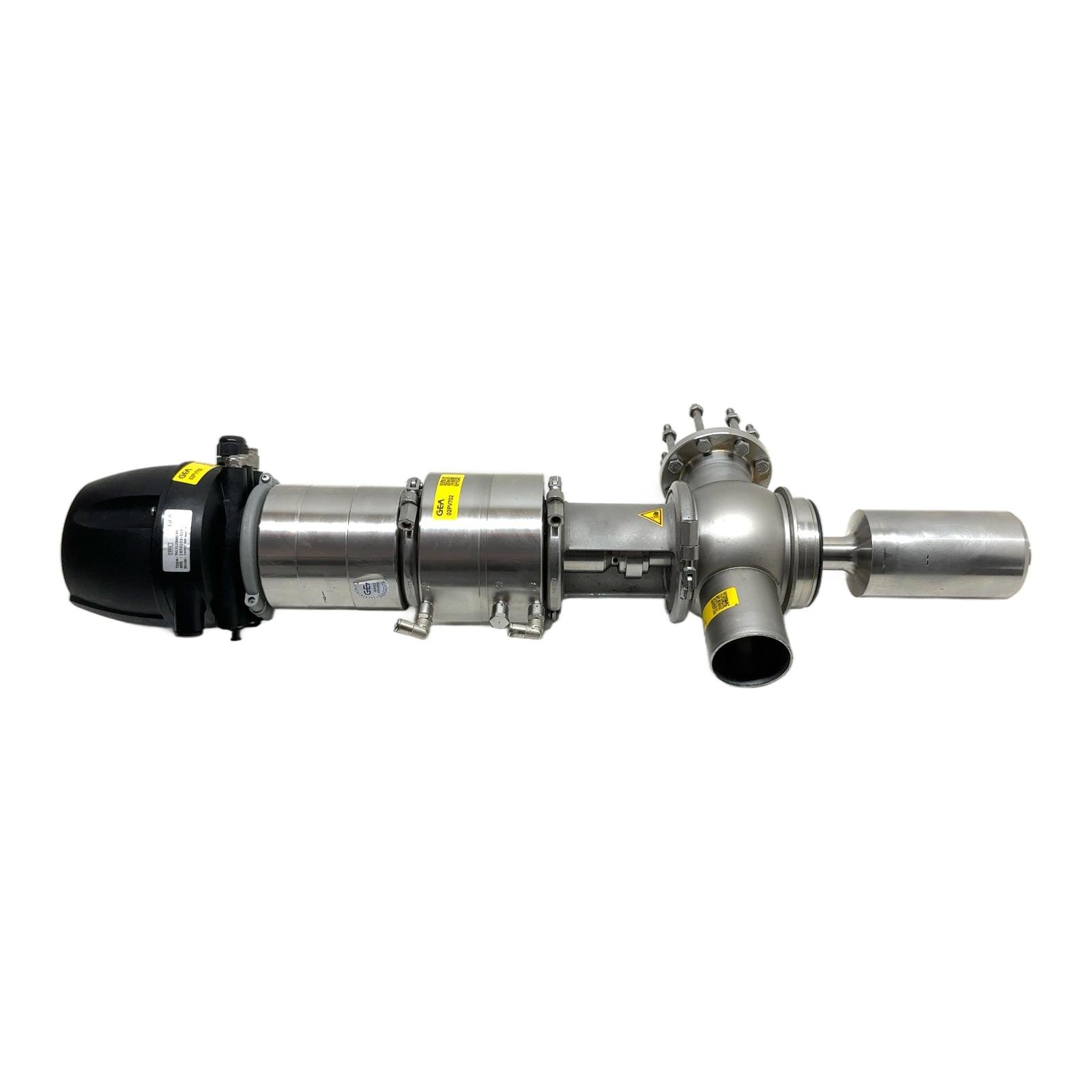

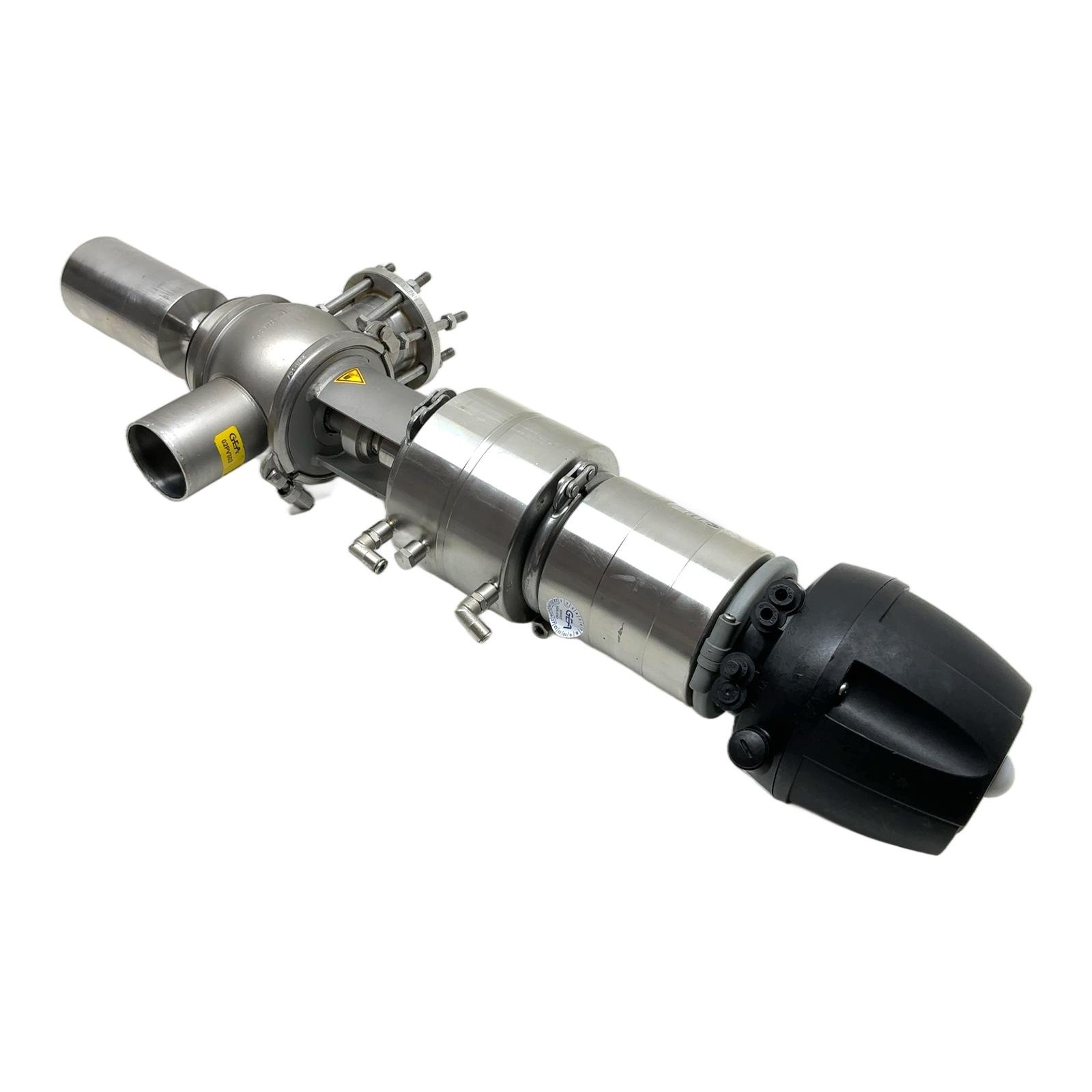

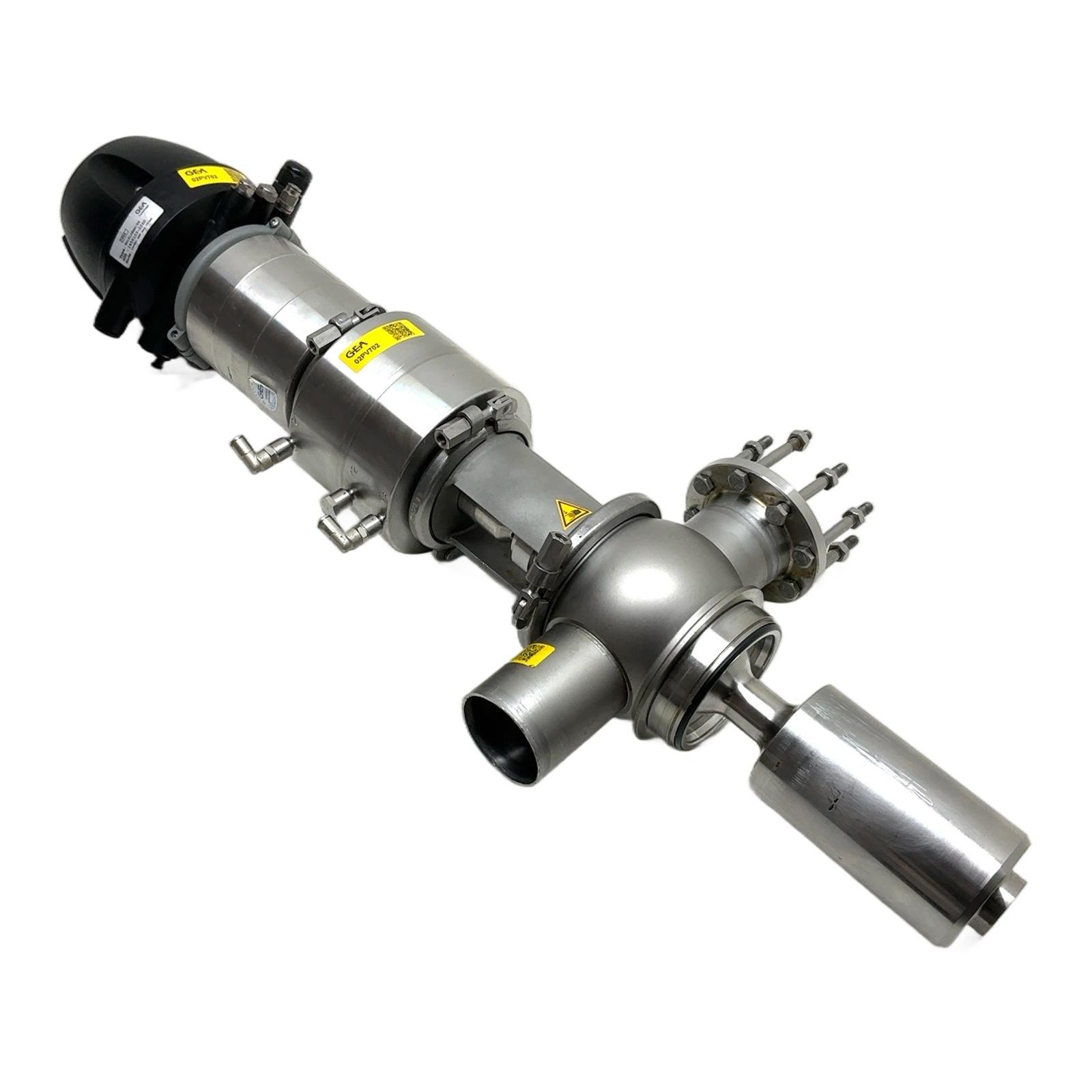

GEA Tuchenhagen VARIVENT 2.5 inch Mixproof Process Valve Description This is a GEA Tuchenhagen VARIVENT series pneumatically actuated mixproof valve, model REC-OD2 1/2 inch. It is engineered for the highest standards of hygiene and safety in processing industries such as dairy, brewing, and pharmaceuticals. The double-seat design allows for the safe separation of two different media within the same valve body, preventing cross-contamination. This unit comes complete with a GEA T8 series control top (Type TM15L2BAM/66) for electronic control and feedback. Specifications Manufacturer: GEA Tuchenhagen GmbH Series: VARIVENT Valve Type: Mixproof Double-Seat Valve Size: 2.5 inch OD Tube (DN65) Body Material: 1.4404 / AISI 316L Stainless Steel Seal Material: HNBR (FDA) Max Process Pressure (PS): 5.0 bar / 72.5 psi Actuator Air Pressure: 6.0 – 8.0 bar / 87 – 116 psi Control Top Type: TM15L2BAM/66 (24VDC PNP, max 285mA) Protection Class: IP66 Label Info Main Valve Type: REC-OD2 1/2″-SZ-TM1.L2BAM-BD/CLR-L0-32N/52/05 Main Valve Serial: 1224822/0030 Control Head Type: TM15L2BAM/66 Control Head SNR: 1456103-0260 Application This valve is ideally suited for complex fluid handling matrices in food and beverage plants, dairies, pharmaceutical production, and other sanitary processing environments where product integrity is paramount. Country of Origin Made in Germany. CO2 Impact By purchasing this pre-owned valve, you are preventing the emission of approximately 74 kg of CO2. This is equivalent to the carbon footprint of driving a car for 370 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is a mixproof valve and why is it used?A mixproof valve, or double-seat valve, has two independent seals that create a separation chamber between them. This design allows two different products or a product and a cleaning fluid (CIP) to run through the same valve body simultaneously without any risk of cross-contamination. This greatly increases process efficiency and plant flexibility. What are the wiring and communication details for the TM15L2BAM/66 control top?This control top uses a standard 24VDC PNP interface. It is a direct-wire unit, meaning it does not use a fieldbus protocol like AS-i or DeviceNet. It provides signals for valve position (open/closed) and allows for solenoid activation via a 24VDC signal from a PLC or other control system. What is the recommended maintenance for the HNBR seals?HNBR (Hydrogenated Nitrile Butadiene Rubber) seals offer good resistance to fats, oils, and many CIP chemicals. Regular maintenance involves visual inspection for wear, cracking, or hardening. Service intervals depend heavily on the process conditions (temperature, pressure cycles, chemical exposure), but a typical preventative maintenance schedule would recommend seal replacement every 12-24 months. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
