GEA TUCHENHAGEN RBC-OD2″-SZ-TM1.L2BAM-BD/BLR50-V2-32N/52

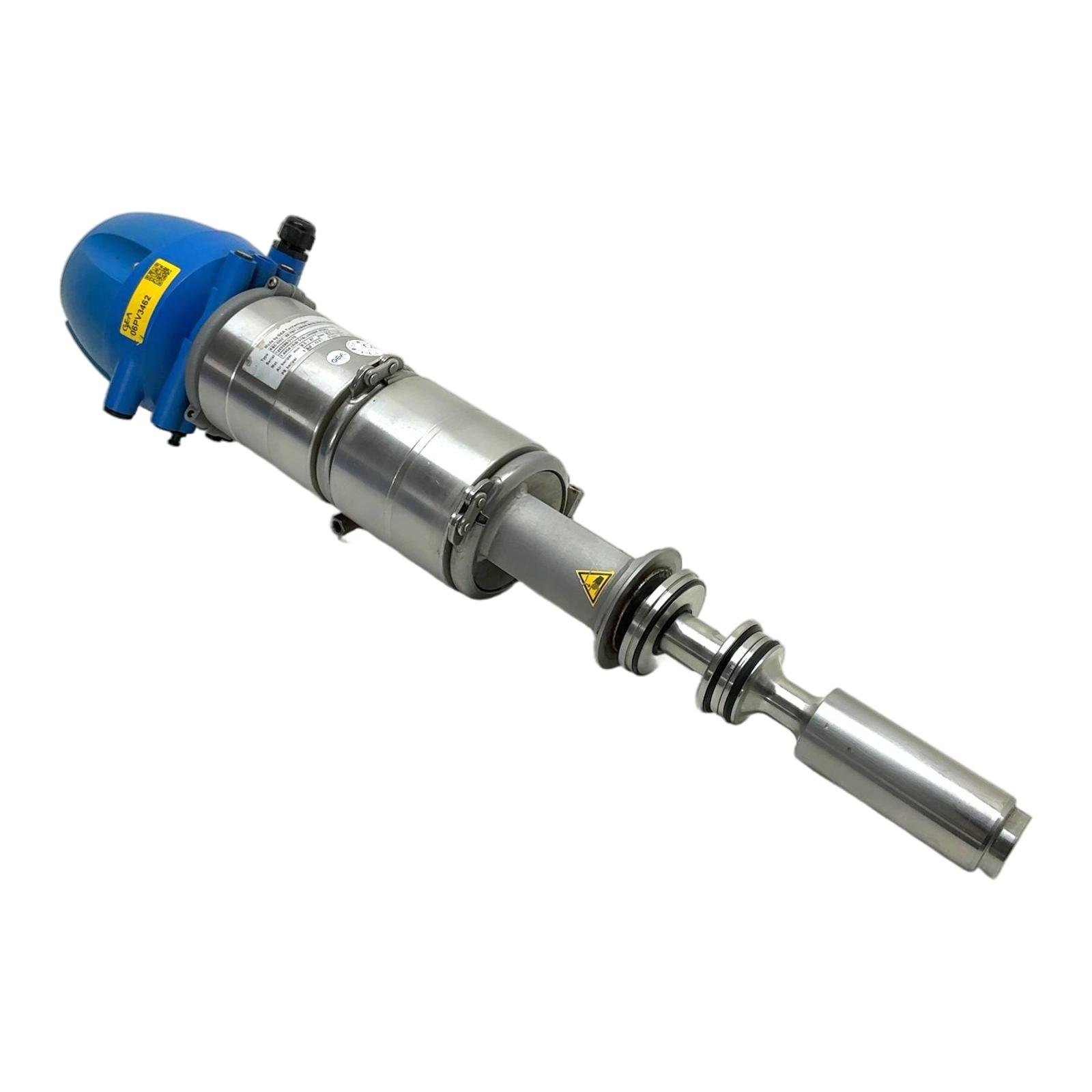

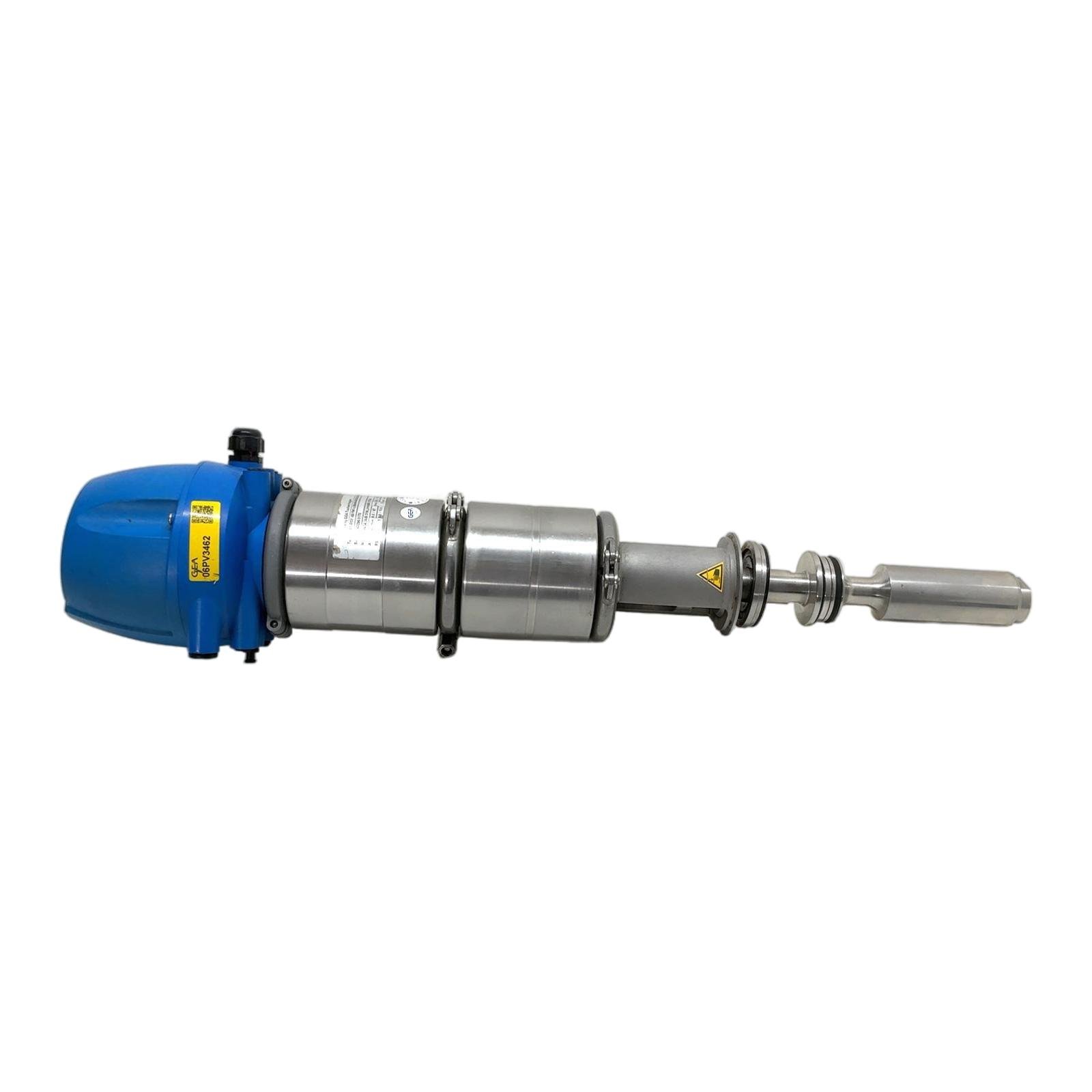

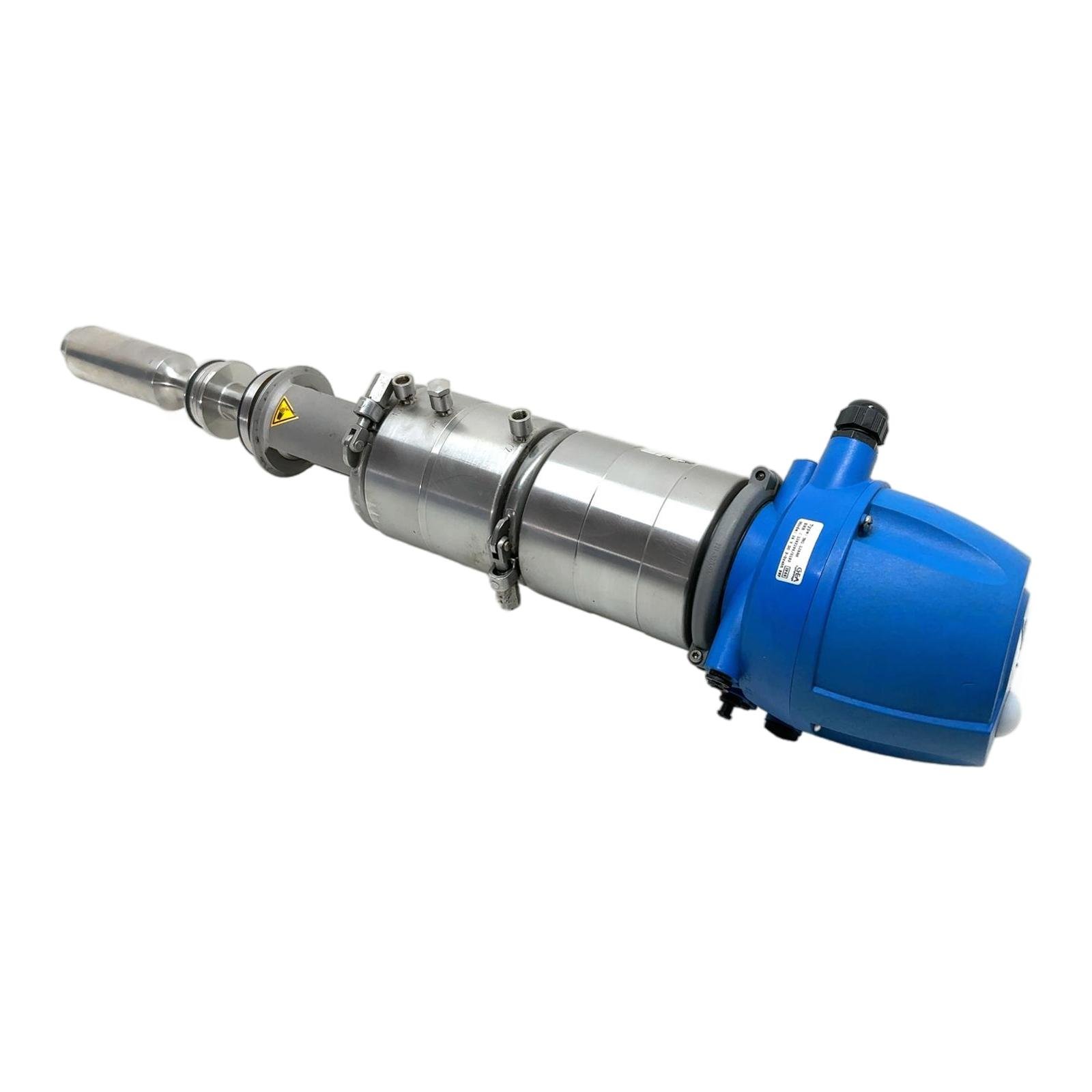

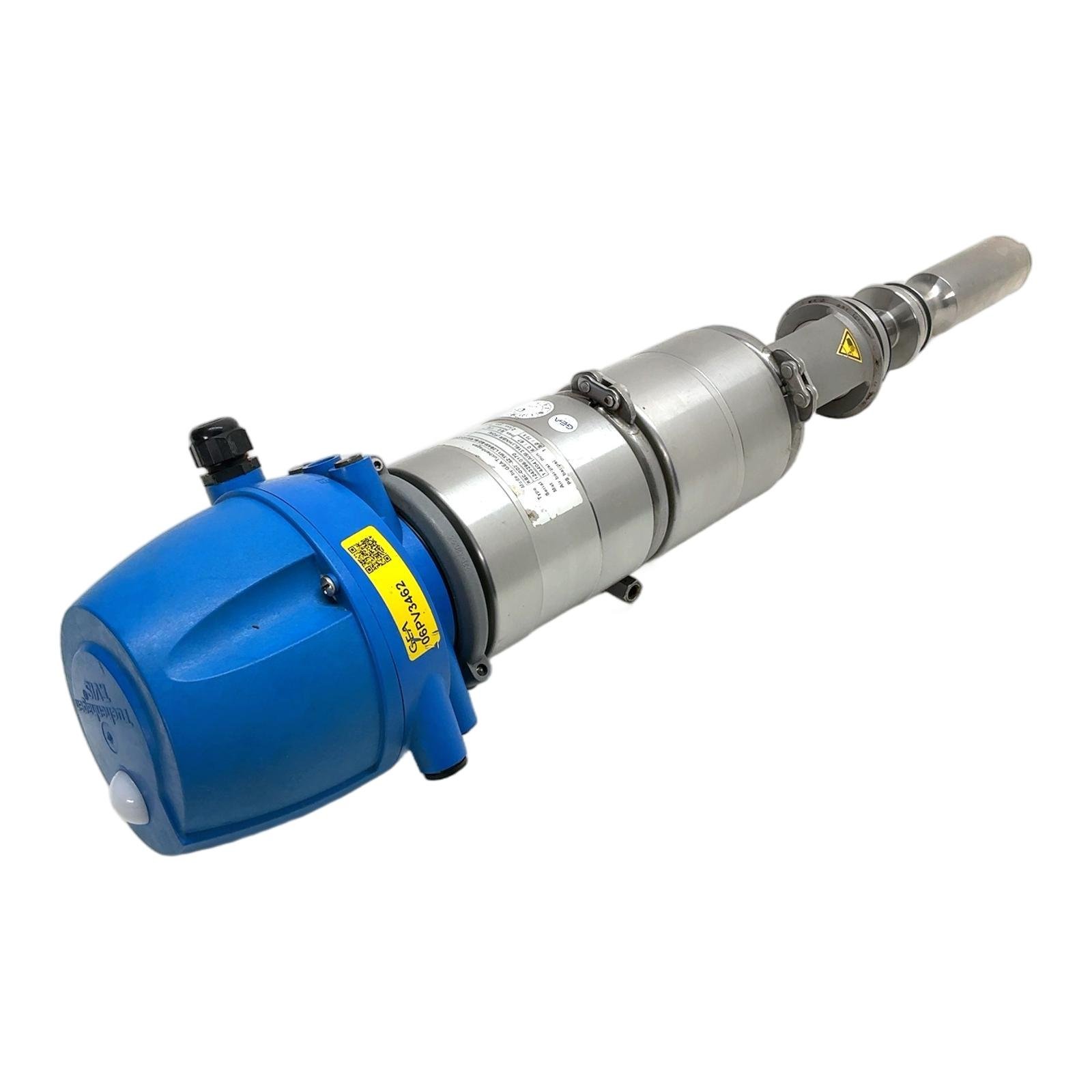

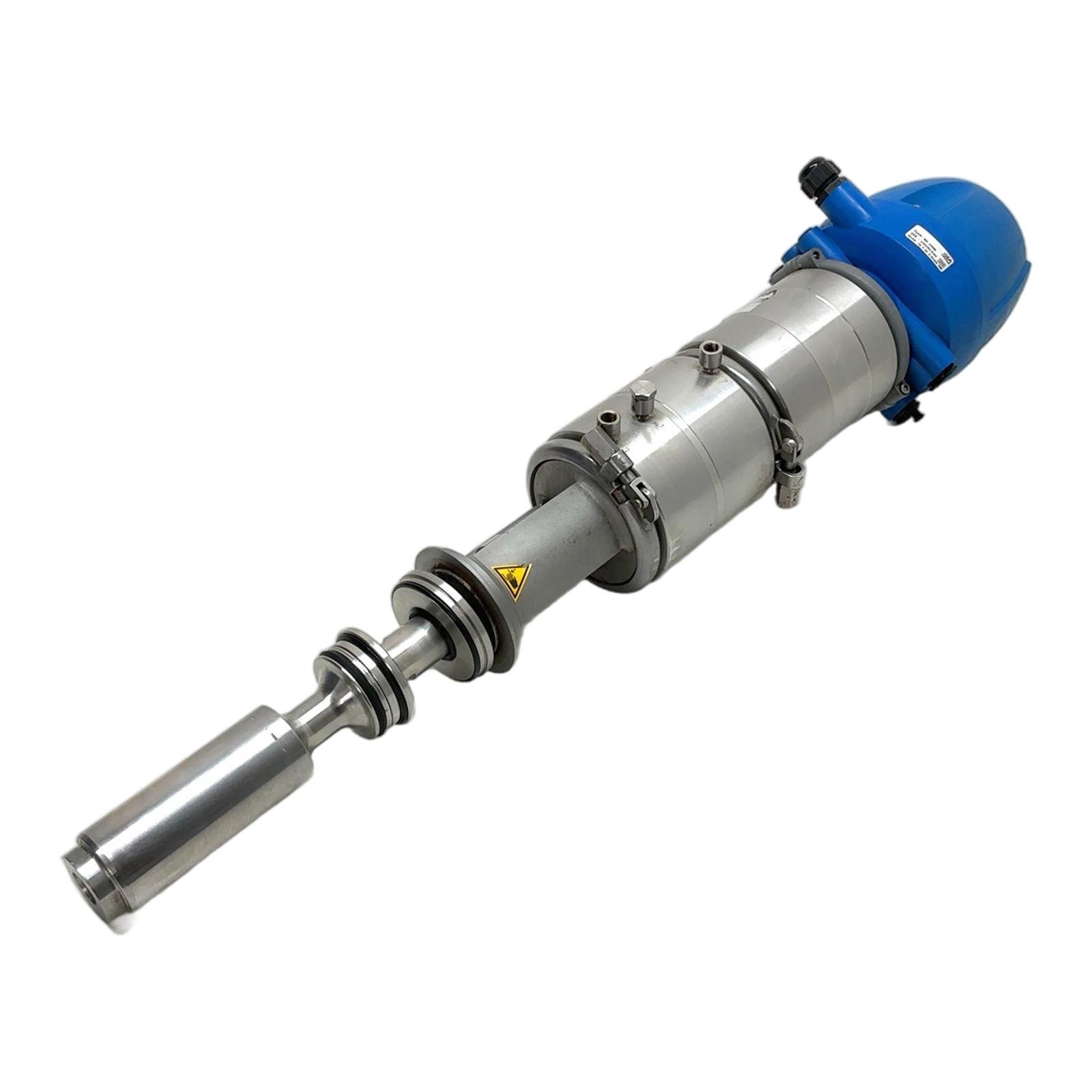

GEA Tuchenhagen VARIVENT Mixproof Valve with T.VIS Control Top Description This GEA Tuchenhagen valve, model RBC-OD2″-SZ-TM1.L2BAM-BD/BLR50-V2-32N/52, is a state-of-the-art mixproof valve designed for demanding hygienic processes. Part of the renowned VARIVENT series, it ensures safe and reliable separation of two different media within a single valve body, preventing cross-contamination. It is constructed from high-grade stainless steel and fitted with an intelligent T.VIS M-1 control top for automated operation and feedback. Specifications Manufacturer: GEA Tuchenhagen Product Line: VARIVENT Control Top: T.VIS M-1 (Type TM1.L2BAM) Control Voltage: 24 V DC, 3-Wire PNP Materials: 1.4404 (AISI 316L) Stainless Steel, HNBR (FDA compliant) seals Actuation Pressure: 6.0 to 8.0 bar / 87 to 116 psi Process Pressure (PS): max 5.0 bar / 72.5 psi Protection Class: IP66 Label Info Type: RBC-OD2″-SZ-TM1.L2BAM-BD/BLR50-V2-32N/52 Serial Number: 1243296/0170 Application Ideal for use in the food and beverage, dairy, pharmaceutical, and chemical industries where process safety and product integrity are paramount. Common applications include managing product flow and Cleaning-In-Place (CIP) circuits. Country of Origin Made in Germany. CO2 Impact By purchasing this reconditioned item, you are helping to prevent the emission of approximately 62 kg of CO2. This saving is comparable to driving a standard car for 310 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the function of a mixproof valve like this GEA VARIVENT?A mixproof valve allows two different products or a product and a cleaning fluid (CIP) to flow through the same valve body simultaneously without risk of cross-contamination. It uses two independent seals, creating a leakage chamber between them that can be drained and cleaned. What are the connectivity specifications for the T.VIS M-1 control top?The control top operates on 24 V DC and uses a 3-wire PNP output signal. This is a common standard for industrial sensors and allows for easy integration into modern PLC control systems. What does the material specification ‘1.4404 (AISI 316L) / HNBR (FDA)’ mean for its application?This indicates the valve is constructed for hygienic applications. 1.4404 (AISI 316L) is a high-grade, corrosion-resistant stainless steel. HNBR (Hydrogenated Nitrile Butadiene Rubber) is a durable sealing material, and the (FDA) designation confirms it is compliant with food-grade standards set by the U.S. Food and Drug Administration. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
