INA RALE30-NPP-B

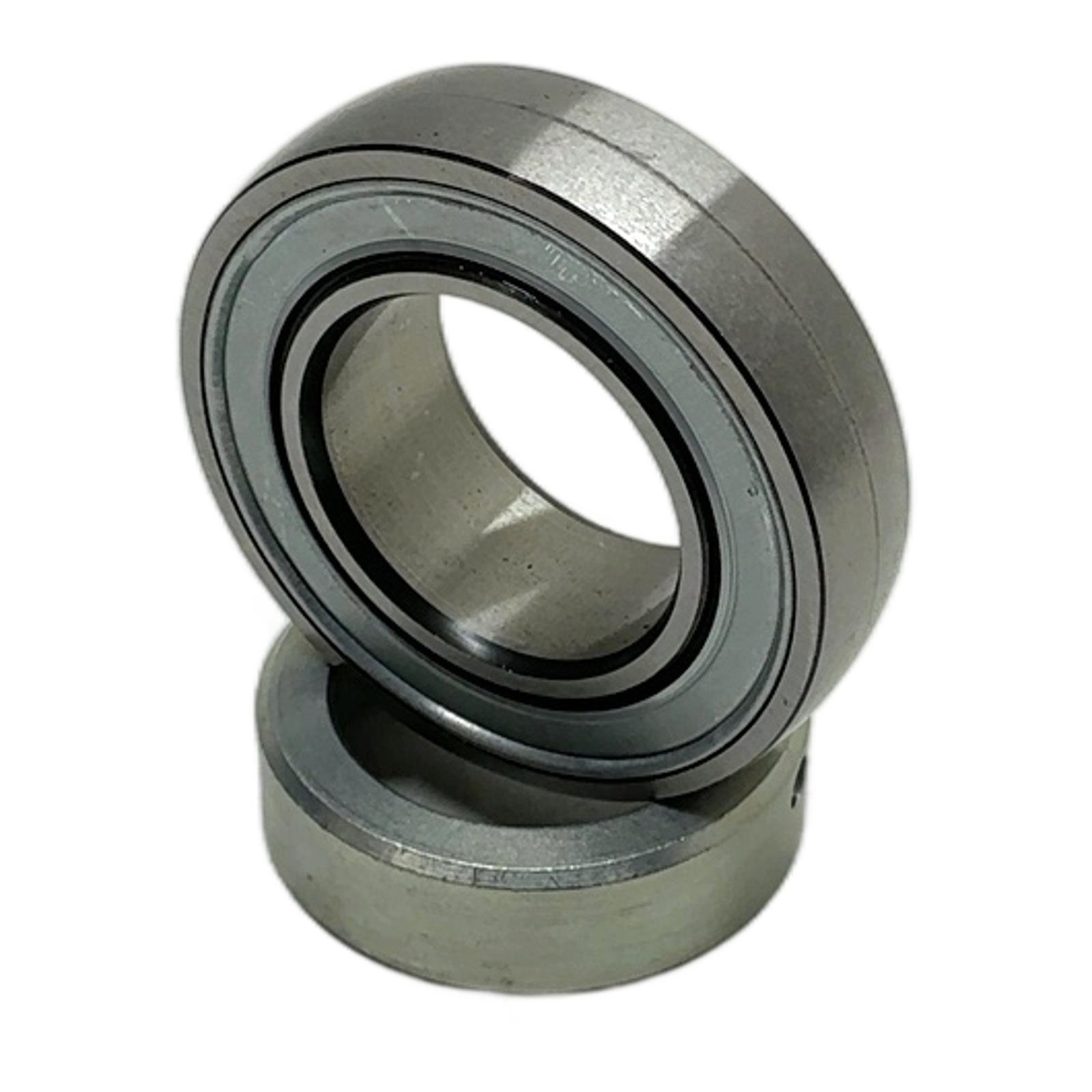

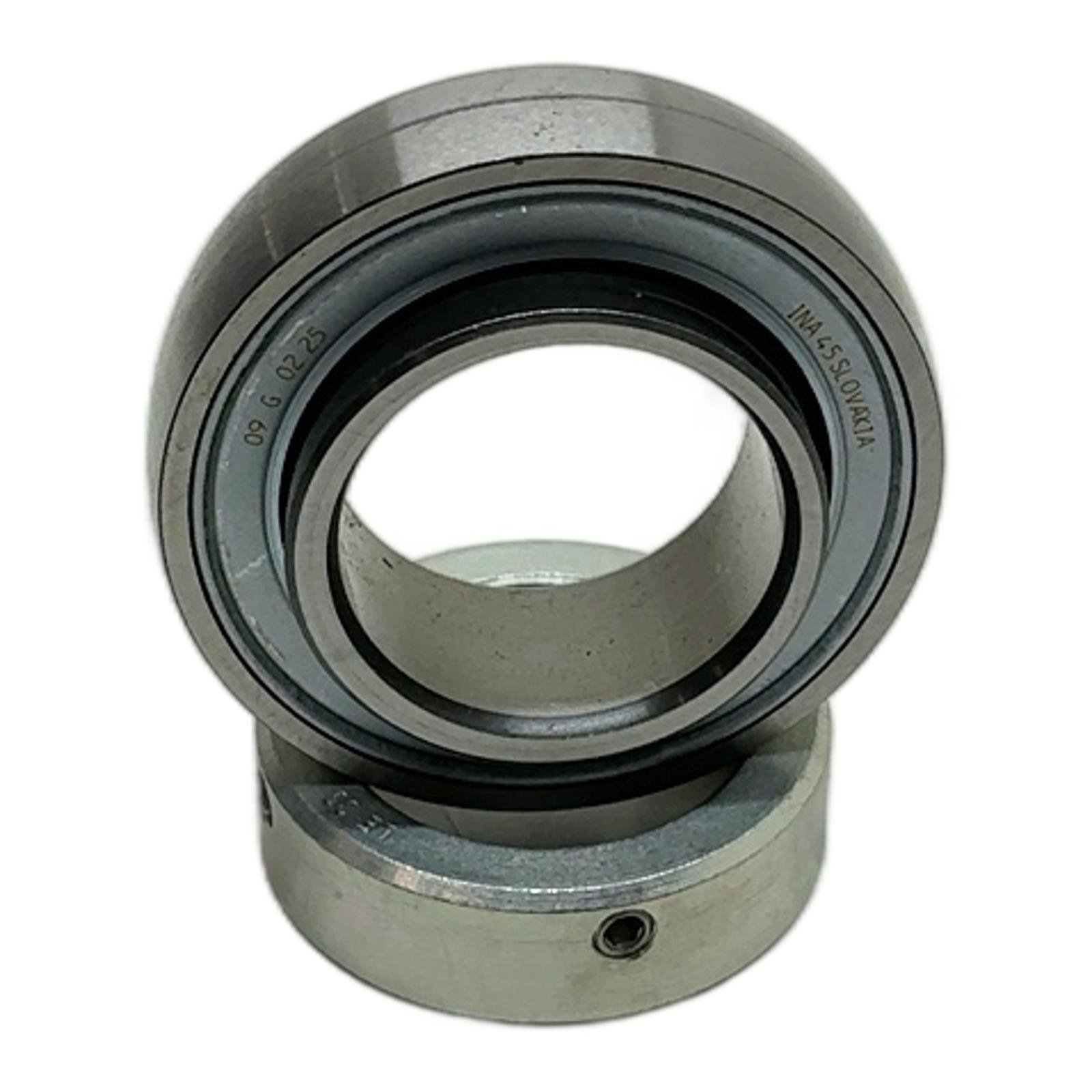

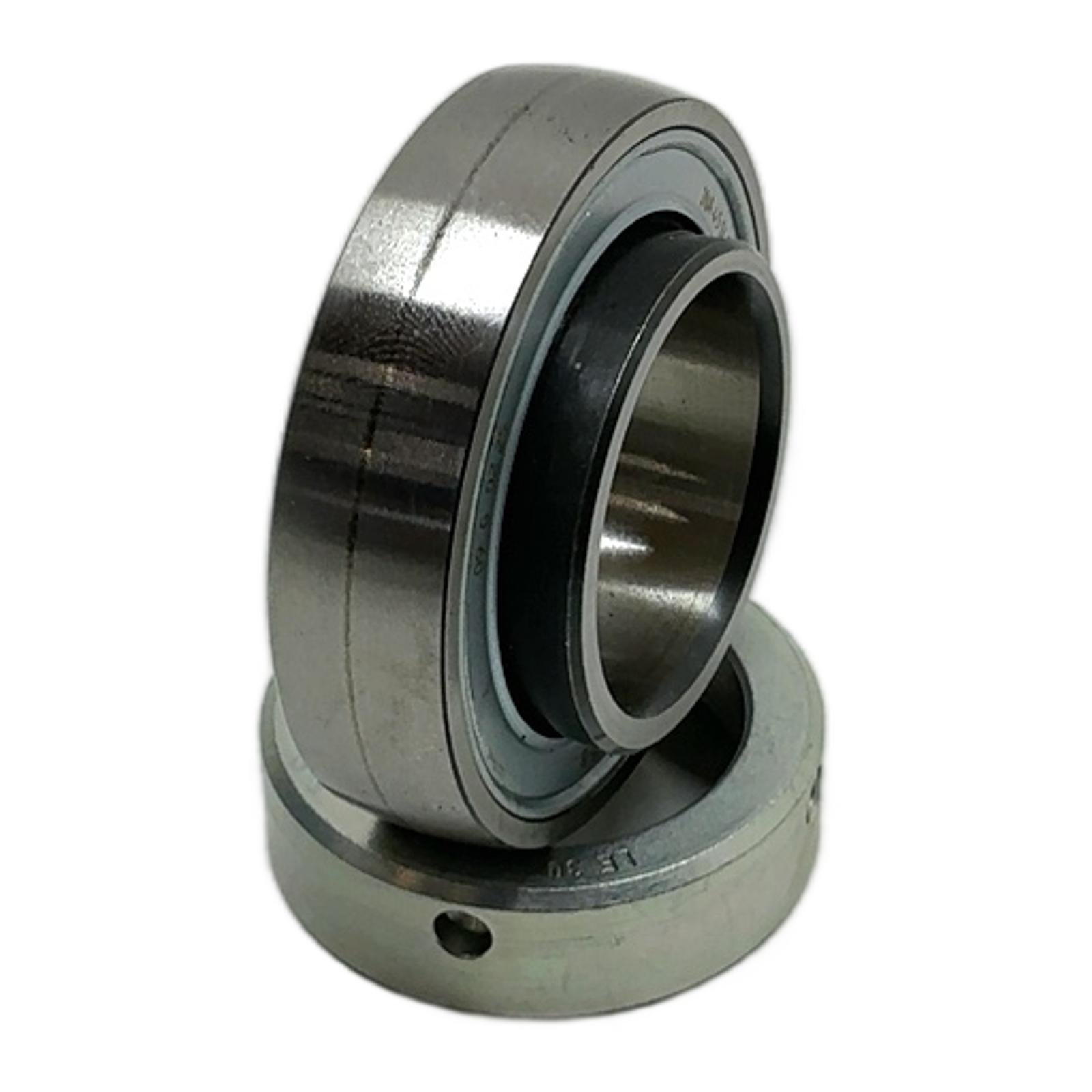

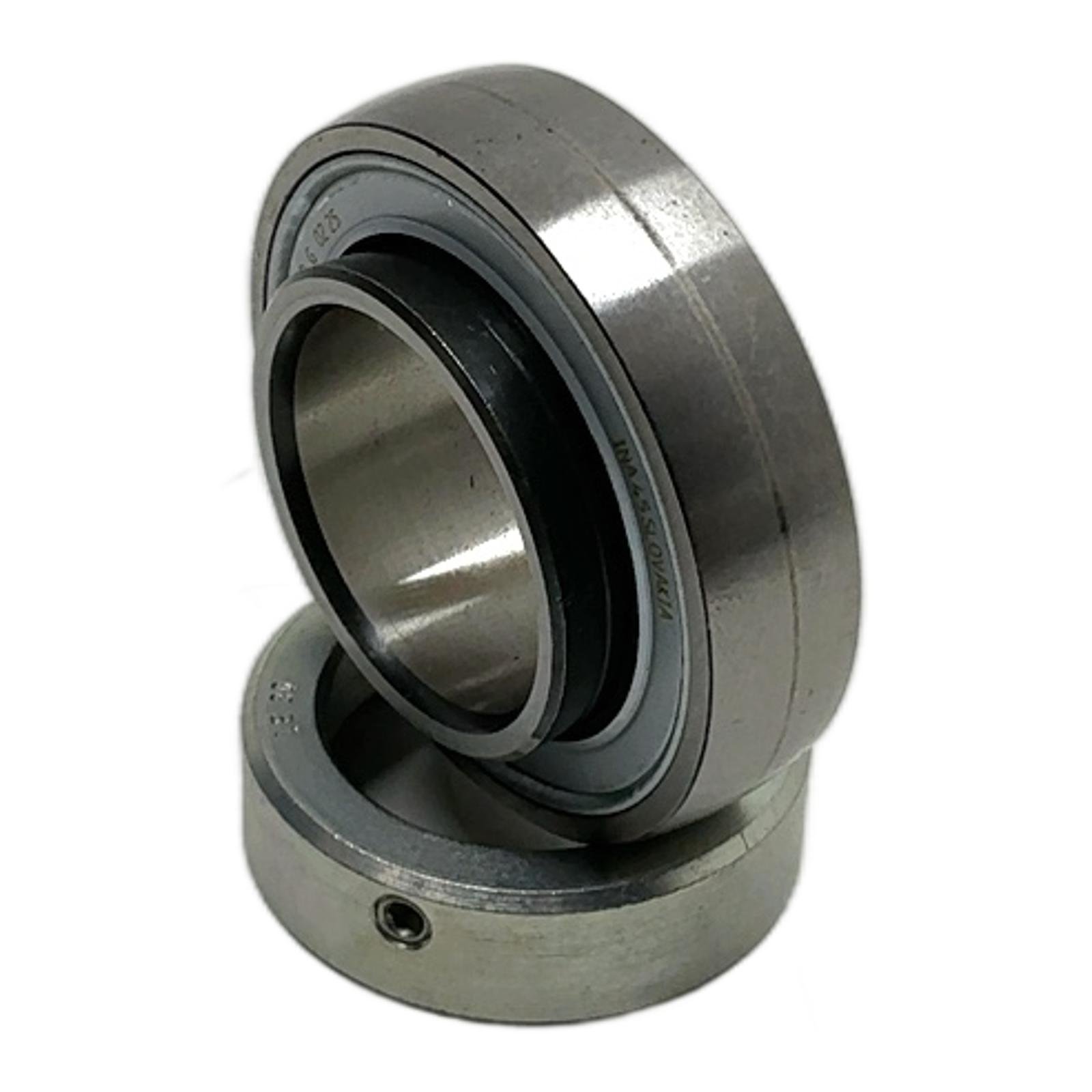

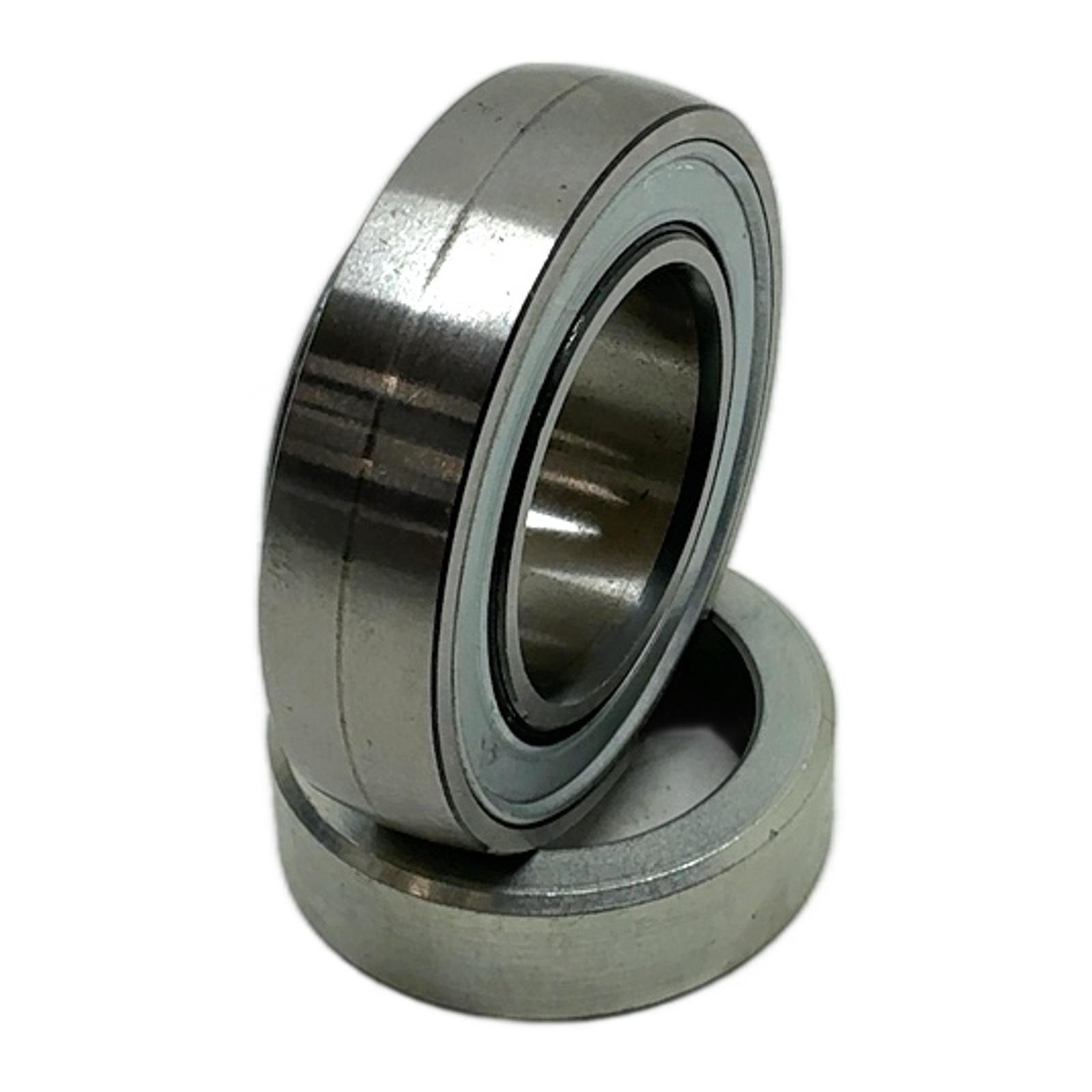

INA RALE30-NPP-B Radial Insert Ball Bearing with Eccentric Locking Collar Description The INA RALE30-NPP-B is a high-performance radial insert ball bearing, designed for reliability and ease of use in a wide range of industrial applications. It features an eccentric locking collar for simple and secure mounting onto a shaft. Its spherical outer surface allows for initial static misalignment when fitted into an appropriate housing. This bearing is supplied with P-seals on both sides to protect against contaminants and retain lubricant, extending its service life. Specifications Manufacturer: INA Type: RALE30-NPP-B Inner Diameter (Bore): 30 mm Outer Diameter: 62 mm Width (including collar): 35.7 mm Sealing: P-seal on both sides (Suffix NPP-B) Locking Mechanism: Eccentric locking collar Outer Ring: Spherical Label Info Part Number: RALE30-NPP-B Schaeffler ID: 000818437-0000-02 EAN: 4012802065985 Application This insert bearing is commonly used in agricultural machinery, construction equipment, conveyor systems, food and beverage processing, and textile machinery where simple mounting and reliable performance are required. Country of Origin Made in Slovakia. CO2 Impact Opting for this component helps avoid the CO2 emissions associated with manufacturing a new one, estimated at 0.5 kg, which is comparable to the energy needed to charge a smartphone 60 times. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What type of housing is the RALE30-NPP-B designed for?It is designed for housings with a spherical seat to accommodate its spherical outer ring. This design allows it to compensate for initial shaft misalignment, making it ideal for pillow block and flanged housing units. What is the main advantage of the eccentric locking collar?The eccentric locking collar provides a simple, quick, and secure method for mounting the bearing on a shaft. It is particularly effective in applications where the direction of rotation is constant. How does the ‘NPP-B’ sealing differ from other INA seals?The ‘NPP’ designation indicates that the bearing is equipped with P-type lip seals on both sides, offering effective protection against contamination and grease retention. The ‘-B’ suffix denotes the spherical outer ring design for self-alignment. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
