INA RAE40-NPP-NR

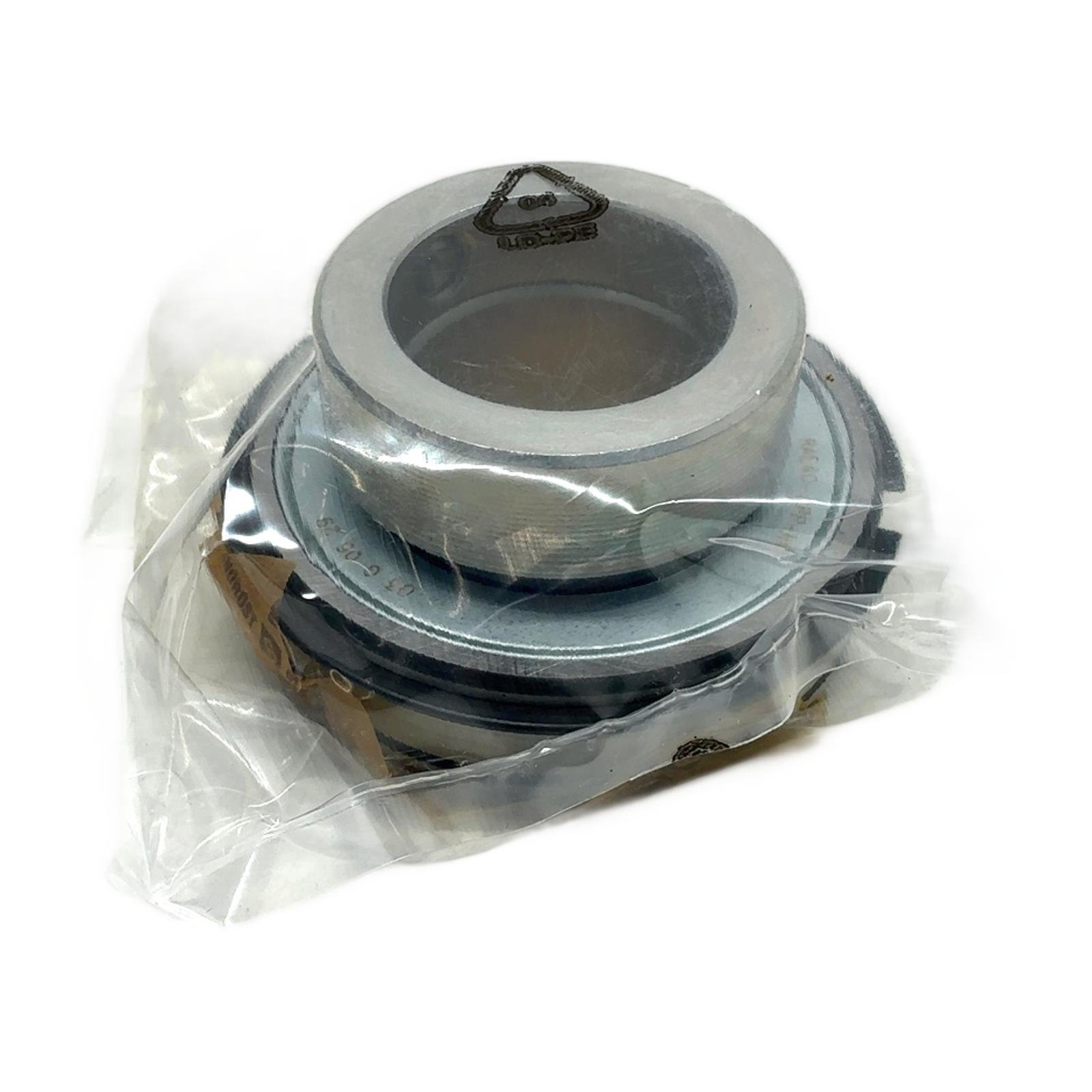

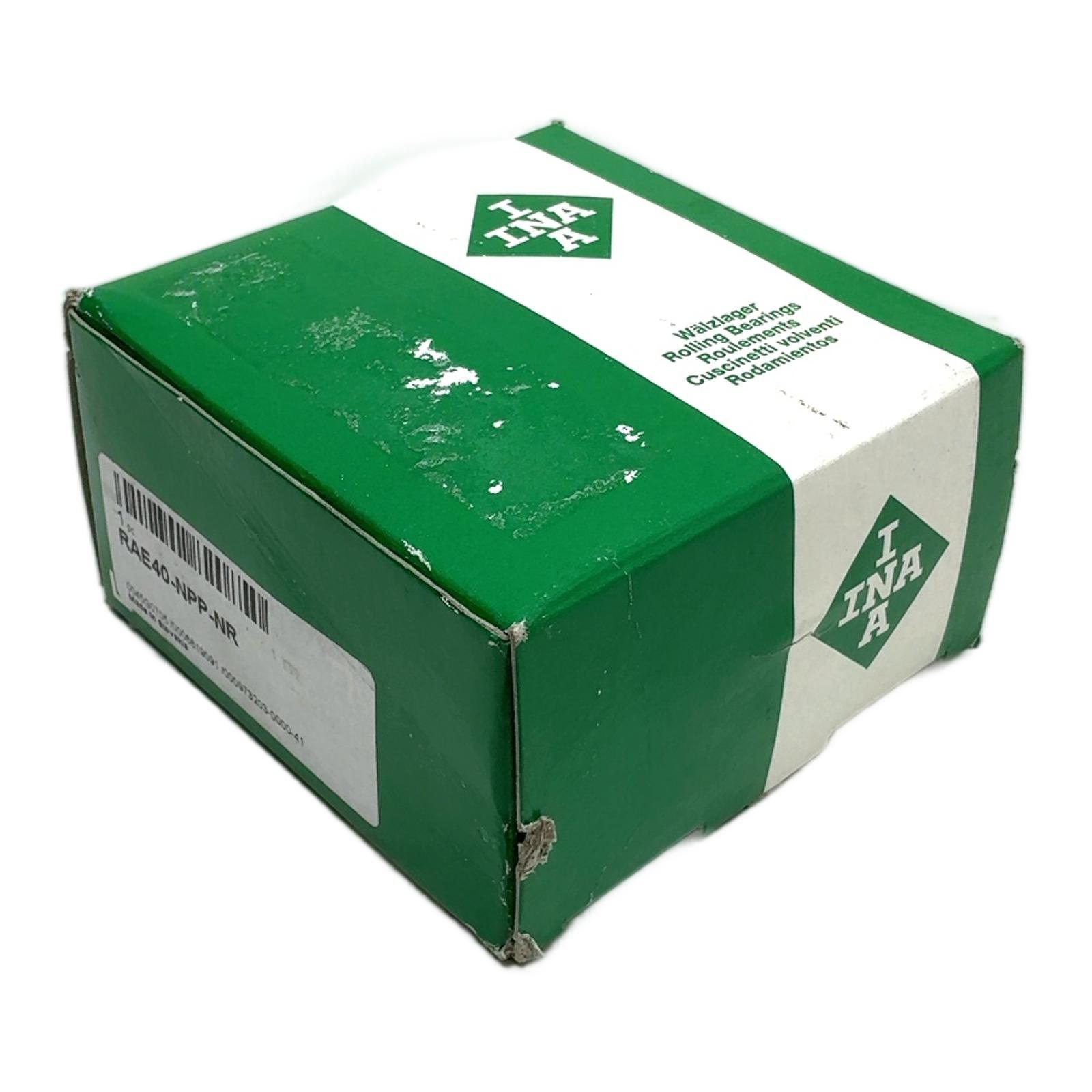

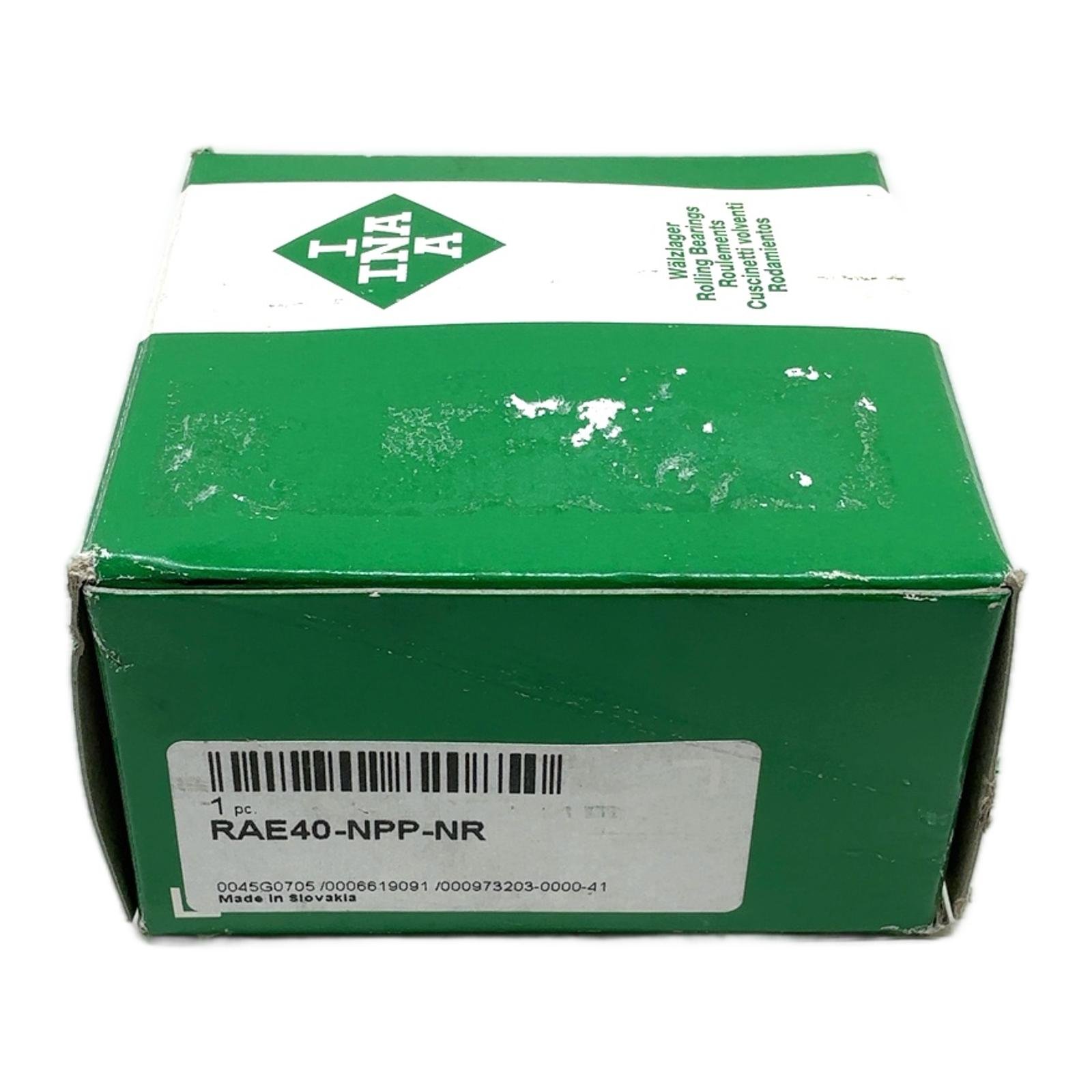

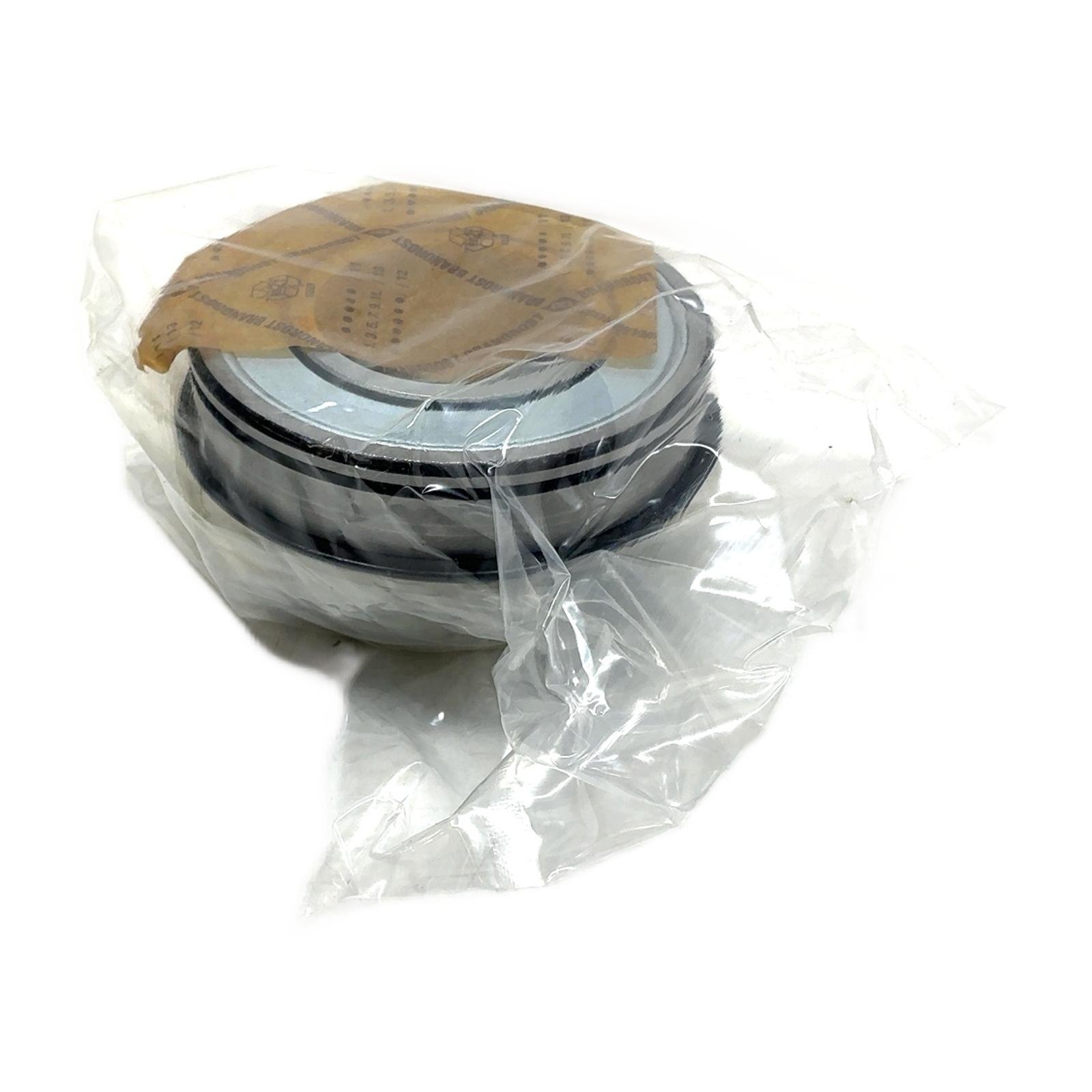

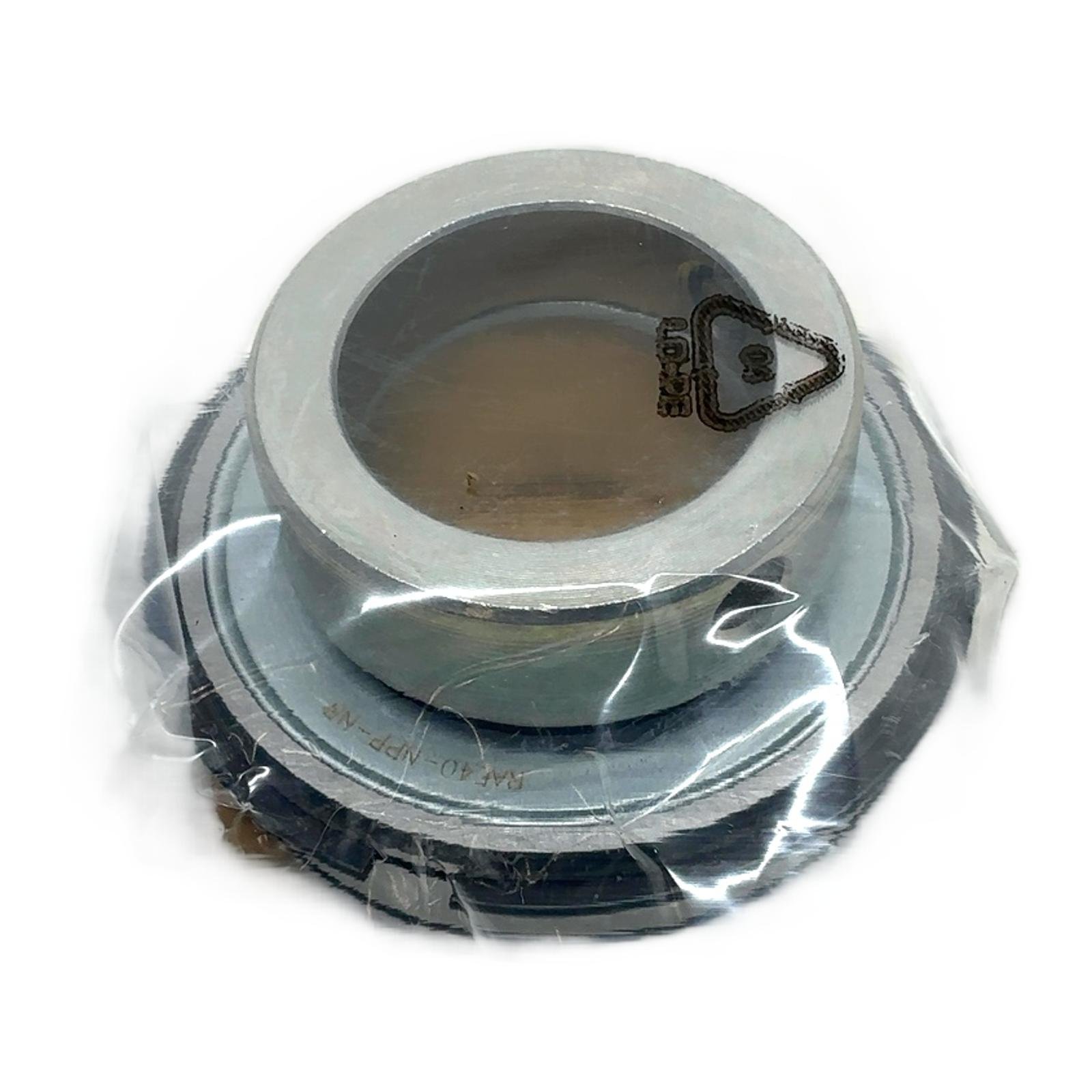

INA RAE40-NPP-NR Radial Insert Ball Bearing Description The INA RAE40-NPP-NR is a robust radial insert ball bearing with a 40mm bore, designed for reliable operation in a wide range of industrial applications. It features an eccentric locking collar for simple and secure mounting onto shafts. The spherical outer surface allows it to accommodate initial static misalignment when used in a corresponding housing. This bearing is supplied by INA, a leading brand within the Schaeffler Group, known for its high-quality engineering. Specifications Manufacturer: INA Type: RAE40-NPP-NR Bore Diameter (d): 40 mm Outer Diameter (D): 80 mm Width (B): 43.7 mm Sealing: P-seals on both sides (NPP suffix) Locking Mechanism: Eccentric locking collar Outer Ring Feature: Snap ring groove with snap ring (NR suffix) Label Info Part Number: RAE40-NPP-NR Batch Codes: 0045G0705/0006619091/000973203-0000-41 Application This bearing is commonly used in agricultural machinery, conveyor systems, construction equipment, and other general industrial machinery where simple mounting and reliability are required. Country of Origin Made in Slovakia. CO2 Impact By purchasing this pre-owned component, you are helping to avoid the production of a new one, saving an estimated 1.22 kg of CO2. This is a sustainable choice for your maintenance needs. Availability This item is in stock and ready for immediate dispatch. It is a new-old-stock (NOS) item in its original, sealed packaging. Order now from profideals for expert support and fast delivery. FAQ What does the ‘NPP-NR’ suffix mean on the INA RAE40-NPP-NR?The ‘NPP’ indicates that the bearing is fitted with effective P-seals on both sides for protection against contamination and lubricant loss. The ‘NR’ suffix signifies that the outer ring has a groove and is supplied with a snap ring for axial location. Can this bearing accommodate shaft misalignment?Yes, the RAE40-NPP-NR has a spherical outer ring which allows it to compensate for initial static misalignment of the shaft when it is mounted in a suitable housing (e.g., a pillow block or flange unit). What is the correct procedure for mounting this bearing with its eccentric locking collar?To mount, slide the bearing onto the shaft. Turn the eccentric locking collar in the direction of shaft rotation until it locks securely. Then, tighten the set screw in the collar to the manufacturer’s recommended torque to finalize the mounting. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Laatst bijgewerkt: Friday, March 13, 2026
