PHOENIX CONTACT QUINT-PS-100-240AC/24DC/10 2938604

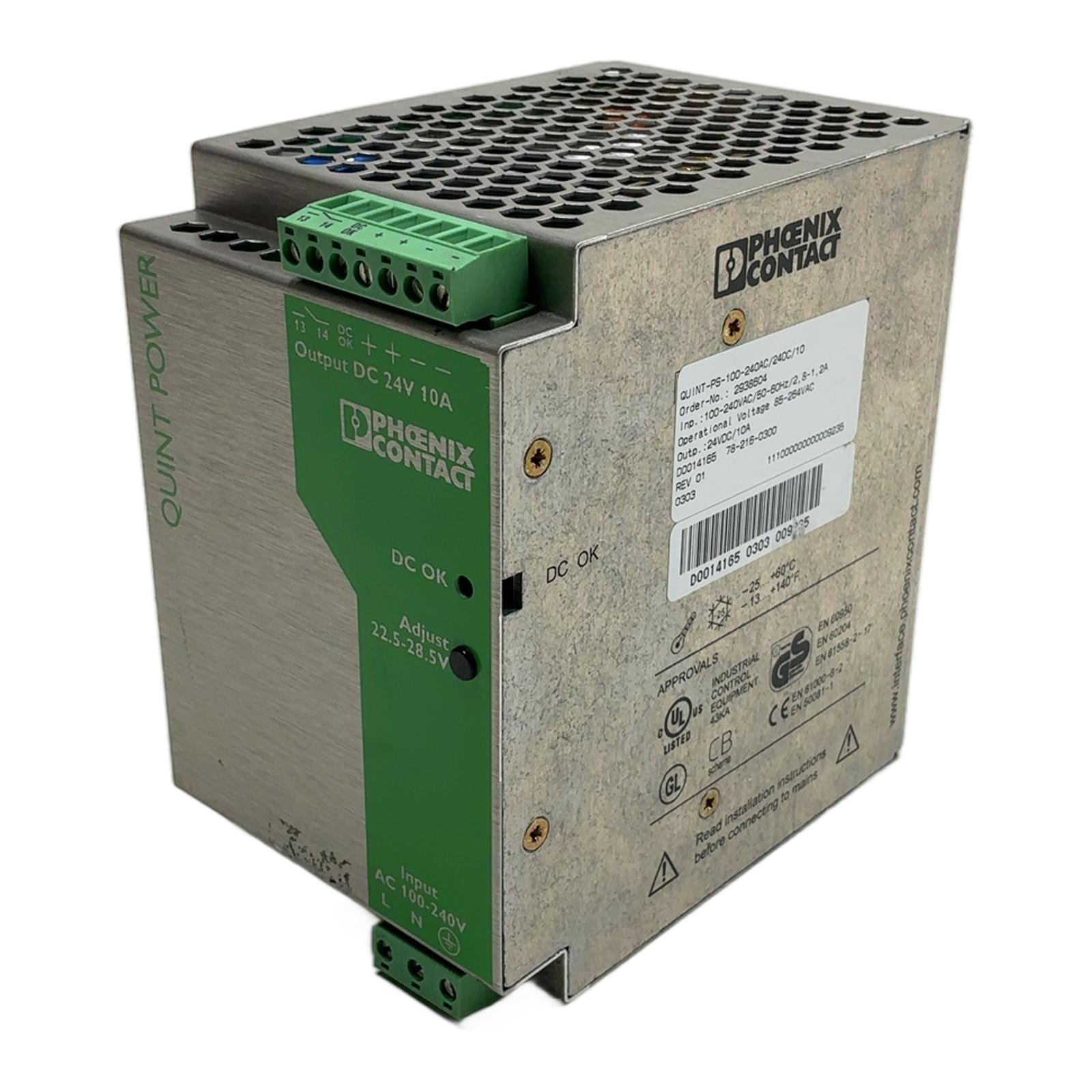

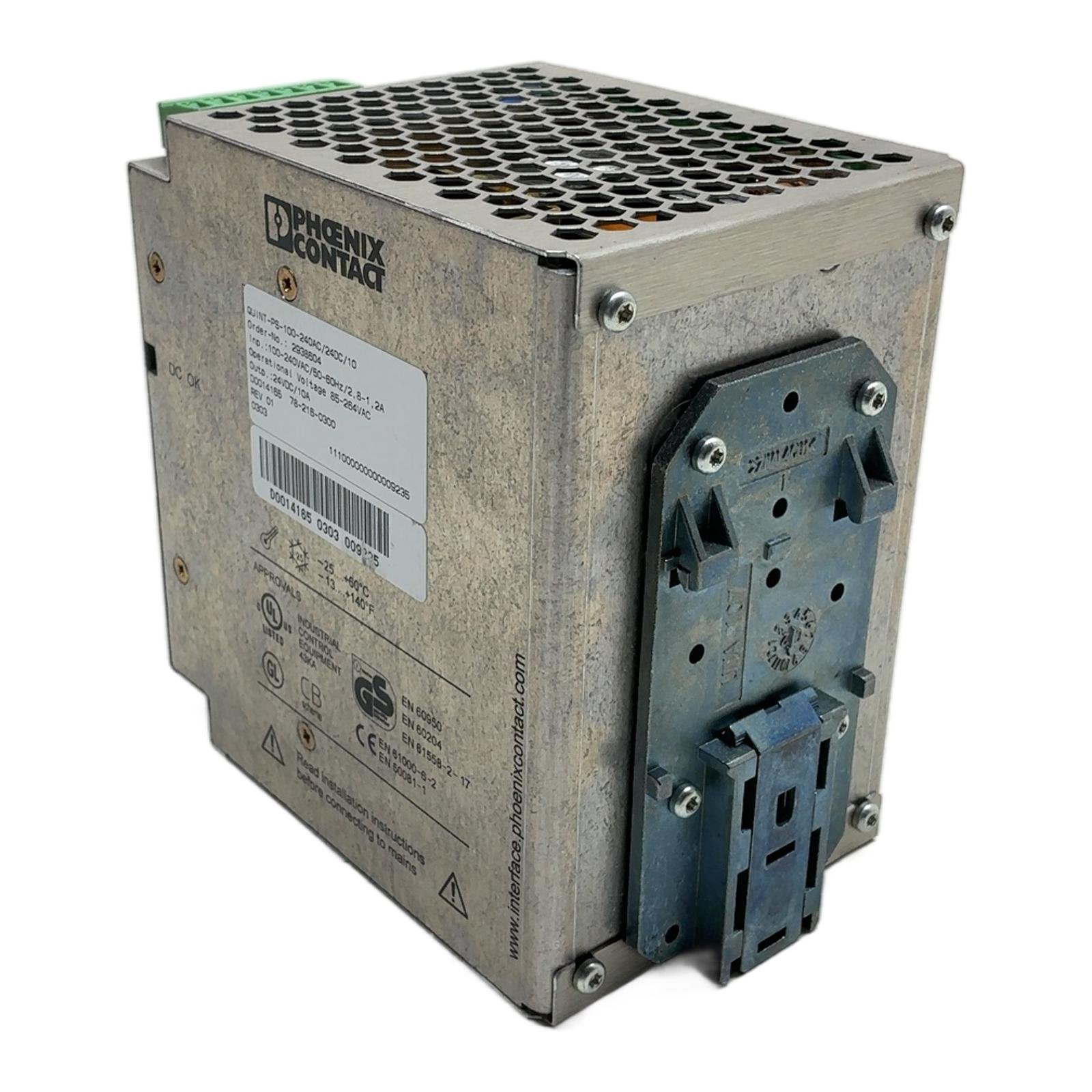

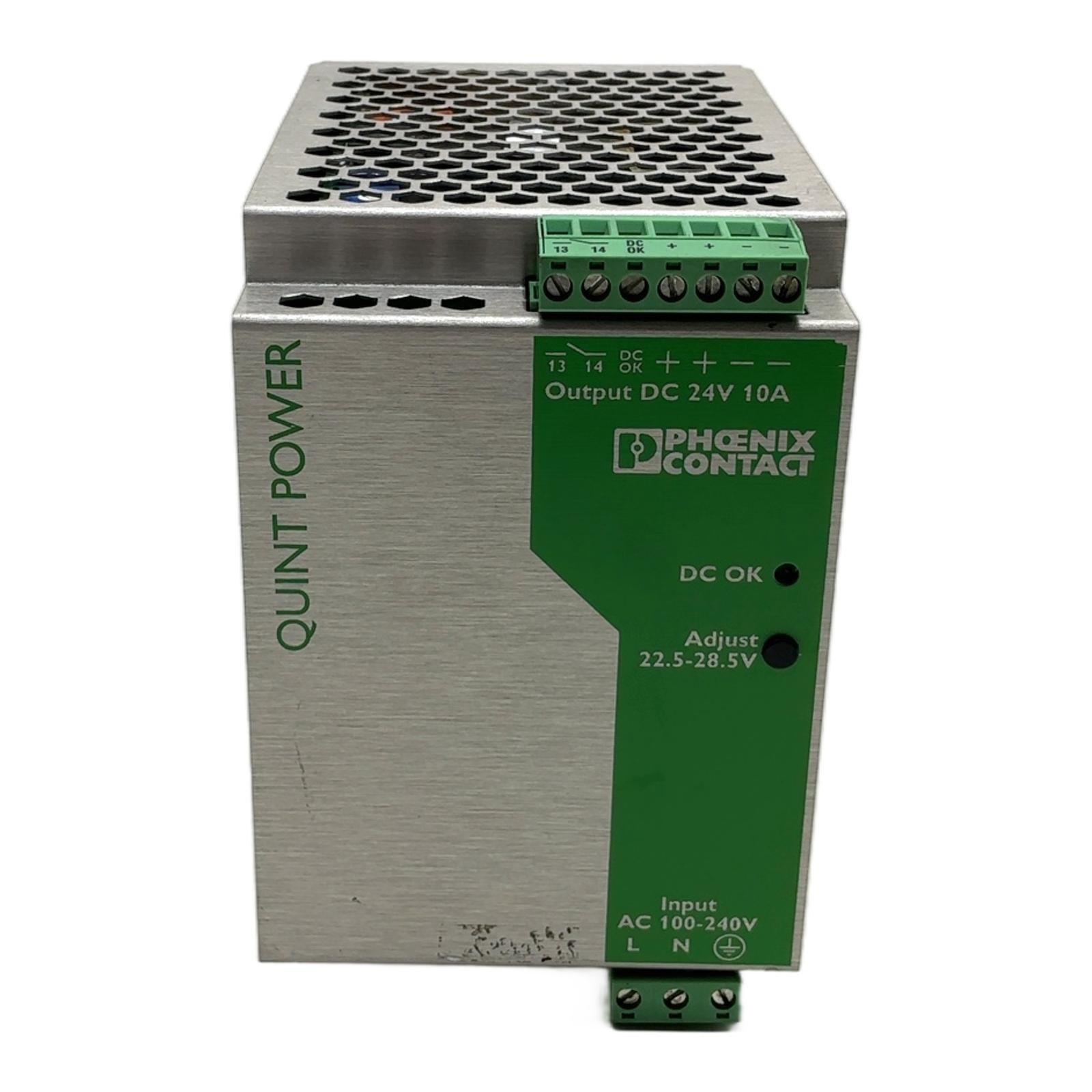

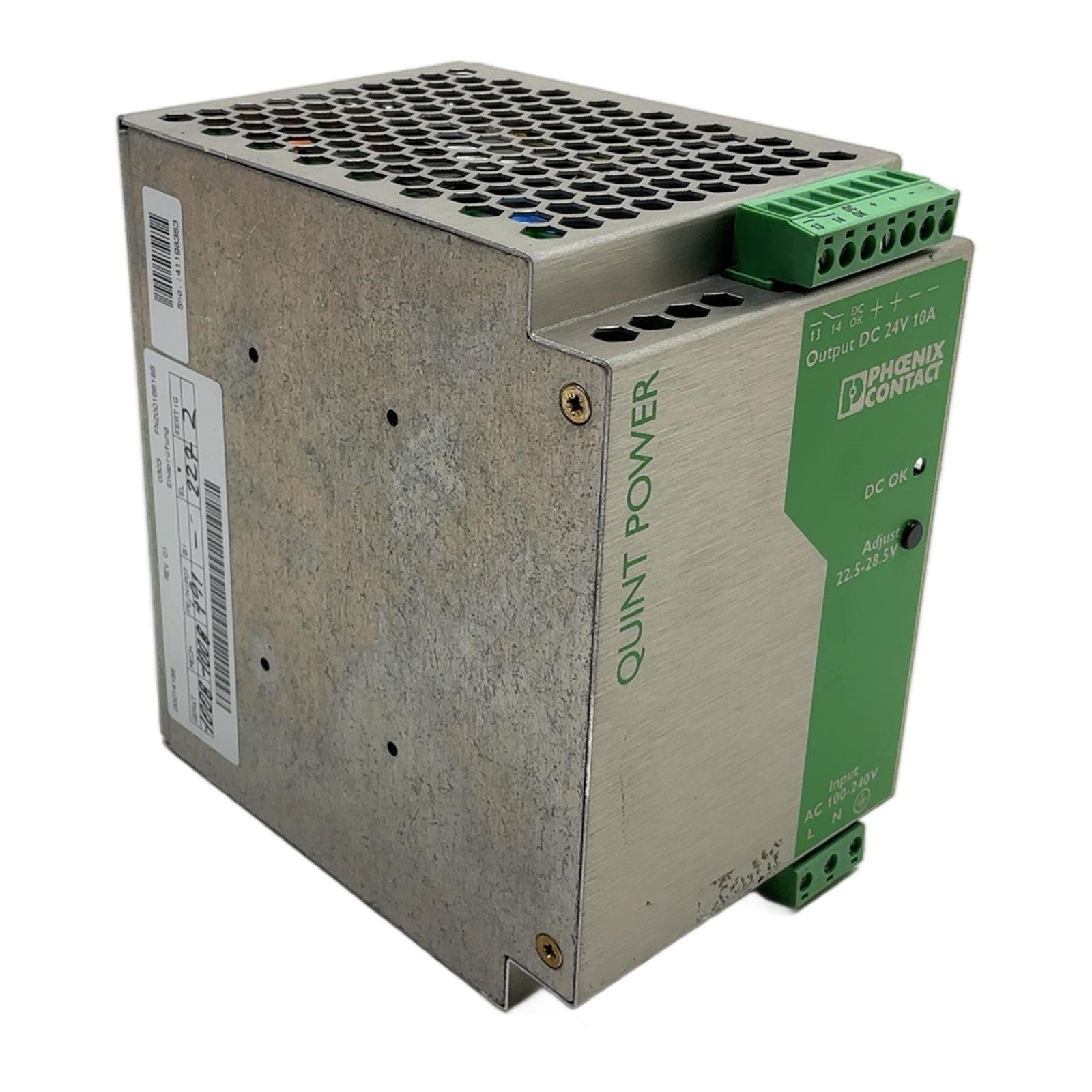

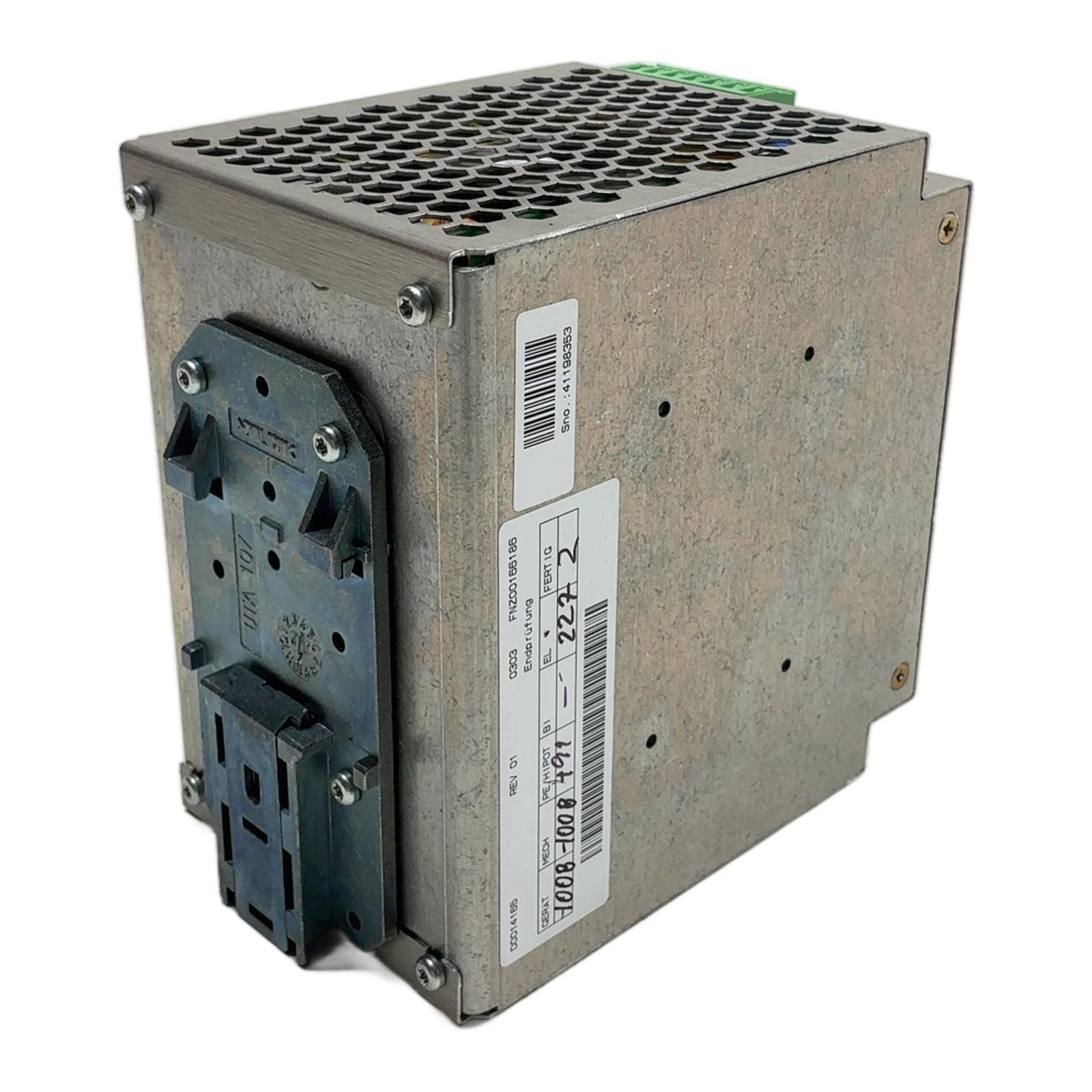

Phoenix Contact Power Supply 24V 10A QUINT-PS-100-240AC/24DC/10 Description This is the QUINT-PS-100-240AC/24DC/10, a highly reliable single-phase power supply from Phoenix Contact’s QUINT POWER series. Designed for industrial use, it provides a stabilized and adjustable 24V DC output voltage with a nominal current of 10A. Its robust metal housing and wide operating temperature range ensure dependable performance in harsh environments, making it an ideal choice for critical automation and control applications. Specifications Manufacturer: Phoenix Contact Product Line: QUINT POWER Model: QUINT-PS-100-240AC/24DC/10 Order Number: 2938604 Input Voltage: 100-240V AC (Nominal), 85-264V AC (Operational) Input Frequency: 50/60 Hz Output Voltage: 24V DC Output Current: 10A Adjustable Output Range: 22.5V to 28.5V DC Efficiency: > 90% Mounting: DIN Rail Label Info Type: QUINT-PS-100-240AC/24DC/10 Order No.: 2938604 Inp.: 100-240VAC / 50-60Hz / 2.8-1.2A Outp.: 24VDC / 10A Rev: 01 Application This power supply is perfectly suited for a wide range of industrial applications, including machine building, process control, factory automation, and powering sensitive electronic components within control cabinets. Country of Origin This product is manufactured in Germany. CO2 Impact By choosing this pre-owned power supply, you are preventing the emission of approximately 60.0 kg of CO2. This saving is comparable to the emissions from driving a standard car for 300 kilometers. Availability This is an obsolete item but available from our stock as a tested, used component. It’s an excellent choice for repairs and extending the life of existing installations. Order now from profideals for expert support and fast delivery. FAQ Question?Can this QUINT POWER supply be operated in parallel with another unit for redundancy or increased power?AnswerYes, this generation of QUINT POWER supplies supports parallel operation. For true N+1 redundancy, it is recommended to use a QUINT DIODE module to decouple the power supplies. Question?What is the inrush current for this power supply?AnswerThe typical inrush current for the QUINT-PS-100-240AC/24DC/10 is less than 20A after 1 millisecond. This is an important consideration when selecting circuit breakers for the input line. Question?Is the output of this power supply short-circuit proof?AnswerYes, the output is electronically short-circuit proof and provides a sustained current in case of a fault. This feature, part of the POWER BOOST technology, helps trip downstream circuit breakers selectively. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
