SCHNEIDER ELECTRIC LC1K12004P7

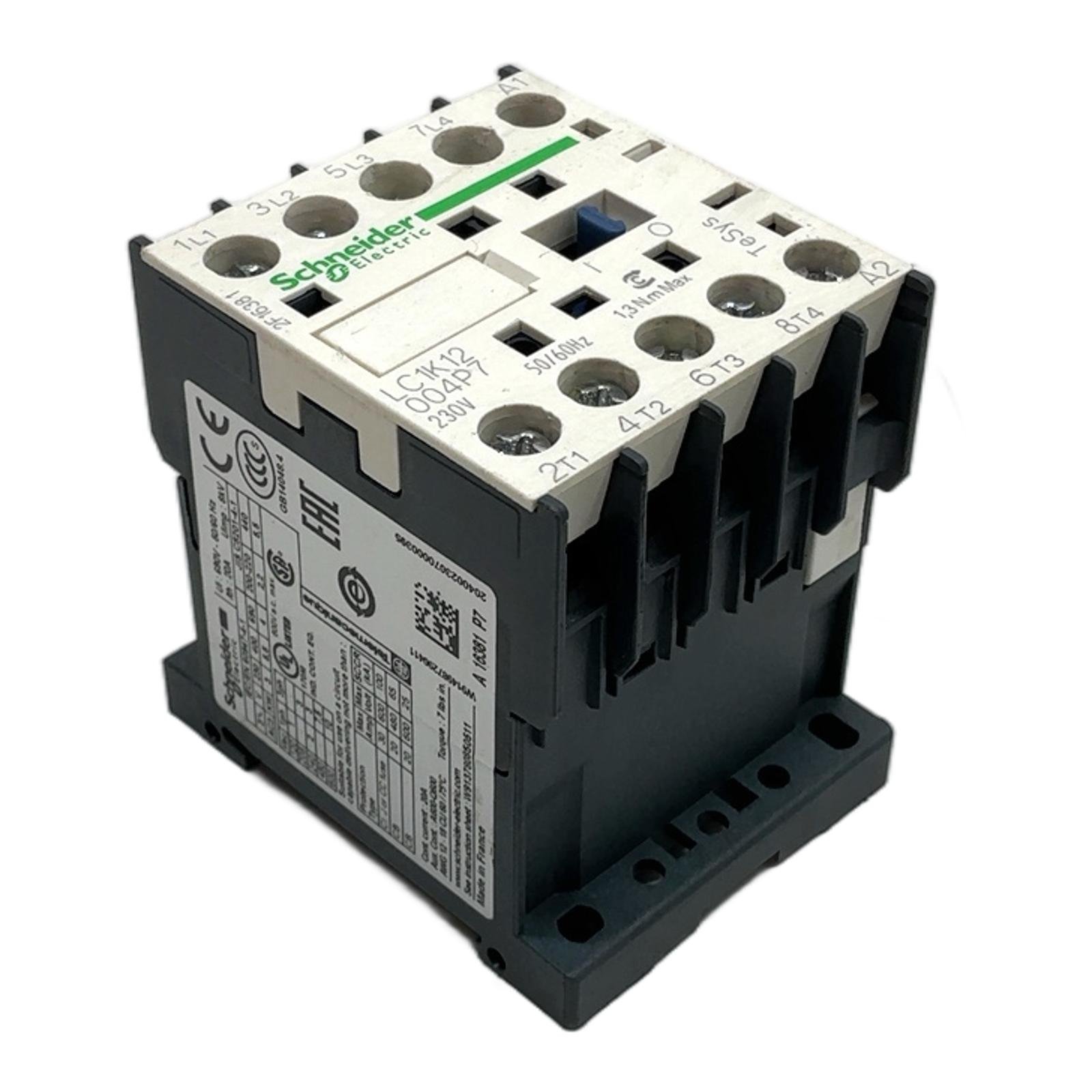

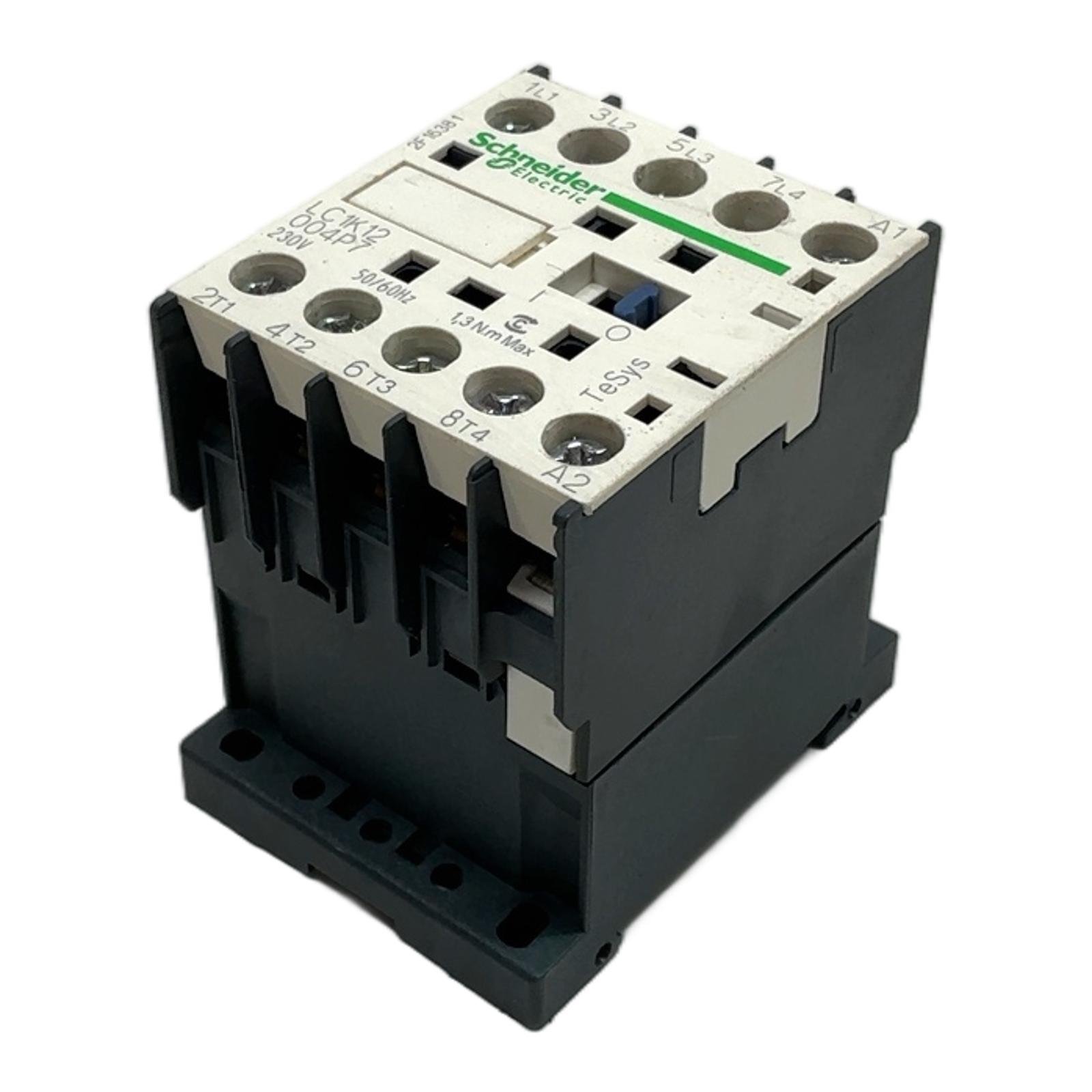

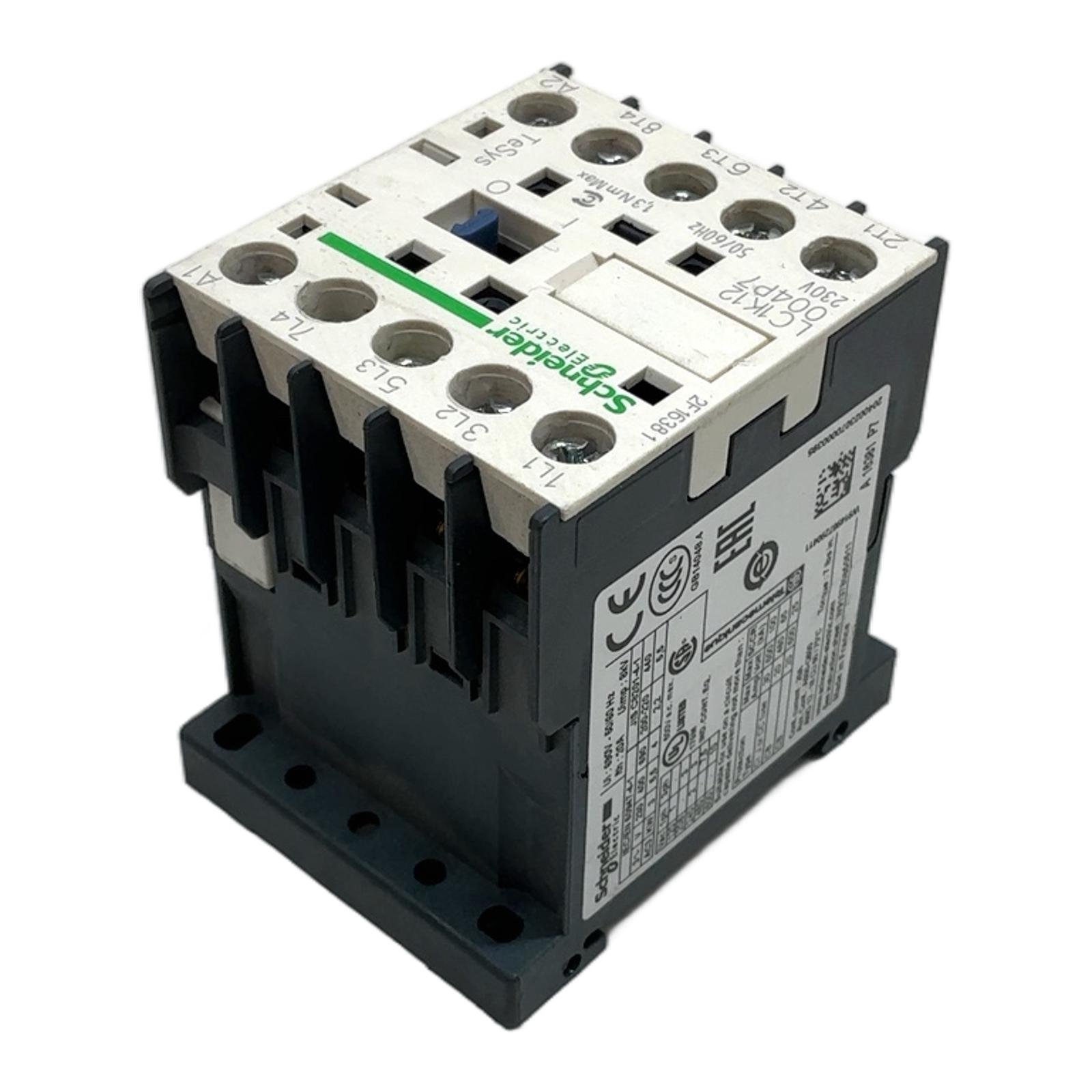

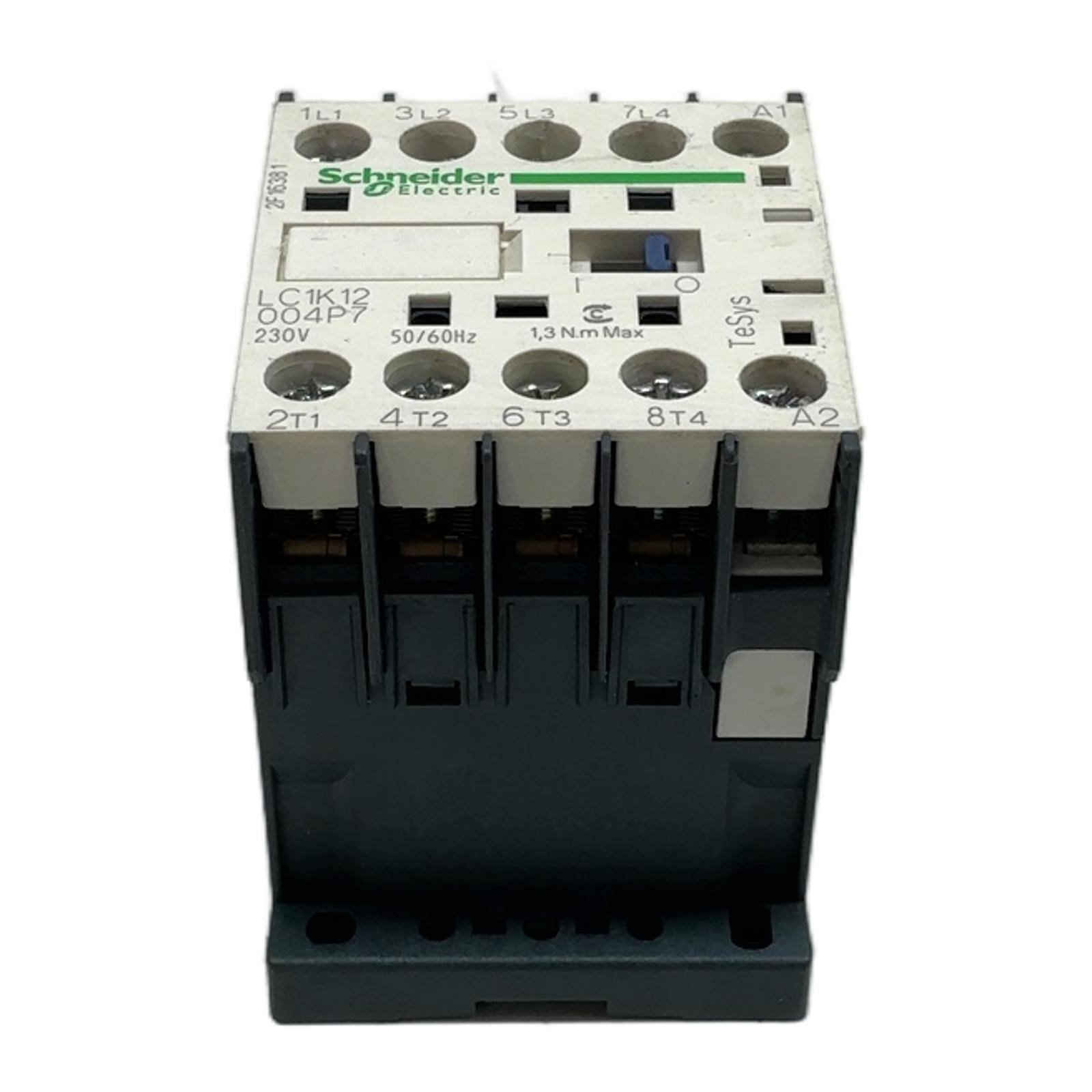

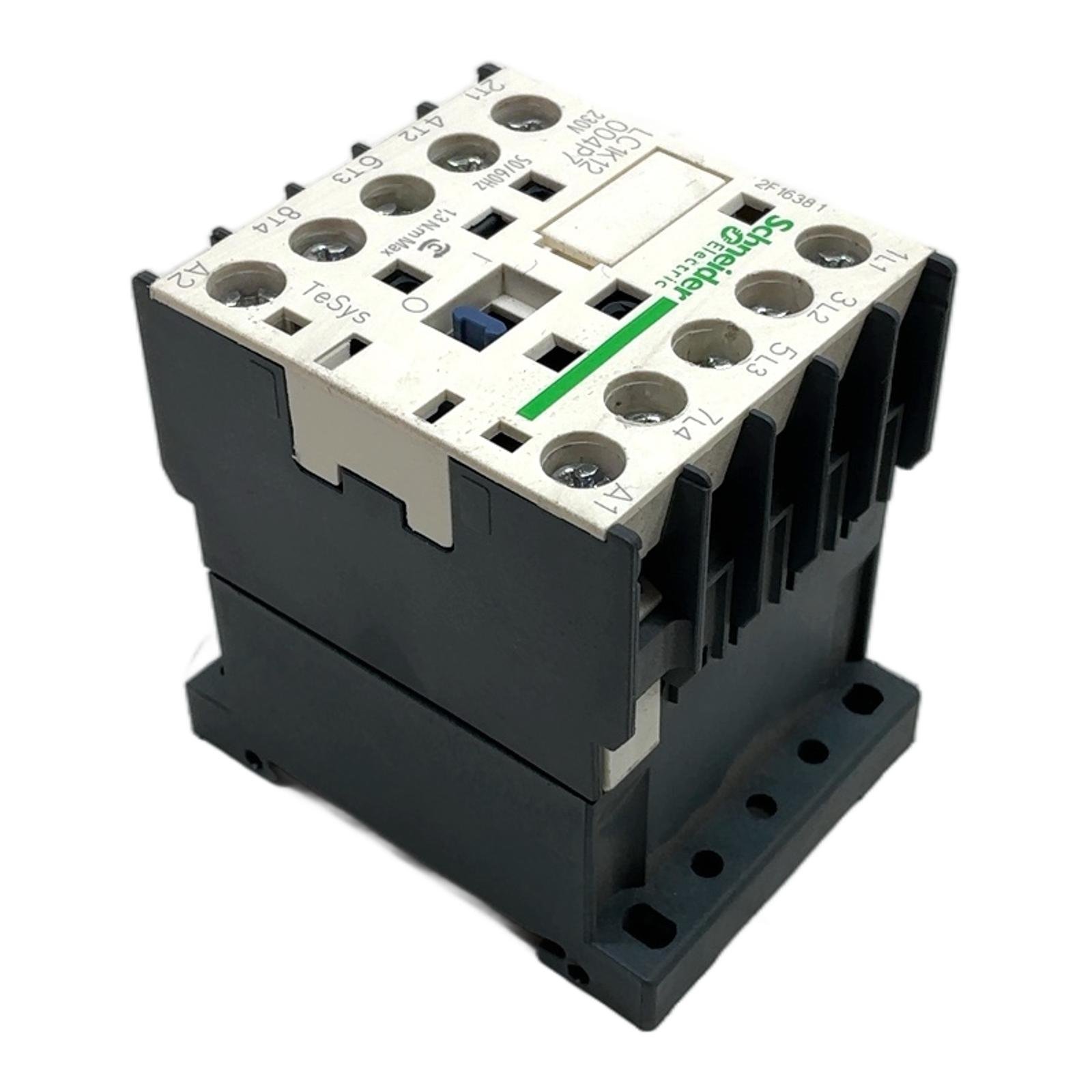

Schneider Electric TeSys K 4-Pole Contactor Description The LC1K12004P7 is a high-performance 4-pole contactor from the Schneider Electric TeSys K series. It is engineered for compactness and reliability in demanding industrial environments. This component is ideal for controlling motors and other electrical loads up to 12A (AC-3). With a 230V AC coil, it integrates seamlessly into standard control systems. Specifications Manufacturer: Schneider Electric Product Series: TeSys K Model: LC1K12004P7 Poles: 4-Pole (4NO) Rated Operational Current (AC-3, up to 440V): 12A Conventional Thermal Current (Ith): 20A Coil Voltage: 230V AC, 50/60 Hz Rated Insulation Voltage (Ui): 690V Mounting: DIN Rail or Screw Mount Label Info IEC/EN 60947-4-1 Compliant Power Rating at 400V (AC-3): 5.5 kW Certifications: UL, CSA, CE, EAC, CCC Application This contactor is primarily used in automation and control panels for applications requiring the switching of four power lines simultaneously. This includes certain motor configurations, heating loads, and as a main isolating device. Country of Origin Made in France. CO2 Impact Opting for this pre-owned contactor prevents approximately 7.2 kg of CO2 emissions compared to manufacturing a new one, contributing to a more sustainable industrial sector. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What are the main applications for this 4-pole LC1K12004P7 contactor?This 4-pole contactor is typically used for switching non-inductive loads or for applications where all four lines need to be switched, such as certain types of motor control or mains isolation. Can I add auxiliary contact blocks to this TeSys K contactor?Yes, the TeSys K series is modular. You can add front-mounted or side-mounted auxiliary contact blocks (like the LA1K series) to expand the number of control contacts as needed for your circuit logic. What does the ‘P7’ in the type number LC1K12004P7 signify?The ‘P7′ in Schneider Electric’s part numbering system for this series specifies the coil voltage. ‘P7’ corresponds to a control coil voltage of 230V AC at 50/60Hz. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
